DJ627-2.8A / G342 Automotive 2.8mm Crimp Terminal — FCI 211PC249S8005 Series

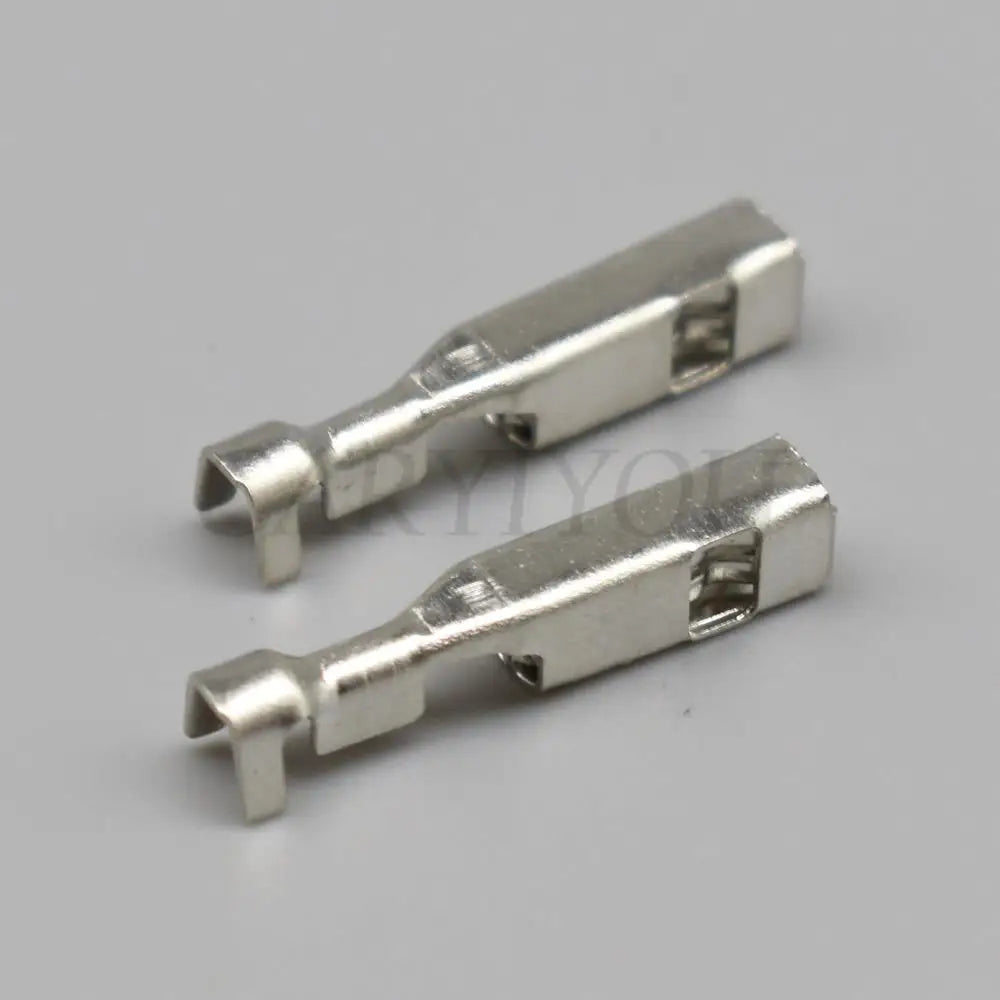

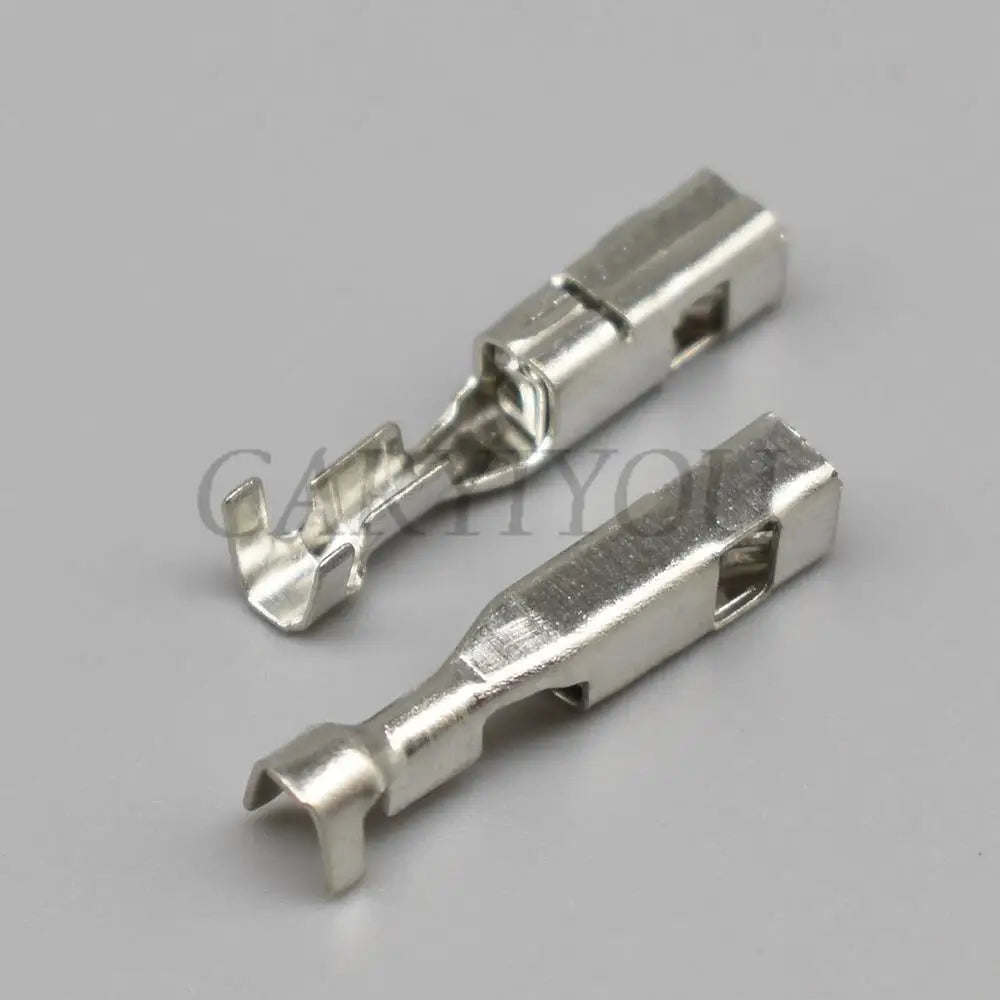

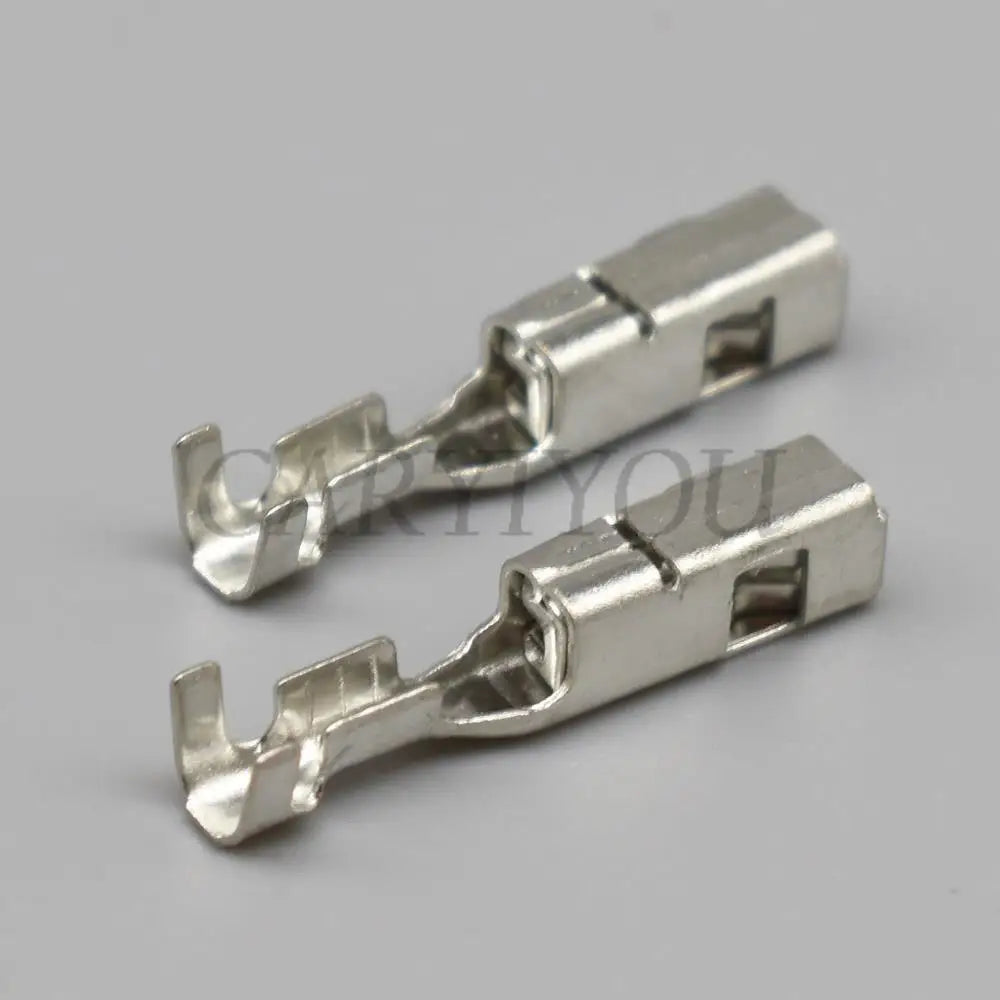

The DJ627-2.8A crimp terminal (also referenced as G342) is a 2.8mm series automotive-grade female crimp contact designed for use with FCI 211PC249S8005 multi-pin waterproof ECU connectors. Manufactured from tin-plated brass, these terminals deliver low contact resistance, reliable corrosion protection, and consistent crimp retention across the full automotive temperature range. Supplied in a 50PCS pack for wiring harness repair, connector re-termination, and custom harness fabrication.

Technical Specifications

Parameter	Value
Model	DJ627-2.8A (G342)
Compatible Connector	FCI 211PC249S8005 / HCCPHPE24BKA90F
Terminal Pitch	2.8mm
Gender	Female (crimp contact)
Material	Brass, tin-plated
Dimensions	H: 4mm / W: 3.47mm / L: 20.4mm
Pack Quantity	50PCS
Certification	CE
Origin	Mainland China

Key Features

✅ Tin-plated brass — low contact resistance, corrosion-resistant, long-term reliability in automotive environments
✅ 2.8mm pitch — standard automotive terminal size for medium-current signal and power circuits
✅ FCI 211PC249S8005 compatible — direct-fit replacement terminal for FCI / HCCPHPE24BKA90F series connectors
✅ CE certified — meets European automotive electrical component standards
✅ 50PCS pack — sufficient for multiple connector assemblies and harness repair jobs

Common Applications

FCI 211PC249S8005 / HCCPHPE24BKA90F ECU connector re-termination
Automotive wiring harness repair and custom fabrication
Sensor and signal circuit connector terminal replacement
OEM and aftermarket ECU connector assembly
Automotive electrical restoration and repair

Crimping Guide

Strip 5–6mm of insulation from the wire end.
Insert the wire into the terminal crimp barrel, ensuring the conductor extends slightly beyond the barrel.
Crimp the wire barrel using a ratchet crimping tool with the appropriate 2.8mm die.
Crimp the insulation barrel for strain relief.
Insert the crimped terminal into the FCI connector housing until it clicks into the retention position.

FAQ

Q: What wire gauge is compatible?
A: The DJ627-2.8A terminal is designed for 0.5–1.5mm² (AWG 20–16) wire, typical for automotive signal and low-power circuits.

Q: Is this compatible with the 211PC249S8005 connector housing?
A: Yes. The DJ627-2.8A / G342 is the correct crimp terminal for the FCI 211PC249S8005 and HCCPHPE24BKA90F 24-pin waterproof ECU connector housings.
