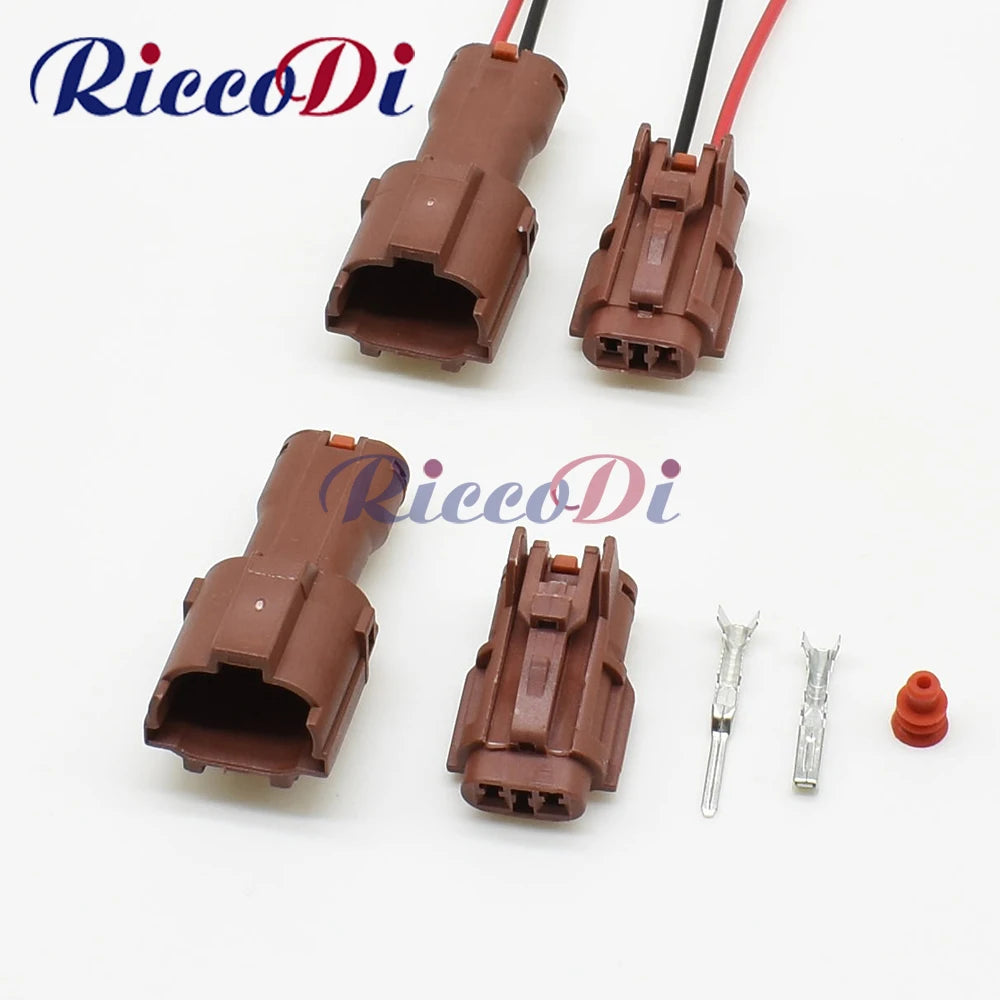

DJ7022YB-2.8mm 3-Pin Brown Waterproof Automotive Plug Connector Socket Male Female
DJ7022YB-2.8mm 3-Pin Brown Waterproof Automotive Plug Connector Socket Male Female
Couldn't load pickup availability

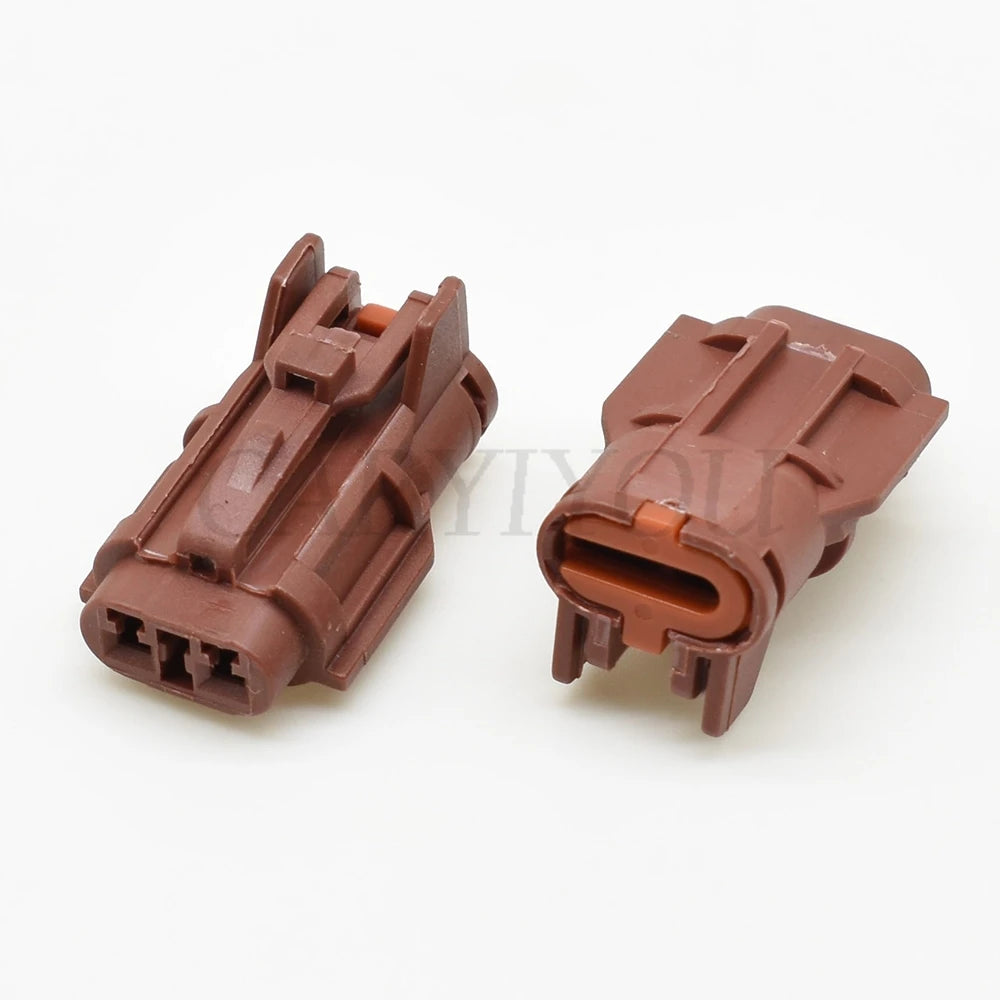

DJ7022YB-2.8mm 3-Pin Brown Waterproof Automotive Plug Connector
The DJ7022YB-2.8-11/21 is a CE-certified, waterproof 3-pin automotive connector with a 2.8mm pitch in a distinctive brown housing. Designed for sensor and actuator wiring in vehicle electrical systems, it provides a reliable, corrosion-resistant connection with individual rubber wire seals.
Key Specifications
| Parameter | Value |
|---|---|
| Model | DJ7022YB-2.8-11 (male) / DJ7022YB-2.8-21 (female) |
| Pin Count | 3 |
| Pitch | 2.8mm |
| Color | Brown |
| Housing Material | PA66 (Nylon 66) |
| Terminal Material | Copper alloy, tin-plated |
| Seal | Individual rubber wire seals |
| Waterproof | Yes |
| Certification | CE |
Why Choose This Connector?
- ✅ CE certified for automotive-grade reliability
- ✅ Brown housing for easy visual identification in multi-connector harnesses
- ✅ 3-pin 2.8mm pitch for sensor and actuator wiring applications
- ✅ Individual rubber wire seals for waterproof protection per pin

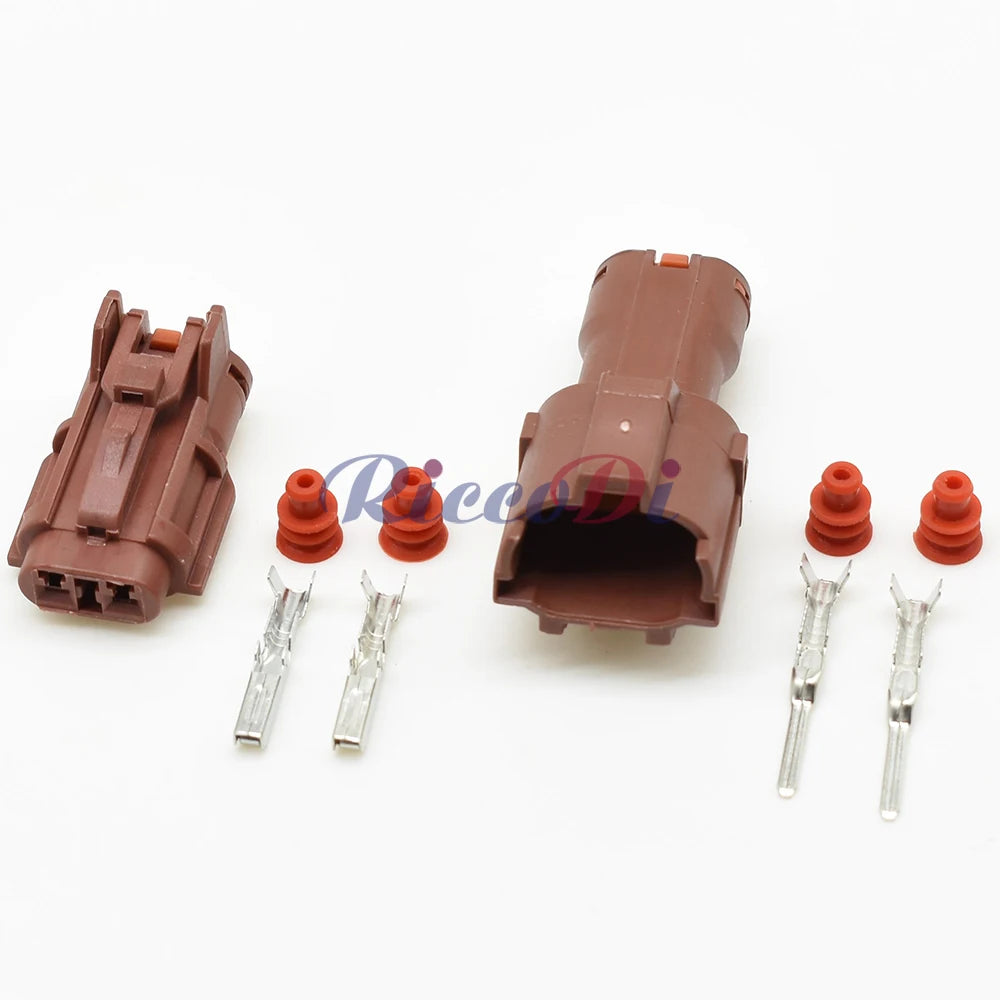

- ✅ Matched male/female pair for complete harness repair
Typical Applications
- 3-pin engine sensor wiring (MAP, MAF, TPS with ground)
- Automotive actuator and solenoid connector repair
- ABS sensor connector with power, ground, and signal pins
- Transmission control module (TCM) sensor wiring
- General 2.8mm pitch 3-pin waterproof automotive connector applications
Compatible With
Vehicles using DJ7022YB-2.8-11/21 OEM connector spec. Fits 18–22 AWG wire. The brown color coding is commonly used in European and Asian OEM harness systems for sensor identification.
FAQ
Q: Why is this connector brown?
A: Brown housing is an OEM color code used in certain vehicle harness systems to identify specific circuit types (e.g., sensor power/ground/signal groups). It ensures correct connector mating in multi-connector assemblies.
Q: What is the difference between -11 and -21 suffix?
A: The suffix "-11" denotes the male plug and "-21" denotes the female socket. Both are required for a complete mated pair.
Q: What wire gauge is compatible?
A: Designed for 18–22 AWG wire, standard for automotive sensor and actuator circuits.

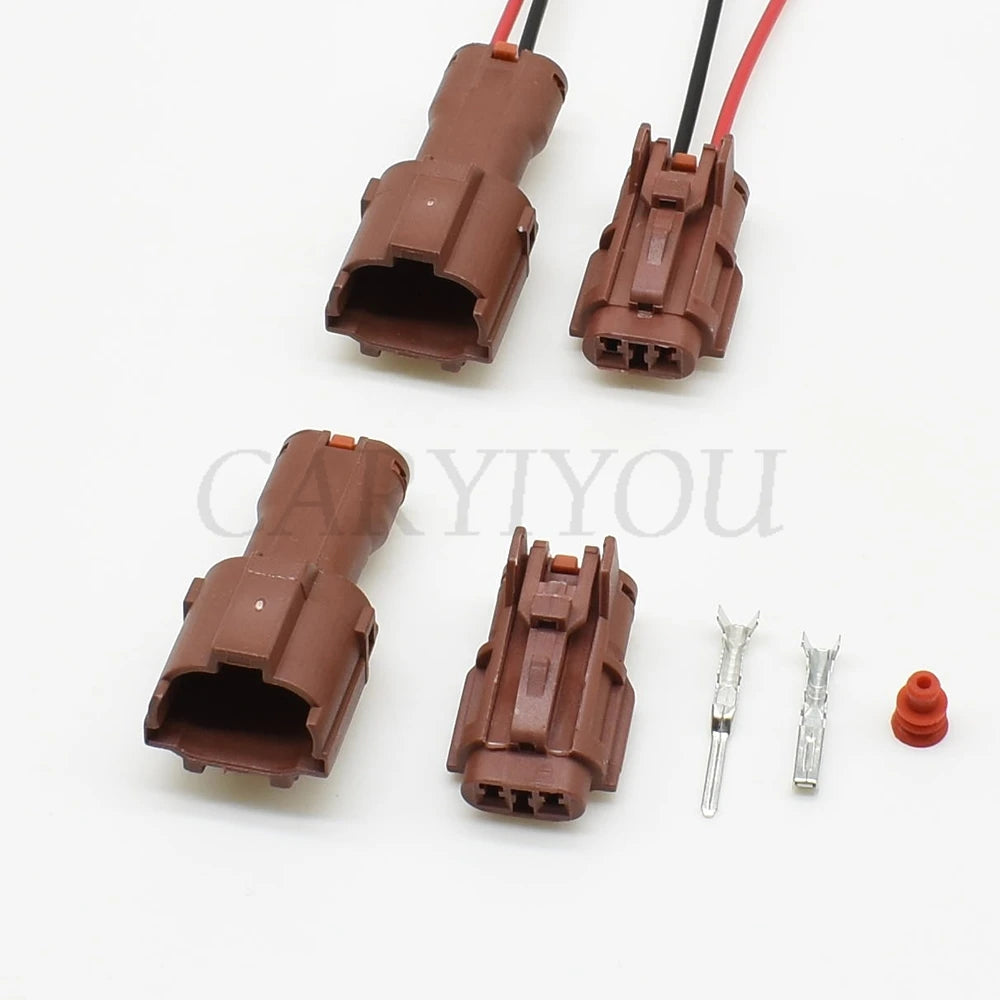

Package Contents

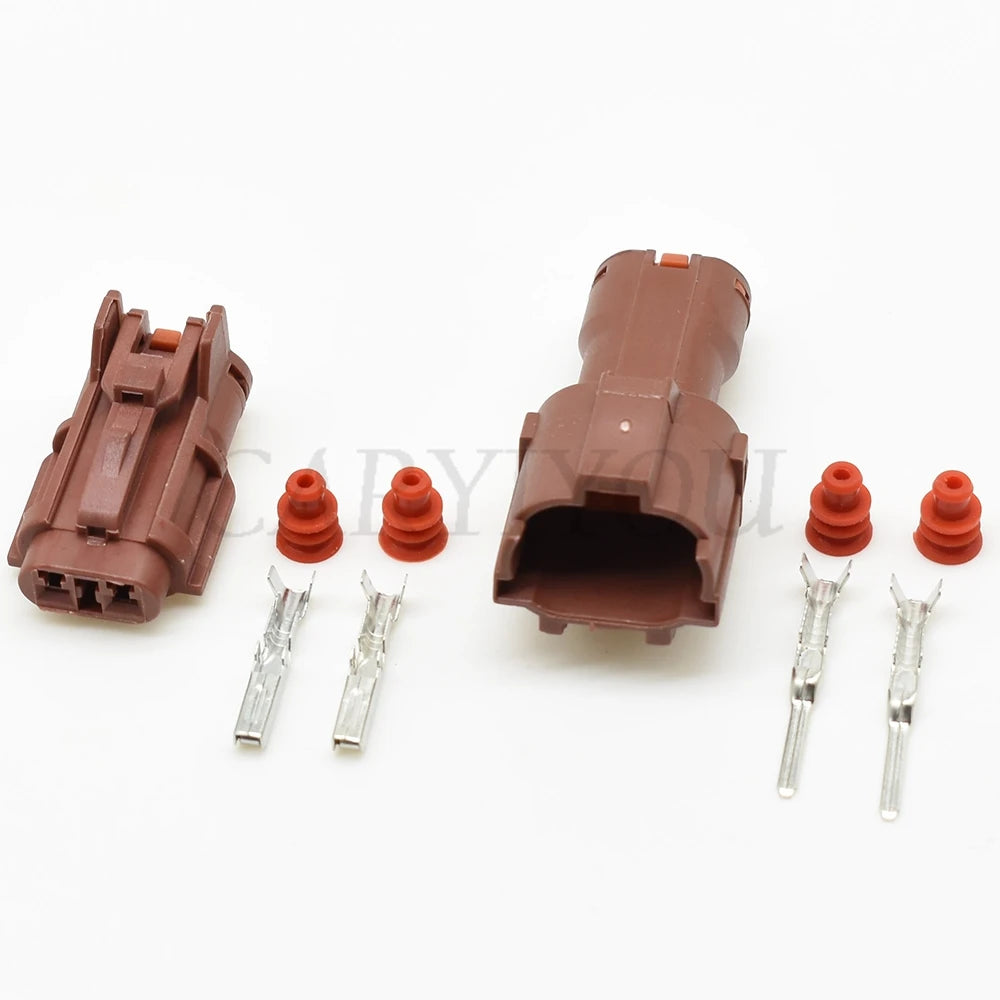

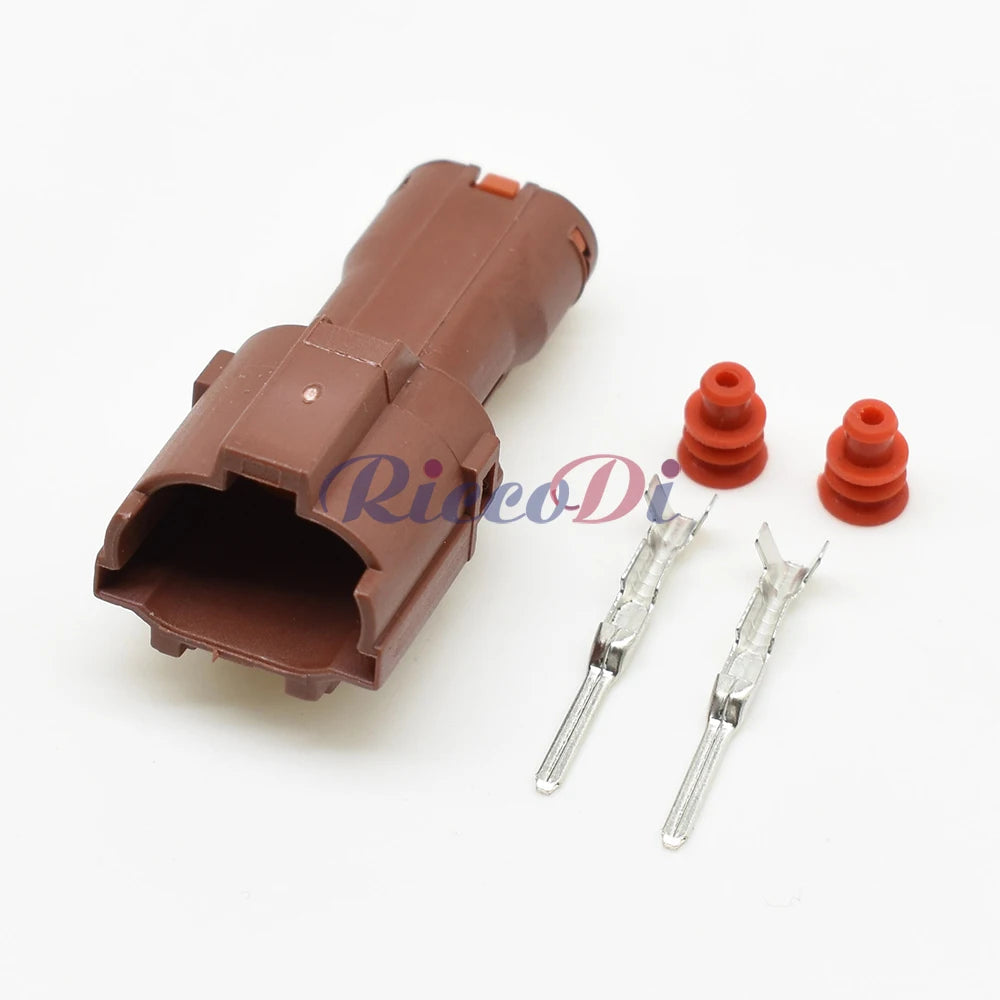

- Option A: 1× Male connector + 2× terminals + 2× rubber seals

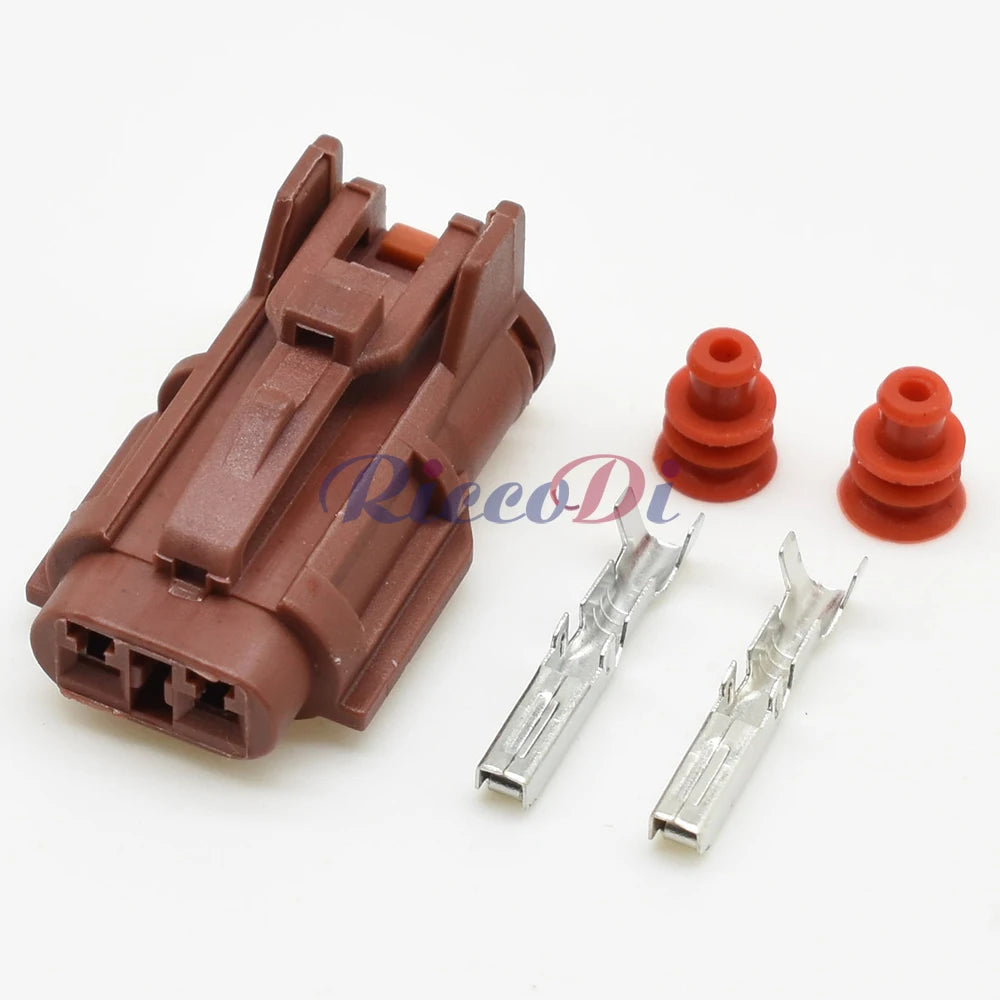

- Option B: 1× Female connector + 2× terminals + 2× rubber seals

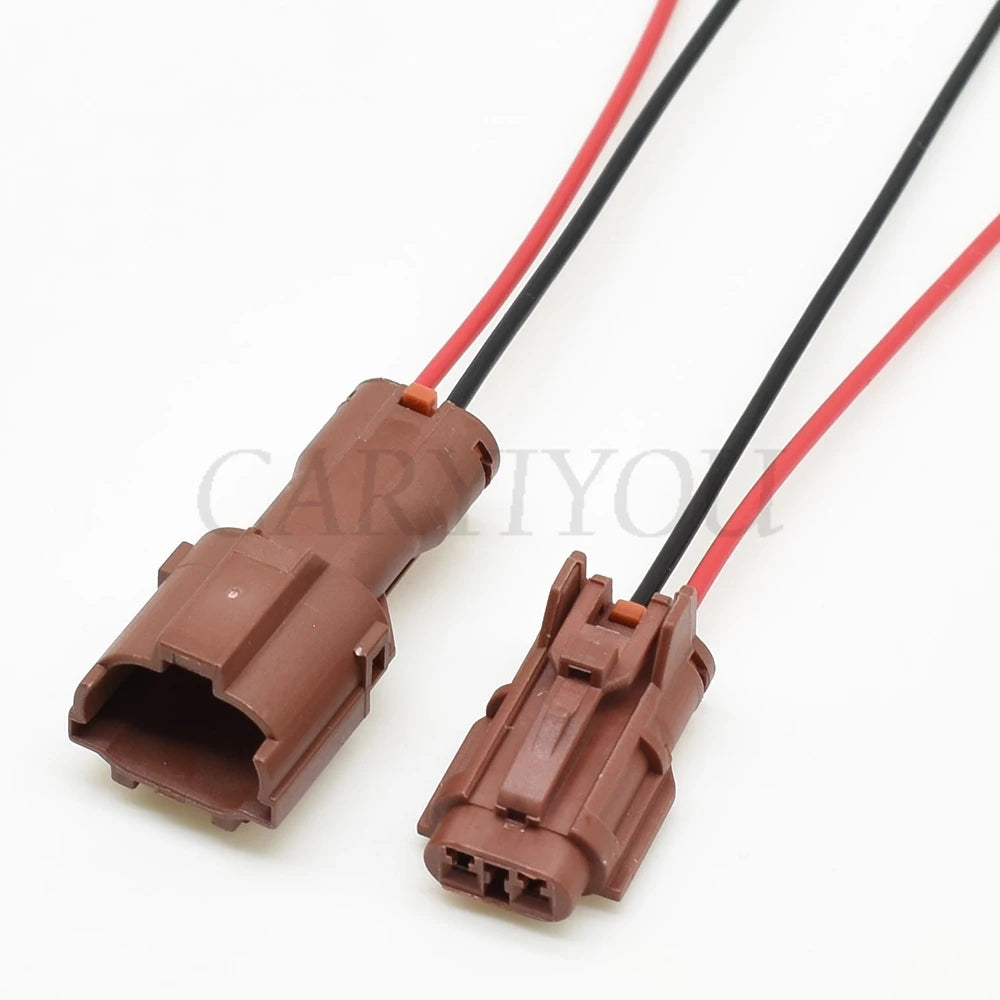

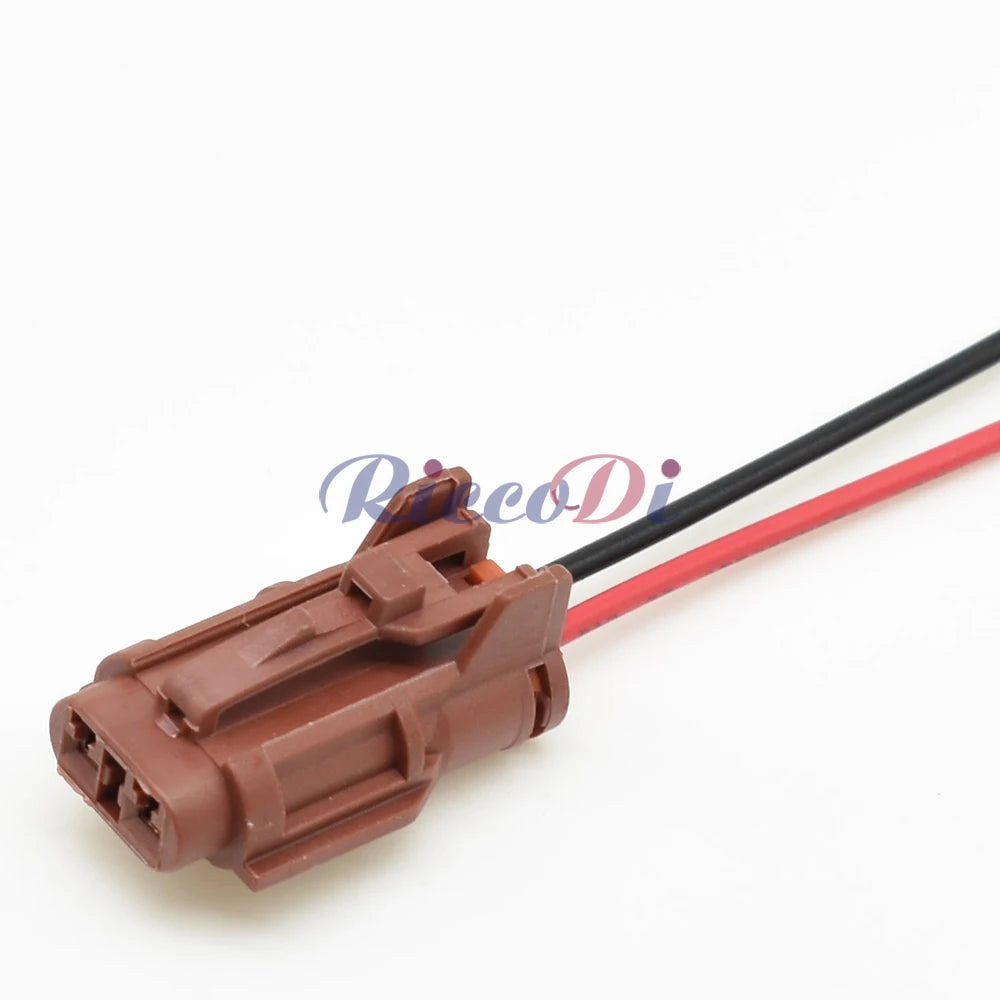

- Option C: 1× Pre-wired connector set with 15cm harness
