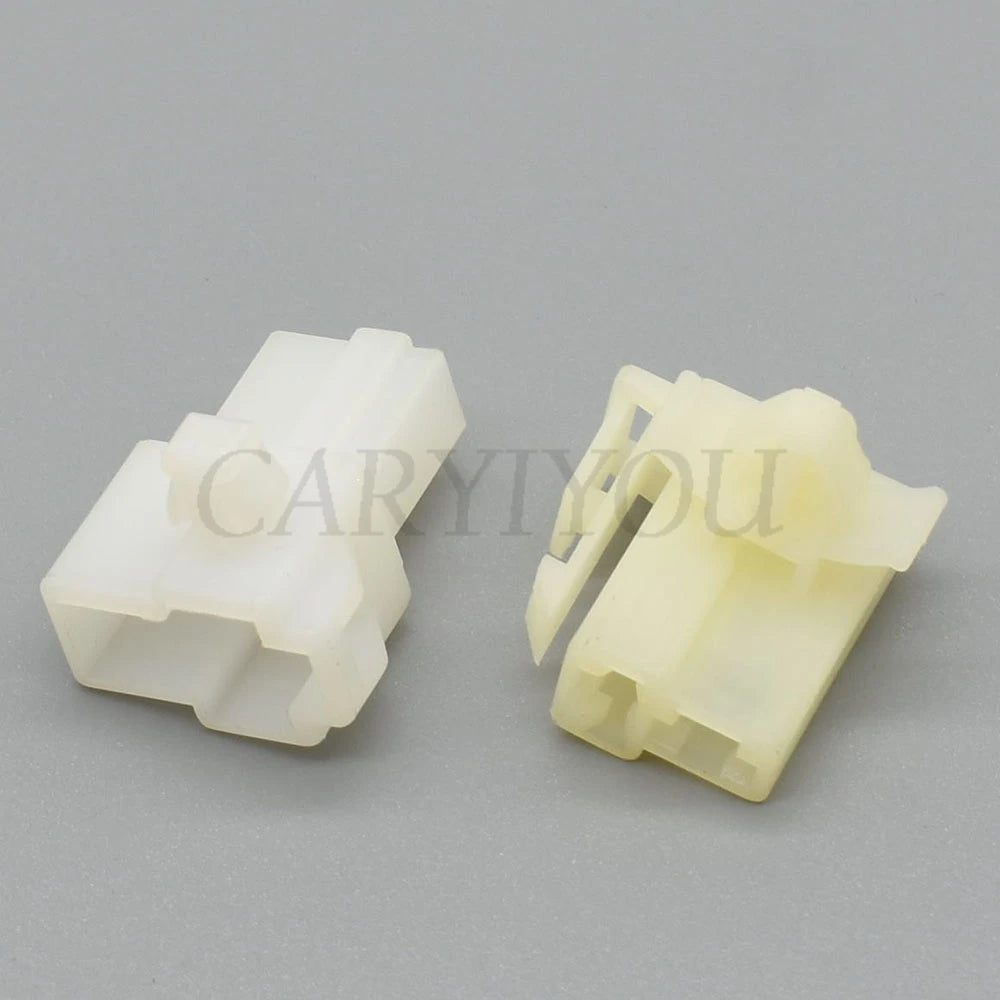

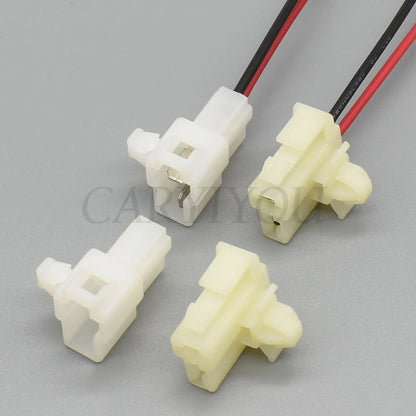

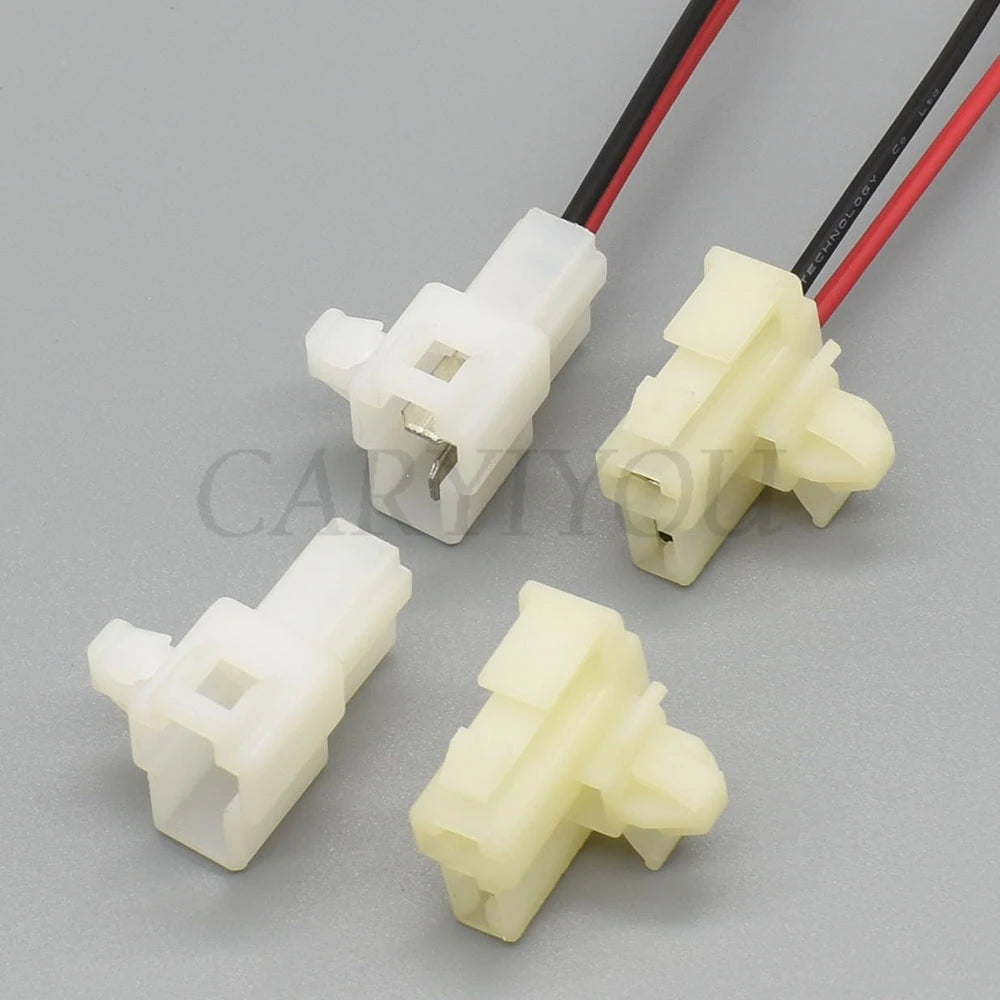

DJ7024Q-6.3-11/21 Automotive 4-Pin Wire Harness Connector
The DJ7024Q-6.3-11/21 is a robust 4-pin automotive connector with a 6.3mm pitch, designed for high-current vehicle wiring applications. Available in both male (plug) and female (socket) configurations, it provides a waterproof, vibration-resistant connection for car electrical systems.
Key Specifications
| Parameter | Value |
|---|---|
| Model | DJ7024Q-6.3-11 (male) / DJ7024Q-6.3-21 (female) |
| Pin Count | 4 |
| Pitch | 6.3mm |
| Housing Material | PA66 (Nylon 66) |
| Terminal Material | Copper alloy, tin-plated |
| Waterproof | Yes |
| Current Rating | Up to 15A per pin (typical for 6.3mm series) |
Why Choose This Connector?
- ✅ 6.3mm pitch handles higher current loads than 2.2mm/2.8mm series
- ✅ Waterproof design suitable for engine bay and underbody use
- ✅ PA66 housing resists heat, oil, and automotive chemicals
- ✅ Positive locking mechanism prevents vibration-induced disconnection
- ✅ Available as matched male/female pair for complete harness repair
Typical Applications
- Automotive relay and fuse box wiring
- Power distribution harness connections
- Lighting control module wiring (headlights, DRL, fog lights)
- HVAC blower motor and fan wiring
- Trailer and towing harness connections
Compatible With
Standard 6.3mm automotive wiring systems. Compatible with 16–20 AWG wire. Suitable for 12V and 24V vehicle electrical systems including cars, trucks, and commercial vehicles.
FAQ
Q: What is the difference between DJ7024Q-6.3-11 and DJ7024Q-6.3-21?
A: The suffix "-11" denotes the male plug and "-21" denotes the female socket. Both are required for a complete mated pair.
Q: Can this handle 12V and 24V systems?
A: Yes. The 6.3mm series is rated for both 12V and 24V automotive electrical systems.
Q: What wire gauge is compatible?
A: Designed for 16–20 AWG wire, suitable for power and signal circuits in automotive applications.
Package Contents

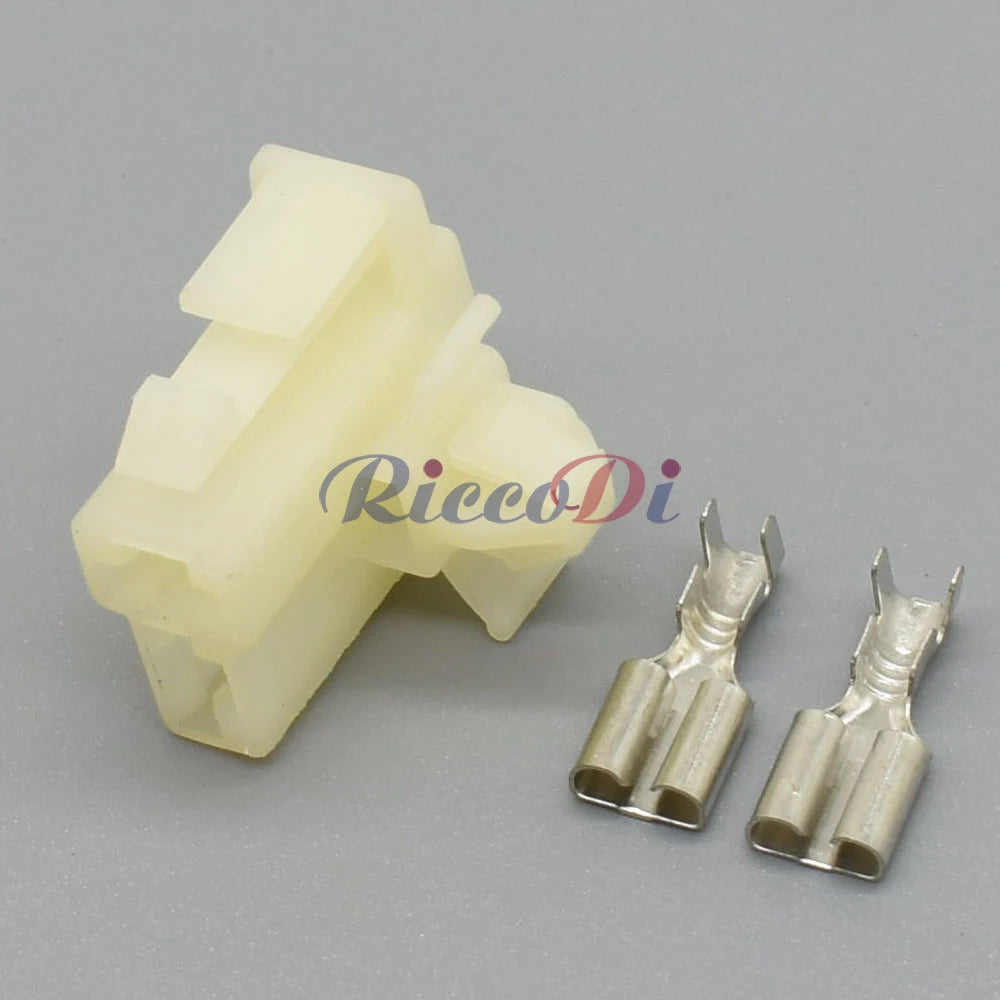

- Option A: 1× Male connector + 1× Female connector + terminals

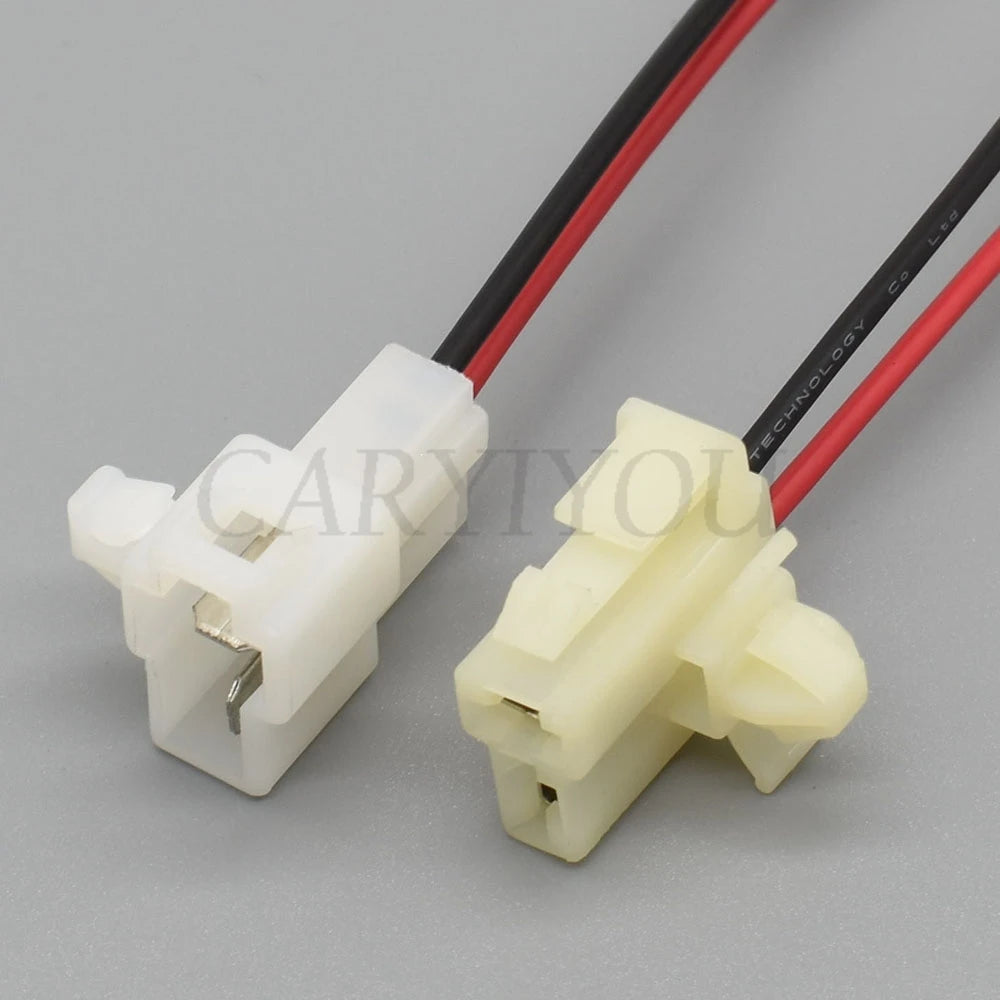

- Option B: 1× Connector set with 15cm pre-wired harness
