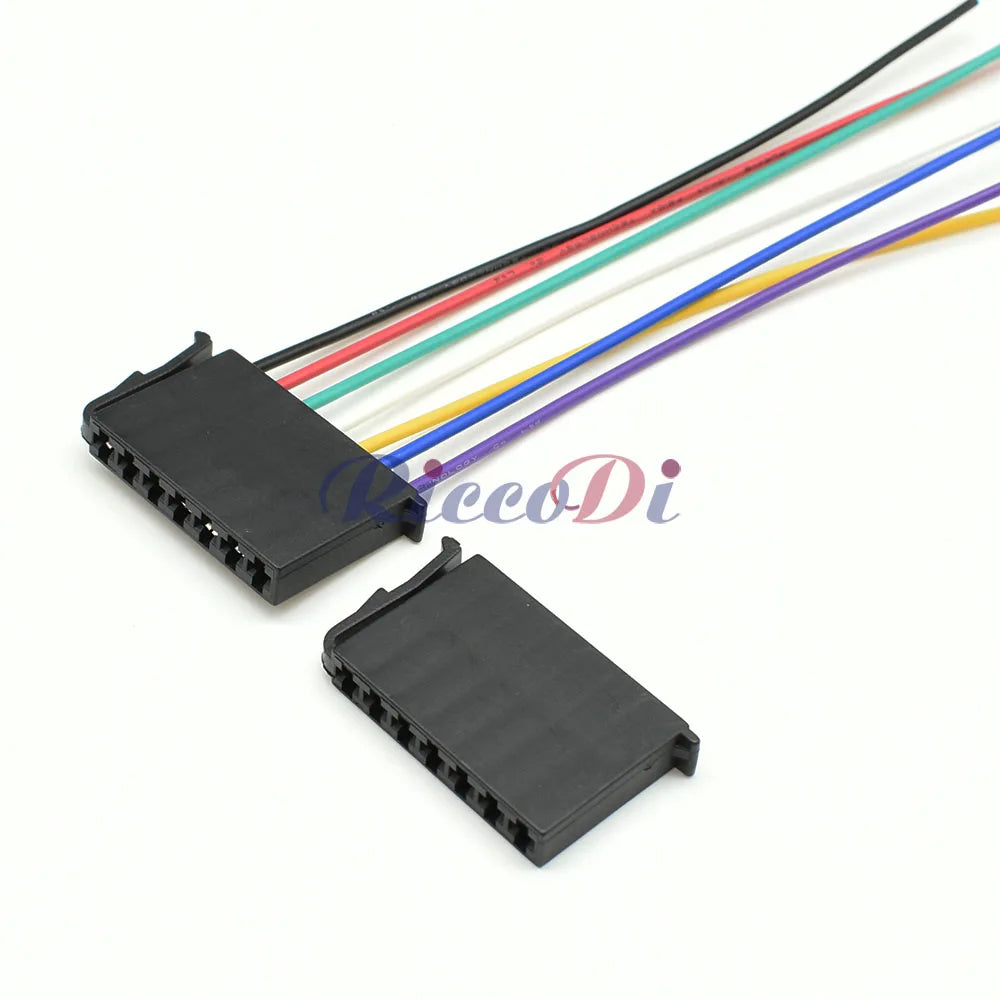

DJ7072-2.8-21 Automotive 7-Pin 2.8mm Female Connector — Wiring Harness Socket with Terminals
DJ7072-2.8-21 Automotive 7-Pin 2.8mm Female Connector Wiring Harness Socket with Terminals
Couldn't load pickup availability
DJ7072-2.8-21 Automotive 7-Pin 2.8mm Female Connector — Wiring Harness Socket with Terminals
The 2.8mm pitch connector series occupies the middle ground between fine-pitch signal connectors and high-current 6.3mm connectors — providing the current-carrying capacity needed for actuator, relay, and medium-current power distribution circuits while maintaining a compact form factor for space-constrained wiring harness layouts. The DJ7072-2.8-21 7-pin 2.8mm female automotive connector is an OEM-specification wiring harness socket supplied with terminals for direct harness repair and fabrication, covering a wide range of automotive actuator, relay, and medium-current circuit applications.
Built from PA66 glass-filled nylon with 2.8mm pitch tin-plated copper alloy contacts and supplied with matching terminals, this connector delivers reliable electrical continuity for medium-current automotive wiring harness circuits. Whether you're repairing a relay panel harness or fabricating a custom actuator wiring loom, the DJ7072-2.8-21 provides OEM-grade dimensional accuracy and contact retention force.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | DJ7072-2.8-21 |
| Pin Count | 7 pins |
| Pitch | 2.8mm |
| Gender | Female (socket) |
| Connector Type | Automotive wiring harness socket with terminals |
| Housing Material | PA66 glass-filled nylon |
| Contact Material | Tin-plated copper alloy |
| Includes | Matching crimp terminals |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ 2.8mm pitch 7-pin female connector — medium-current form factor for automotive actuator, relay, and power distribution wiring harness applications
- ✅ OEM part number DJ7072-2.8-21 — direct-fit replacement for 2.8mm pitch automotive wiring harness connector positions
- ✅ Terminals included — supplied with matching 2.8mm pitch crimp terminals for complete connector assembly without additional hardware
- ✅ PA66 glass-filled nylon housing — high-temperature rated, resistant to engine oil, coolant, and automotive cleaning solvents
- ✅ Tin-plated copper alloy contacts — low contact resistance for reliable medium-current actuator and relay signal transmission
- ✅ CE certified — meets European automotive electrical component standards
Common Applications
- Automotive relay panel and actuator wiring harness 2.8mm pitch connector repair
- Medium-current power distribution wiring harness connector replacement
- Custom automotive wiring harness fabrication for 2.8mm pitch actuator and relay circuits
FAQ
Q: What wire gauge is compatible?
A: Compatible with 0.75–1.5mm² (AWG 18–16) automotive wire, consistent with 2.8mm pitch medium-current actuator and relay circuit wire gauges.
Package Contents

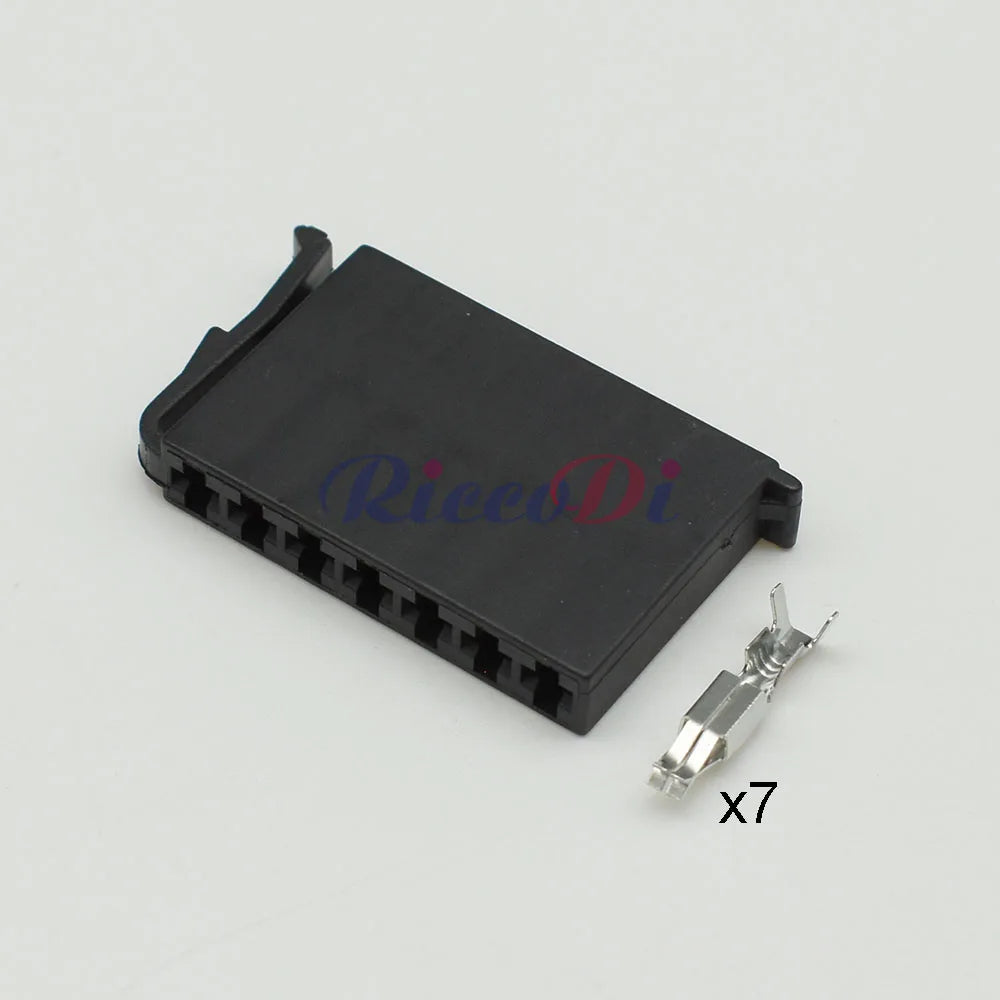

- 1× DJ7072-2.8-21 7-Pin 2.8mm Female Automotive Connector Housing
- 7× Matching 2.8mm pitch crimp terminals
