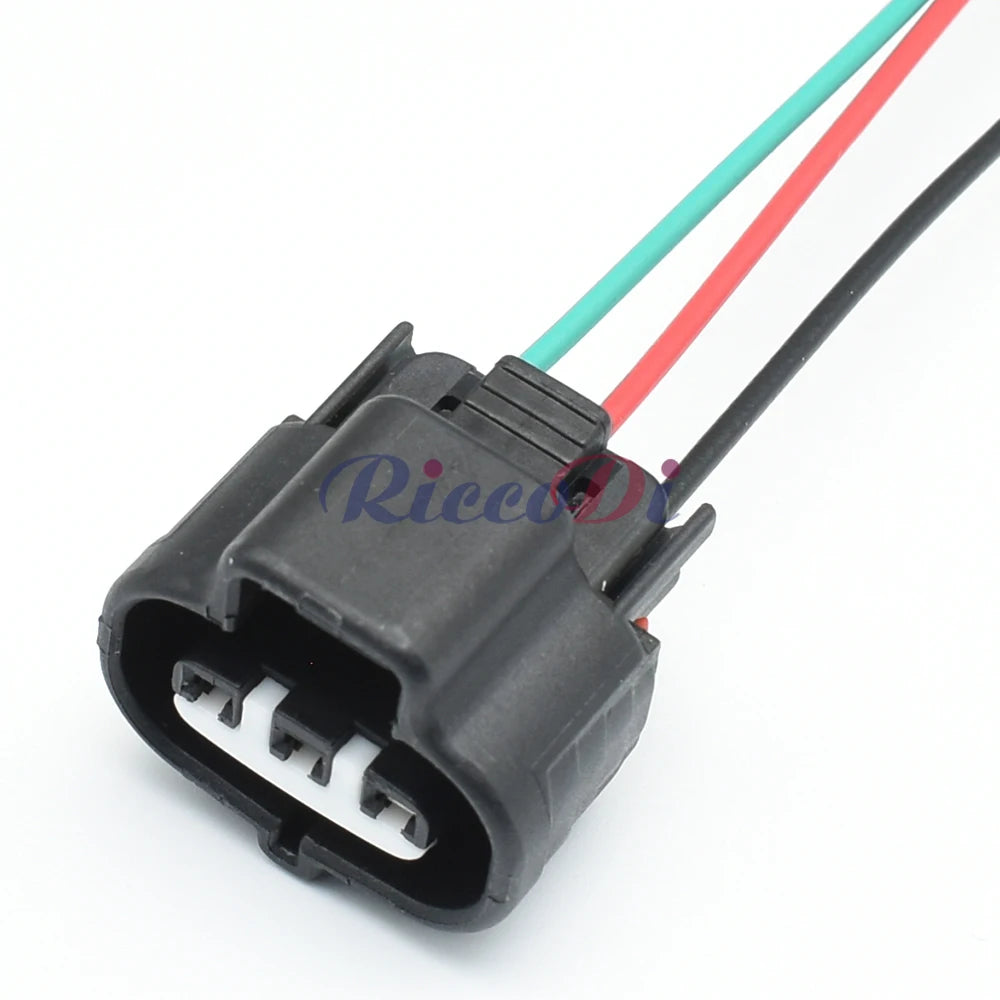

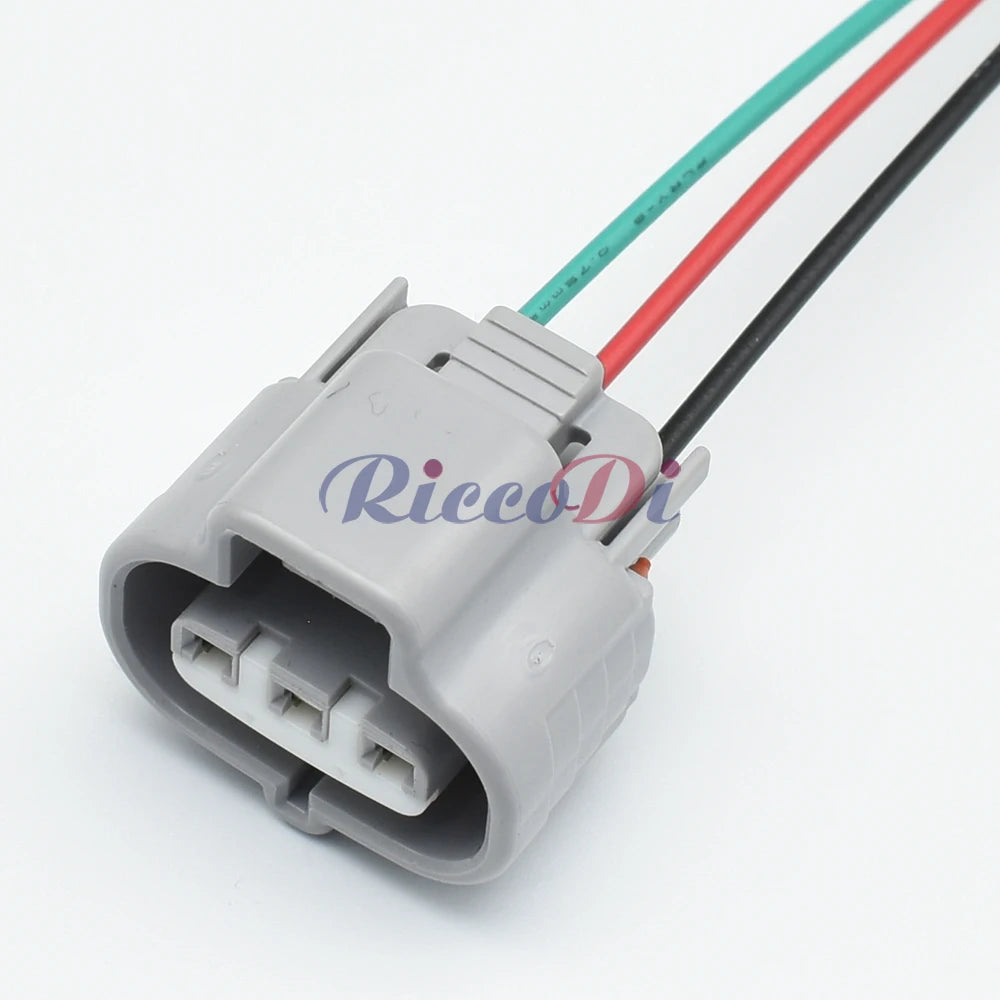

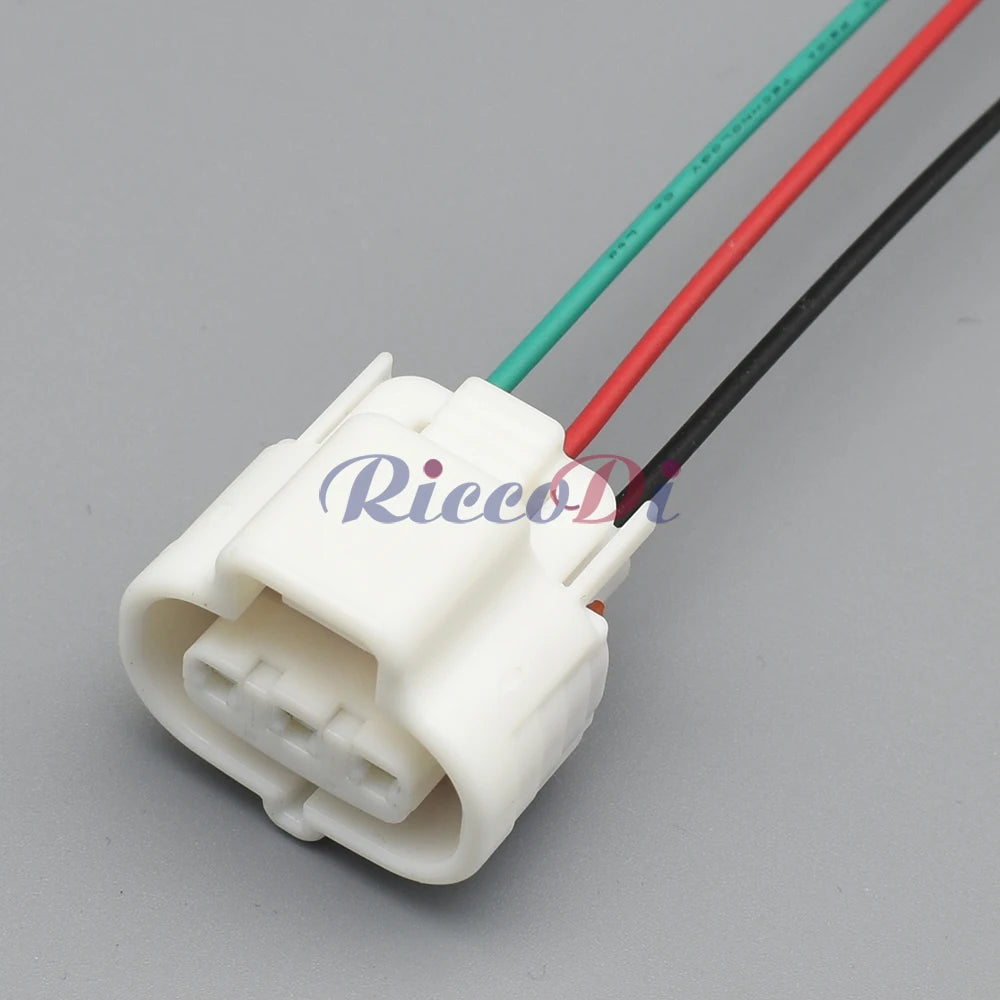

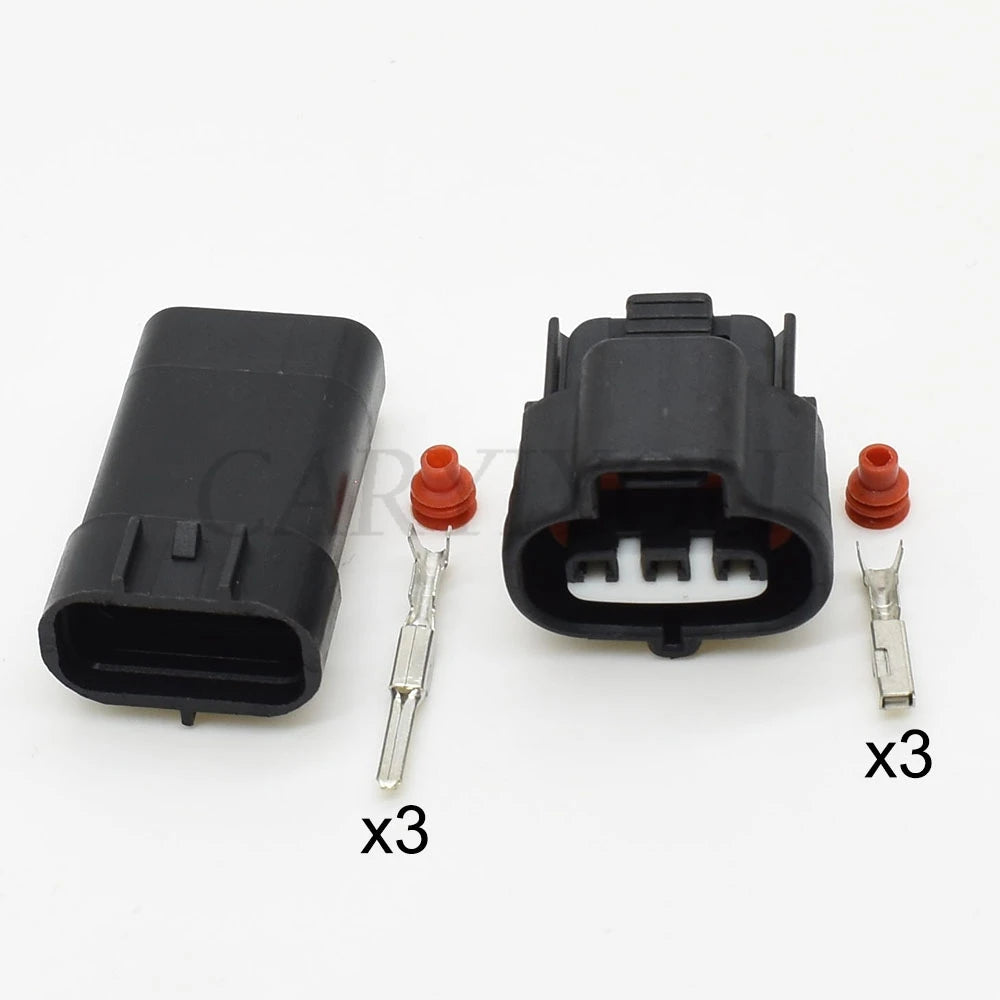

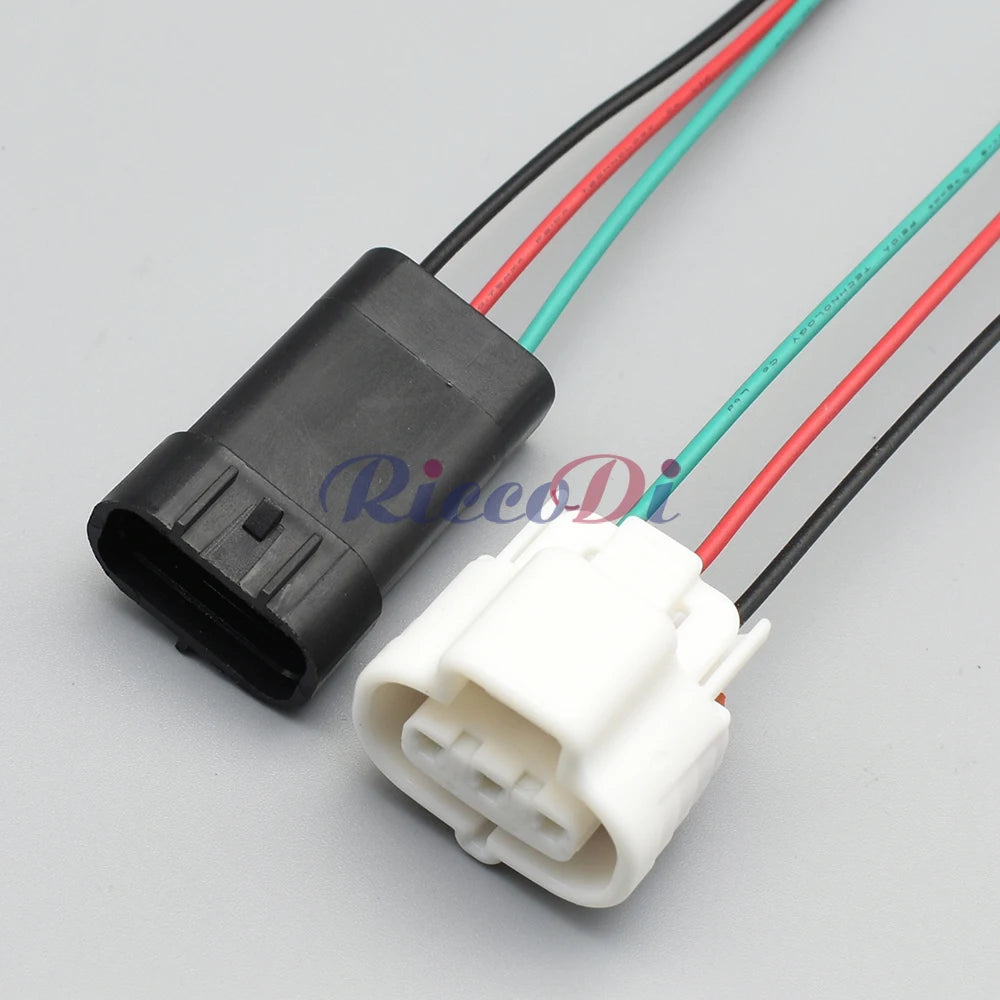

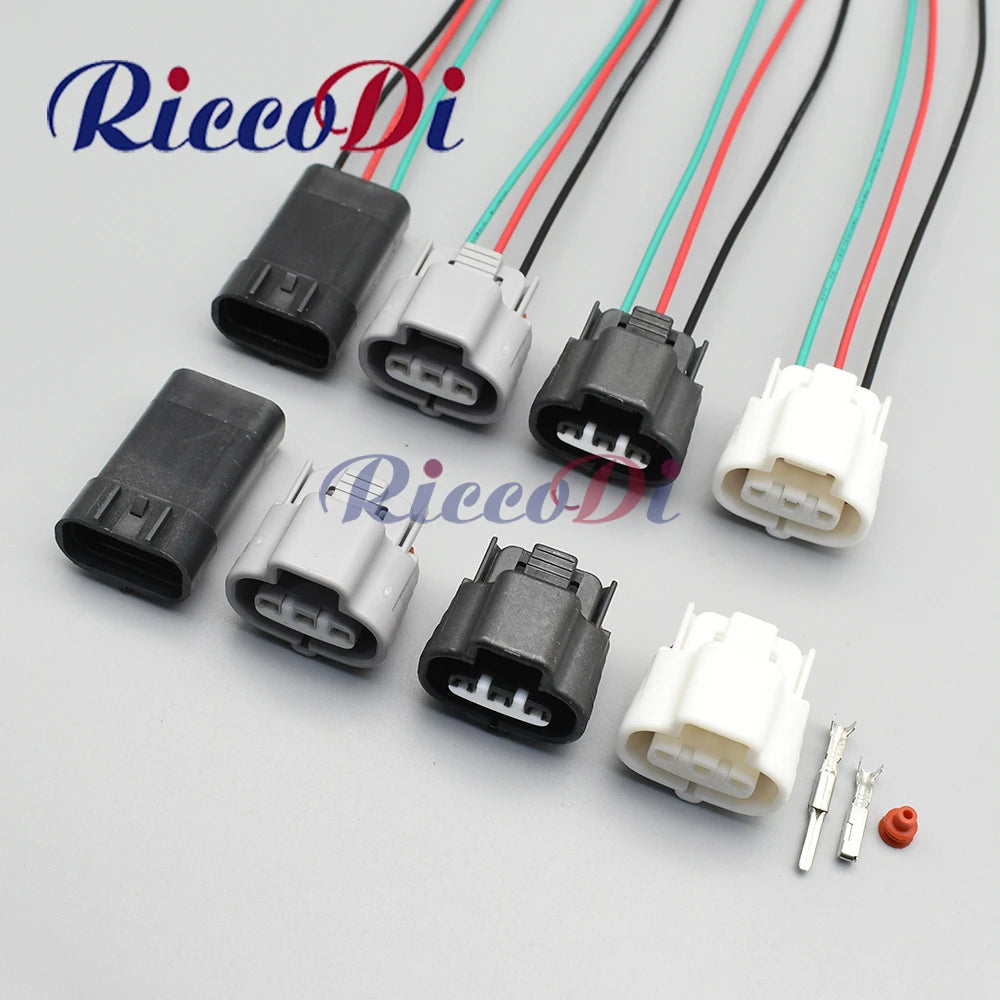

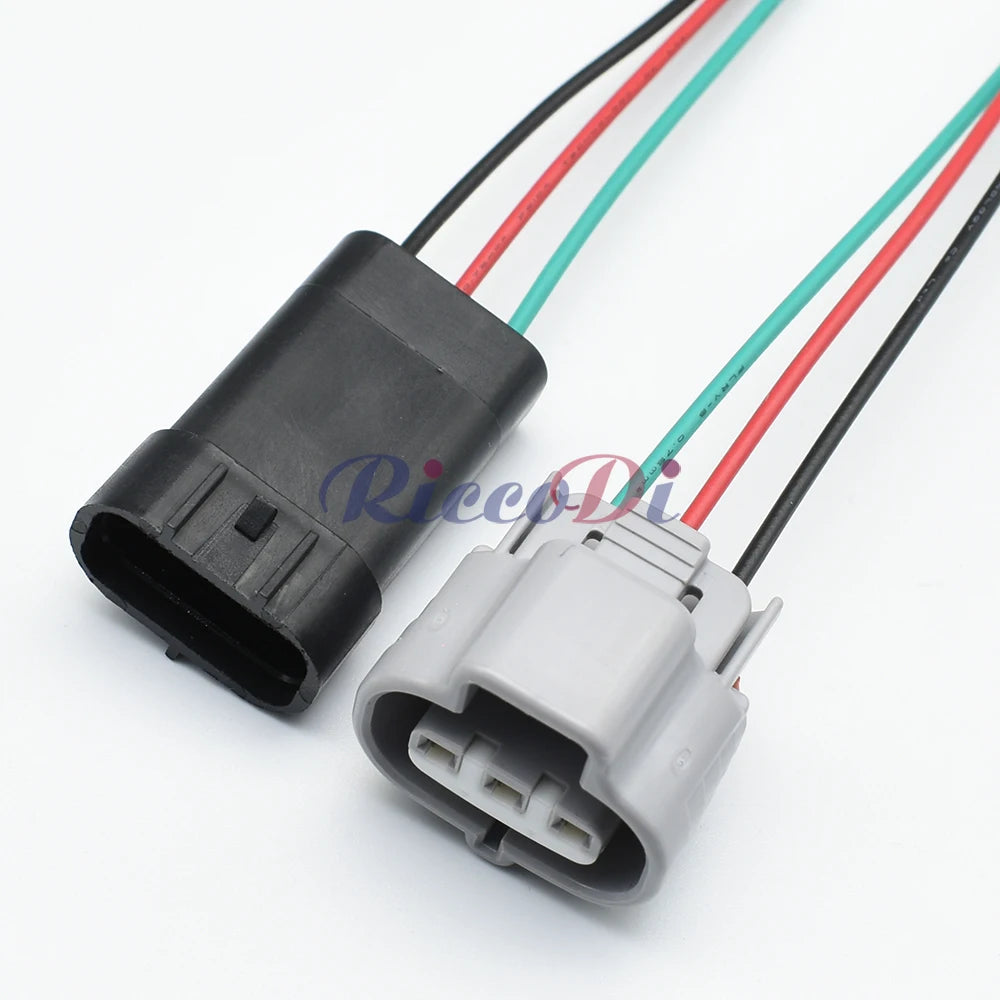

3-Pin 2.2mm Waterproof VSS & MAP Sensor Connector — 6189-0099 / 90980-10841 / DJ7035C-2.2 for Toyota 1JZ & 2JZ
OEM-compatible Yazaki-spec 3-pin 2.2mm waterproof connector for Toyota vehicle speed sensor (VSS) and manifold absolute pressure (MAP) sensor wiring harnesses. Cross-references 6189-0099, 90980-10841, and LX13 — critical connectors for 1JZ-GTE and 2JZ-GTE engine management systems, widely used in JDM performance builds and engine swaps.
Specifications
| Parameter | Value |
|---|---|
| Pin Count | 3 |
| Pitch | 2.2 mm |
| OEM Part Numbers | 6189-0099 / 90980-10841 / LX13 / DJ7035C-2.2 |
| Connector Family | Yazaki 2.2mm series |
| Housing Material | PA66 (Nylon 66) |
| Sealing | Rubber wire seal (waterproof) |
| Waterproof Rating | IP67 |
| Operating Temperature | -40°C to +125°C |
| Application | VSS (vehicle speed sensor), MAP sensor |
| Certification | CE |
Compatible Vehicles & Engines
- Toyota Supra JZA80 (2JZ-GTE / 2JZ-GE) — VSS and MAP sensor connectors
- Toyota Soarer JZZ30 (1JZ-GTE) — speed and MAP sensor harness
- Toyota Mark II / Chaser / Cresta JZX90/JZX100 (1JZ-GTE) — sensor wiring repair
- Toyota Aristo JZS147/JZS161 (2JZ-GTE) — engine management sensor connectors
- Toyota Altezza / IS200 / IS300 (1G-FE / 2JZ-GE) — VSS connector
- General Toyota vehicles using Yazaki 6189-0099 / 90980-10841 series connectors
Why Choose This Connector?
- ✅ 4 OEM cross-references: 6189-0099 / 90980-10841 / LX13 / DJ7035C-2.2 — confirmed Toyota fitment
- ✅ Covers both VSS and MAP sensor — one connector for two critical 1JZ/2JZ sensor repairs
- ✅ IP67 rubber wire seal — protects against oil mist in 1JZ/2JZ turbo engine environments
- ✅ Yazaki OEM-spec geometry — direct plug-in replacement for Toyota factory harness
- ✅ CE certified — meets EU automotive electrical standards
Application Scenarios
- VSS connector replacement on Toyota Supra JZA80 2JZ-GTE during gearbox service
- MAP sensor harness repair on Toyota Chaser JZX100 1JZ-GTE
- Speed sensor connector restoration on Toyota Aristo JZS161 2JZ-GTE
- Custom 1JZ / 2JZ engine swap harness build into non-Toyota chassis (S13, S14, AE86, etc.)
Comparison: Toyota 1JZ/2JZ Sensor Connectors
| Part Number | Pitch | Application | Engine |
|---|---|---|---|
| 6189-0099 / DJ7035C-2.2 | 2.2mm | VSS / MAP sensor | 1JZ-GTE / 2JZ-GTE |
| 174357-2 / 368523-1 | 1.5mm | TPS / brake fluid sensor | 1JZ-GTE / 2JZ-GTE |
| 6189-0179 / DJ7035Y-2.2 | 2.2mm | Light socket / motor | Toyota general |
FAQ
Q: Is 6189-0099 the same as 90980-10841?
A: Yes. 6189-0099 is the Yazaki manufacturer part number, while 90980-10841 is the Toyota OEM part number for the same connector. LX13 is an alternative catalog reference. All three refer to the identical 3-pin 2.2mm waterproof housing.
Q: Can I use this connector for a 1JZ/2JZ engine swap?
A: Yes. This is one of the most commonly needed connectors for 1JZ-GTE and 2JZ-GTE engine swaps, covering both the VSS and MAP sensor circuits. It is compatible with both OEM Toyota harnesses and custom swap harnesses.
Q: What terminals are compatible?
A: Yazaki 2.2mm series female terminals for 0.3–0.85mm² (AWG 22–18) wire. Terminals are sold separately.
Package Contents
- 1× 3-Pin 2.2mm Waterproof Connector Housing (6189-0099 / 90980-10841 / DJ7035C-2.2)
- Terminals not included
