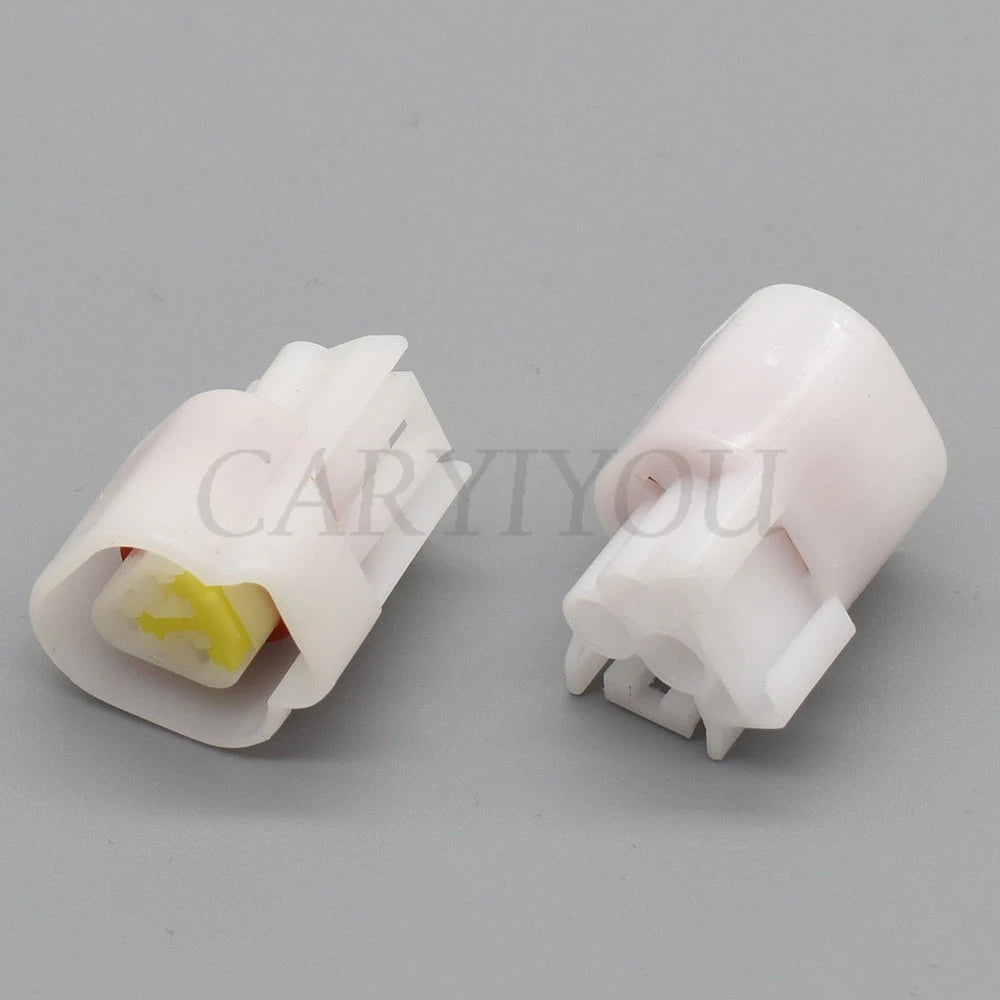

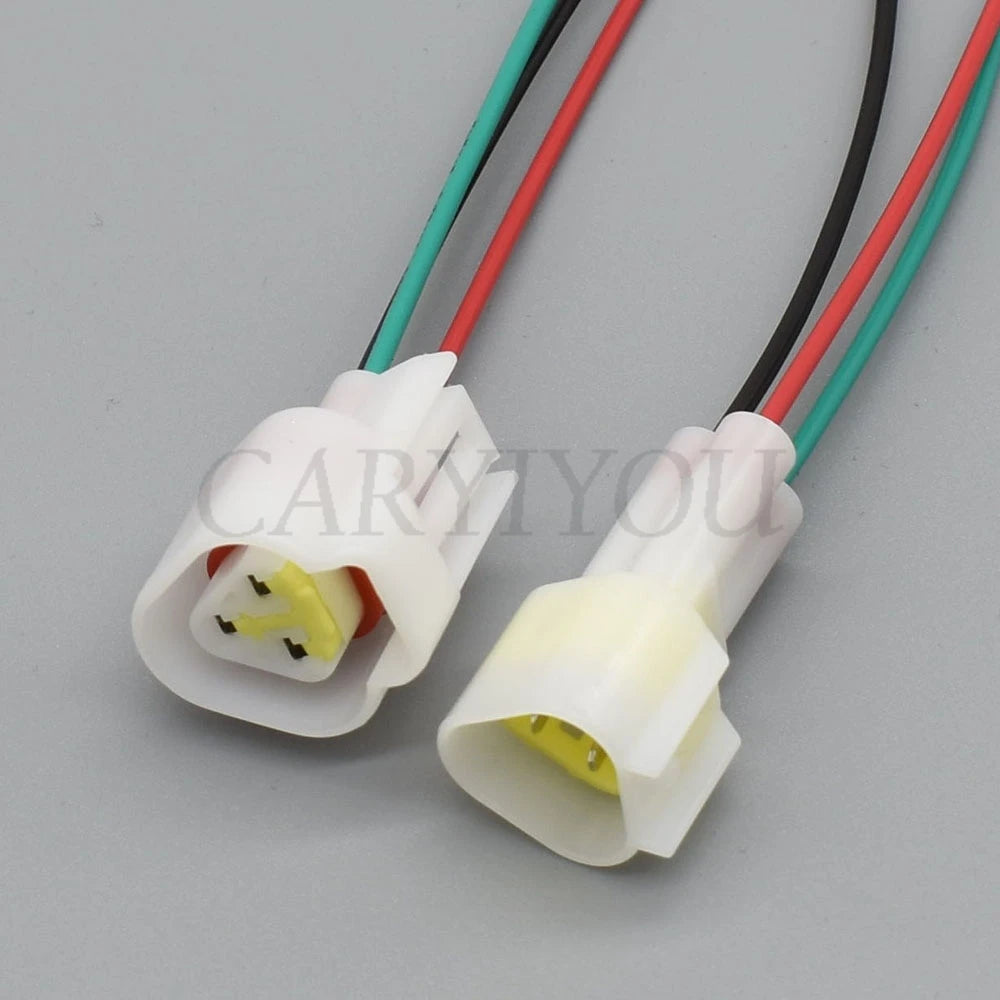

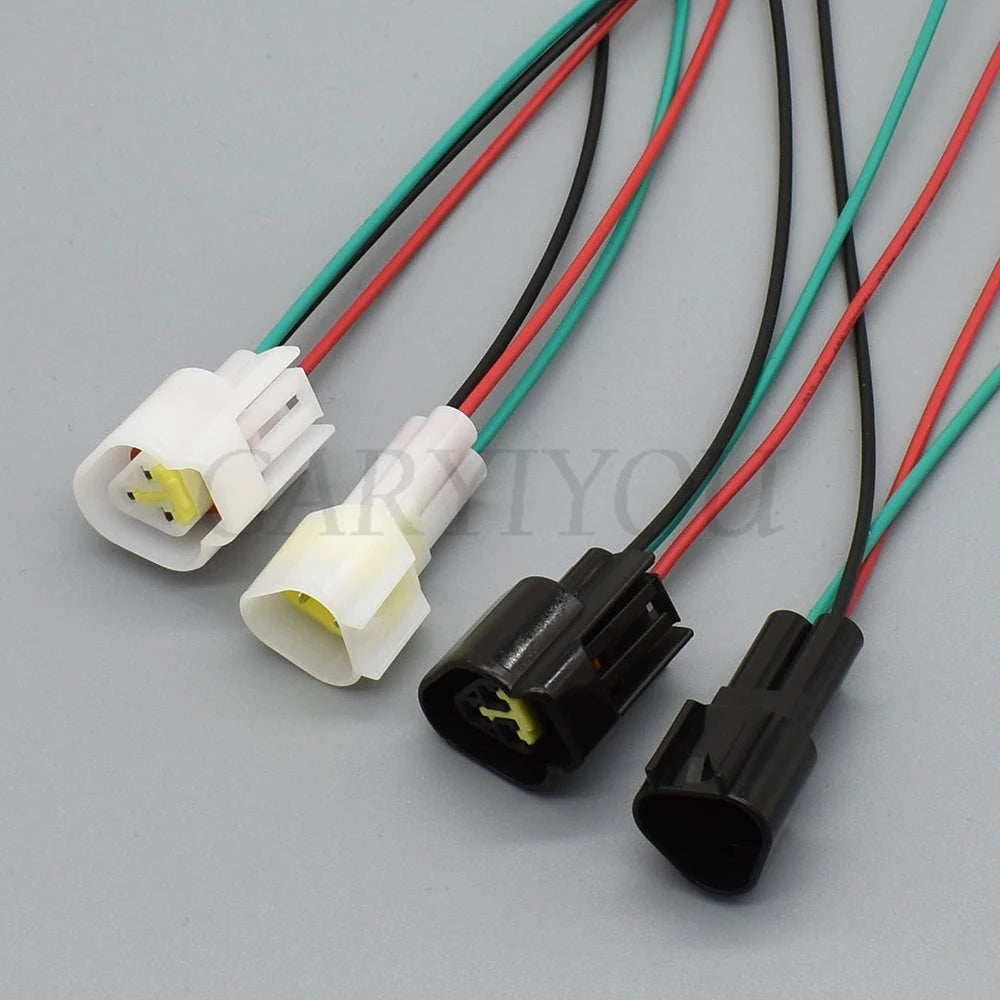

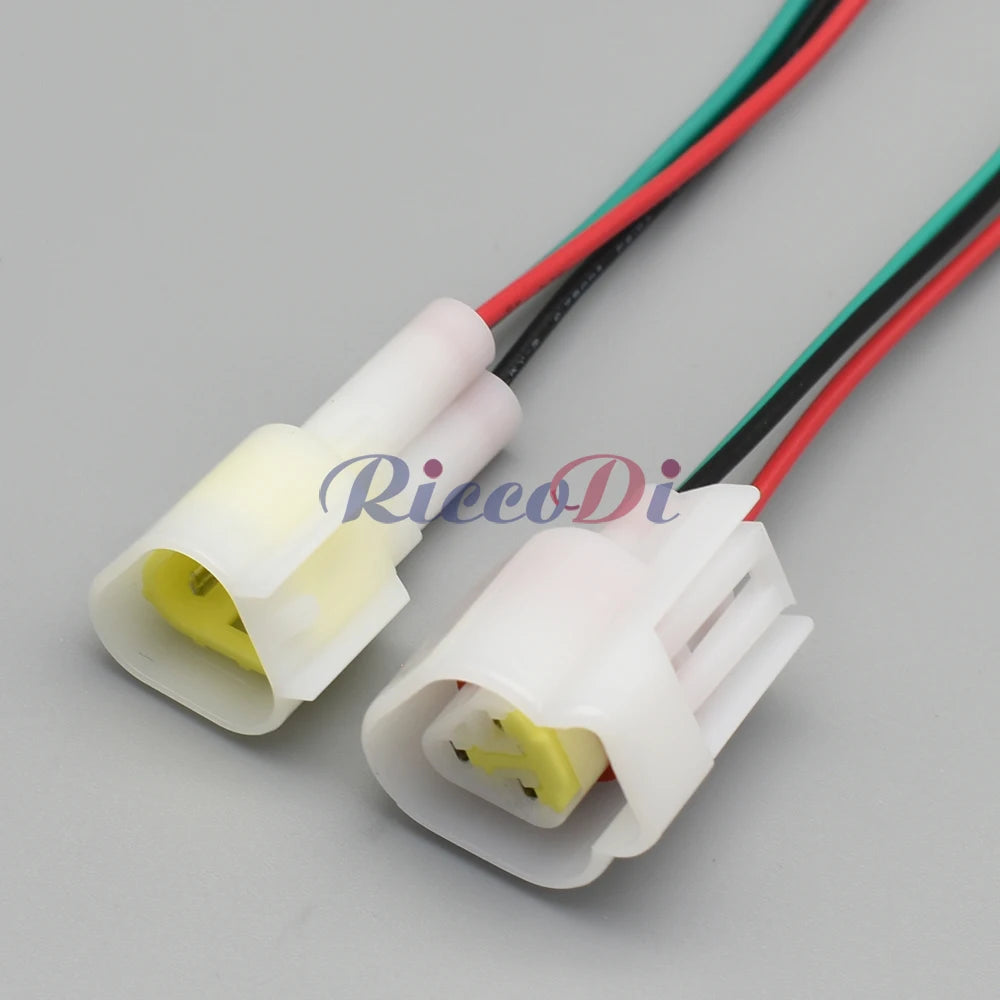

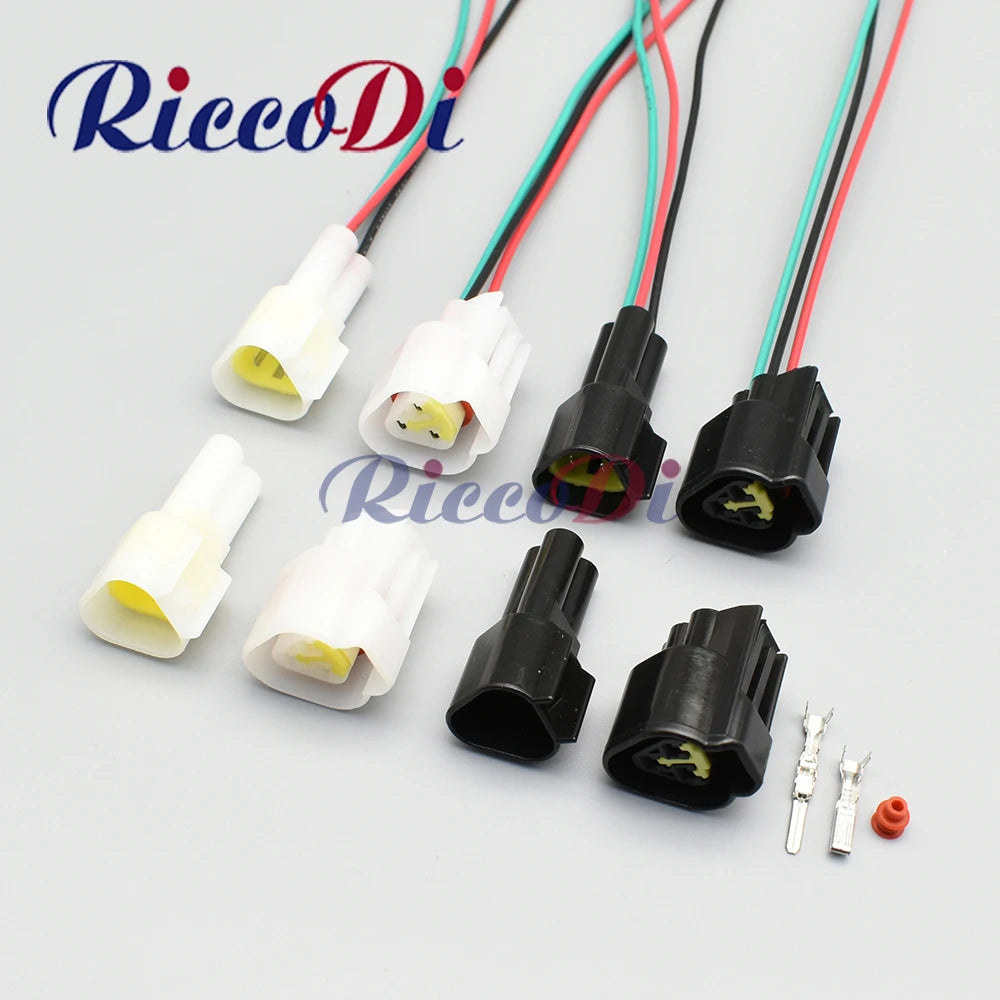

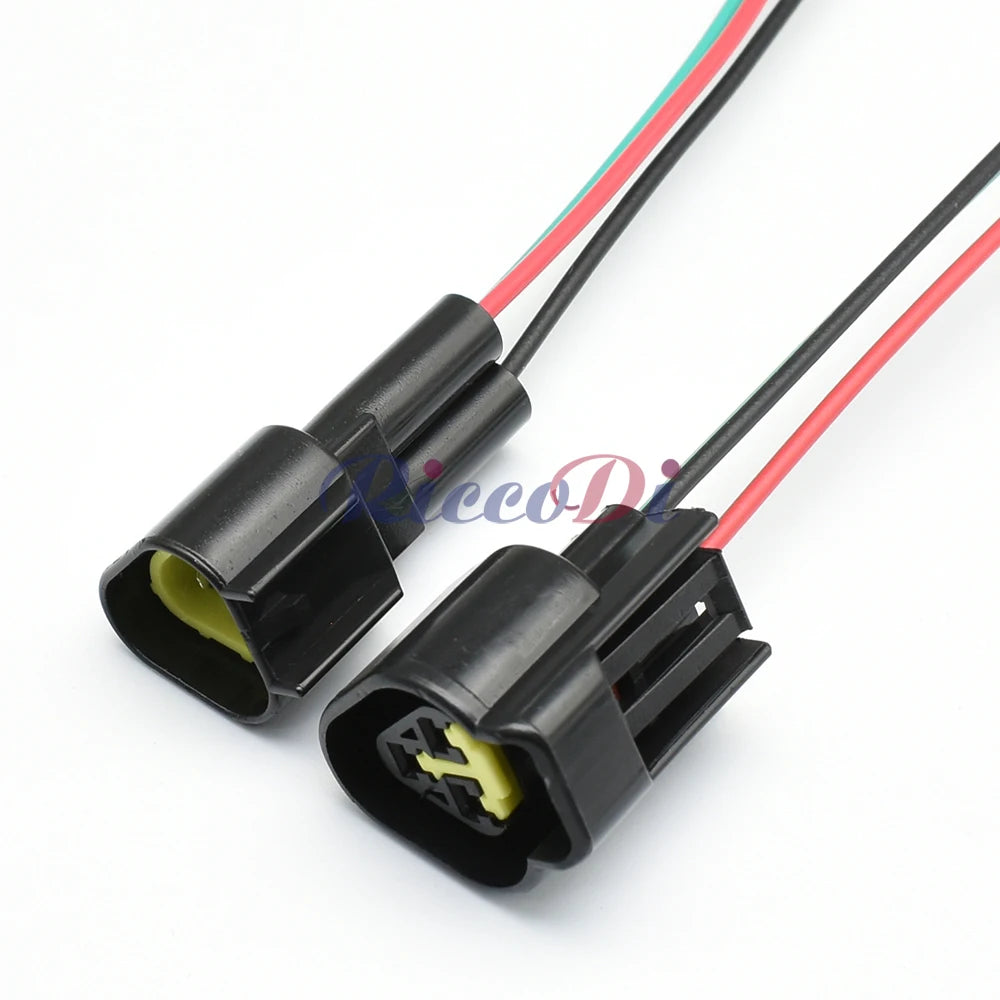

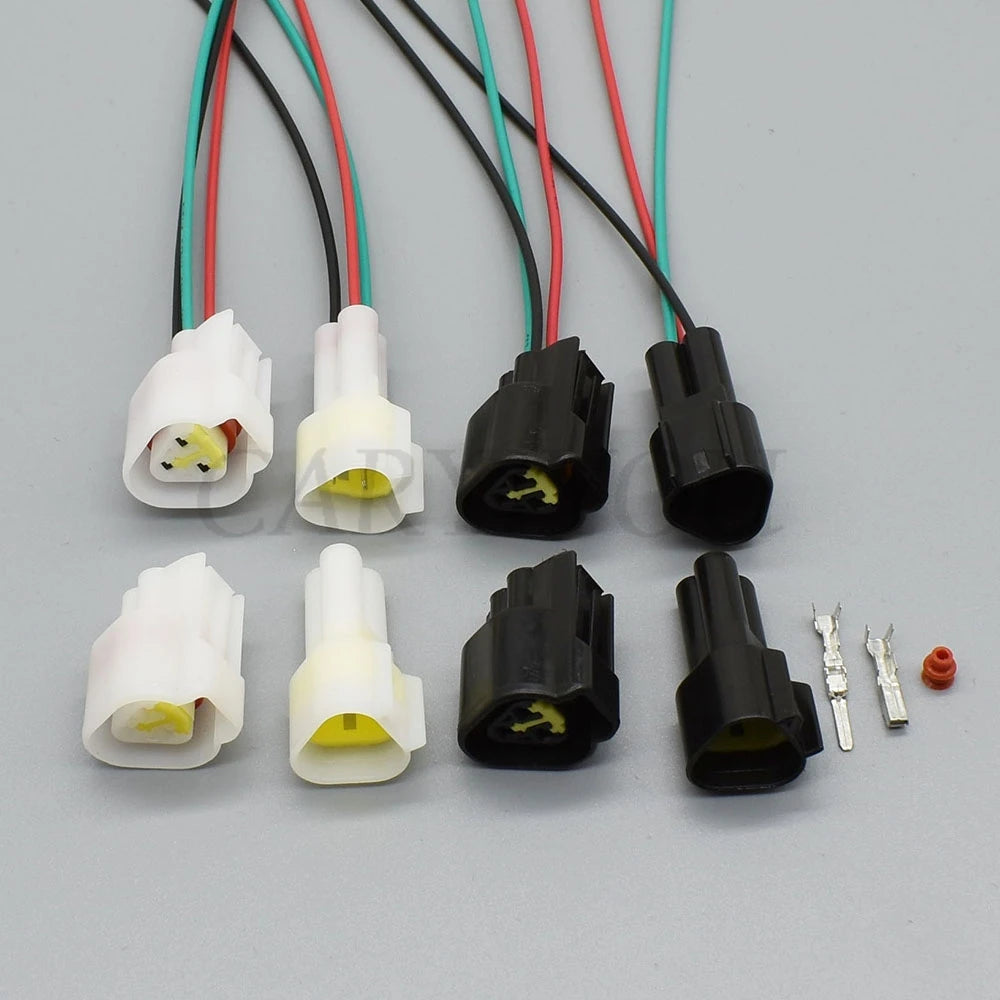

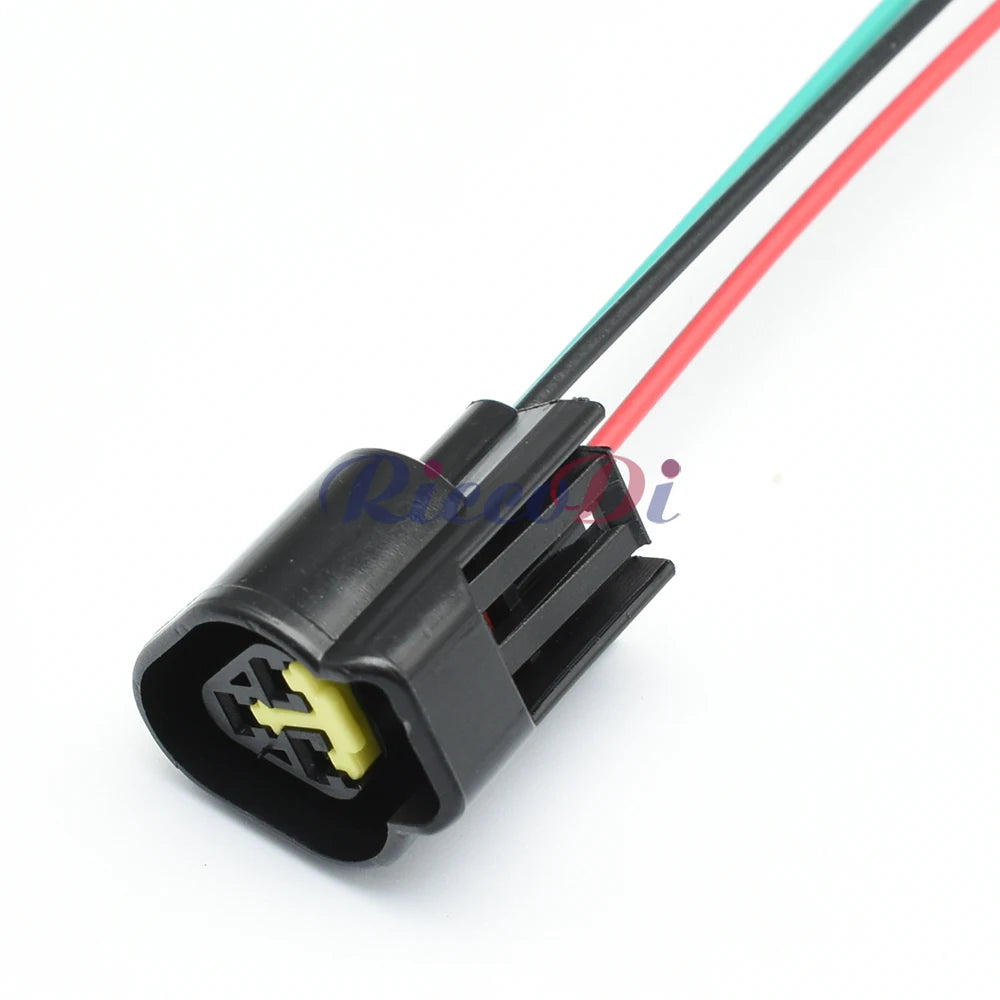

3-Pin 2.3mm Furukawa Waterproof Connector — FW-C-3M-B / FW-C-3F-B / DJ7031Y-2.3
OEM-specification 3-pin waterproof automotive connector in Furukawa Electric's 2.3mm pitch FW-C series. Supplied as a matched male (FW-C-3M-B) and female (FW-C-3F-B) pair with pre-installed rubber seals, compatible with the Chinese-market cross-reference DJ7031Y-2.3. Designed for engine bay and underbody wiring harness applications where IP67 moisture and dust ingress protection is required.
Part Number Cross-Reference
| Standard | Part Number |
|---|---|
| Furukawa Electric (Male) | FW-C-3M-B |
| Furukawa Electric (Female) | FW-C-3F-B |
| DJ / Chinese OEM | DJ7031Y-2.3 |
Technical Specifications
| Parameter | Value |
|---|---|
| Pin Count | 3 |
| Pitch | 2.3mm |
| Housing Material | PA66 (Nylon 66), UL94 V-0 flame rated |
| Seal Rating | IP67 (1m / 30 min) |
| Rated Voltage | 12V / 24V DC |
| Rated Current | ≤10A per pin |
| Operating Temperature | −40°C to +125°C |
| Terminal Material | Copper alloy, tin-plated |
| Wire Range | 0.5–1.5mm² (AWG 20–16) |
| Locking | Positive latch with secondary lock |
| Certification | CE, RoHS |
Typical Applications
- Engine Sensors: Coolant temperature sensor (CTS), intake air temperature (IAT), and manifold absolute pressure (MAP) sensor connectors in Furukawa-harnessed vehicles
- Transmission Wiring: Gear position sensor and solenoid valve connectors in automatic transmission control units
- Body Electronics: Door lock actuator, window motor, and mirror adjustment wiring in Japanese OEM vehicles
- Aftermarket Repair: Direct OEM replacement for damaged or corroded FW-C series connectors without splicing the harness
- Custom Harness Build: New harness fabrication for engine swaps, EV conversions, and motorsport wiring using Furukawa-spec terminals
Compatible Vehicles (Furukawa FW-C Harness)
- Toyota / Lexus (Furukawa-harnessed models: Corolla, Camry, Land Cruiser, GS, IS series)
- Honda / Acura (select models with Furukawa OEM harness)
- Mitsubishi (Outlander, Lancer, Pajero sensor wiring)
- Subaru (Impreza, Forester, Legacy engine bay sensors)
FAQ
Q: Is FW-C-3M-B the male or female side?

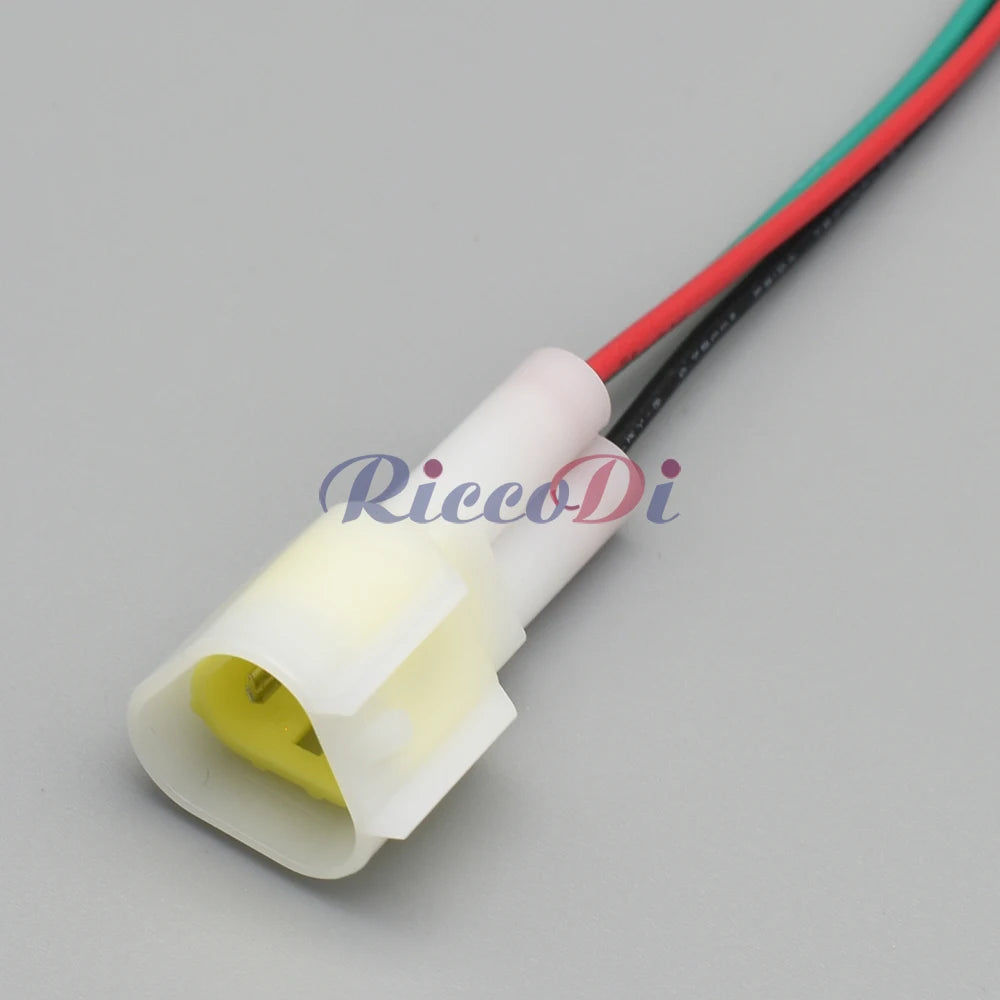

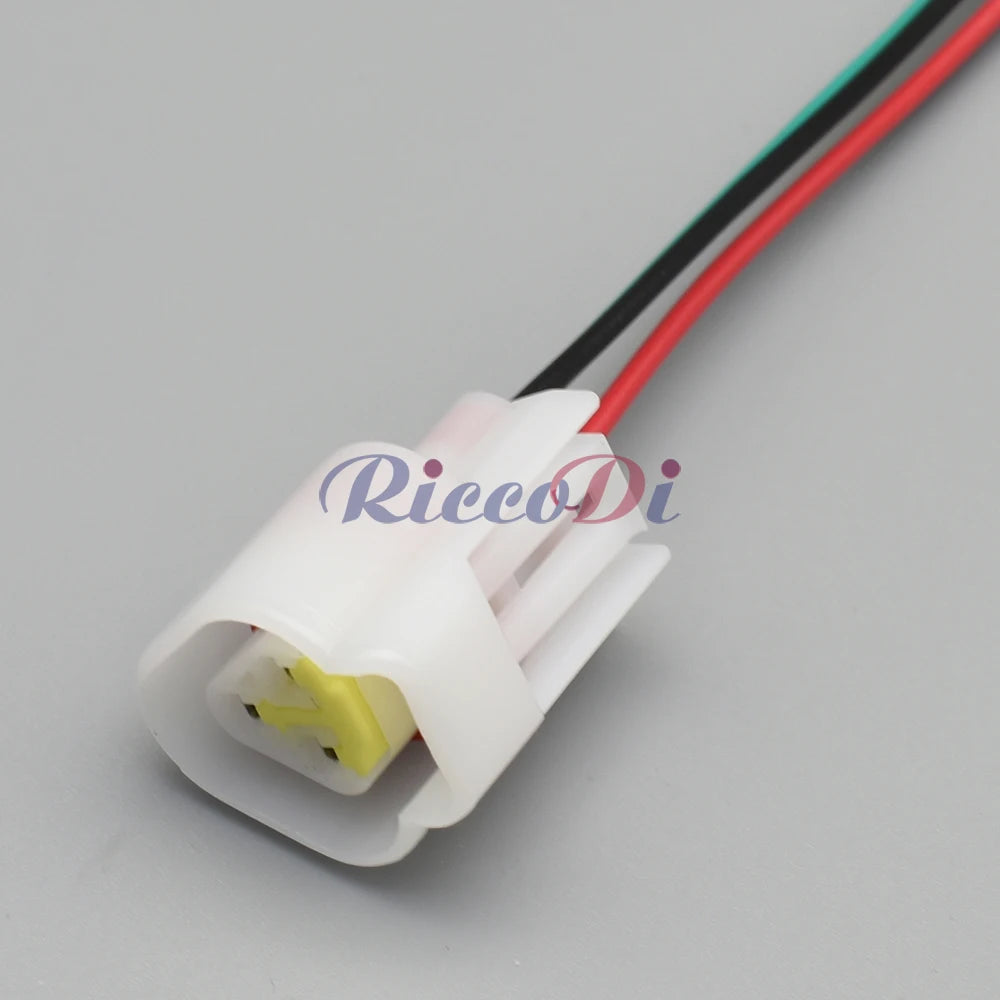

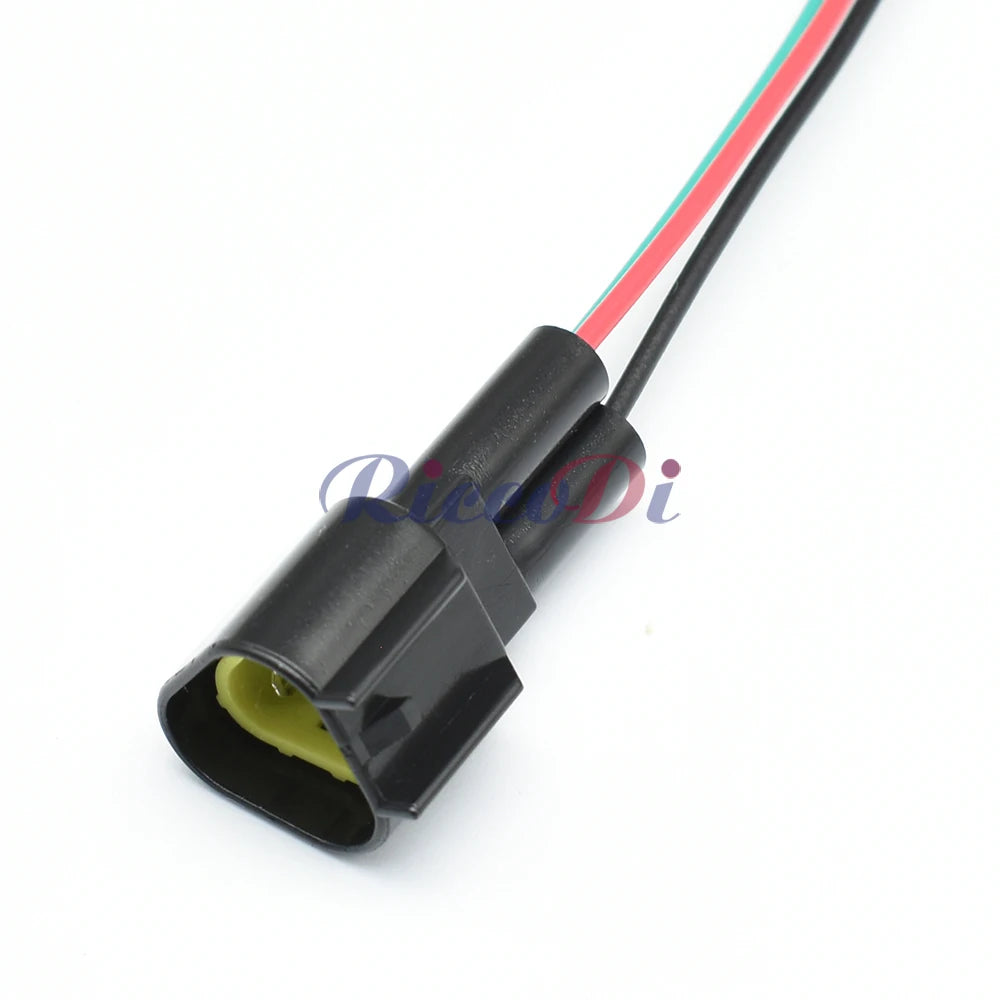

A: FW-C-3M-B is the male plug (pin side); FW-C-3F-B is the female receptacle (socket side). Both are included in this kit.
Q: What wire gauge is compatible?
A: The FW-C 2.3mm terminals accept 0.5–1.5mm² wire (AWG 20–16). Use a Furukawa-spec or equivalent ratchet crimping tool for reliable termination.
Q: Is DJ7031Y-2.3 the same connector?
A: Yes. DJ7031Y-2.3 is the Chinese OEM cross-reference for the Furukawa FW-C-3M-B / FW-C-3F-B pair. Dimensions and terminal pitch are identical.

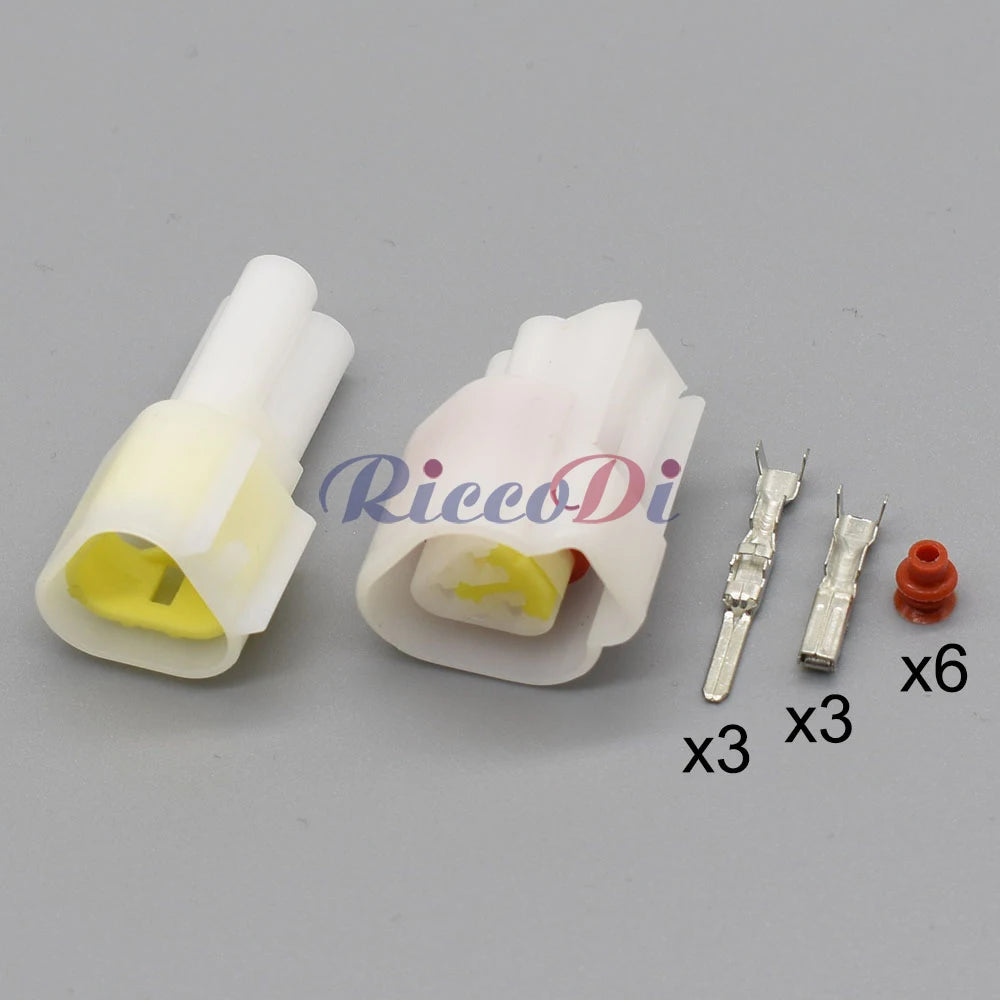

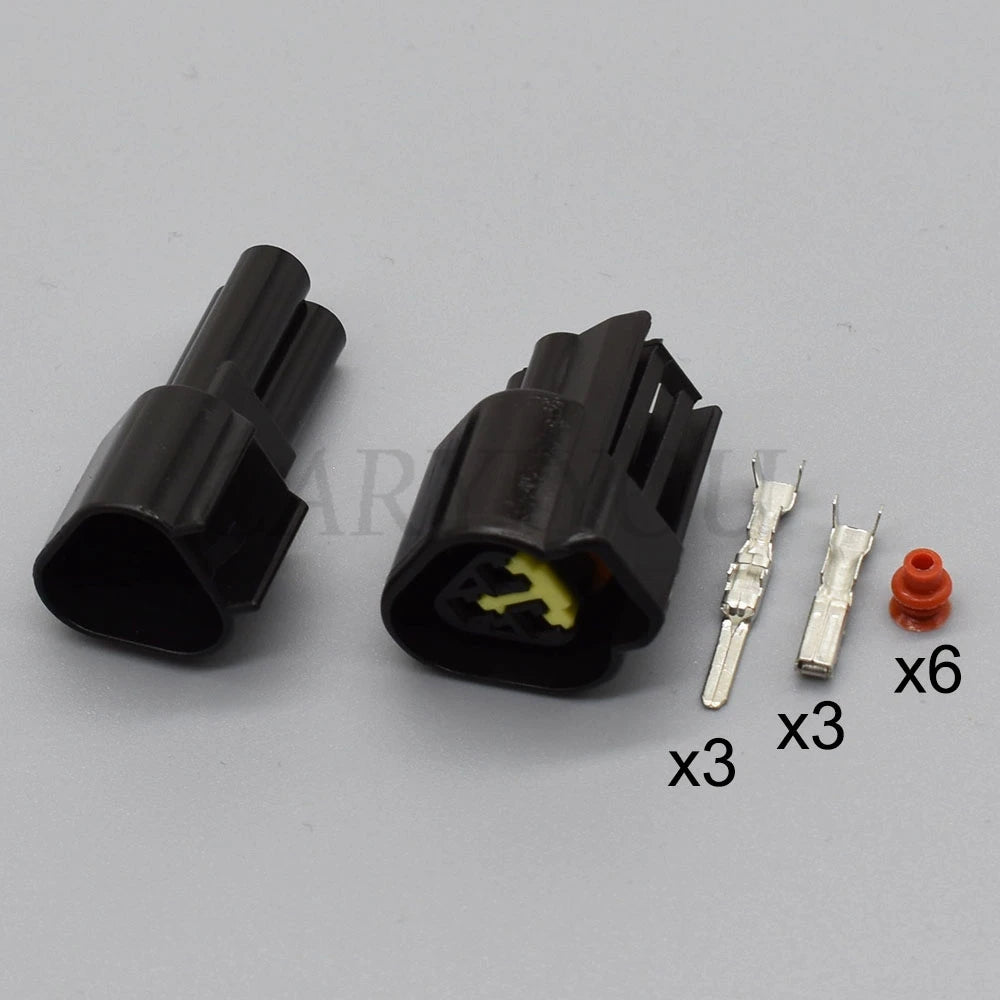

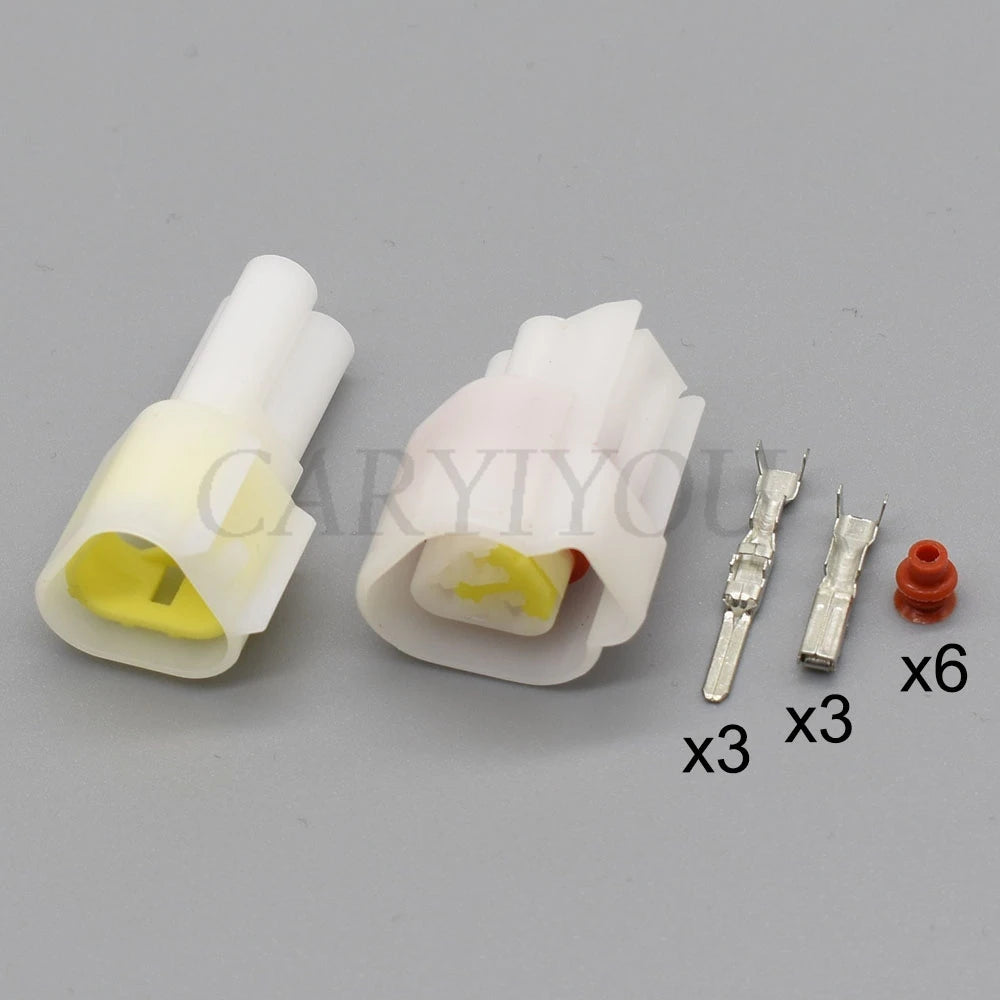

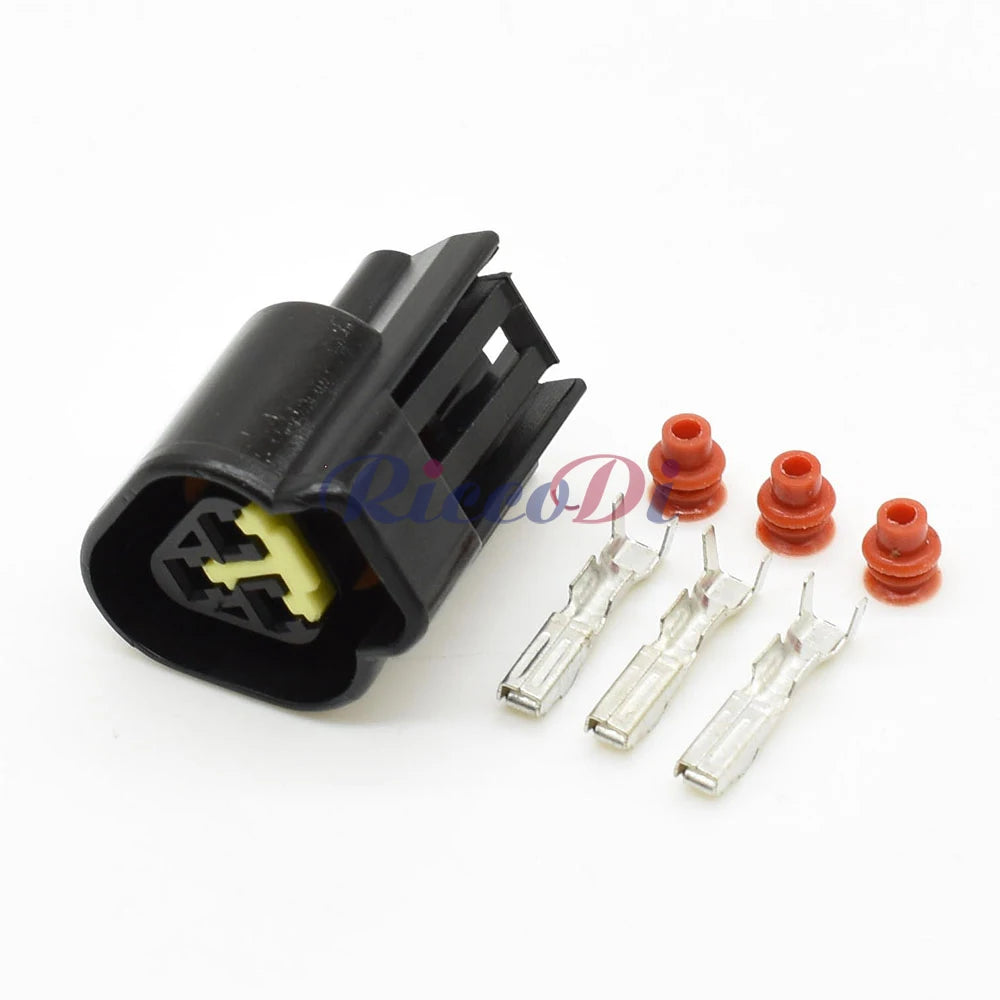

Package Contents

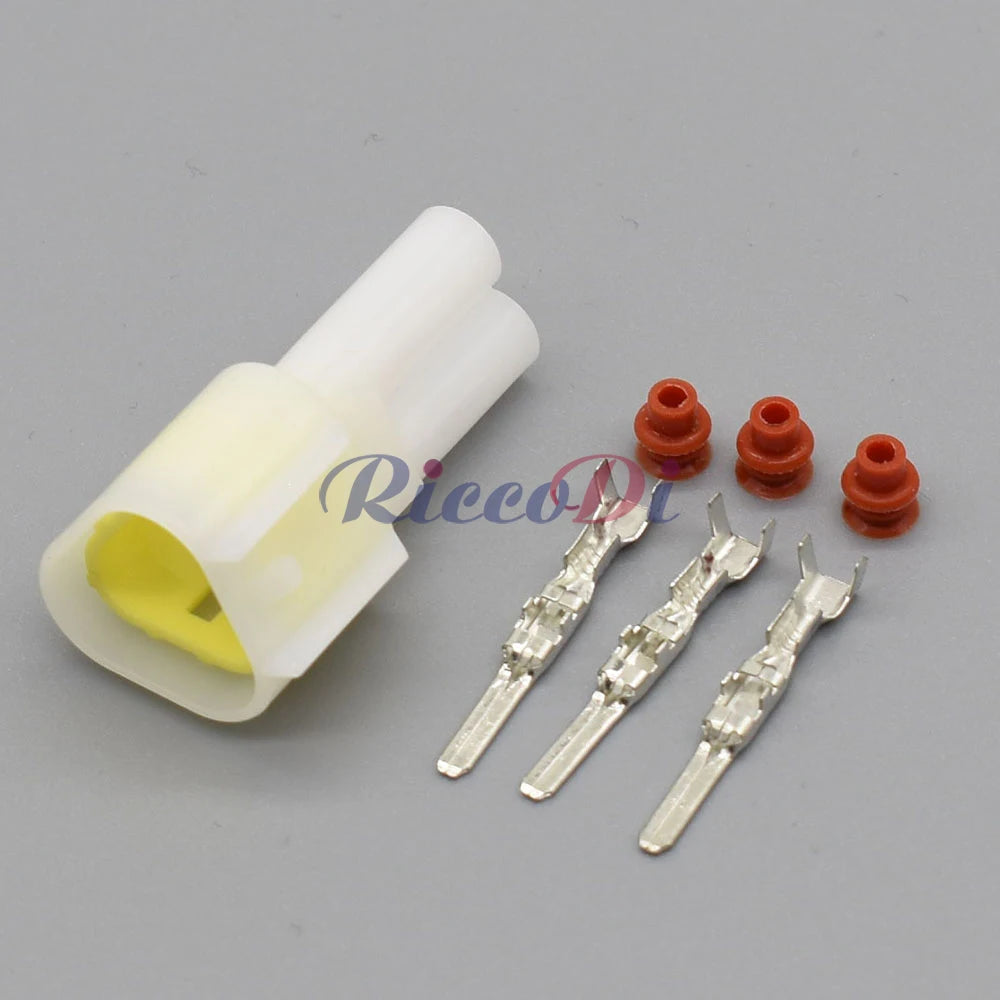

- 1 × Male connector housing (FW-C-3M-B / DJ7031Y-2.3)

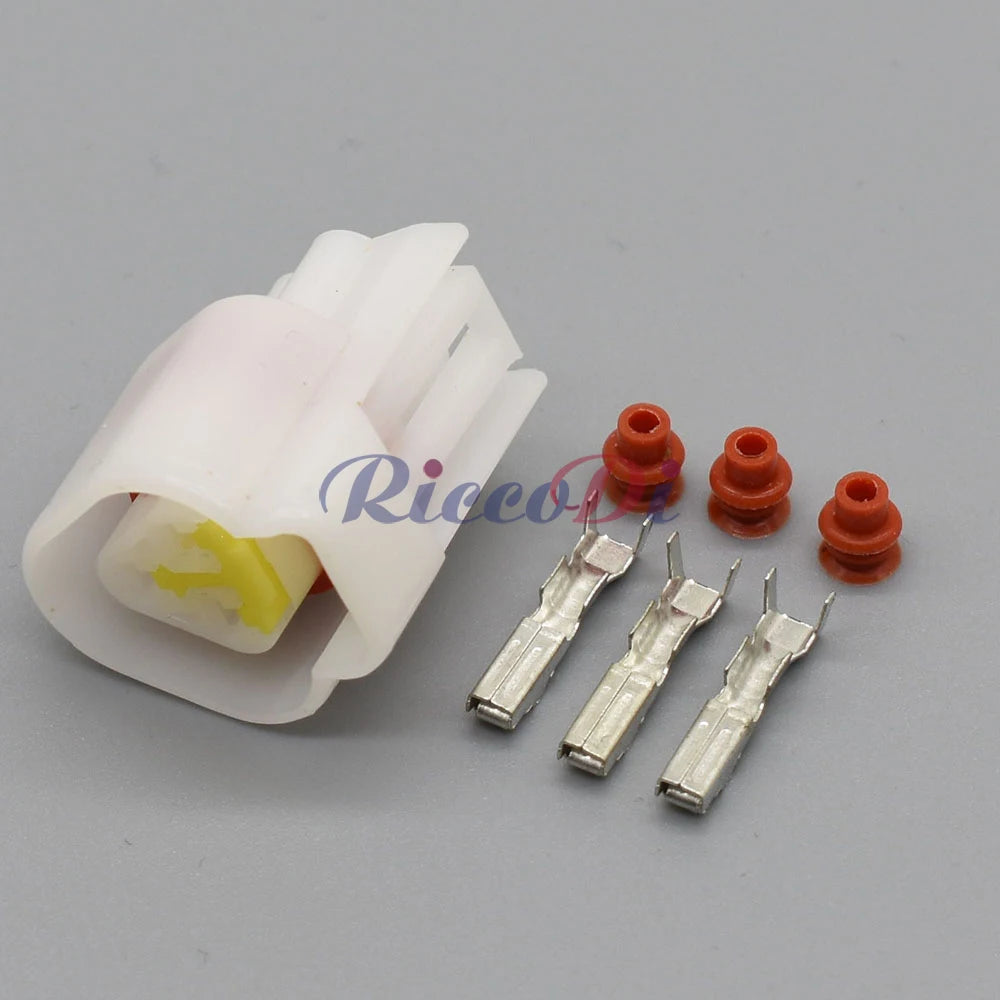

- 1 × Female connector housing (FW-C-3F-B)
- Pre-installed rubber wire seals
