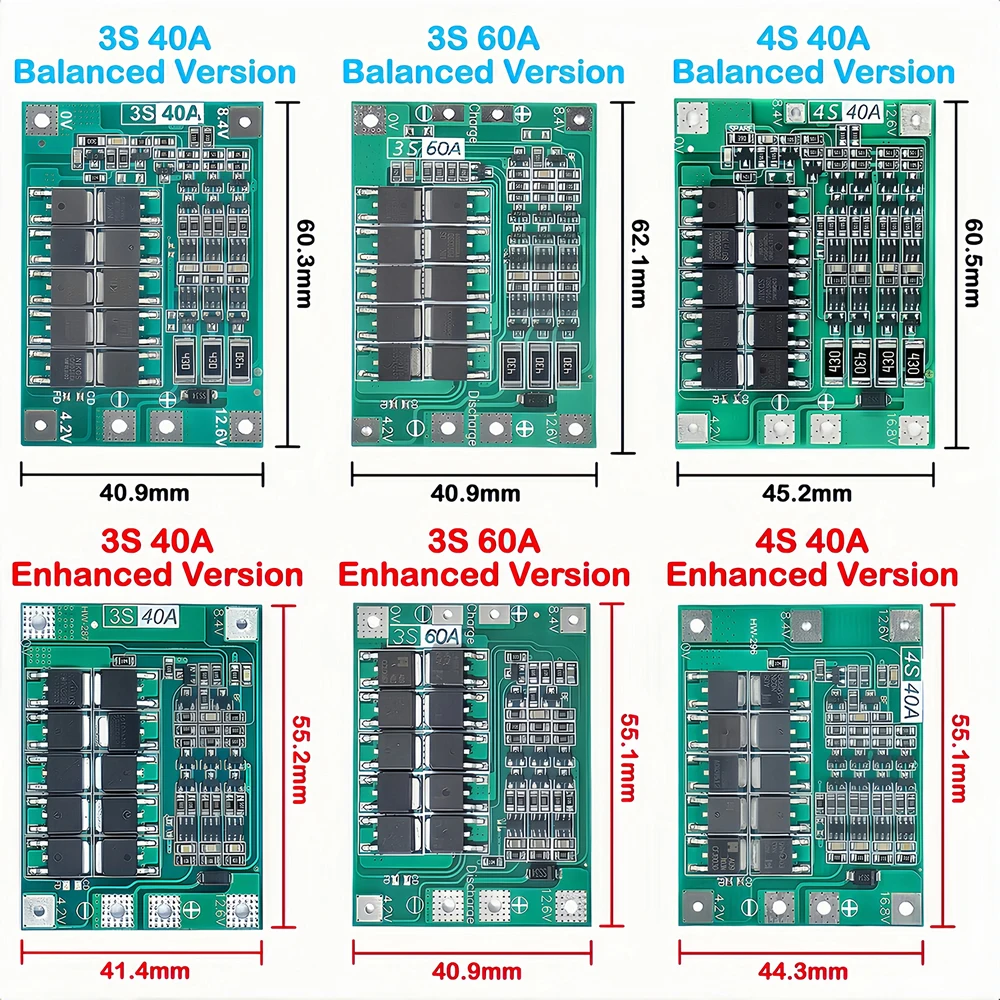

3S 4S Lithium Battery BMS Protection Board 40A 60A with Balance and Enhance Functions for Drill Motor 11.1V-16.8V Li-ion Cells

$5.68 USD

Save Liquid error (snippets/price line 138): divided by 0% Sold out

Taxes included. Shipping calculated at checkout.

Color

Quantity

SPECIFICATIONS

Application: MOBILE PHONE

Brand Name: Keszoox

Condition: New

Dissipation Power: --

High-concerned chemical: None

Operating Temperature: -40-+85

Origin: Mainland China

Package: SMD

Quantity: 1

Supply Voltage: 14.8V 16.8V

Type: Voltage Regulator

is_customized: Yes

3S 4S 40A 60A Lithium Battery Charger Protection Board 18650 BMS Li-ion Enhance/Balance For Drill Motor 11.1V 12.6V/14.8V 16.8V

----------------------------------------------------------------------------------------------------------------------------------------------------------------

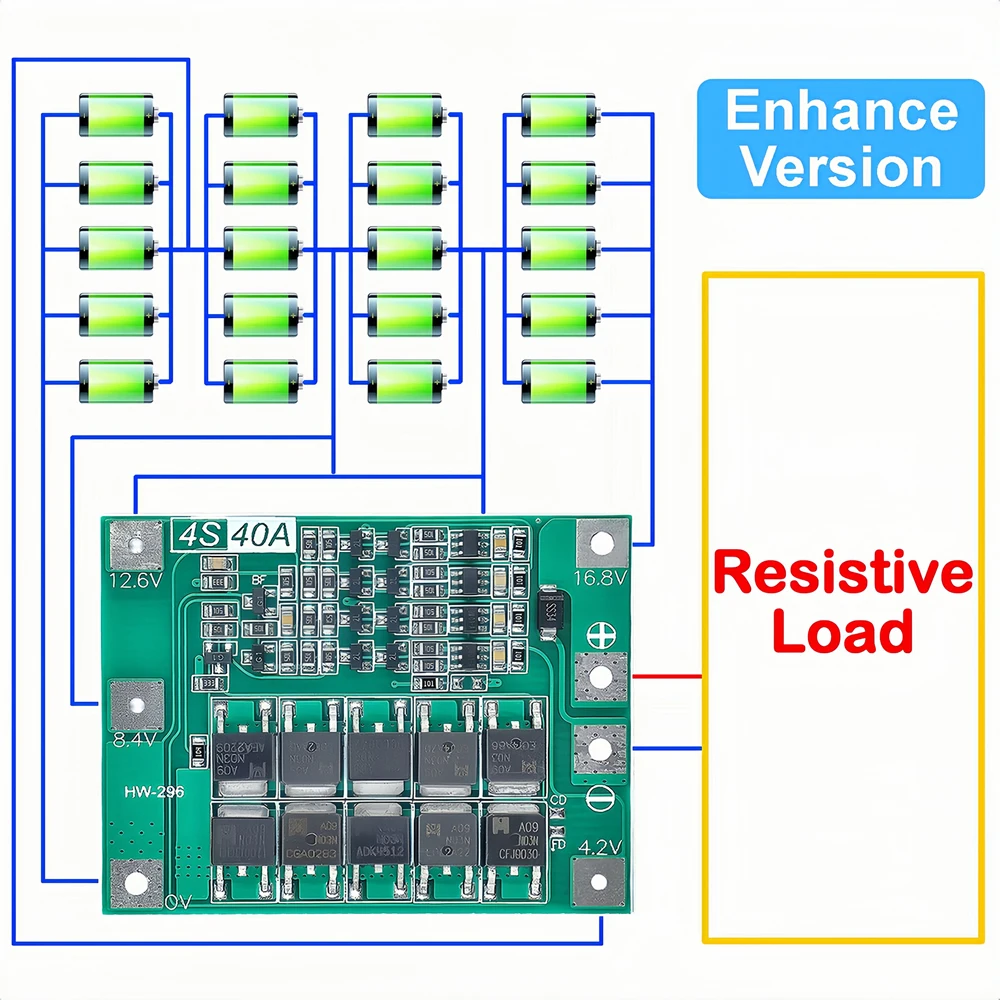

The figure below shows the battery charging diagram. The charging voltage is DC 12.6V~13.6V. The charging current depends
on the battery connected, and the maximum is no more than 20A. The module has a balanced charging path, and the equalization
function works only when the battery performance is not much different.

----------------------------------------------------------------------------------------------------------------------------------------------------------------
