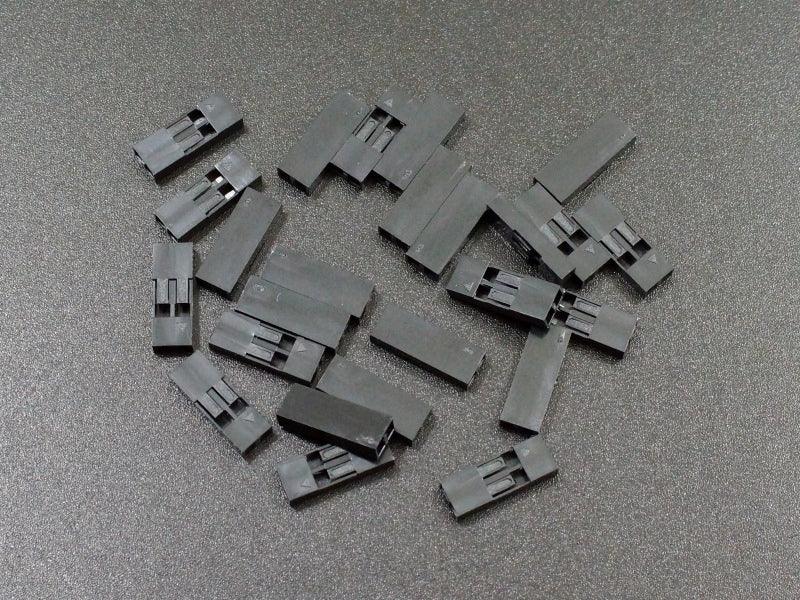

DuPont 2.54mm Connector Housing 2-Pin — 25-Pack

DuPont 2.54mm Connector Housing 2-Pin — 25-Pack

The DuPont 2.54mm 2-pin female connector housing is the standard 2-wire connector for power rails, I2C buses, and sensor connections in Arduino and breadboard projects. Crimp DuPont female terminals onto your wires, insert them into this housing, and build professional-grade, field-replaceable 2-wire connectors in seconds.

Supplied in a 25-pack for prototyping and small production runs.

Key Features

• 2-pin female housing — accepts standard DuPont 2.54mm female crimp terminals
• 2.54mm (0.1") pitch — universal standard for Arduino, Raspberry Pi, and all standard 0.1" pin headers
• Nylon PA66 body — UL94 V-0 flame-retardant, rated −25°C to +85°C
• Positive terminal retention — locking lance holds crimped terminals securely; field-removable with a pin tool
• 25-pack quantity — ideal for prototyping and small production runs
• RoHS compliant

Typical Applications

• Power connector assembly (VCC + GND)
• I2C bus connector (SDA + SCL)
• UART TX/RX connector
• Sensor power and signal wiring
• Custom 2-wire harness assembly

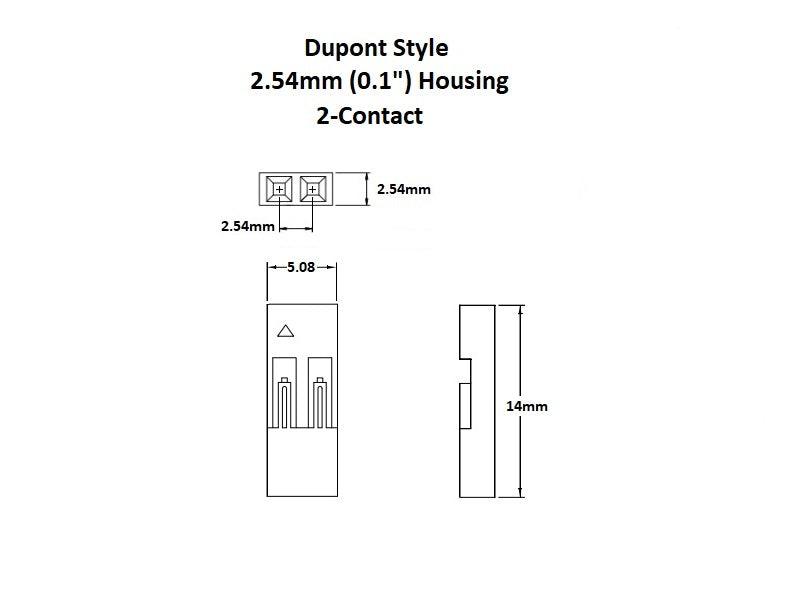

Technical Specifications

• Pitch: 2.54 mm (0.1")
• Pin Count: 2
• Housing Material: Nylon PA66, UL94 V-0
• Compatible Terminals: DuPont 2.54mm female crimp terminals (AWG 22–28)
• Temperature Range: −25°C to +85°C
• Pack Quantity: 25 pcs
• RoHS Compliant: Yes
• Brand: Keszoox
• Origin: Mainland China
