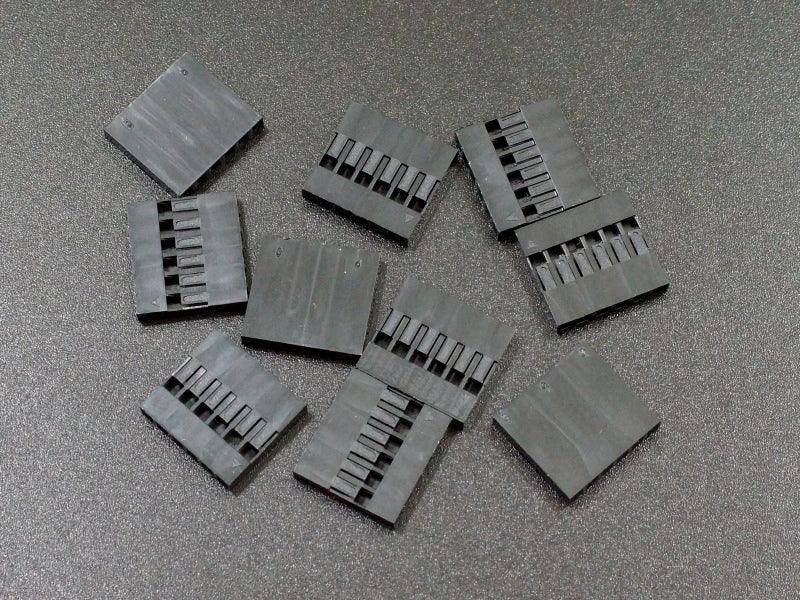

DuPont 2.54mm Connector Housing 6-Pin — 10-Pack

DuPont 2.54mm Connector Housing 6-Pin — 10-Pack

The DuPont 2.54mm 6-pin female connector housing is the standard connector for ICSP programming headers, full SPI buses, and 6-wire signal connections in Arduino and electronics projects. Build custom, field-replaceable 6-wire connectors by crimping DuPont female terminals onto your wires and inserting them into this housing.

Supplied in a 10-pack for prototyping and small production runs.

Key Features

• 6-pin female housing — accepts standard DuPont 2.54mm female crimp terminals
• 2.54mm (0.1") pitch — universal standard for Arduino, Raspberry Pi, and all standard 0.1" pin headers
• Nylon PA66 body — UL94 V-0 flame-retardant, rated −25°C to +85°C
• Positive terminal retention — locking lance holds crimped terminals securely; field-removable with a pin tool
• 10-pack quantity
• RoHS compliant

Typical Applications

• Arduino ICSP header (MOSI + MISO + SCK + RESET + VCC + GND)
• Full SPI bus with power and chip select
• 6-wire sensor and module connections
• Custom 6-wire harness assembly

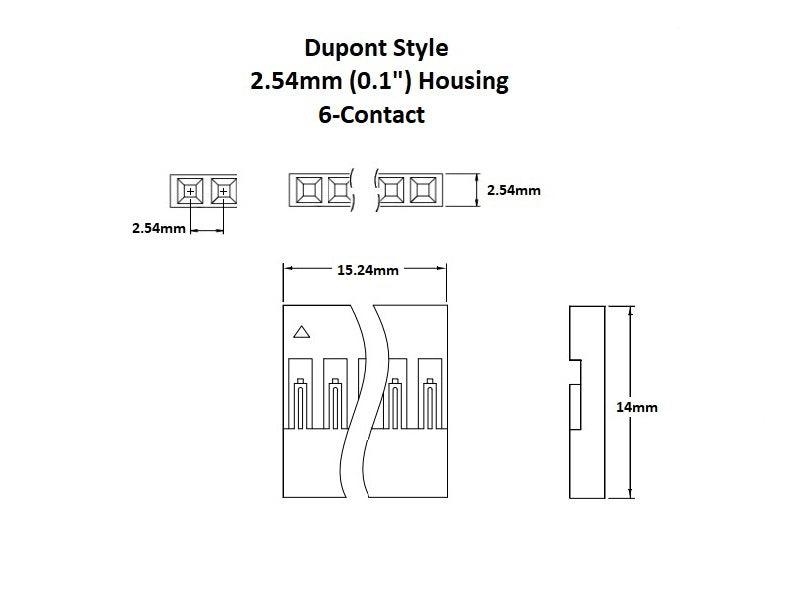

Technical Specifications

• Pitch: 2.54 mm (0.1")
• Pin Count: 6
• Housing Material: Nylon PA66, UL94 V-0
• Compatible Terminals: DuPont 2.54mm female crimp terminals (AWG 22–28)
• Temperature Range: −25°C to +85°C
• Pack Quantity: 10 pcs
• RoHS Compliant: Yes
• Brand: Keszoox
• Origin: Mainland China
