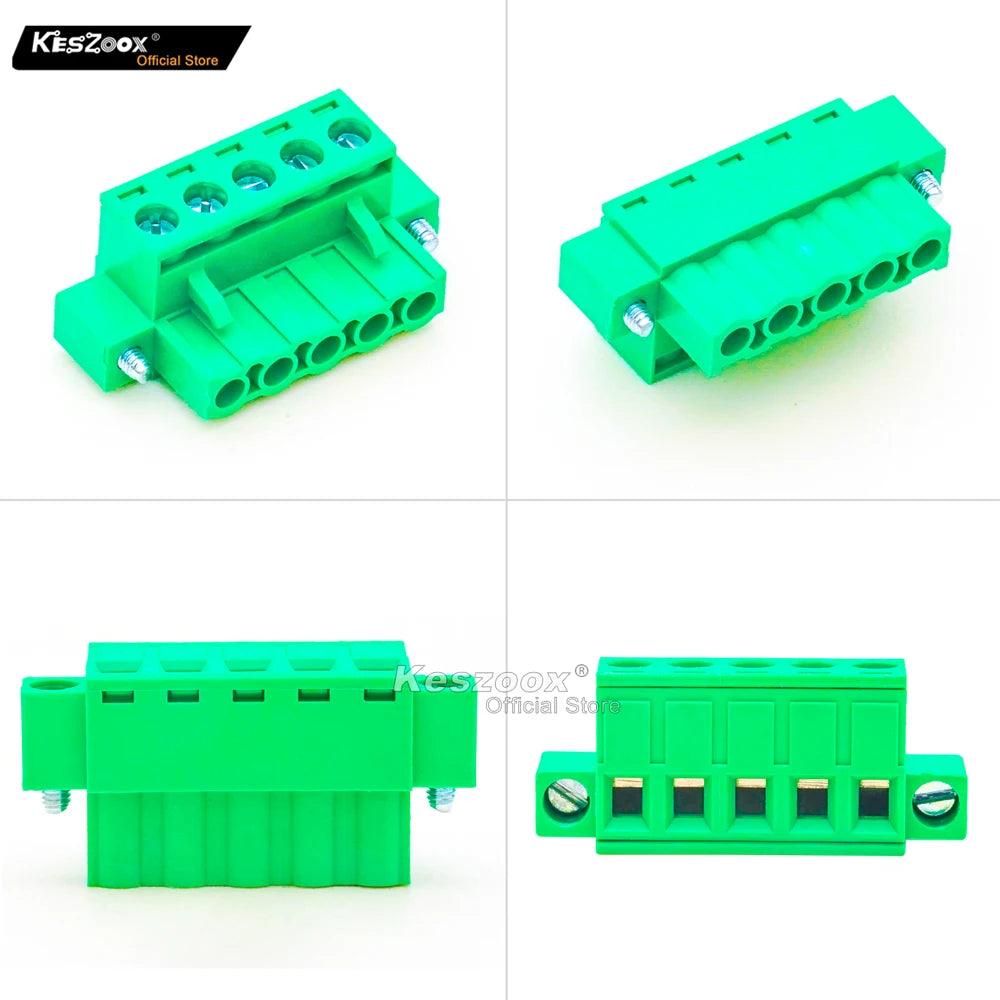

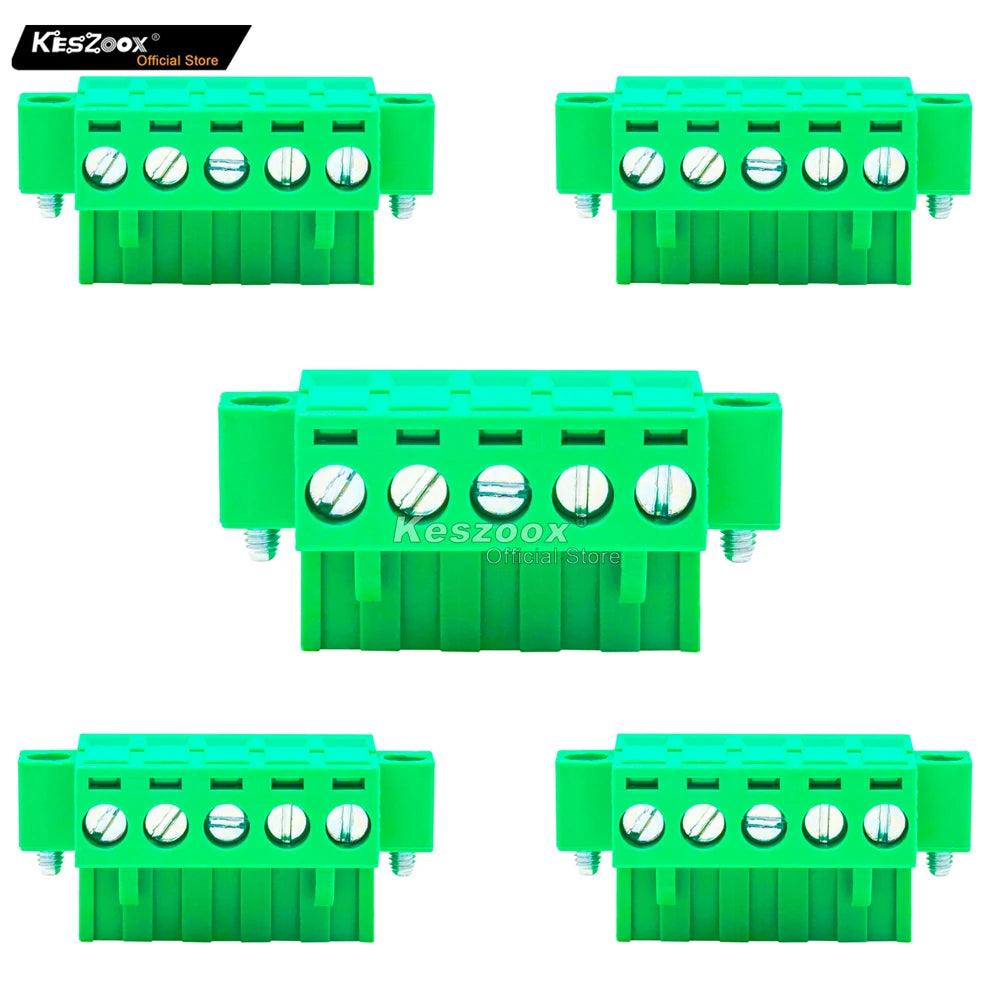

5.08mm 5-Pin Phoenix Type PCB Screw Terminal Block Connector — Green, 300V/15A
The Keszoox 5.08mm 5-pin Phoenix-type PCB screw terminal block is the go-to solution for engineers and makers who need a reliable, high-current wire-to-board connection on a PCB. With a 5.08mm pitch — the global standard for mains-voltage and high-current terminal blocks — this connector is directly compatible with Phoenix Contact MKDS 1.5/5 and equivalent series from Wago, TE Connectivity, and other leading manufacturers.
Whether you're building a power distribution board, an industrial relay panel, or a motor driver PCB, this terminal block delivers the mechanical strength, electrical performance, and long-term reliability your application demands. The captive screw design ensures wires stay locked under vibration, and the green PA nylon housing provides excellent thermal and chemical resistance.
Key Specifications

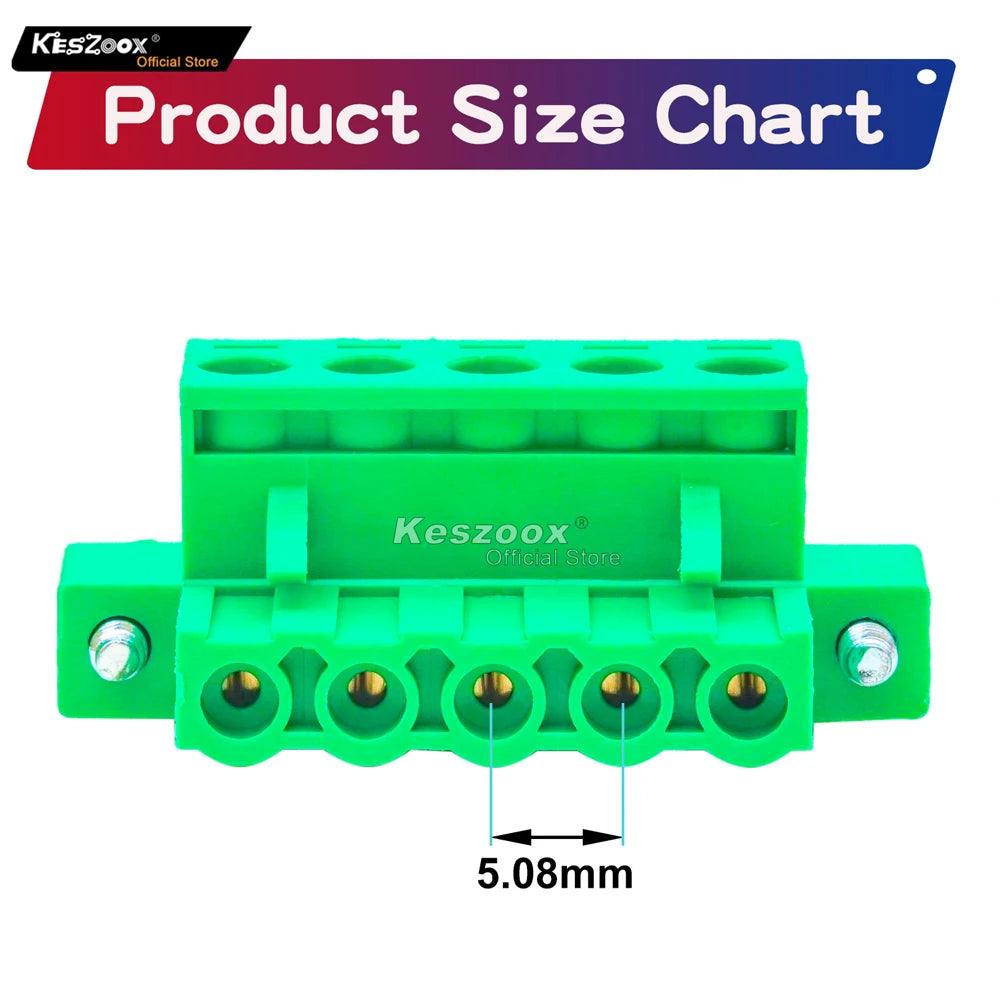

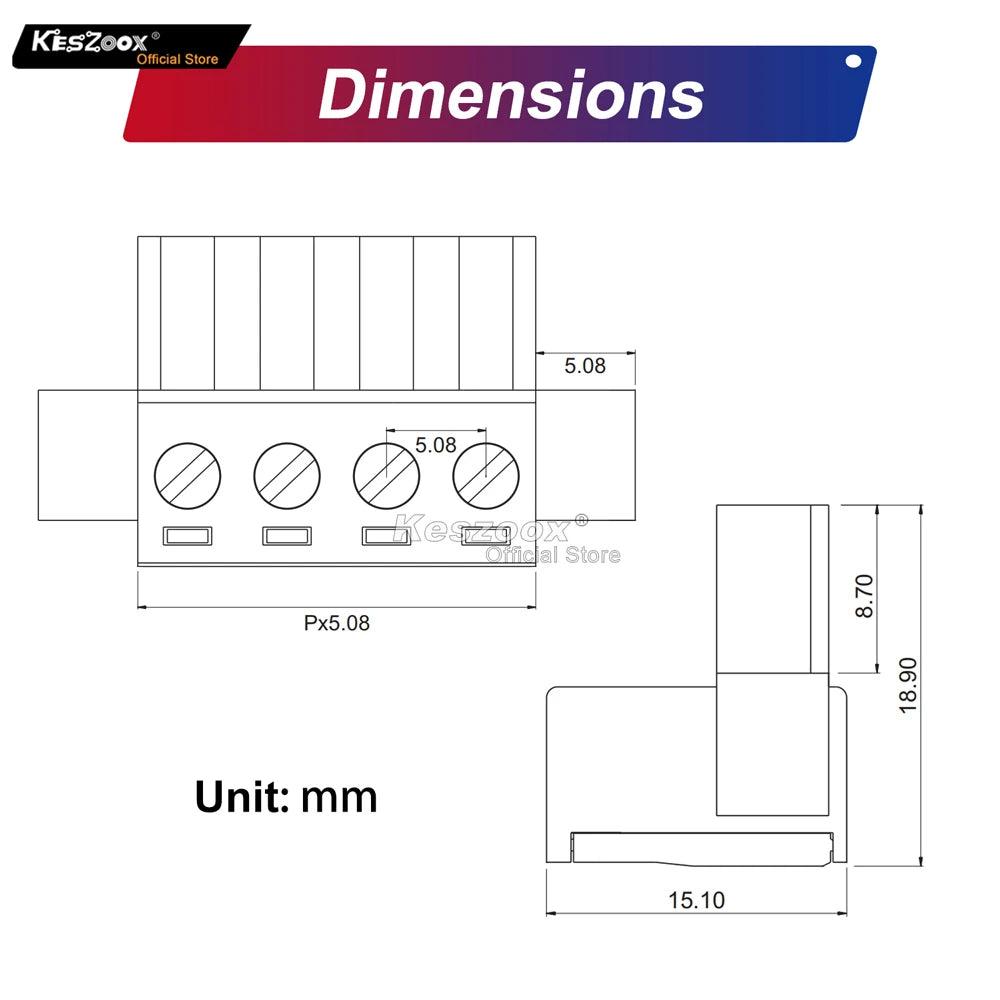

- Pitch: 5.08mm | Poles: 5 | Color: Green
- Rated voltage: 300V AC/DC | Rated current: 15A

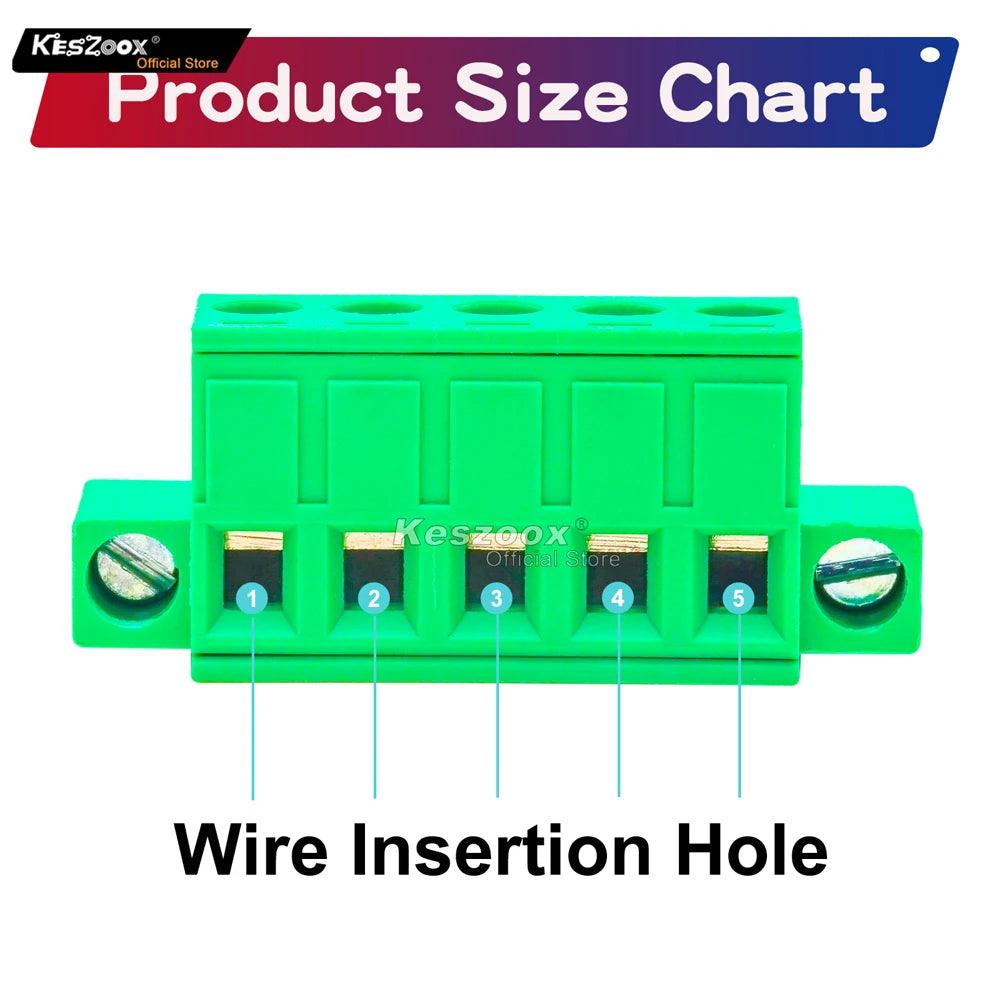

- Wire range: 12–28 AWG (0.08–4.0 mm²)
- Mounting: Through-hole PCB | Screw torque: 0.4 N·m
- Contact material: Tin-plated copper alloy
- Housing material: PA nylon, UL94 V-0 flame retardant
- Operating temperature: -40°C to +105°C
- Compliance: RoHS2 | Compatible with Phoenix Contact MKDS 1.5/5 and equivalents
Why Choose This Terminal Block?
- ✅ 5.08mm industry-standard pitch — drop-in compatible with Phoenix Contact MKDS, Wago 236, and equivalent series
- ✅ 300V / 15A rating — suitable for mains-voltage power distribution and high-current motor control

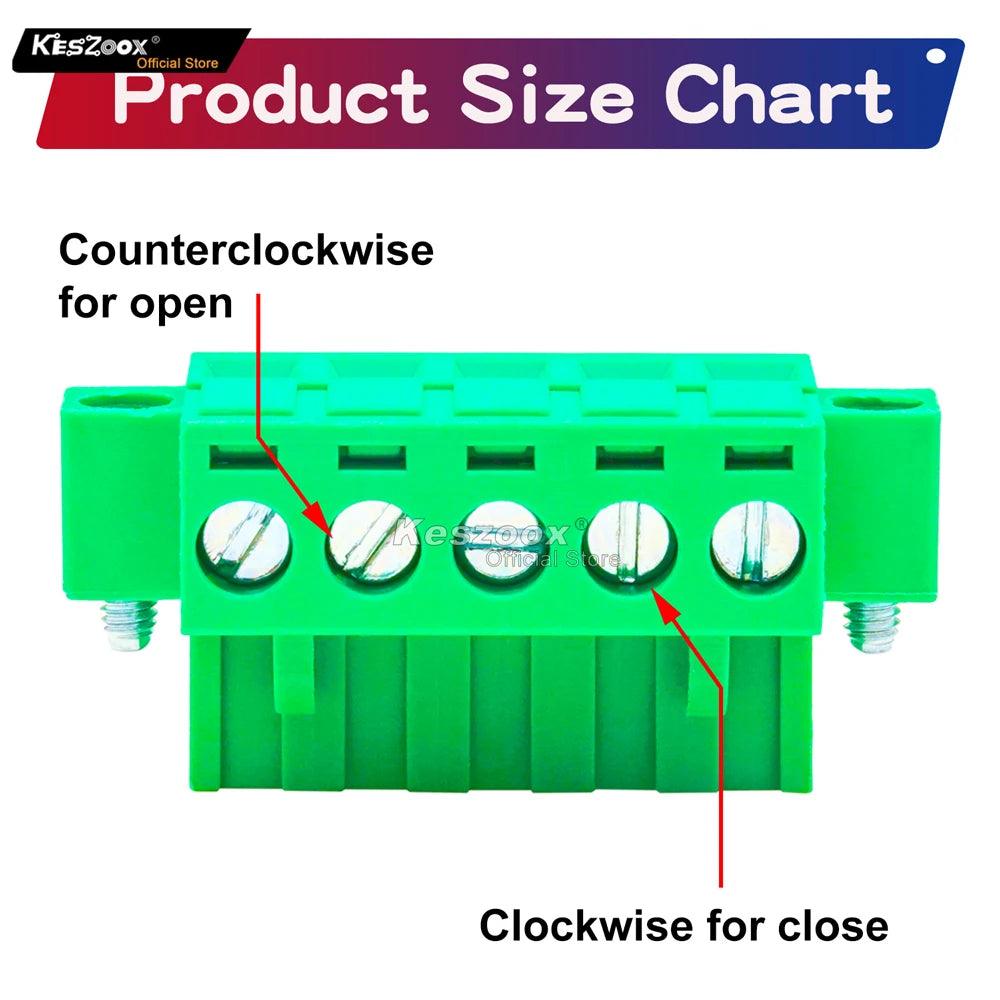

- ✅ Captive screw design — screw cannot fall out during assembly, reducing installation errors
- ✅ Wide wire range (12–28 AWG) — accommodates both power and signal wiring in the same connector family
- ✅ UL94 V-0 flame-retardant housing — meets safety requirements for industrial and commercial applications
- ✅ RoHS2 compliant — tin-plated copper contacts, halogen-free housing
Typical Applications
- AC/DC power supply and distribution boards
- Industrial control panels, PLCs, and relay boards
- Motor driver, VFD, and servo amplifier PCBs
- LED driver, lighting control, and DALI interface boards
- Building automation, HVAC control, and smart home panels
- DIY electronics, maker projects, and laboratory equipment
Compatibility
This terminal block is mechanically and electrically compatible with Phoenix Contact MKDS 1.5/5-5.08, Wago 236-105, TE Connectivity MSTB 2.5/5-ST-5.08, and equivalent 5.08mm pitch 5-pole terminal blocks from other manufacturers. Multiple units can be ganged side-by-side to create longer terminal strips.
