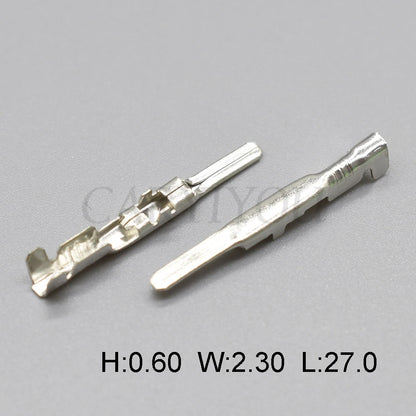

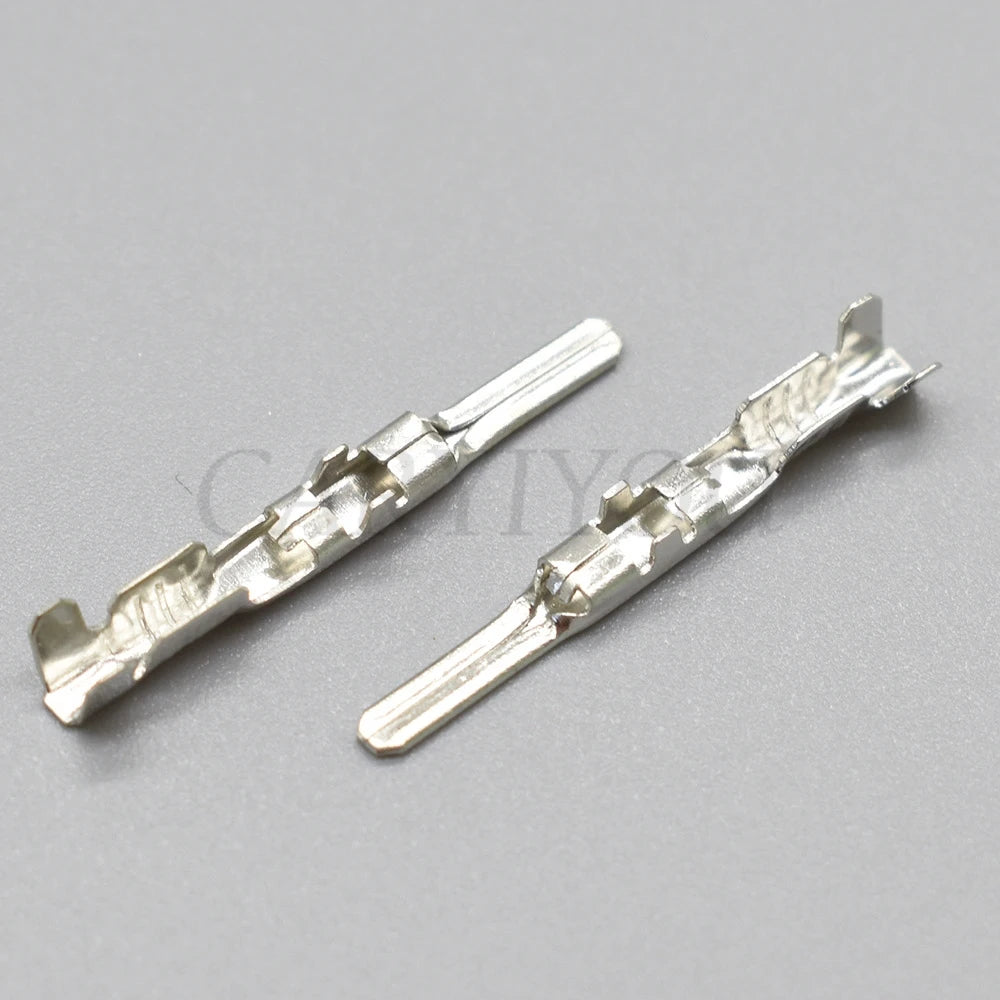

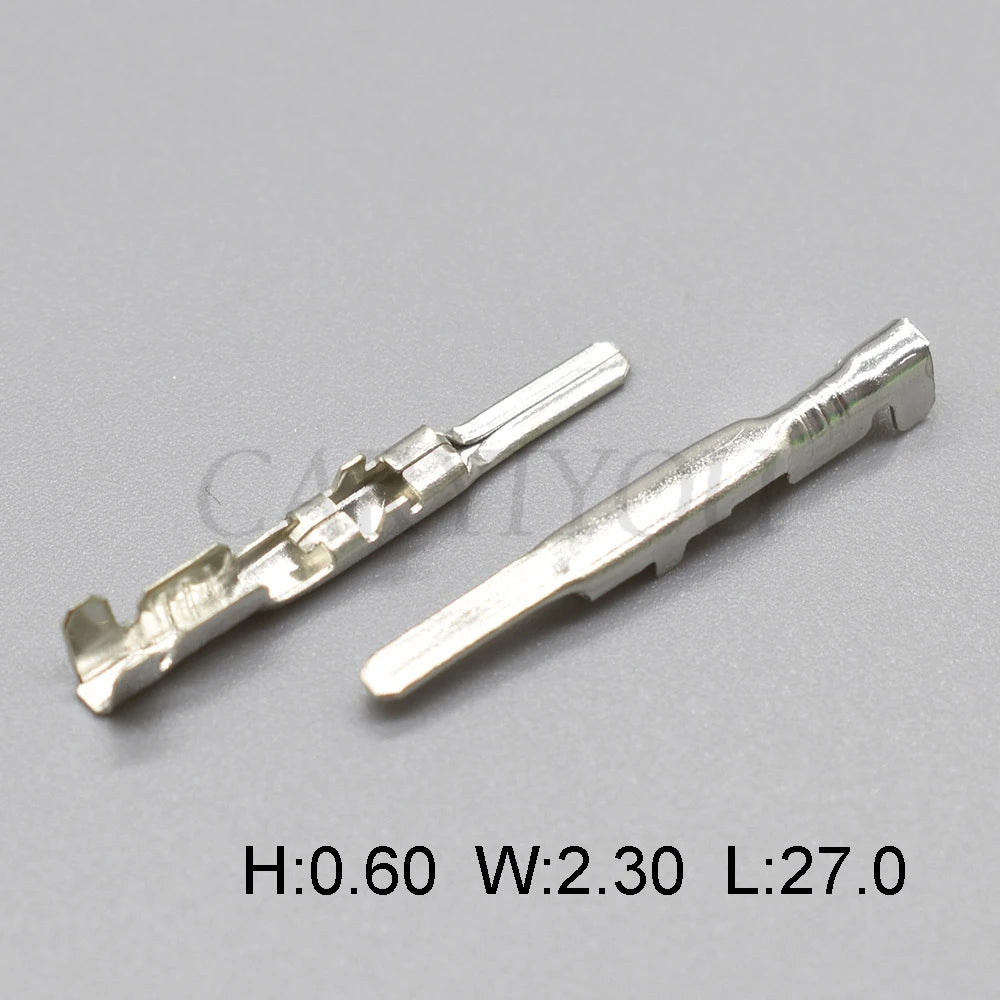

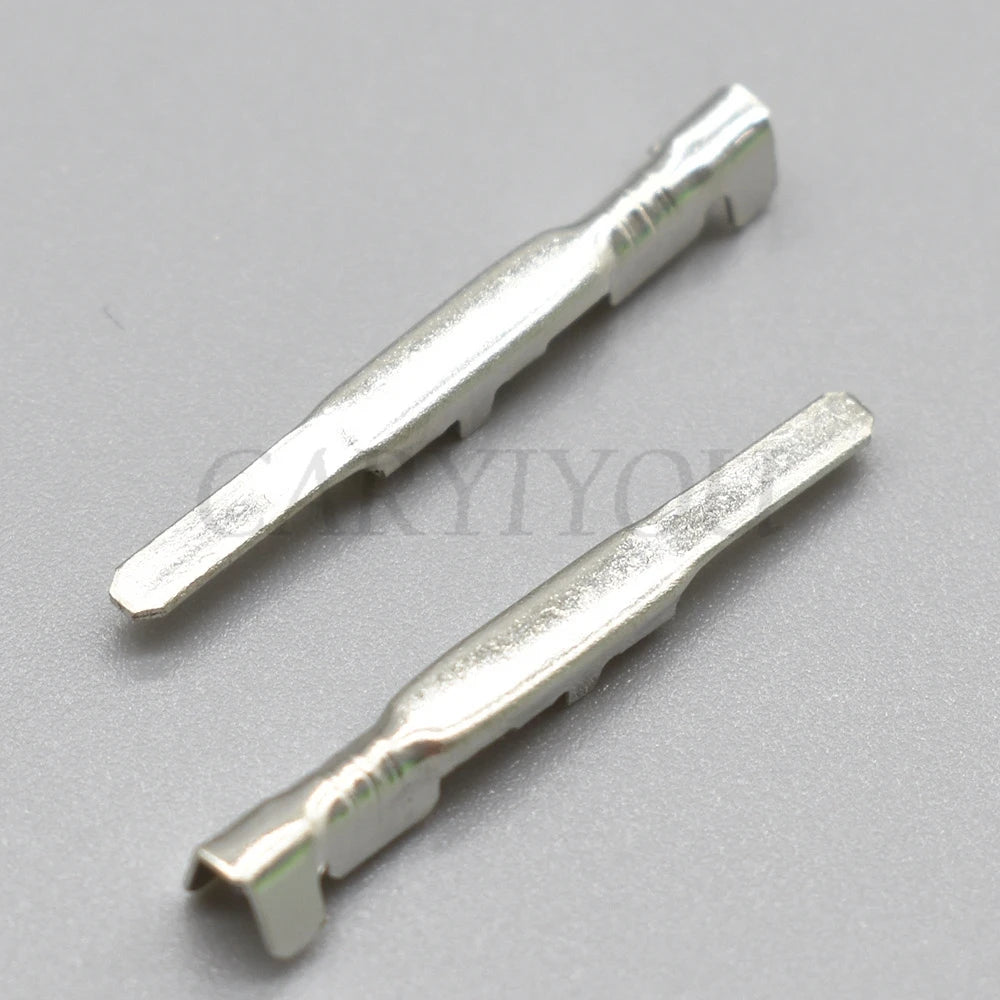

DJ611-2.3X0.6A Terminal Block Car Connector | 2.3 Series | Tin-Plated Brass | Insert Plug Socket | 50PCS

DJ611-2.3X0.6A Terminal Block Car Connector — 2.3 Series | Tin-Plated Brass | Insert Plug Socket | 50PCS

The DJ611-2.3X0.6A terminal block is a 2.3mm series automotive crimp terminal used in Chinese domestic vehicle wiring harnesses for low-current signal and sensor circuits. The tin-plated brass construction provides reliable, corrosion-resistant electrical connections with low contact resistance, while the insert plug socket design allows the terminal to be crimped onto the wire and inserted into the connector housing. Supplied in a 50PCS pack for wiring harness repair, custom harness fabrication, and connector assembly. CE certified.

Specifications

Model	DJ611-2.3X0.6A (also referenced as DJ621-G2x06A)
Series	2.3mm automotive terminal series
Material	Brass (tin-plated)
Type	Crimp terminal (insert plug socket)
Certification	CE
Pack Quantity	50PCS
Origin	Mainland China

2.3mm Series Terminal — Application Context

The 2.3mm series is one of the standard terminal pitches in Chinese automotive connector systems, used for low-current signal circuits (sensors, switches, control signals) where the smaller terminal size reduces connector bulk while maintaining reliable electrical performance. The DJ611 series terminals are compatible with the corresponding DJ611 series connector housings used throughout Chinese domestic vehicle wiring harnesses.

Key Features

• ✅ Tin-plated brass — low contact resistance, corrosion-resistant, reliable long-term electrical performance
• ✅ 2.3mm series — standard Chinese automotive terminal pitch for signal and sensor circuits
• ✅ Insert plug socket design — crimp onto wire, insert into DJ611 series connector housing
• ✅ CE certified — meets European automotive electrical component standards
• ✅ 50PCS pack — sufficient for multiple connector assemblies and harness repairs

Common Applications

• Chinese domestic vehicle wiring harness repair (SAIC, Geely, BYD, Chery, etc.)
• Automotive sensor connector terminal replacement
• Custom wiring harness fabrication
• Connector housing re-termination
• Automotive electrical repair and restoration

Crimping Guide

1. Strip 5–6mm of insulation from the wire end.
2. Insert the wire into the terminal crimp barrel, ensuring the conductor extends slightly beyond the barrel.
3. Crimp the wire barrel using a ratchet crimping tool set to the appropriate die for 2.3mm series terminals.
4. Crimp the insulation barrel over the wire insulation for strain relief.
5. Insert the crimped terminal into the connector housing until it clicks into the retention position.

Frequently Asked Questions

Q: What wire gauge is compatible with these terminals?
A: The DJ611-2.3X0.6A terminal is designed for 0.5mm² (20 AWG) wire, typical for automotive sensor and signal circuits.

Q: Do I need a special crimping tool?
A: Yes. Use a ratchet crimping tool with a die sized for 2.3mm series automotive terminals. Hand crimping with pliers produces inconsistent crimps that may fail in service.

Package Contents

• 50× DJ611-2.3X0.6A Tin-Plated Brass Terminal Block Car Connector
