JST VH 3.96mm Connector Kit with 20AWG Pre-Crimped Cables — SVH-21T Terminals

JST VH 3.96mm Connector Kit with 20AWG Pre-Crimped Cables — SVH-21T & SVH-41T Terminals

A comprehensive JST VH 3.96mm connector kit for high-current power wiring, RC battery harnesses, and industrial PCB assembly. Includes VHR-NN locking housings, SVH-21T-P1.1 and SVH-41T-P1.1 crimp terminals, and 20AWG pre-crimped cable assemblies in assorted pin counts from 2P to 10P. Connector rated 10A / 250V AC/DC; wire rated 5A / 300V / 80°C (UL1007 20AWG).

Why Choose This Kit?

• ✅ SVH-21T-P1.1 & SVH-41T-P1.1 terminals — both standard terminal types included for maximum compatibility
• ✅ Pre-crimped cables included — 20AWG UL1007 PVC, ready to plug in, no crimping tool required
• ✅ 10A / 250V connector rating — highest current rating in the JST wire-to-board range
• ✅ Positive-latch locking housing — secure mating under vibration and mechanical stress
• ✅ 2–10 pin assortment — covers the most common pin counts for power and RC applications
• ✅ RoHS2 / UL recognized compliant

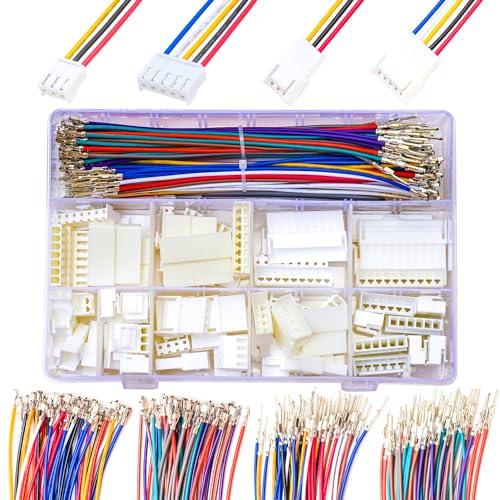

Kit Contents

• VHR-NN Locking Housings — Wire-side receptacle, 2–10 circuits, PA66 nylon, UL94V-0
• SVH-21T-P1.1 Crimp Terminals — AWG #18–#22, phosphor bronze, tin-plated
• SVH-41T-P1.1 Crimp Terminals — AWG #18–#22, phosphor bronze, tin-plated
• 20AWG UL1007 Pre-Crimped Cable Assemblies — Assorted pin counts, PVC insulation, 5A / 300V / 80°C rated

Key Specifications

• Pitch: 3.96mm | Circuits: 2–10 pin (assorted)
• Connector rating: 10A / 250V AC/DC | Operating temp: −25°C to +85°C
• Wire: 20AWG UL1007 PVC | Wire rating: 5A / 300V / 80°C
• Contact: SVH-21T-P1.1 / SVH-41T-P1.1, phosphor bronze, tin-plated
• Compliance: UL recognized · RoHS2 compliant

Typical Applications

• RC battery and ESC power harness assembly
• Industrial power supply and control panel high-current wiring
• Motor driver, relay board and inverter connections
• 3D printer power supply, heated bed and stepper motor wiring
• Robotics and CNC machine high-current power connections
