JST XH 2.5mm 6-Pin Connector with 22AWG Pre-Crimped PVC Cables — Housing, Header & Wire
JST XH 2.5mm 6-Pin Connector with 22AWG Pre-Crimped PVC Cables Housing, Header & Wire
Couldn't load pickup availability
JST XH 2.5mm 6-Pin Connector with 22AWG Pre-Crimped PVC Cables — Housing, Header & Wire
A complete JST XH 2.5mm 6-pin connector set including XHP-6 female locking housing, B6B-XH PCB header, SXH-001T-P0.6 crimp terminals, and 22AWG PVC pre-crimped cable assemblies. The JST XH 2.5mm is the standard connector for 3D printer mainboards, RC battery packs, and Arduino wire-to-board connections. The 6-pin configuration is ideal for multi-channel sensor, stepper motor, and signal harnesses. Rated 3A / 250V AC/DC.
Why Choose This Set?
- ✅ 6-pin configuration — ideal for multi-channel sensor, stepper motor, and signal harnesses
- ✅ Complete connector set — XHP housing, B-XH header, SXH-001T terminals and 22AWG PVC pre-crimped cables in one pack
- ✅ JST XH 2.5mm standard — the most widely used connector in 3D printer mainboards and RC battery packs
- ✅ 22AWG PVC pre-crimped cables — ready to insert, no crimping tool required
- ✅ 3A / 250V AC/DC rated — suitable for signal and low-power wiring
- ✅ RoHS compliant — PA nylon housing, tin-plated copper contacts

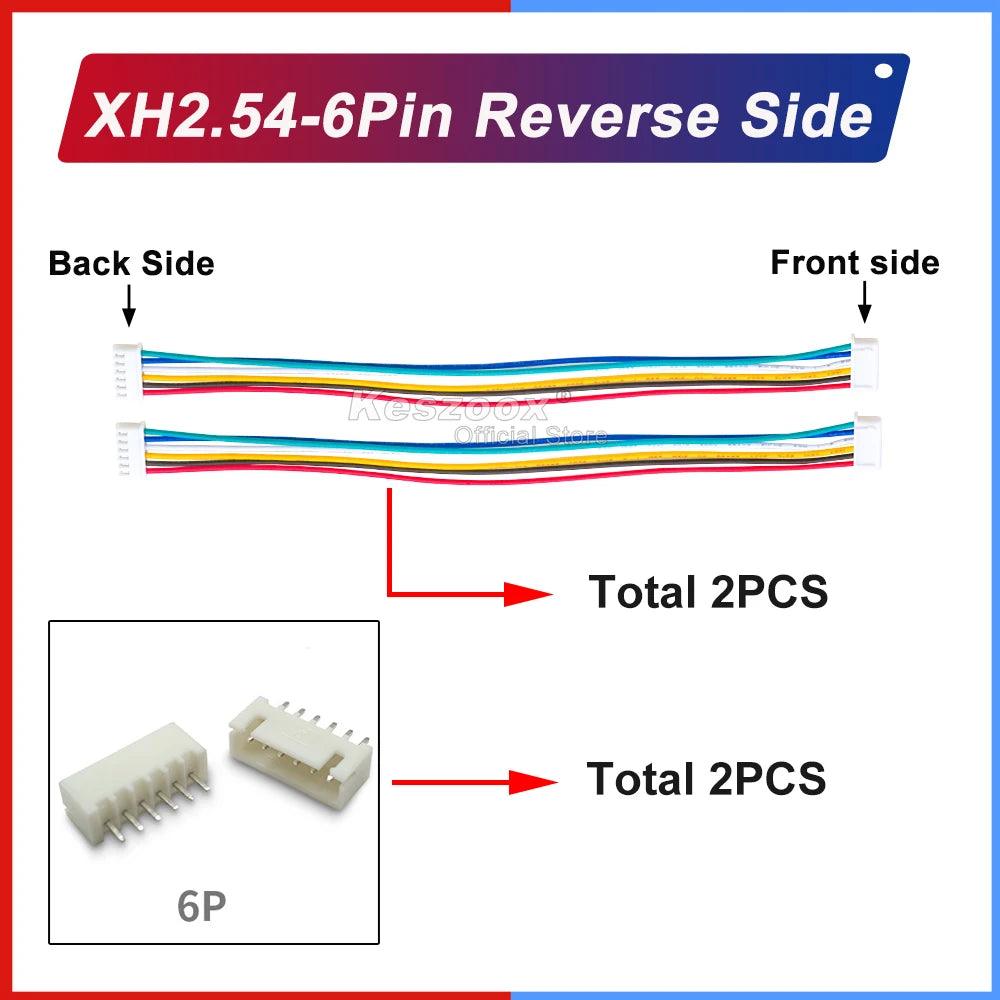

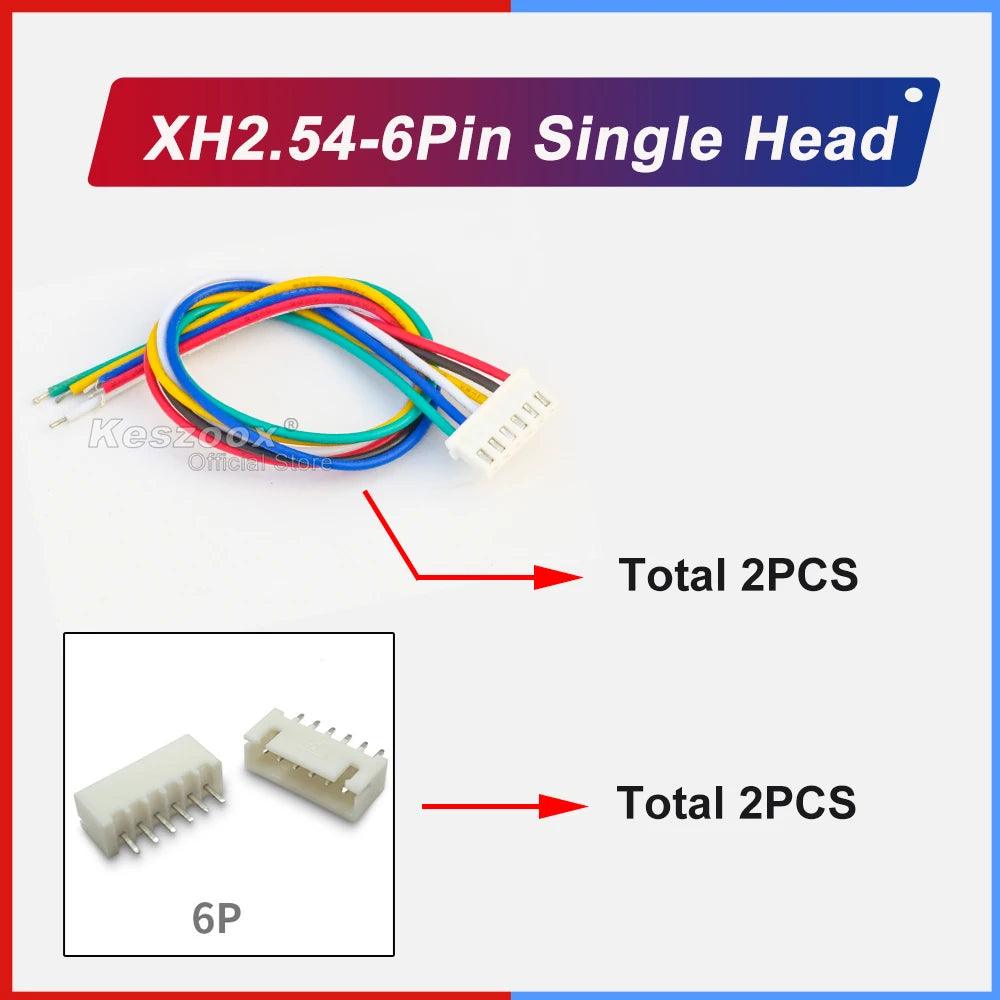

Kit Contents
- XHP-6 Female Locking Housing
- B6B-XH DIP PCB Header — top-entry through-hole
- SXH-001T-P0.6 Crimp Terminals — AWG #22–#28, phosphor bronze, tin-plated
- 22AWG PVC Pre-Crimped Cable Assemblies — 6-pin
Key Specifications
- Series: JST XH | Pitch: 2.5mm | Pin count: 6P
- Current: 3A | Voltage: 250V AC/DC | Temperature: −25°C to +85°C
- Housing: PA nylon | Contact: SXH-001T-P0.6, phosphor bronze, tin-plated | Compliance: RoHS
Typical Applications
- 3D printer mainboard multi-channel sensor and stepper motor wiring
- RC battery pack and model internal wiring
- Arduino, ESP32 and development board multi-channel connections
- Robotics and CNC machine signal and power wiring
- IoT sensor and smart home device PCB connections
