JST XH 2.5mm Connector Kit with 22AWG Pre-Crimped Cables — Housings, Headers & Terminals

JST XH 2.5mm Connector Kit with 22AWG Pre-Crimped Cables — Housings, Headers & Terminals

The complete JST XH 2.5mm connector kit for wire-to-board connections — includes XHR-NN female locking housings, B-XH through-hole PCB headers, SXH-001T-P0.6 crimp terminals, and 22AWG pre-crimped cable assemblies in assorted pin counts from 2P to 12P. The JST XH 2.5mm is the industry standard for LiPo battery balance leads, 3D printer board connections, and Arduino wire-to-board wiring. Rated 3A / 250V AC/DC.

Why Choose This Kit?

• ✅ Complete assortment — XHR housings, B-XH DIP headers, SXH-001T terminals and 22AWG cables in one pack
• ✅ JST XH 2.5mm standard — the most widely used JST wire-to-board connector for LiPo balance leads and 3D printer boards
• ✅ Pre-crimped 22AWG cables included — ready to insert, no crimping tool required
• ✅ Positive-latch locking housing — secure mating, resists accidental disconnection
• ✅ 3A / 250V AC/DC rated — suitable for signal and low-power wiring
• ✅ 2P–12P assortment — covers the most common pin counts for prototyping and production
• ✅ RoHS compliant — PA nylon housing, tin-plated copper contacts

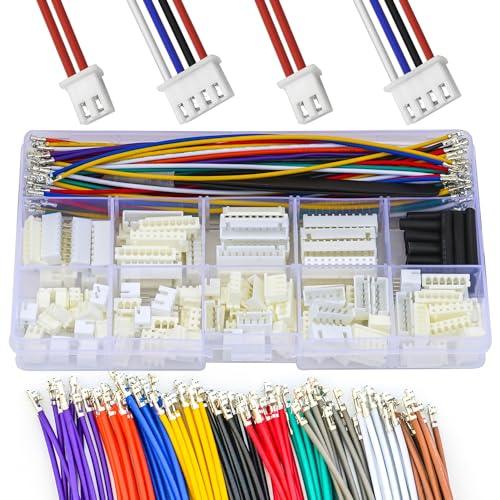

Kit Contents

• XHR-NN Female Locking Housings — 2P to 12P assorted
• B-XH DIP PCB Headers — top-entry through-hole, tin-plated contacts
• SXH-001T-P0.6 Crimp Terminals — AWG #22–#28, phosphor bronze, tin-plated
• 22AWG Pre-Crimped Cable Assemblies — assorted pin counts

Key Specifications

• Series: JST XH | Pitch: 2.5mm | Pin counts: 2P–12P
• Current rating: 3A | Voltage: 250V AC/DC | Temperature: −25°C to +85°C
• Wire: 22AWG | Contact: SXH-001T-P0.6, phosphor bronze, tin-plated
• Housing: PA nylon | Compliance: RoHS compliant

Typical Applications

• LiPo battery balance lead PCB connections
• 3D printer mainboard thermistor, fan and heated bed wiring
• Arduino, ESP32 and development board wire-to-board connections
• Robotics and CNC machine signal and power wiring
• Consumer electronics internal PCB wire-to-board connections
