VH 3.96mm Crimp Terminal for JST VH3.96 Connector Housing — Female Male | 50PCS
VH 3.96mm Crimp Terminal for JST VH3.96 Connector Housing Female Male | 50PCS
Couldn't load pickup availability

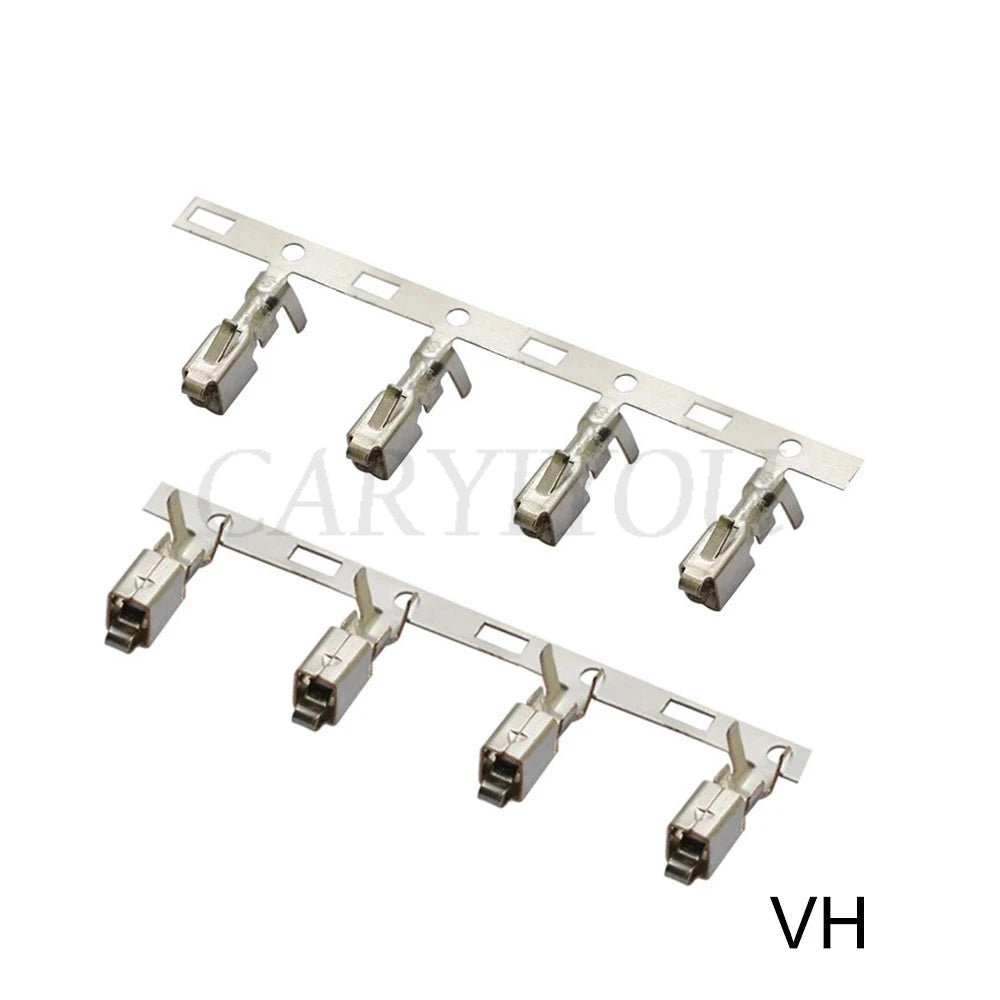

VH 3.96mm Crimp Terminal for JST VH3.96 Connector Housing — Female & Male
Standard VH 3.96mm pitch crimp terminals compatible with JST VH series connector housings. Manufactured from tin-plated copper alloy, these terminals deliver reliable electrical contact with low resistance and consistent crimp retention for wire-to-board and wire-to-wire connections in electronics, robotics, power supplies, and light industrial applications. The 3.96mm pitch is the standard for JST VH series connectors, widely used in DIY electronics, Arduino projects, battery packs, and custom wiring harnesses. Supplied in a 50PCS pack covering both female and male terminal options.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | VH Terminal (VH3.96 series) |
| Terminal Pitch | 3.96mm |
| Compatible Housing | JST VH3.96 series connector housing |
| Material | Copper alloy, tin-plated |
| Gender | Female / Male (as selected) |
| Wire Range | 0.3–1.0mm² (AWG 22–18) |
| Rated Current | Up to 10A per pin |
| Pack Quantity | 50PCS |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ 3.96mm pitch — standard JST VH series terminal pitch for wire-to-board and wire-to-wire connections
- ✅ Tin-plated copper alloy — low contact resistance, corrosion-resistant, reliable long-term electrical performance
- ✅ JST VH3.96 compatible — direct-fit crimp terminal for VH series connector housings (2–12 pin)
- ✅ CE certified — meets European electrical component standards
- ✅ 50PCS pack — sufficient for multiple connector assemblies and custom wiring projects
Common Applications
- JST VH3.96 series connector assembly and re-termination
- Arduino, Raspberry Pi, and DIY electronics wiring harnesses
- Battery pack and power supply wiring connections
- RC vehicle and drone power connector wiring
- Custom wire-to-board and wire-to-wire harness fabrication
- Light industrial control panel wiring
Crimping Guide
- Strip 3–4mm of insulation from the wire end.
- Insert the wire into the terminal crimp barrel, ensuring the conductor extends slightly beyond the barrel.
- Crimp the wire barrel using a ratchet crimping tool with the appropriate 3.96mm die (or JST-compatible die).
- Crimp the insulation barrel for strain relief.
- Insert the crimped terminal into the VH3.96 connector housing until it clicks into the retention position.
FAQ
Q: What wire gauge is compatible?
A: VH 3.96mm terminals are designed for 0.3–1.0mm² (AWG 22–18) wire, rated up to 10A per pin.
Q: Are these compatible with JST VH housings?
A: Yes. These are the standard crimp terminals for JST VH3.96 series connector housings (2–12 pin configurations).
Package Contents
- 50× VH 3.96mm Crimp Terminal (Female or Male, as selected)
