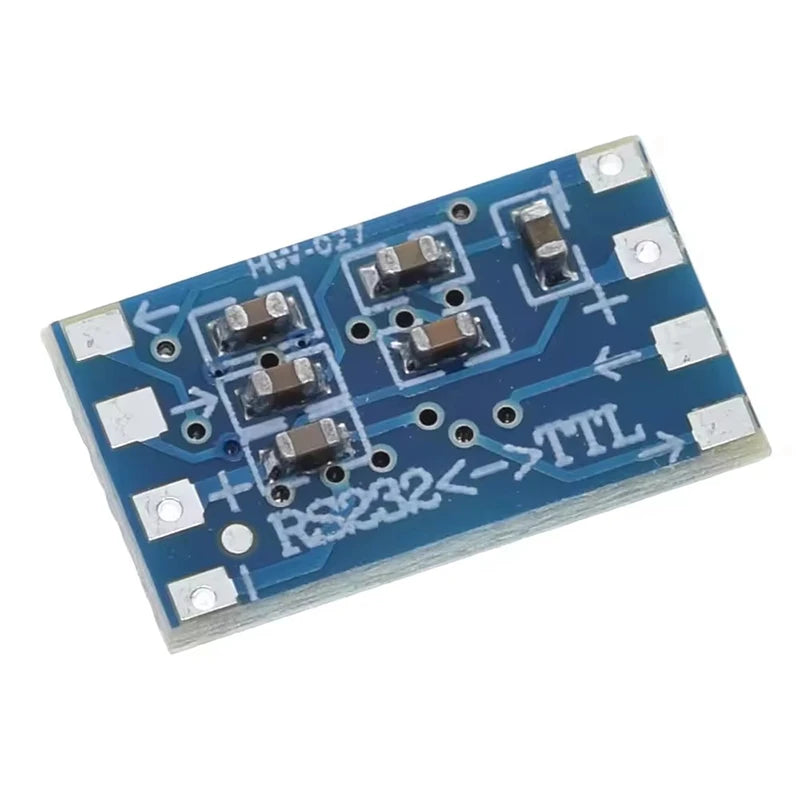

Mini RS232 to TTL Serial Converter — MAX3232, 3.3V / 5V, -40°C to 80°C

This mini RS232 to TTL serial converter module is based on the Maxim MAX3232 IC, providing bidirectional level conversion between RS232 voltage levels (±12V) and 3.3V or 5V TTL/CMOS logic levels. It enables direct communication between a PC RS232 serial port (DB9) and Arduino, ESP32, STM32, Raspberry Pi, or any UART-capable microcontroller — without risk of damaging 3.3V or 5V logic from RS232's high-voltage swings. Operating from -40°C to +80°C, it is suitable for industrial and outdoor applications.

Key Specifications

Parameter	Value
IC	Maxim MAX3232
Supply Voltage	3.3V or 5V (onboard LDO)
RS232 Voltage	±12V (standard RS232)
TTL Logic Level	3.3V or 5V (compatible)
Channels	2 TX + 2 RX (full duplex)
Max Baud Rate	Up to 1Mbps
RS232 Connector	DB9 female (or header pins)
Operating Temperature	-40°C to +80°C

RS232 vs TTL vs RS485 — Serial Interface Comparison

Feature	RS232	TTL UART	RS485
Voltage Levels	±12V	0–3.3V or 0–5V	±5V differential
Max Distance	15m	<1m	1200m
Topology	Point-to-point	Point-to-point	Multi-drop (32 nodes)
MCU Compatible	❌ (needs converter)	✅ Direct	❌ (needs transceiver)
Best For	PC serial port, legacy equipment	MCU-to-MCU	Industrial multi-node

Why Choose MAX3232 Converter?

• ✅ MAX3232 IC — industry-standard RS232 transceiver, 3.3V and 5V compatible
• ✅ 3.3V / 5V supply — works with Arduino Uno (5V) and ESP32 / STM32 (3.3V)
• ✅ -40°C to +80°C — reliable in industrial and outdoor environments
• ✅ Mini form factor — compact module for space-constrained installations
• ✅ Full duplex — simultaneous TX and RX communication

Typical Applications

• Arduino to PC RS232 serial communication
• ESP32 / STM32 RS232 interface for legacy equipment
• Industrial PLC and HMI RS232 communication
• GPS and GSM module RS232 to TTL conversion
• Barcode scanner and label printer RS232 interface
• Modbus RTU RS232 master/slave communication

Package Contents

• 1 × Mini RS232 to TTL Serial Converter Module (MAX3232)
