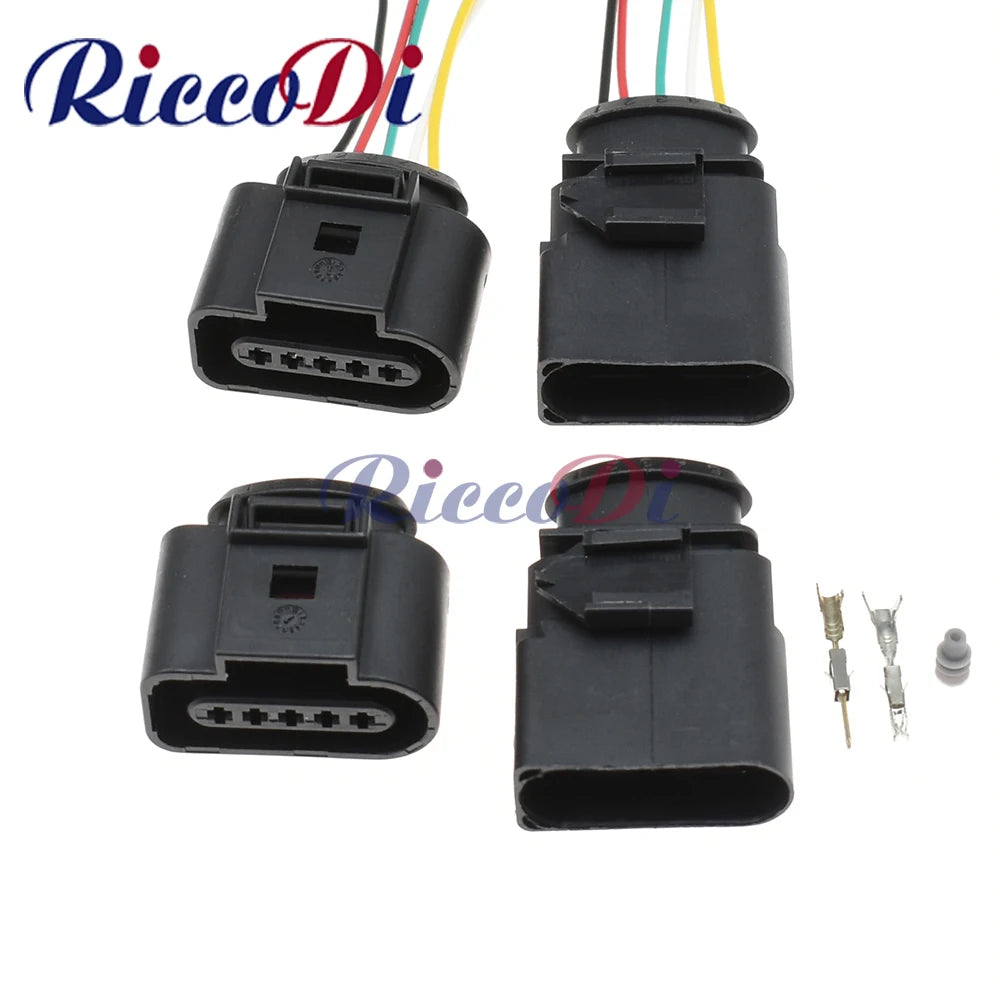

5 Pin 1.5mm Electrical Plug Auto Sealed Male Female Connector Kit 1J0973805 1J0973705 For AUDI VAG Volkswagen
5 Pin 1.5mm Electrical Plug Auto Sealed Male Female Connector Kit 1J0973805 1J0973705 For AUDI VAG Volkswagen
Couldn't load pickup availability

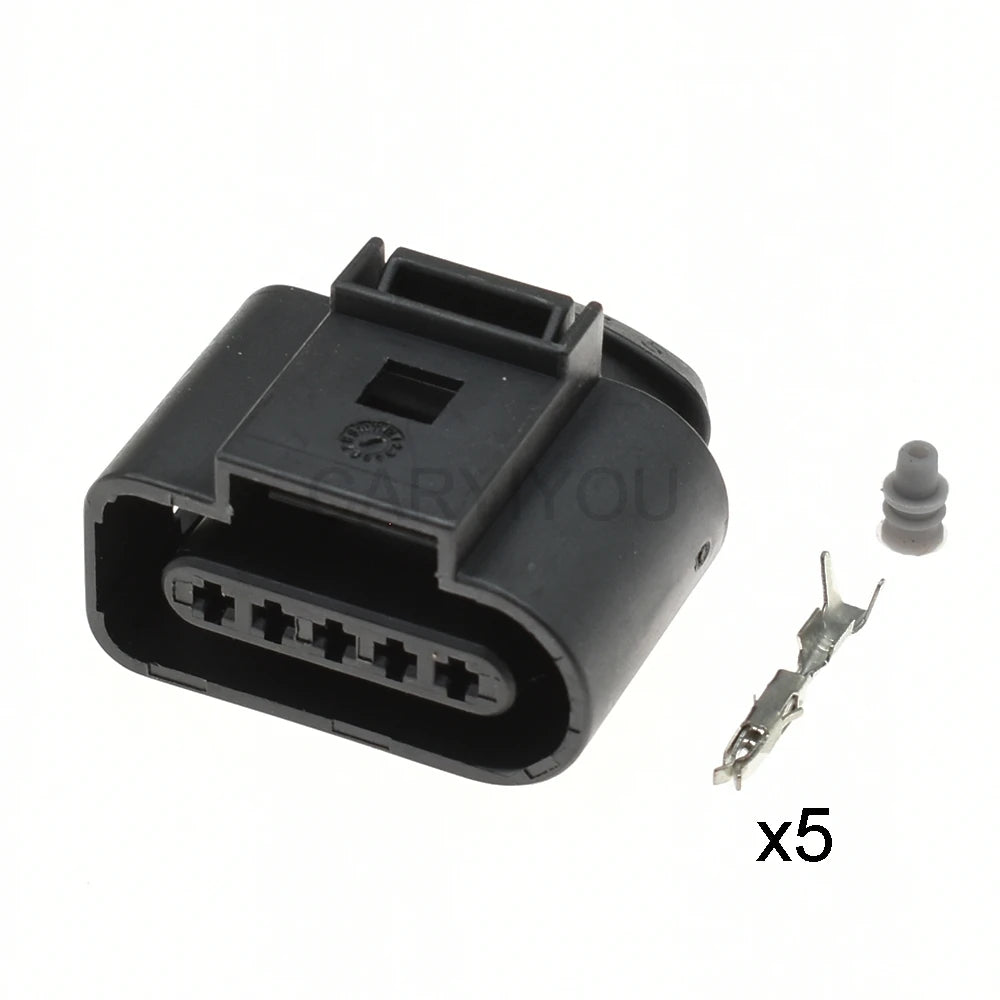

5-Pin 1.5mm Auto Sealed Male & Female Connector Kit — OEM 1J0973805 / 1J0973705, Audi VW VAG
OEM-specification 5-pin 1.5mm pitch sealed automotive connector kit in male plug (1J0973805) and female socket (1J0973705) configuration, compatible with Volkswagen, Audi, and VAG Group vehicle wiring harnesses. The 1.5mm pitch sealed design provides IP67 waterproofing for underbonnet and underbody sensor, actuator, and signal wiring applications. PA66 housing with positive latch locking for secure, vibration-resistant connection in the automotive environment.
Part Number Cross-Reference
| Part Number | Configuration | Application |
|---|---|---|

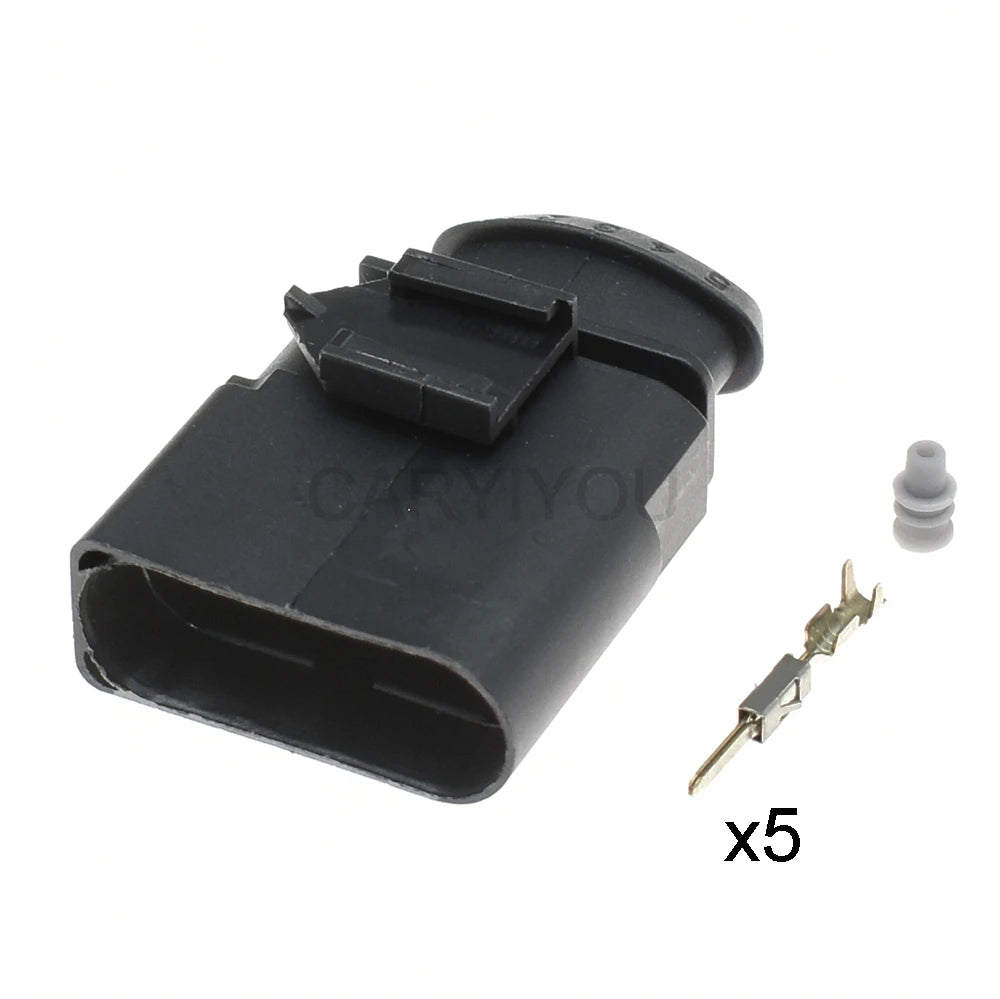

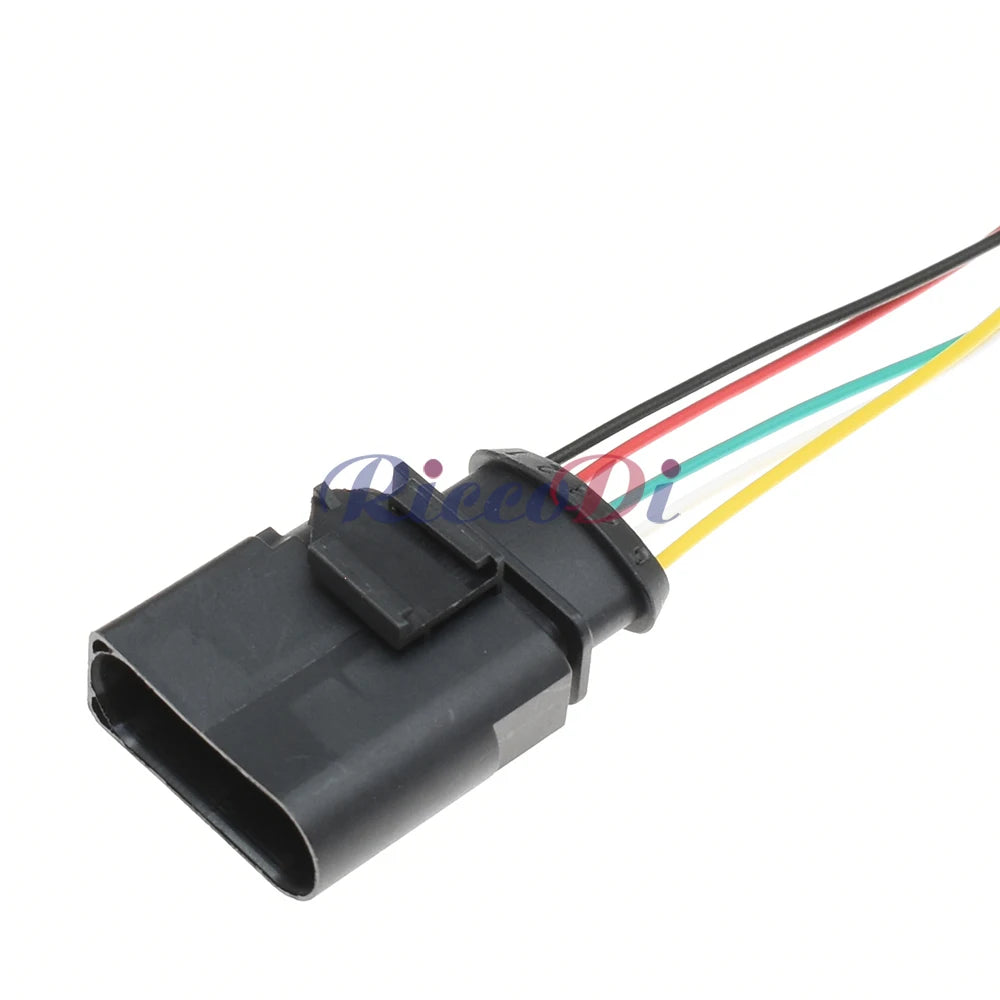

| 1J0973805 | Male plug (5-pin) | VW / Audi / VAG wiring harness |

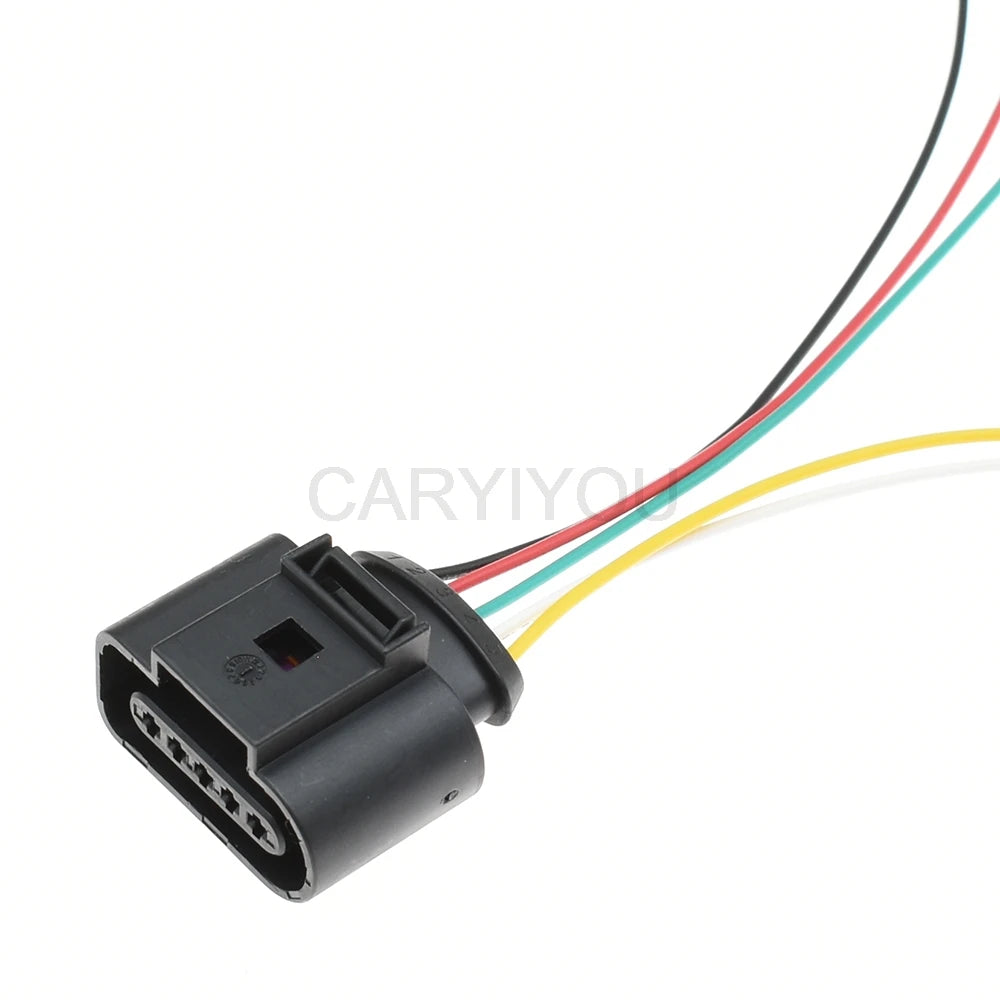

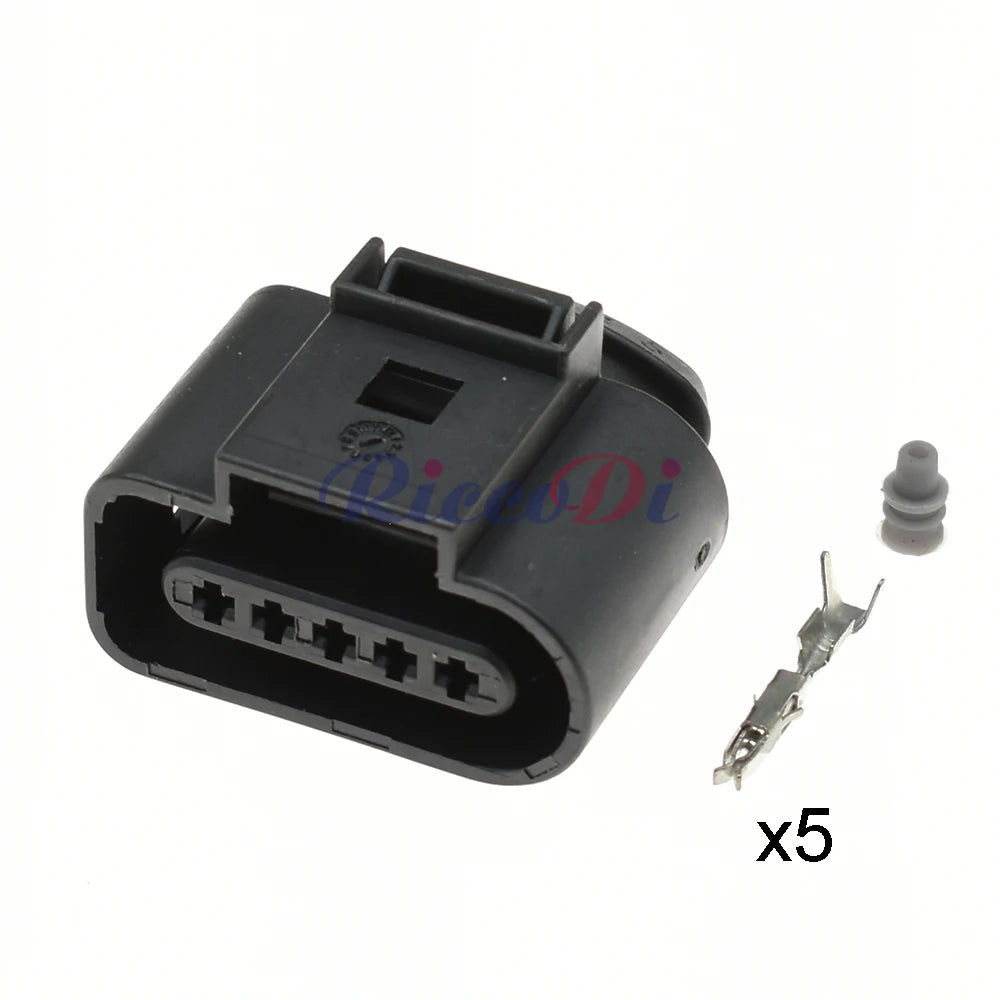

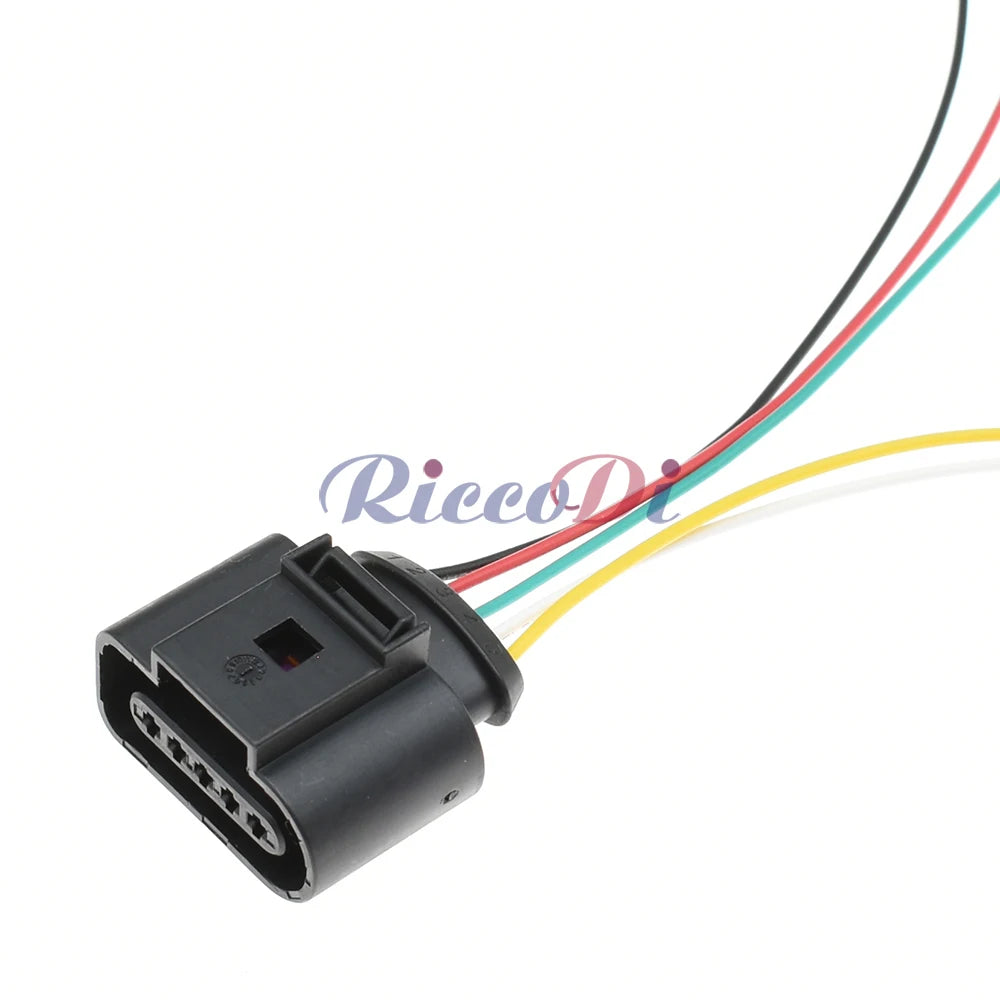

| 1J0973705 | Female socket (5-pin) | VW / Audi / VAG wiring harness |
Technical Specifications
| Parameter | Value |
|---|---|
| Pin Count | 5 |
| Terminal Pitch | 1.5mm |
| Housing Material | PA66 (Nylon 66) |
| Terminal Material | Copper alloy, tin-plated |
| Seal Type | Rubber sealed (IP67) |
| Rated Voltage | 12V DC |
| Rated Current | Up to 5A per pin |
| Wire Range | 0.35–1.0mm² (AWG 22–18) |
| Operating Temperature | −40°C to +105°C |
| Locking | Positive latch |
| Certification | CE, RoHS |
Typical Applications
- VW / Audi Sensor Wiring: 5-pin connector for multi-wire sensor wiring in VW Golf, Passat, Audi A3, A4, and other VAG Group vehicles
- Wiring Harness Repair: Replace damaged or corroded 1J0973805 / 1J0973705 connectors in VW and Audi wiring harnesses without replacing the entire harness
- ECU & Body Control: Signal connector for ECU, BCM, and body control module wiring in VAG Group vehicles
- Custom VAG Harness: Build custom wiring harness extensions and adapters for VW and Audi sensor and actuator wiring using OEM-spec connectors
FAQ
Q: Which VW and Audi models use the 1J0973805 / 1J0973705 connector?
A: These connectors are used across a wide range of VAG Group vehicles including VW Golf Mk4/Mk5, Passat B5/B6, Audi A3 8L/8P, A4 B6/B7, and Skoda Octavia. Verify against your vehicle’s wiring diagram before ordering.
Q: Are terminals included?
A: Terminals are not included unless specified. Compatible 1.5mm terminals must be crimped onto the wire and inserted into the housing.
Package Contents

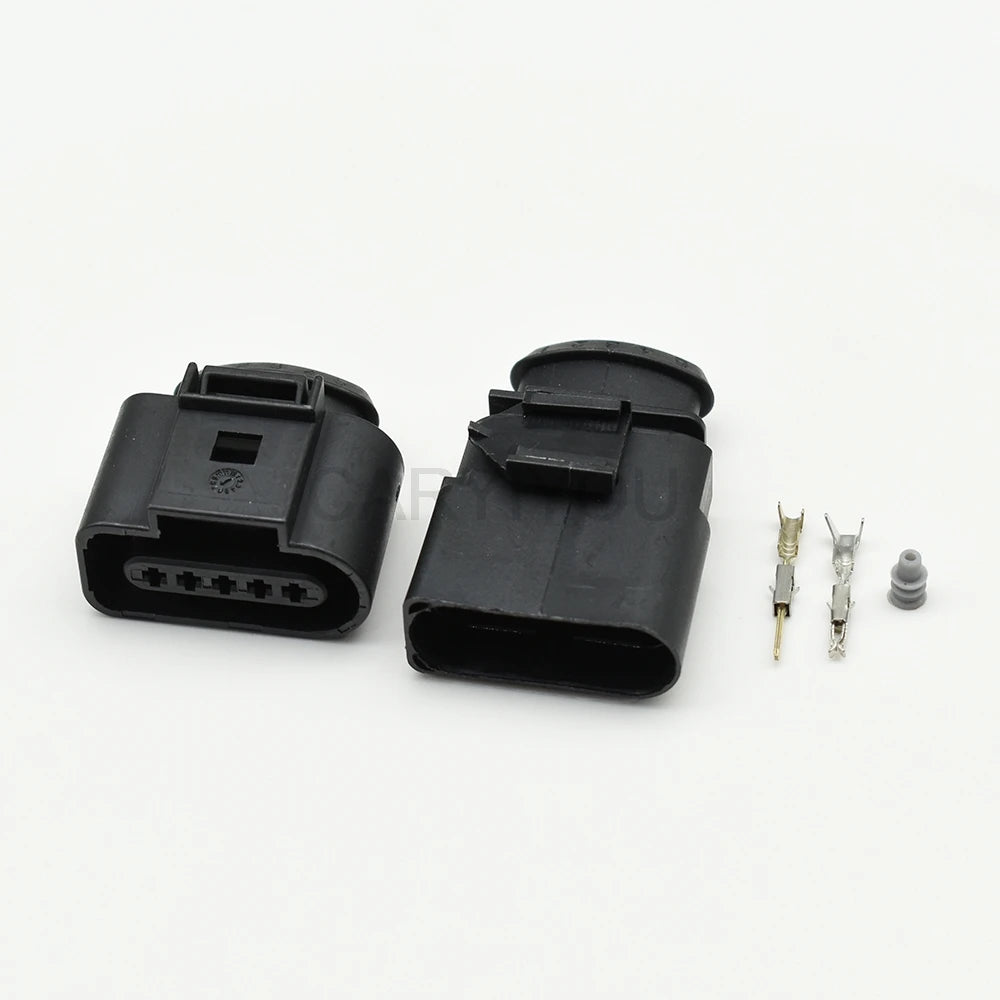

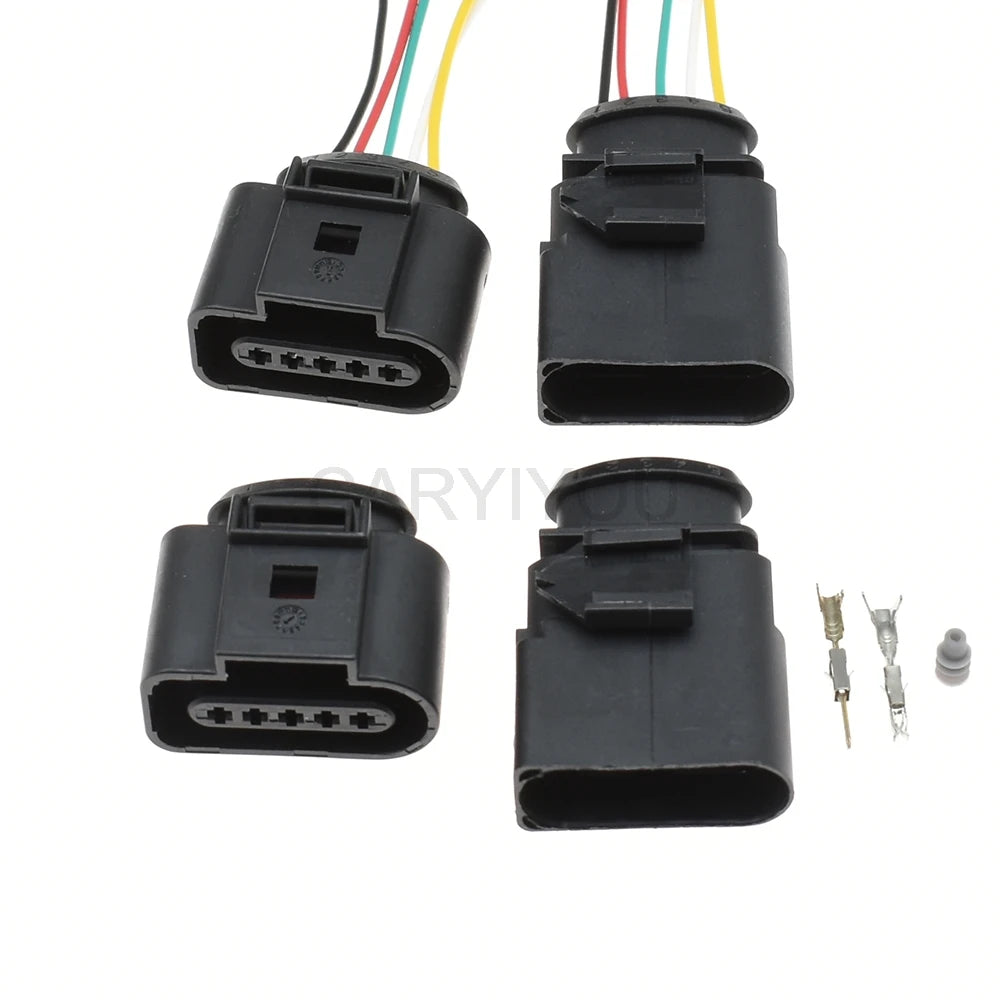

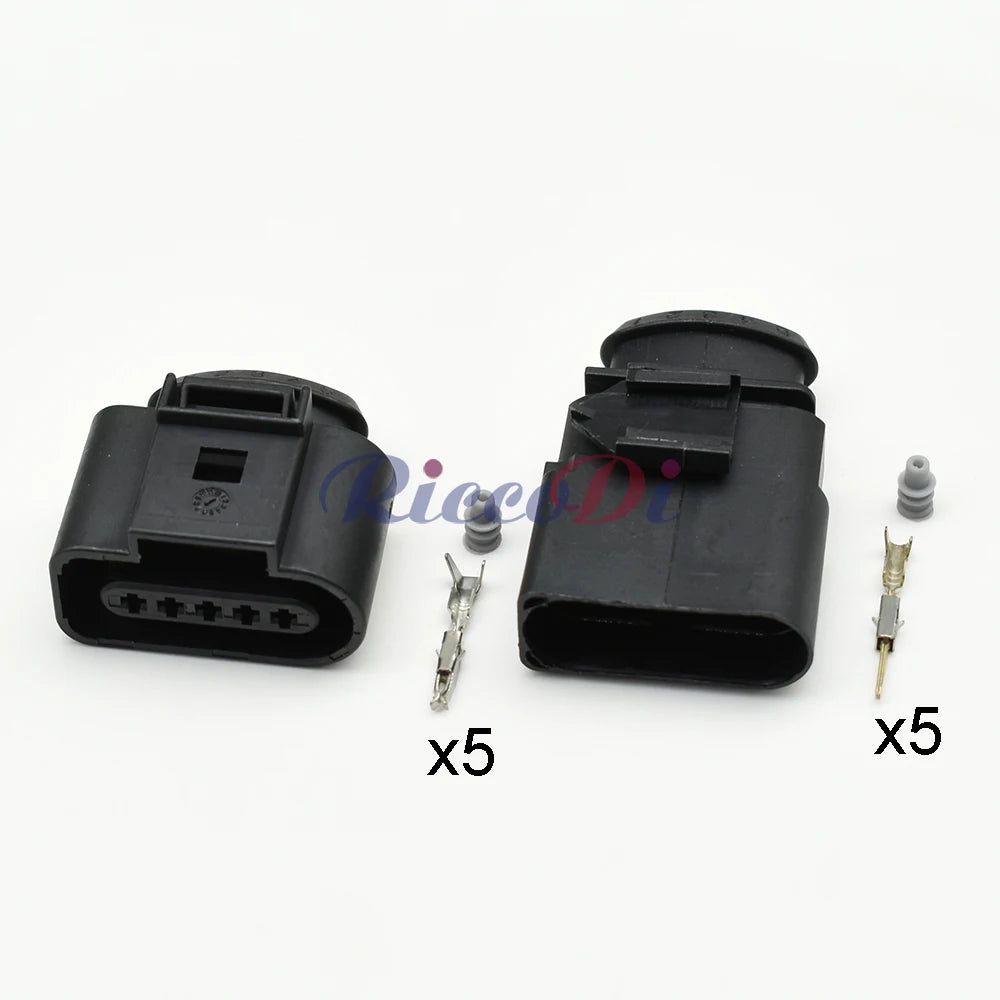

- 5-pin 1.5mm sealed connector kit (male 1J0973805 + female 1J0973705, or as selected)
