JST XH 2.54mm 10-Pin Cable Connector Both Sided — Same Side & Reverse, Custom Length

JST XH 2.54mm 10-Pin Both-Sided Connector Cable — Same Side & Reverse Polarity, 22AWG

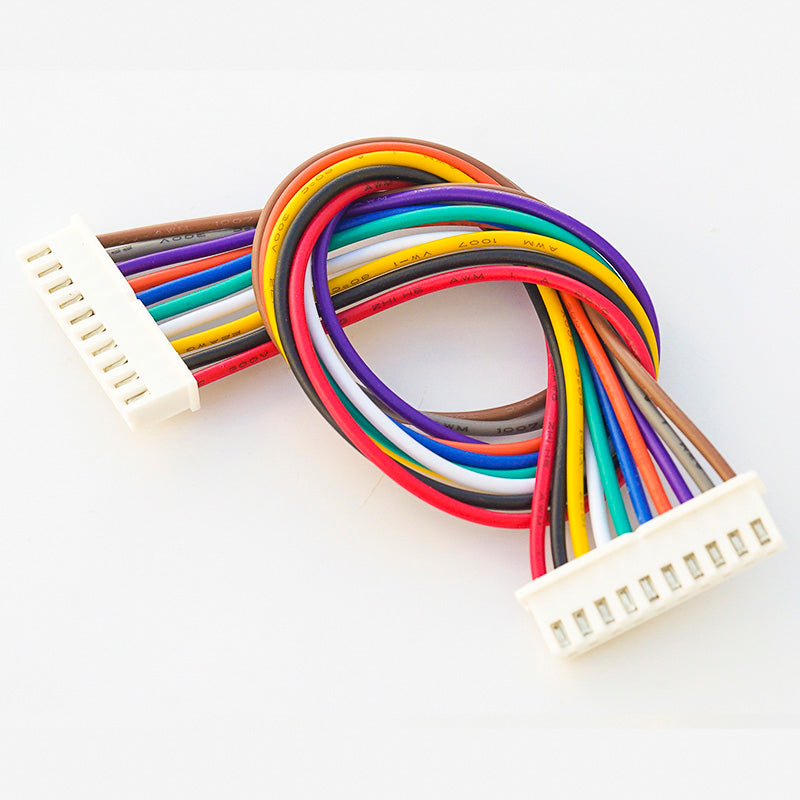

Ten conductors, both ends factory-crimped, ready to connect. The 10-pin JST XH 2.54mm both-sided cable is the highest pin-count option in the standard XH series and serves the most demanding single-connector extension requirements: full parallel data buses, high-density sensor arrays, 4-axis motion systems with complete control lines, and custom PCB harnesses that consolidate an entire subsystem's wiring into a single locking connector. Available in Same Side (straight-through) and Reverse Side (mirrored) configurations.

Twenty contacts (ten per end) are machine-crimped to a defined pull-force specification. At ten conductors, factory crimping is the only practical choice for reliable assembly — machine crimping applies consistent, calibrated force to every contact, eliminating the insulation damage, cold joints, and inconsistent contact force that make hand-crimped 10-wire assemblies unreliable. The result is a harness that performs identically under vibration, thermal cycling, and thousands of mating cycles.

22AWG stranded copper wire rated at 3A/250V. Positive latch locks on both ends. Available in 8 lengths from 10cm to 80cm and 8 wire colors.

Technical Specifications

• Connector System: JST XH series, 2.54mm pitch
• Pin Count: 10-pin
• Configuration: Both-sided — XH terminals on both ends

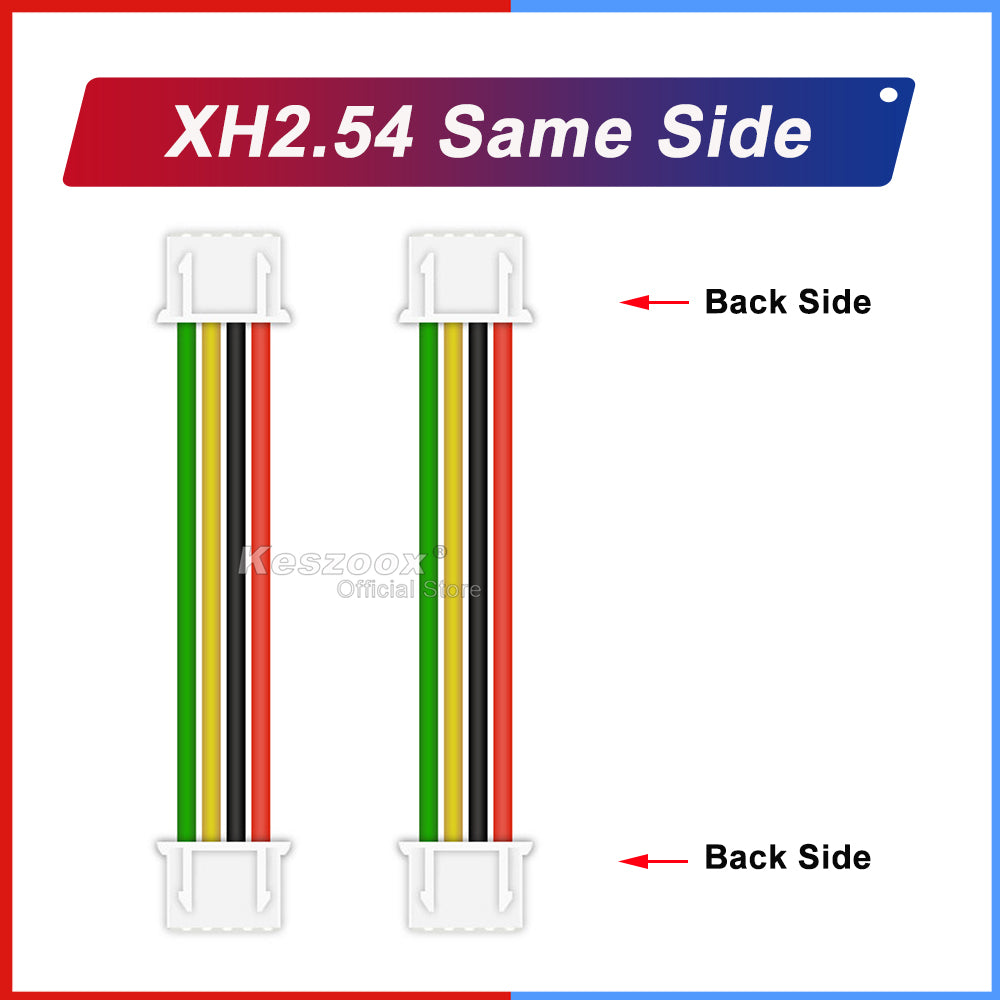

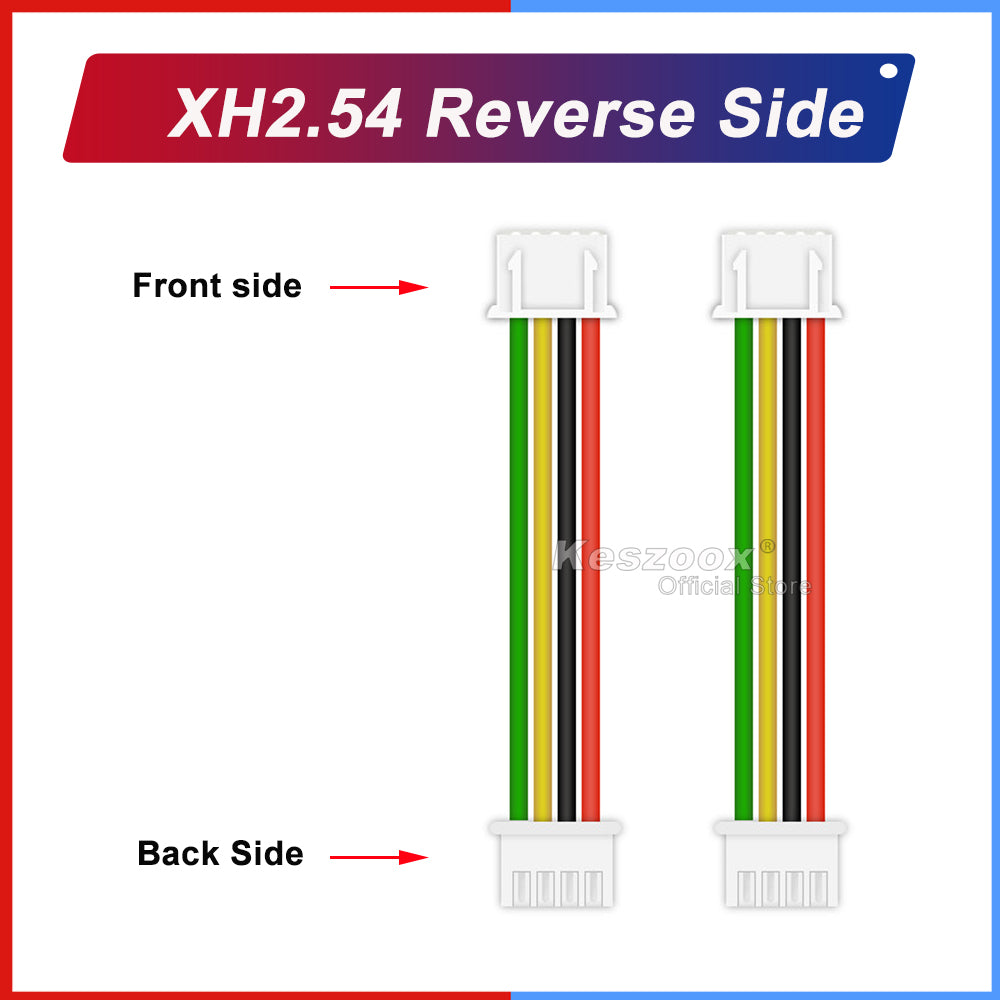

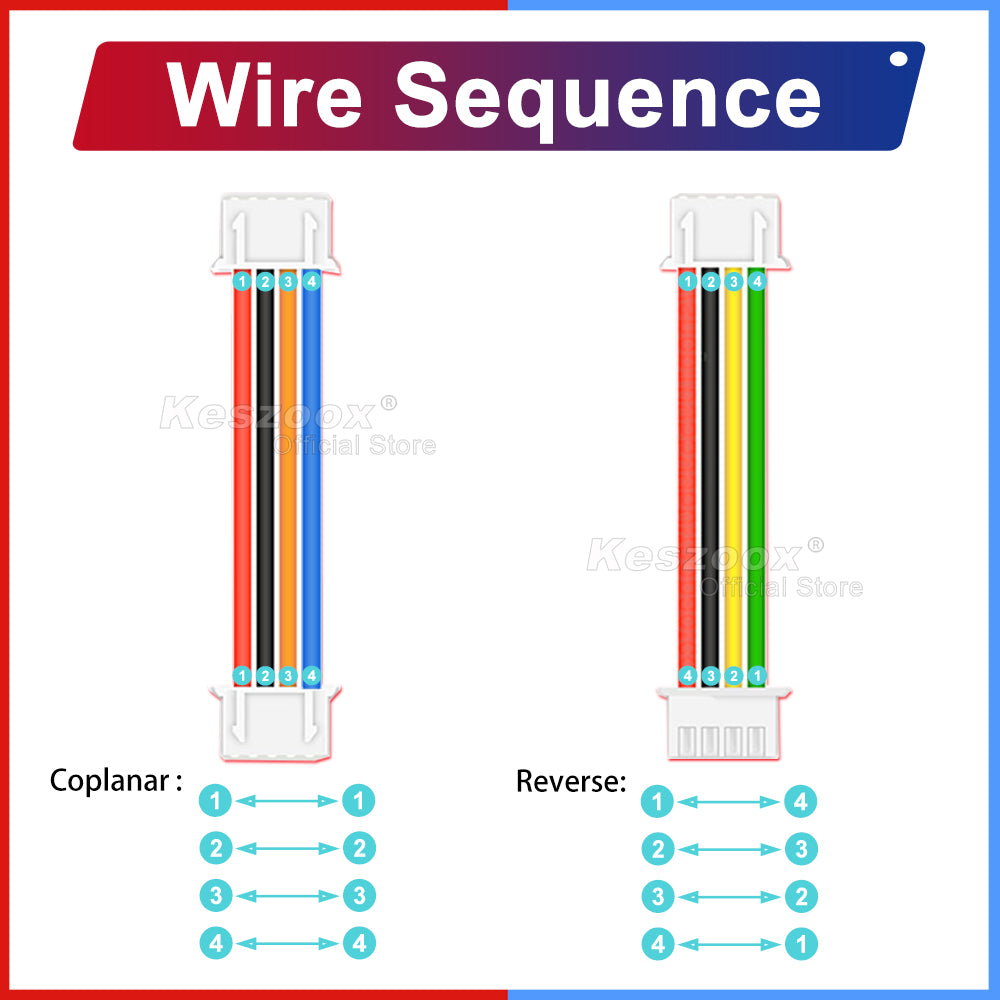

• Polarity Options: Same Side (1-to-1 straight) / Reverse Side (1-to-10 mirrored)
• Wire Gauge: 22AWG stranded copper
• Current Rating: 3A per contact
• Voltage Rating: 250V AC/DC
• Contact Material: Copper alloy, tin-plated
• Insulation: PVC, UL-rated
• Locking Mechanism: Positive latch lock on both ends

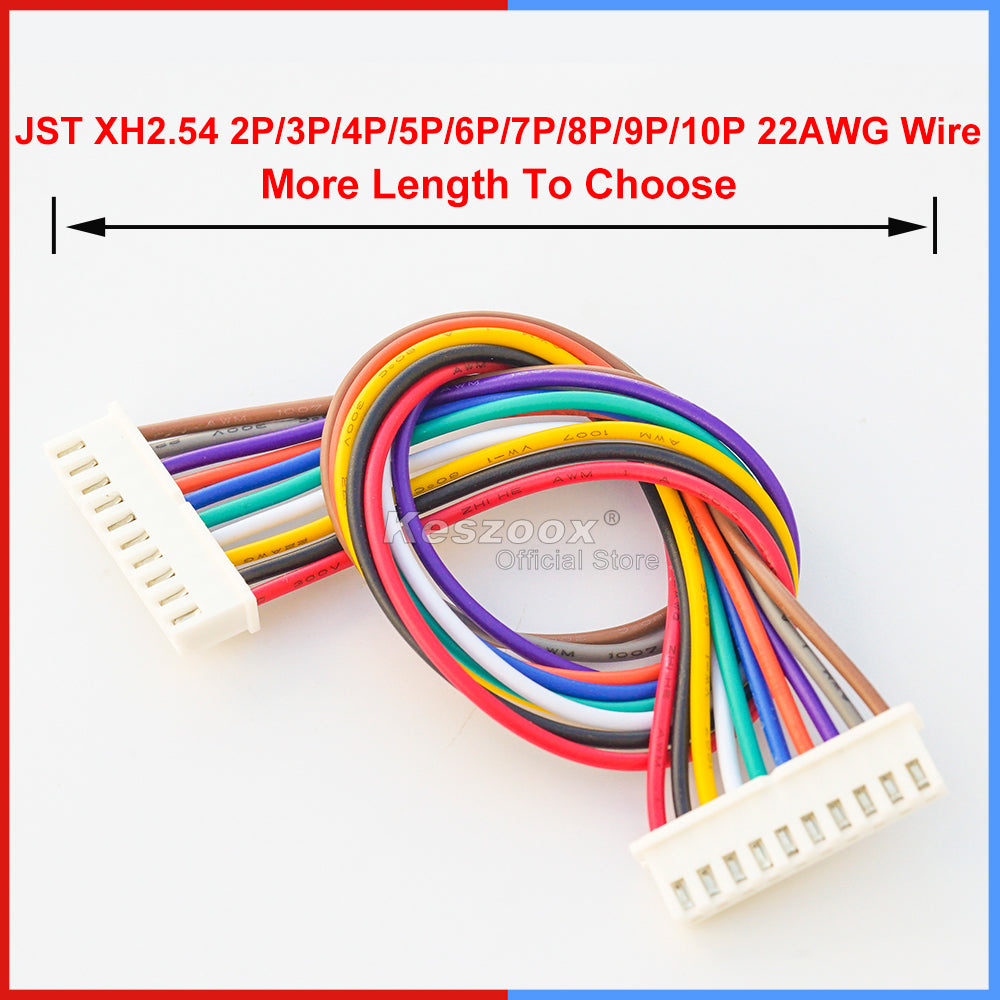

• Available Lengths: 10cm / 20cm / 30cm / 40cm / 50cm / 60cm / 70cm / 80cm
• Available Colors: Red, Black, White, Yellow, Blue, Green, Orange, Purple
• Pitch: 2.54mm (0.1 inch)
• RoHS Compliant: Yes

Typical Applications

• Full Parallel Data Buses: 8-bit data bus extensions with address/control lines, parallel LCD interfaces in full 8-bit mode with all control signals
• 4-Axis CNC & Motion Control: 4-axis stepper system extensions with step/dir/enable per axis plus shared power and ground
• High-Density Sensor Arrays: Multi-channel analog input assembly extensions, 10-wire instrument connections
• 3D Printers: Complete toolhead harness extensions combining heater, thermistor, dual fans, probe, filament sensor, and LED
• Custom PCB Interfaces: Multi-subsystem consolidation harness extensions, backplane connections
• Industrial & Automation: 10-channel relay module connections, high-density PLC I/O extensions, multi-axis encoder assemblies
• Arduino & Microcontrollers: Complex multi-peripheral interface extensions, high pin-count shield connections

Compatibility

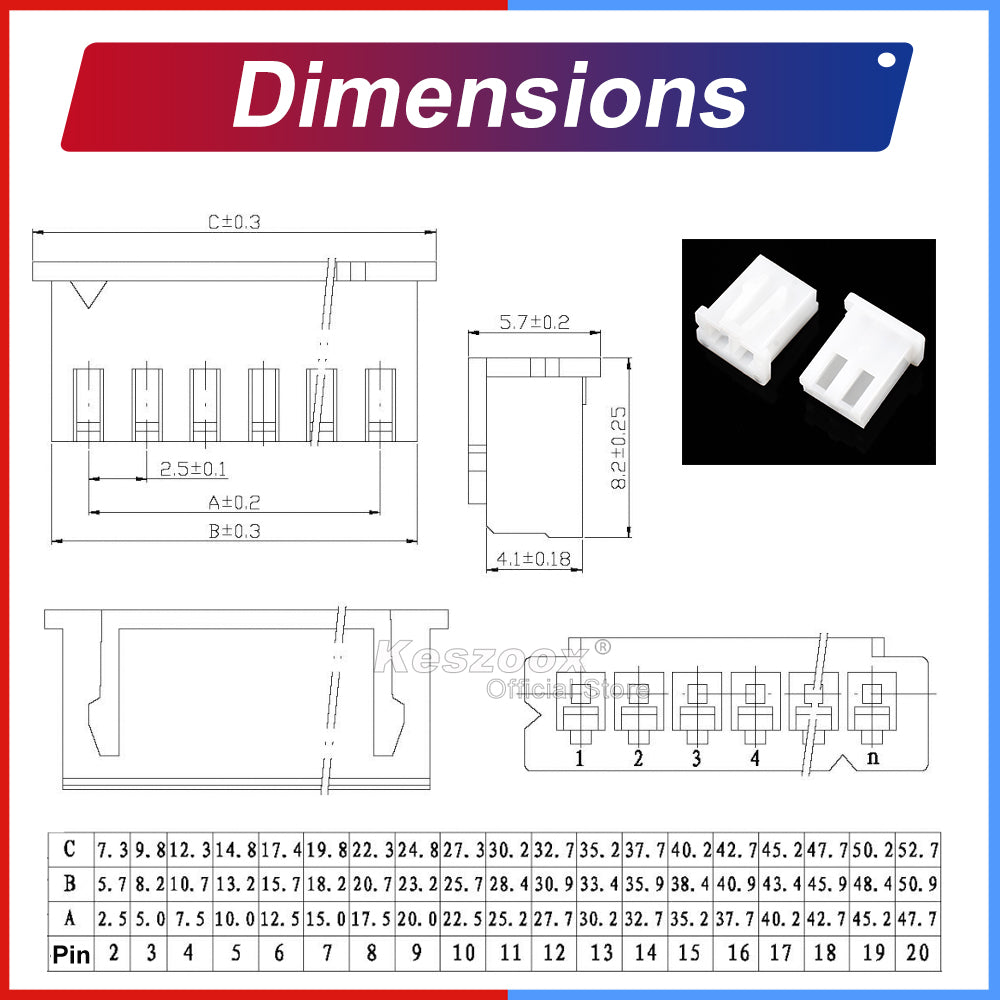

Both ends are compatible with JST XH series 10-pin housings (JST part: XHP-10) and all 2.54mm pitch PCB headers with XH-compatible locking geometry.

Housings not included. This listing is for the pre-crimped cable only. Select your required polarity (Same Side or Reverse Side) and length from the variant options above.
