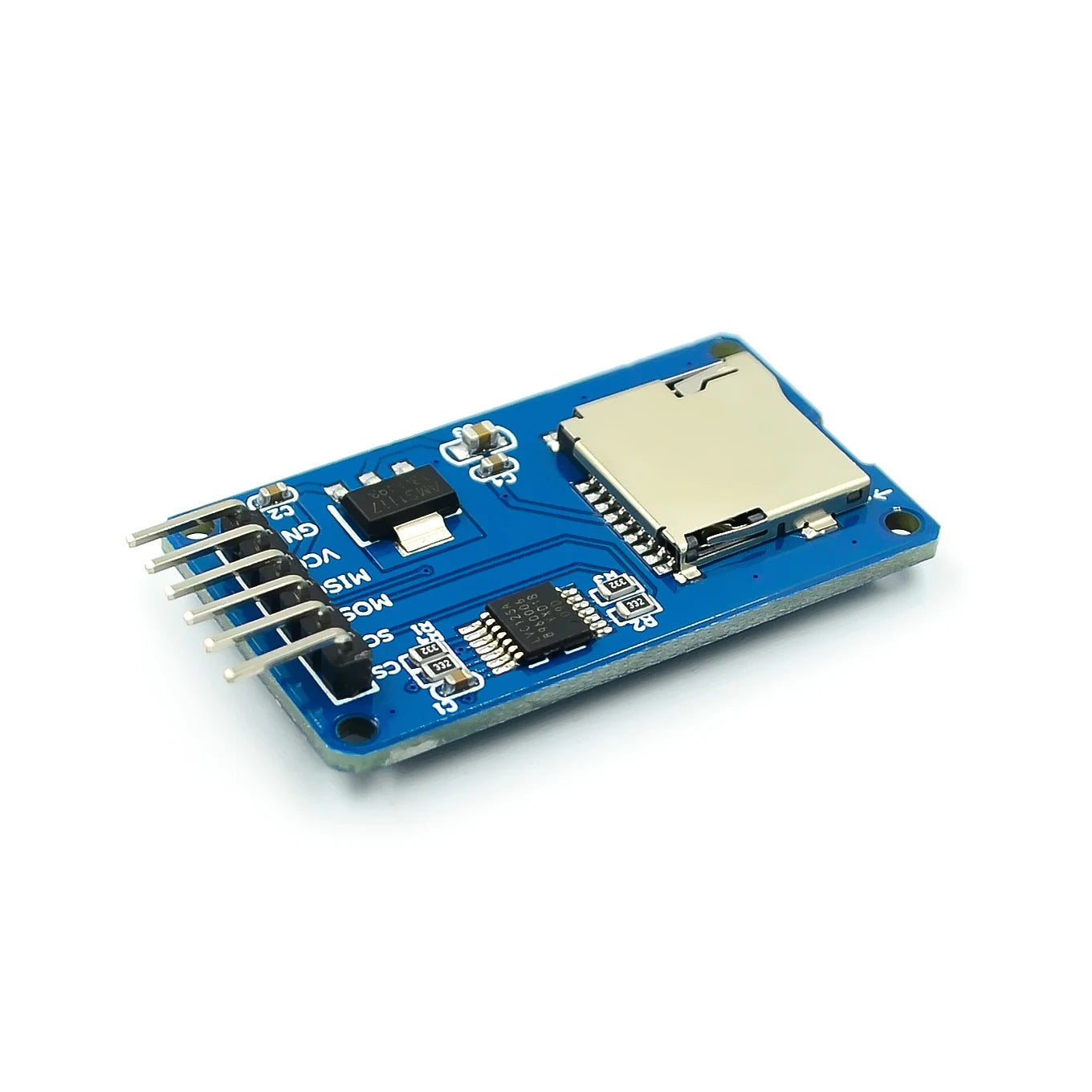

Micro SD / TF Card Reader Module — SPI Interface, Level Converter, 3.3V / 5V (5-Pack)
This Micro SD / TF card reader module provides SPI interface access to Micro SD and TF cards from Arduino, ESP32, Raspberry Pi, and any SPI-capable microcontroller. The onboard level converter translates between 5V MCU logic and the SD card's 3.3V interface, eliminating the need for external level shifting. Compatible with the Arduino SD library for straightforward file read/write operations. Supplied as a 5-pack.
Key Specifications
| Parameter | Value |
|---|---|
| Interface | SPI (MOSI, MISO, SCK, CS) |
| Card Type | Micro SD / TF (up to 32GB FAT32) |
| Supply Voltage | 3.3V or 5V (onboard LDO + level converter) |
| SD Card Voltage | 3.3V (regulated onboard) |
| Header Pitch | 2.54mm (breadboard compatible) |
| Pack Quantity | 5 modules |
Arduino Wiring Guide
- VCC → 5V
- GND → GND
- MOSI → Arduino pin 11 (Uno) / 51 (Mega)
- MISO → Arduino pin 12 (Uno) / 50 (Mega)
- SCK → Arduino pin 13 (Uno) / 52 (Mega)
- CS → Arduino pin 10 (or any digital pin)
- Library: Arduino built-in
SD.h
Why Choose This Module?
- ✅ Onboard level converter — no external level shifting needed for 5V Arduino
- ✅ 3.3V LDO regulator — stable SD card power from 5V supply
- ✅ Up to 32GB FAT32 — large storage for data logging applications
- ✅ Arduino SD library compatible — plug-and-play with standard library
- ✅ 5-pack value — stock for multiple projects
Typical Applications
- Arduino data logger (sensor readings to CSV)
- Audio player WAV file storage
- GPS track logging to SD card
- Configuration file storage for embedded systems
- Image and bitmap storage for TFT displays
Package Contents
- 5 × Micro SD / TF Card Reader Module (SPI)
