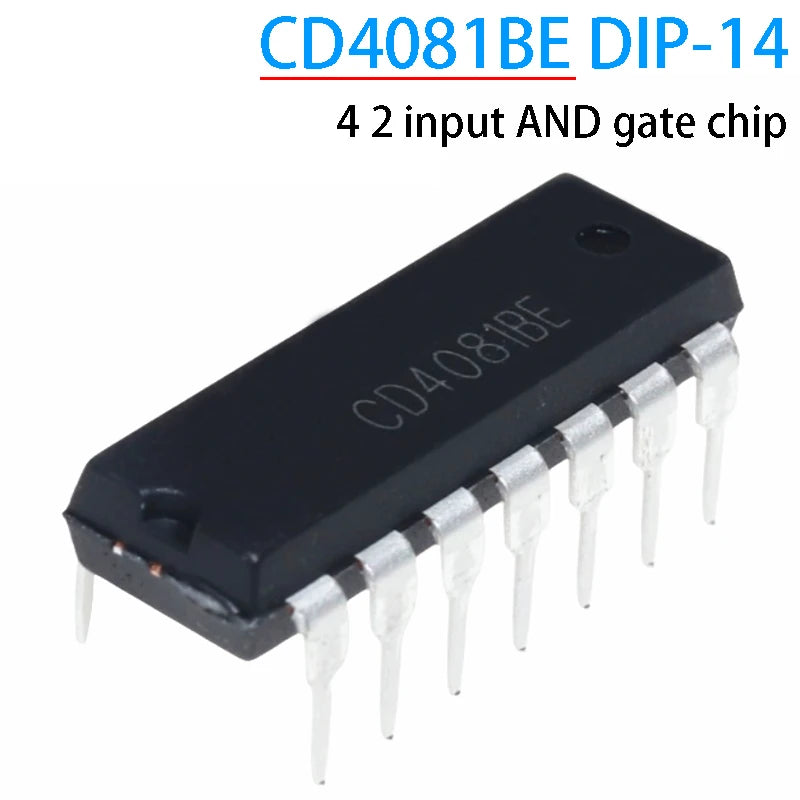

CD4081BE — DIP-14 CMOS Quad 2-Input AND Gate IC (5PCS)

The CD4081BE is a classic CMOS quad 2-input AND gate IC in a standard DIP-14 package. Containing four independent 2-input AND gates, it operates across a wide 3V to 18V supply range — making it compatible with both 3.3V and 5V microcontroller systems. Its ultra-low quiescent current and high noise immunity make it ideal for battery-powered logic circuits, signal gating, and digital control applications.

Specifications

Part Number	CD4081BE
Function	Quad 2-Input AND Gate
Gates	4 independent AND gates
Inputs per Gate	2
Package	DIP-14 (through-hole)
Supply Voltage (VDD)	3V – 18V
Logic Family	CMOS (4000 series)
Quiescent Current	Ultra-low (CMOS)
Noise Immunity	High (45% of VDD)
Quantity	5PCS per pack
Origin	Mainland China

AND Gate Truth Table

Input A	Input B	Output Y
0	0	0
0	1	0
1	0	0
1	1	1

Pin Configuration (DIP-14)

Pin	Function	Pin	Function
1	Gate 1 Input A	14	VDD (+)
2	Gate 1 Input B	13	Gate 4 Input A
3	Gate 1 Output	12	Gate 4 Input B
4	Gate 2 Input A	11	Gate 4 Output
5	Gate 2 Input B	10	Gate 3 Input A
6	Gate 2 Output	9	Gate 3 Input B
7	VSS (GND)	8	Gate 3 Output

Why Choose CD4081BE?

• ✅ Wide supply range 3–18V — compatible with 3.3V, 5V, 9V, and 12V systems
• ✅ 4 independent AND gates — one IC replaces four discrete gate circuits
• ✅ Ultra-low power CMOS — ideal for battery-powered and low-power designs
• ✅ High noise immunity — reliable operation in electrically noisy environments
• ✅ DIP-14 through-hole — breadboard and perfboard compatible for easy prototyping
• ✅ 4000 series standard — pin-compatible with CD4081, HEF4081, MC14081 equivalents

Common Applications

• Digital logic circuit design and prototyping
• Signal gating and enable/disable control circuits
• Arduino and microcontroller logic level interfacing
• Combinational logic for control systems
• Electronics education and lab experiments
• Alarm and detection circuit logic
• PWM signal gating and modulation

Package Contents

• 5× CD4081BE DIP-14 CMOS Quad 2-Input AND Gate IC
