Features:

* Built and tested to stringent quality control standards.

* Stable performance and high reliability.

* The TES200 is a digital integrated circuit tester primarily used for testing 74 series and 40 series integrated circuits, capable of testing over 200 types of integrated circuits.

* Easy to operate; testing logic functions can also identify which integrated circuit's logic are damaged.

Specifications:

Part Name: IC Logic Gate Tester

Model: TES200

Material: PCB

Color: Green

Operating Voltage: 7～12VDC

Operating Current: <30mA

Operating Temperature: -40℃～65℃

Storage Temperature: -40℃～65℃

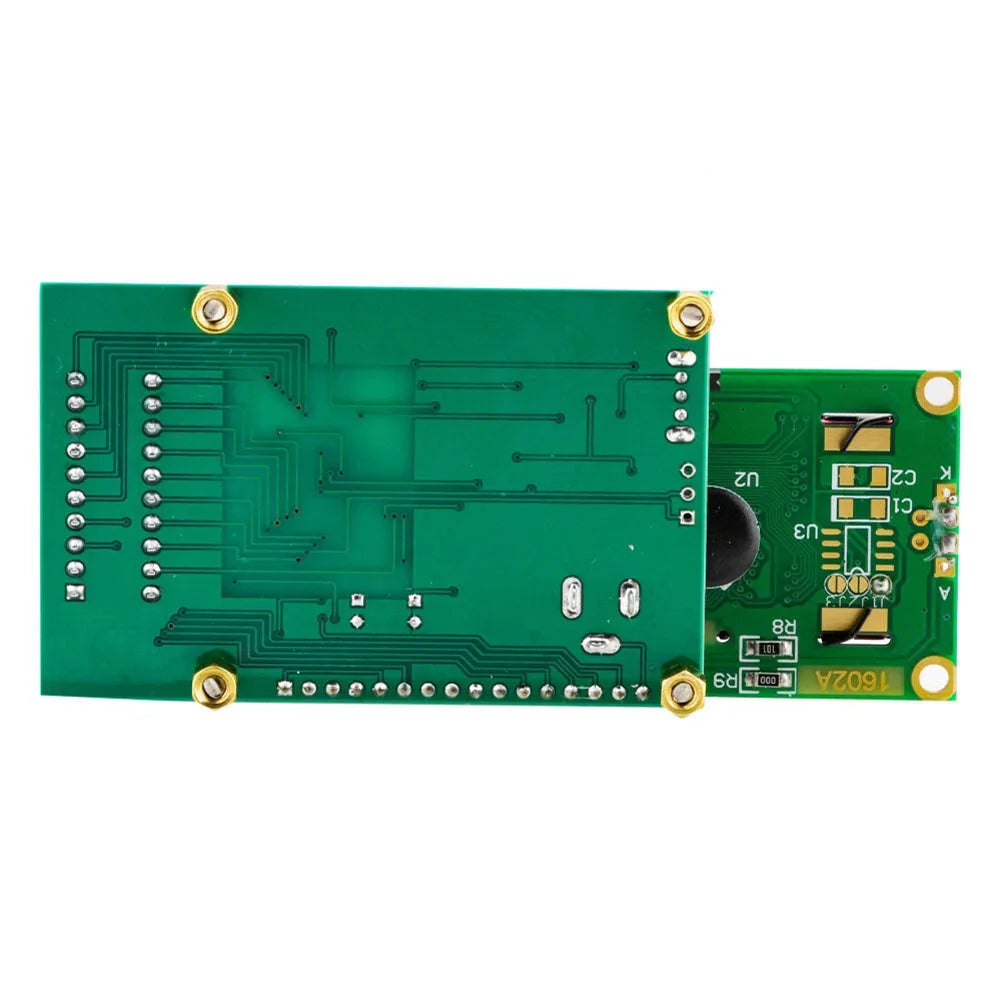

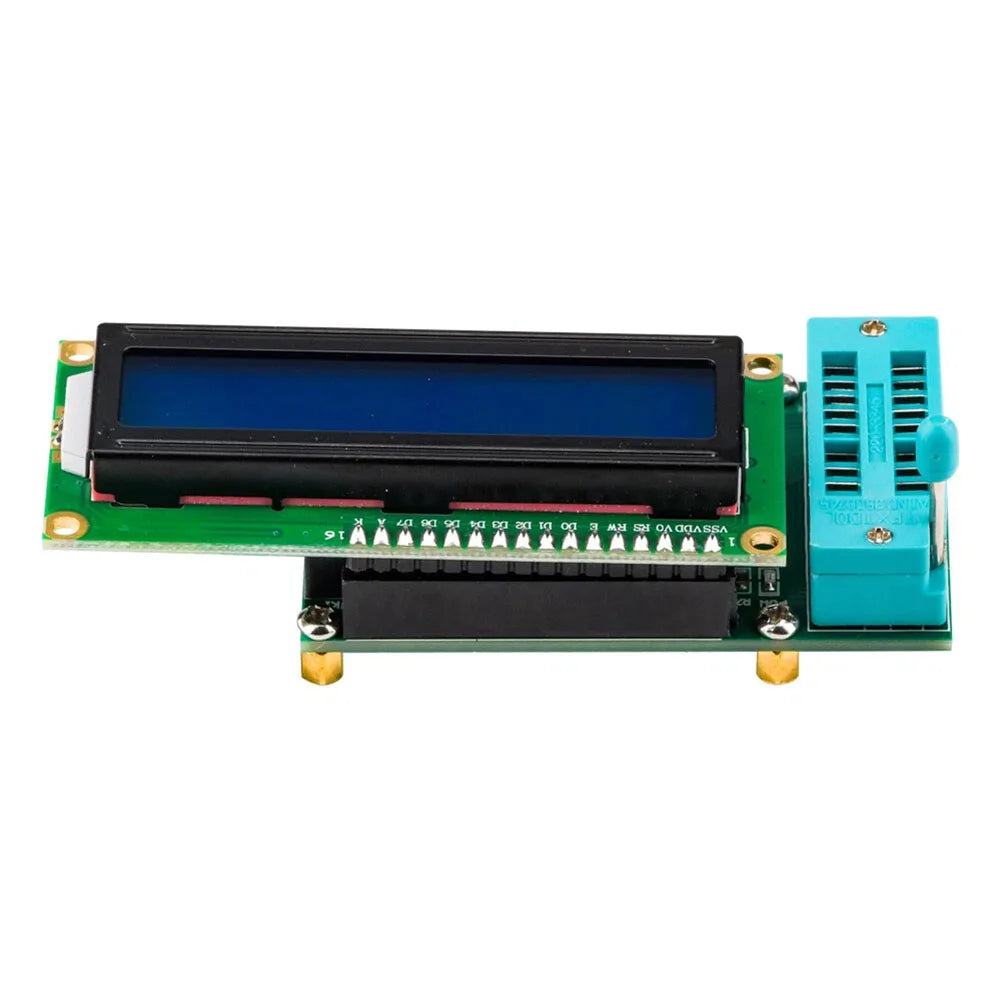

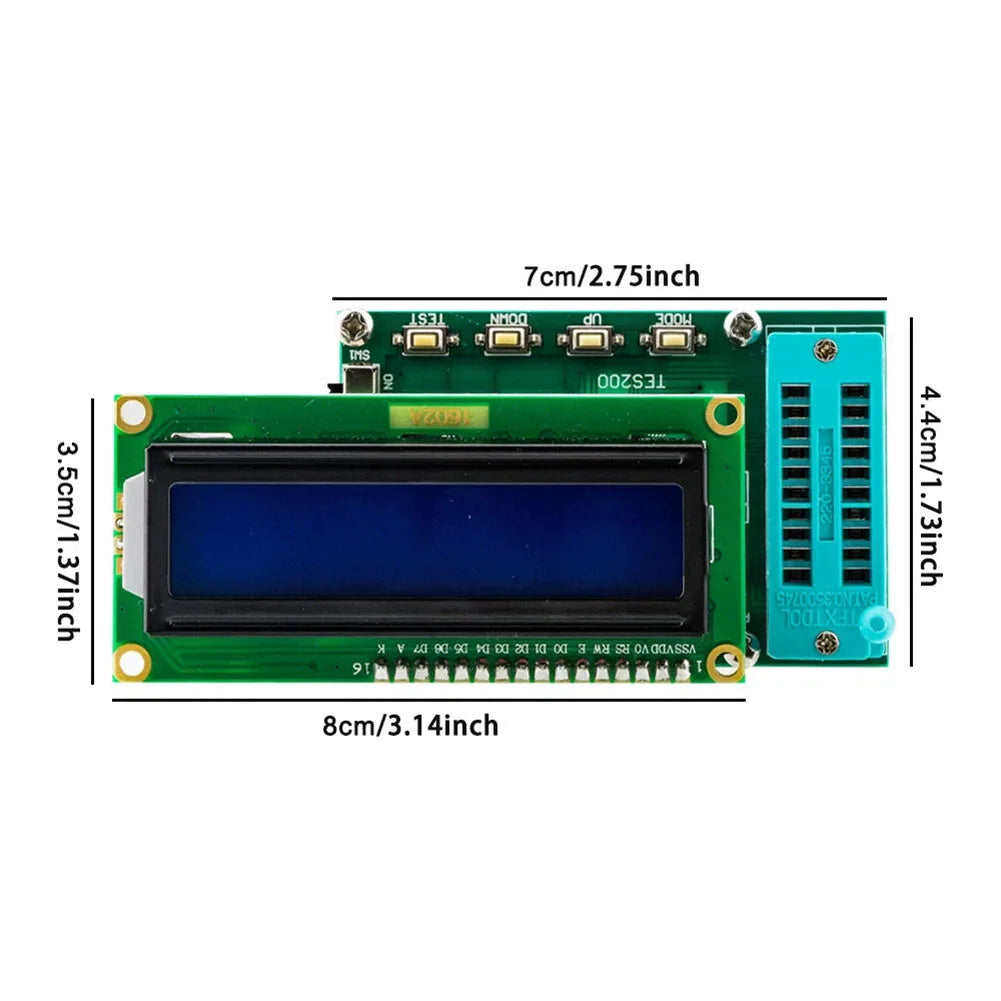

Size: 70*45*40mm (L×W×H)

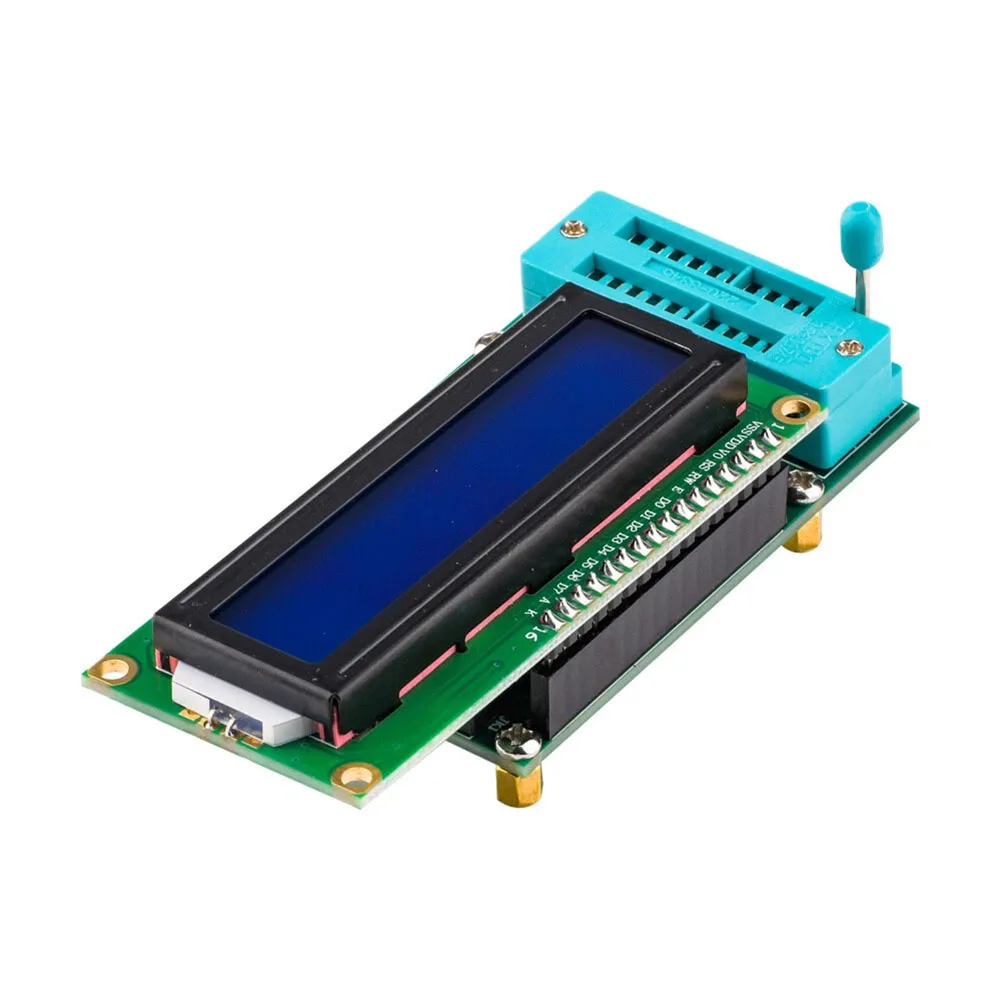

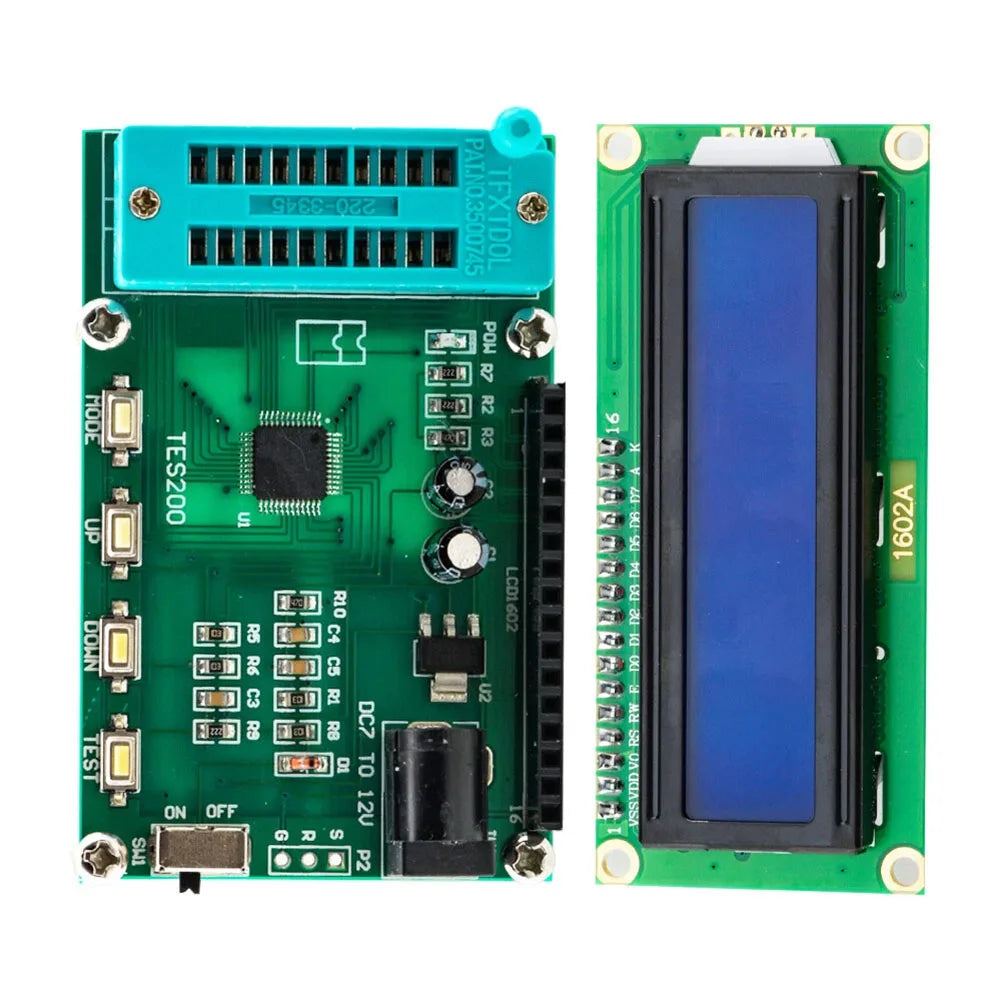

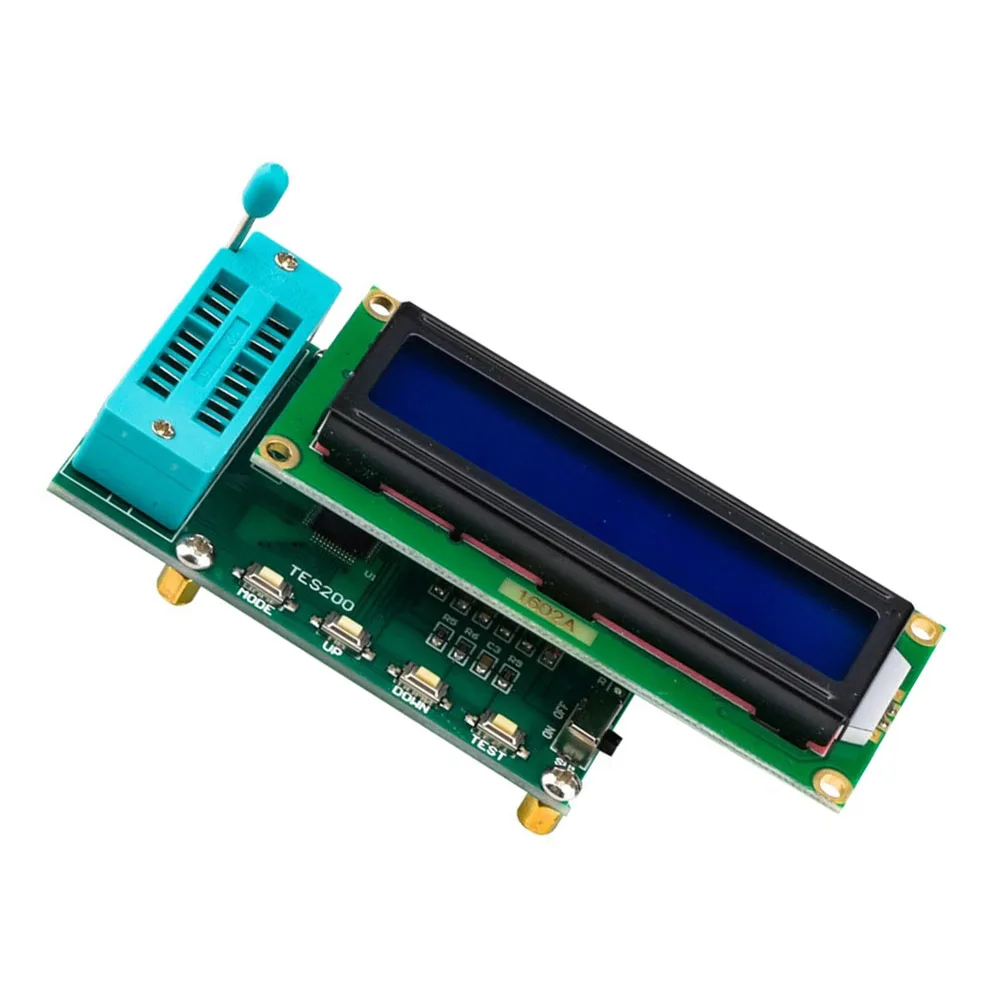

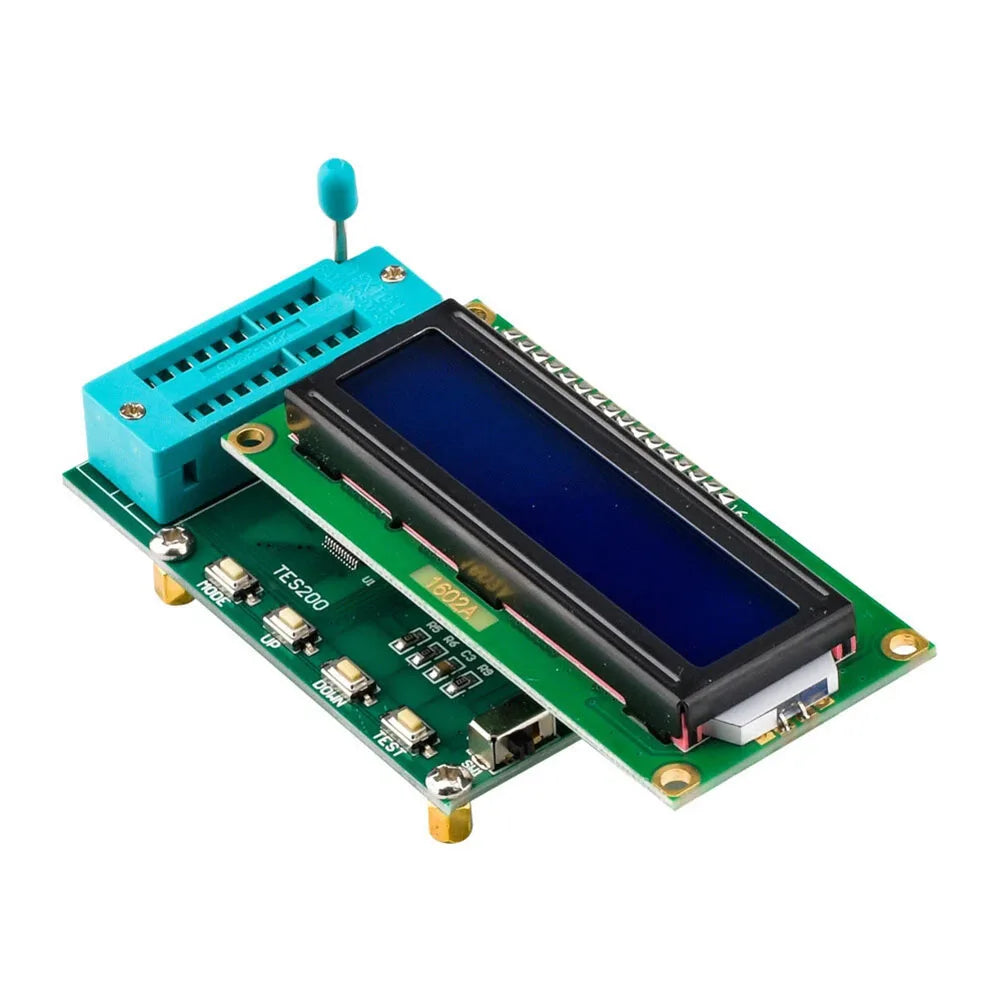

Interface Description and Related Operations；

JK1 Power Interface (DC Input Head D13): Center is positive. Power Supply Voltage: 7～12V DC.

SW1 Power Switch

ON: Power On

OFF: Power Off

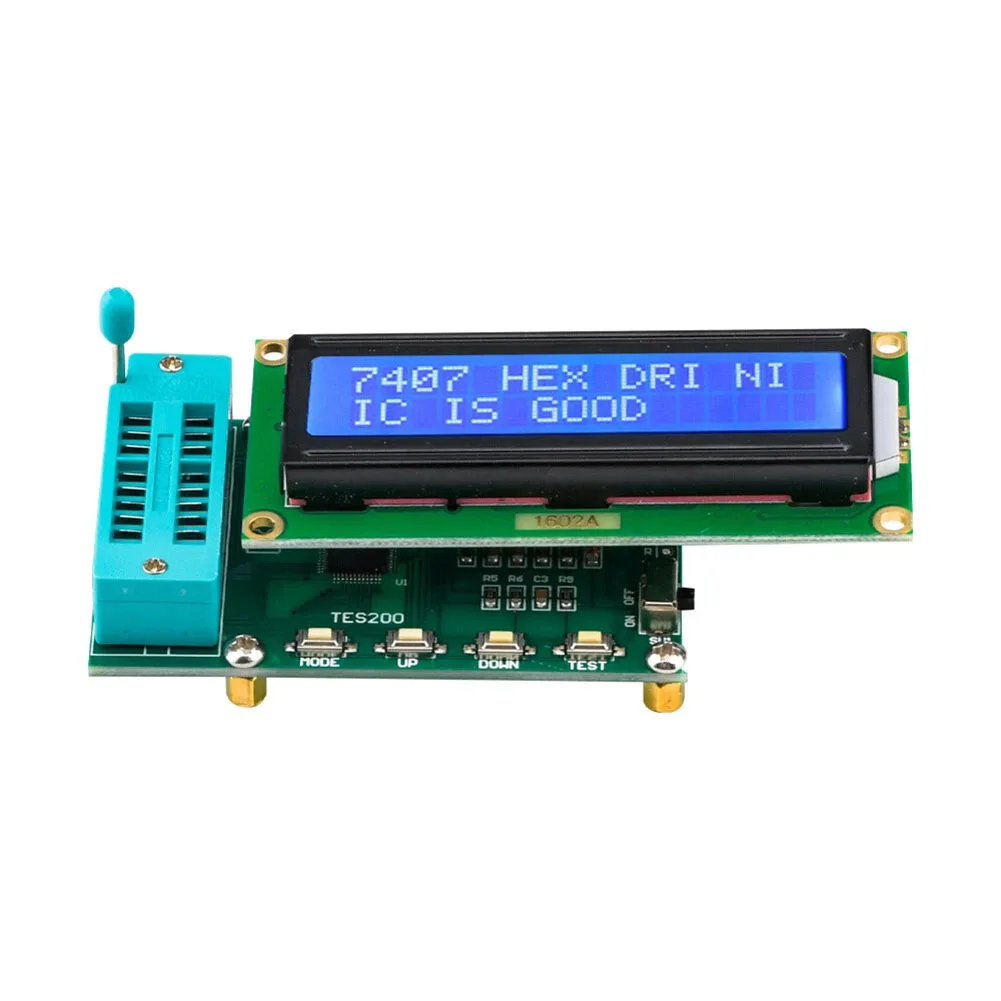

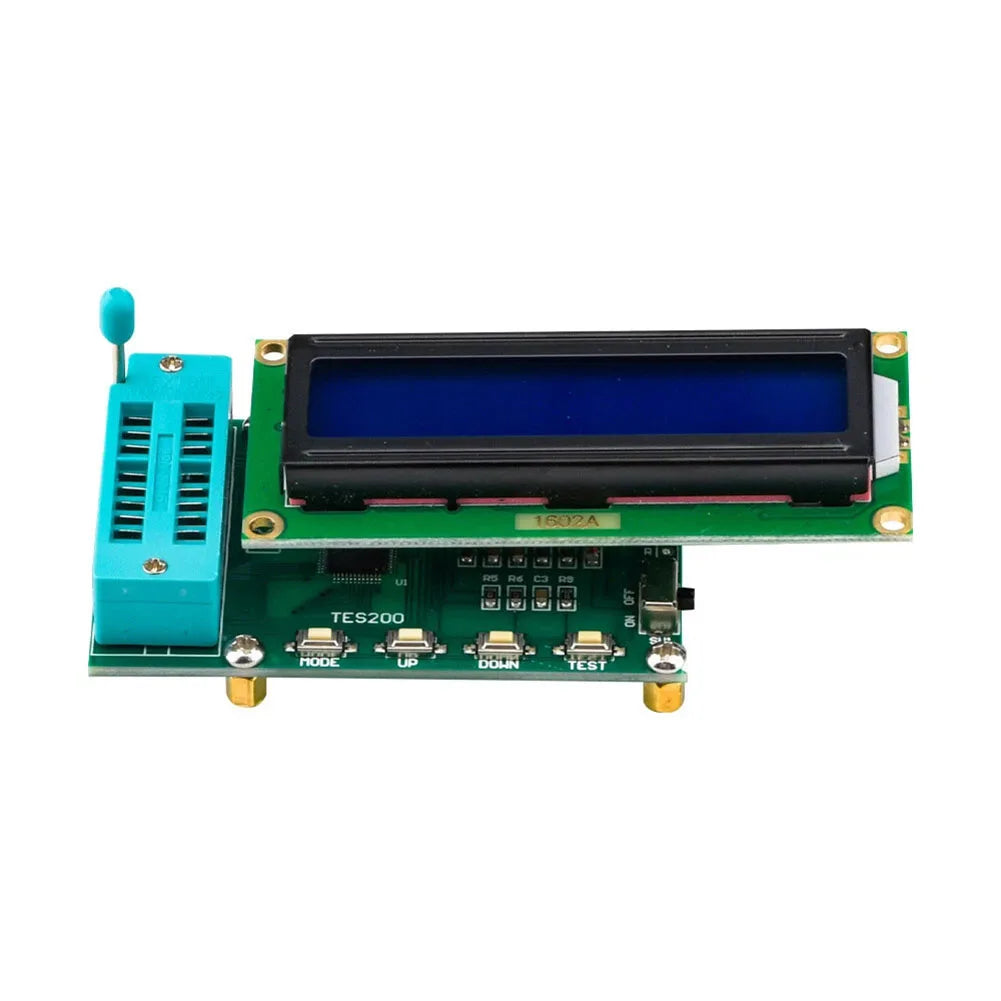

Button Description；

MODE: Select integrated circuit type. (74 series or 40 series)

Up: Select integrated circuit model.

Down: Select the next integrated circuit model.

Test: Test the integrated circuit model.

Note: When installing the integrated circuit tester, please for align it downwards.

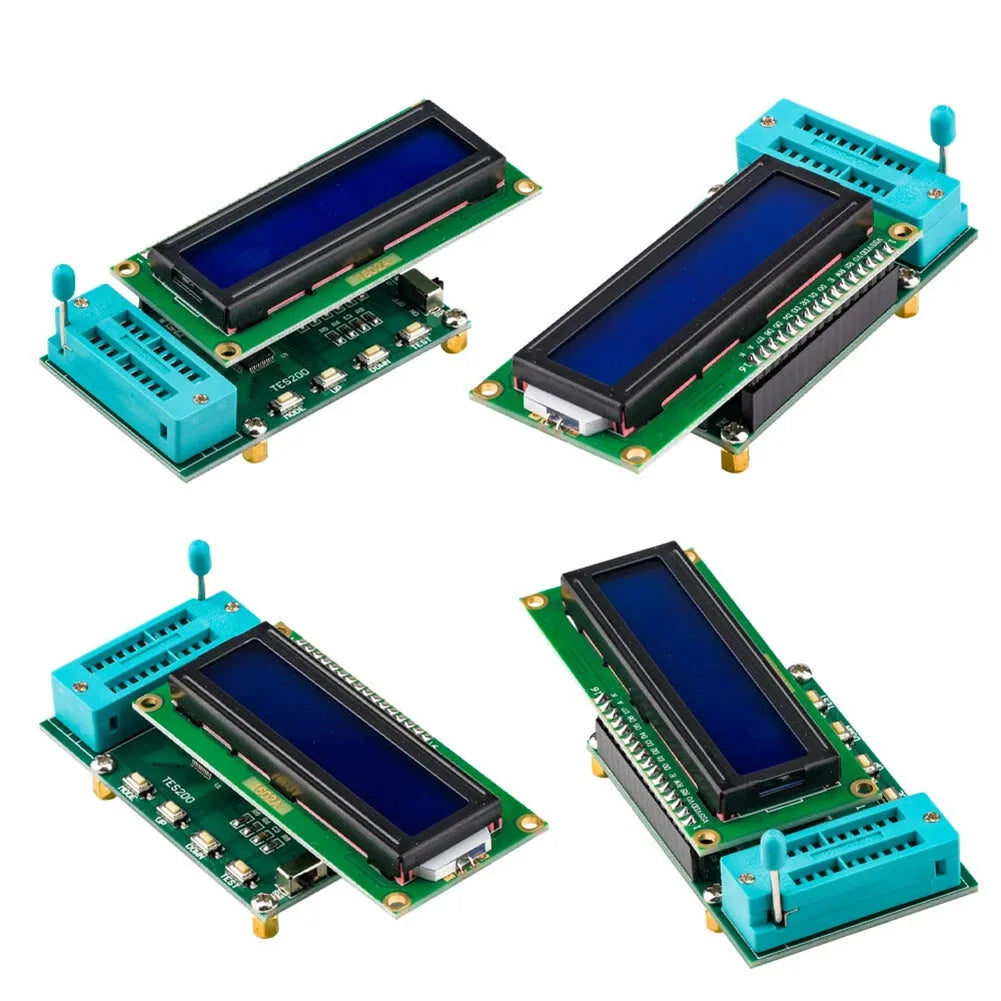

Package Contents:

1 New IC Tester 74 40 45 Series IC Logic Gate Tester

Note：

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.
