80 Pin Molex Auto Male CMC Header Connector for ECU Box 5022250801 502225-0801

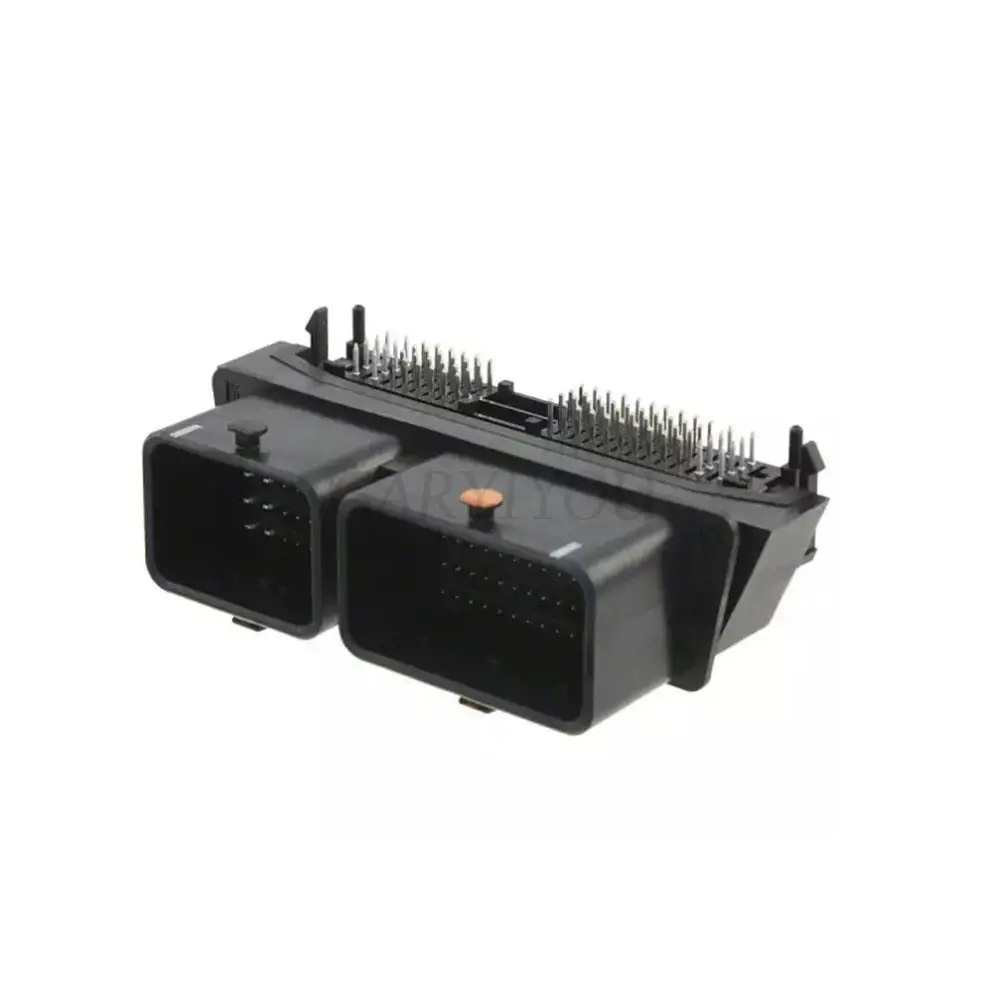

80-Pin Molex Auto Male CMC Header Connector for ECU Box — Part No. 5022250801 / 502225-0801

The 80-pin Molex Auto male CMC header connector (5022250801 / 502225-0801) is a genuine automotive-grade PCB header connector designed for ECU (Engine Control Unit) boxes, automotive control modules, and high-density automotive wiring harness applications. This connector is the industry-standard mating header for Molex CMC (Compact Micro Connector) series automotive harness connectors, used in OEM and aftermarket ECU applications worldwide.

With 80 contacts in a compact, high-density configuration, this connector delivers the pin count required for modern ECU applications — handling engine management, transmission control, body control module, and ABS/ESC system wiring in a single, reliable connector body. The automotive-grade construction ensures reliable performance across the full automotive temperature range and in the vibration, moisture, and chemical exposure conditions of under-hood environments.

Key Features

• 80-pin configuration — high-density contact count for complex ECU and automotive control module wiring
• Molex CMC series — genuine Molex automotive-grade connector; part number 5022250801 / 502225-0801
• Male PCB header — through-hole or surface-mount PCB mounting for ECU box assembly
• Automotive-grade construction — rated for automotive temperature range, vibration, and environmental exposure
• OEM and aftermarket compatible — direct replacement for ECU box connector repair and custom ECU builds
• RoHS compliant

Typical Applications

• ECU (Engine Control Unit) box assembly — OEM and aftermarket ECU PCB header connector
• Transmission control module (TCM) wiring — high-density control module connector
• Body control module (BCM) assembly — automotive body electronics PCB header
• ABS / ESC control module wiring — brake and stability control system connector
• Custom ECU builds and tuning — aftermarket ECU and standalone engine management systems
• ECU connector repair — direct replacement for damaged OEM ECU box headers

Technical Specifications

• Part Number: 5022250801 / 502225-0801
• Connector Series: Molex CMC (Compact Micro Connector)
• Pin Count: 80
• Gender: Male (PCB header)
• Application: Automotive ECU, control module PCB header
• RoHS Compliant: Yes
• Brand: Keszoox
• Origin: Mainland China
