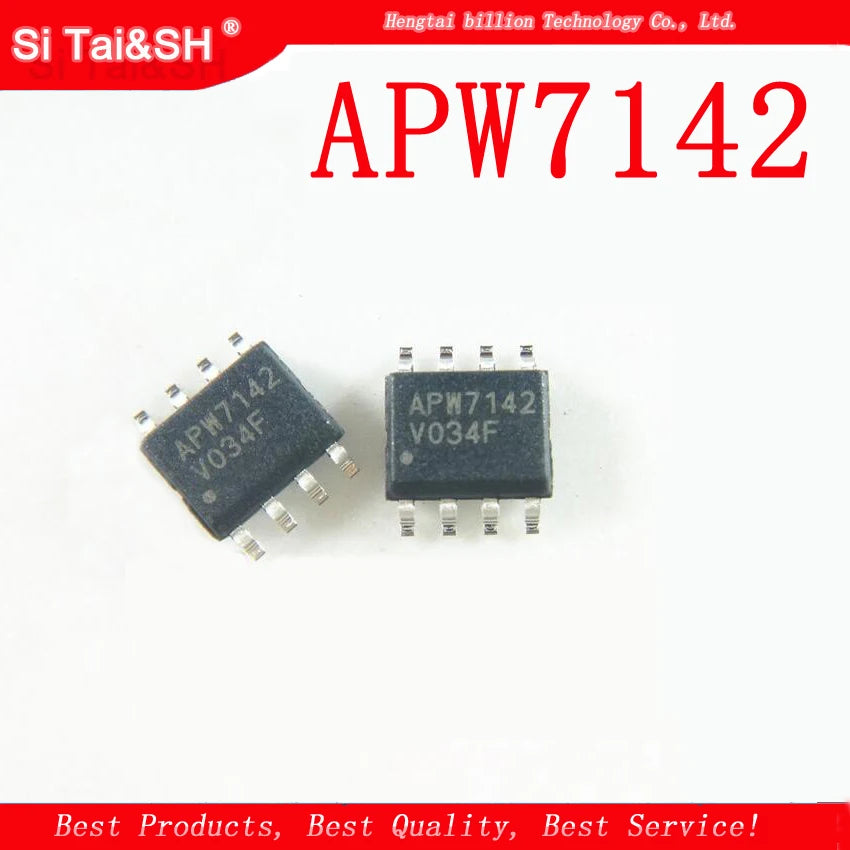

APW7142 Synchronous Buck PWM Controller IC — SOP-8, 4.5–25V, 0.8V Ref, 1MHz (5-Pack)

APW7142 Synchronous Buck PWM Controller IC — SOP-8, 4.5–25V, 0.8V Ref (5-Pack)

The APW7142 from Anpec Electronics is a voltage-mode synchronous buck PWM controller IC in SOP-8 SMD package — driving external N-channel high-side and low-side MOSFETs for high-efficiency synchronous step-down conversion. The 0.8V feedback reference allows low output voltages for modern processor and LCD panel power rails. Adjustable switching frequency (100kHz–1MHz via external resistor) and built-in adaptive deadtime control prevent shoot-through without fixed deadtime losses. Widely used in LCD monitor and TV power management. Pack of 5.

Electrical Specifications

• Part Number: APW7142
• Package: SOP-8 (SMD, 1.27mm pitch)
• Input Voltage: 4.5V – 25V
• Output Voltage: Adjustable (0.8V feedback reference)
• Switching Frequency: 100kHz – 1MHz (set by external resistor)
• Gate Drive: External N-channel MOSFETs (high-side + low-side)
• Deadtime: Adaptive (built-in, prevents shoot-through)
• Enable: Logic-level enable/shutdown pin
• Soft-Start: Built-in
• Protection: OCP, OVP, thermal shutdown, UVLO
• Operating Temperature: -40°C to +85°C
• Pack Quantity: 5 ICs

Typical Applications

• LCD monitor and TV panel power management
• Processor core voltage (VCore) regulator
• Point-of-load synchronous buck converter
• Industrial DC-DC converter design
• Power supply repair replacement stock

APW7142 synchronous buck PWM controller, 5-pack — SOP-8, 4.5–25V, 0.8V ref, adaptive deadtime for LCD power management and synchronous DC-DC converter design.
