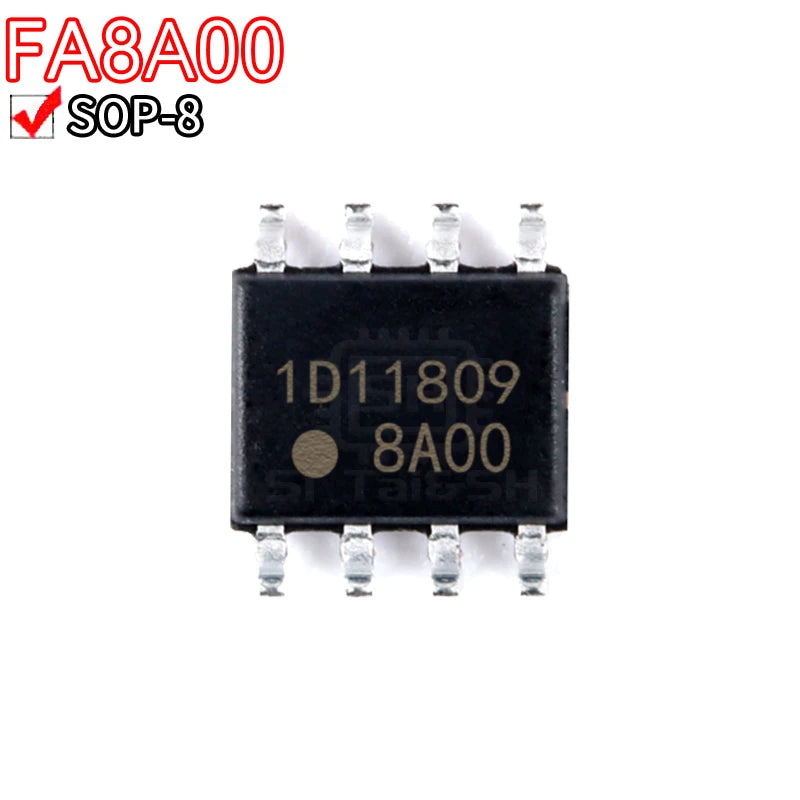

FA5518 / FA5511 / FA5501 / FA5696 / FA8A00 SOP-8 PWM Controller IC – Pack of 5

$47.12 USD

Save Liquid error (snippets/price line 138): divided by 0% Sold out

Taxes included. Shipping calculated at checkout.

Color

Quantity

FA5518 / FA5511 / FA5501 / FA5696 / FA8A00 SOP-8 PWM Controller IC — 5-Pack

This 5-pack covers the most widely used Fuji Electric FA-series SOP-8 PWM controller ICs, found in switching power supplies, LCD monitor power boards, laptop chargers, and LED driver circuits. Each IC integrates a current-mode PWM controller with protection features including OVP, OCP, and soft-start, making them the standard replacement IC for SMPS repair and new power supply design.

Variant Overview

Part	Key Feature	Typical Use
FA5518	Green-mode PWM, low standby power	LCD monitor SMPS, charger
FA5511	Fixed frequency, high efficiency	LCD TV power board
FA5501	Burst mode, ultra-low standby	Standby power supply
FA5696	PFC + PWM combo controller	High-power SMPS with PFC
FA8A00	Enhanced green mode, OVP/OCP	Adapter and charger SMPS

Common Specifications

Parameter	Value
Package	SOP-8
Topology	Current-mode PWM flyback controller
Protections	OVP, OCP, soft-start, thermal shutdown
Operating Mode	Green mode / burst mode (standby)
Pack Quantity	5 pieces

Why Choose FA-Series PWM Controllers?

✅ Industry-standard SMPS ICs — used in major monitor, TV, and charger brands
✅ Green mode operation — reduces standby power consumption
✅ SOP-8 package — hand-solderable for repair work
✅ Full protection suite — OVP, OCP, soft-start, thermal shutdown
✅ 5-pack value — stock for multiple repair jobs
