Features:
Brand new high quality
Made of high-quality materials for durability

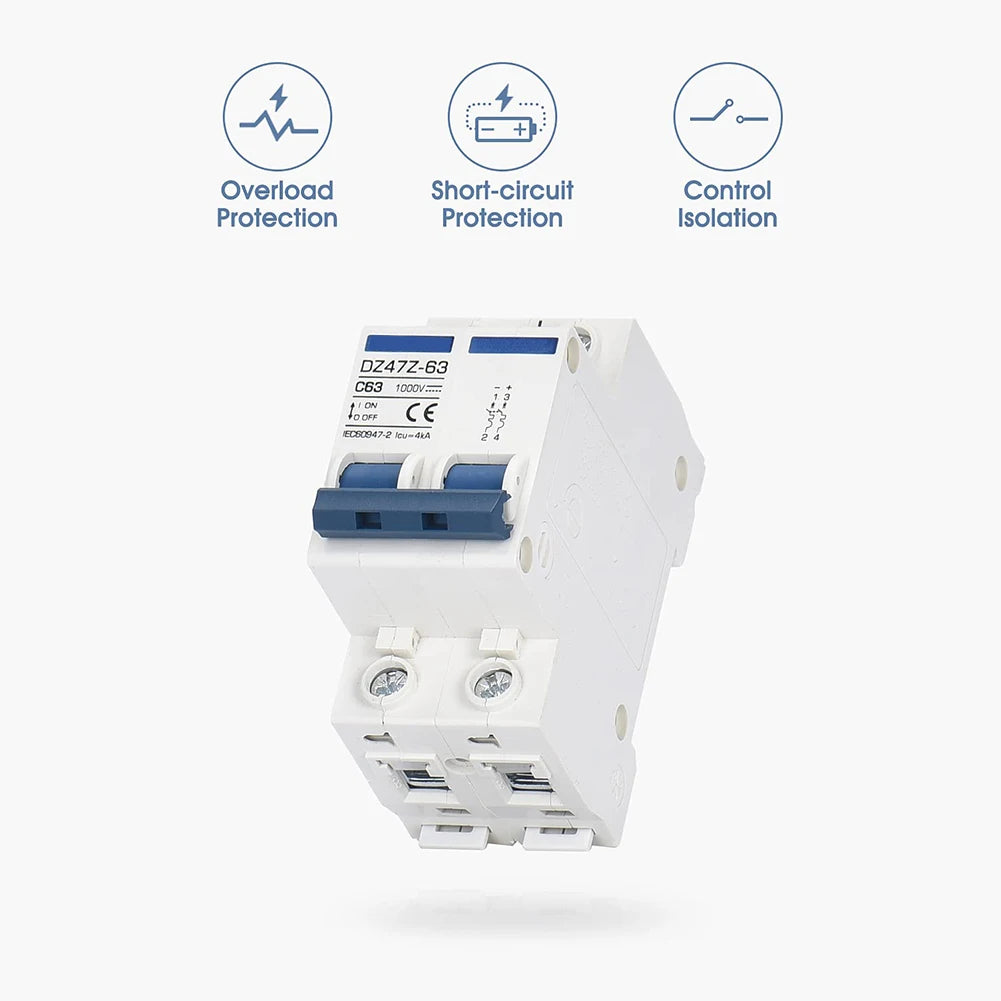

It is used to protect power distribution facilities from overload and short-circuit damage, and can also be used for ntrol and isolation.
Quick trip, the electromagnetic trip can trip immediately when the circuit is short-circuited to protect the circuit safety.

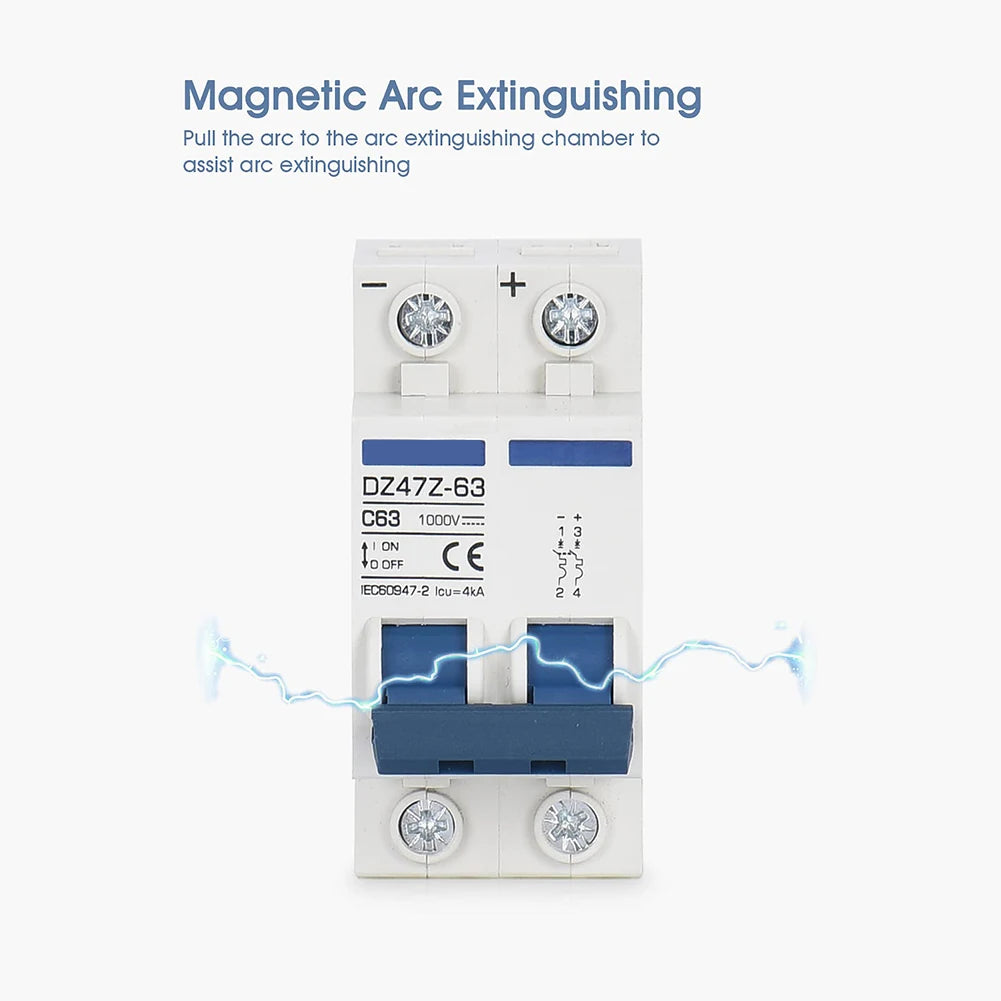

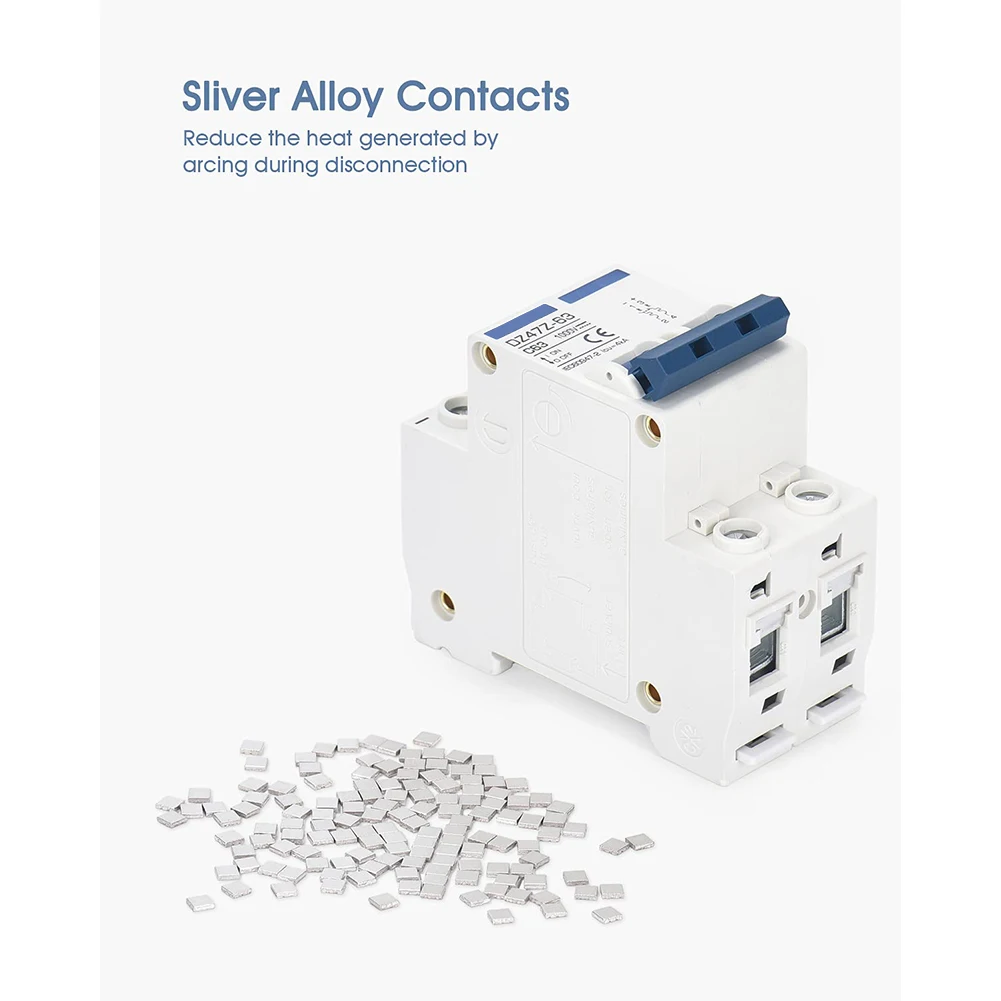

Arc extinguishing, DC arc extinguishing is more difficult than AC. The DC miniature circuit breaker has a magnetic for auxiliary arc extinguishing.
Applications for DC power s, marine power s, solar photovoltaic s or other DC s.

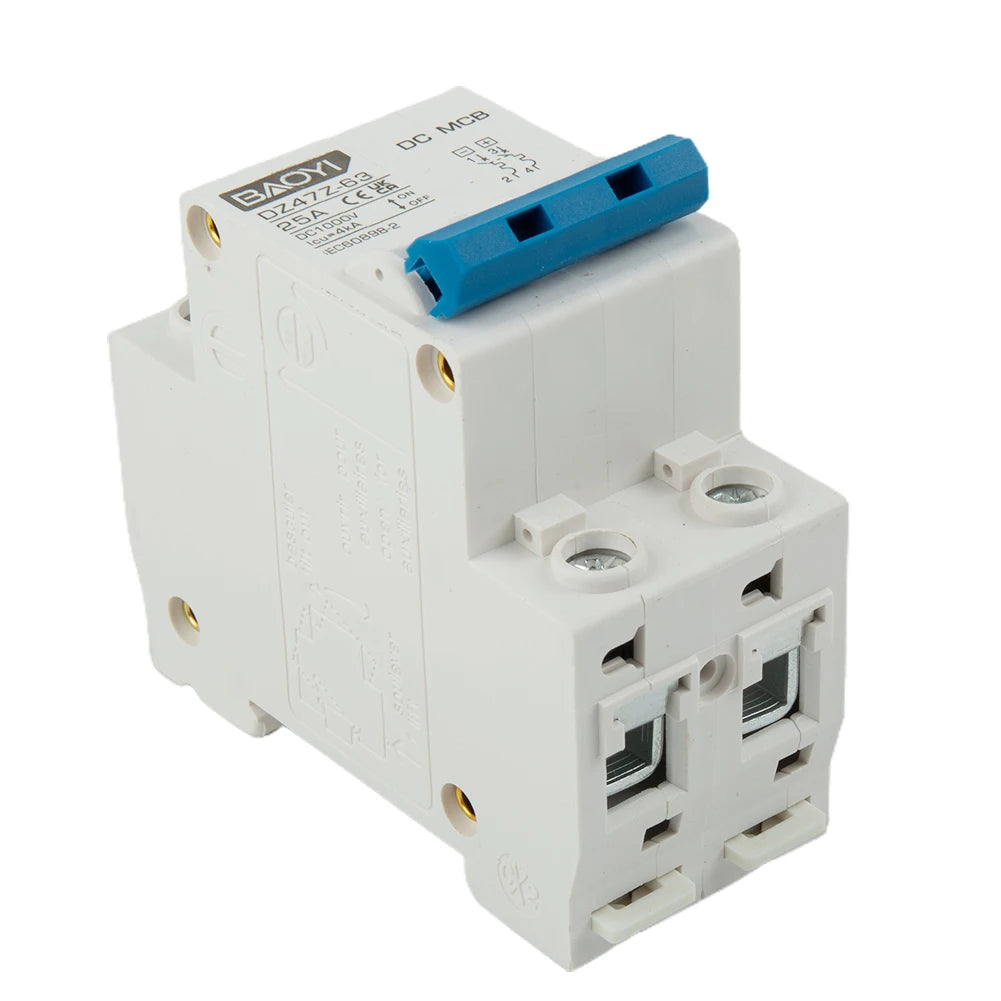

Installation, screw clamp wire, 35mm DIN rail installation.

Product parameters:

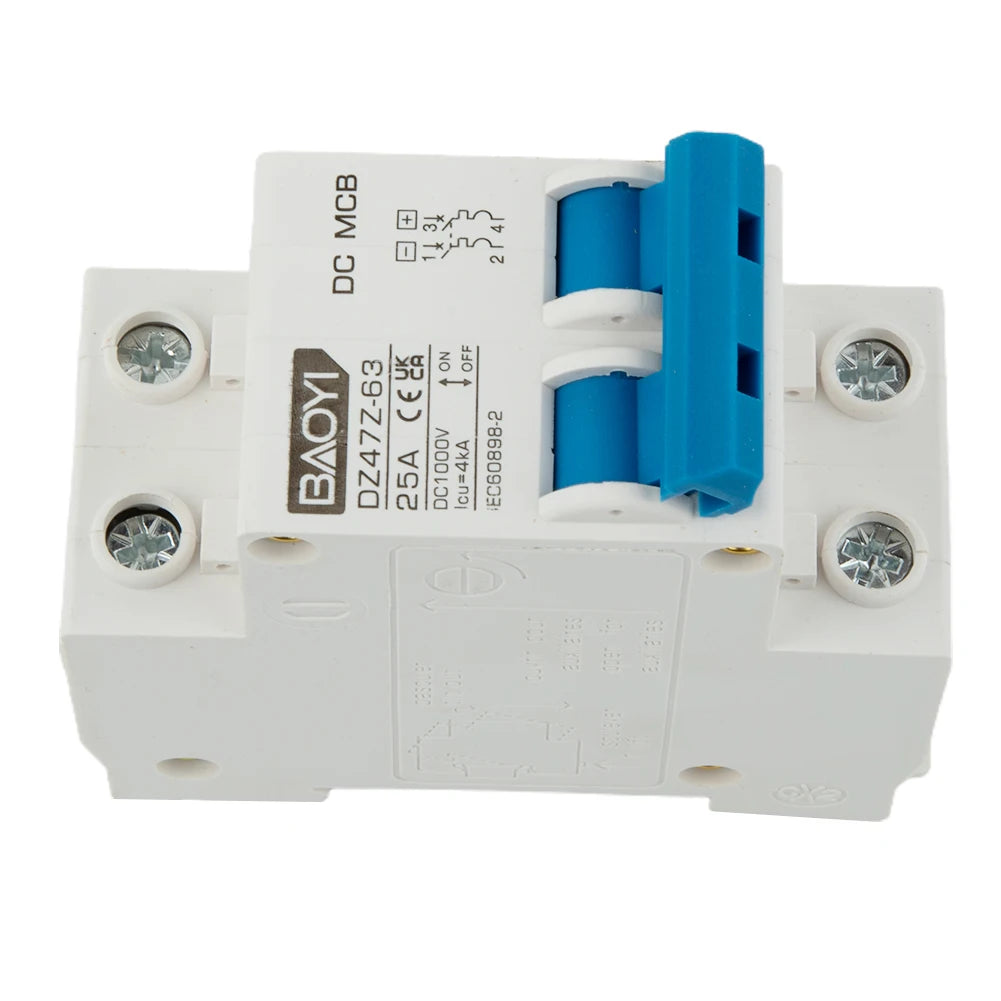

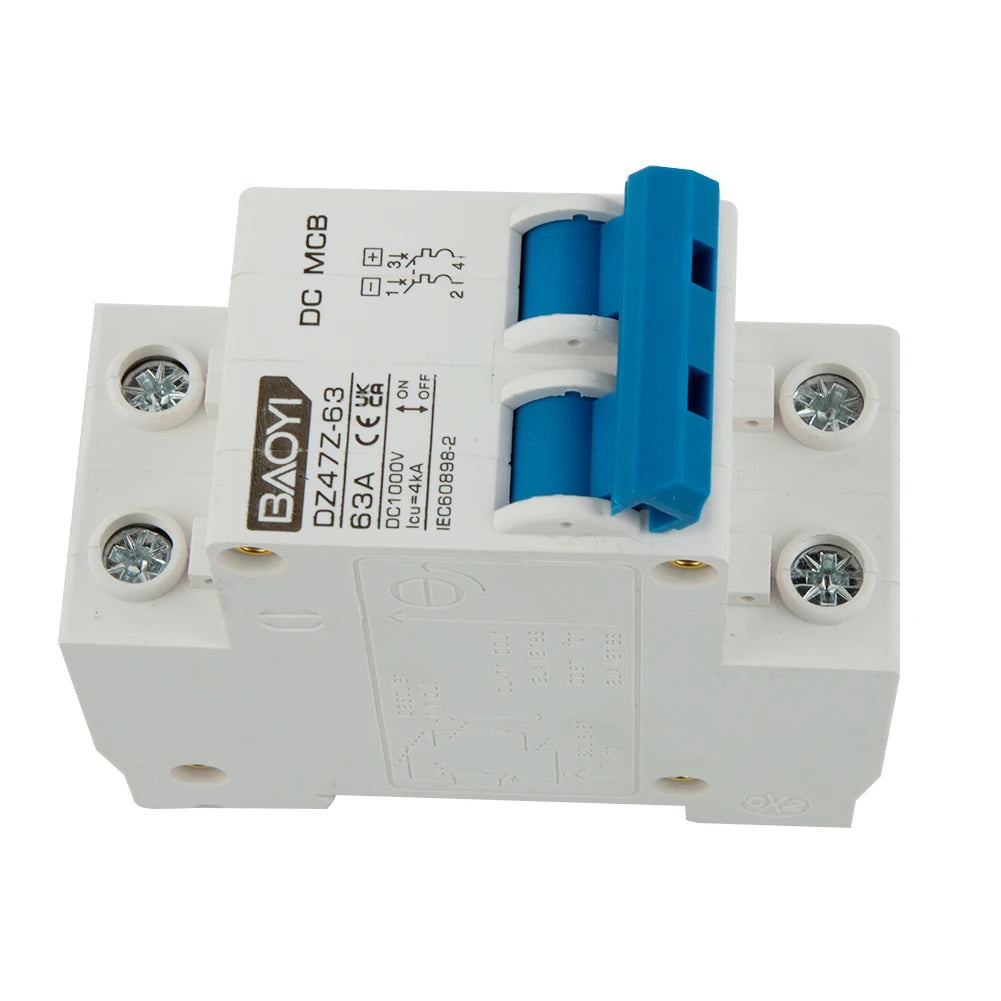

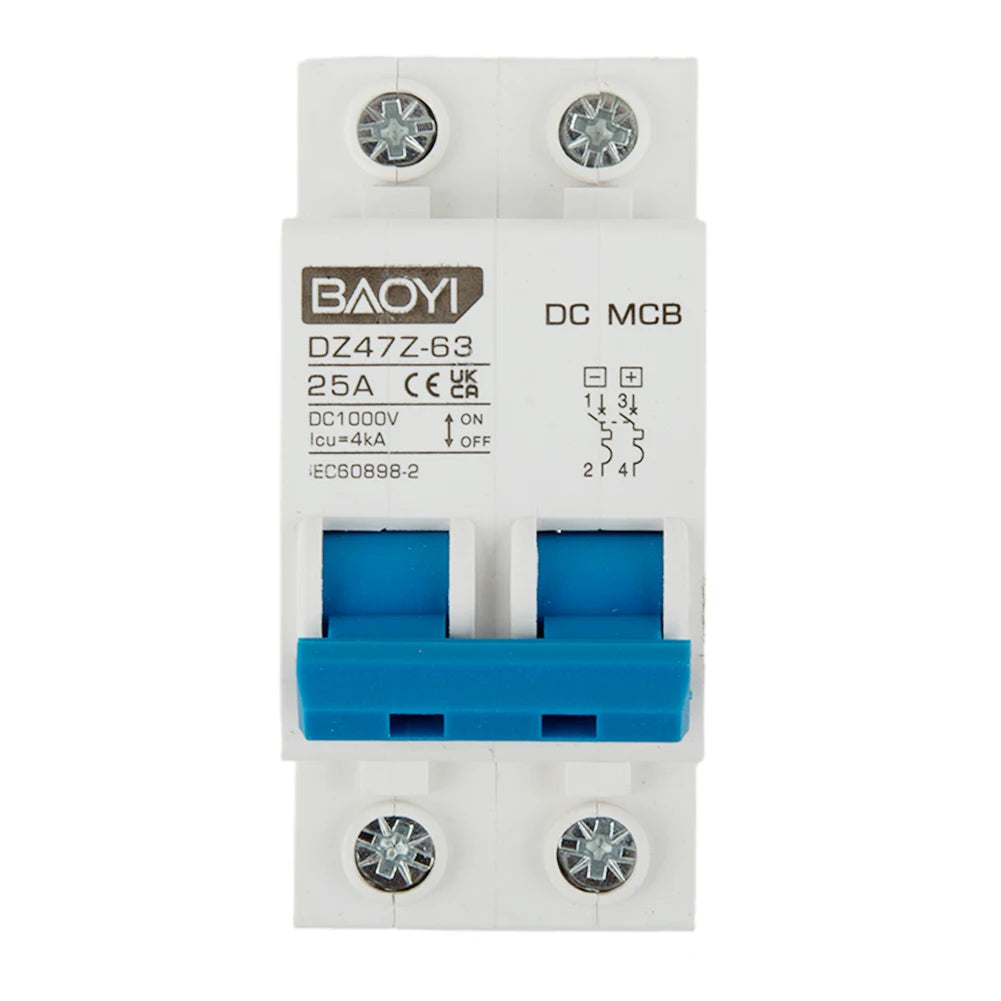

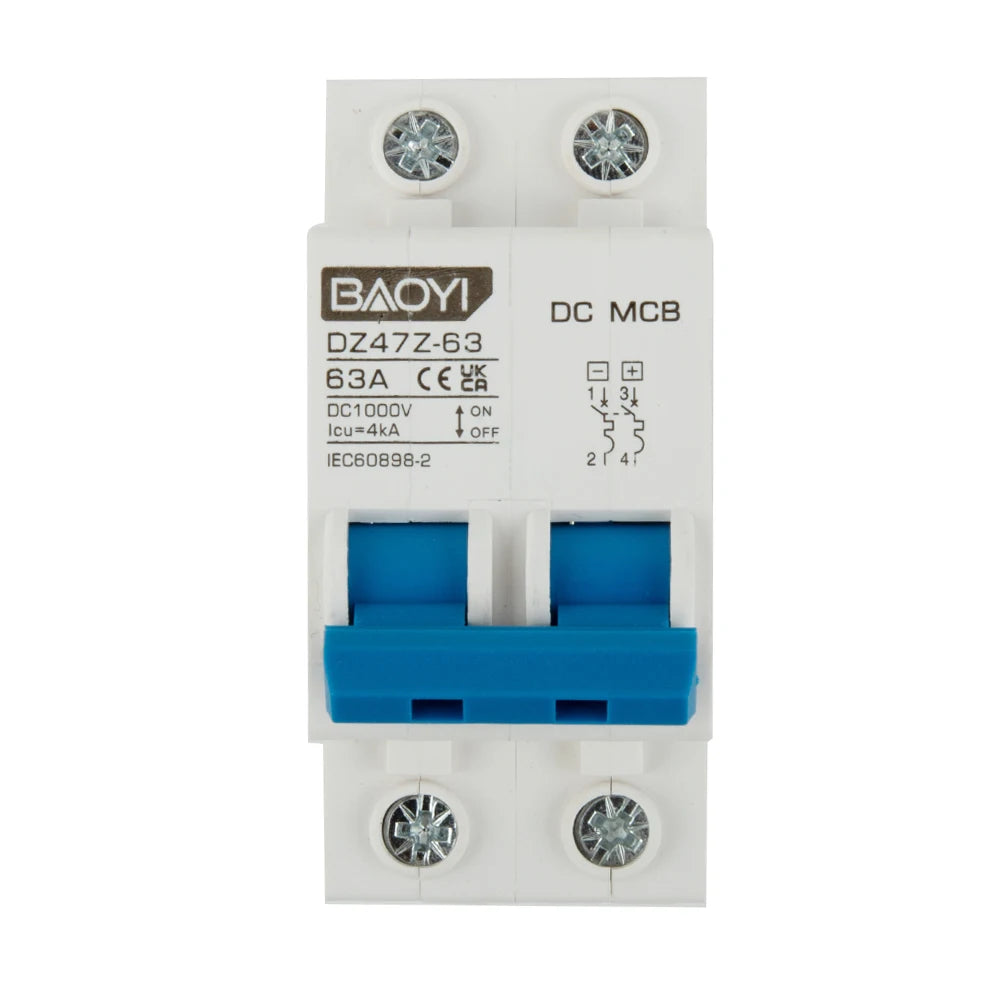

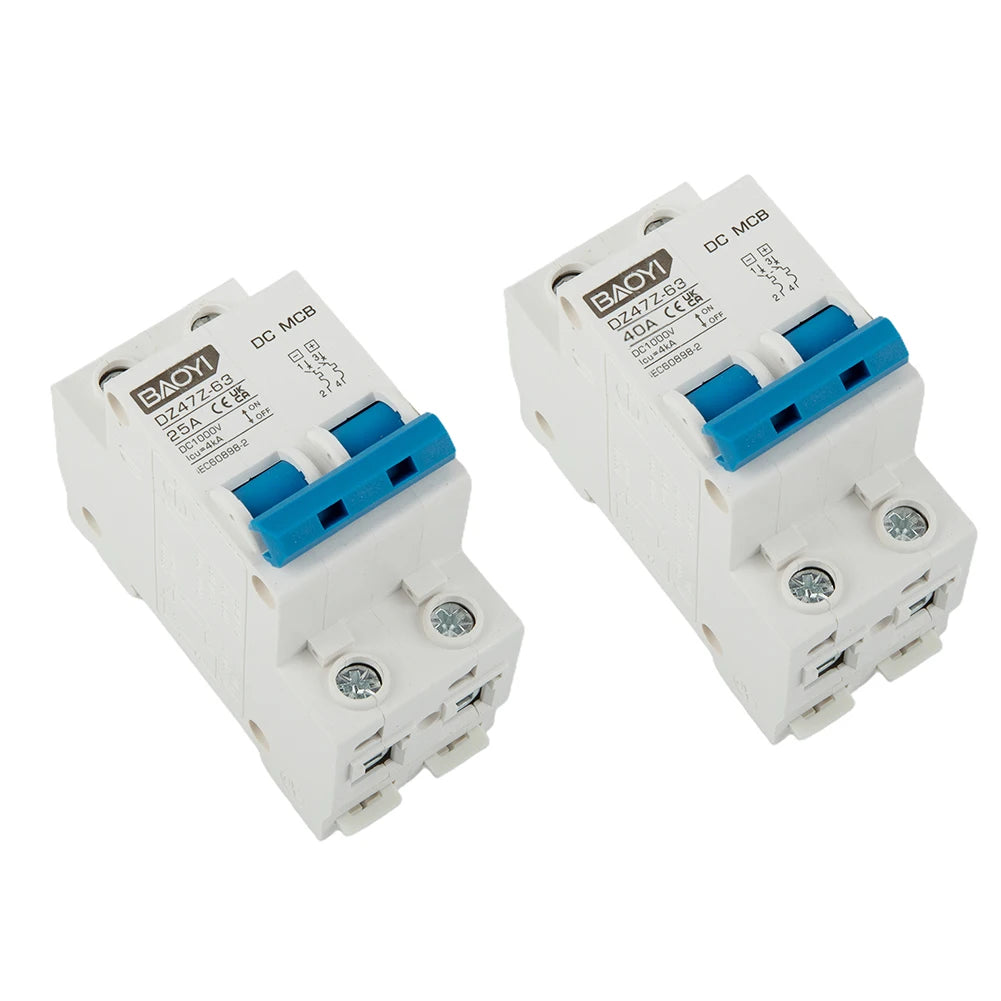

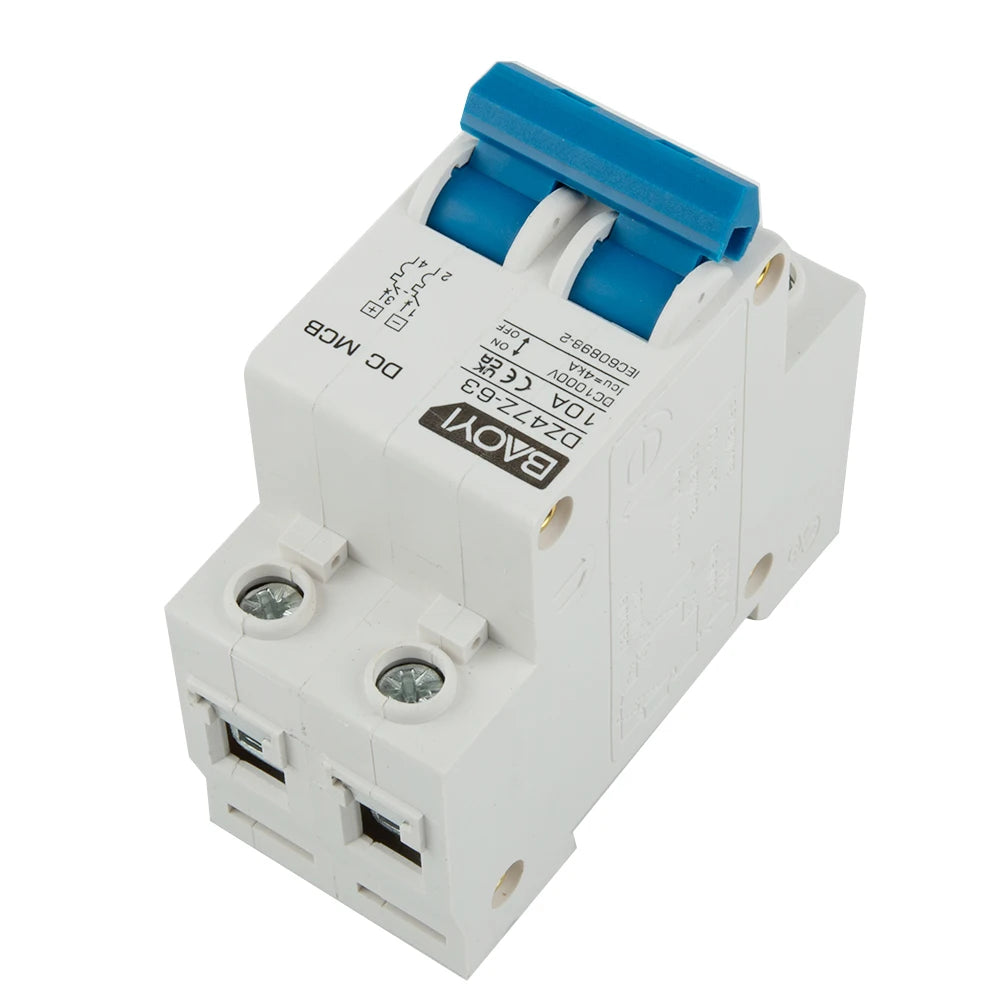

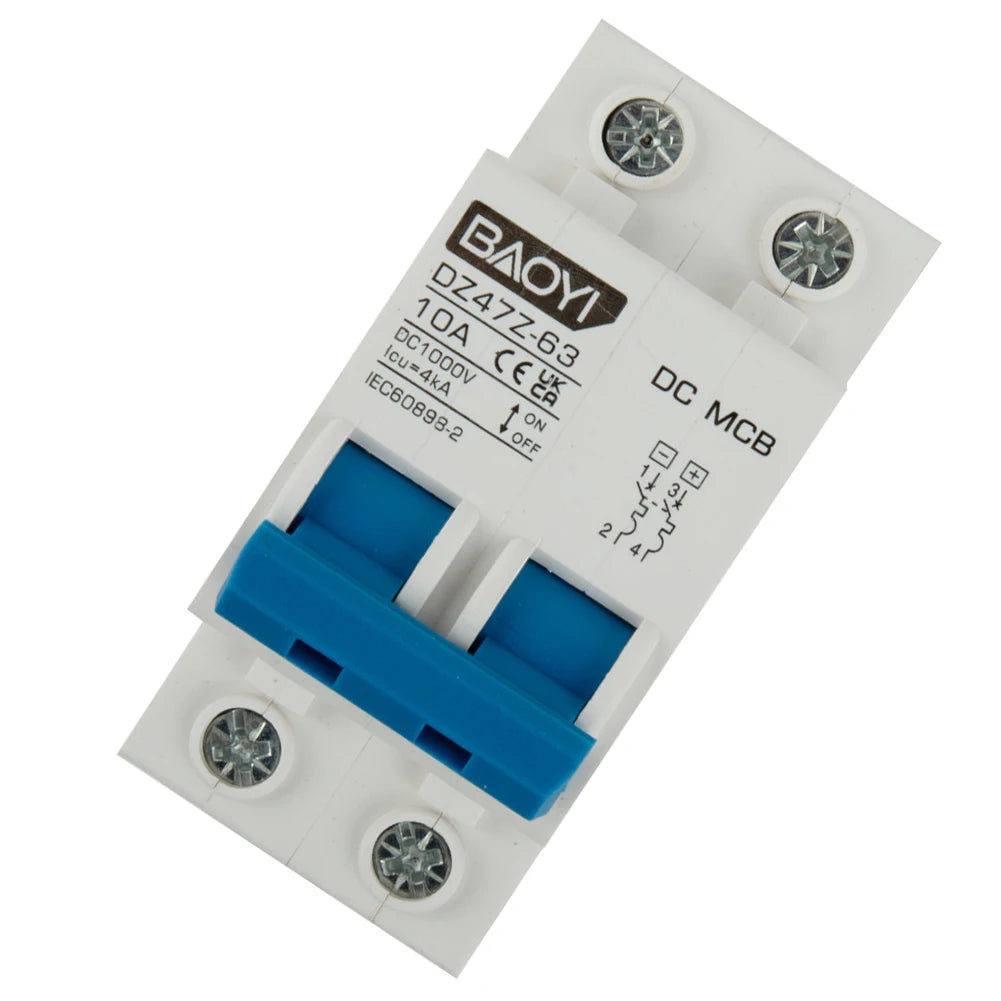

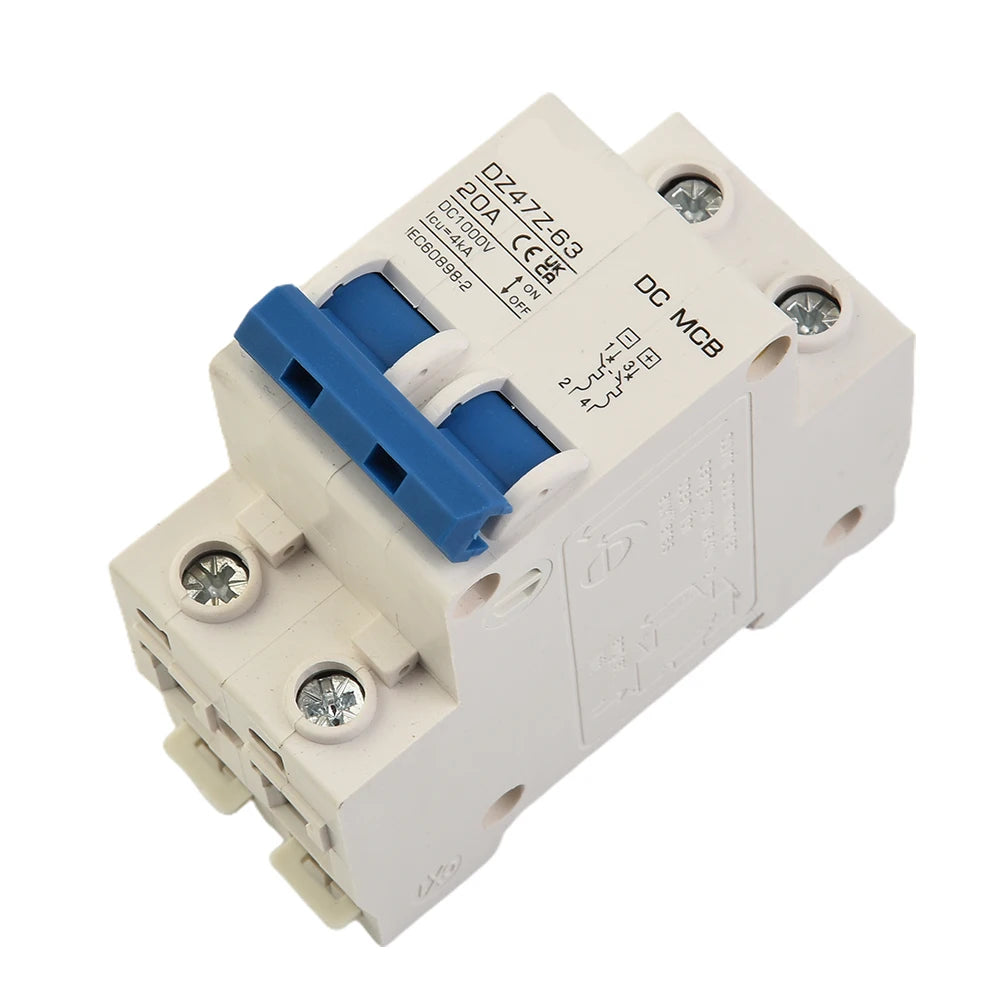

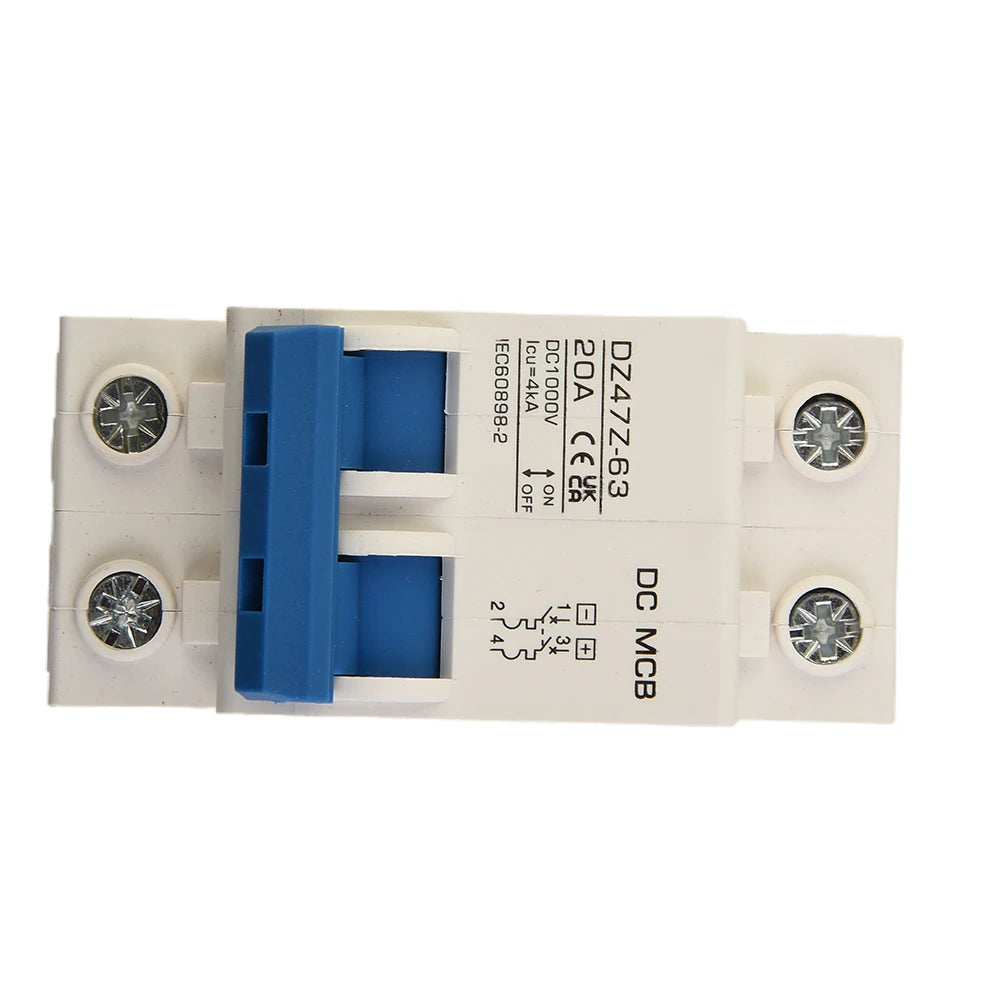

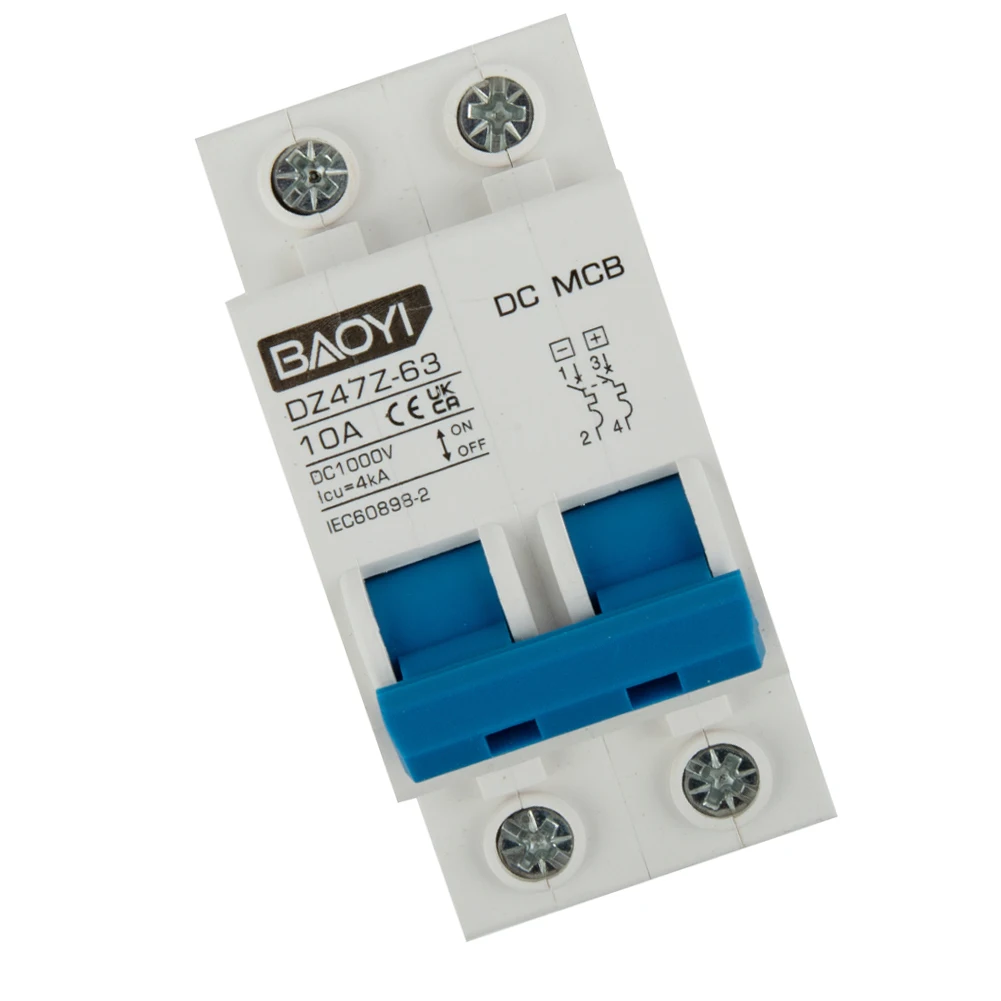

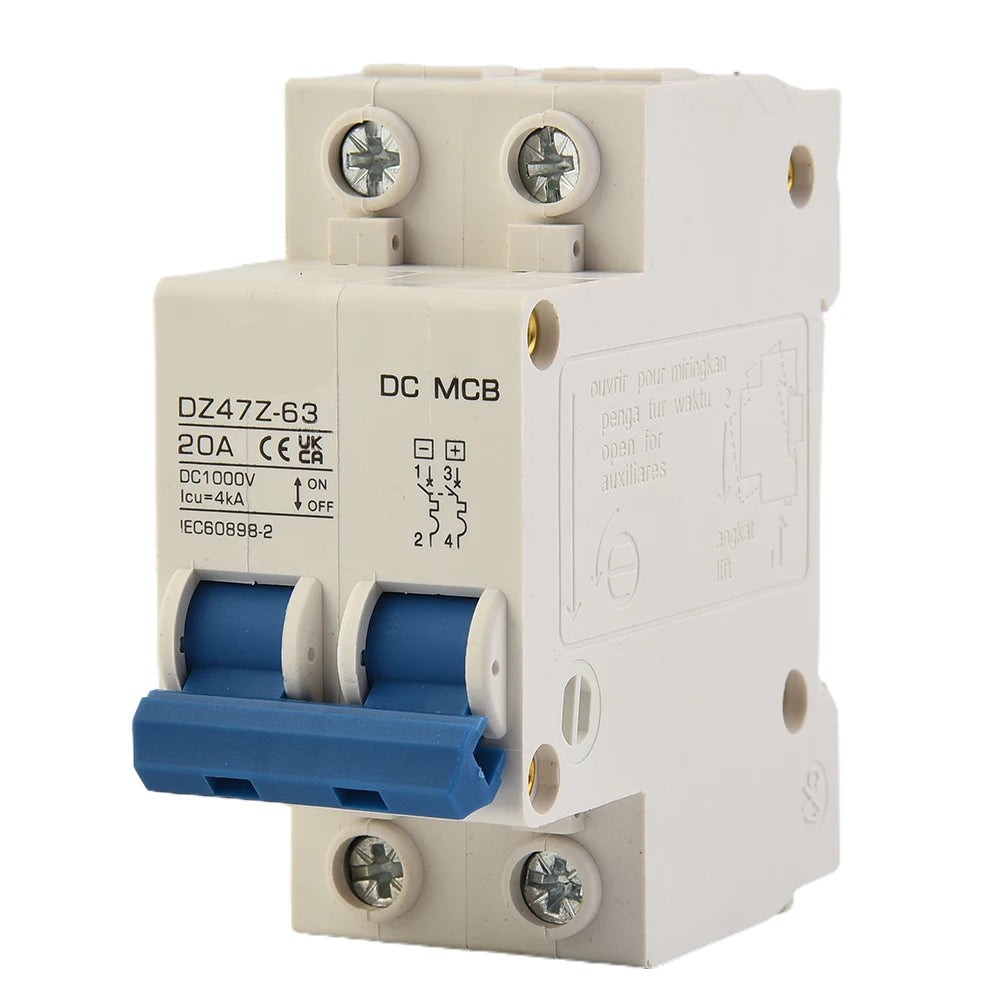

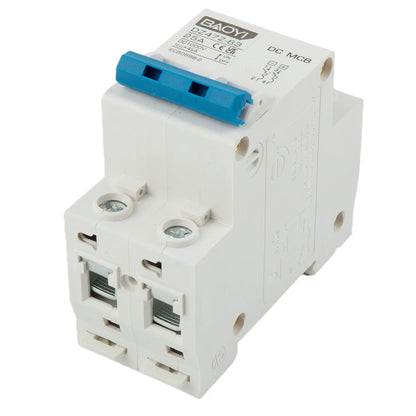

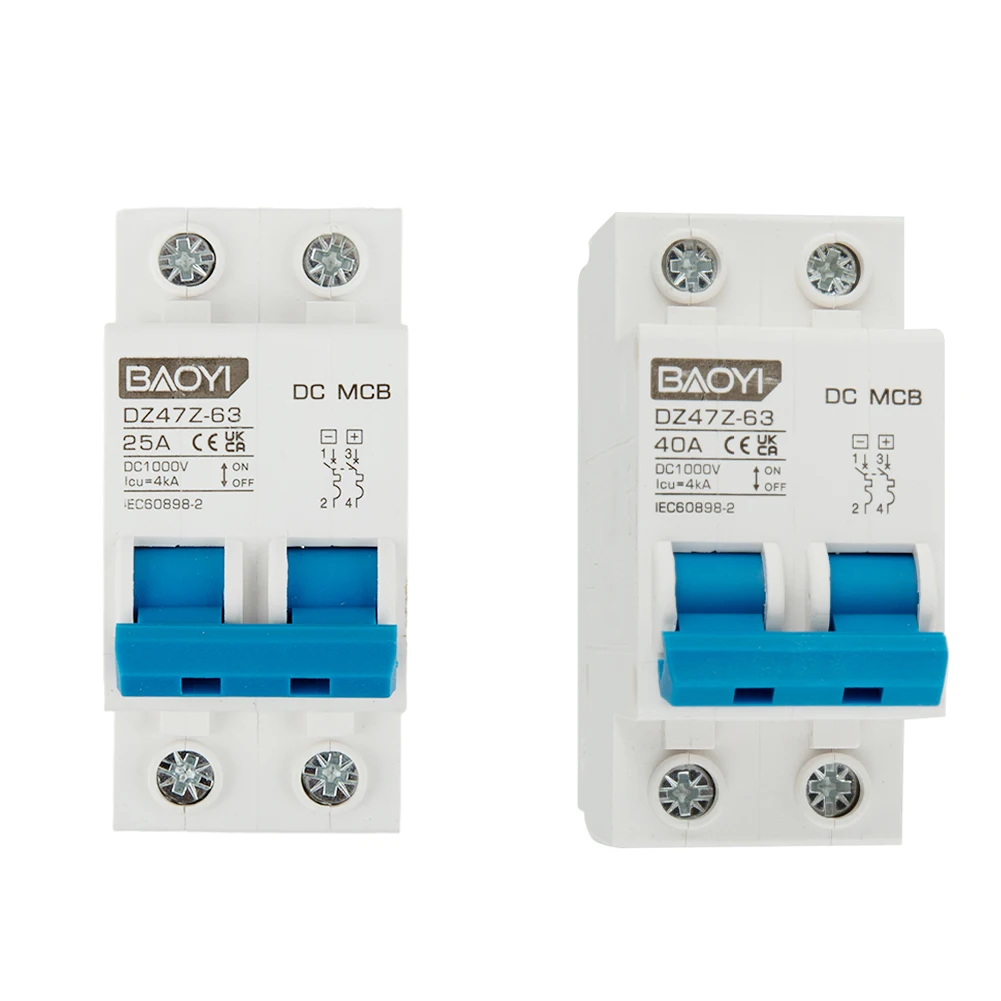

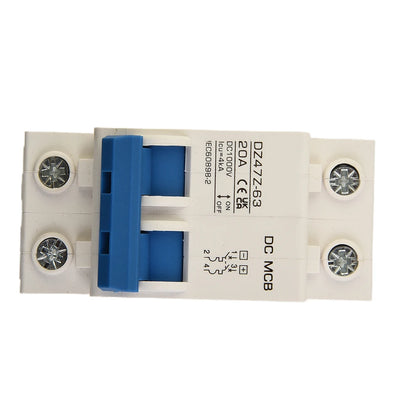

Type DC MCB
Rated working voltage: 1000V DC

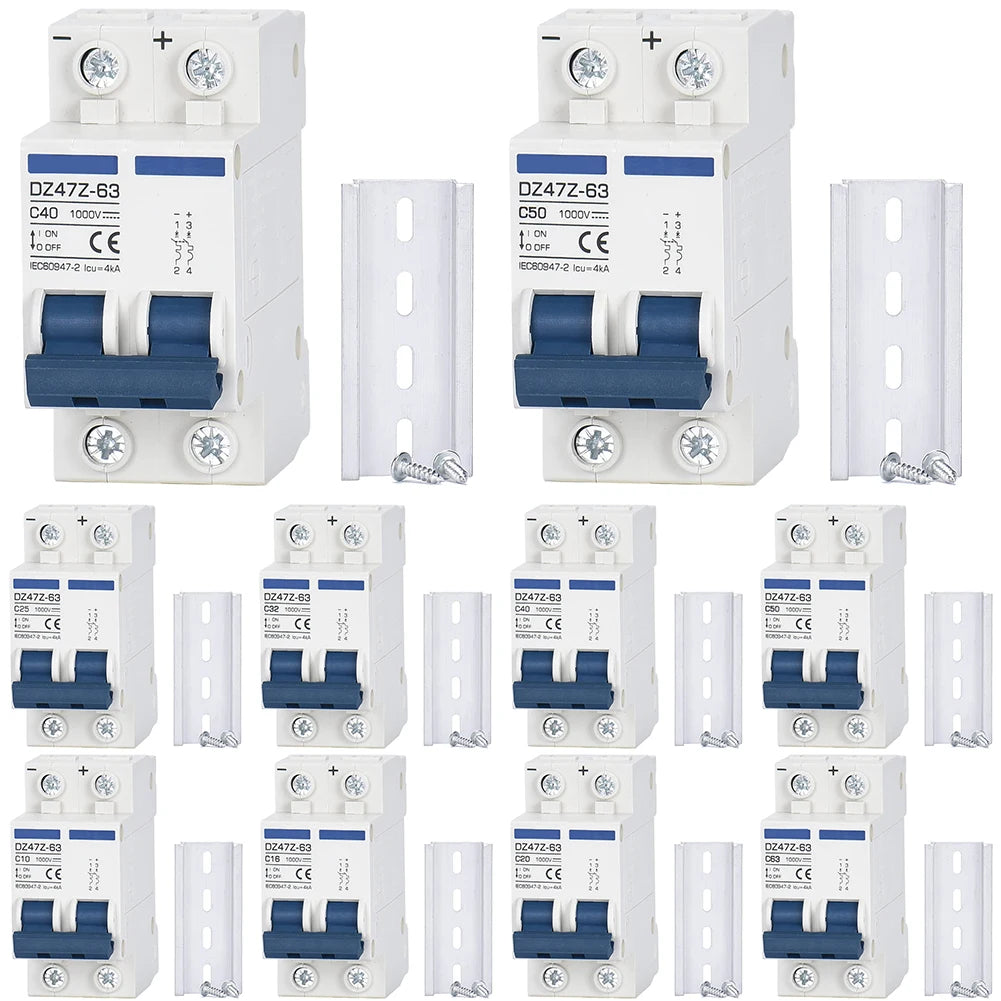

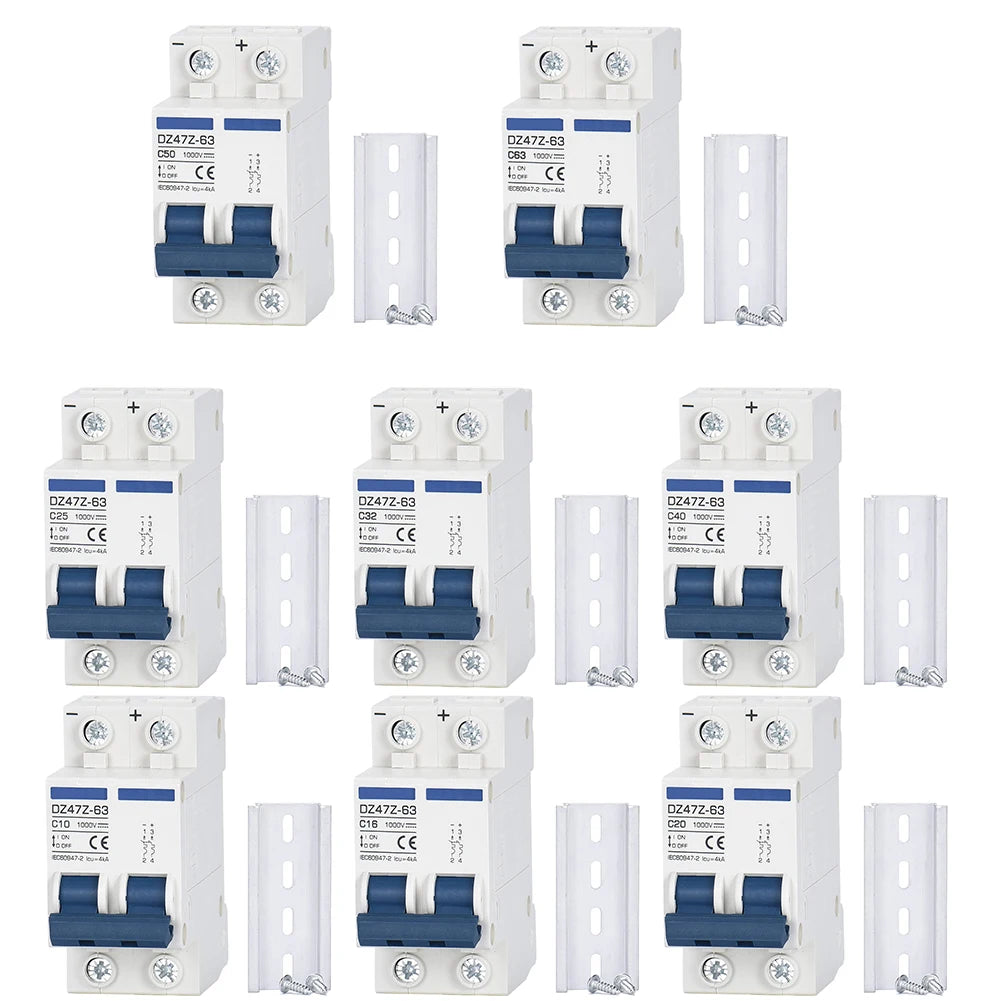

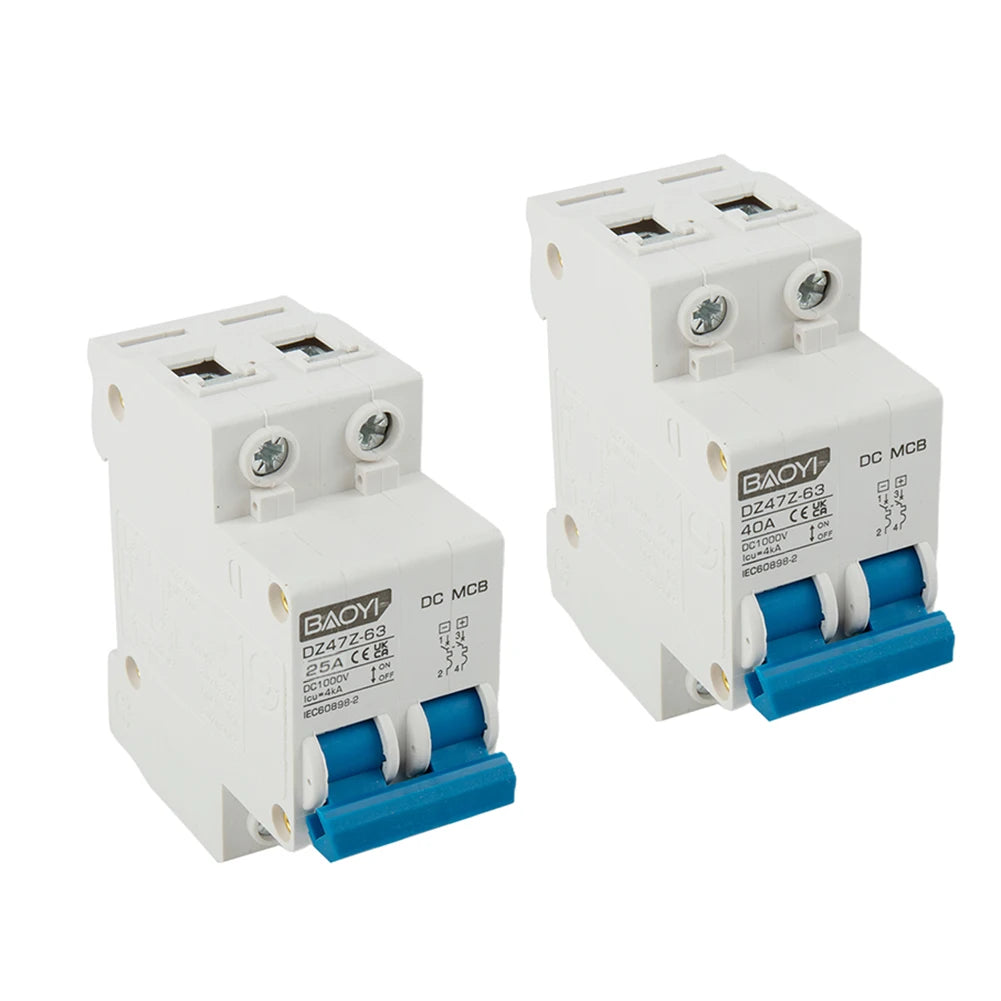

Rated current [In]: 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional)
Two levels: 2 P
Release technology: Thermomagnetic
Curve de: C
Breaking capacity: 4 kA Ics=Icu
Uimp: 4 kV
Mechanical durability: 10000 cycles
Electrical life: cycles
Operating temperature: -13°F(-25°C) ~ 140°F(60°C)

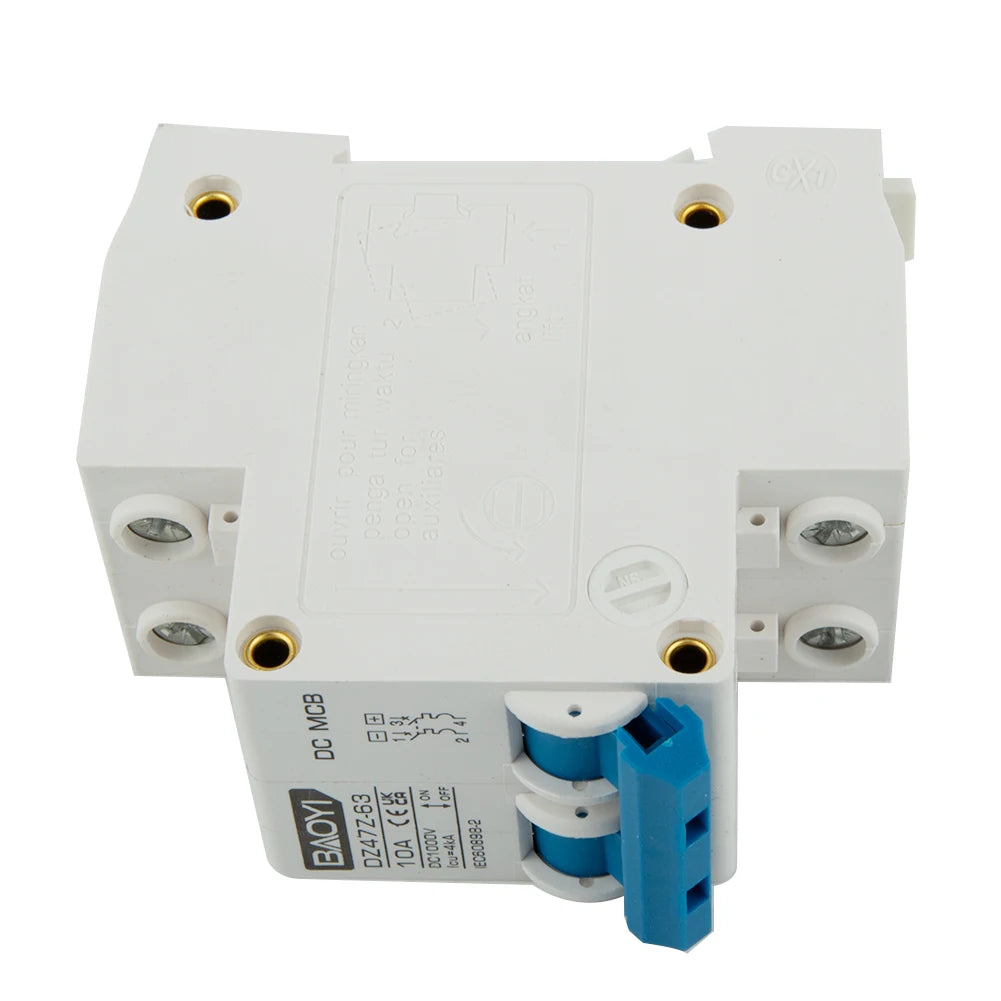

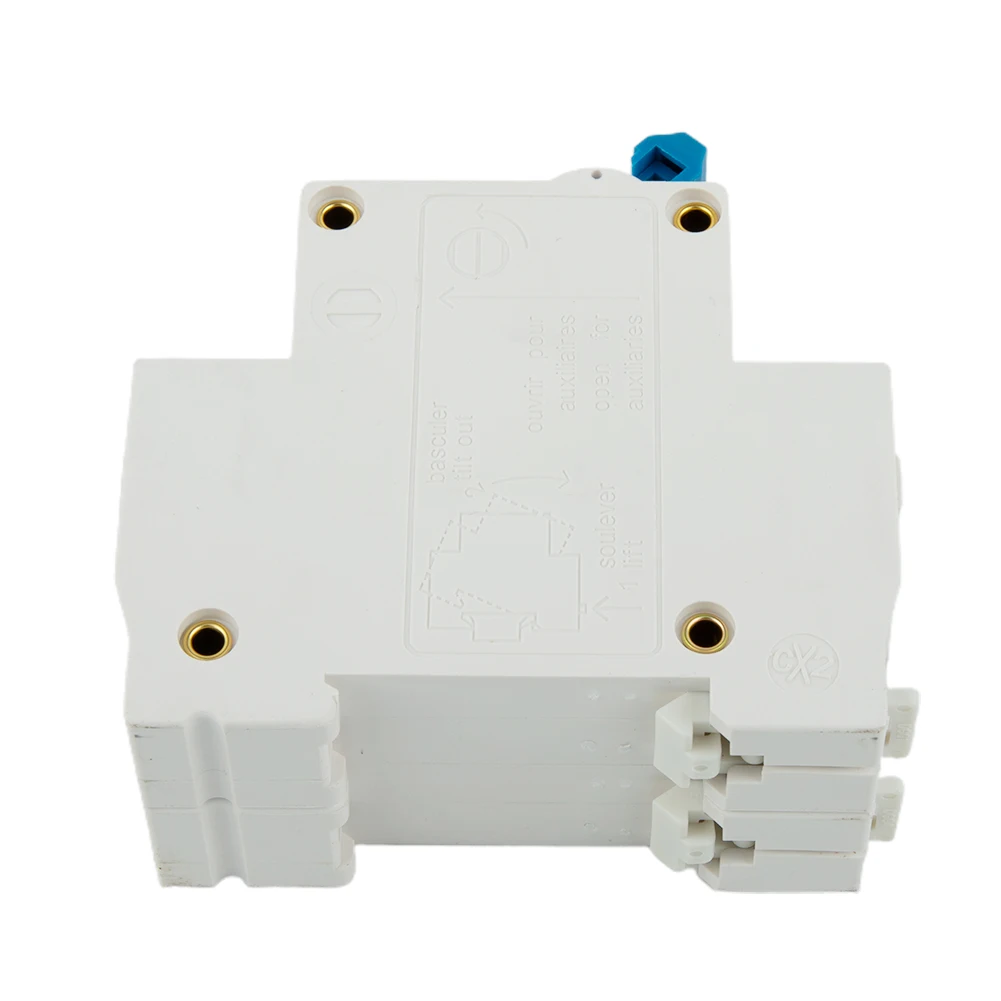

Mounting bracket: 35 mm DIN rail
Tightening torque: 2.5 N.m
Standard IEC60898-2

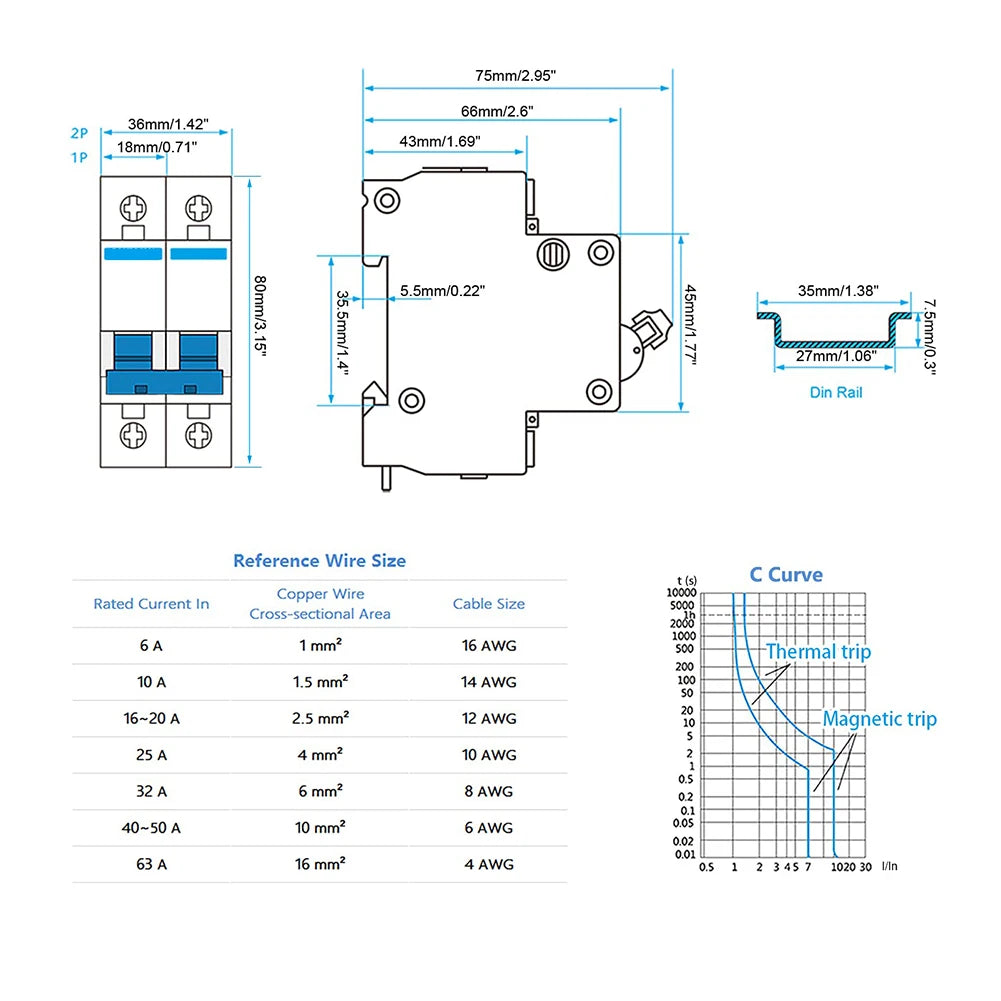

Dimensions LxWxH: 1.42 x 2.95 x 3.15 inches

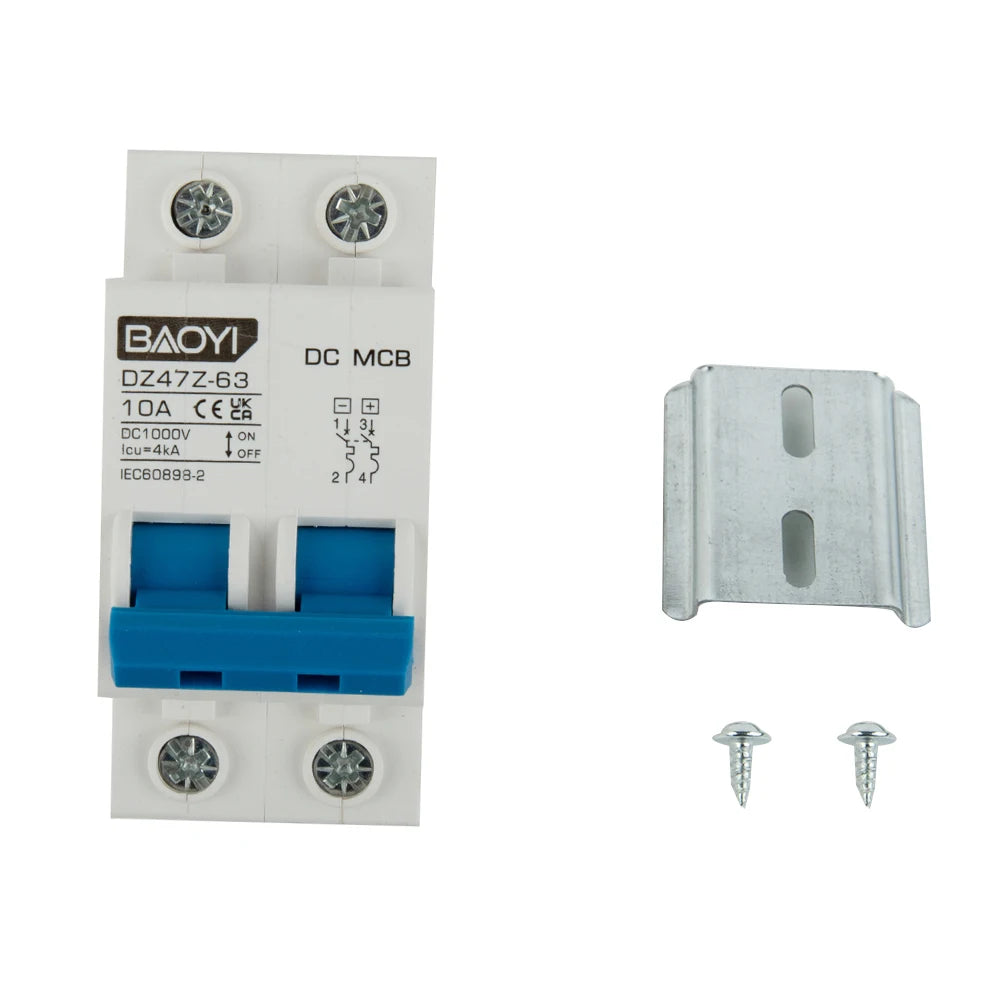

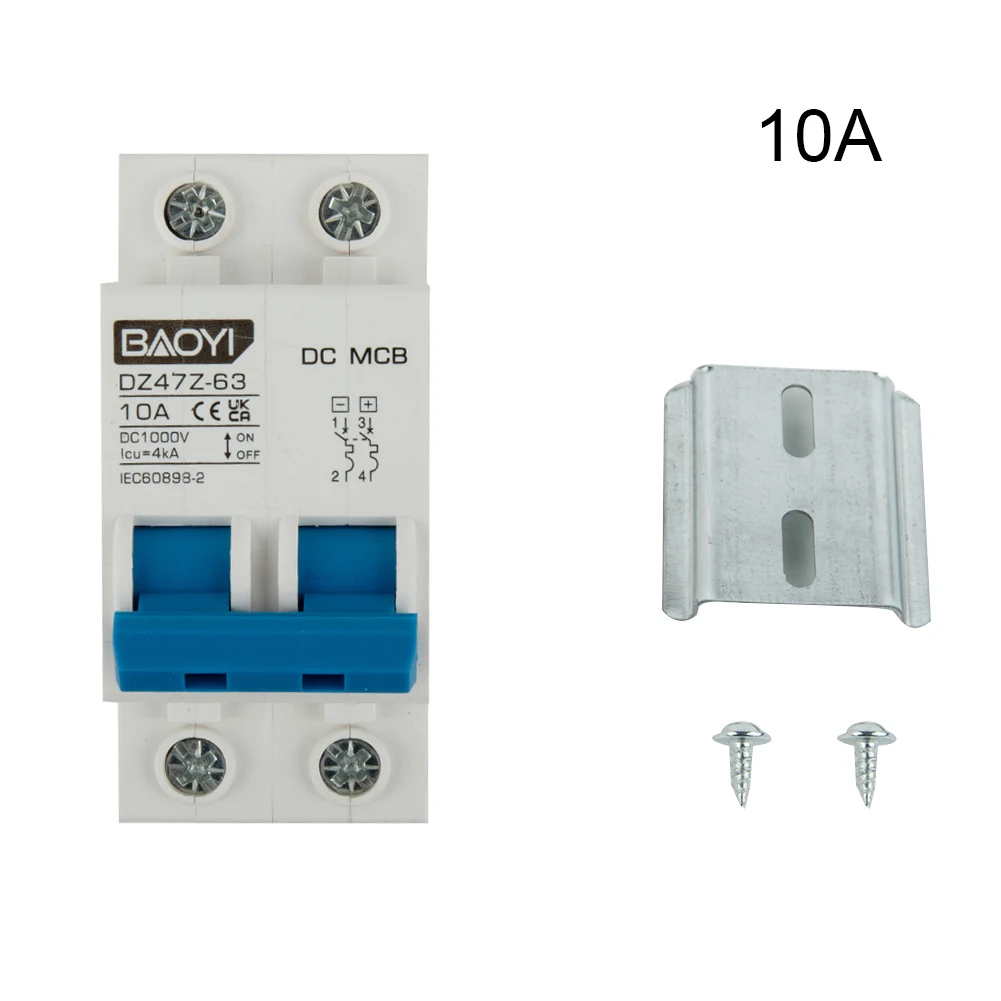

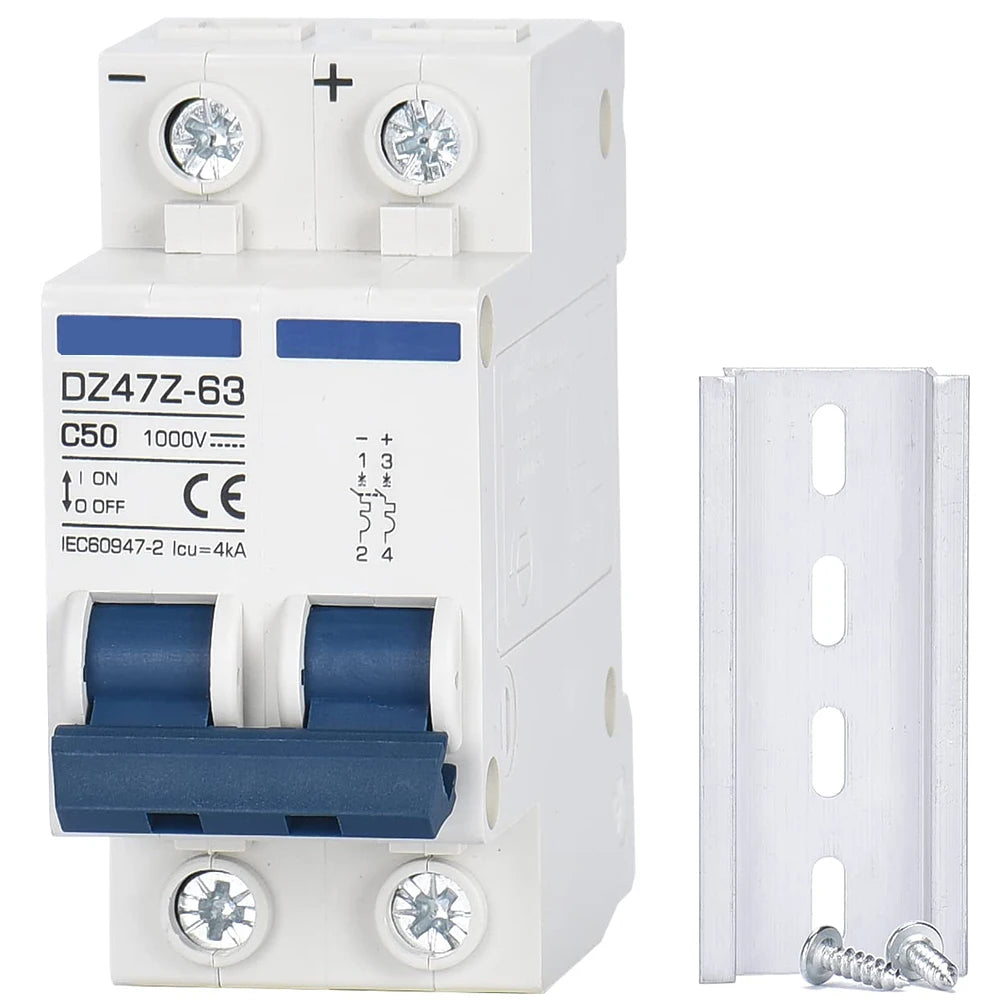

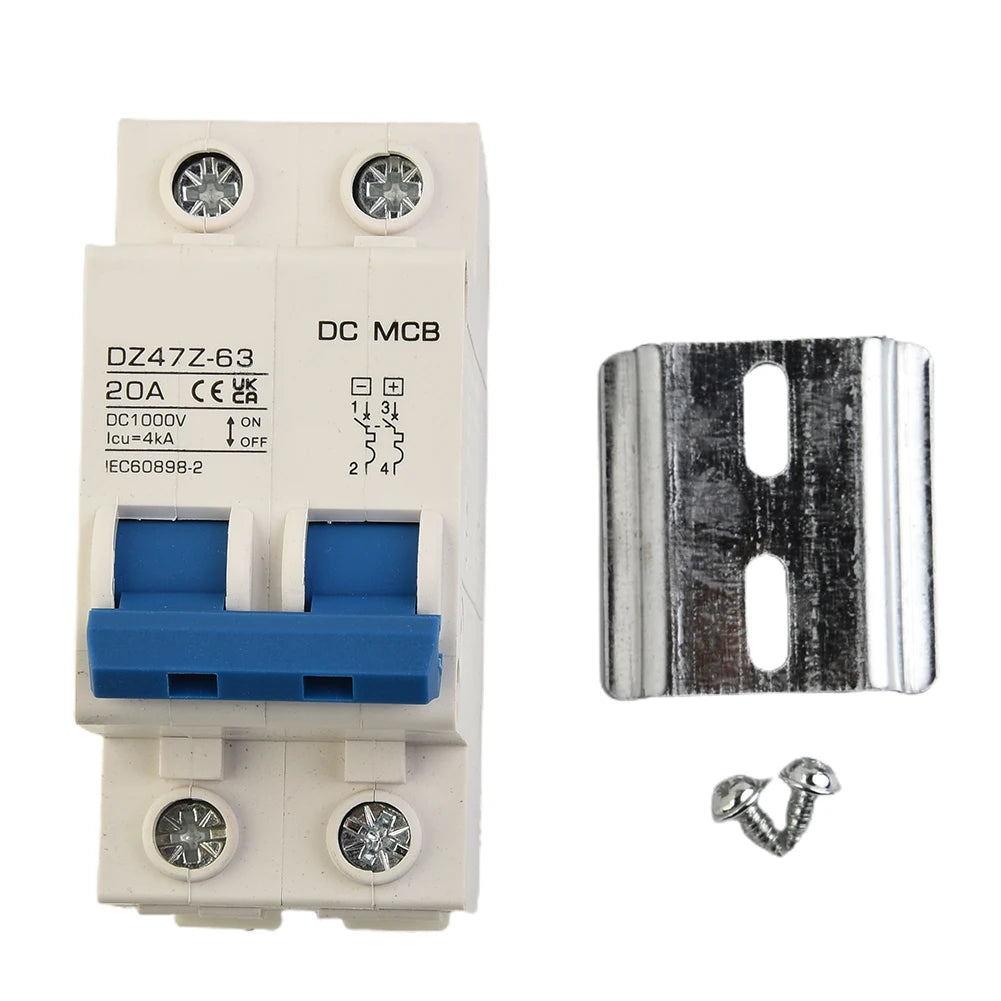

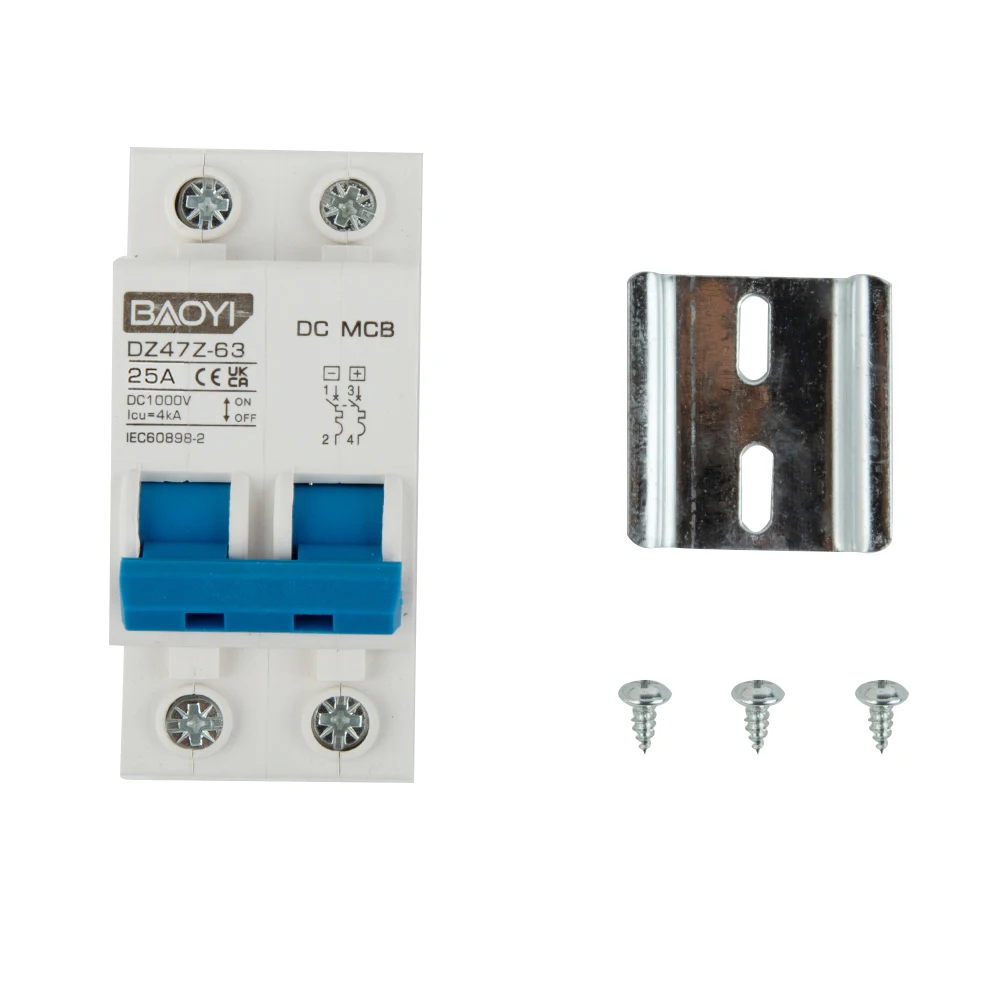

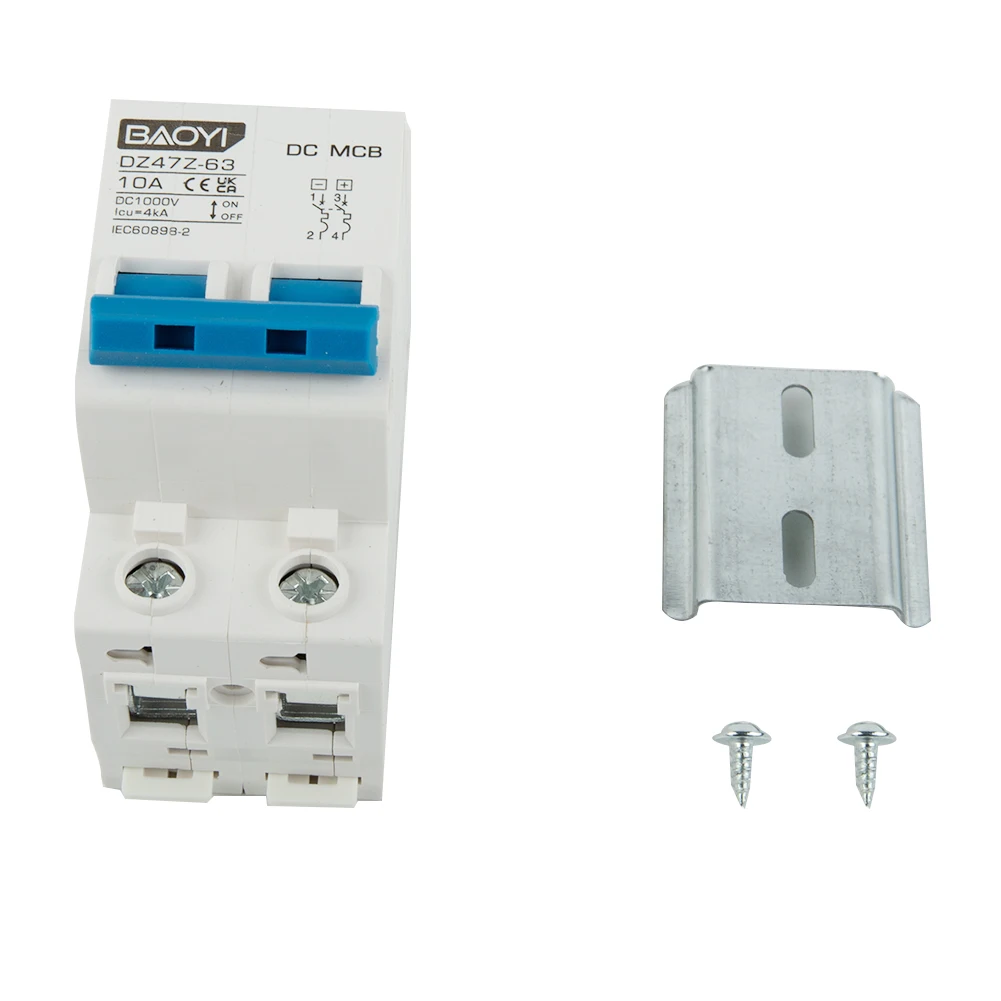

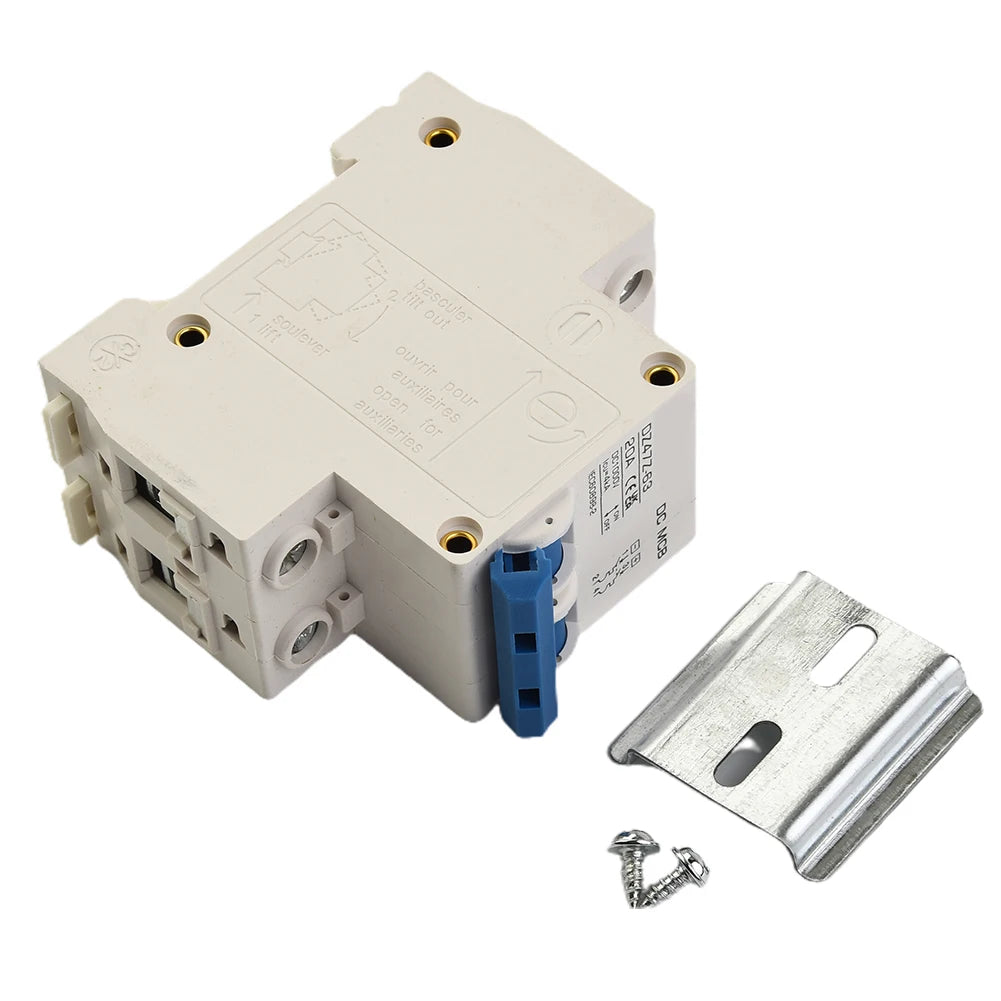

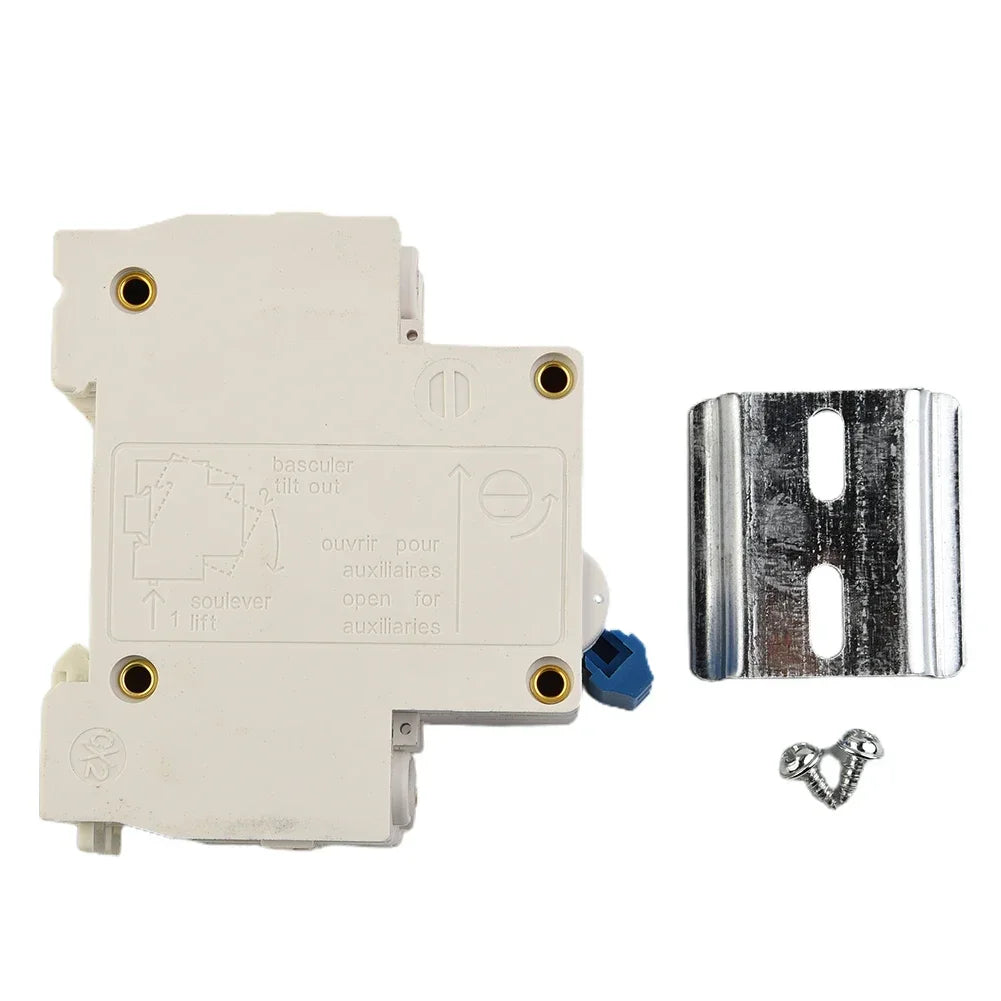

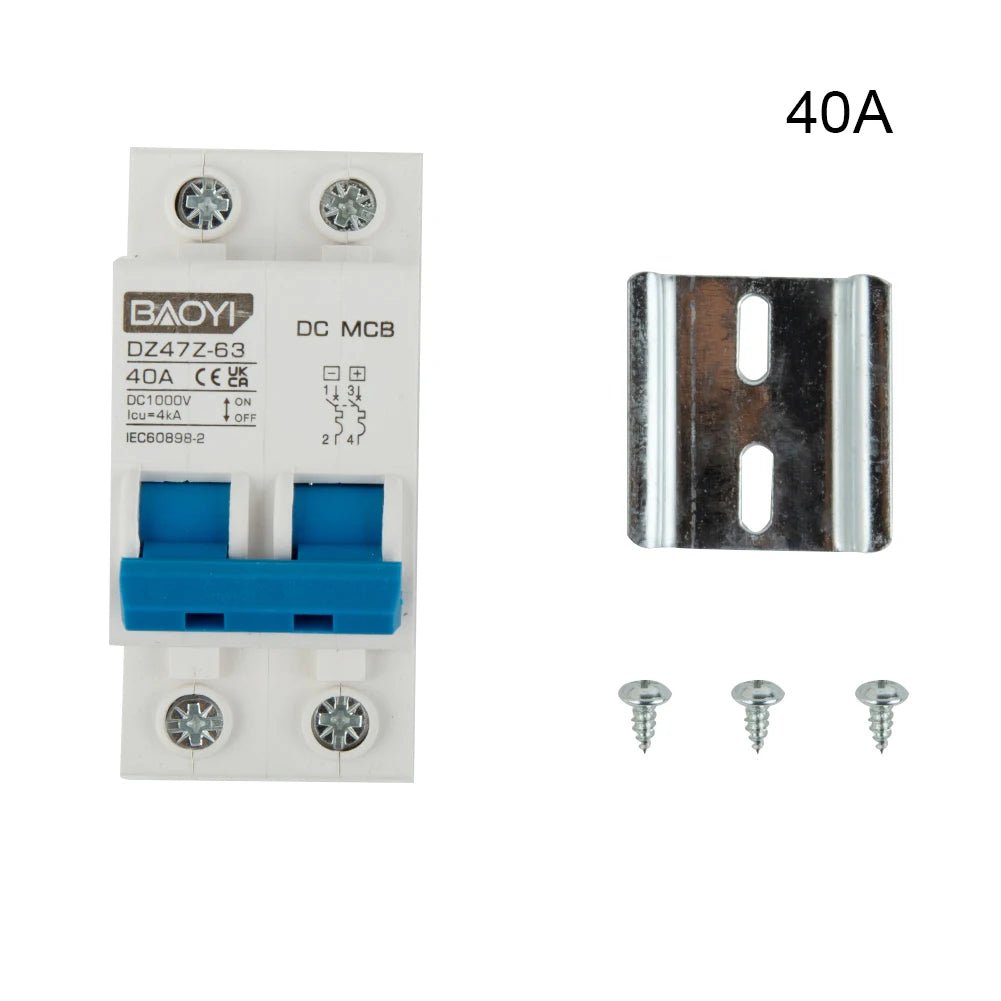

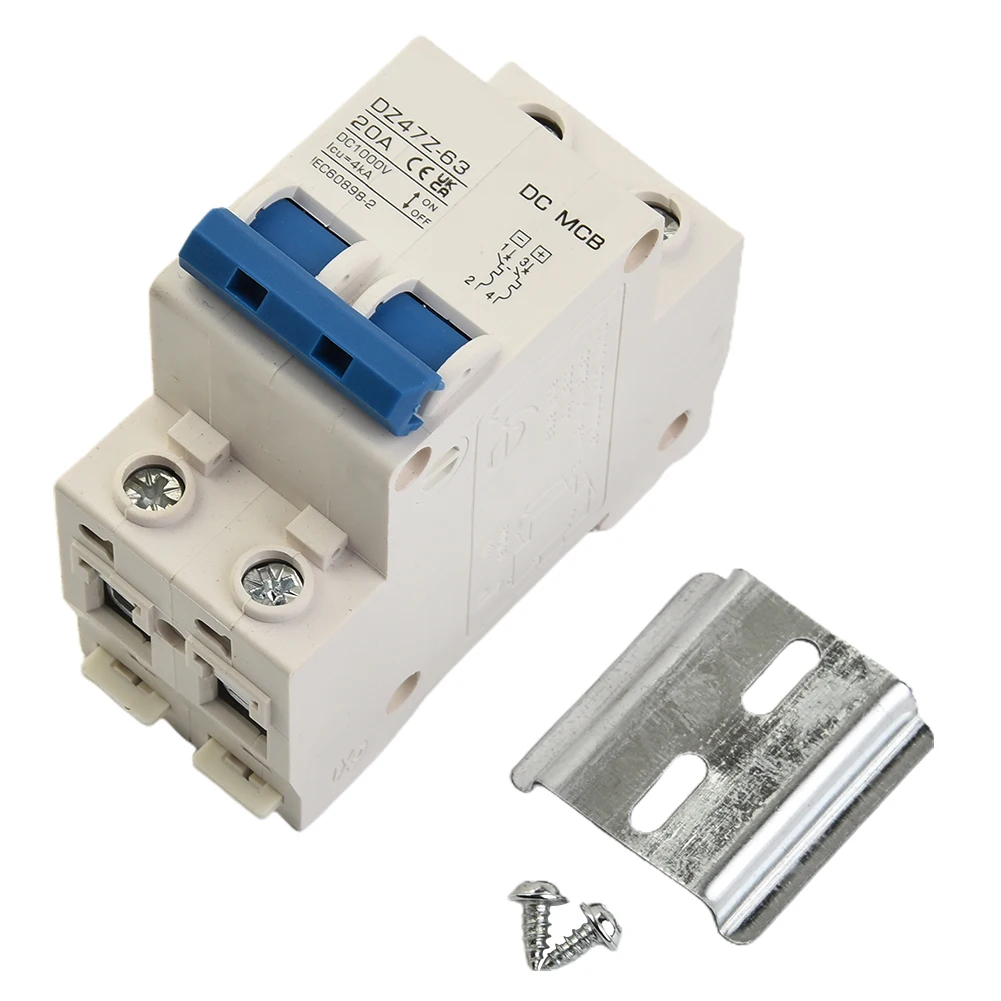

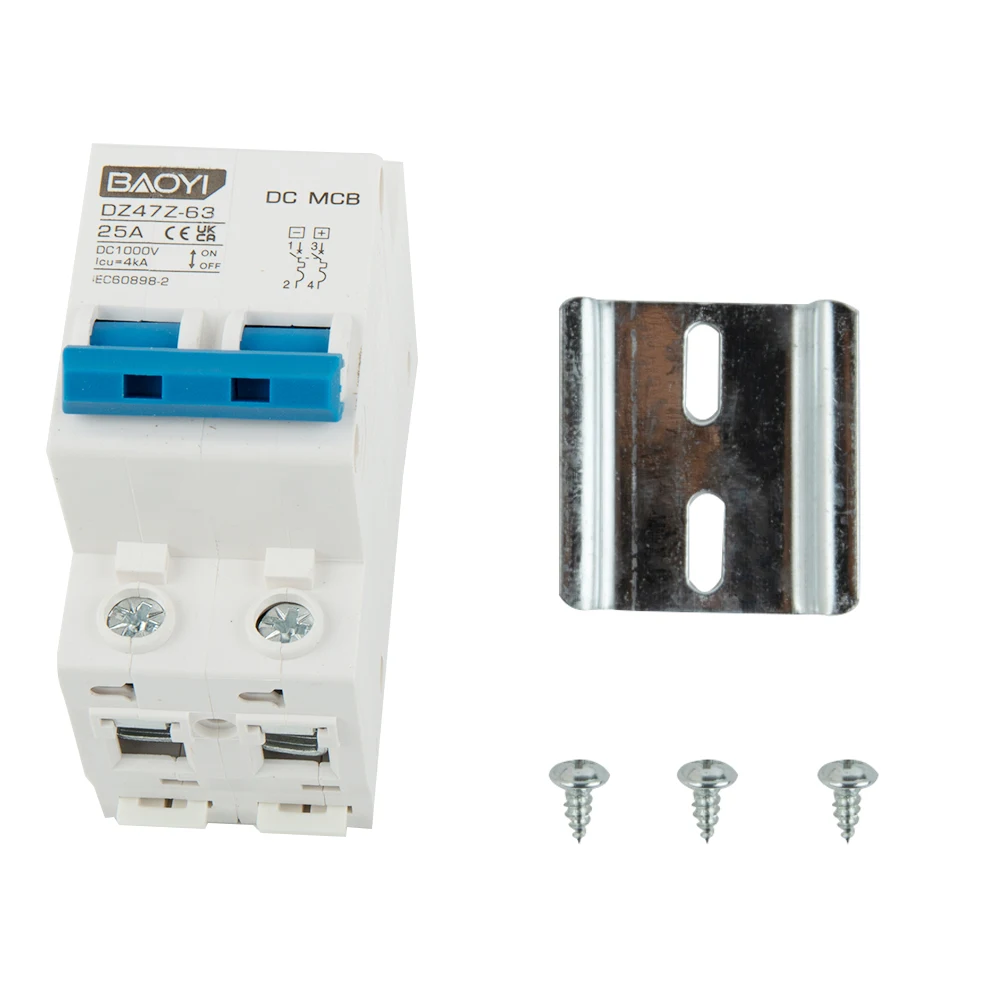

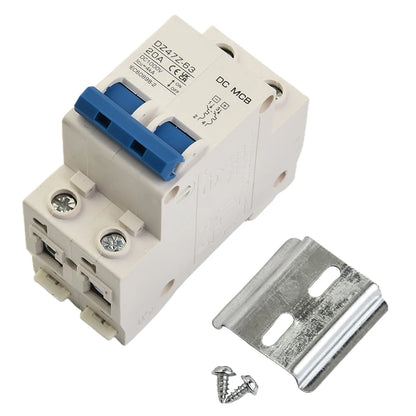

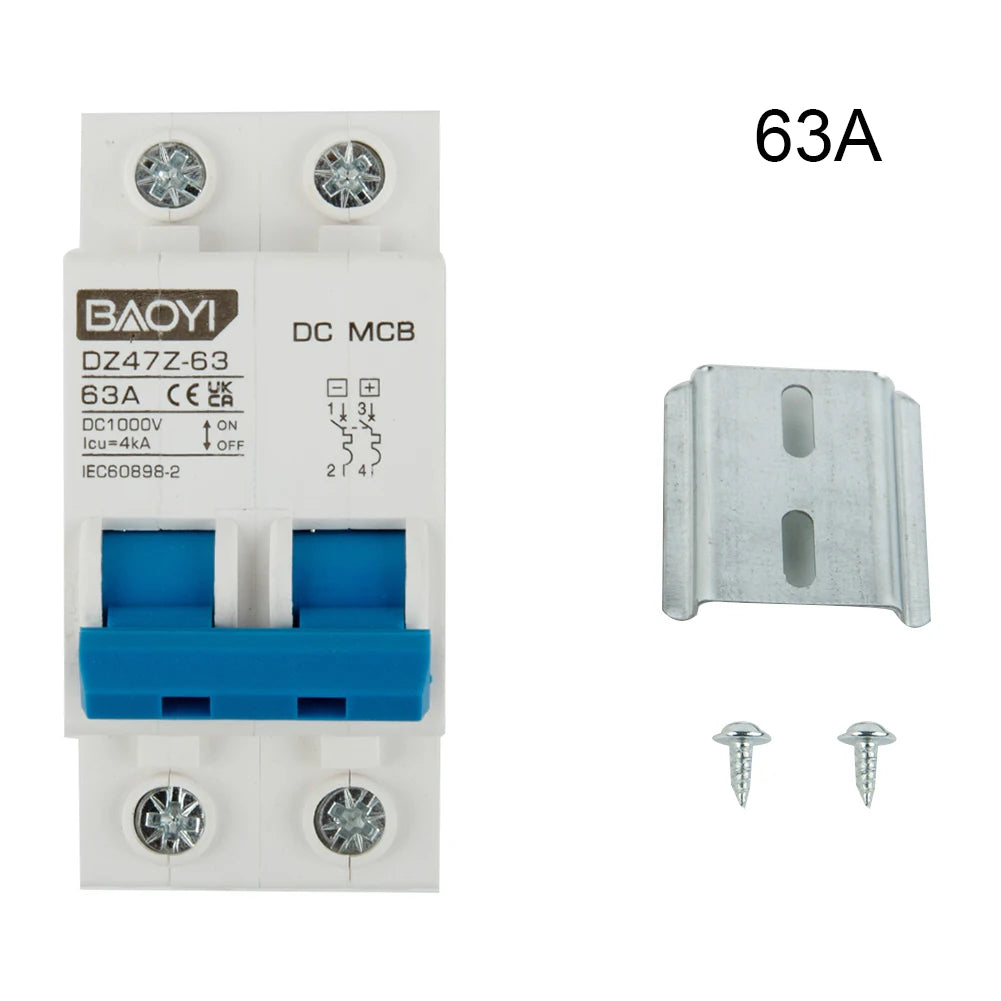

Package Included:
1 * DC MCB
1 * DIN rail
2 * screws

Note:
1.The real lor of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
