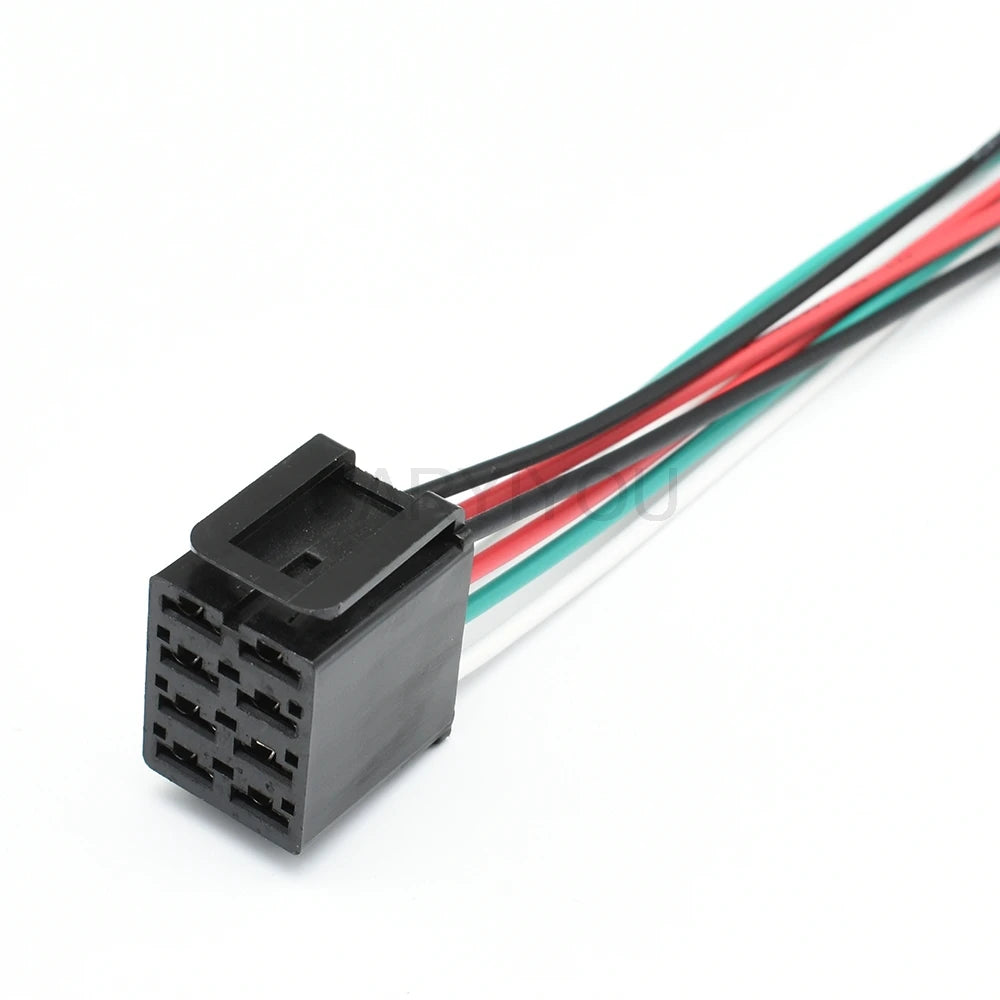

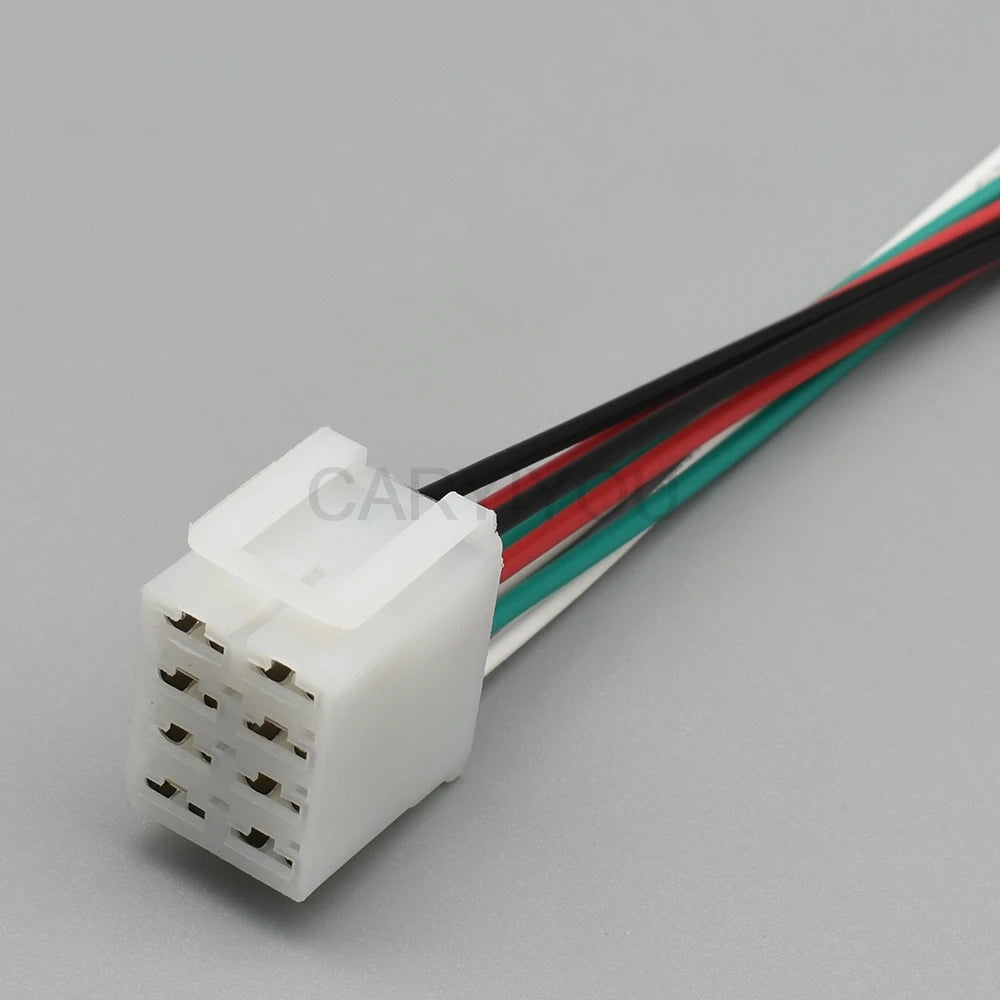

8-Pin Excavator Rocker Switch Connector DJ7086-6.3-21 — Heavy Equipment Wiring Plug
8-Pin Excavator Rocker Switch Connector DJ7086-6.3-21 Heavy Equipment Wiring Plug
Couldn't load pickup availability

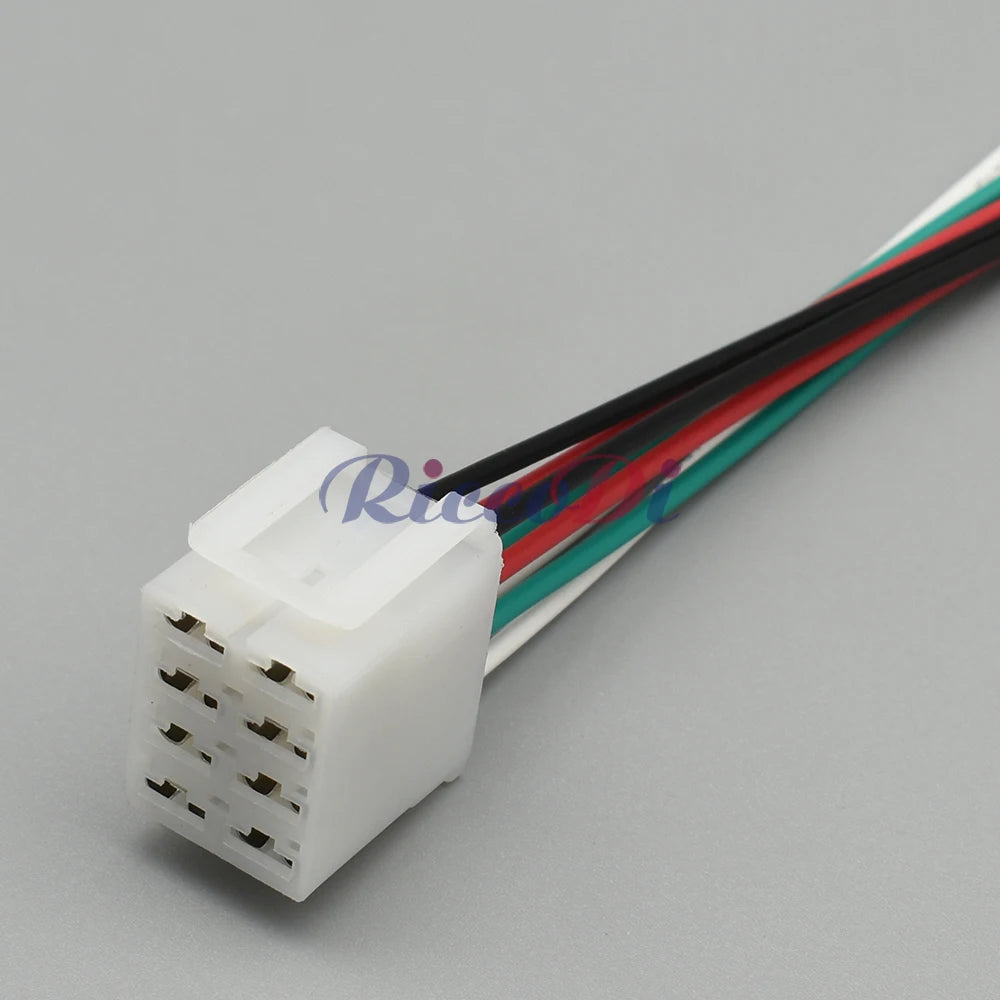

8-Pin Rocker Switch Connector DJ7086-6.3-21 — Heavy Equipment & Excavator Wiring Harness Plug
Part Number: DJ7086-6.3-21
In the demanding world of heavy construction equipment, a failed rocker switch connector can bring an entire machine to a standstill. The DJ7086-6.3-21 is an 8-pin, 6.3mm pitch wiring harness connector engineered specifically for the high-vibration, high-temperature, and high-current environments found in excavators, bulldozers, wheel loaders, and other heavy machinery. Whether you're repairing a Komatsu PC200, a Caterpillar 320, a Hitachi ZX200, or a SANY SY215, this connector delivers the robust electrical connection your machine's control panel demands.
Technical Specifications
- Part Number: DJ7086-6.3-21
- Pin Count: 8-pin
- Terminal Pitch: 6.3mm — heavy-duty pitch for high-current applications
- Gender: Male plug (21 = male housing in DJ series coding)
- Housing Material: PA66 GF30 glass-filled nylon — flame-retardant (UL94 V-0), high rigidity
- Terminal Material: Brass with tin plating — low contact resistance, vibration-resistant
- Operating Temperature: -40°C to +125°C
- Current Rating: Up to 15A per pin (at 6.3mm pitch)
- Voltage Rating: 12V / 24V DC systems
- Sealing: Unsealed (standard cab/panel environment)
- Wire Gauge: 0.5–2.5 mm² (AWG 20–13)
- Locking: Positive-latch retention tab
Application & Equipment Compatibility
The DJ7086-6.3-21 is widely used as the rocker switch panel connector on the operator cab wiring harness of the following equipment categories:
- Excavators: Komatsu PC130/PC200/PC300, Caterpillar 320/323/330, Hitachi ZX120/ZX200/ZX330, SANY SY135/SY215/SY365, Volvo EC140/EC210, Doosan DX140/DX225, Hyundai R140/R210
- Wheel Loaders: XCMG LW300/LW500, SDLG L933/L953, Liugong CLG835/CLG856
- Bulldozers: Shantui SD16/SD22, Komatsu D65/D85
- Crane & Lifting Equipment: ZOOMLION, XCMG, Sany crane cab panels
- Agricultural Machinery: Tractors and combine harvesters using 6.3mm DJ-series connectors
Why the DJ7086-6.3-21 Fails — and Why Replacement Matters
Heavy equipment operates in some of the harshest electrical environments imaginable: constant vibration, temperature swings from sub-zero mornings to scorching midday heat, hydraulic fluid contamination, and high inrush currents from solenoid-driven accessories. Over time, the 6.3mm terminals develop micro-arcing damage, the housing locking tab fatigues and releases under vibration, and oxidized contacts cause intermittent switch response — a safety hazard on any job site. Replacing the connector restores full switch functionality and eliminates the risk of a stuck or unresponsive rocker switch during operation.
Global Market & Regional Notes
The DJ (Delphi-Japan) connector series is the de facto standard for heavy equipment cab wiring across China, Southeast Asia, the Middle East, Africa, and Eastern Europe. Equipment manufactured by Chinese OEMs (SANY, XCMG, SDLG, Liugong, Shantui, ZOOMLION) and sold into markets including Indonesia, Vietnam, Thailand, Malaysia, Philippines, UAE, Saudi Arabia, Kenya, Nigeria, South Africa, Russia, and Kazakhstan universally uses DJ-series connectors. This makes the DJ7086-6.3-21 one of the most in-demand heavy equipment spare parts globally for fleet maintenance teams, equipment dealers, and independent repair workshops.
Installation Notes
- Disconnect the machine's battery isolator before working on cab wiring
- Use a DJ-series terminal extraction tool to remove old pins without damaging the harness
- Inspect wire insulation for heat damage before re-terminating
- Apply contact grease to terminals in high-humidity environments (tropical climates)
- Confirm pin orientation against the machine's wiring diagram — DJ7086-6.3-21 is a male plug; ensure the mating female housing (DJ7086-6.3-11) is also serviceable
Package Contents

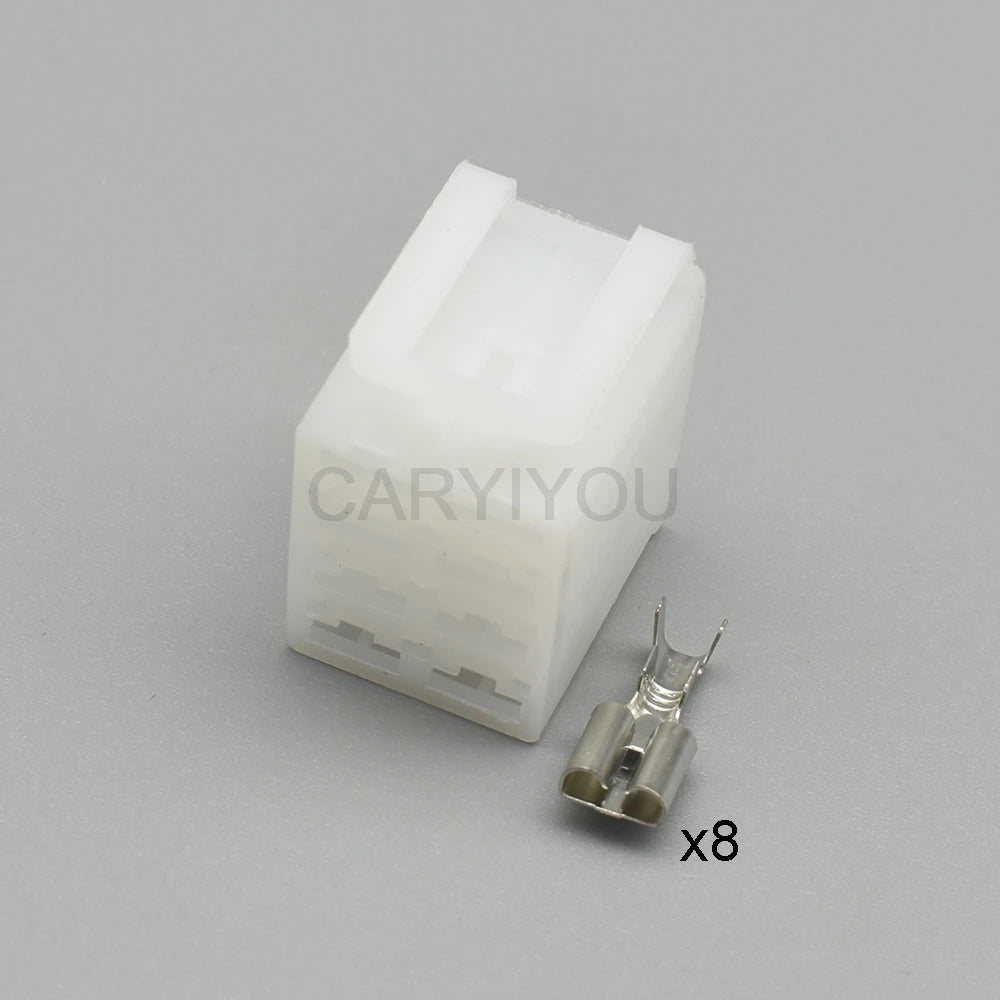

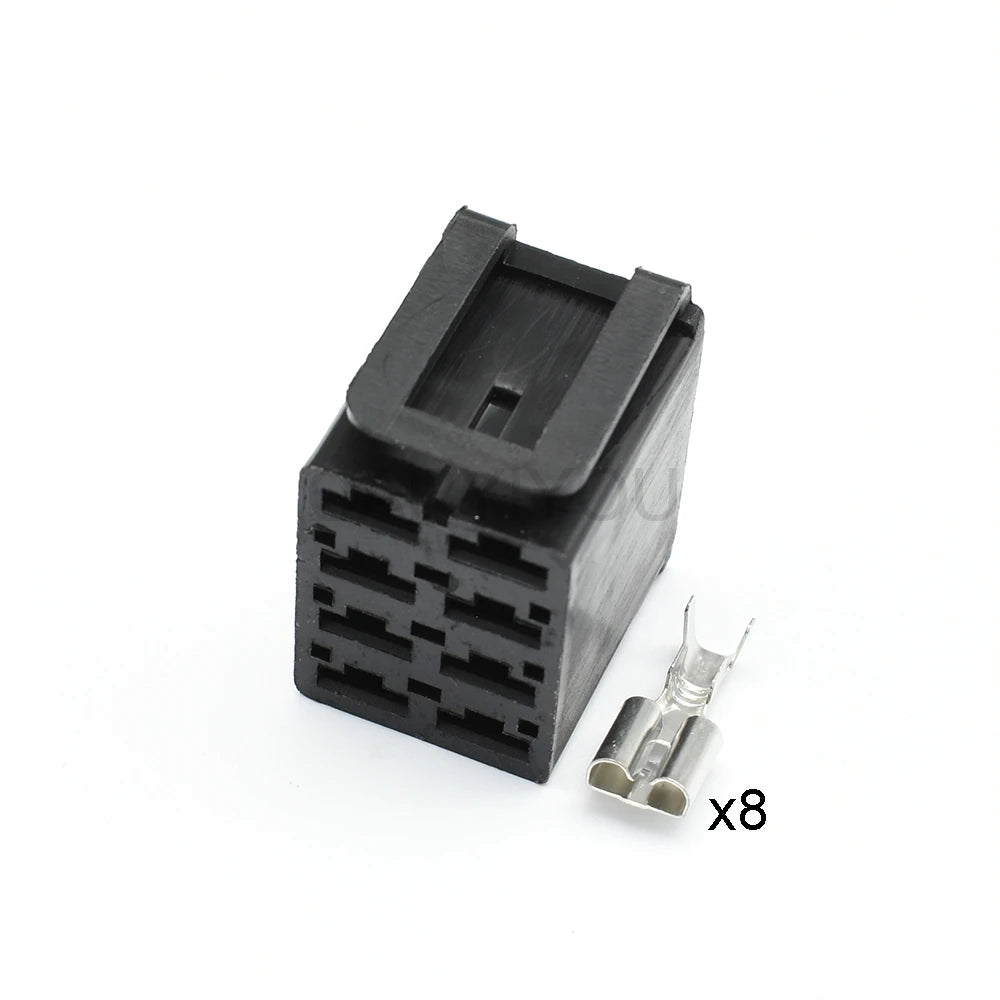

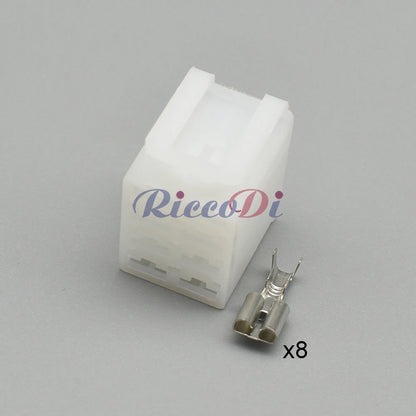

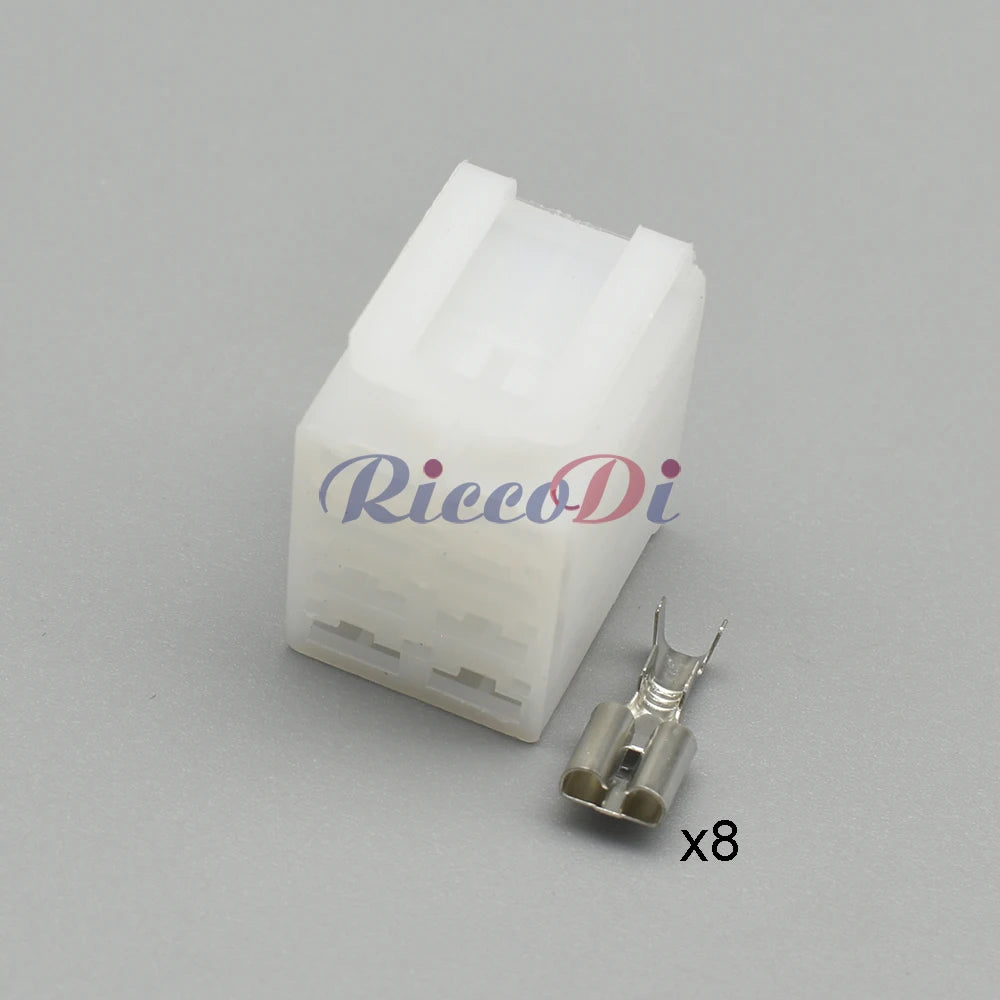

- 1 × DJ7086-6.3-21 8-Pin Male Connector Housing
- Terminals included (confirm variant at checkout)

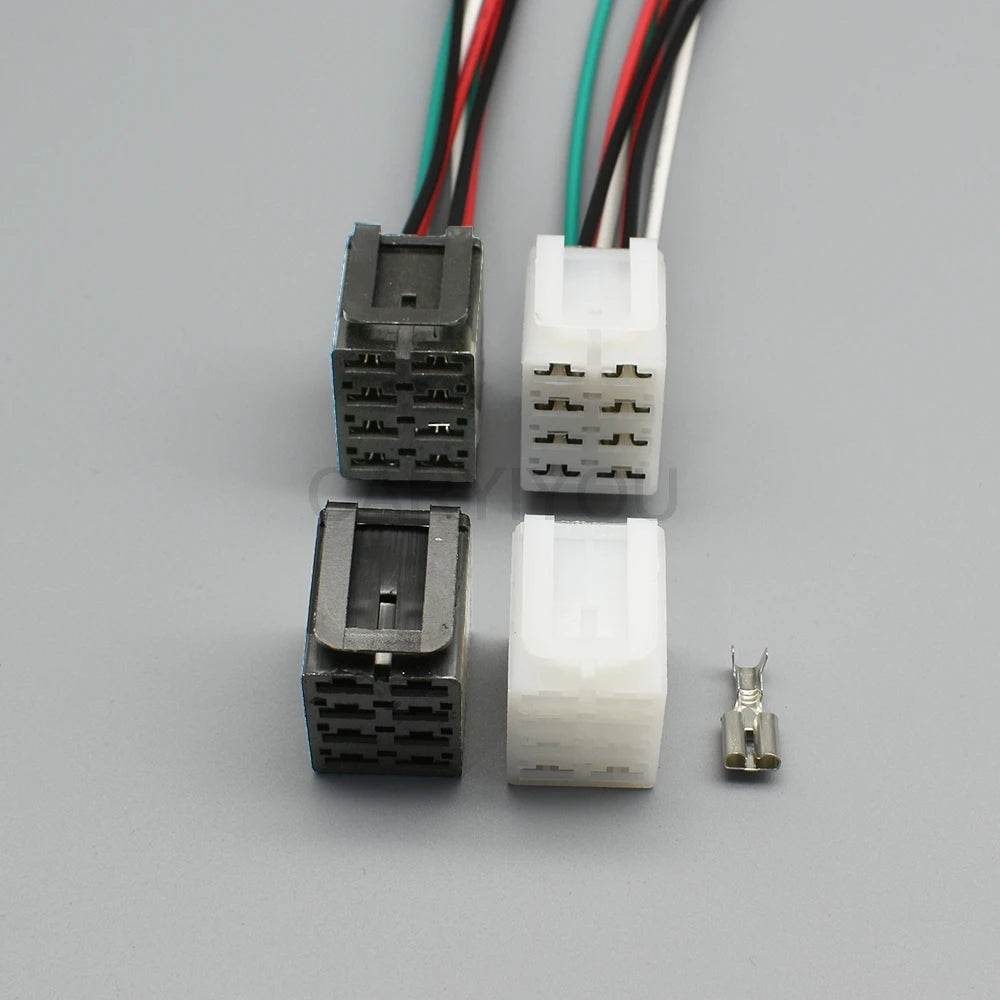

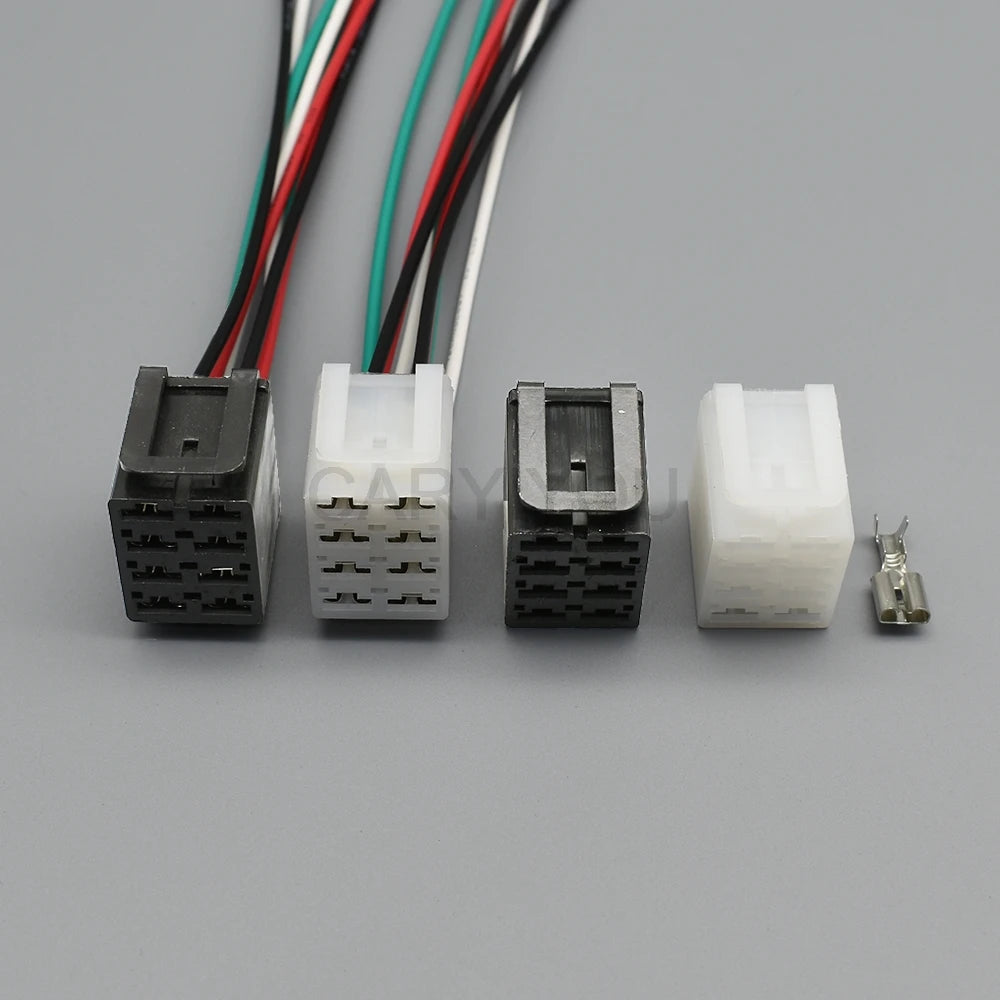

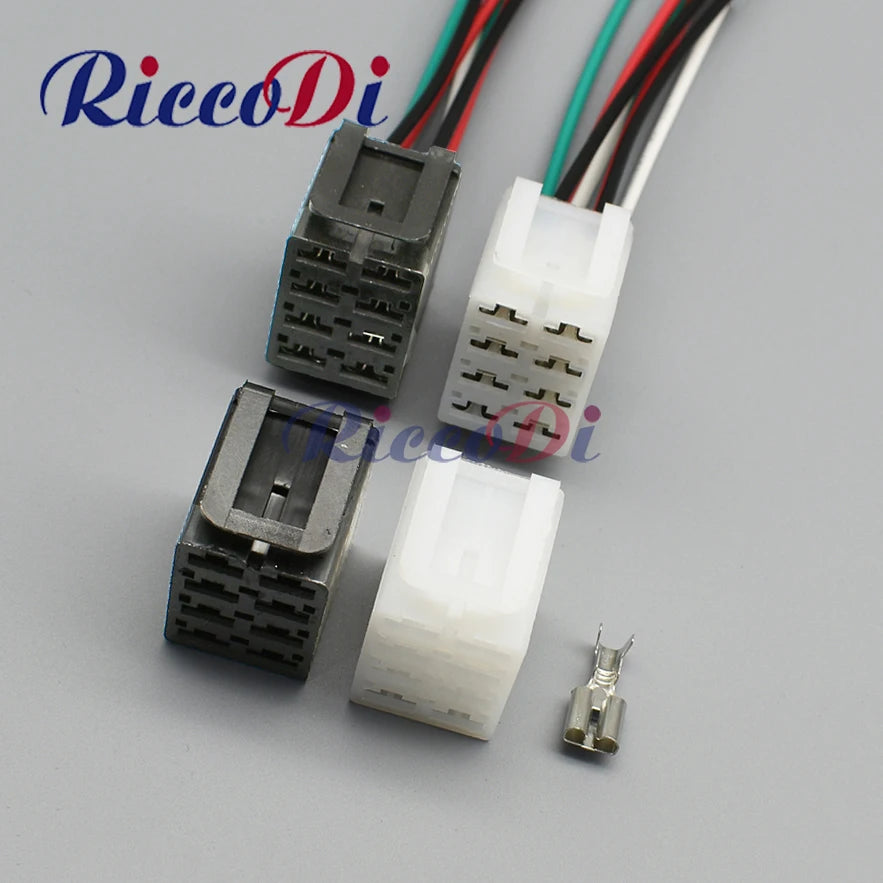

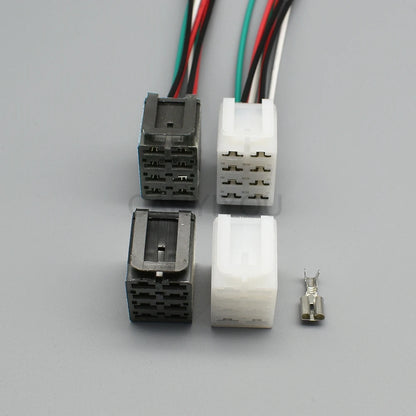

Need the mating female connector (DJ7086-6.3-11) or a complete connector pair? Contact us — we stock the full DJ series range for heavy equipment applications.
