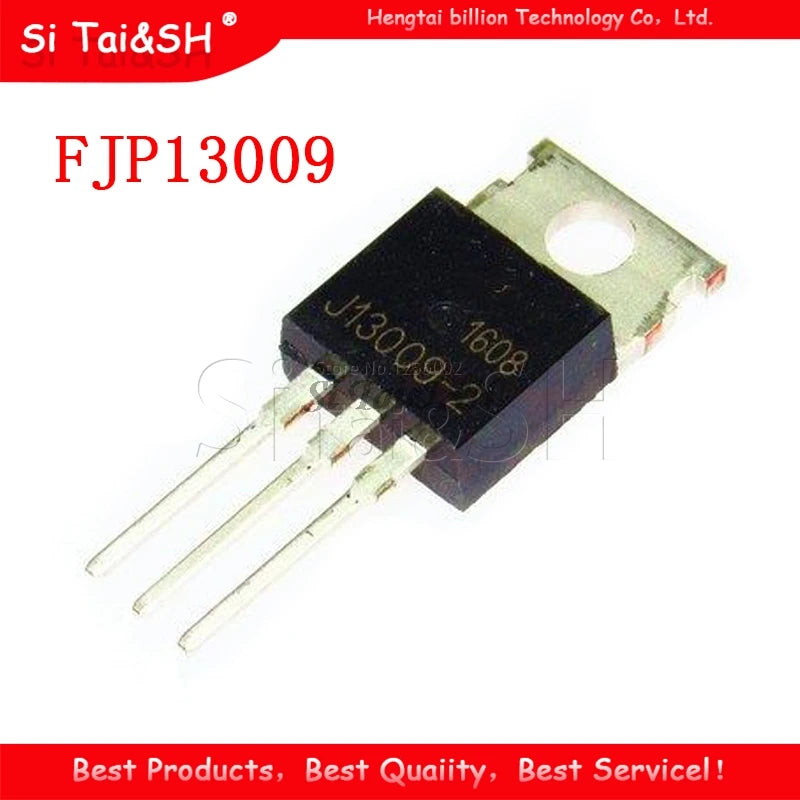

FJP13009H2TU — High-Voltage NPN Power Transistor TO-220
The FJP13009H2TU is a robust NPN bipolar junction transistor (BJT) in a TO-220 through-hole package, rated at 400V / 12A. Originally designed for switch-mode power supplies (SMPS) and electronic ballasts, it delivers reliable high-voltage switching performance in demanding applications.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | FJP13009H2TU / FJP13009 |
| Type | NPN Bipolar Junction Transistor (BJT) |
| Package | TO-220 |
| Collector-Emitter Voltage (Vceo) | 400V |
| Collector Current (Ic) | 12A |
| Power Dissipation (Pd) | 80W |
| hFE (DC Current Gain) | 8–40 |
| Transition Frequency (ft) | 4 MHz |
| Operating Temperature | -55°C to +150°C |
| Quantity | 5 PCS |
Why Choose FJP13009H2TU?
- ✅ High voltage tolerance — 400V Vceo handles mains-referenced circuits safely
- ✅ High current capacity — 12A Ic supports motor drive and ballast applications
- ✅ TO-220 package — easy heatsink mounting for thermal management
- ✅ New & original — genuine parts, not remarked or counterfeit
- ✅ 5-pack value — ideal for prototyping and small production runs
Compatible With / Works With
- SMPS topologies: flyback, forward, half-bridge converters
- Electronic ballasts for fluorescent and HID lamps
- Motor driver circuits (H-bridge with bootstrap)
- High-voltage gate driver boards (IR2110, IR2104)
- Induction heater driver stages
Typical Applications
- Switch-Mode Power Supplies (SMPS) — flyback converters up to 200W
- Electronic Ballasts — T8/T5 fluorescent lamp drivers
- Induction Heaters — ZVS driver circuits
- Motor Speed Controllers — PWM-based DC motor drives
- High-Voltage Inverters — 12V to 220V boost stages
FAQ
Q: Can FJP13009H2TU replace 13007 or 13005 transistors?
A: Yes, in most SMPS designs. The 13009 has higher Vceo (400V vs 400V) and higher Ic (12A vs 8A for 13007), making it a direct upgrade with better headroom.
Q: Does it need a heatsink?
A: At full 12A load, yes — the TO-220 package supports standard clip-on or bolt-on heatsinks. For low-power applications (<2A), a heatsink may not be required.
Q: What is the difference between FJP13009H2TU and FJP13009?
A: FJP13009H2TU is the lead-free (RoHS-compliant) variant of the FJP13009 series, with identical electrical characteristics.
Package Contents
- 5× FJP13009H2TU TO-220 NPN Power Transistor
