FQPF6N60C TO-220F N-Channel MOSFET 600V 6A — 6N60C Series (5pcs)
FQPF6N60C TO-220F N-Channel MOSFET 600V 6A 6N60C Series (5pcs)
Couldn't load pickup availability
FQPF6N60C — TO-220F N-Channel Power MOSFET (6N60C Series)

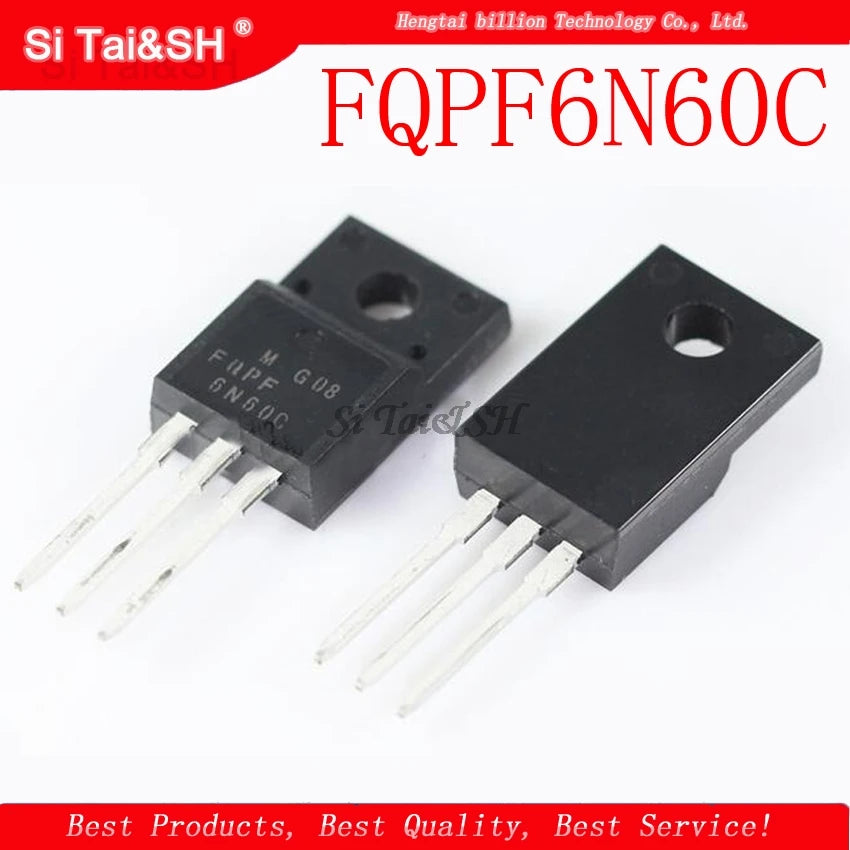

The FQPF6N60C is a member of the 6N60C series of high-voltage N-channel power MOSFETs, featuring a TO-220F fully isolated tab package rated at 600V / 6A. The isolated tab allows direct heatsink mounting without insulating hardware, making it the preferred choice for compact SMPS and inverter assemblies. This listing provides 5 pieces — new and original Fairchild/ON Semi parts.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | FQPF6N60C (6N60C series) |
| Channel Type | N-Channel |
| Package | TO-220F (fully isolated tab) |
| Drain-Source Voltage (Vds) | 600V |
| Continuous Drain Current (Id) | 6A @ 25°C |
| On-Resistance Rds(on) | 1.8Ω @ Vgs=10V |
| Gate Threshold Voltage (Vgs(th)) | 2V – 4V |
| Total Gate Charge (Qg) | 30nC |
| Power Dissipation (Pd) | 74W |
| Body Diode Recovery Time (trr) | Fast (C-series) |
| Operating Temperature | -55°C to +150°C |
| Quantity | 5 PCS |
6N60C Series Compatibility
| Part Number | Manufacturer | Vds | Id | Rds(on) |
|---|---|---|---|---|
| FQPF6N60C | Fairchild/ON Semi | 600V | 6A | 1.8Ω |
| SPA06N60C3 | Infineon | 600V | 6A | 1.4Ω |
| STF6N60M2 | STMicroelectronics | 600V | 6A | 1.3Ω |
| 6N60 (generic) | Various | 600V | 6A | ~1.8Ω |
Why Choose FQPF6N60C?
- ✅ TO-220F isolated tab — no insulating washer needed for heatsink mounting
- ✅ Fast body diode (C-series) — reduced reverse recovery loss in resonant and PFC circuits
- ✅ 600V Vds — safe margin for 230VAC mains-referenced circuits
- ✅ 6N60C series compatible — direct replacement for generic 6N60 in SMPS repair
- ✅ New & original — genuine Fairchild/ON Semi parts, not remarked
Compatible With / Works With
- Flyback SMPS primary switch (EE25, EE33, EE42 cores, 20–100W)
- PFC boost converter switch (90–265VAC input stage)
- Half-bridge LLC resonant converter switch
- Gate drivers: IR2110, IR2104, TC4420, UCC27524
- PWM controllers: TL494, SG3525A, UC3842, NCP1200, OB2269
Typical Applications
- LCD Monitor PSU Repair — replace failed 6N60 in monitor power board primary switch
- Flyback SMPS Design — primary switch in 20–100W offline isolated power supply
- PFC Stage — boost converter switch for power factor correction
- Electronic Ballast — half-bridge switch for fluorescent/HID lamp driver
- Induction Heater — ZVS half-bridge driver switch
FAQ
Q: Can FQPF6N60C directly replace a generic "6N60" marked MOSFET?
A: Yes. FQPF6N60C is the Fairchild branded version of the 6N60C series. It is a direct drop-in replacement for any 6N60 or 6N60C marked MOSFET in TO-220F package with identical or better specifications.
Q: What is the "C" suffix in 6N60C?
A: The "C" denotes a fast body diode variant, with reduced reverse recovery time (trr). This improves efficiency in PFC and resonant converter topologies where the body diode conducts during dead-time.
Q: How do I test if a MOSFET is shorted?
A: Use a multimeter in diode mode. Measure D-S: should show ~0.4–0.7V (body diode). Measure G-S and G-D: should show OL (open). If D-S reads near 0V in both directions, the MOSFET is shorted and needs replacement.
Package Contents
- 5× FQPF6N60C TO-220F N-Channel Power MOSFET (6N60C Series)
