ADUM3160 USB Isolator 1500V Signal and Power Isolation USB2.0 Compatible for Audio and Data Transfer

ADUM3160 USB Isolator Module — 2500V Signal / 1500V Power Isolation, USB 2.0 Full Speed

The ADUM3160-based USB isolator module provides galvanic isolation between a USB host (PC, laptop) and a connected USB device, breaking ground loops and protecting sensitive equipment from electrical noise, voltage spikes, and common-mode interference. Built around the Analog Devices ADuM3160 digital isolator IC, it supports USB 2.0 full speed (12Mbps) and low speed (1.5Mbps) — covering the vast majority of USB audio DACs, MIDI interfaces, measurement instruments, and data acquisition devices.

Powered directly from the host USB port — no external power supply required. Driver-free, plug-and-play operation.

Specifications

• Isolation IC: Analog Devices ADuM3160
• Signal Isolation Voltage: 2500V RMS (ADuM3160 rated)
• Power Module Isolation: 1500V
• USB Standard: USB 2.0 compatible
• Supported Data Rates: 1.5Mbps (low speed), 12Mbps (full speed)
• Not Supported: USB 2.0 high speed (480Mbps) devices
• Transfer Types: Control, bulk, interrupt, isochronous (synchronous)
• Power Supply: From host USB port (bus-powered, no external supply needed)
• Driver: Driver-free, OS plug-and-play
• PCB Size: 53 × 24 × 14mm
• Weight: ~14.5g
• Operating Temperature: −40°C to +85°C

What Is USB Isolation and Why Does It Matter?

Ground loops occur when two devices connected via USB have different ground potentials, causing hum, noise, or interference in audio signals and measurement data. The ADUM3160 isolator breaks the electrical connection between host and device grounds while passing USB data signals through magnetic isolation — eliminating ground loop noise without affecting data integrity.

Key Use Cases

• USB Audio DAC isolation: Eliminates PC-induced ground loop hum and USB noise from audio output
• MIDI interface isolation: Prevents ground loops between PC and synthesizers/keyboards
• Lab instrument protection: Isolates oscilloscopes, data loggers, and measurement devices from PC ground
• Industrial data acquisition: Protects USB DAQ devices from high-voltage transients
• Medical device USB connections: Provides patient isolation barrier (verify compliance requirements)
• Arduino/microcontroller programming: Isolates development board from PC during high-voltage testing

Compatibility Notes

• Supports USB full speed (12Mbps) — compatible with most USB audio, MIDI, HID, and CDC devices
• Does not support USB high speed (480Mbps) — not suitable for USB 3.0 storage drives or high-bandwidth cameras
• Bus-powered devices must draw ≤500mA from the isolated port

Package Contents

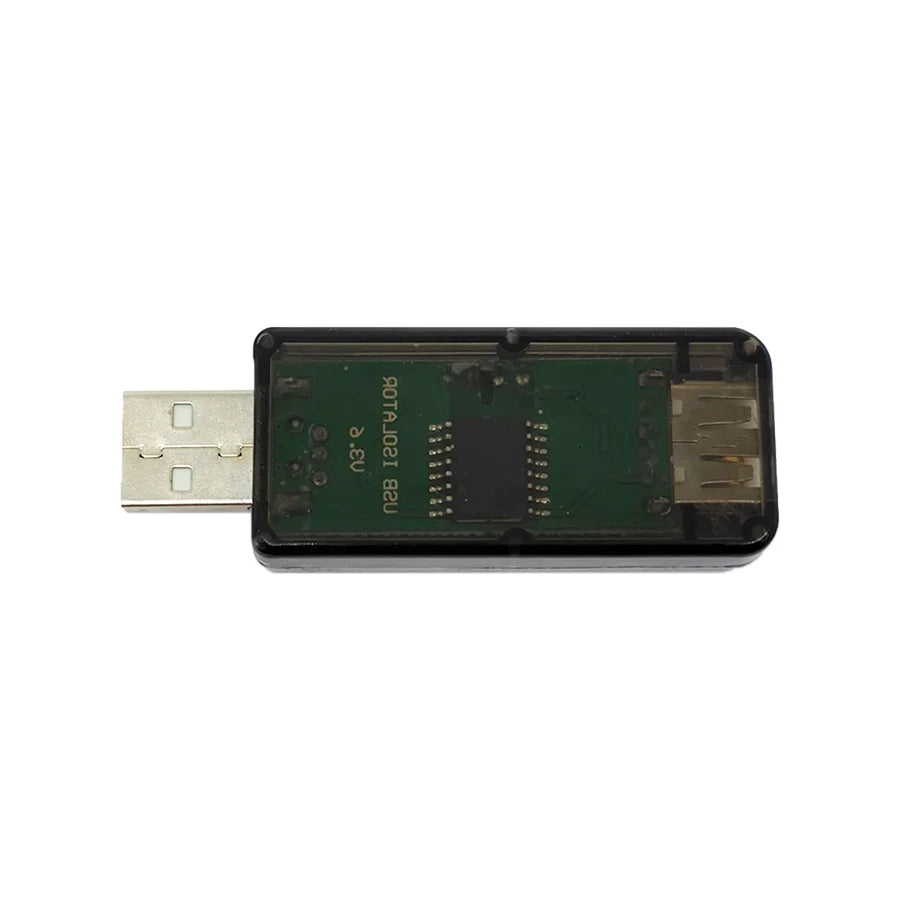

• 1 × ADUM3160 USB isolator module in protective plastic enclosure
