JST XH 2.5mm Female Pre-Crimped Terminal both sided Cable (Without Connector), 22AWG UL1007 PVC

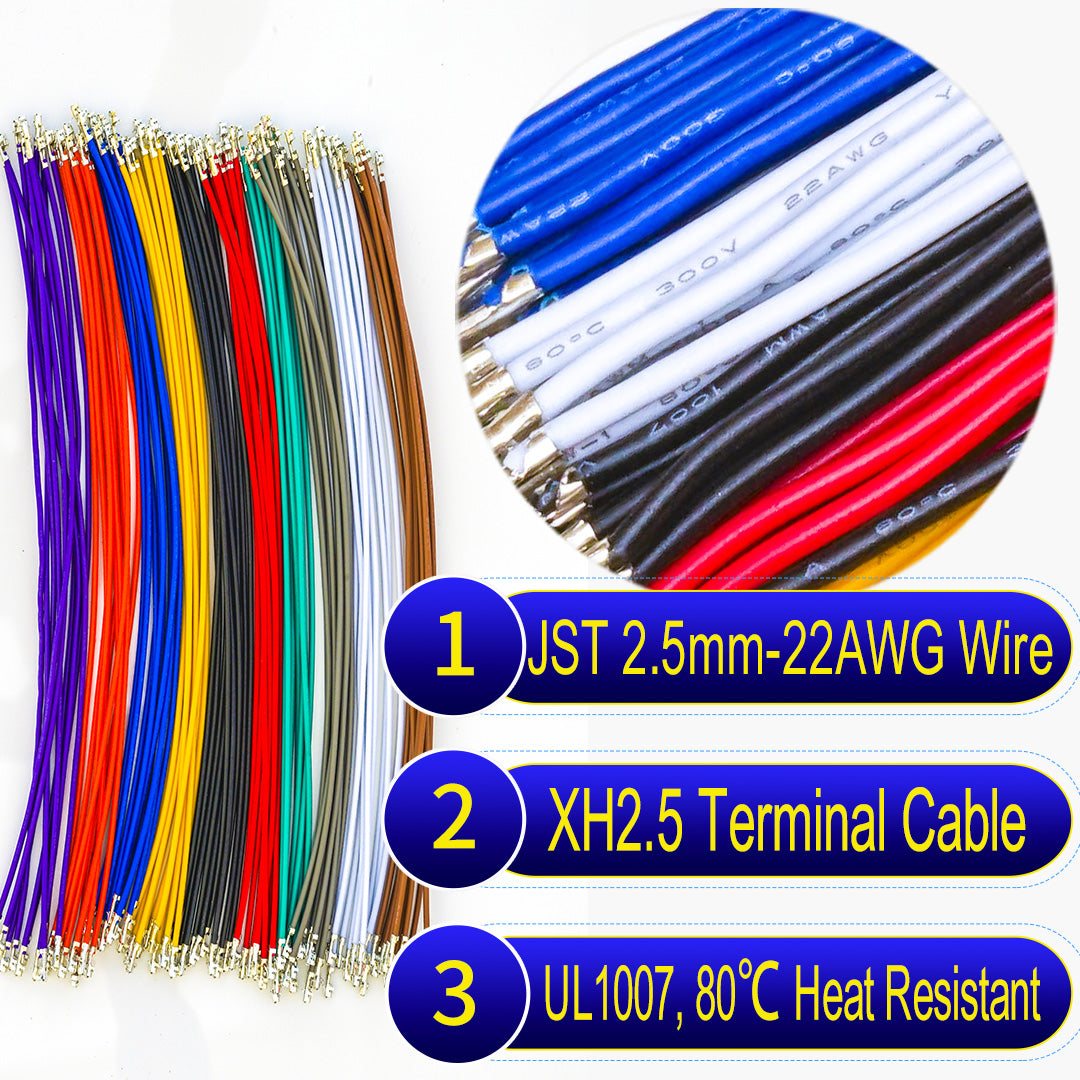

JST XH 2.5mm Female Both-Sided Pre-Crimped Terminal Cable — 22AWG UL1007

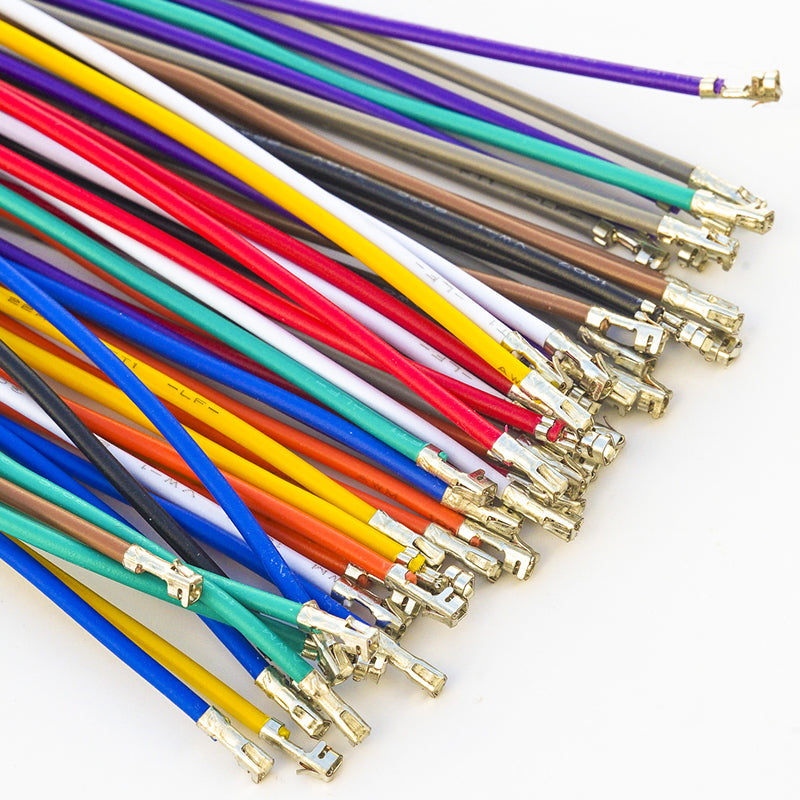

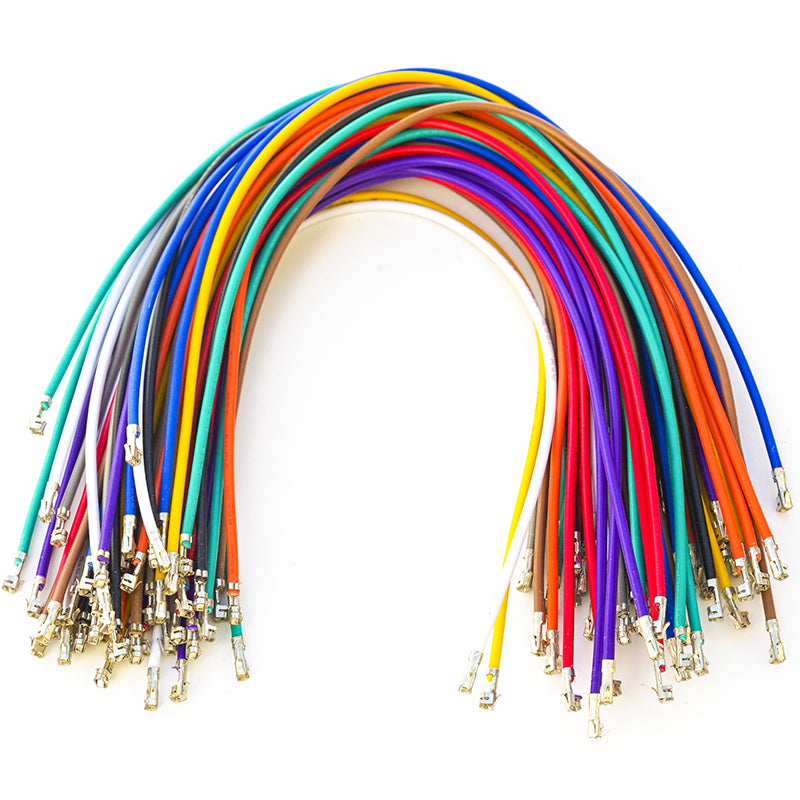

The JST XH 2.5mm female both-sided terminal cable features a bare SXH-001T-P0.6 female crimp terminal on each end — without a housing. This allows direct insertion into any JST XH housing or custom connector body, making it ideal for custom harness assembly, PCB pad soldering, and applications where the housing is already installed on the PCB or device.

Key Features

• Female SXH-001T-P0.6 crimp terminal both ends — no housing, for direct insertion into XH housings or custom connector bodies
• 22AWG UL1007 PVC — rated 80°C, 300V insulation, 3A per contact
• 3A / 250V rating — suitable for both signal and moderate power lines
• Pre-crimped factory assembly — consistent, reliable crimp quality
• RoHS compliant

Typical Applications

• Custom JST XH harness assembly with pre-installed housings
• PCB pad soldering where bare terminal is preferred
• 3D printer and Arduino wiring where housing is pre-mounted
• Replacement terminal cables for existing XH harnesses

Technical Specifications

• Connector Series: JST XH

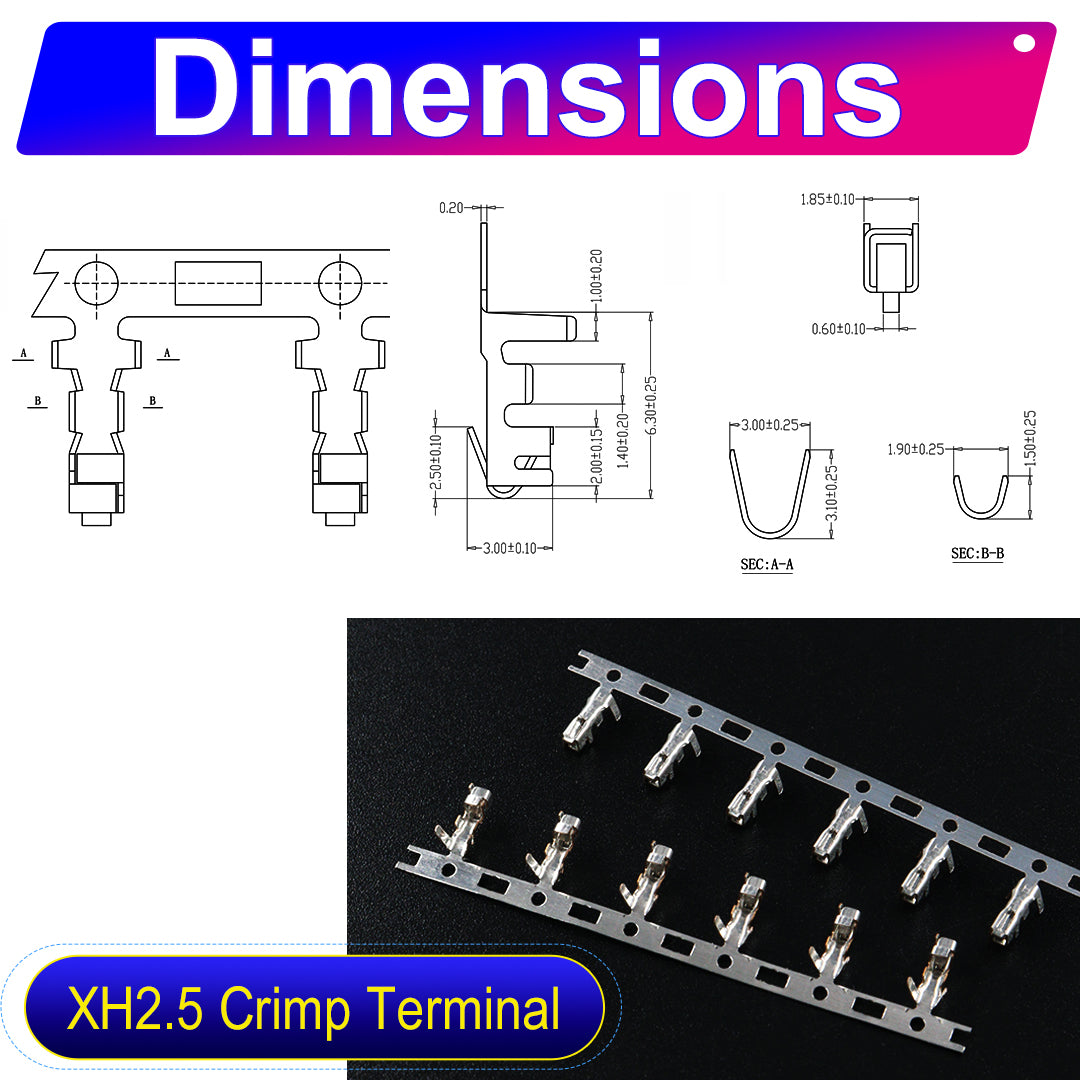

• Contact: SXH-001T-P0.6 (female, both ends)
• Wire Gauge: 22 AWG
• Insulation: UL1007 PVC, 300V
• Temperature Rating: 80°C
• Current Rating: 3A per contact
• RoHS Compliant: Yes
• Brand: Keszoox
• Origin: Mainland China
