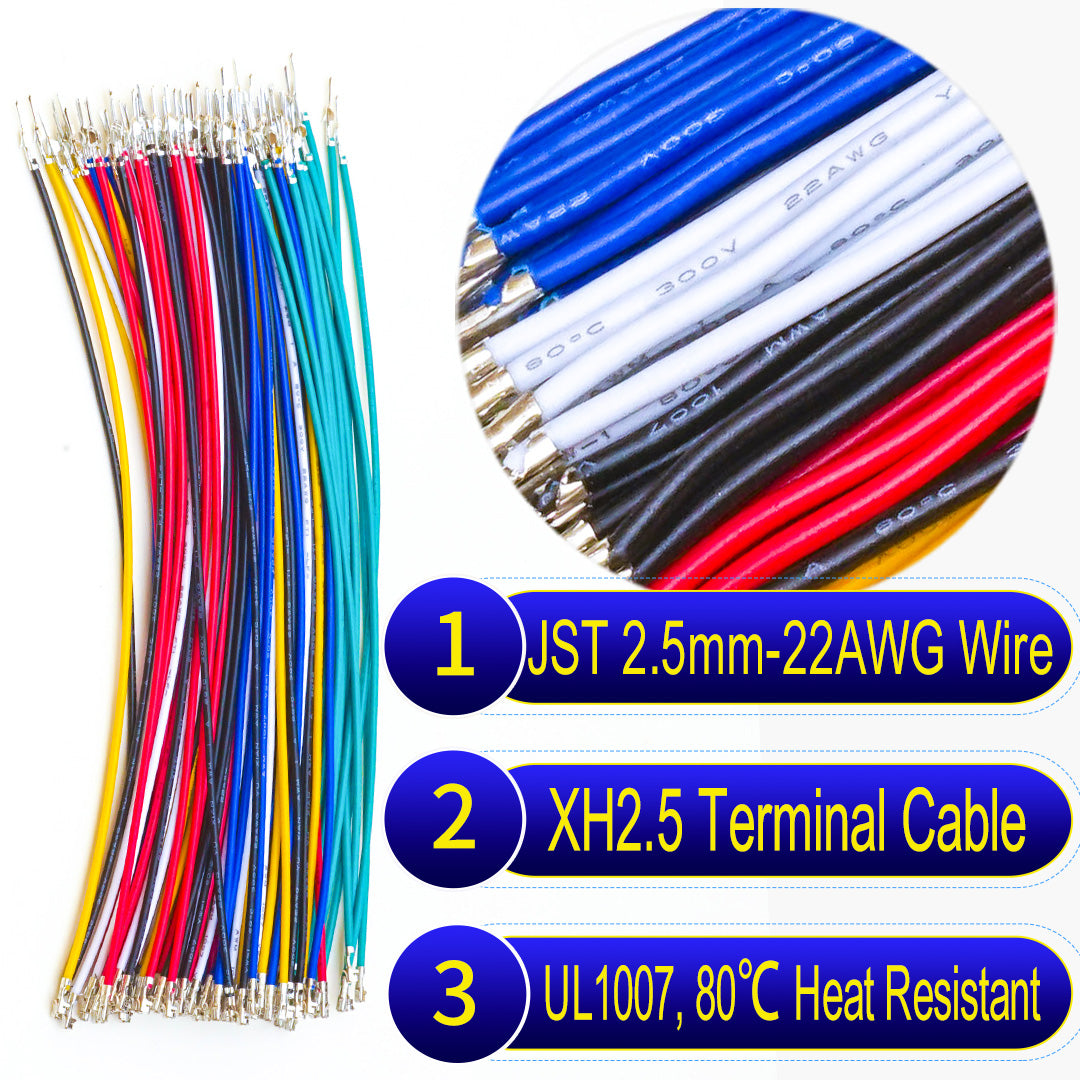

JST XH 2.5mm Male Female Extension Pre-Crimped Terminal Cable (Without Connector), 22AWG UL1007 PVC

JST XH 2.5mm Male-Female Extension Pre-Crimped Terminal Cable — 22AWG UL1007

The JST XH 2.5mm male-female extension terminal cable features bare male and female SXH-001T-P0.6 crimp terminals on each end — without housings. This allows direct insertion into any JST XH housing on both ends, making it ideal for extending existing XH harnesses where the housings are already installed, or for custom harness assembly where housing insertion order matters.

Key Features

• Male terminal one end, female terminal other end — no housings, for direct insertion into pre-installed XH housings
• 22AWG UL1007 PVC — rated 80°C, 300V insulation, 3A per contact
• 3A / 250V rating — suitable for both signal and moderate power lines
• Pre-crimped factory assembly — consistent, reliable crimp quality
• RoHS compliant

Technical Specifications

• Connector Series: JST XH

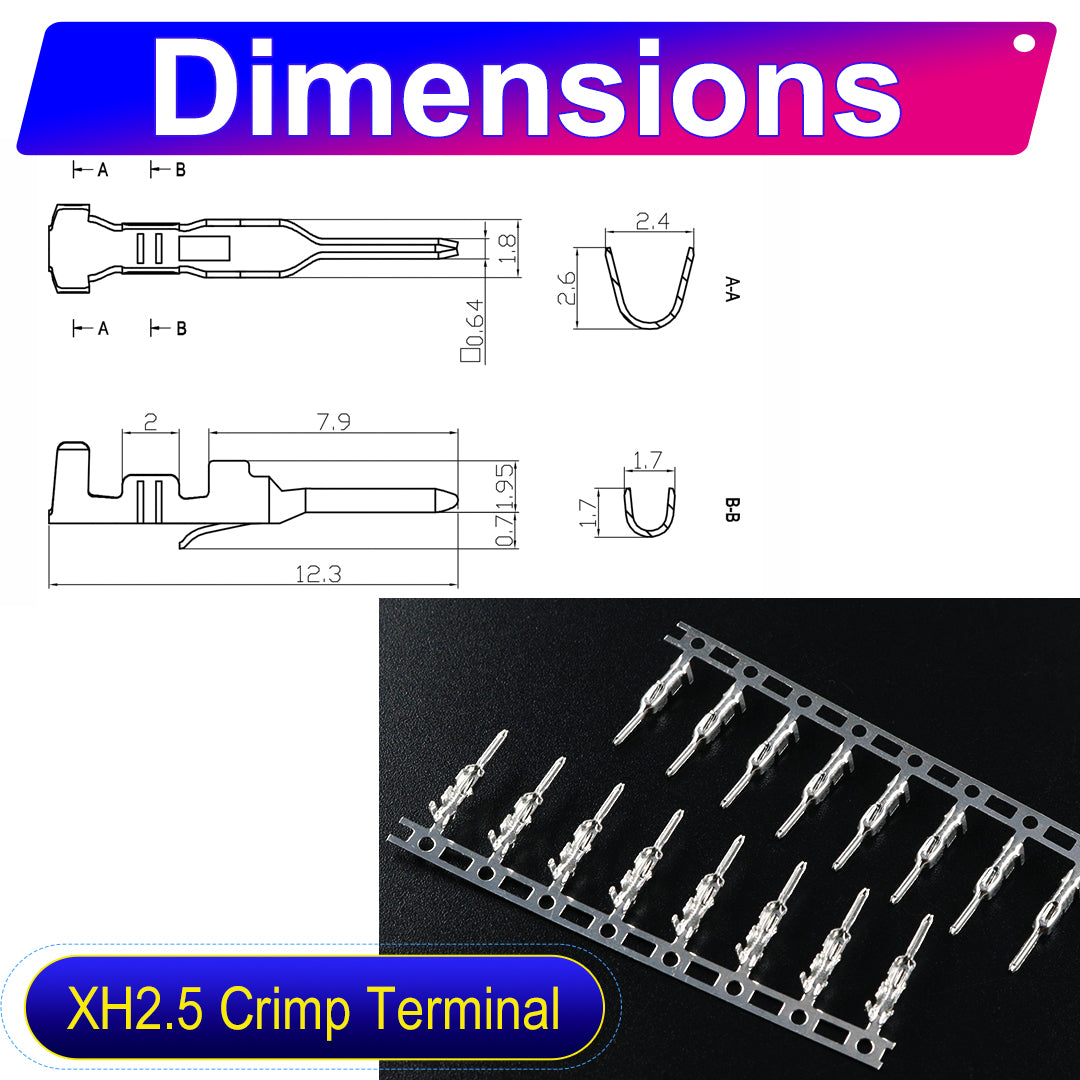

• Contact: SXH-001T-P0.6 (male one end, female other end)
• Wire Gauge: 22 AWG
• Insulation: UL1007 PVC, 300V
• Temperature Rating: 80°C
• Current Rating: 3A per contact
• RoHS Compliant: Yes
• Brand: Keszoox
• Origin: Mainland China
