Hollow Wall Drywall Anchor Expansion Bolt Set 6mm / 8mm Carbon Steel | 10–100 Sets | Tile Plasterboard Fixing

Hollow Wall Drywall Anchor Expansion Bolt Set — 6mm / 8mm Carbon Steel | 10–100 Sets

Reliable fixings for hollow walls, plasterboard, gypsum board, and tile where standard wall plugs fail. These carbon steel expansion bolt sets are engineered for cavity wall applications — the expansion tube collapses and grips the back face of the board as the screw is tightened, distributing the load across a wide area and providing a secure anchor even where there is no solid backing. Each set includes one self-tapping screw and one expansion tube, available in 6mm and 8mm sizes with 10 to 100-set packs for single-job through to trade supply.

Specifications

How Hollow Wall Anchors Work

1. Drill: drill a hole in the hollow wall or tile to match the expansion tube diameter (6mm or 8mm).
2. Insert tube: push the expansion tube fully into the hole until the flange sits flush with the wall surface.
3. Insert screw: pass the screw through your fixture (shelf bracket, hook, cable clip, etc.) and into the expansion tube.
4. Tighten: as the screw is tightened, it draws the expansion tube inward, causing it to collapse and spread behind the wall face — creating a mechanical lock that cannot pull through.

Size Selection Guide

Key Features

• ✅ Hollow wall specific design — expands behind the board face for a secure mechanical lock in cavity walls
• ✅ Carbon steel construction — high strength for reliable load-bearing in plasterboard and gypsum board
• ✅ Self-tapping screw included — complete set, no additional hardware required
• ✅ 6mm and 8mm options — covers light to medium load applications
• ✅ 10 to 100-set packs — from single-job to trade and renovation supply
• ✅ Mixed pack available — both sizes in one pack for versatile renovation projects

Common Applications

• Plasterboard and drywall shelf bracket fixing
• Curtain track and blind installation on hollow walls
• Towel rail and bathroom accessory mounting
• Picture and mirror hanging on gypsum board
• Cable management clip fixing on hollow partition walls
• TV wall bracket installation on plasterboard
• Kitchen and bathroom tile fixing for accessories

Frequently Asked Questions

Q: Will these work in ceramic tile over hollow walls?
A: Yes, with a tile drill bit. Drill through the tile first with a carbide or diamond tile bit, then switch to a standard bit for the plasterboard behind. Insert the expansion tube and proceed as normal.

Q: What is the maximum wall thickness these work in?
A: The 3cm expansion tube accommodates standard 12.5mm and 15mm plasterboard. For thicker boards or double-layer plasterboard, verify the tube length against your wall thickness before ordering.

Q: Can I reuse these anchors?
A: No. Once expanded, the tube is permanently deformed. If you need to remove a fixing, the anchor must be replaced with a new set.

Package Contents

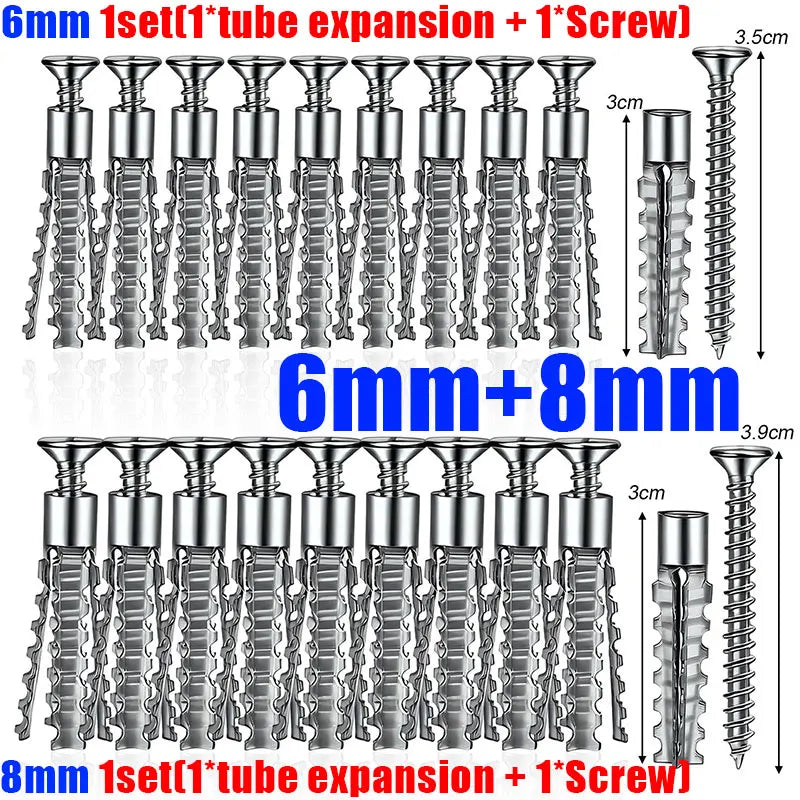

• 10 / 20 / 40 / 100× Sets (1 set = 1 self-tapping screw + 1 expansion tube), size as selected
