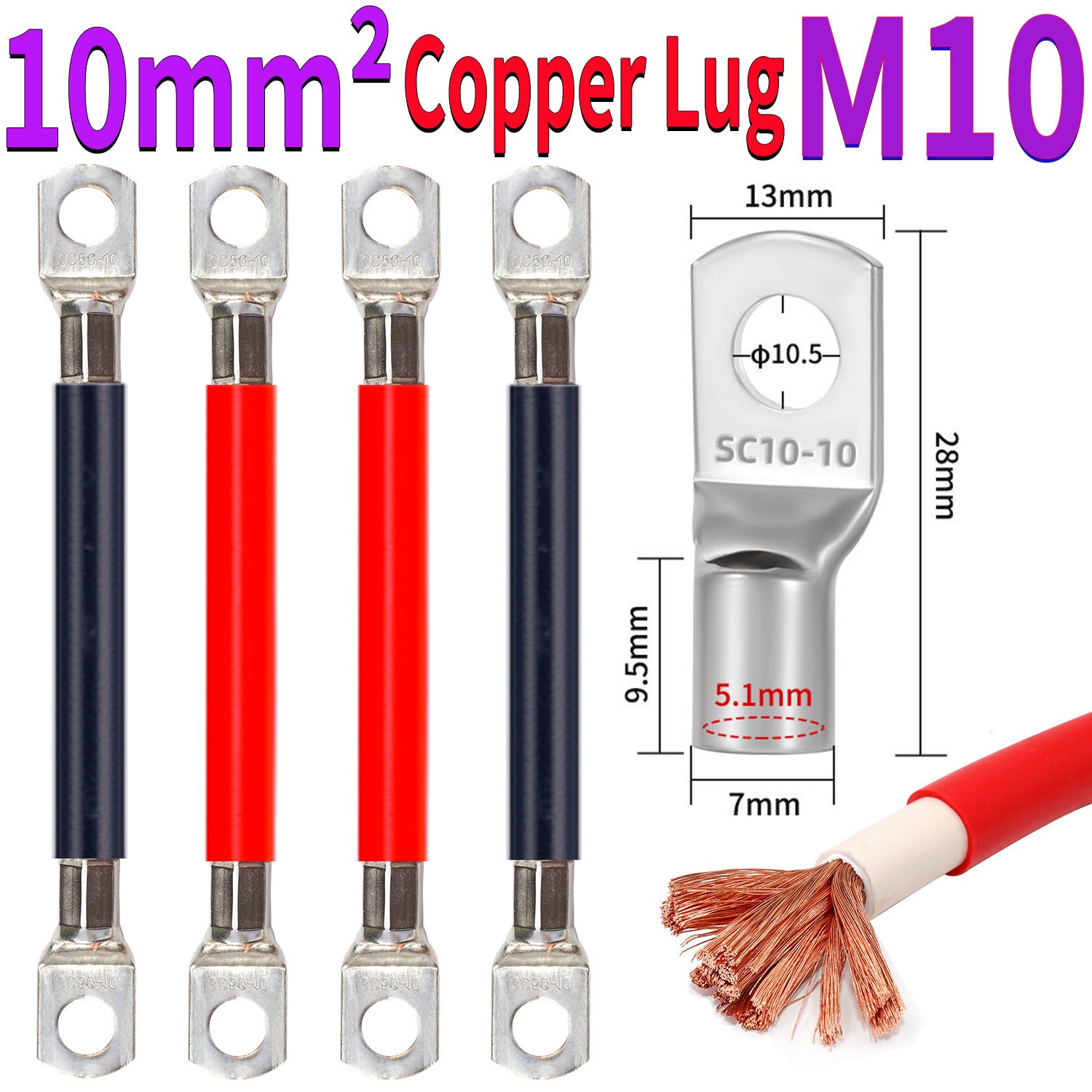

• 10mm² pure copper cable with M10 ring terminal for power distribution and grounding connections

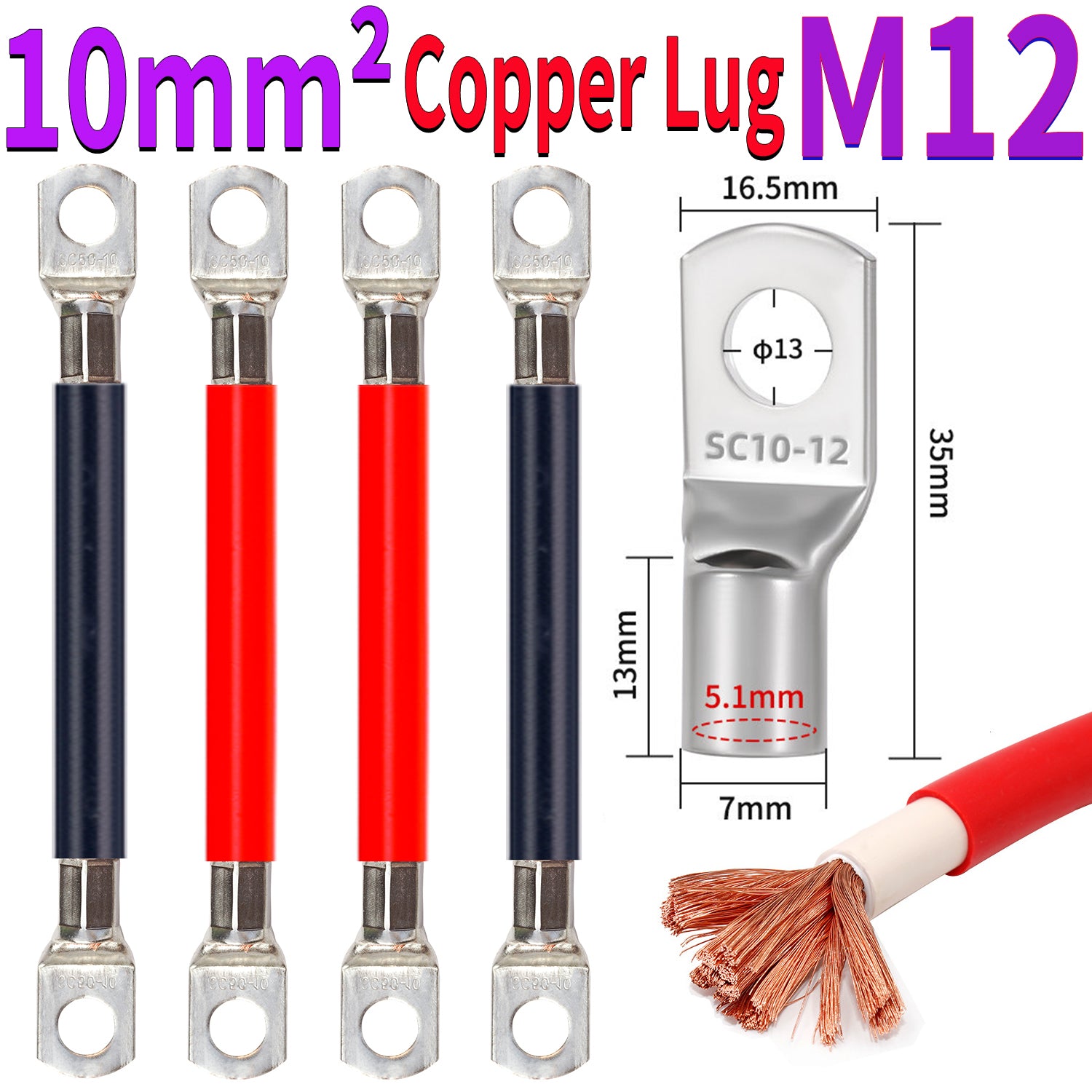

  • 10mm² copper lug power cable with M12 ring terminal used in heavy duty electrical installations

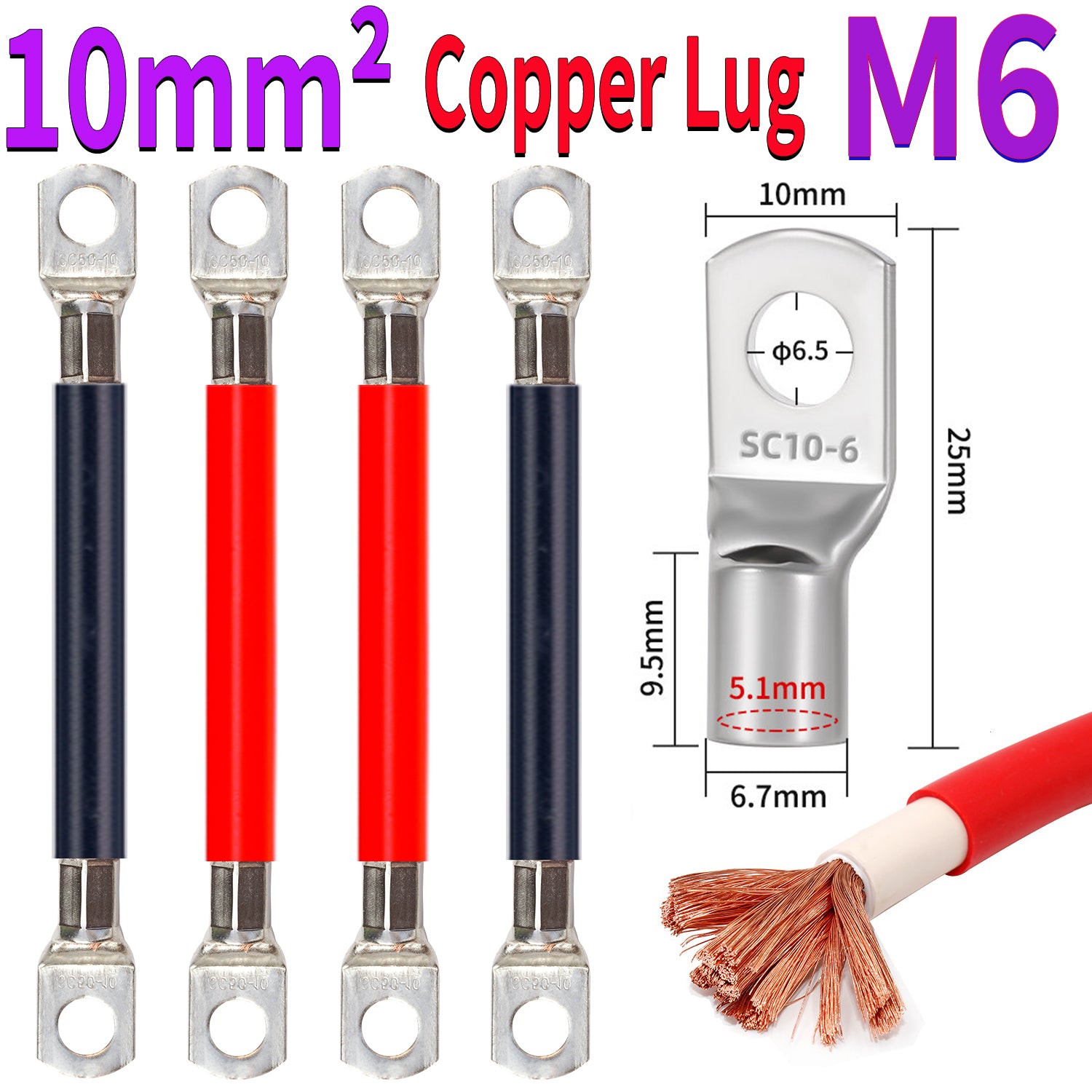

  • 10mm² copper ring terminal cable with M6 bolt hole, crimped pure copper power wire

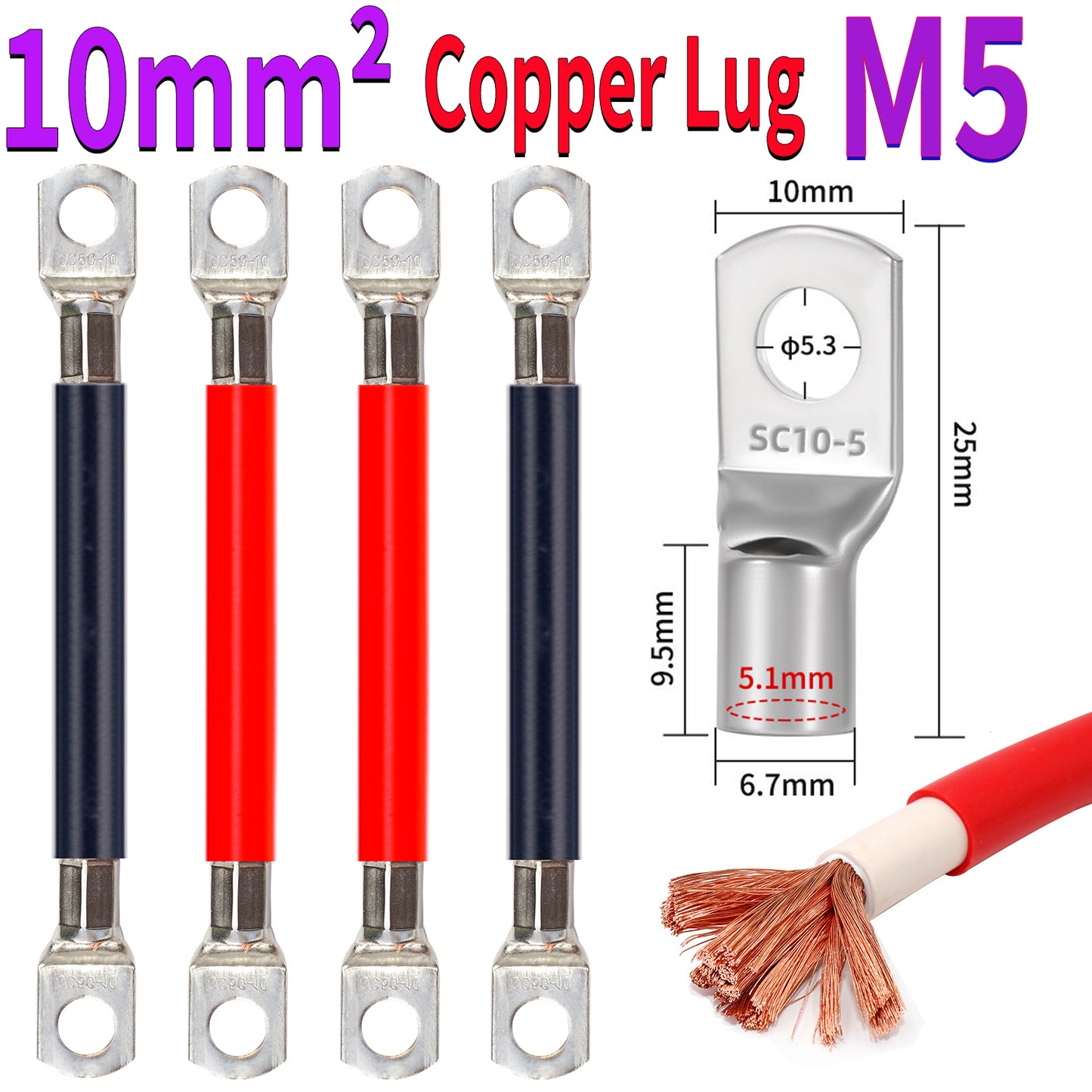

  • 10mm² pure copper lug cable with M5 ring terminal for high current power and grounding applications
  • 10mm² heavy duty copper lug cable with M8 ring terminal for battery and industrial power systems
  • 75mm² multi-strand pure copper conductor cable designed for flexible and low resistance electrical connections
  • M4 copper ring terminal SC4-4 close-up showing solid copper lug and precise bolt hole size
  • 50mm² multi-strand pure copper conductor cable designed for flexible and low resistance electrical connections
  • M10 copper ring terminal SC50-10 close-up showing solid copper lug and precise bolt hole size
1 9

Keszoox

10mm² Copper Lug Cable Ring Terminal Pure Copper Crimped Power Wire

10mm² Copper Lug Cable Ring Terminal Pure Copper Crimped Power Wire

$18.98 USD
$36.16 USD $18.98 USD
Save 47% Sold out
Taxes included. Shipping calculated at checkout.
Col or
Specification
Length
visa
View full details
  • ★Product Description
  • ★About us
  • ★Custom cable

Product Overview

This 10mm² Copper Lug Cable with Ring Terminal is engineered for high-current, low-resistance electrical connections in demanding power, battery, grounding, and industrial applications.

The cable features a high-purity stranded copper conductor combined with a solid copper ring lug, professionally crimped to deliver excellent electrical performance, strong mechanical strength, and long-term reliability.
Multiple stud sizes are available to match different installation requirements.

Technical Specifications

Parameter Specification
Cable Cross Section 10mm²
AWG Equivalent AWG 8
Terminal Type Ring Terminal (Copper Lug)
Available Stud Sizes M5 / M6 / M8 / M10 / M12
Lug Type SC Series Copper Lug
Conductor Material 100% Pure Copper
Cable Construction Multi-strand flexible copper wire
Termination Method Professional crimped connection
Electrical Performance Low resistance, high current capacity
Compliance RoHS Compliant

Key Features

  • High-Purity Copper Conductor
    Ensures superior conductivity, minimal voltage drop, and efficient heat dissipation.

  • Solid Copper Ring Lug
    Provides a secure bolted connection, resistant to vibration and loosening.

  • 10mm² Cable Size (AWG 8 Equivalent)
    Designed for high-current power transmission and grounding systems.

  • Professional Crimping Process
    Guarantees strong mechanical retention and stable electrical performance.

  • Flexible & Durable Design
    Multi-strand copper wire allows easy routing in tight or complex installations.

Typical Applications

This 10mm² copper ring terminal cable is widely used in:

  • Battery and power distribution connections

  • Automotive, truck, marine, and EV electrical systems

  • Solar power and energy storage systems

  • Inverters, chargers, and DC power equipment

  • Grounding and earthing systems

  • Industrial control panels and switch cabinets

  • Heavy-duty electrical equipment wiring

Available Stud Sizes (Image Reference)

  • M5 ring terminal

  • M6 ring terminal

  • M8 ring terminal

  • M10 ring terminal

  • M12 ring terminal

All versions use the same 10mm² pure copper cable, only the ring hole size differs.

Customization Options

  • Cable length

  • Insulation color

  • Heat shrink tubing

  • Double-end terminals

  • OEM and bulk orders
