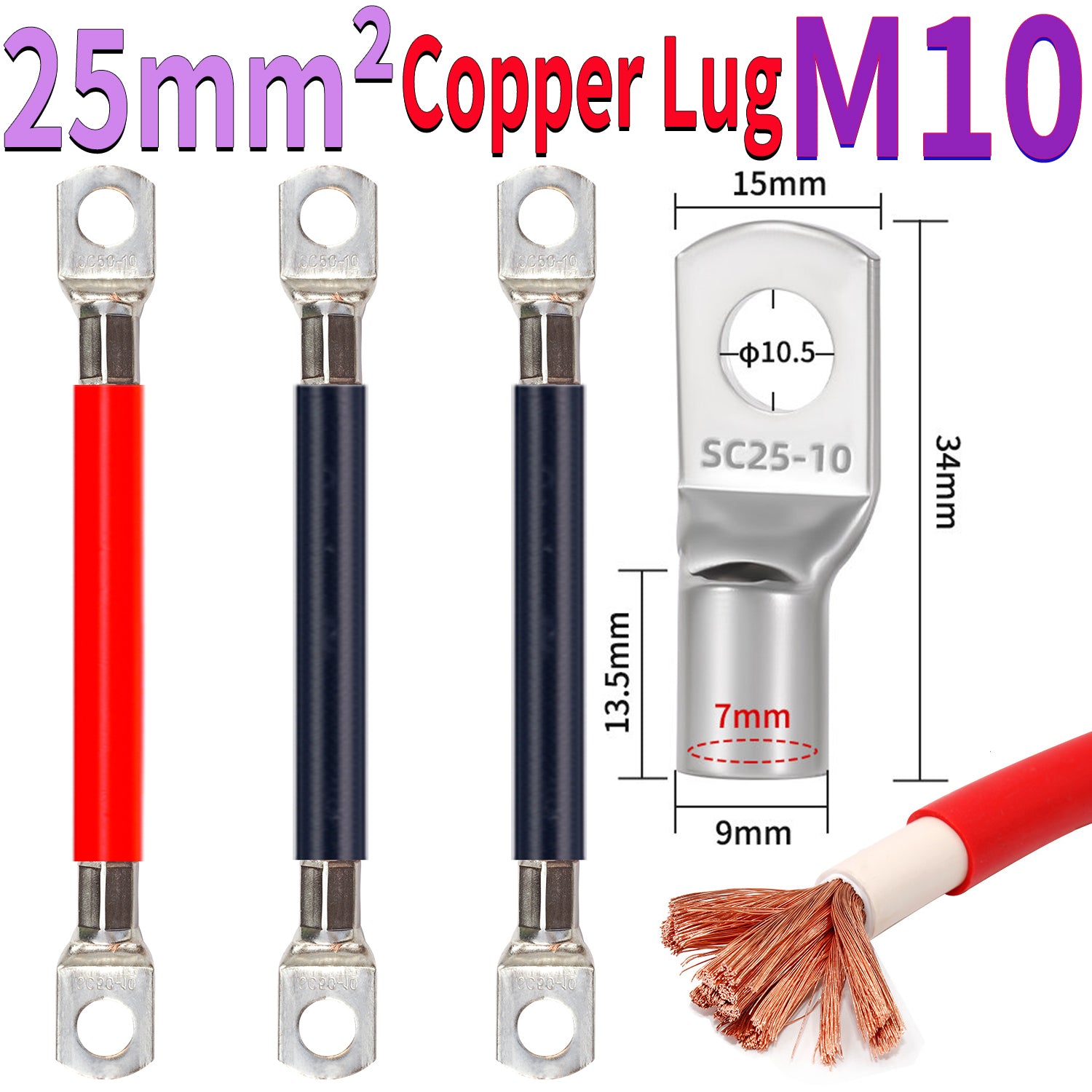

• 25mm² copper lug power cable with M10 ring terminal for power distribution and grounding connections
  • 25mm² pure copper lug cable with M6 ring terminal for high current power and grounding systems

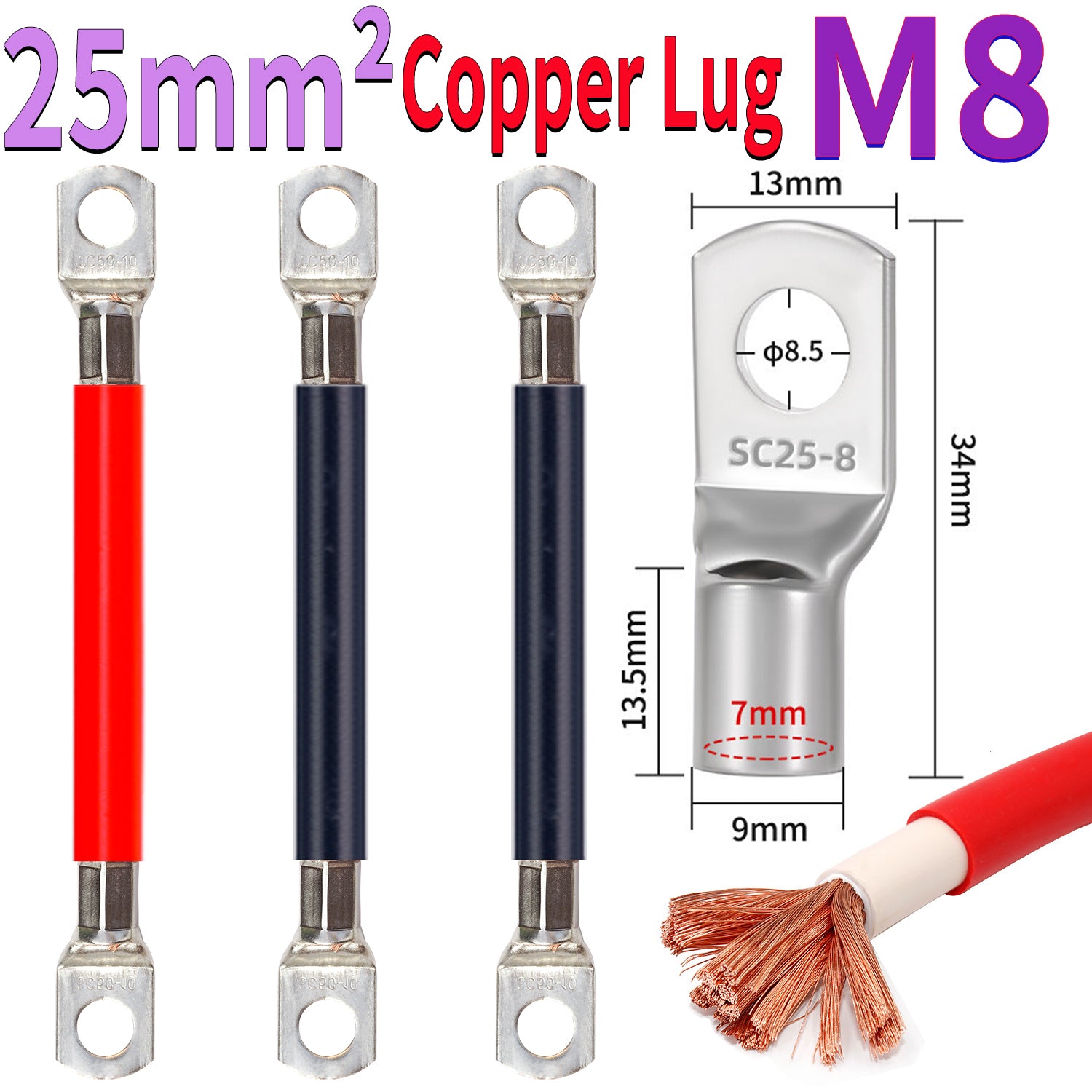

  • 25mm² heavy duty copper ring terminal cable with M8 bolt hole for battery and industrial power use
  • 25mm² pure copper heavy duty cable with M12 ring terminal for industrial and high current electrical installations
  • 75mm² multi-strand pure copper conductor cable designed for flexible and low resistance electrical connections
  • M4 copper ring terminal SC4-4 close-up showing solid copper lug and precise bolt hole size
  • 50mm² multi-strand pure copper conductor cable designed for flexible and low resistance electrical connections
  • M10 copper ring terminal SC50-10 close-up showing solid copper lug and precise bolt hole size
1 8

Keszoox

25mm² Copper Lug Cable Ring Terminal Pure Copper Heavy Duty Power Cable

25mm² Copper Lug Cable Ring Terminal Pure Copper Heavy Duty Power Cable

$9.09 USD
$13.56 USD $9.09 USD
Save 32% Sold out
Taxes included. Shipping calculated at checkout.
Col or
Specification
Length
visa
View full details
  • ★Product Description
  • ★About us
  • ★Custom cable

Product Overview

This 25mm² Copper Lug Cable with Ring Terminal is engineered for very high-current, heavy-duty electrical connections in power distribution, battery systems, grounding, and industrial applications.

The cable is manufactured using a high-purity stranded copper conductor and terminated with a solid copper ring lug, professionally crimped to ensure extremely low resistance, excellent mechanical strength, and long-term reliability in demanding environments.

Technical Specifications

Parameter Specification
Cable Cross Section 25mm²
AWG Equivalent AWG 4
Terminal Type Ring Terminal (Copper Lug)
Available Stud Sizes M6 / M8 / M10 / M12
Lug Type SC Series Copper Lug
Conductor Material 100% Pure Copper
Cable Construction Multi-strand flexible copper wire
Termination Method Professional crimped connection
Electrical Performance Very low resistance, high current capacity
Compliance RoHS Compliant

Key Features

  • High-Purity Copper Conductor
    Delivers superior conductivity, minimal voltage drop, and excellent heat dissipation.

  • Solid Copper Ring Lug
    Provides a strong, vibration-resistant bolted connection for heavy-duty use.

  • 25mm² Cable Size (AWG 4 Equivalent)
    Designed for high-current power transmission and grounding systems.

  • Professional Crimping Process
    Ensures reliable electrical contact and high pull-out strength.

  • Flexible & Durable Design
    Multi-strand copper wire allows easier installation compared to solid conductors.

Typical Applications

This 25mm² copper ring terminal cable is commonly used in:

  • Battery banks and power distribution systems

  • Automotive, truck, marine, and EV electrical systems

  • Solar power and energy storage systems

  • Inverters, chargers, and DC power equipment

  • Grounding and earthing connections

  • Industrial control panels and switch cabinets

  • Heavy machinery and industrial electrical equipment

Available Stud Sizes (Image Reference)

  • M6 ring terminal

  • M8 ring terminal

  • M10 ring terminal

  • M12 ring terminal

All versions use the same 25mm² pure copper cable; only the ring hole size differs.

Customization Options

  • Cable length

  • Insulation color

  • Heat shrink tubing

  • Double-end terminals

  • OEM and bulk orders
