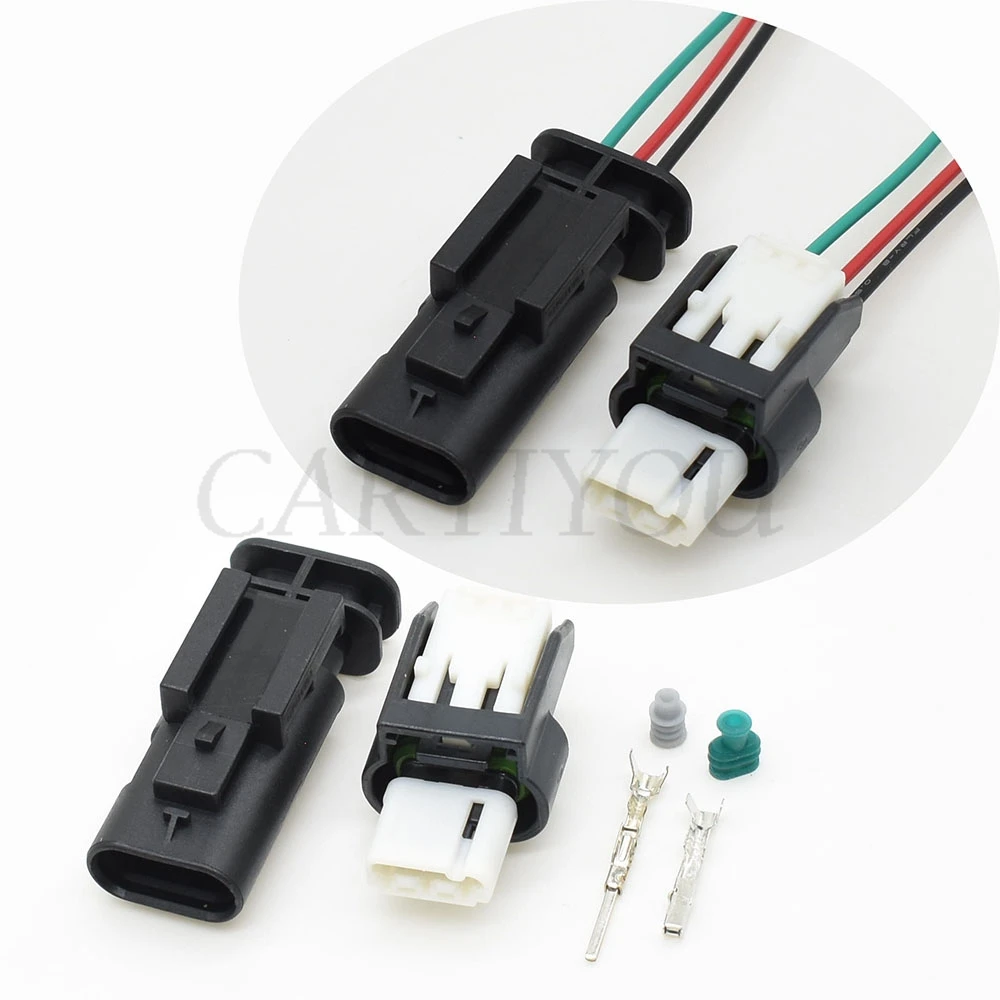

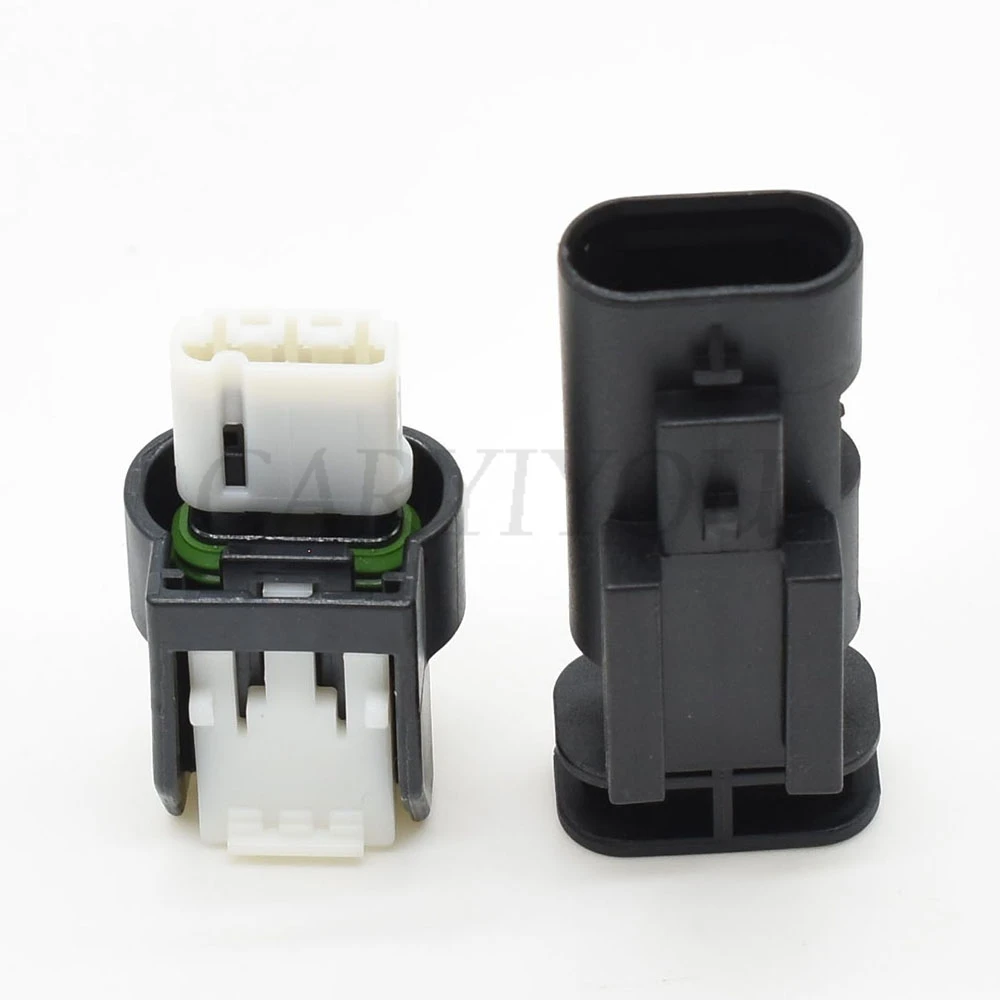

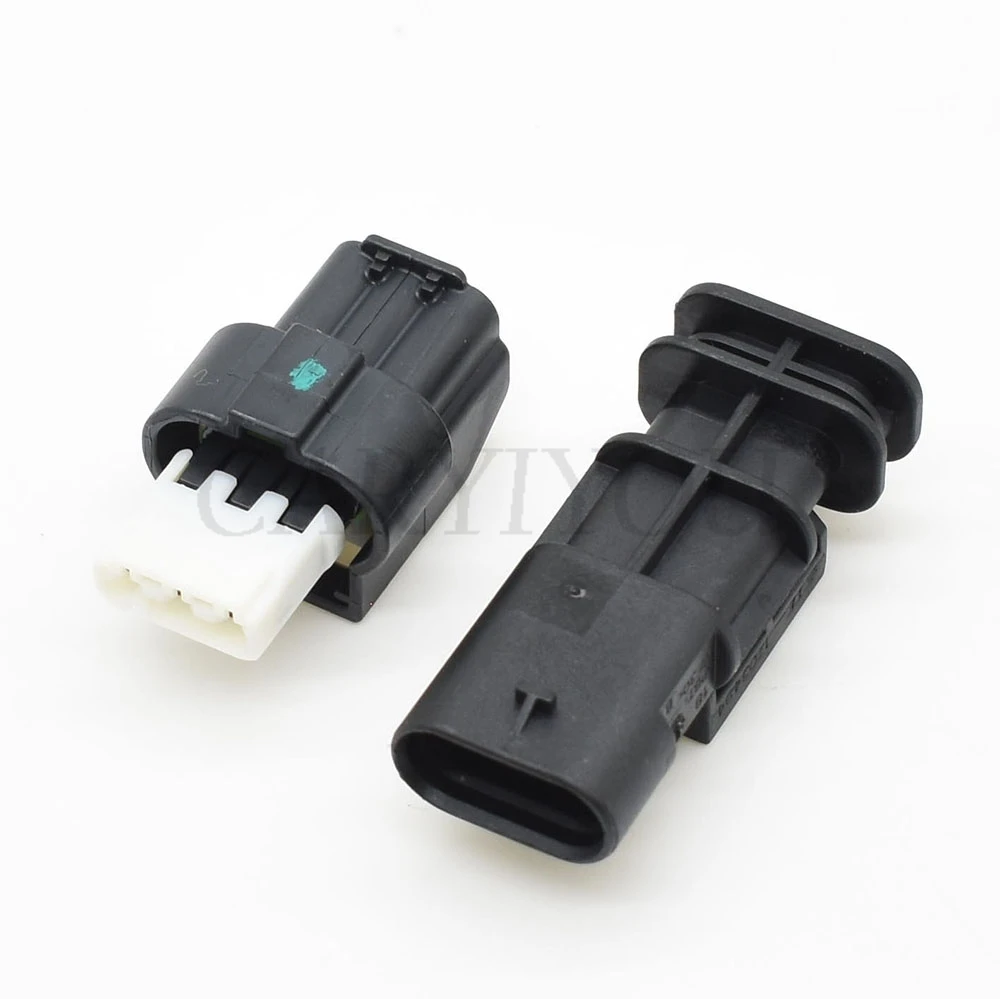

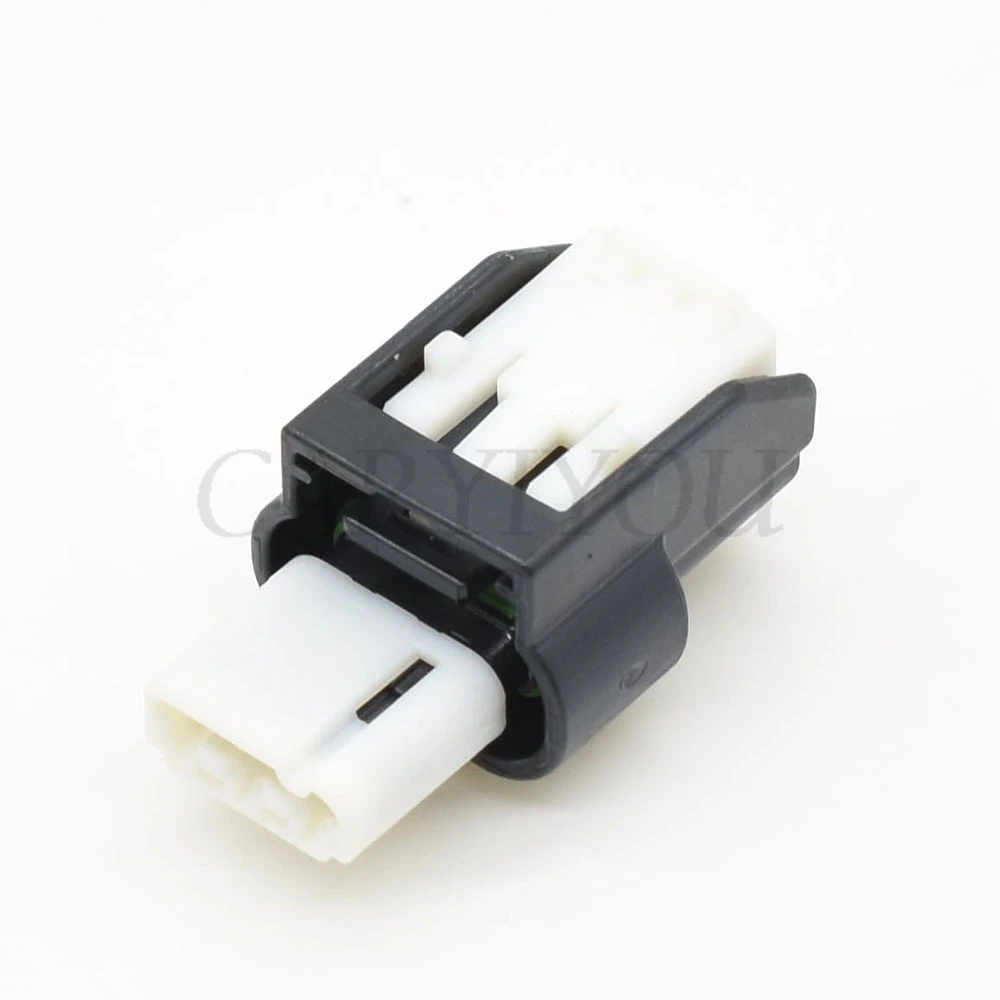

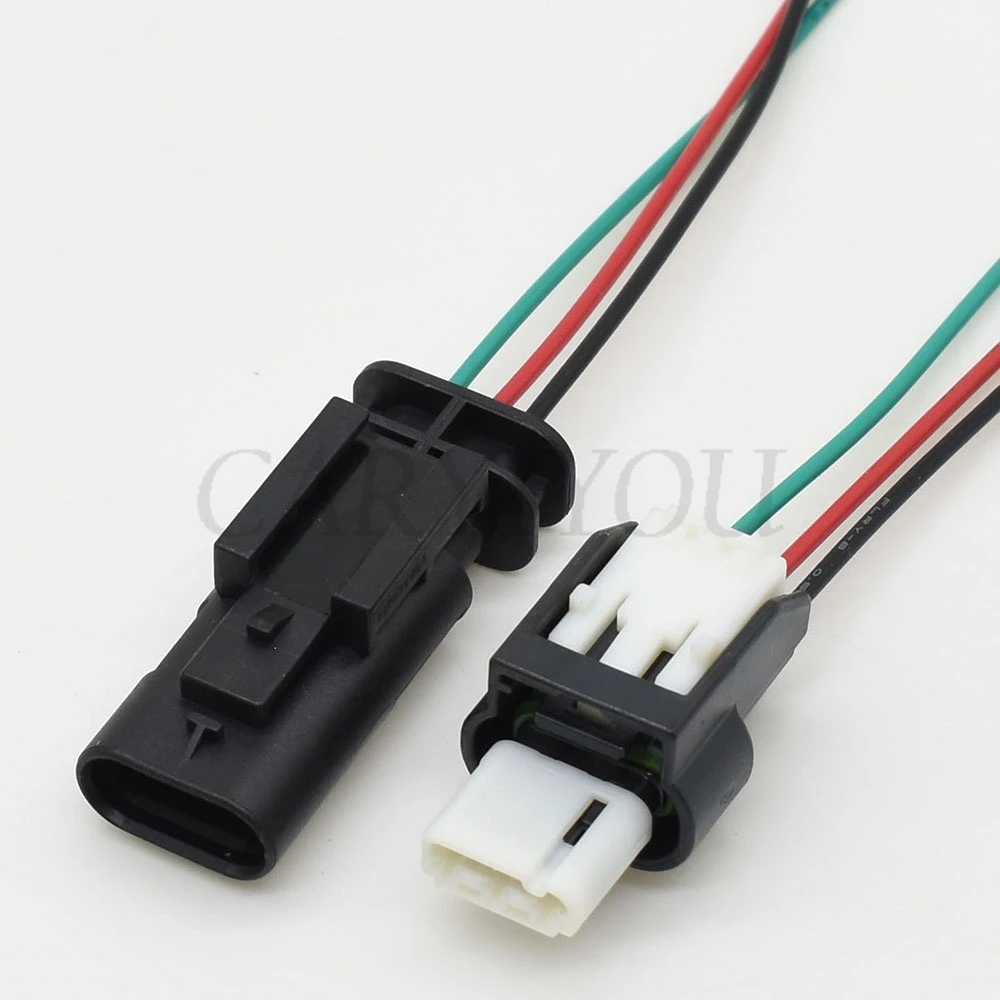

3-Pin 1.5mm Waterproof Connector 15368586 15336029 15336024 DJ7039YB-1.5-21 Delphi Automotive

3-Pin 1.5mm Waterproof Connector — 15368586 / 15336029 / 15336024 / DJ7039YB-1.5-21 | Delphi

OEM-compatible Delphi 3-pin 1.5mm waterproof connector for GM-platform automotive wiring harnesses. Cross-references three GM/Delphi OEM part numbers — 15368586, 15336029, and 15336024 — covering sensor, actuator, and engine management circuits across Chevrolet, GMC, Buick, and Cadillac vehicles.

Specifications

Parameter	Value
Pin Count	3
Pitch	1.5 mm
OEM Part Numbers	15368586 / 15336029 / 15336024 / DJ7039YB-1.5-21
Connector Series	Delphi Metri-Pack 150 series
Housing Material	PA66 (Nylon 66)
Sealing	Rubber wire seal (waterproof)
Waterproof Rating	IP67
Locking	Dual-tab (-21)
Operating Temperature	-40°C to +125°C
Application	Sensor, actuator, engine management
Certification	CE

Compatible Vehicles & Applications

• Chevrolet Silverado / Colorado / Equinox — sensor and actuator harness connectors
• GMC Sierra / Canyon / Terrain — engine management sub-harness
• Buick Enclave / LaCrosse / Regal — sensor wiring harness repair
• Cadillac Escalade / CTS / SRX — body and powertrain sensor connectors
• General GM-platform vehicles using Delphi 15368586 / 15336029 / 15336024 series

Why Choose This Connector?

• ✅ 4 OEM cross-references: 15368586 / 15336029 / 15336024 / DJ7039YB-1.5-21 — confirmed GM fitment
• ✅ Delphi Metri-Pack 150 series — industry-standard sealed connector for GM sensor circuits
• ✅ IP67 dual-seal — protects against oil, coolant, and moisture
• ✅ Dual-tab locking (-21) — superior retention in high-vibration engine environments
• ✅ CE certified — meets EU automotive electrical standards

Comparison: Delphi 15368586 vs Similar GM 1.5mm Connectors

Part Number	Series	Locking	Application
15368586 / DJ7039YB-1.5-21	Metri-Pack 150	Dual-tab	GM sensor / actuator (high retention)
12110192 / DJ7034YA-1.5	Metri-Pack 150	Single-tab	GM oil/fuel pressure sensor
12162182	Metri-Pack 150	Single-tab	GM MAP sensor (with pigtail)

Application Scenarios

• Sensor connector replacement on Chevrolet Silverado / GMC Sierra during engine service
• Actuator harness repair on Buick Enclave / Cadillac Escalade
• Engine management sensor connector restoration on Chevrolet Equinox / GMC Terrain
• Custom GM harness build requiring sealed dual-tab 3-pin 1.5mm connectors

FAQ

Q: Are 15368586, 15336029, and 15336024 all the same connector?
A: Yes. These are GM/Delphi OEM part numbers for the same 3-pin 1.5mm waterproof connector housing (DJ7039YB-1.5-21), used across different GM model years and production batches. They are fully interchangeable for harness repair.

Q: What is the difference between DJ7039YB-1.5-21 and DJ7034YA-1.5?
A: DJ7039YB-1.5-21 has a dual locking tab (-21) for stronger retention, while DJ7034YA-1.5 uses a single-tab design. Both are Delphi Metri-Pack 150 series 3-pin 1.5mm sealed connectors.

Q: What terminals are compatible?
A: Delphi Metri-Pack 150 series female terminals for 0.35–0.5mm² (AWG 22–20) wire. Terminals are sold separately.

Package Contents

• 1× 3-Pin 1.5mm Waterproof Connector Housing (15368586 / 15336029 / DJ7039YB-1.5-21)
• Terminals not included
