JST SM Connector Kit with Premium 22AWG Pre-Crimped Cables

JST SM 2.5mm Connector Kit with Premium 22AWG Pre-Crimped Cables

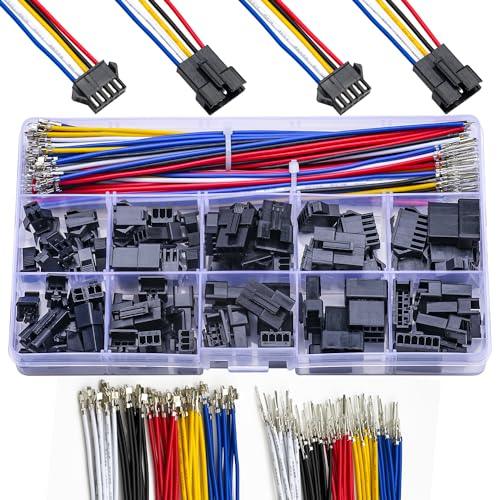

Complete kit of JST SM 2.5mm connectors and premium 22AWG pre-crimped cables. The JST SM is a 2.5mm pitch wire-to-wire connector with an arm-lock mechanism — widely used in RC battery packs, LED strip connections, consumer electronics, and industrial wiring. Rated 3A at 250V AC/DC. Contact: SSM-02T-P0.5 / SYM-001T-P0.6 (tin-plated phosphor bronze).

• Series: JST SM — 2.5mm pitch, wire-to-wire, arm-lock
• Contact: SSM-02T-P0.5 / SYM-001T-P0.6, phosphor bronze, tin-plated
• Wire: 22AWG, tinned copper conductor
• Locking: Arm-lock (positive latch, audible click)
• Pitch: 2.5mm | Rating: 3A / 250V AC/DC | −25°C to +85°C
• Compliance: UL E60389, RoHS2

SM is wire-to-wire only — no PCB header. For wire-to-board, use JST XH or EH. Widely used in RC battery packs (note: polarity varies by manufacturer — verify before connecting).
