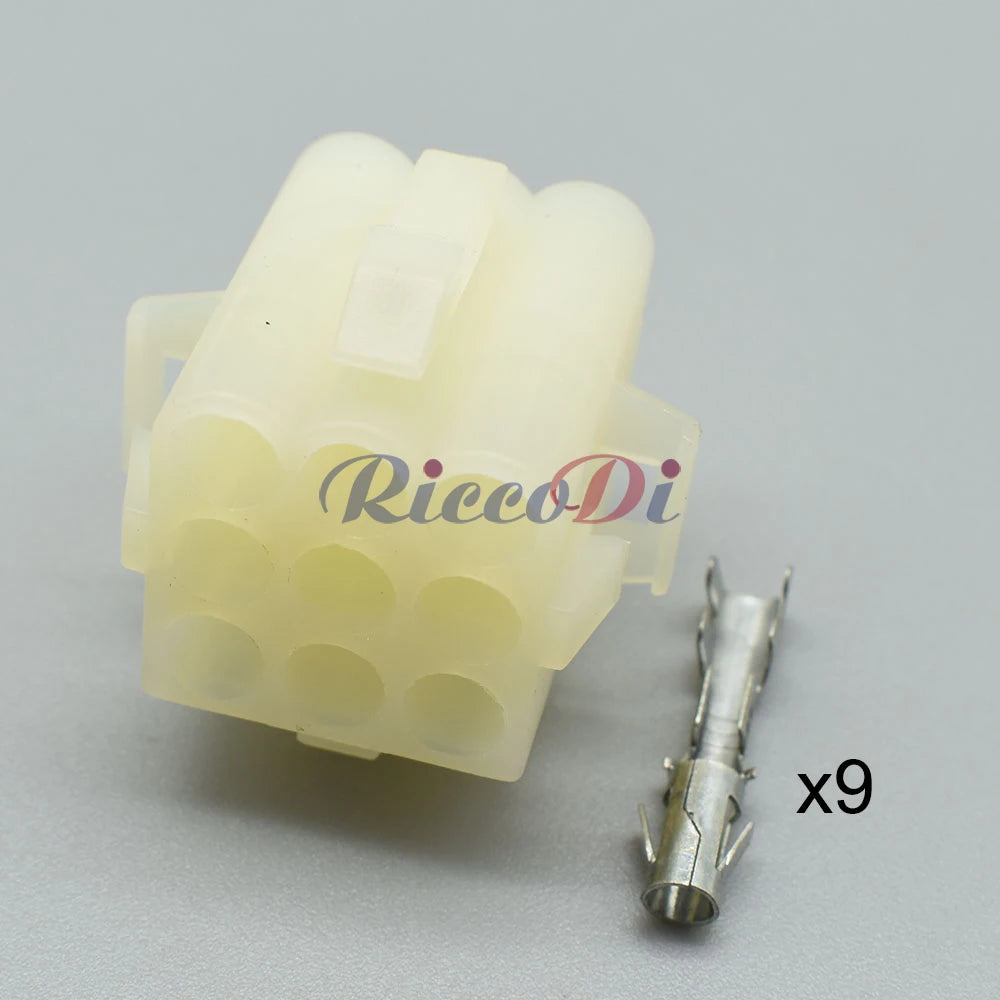

03-09-2092 / 03-09-1092 Automotive 9-Pin Connector — Molex Wire Harness Housing with Terminals
The 03-09-2092 (female socket) and 03-09-1092 (male plug) are 9-pin automotive connector housings from Molex, supplied with matching crimp terminals for complete connector assembly. Molex is one of the world’s largest connector manufacturers, supplying automotive connector systems to GM, Ford, Chrysler, VW, Toyota, and many other OEMs. The 03-09 series is a widely used Molex automotive connector family for ECU, BCM, and sensor wiring harness applications across multiple vehicle platforms.
The 9-pin configuration provides a versatile circuit count for sensor assemblies, BCM interfaces, and multi-function actuator connectors. Supplied with terminals, this product provides everything needed for a complete connector replacement without sourcing terminals separately.
Key Specifications
| Parameter | Value |
|---|---|
| Part Numbers | 03-09-2092 (female) / 03-09-1092 (male) |
| Manufacturer | Molex |
| Pin Count | 9-pin |
| Sealing | Unsealed |
| Housing Material | PA66 glass-filled nylon |
| Terminal Material | Tin-plated copper alloy |
| Includes | Housing + matching crimp terminals |
| Operating Temperature | -40°C to +125°C |
| Compliance | RoHS |
Molex 03-09 Series — Automotive Connector Standard
- Molex OEM standard — the 03-09 series is a widely used Molex automotive connector family; the same housing appears in GM, Ford, Chrysler, and European OEM wiring harnesses
- Complete kit with terminals — supplied with matching crimp terminals; no need to source terminals separately, reducing the risk of using incompatible terminals
- 9-pin for versatile applications — the 9-pin configuration is used for ECU signal connectors, BCM interfaces, and sensor assemblies across multiple platforms
- Molex part number traceability — Molex part numbers are traceable in the Molex connector catalog (molex.com) for confirmed specifications and tooling information
Typical Applications
- ECU and BCM 9-pin connector repair on GM/Ford/Chrysler/VW platforms
- Sensor assembly connector replacement
- Instrument cluster wiring harness repair
- Custom wiring harness fabrication with Molex 03-09 series housings
Frequently Asked Questions
Q: What terminals are included with 03-09-2092 / 03-09-1092?
The product is supplied with Molex 03-09 series crimp terminals compatible with the housing. The terminal wire gauge range is typically 0.35–1.0mm² (22–18 AWG). Consult the Molex connector catalog for the specific terminal part number and wire gauge range for your application.
Q: What crimping tool is required for Molex 03-09 series terminals?
Molex 03-09 series terminals require a Molex-compatible ratchet crimping tool with the correct die for the terminal size. The Molex part number for the recommended crimping tool is listed in the 03-09 series product specification on molex.com. Using a generic crimper without the correct die may produce an unreliable crimp that fails under vibration.
Q: How do I remove a terminal from the 03-09-2092 housing?
Use a terminal removal pick (also called a terminal release tool) to depress the locking tab inside the housing cavity while gently pulling the wire. The locking tab is located at the front of the cavity (mating face side). Insert the pick from the mating face, depress the tab, and pull the wire from the rear. Do not use excessive force — the locking tab is designed to hold the terminal securely and requires the pick to release. Molex terminal removal tools are available in automotive wiring tool kits.
