IRS2092S 500W Class D Hi-Fi Mono Amplifier Board — High-Power Audio

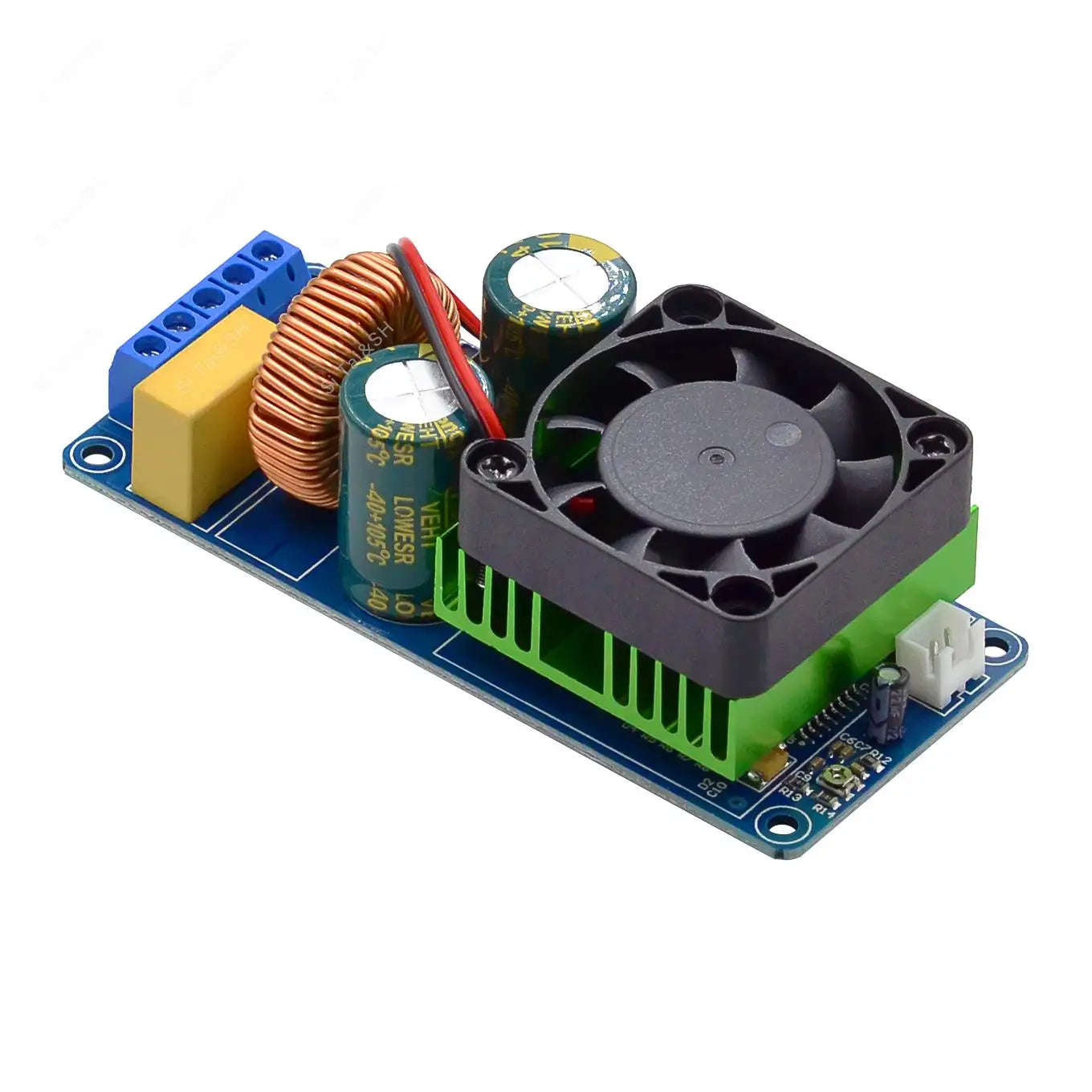

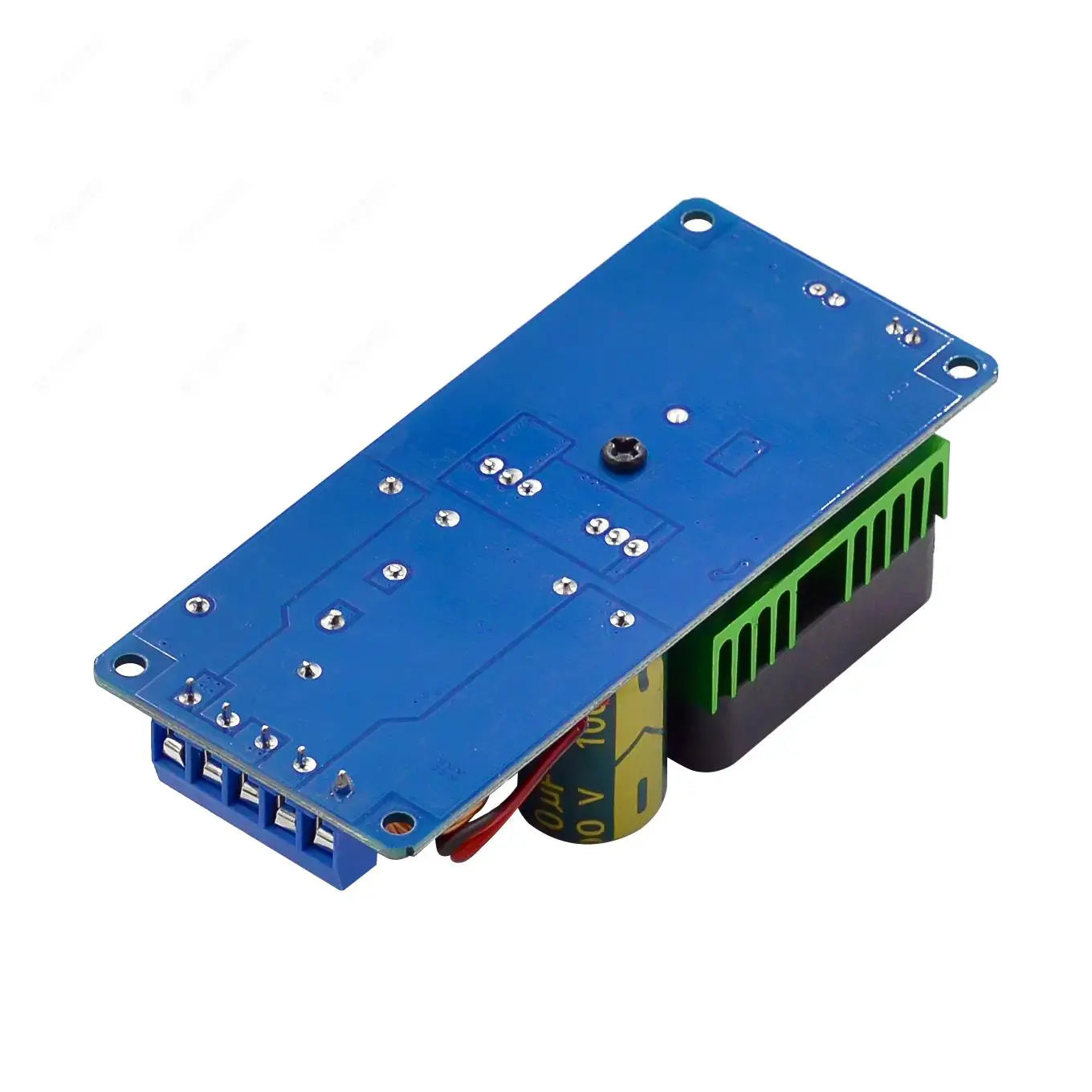

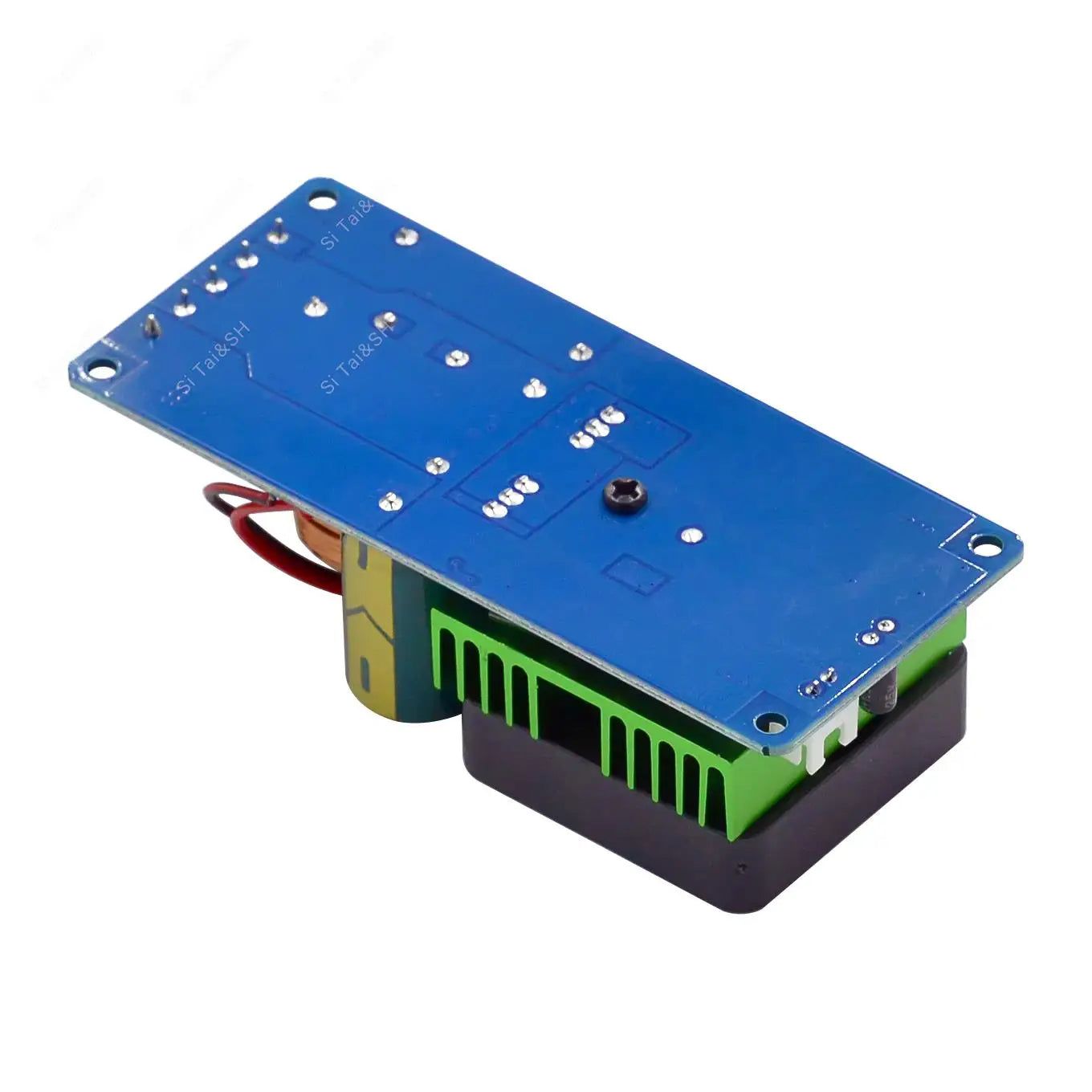

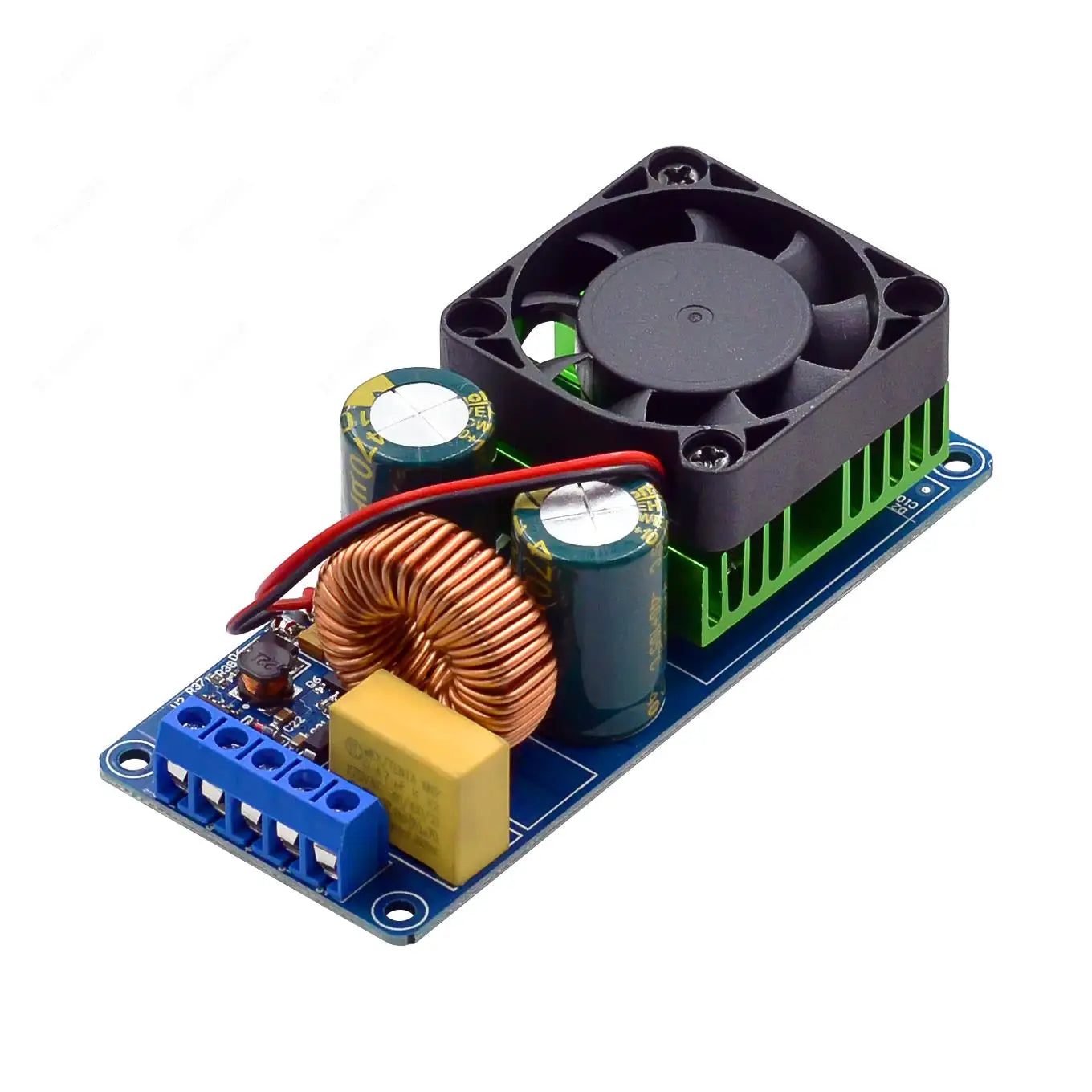

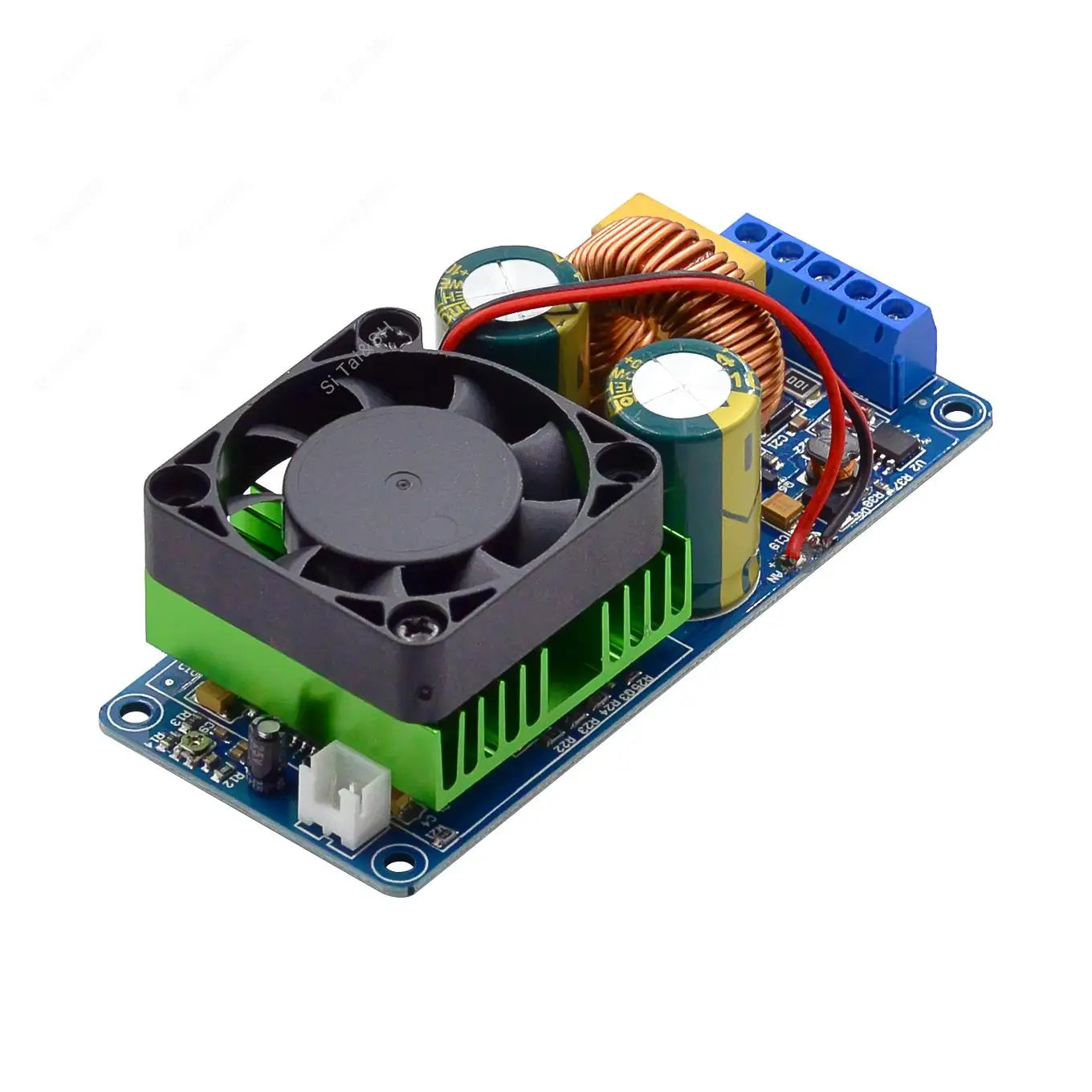

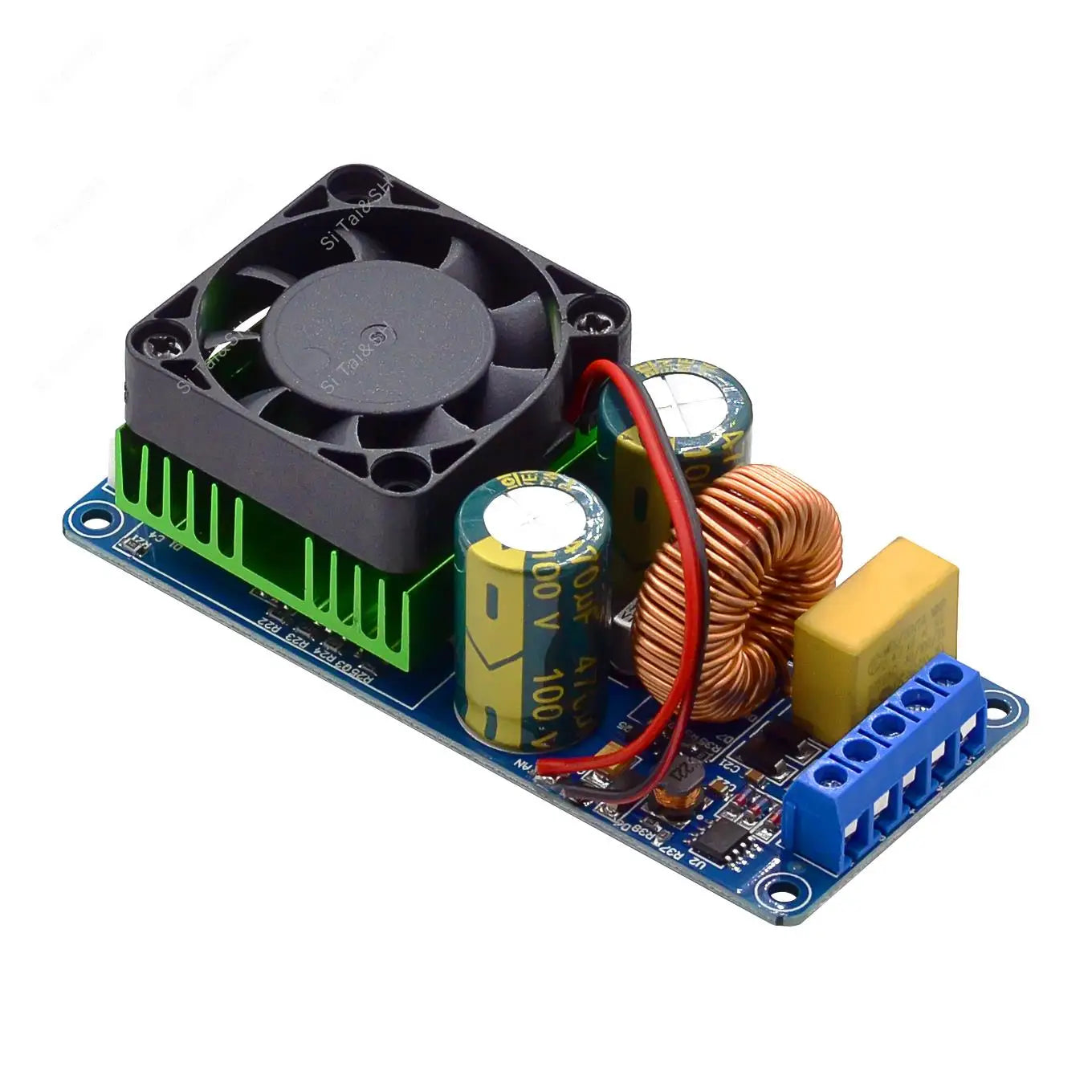

This IRS2092S-based 500W Class D mono amplifier board delivers audiophile-grade performance in a compact, high-efficiency design. Driven by Infineon’s IRS2092S self-oscillating Class D controller, it achieves THD < 0.01% and >90% efficiency — ideal for DIY subwoofers, high-power PA speakers, and home theater bass channels.
Key Specifications
| Parameter | Value |
|---|---|
| Driver IC | IRS2092S (Infineon) |
| Output Power | 500W RMS (peak, into 4Ω @ ±50V) |
| Load Impedance | 4Ω – 8Ω |
| Frequency Response | 20Hz – 20kHz (±0.5dB) |
| THD+N | <0.01% @ 1kHz, 1W |
| SNR | >100dB |
| Efficiency | >90% @ full load |
| Supply Voltage | ±25V – ±50V DC (dual rail) |
| Configuration | Mono (single channel) |
| Protection | OCP, OTP, UVLO, shoot-through protection |
Why Choose IRS2092S Class D?
- IRS2092S Driver — Infineon’s self-oscillating MOSFET driver for ultra-low distortion Class D
- THD < 0.01% — Hi-Fi grade performance rivaling Class AB at a fraction of the heat
- >90% Efficiency — Minimal heatsinking required vs. Class AB equivalents
- 500W Output — Drives high-power subwoofers and PA speakers with authority
- Comprehensive Protection — OCP, OTP, and UVLO for reliable long-term operation
Typical Applications
- DIY subwoofer amplifier (home theater, car audio)
- High-power PA speaker amplification
- Bass channel in bi-amped speaker systems
- Studio monitor low-frequency amplification
- High-efficiency audio amplifier for embedded systems
Power Supply Requirements
Requires a dual-rail DC power supply (±25V to ±50V). For 500W output, use a toroidal transformer with ±45V / 6A+ rating. A ±35V supply delivers approximately 200W into 8Ω.
FAQ
Q: Does this board include a power supply?
A: No — a separate dual-rail DC power supply is required. The board accepts ±25V to ±50V DC.
Q: What’s the actual output power at ±35V into 8Ω?
A: Approximately 150–200W RMS. 500W is achievable at ±50V into 4Ω loads.
Package Contents
- 1× IRS2092S 500W Class D Mono Amplifier Board
