JST XA 2.5mm 2-12Pin Single-Head Cable 22AWG UL1007

JST XA 2.5mm 2-12Pin Single-Head Cable 22AWG UL1007

Regular price $0.89 USD
Regular price $2.02 USD Sale price $0.89 USD
Save 55% Sold out
Taxes included. Shipping calculated at checkout.
Style
Pin
Length
visa
View full details
  • ★Product Description
  • ★About us
  • ★Custom cable

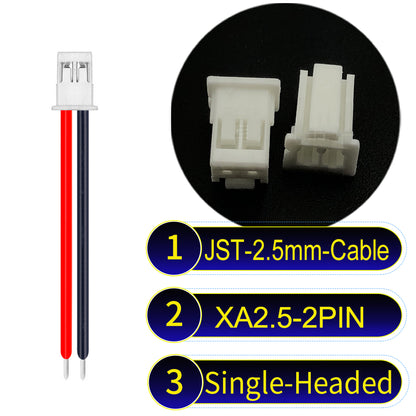

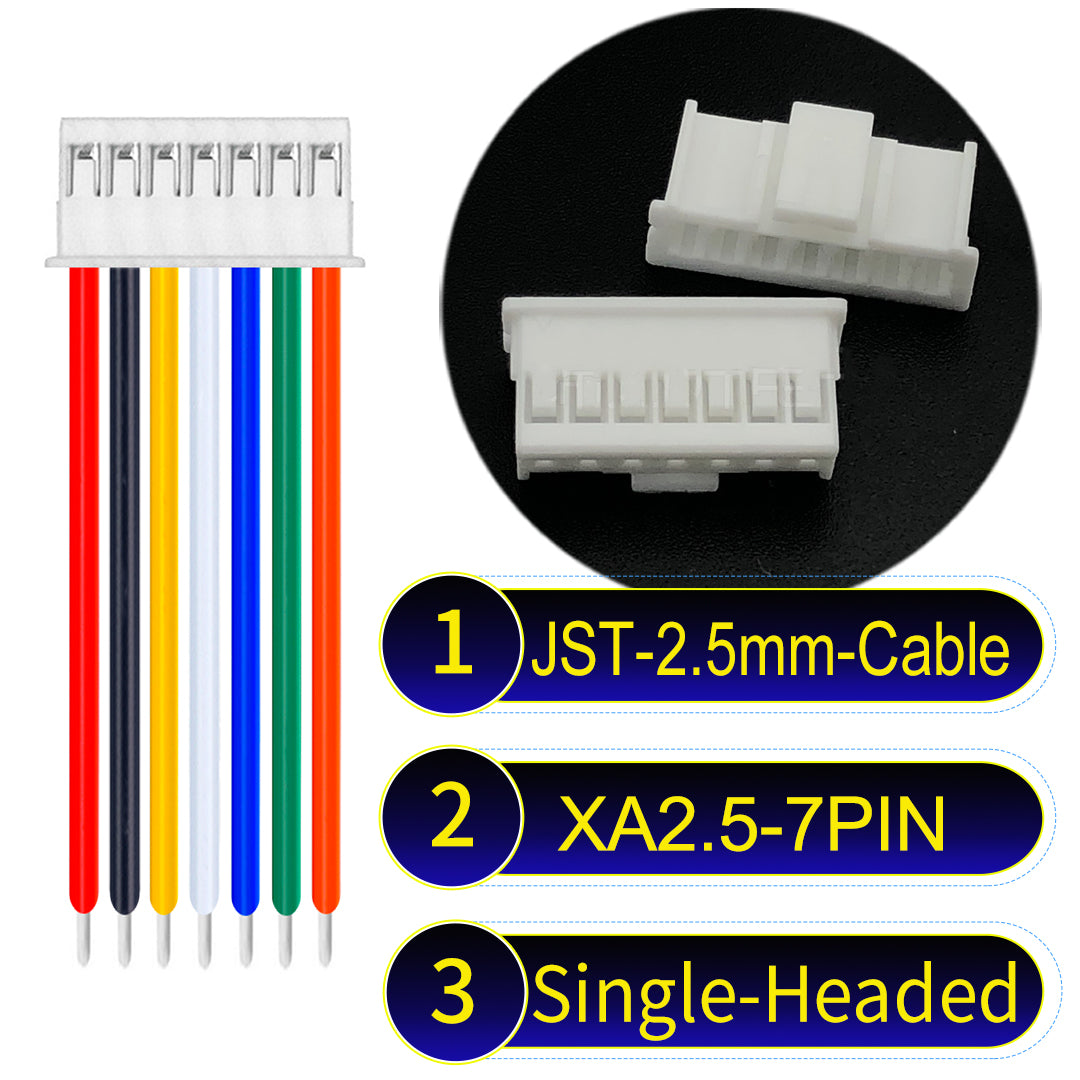

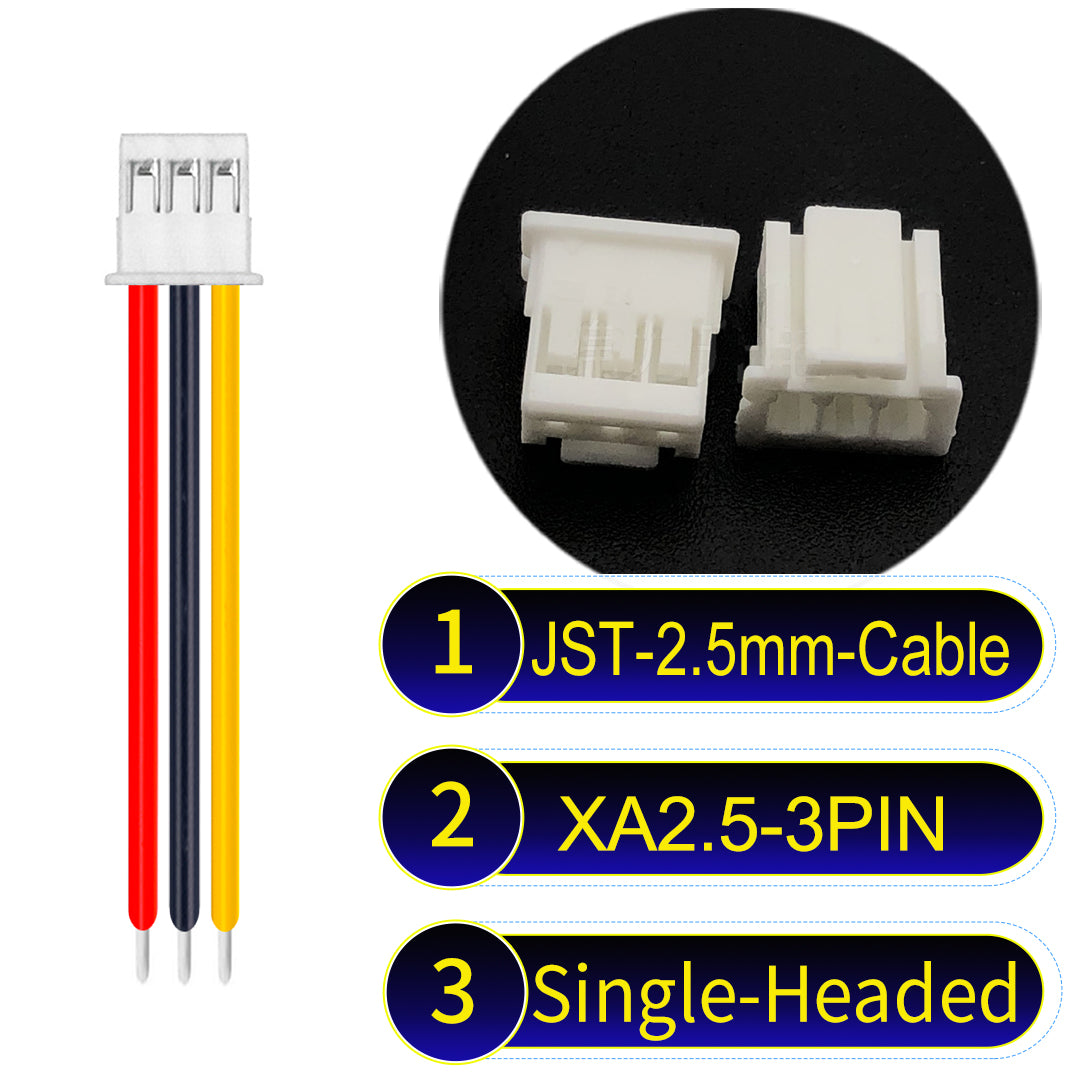

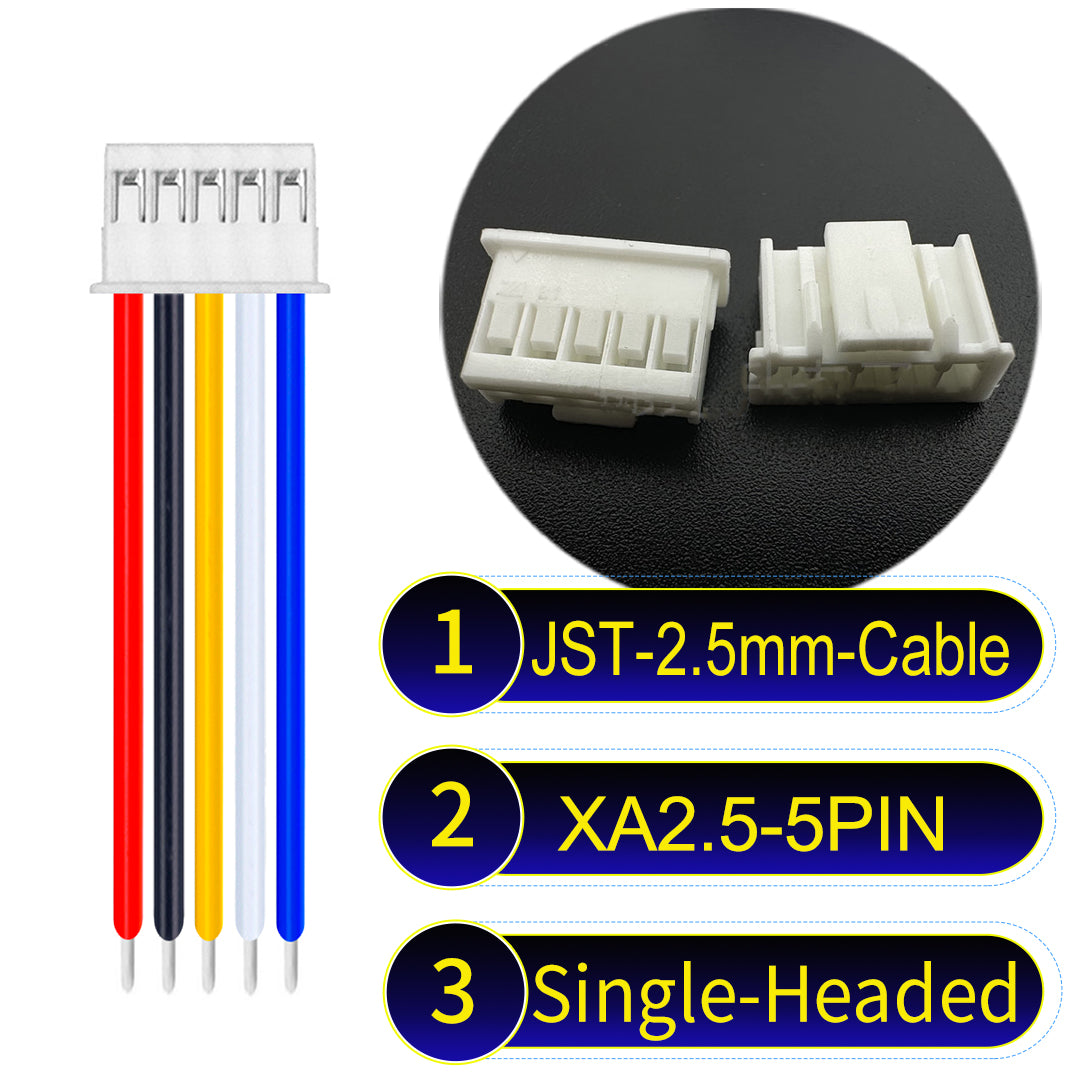

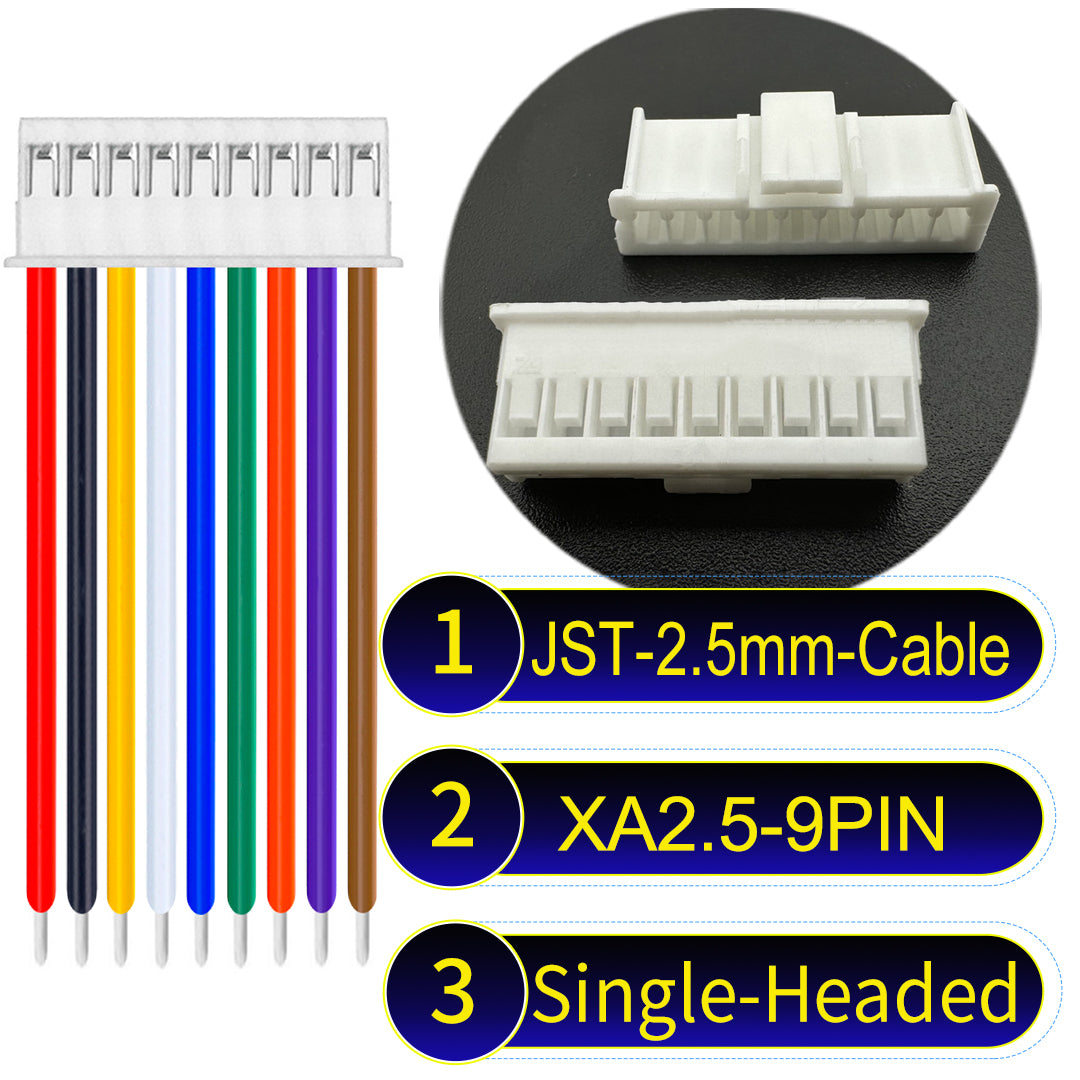

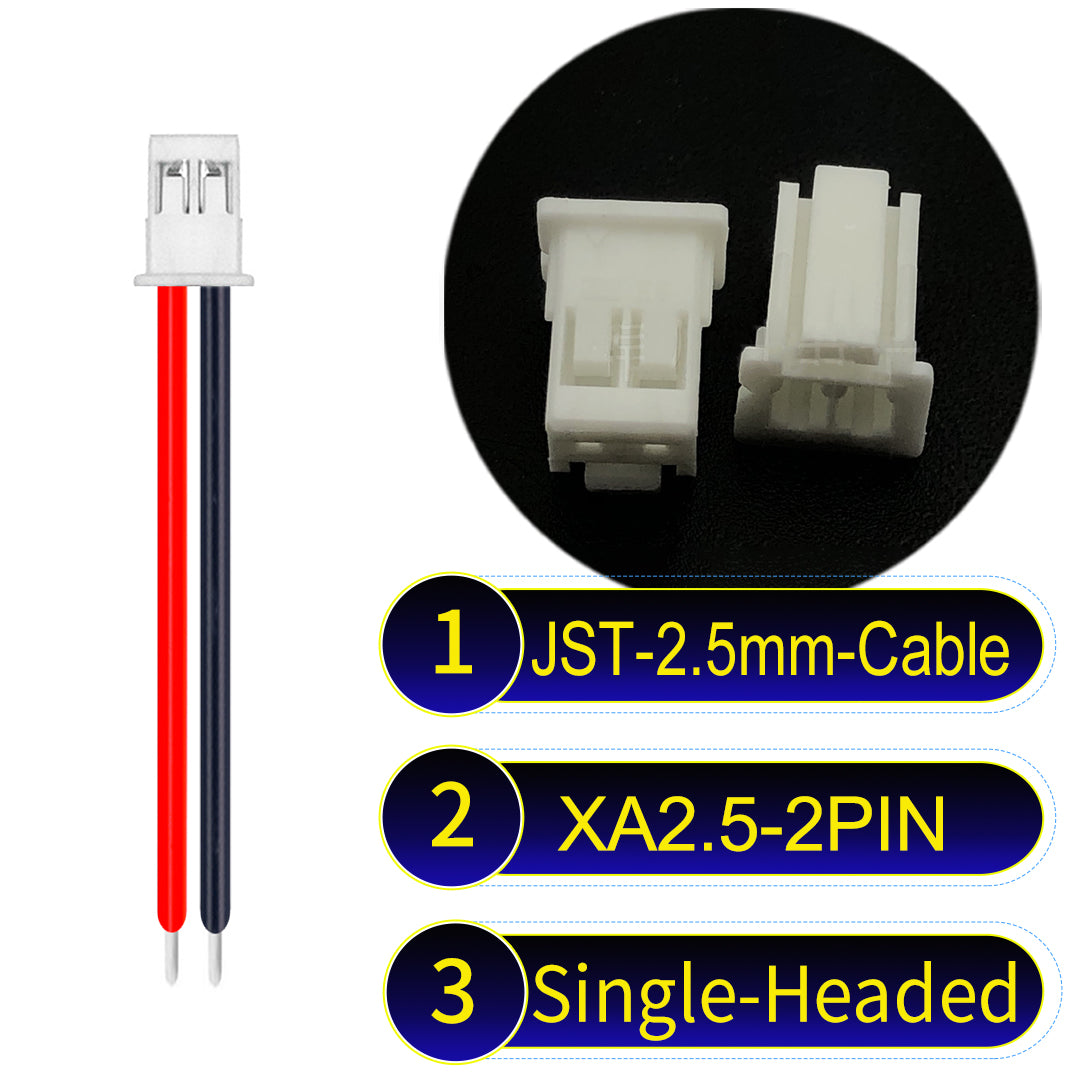

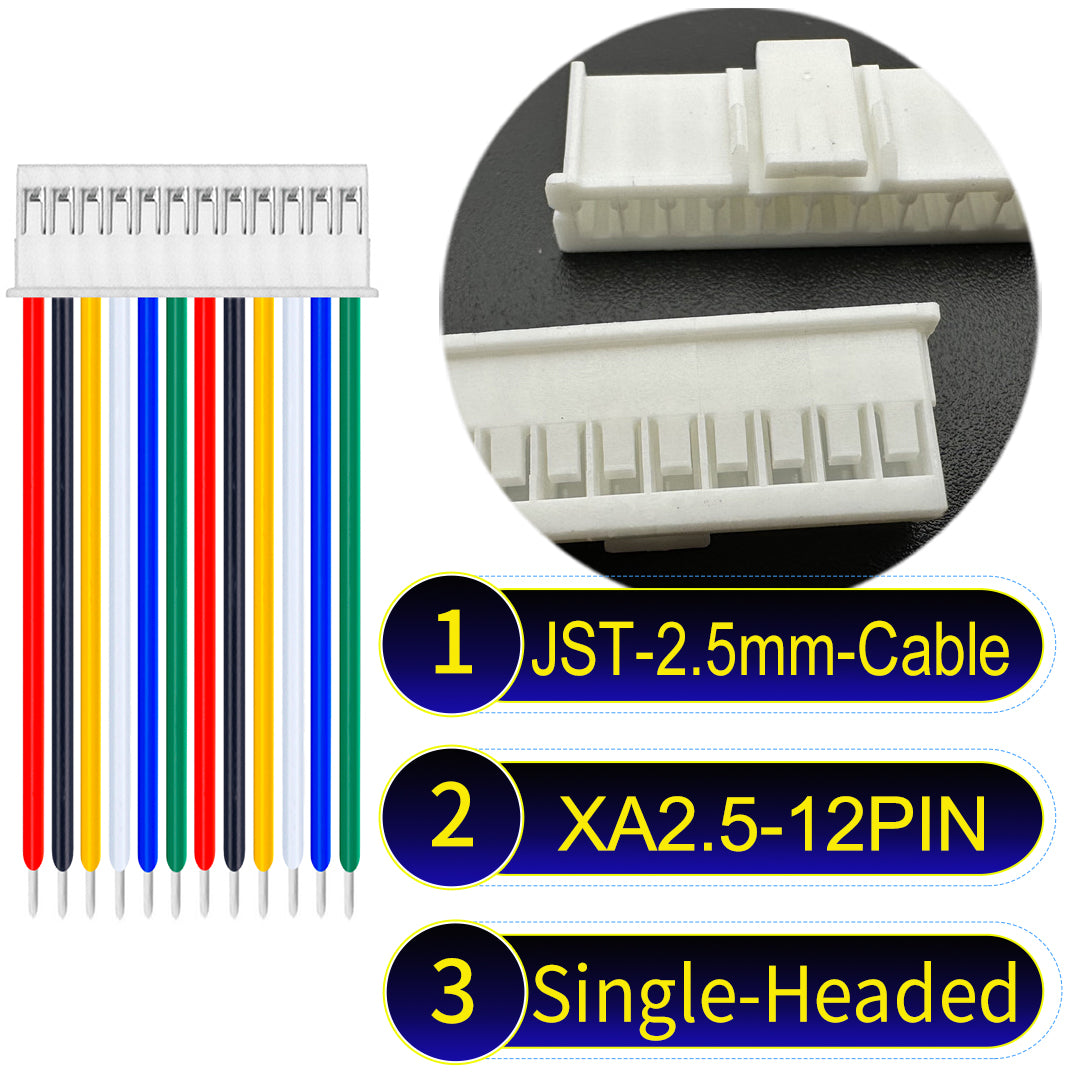

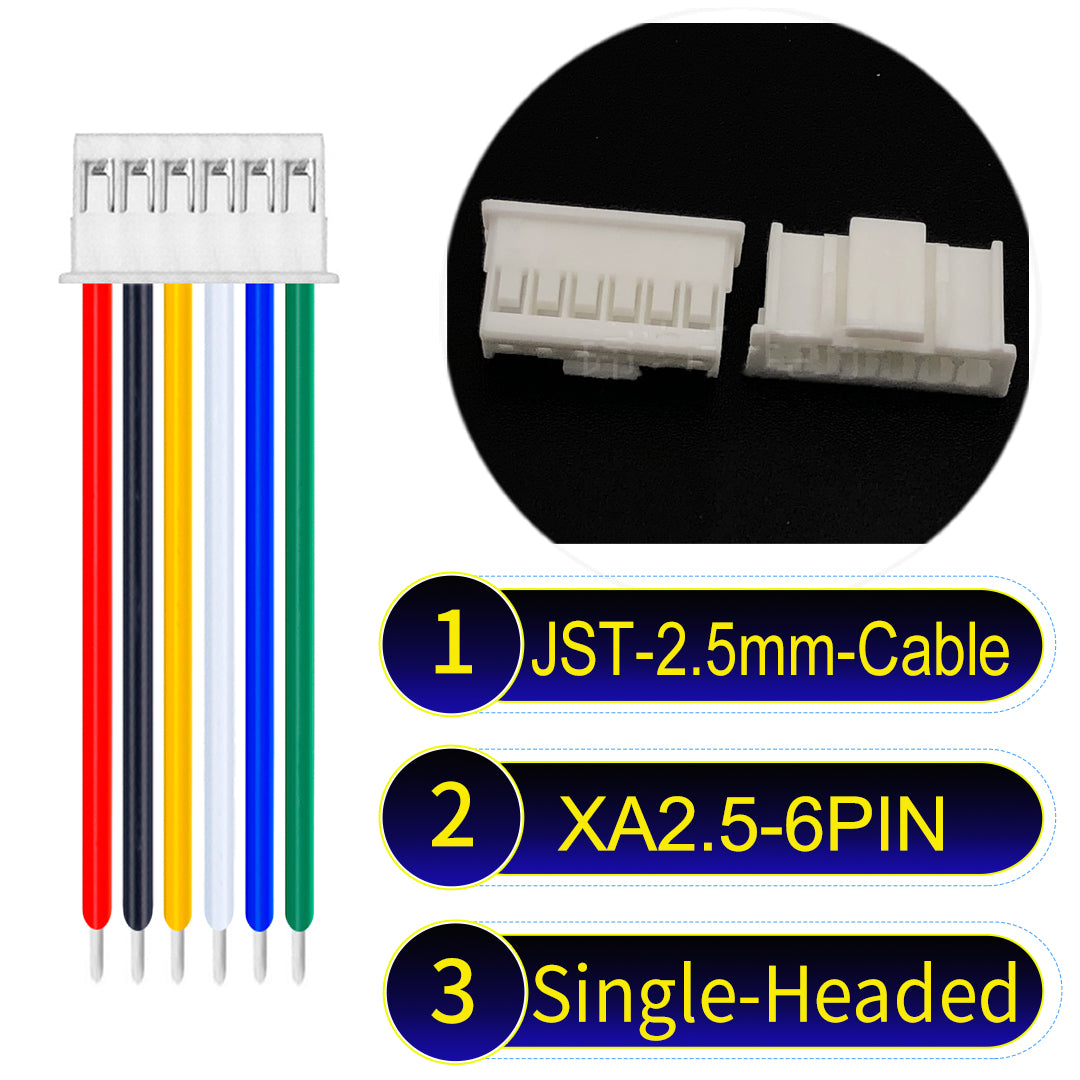

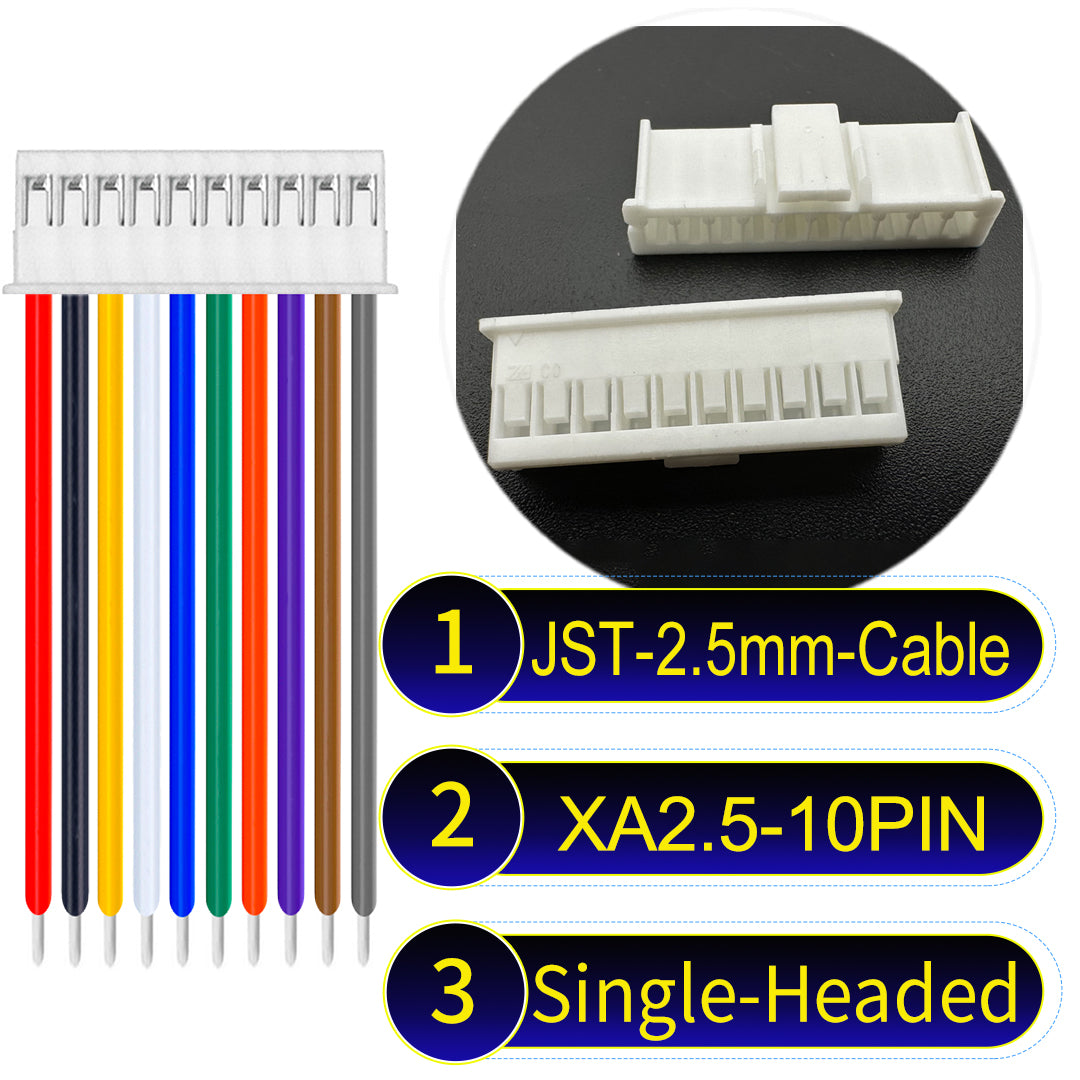

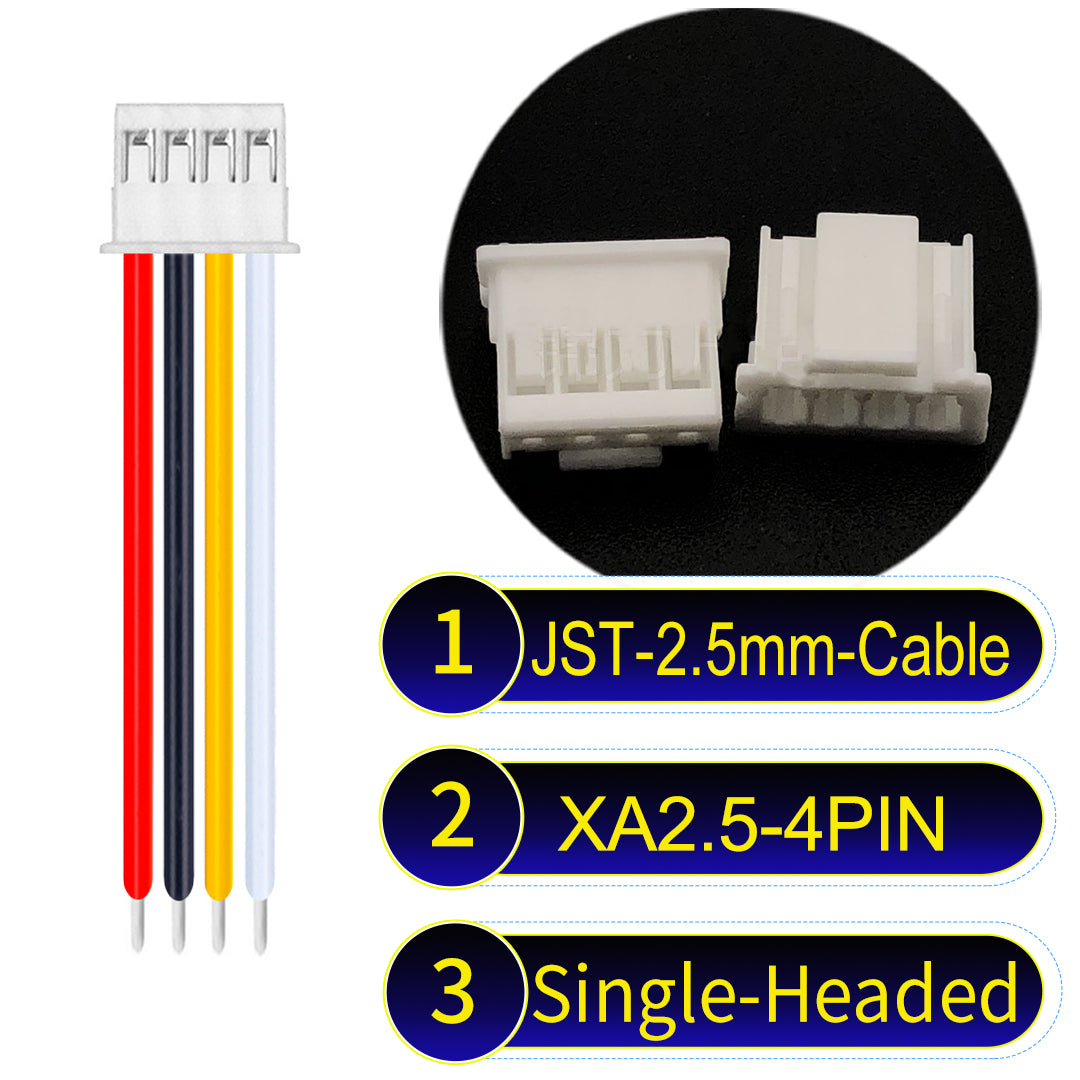

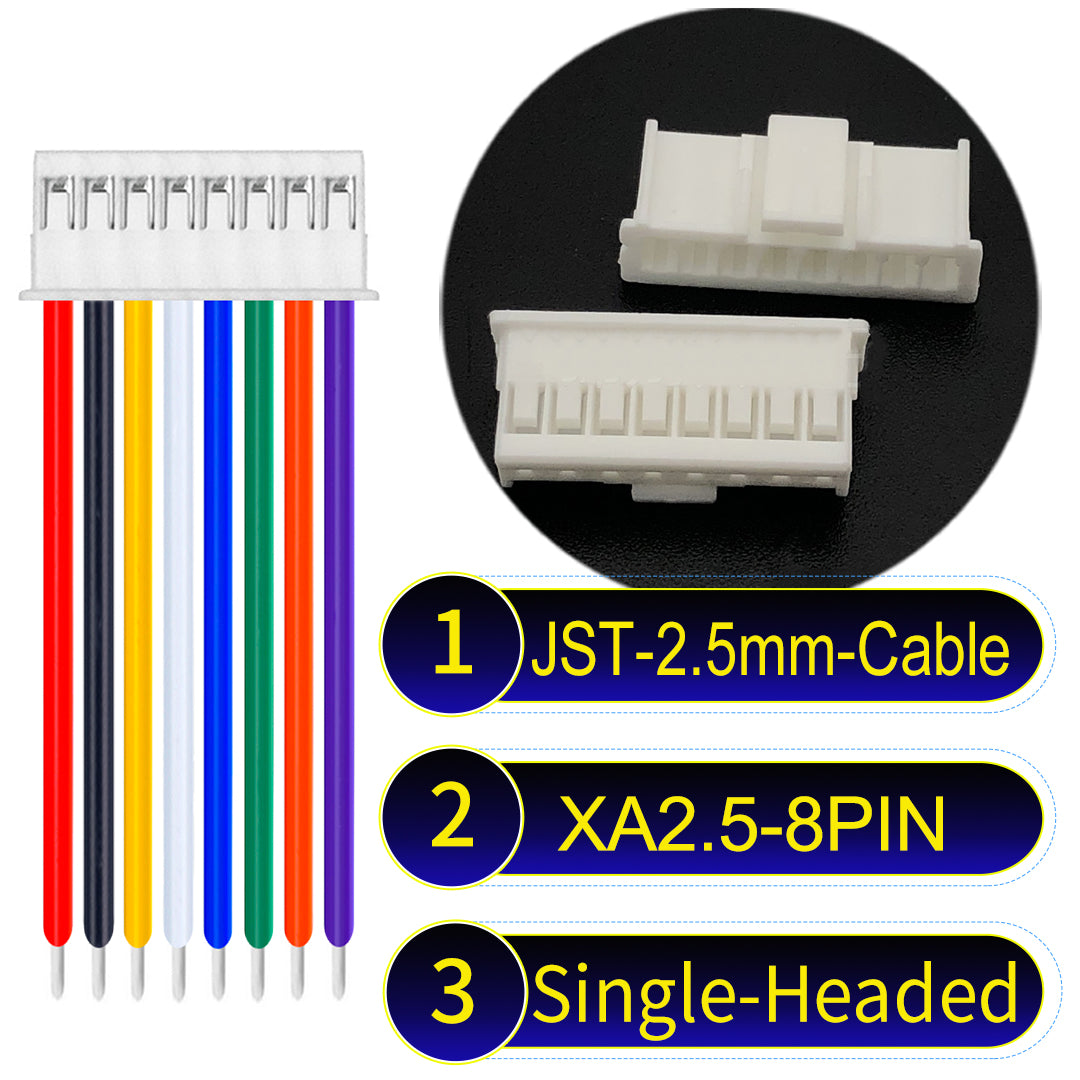

JST XA 2.5mm 2–12Pin Single-Head Pre-Crimped Cable — 22AWG UL1007 PVC

Pre-crimped cable with a JST XA series XARP plug housing on one end and bare tinned wire leads on the other. The JST XA is a 2.5mm pitch connector rated for 3A at 250V AC/DC, operating up to +105°C, and is the only JST 2.5mm connector certified to IEC 60695-2 glow wire testing standards — mandatory for household appliances, LED lighting, and industrial control gear in EU/IEC markets. Wire: 22AWG UL1007 PVC, rated 80°C / 300V. Available in 2 to 12 pin counts and multiple lengths.

  • Housing: JST XA XARP plug, secure lock + inner contact lance, PA 66, UL94V-0
  • Contact: SXAM-001T-P0.6, phosphor bronze, tin-plated, 22AWG
  • Wire: 22AWG UL1007 PVC, 80°C / 300V, tinned copper conductor
  • Orientation: Single-head — XARP plug one end, bare tinned leads other end
  • Pitch: 2.5mm | Pin counts: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
  • Rating: 3A / 250V AC/DC | −25°C to +105°C
  • Glow wire: IEC 60695-2-10/11/12/13 certified
  • Mating: JST XA XARR receptacle (wire-to-wire or panel-mount)
  • Compliance: UL1007 wire, RoHS2

XA vs XH: XA adds glow wire certification (IEC 60695-2), +105°C rating, wire-to-wire support, and panel-mount option vs XH’s +85°C, wire-to-board only, no glow wire. Not interchangeable — different housing geometry.
