Features:
* Brand new and high quality

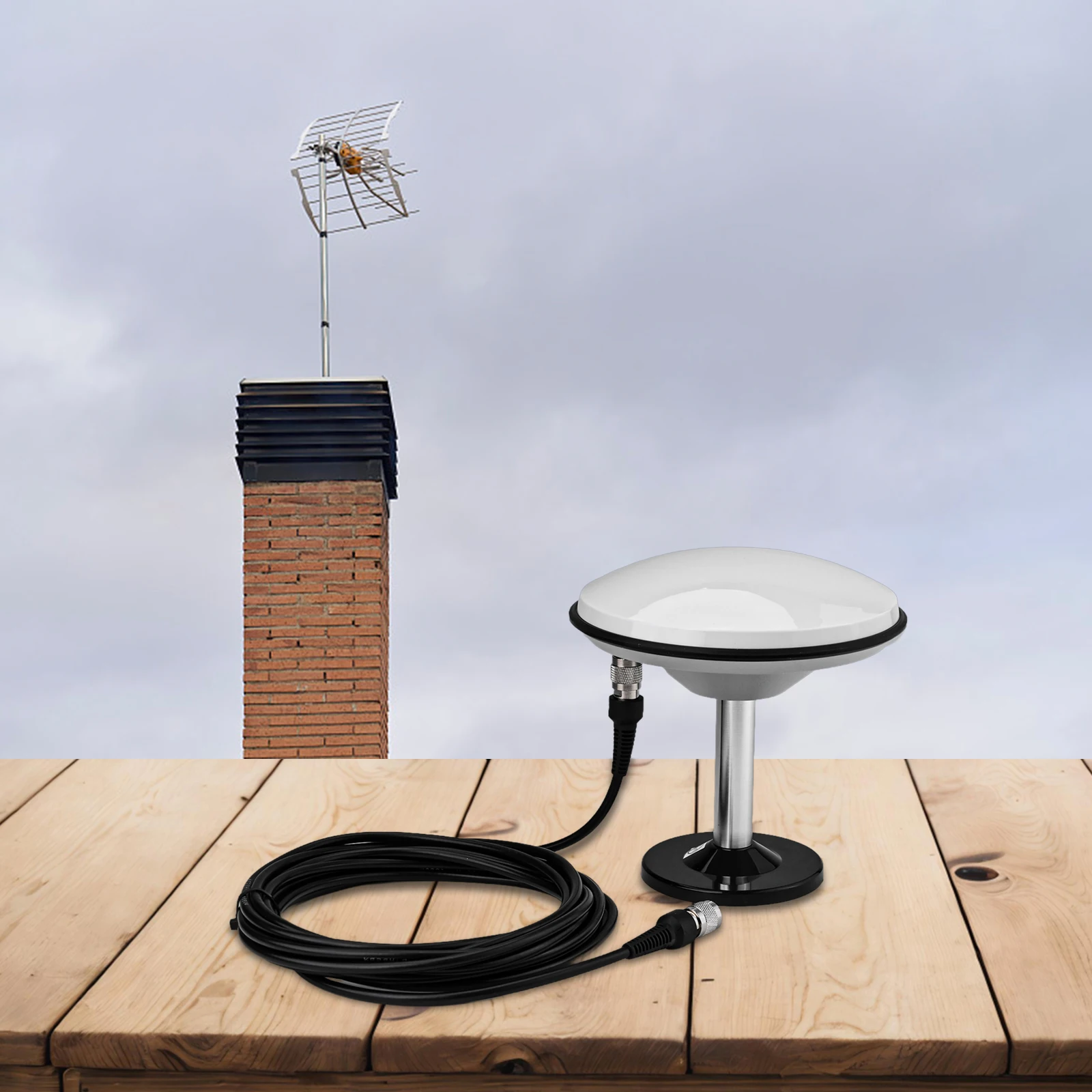

* STARF-107 can receive signals in GPS, GLONASS, Galileo and Beidou frequency bands. The antenna has the characteristics of high gain, good gain at low elevation angles, wide-angle circular polarization, and stable phase center. It is suitable for four-, high-precision surveying and mapping fields, and is widely used in geodetic surveying, road construction, survey, terminal container operations and other occasions.
* The antenna part adopts a multi-feed point design to ensure that the phase center and the geometric center coincide, minimizing the of the antenna on measurement errors;
* The antenna unit has high gain and beam width in the pattern, which ensures the reception of signals at low elevation angles and can still search for stars normally under some serious obstruction conditions;
* High and low temperature resistance, waterproof, anti- cover to protect the antenna
* long term working in the field.

Specification:

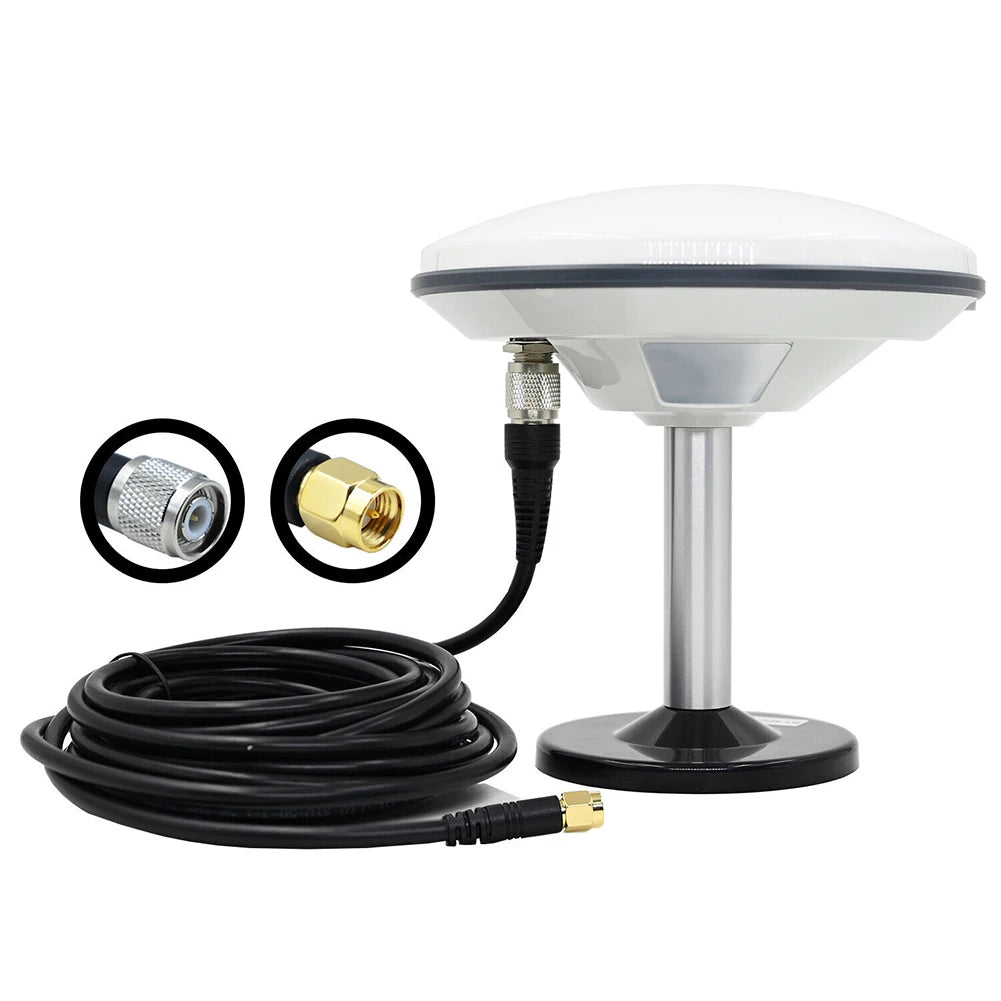

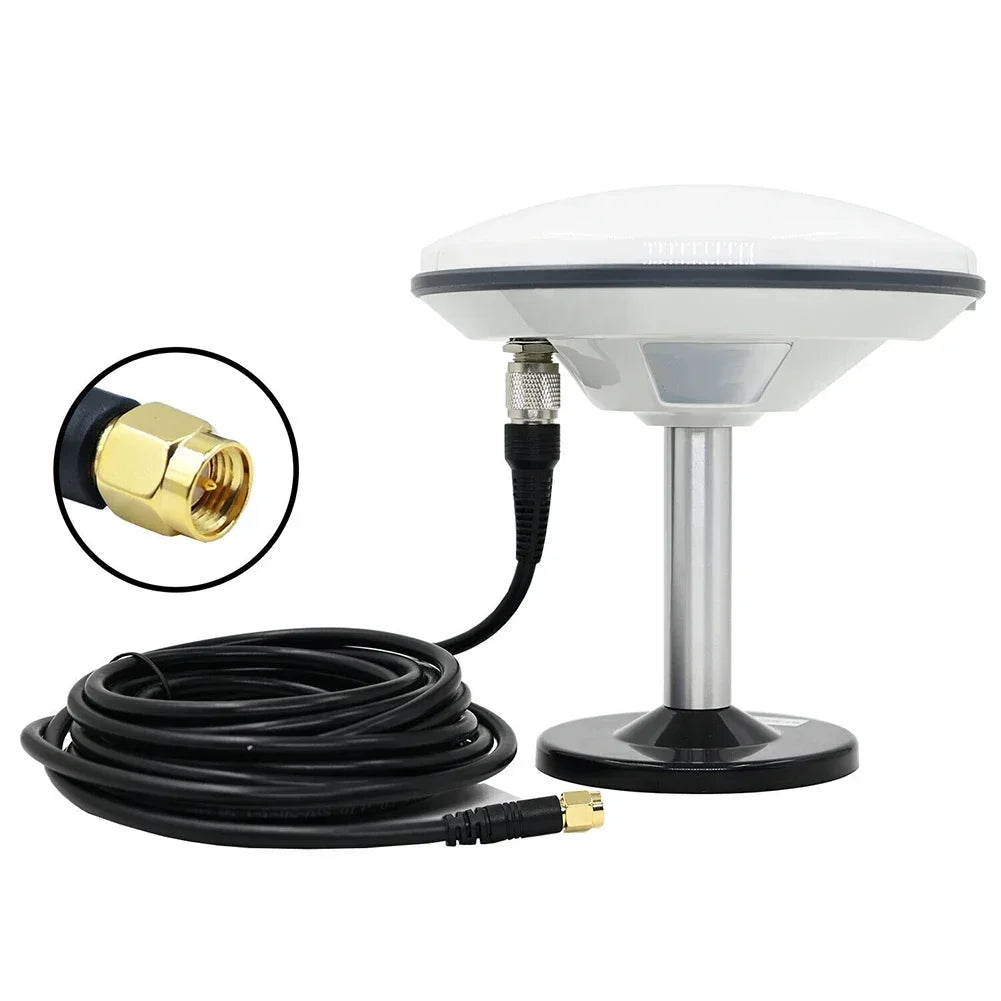

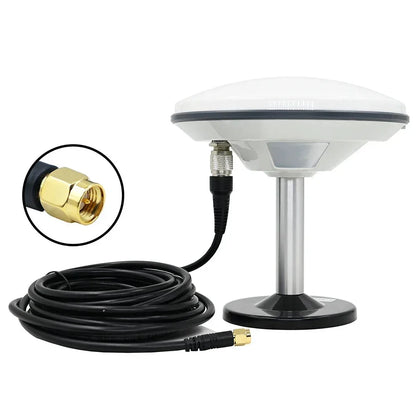

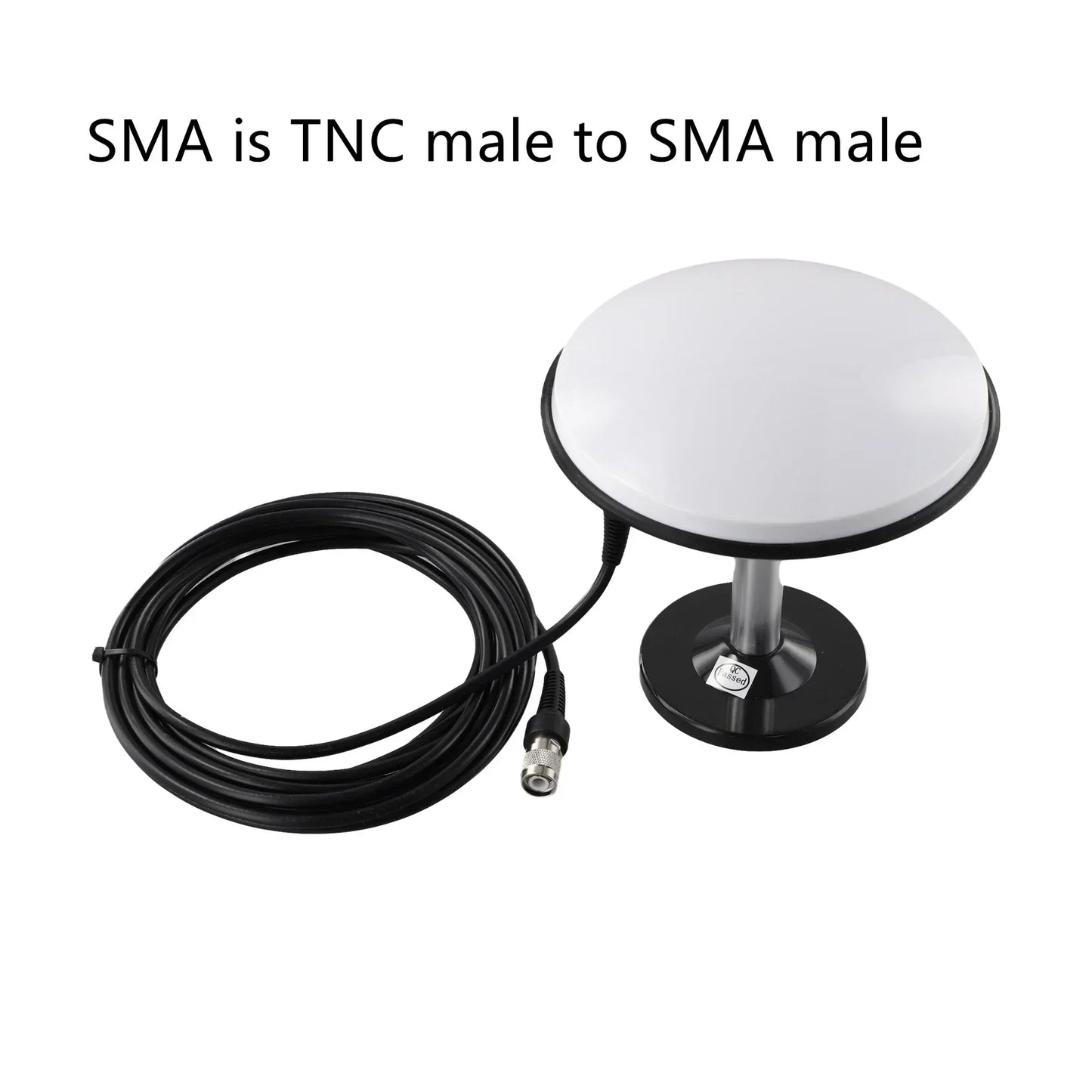

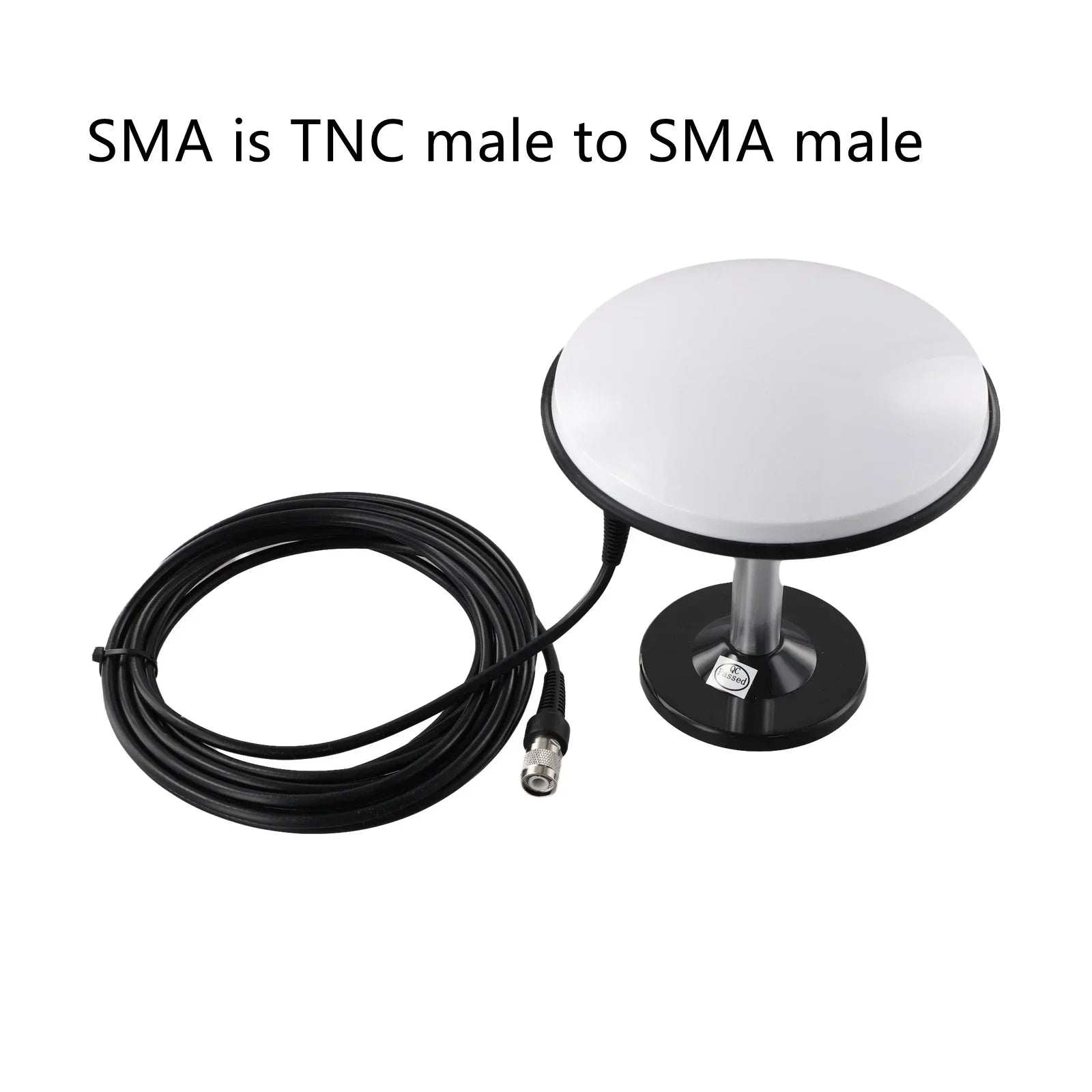

Type(optional): STARF-107+M90SD+cable SMA, STARF-107+M90SD+cable TNC
Material: ASA+
Color: as shown in the picture
Working frequency: GPSL1/L2 BeiDouB1/B2/B3 GLONASSG1/G2 GalileoE1/E5b
Polarization type: RHCP
Impedance: 50Ω
Horizontal coverage angle: 360°
Output standing wave ratio:≤1.5
Antenna AR:≤3dB
Phase center error:≤3mm
Low Noise Amp lifier Specifications
for LNA gain: 40±2dB
Noise figure:≤1.5dB
Output standing wave ratio:≤1.5
Working voltage:+3V~+16V
Working current:≤50mA

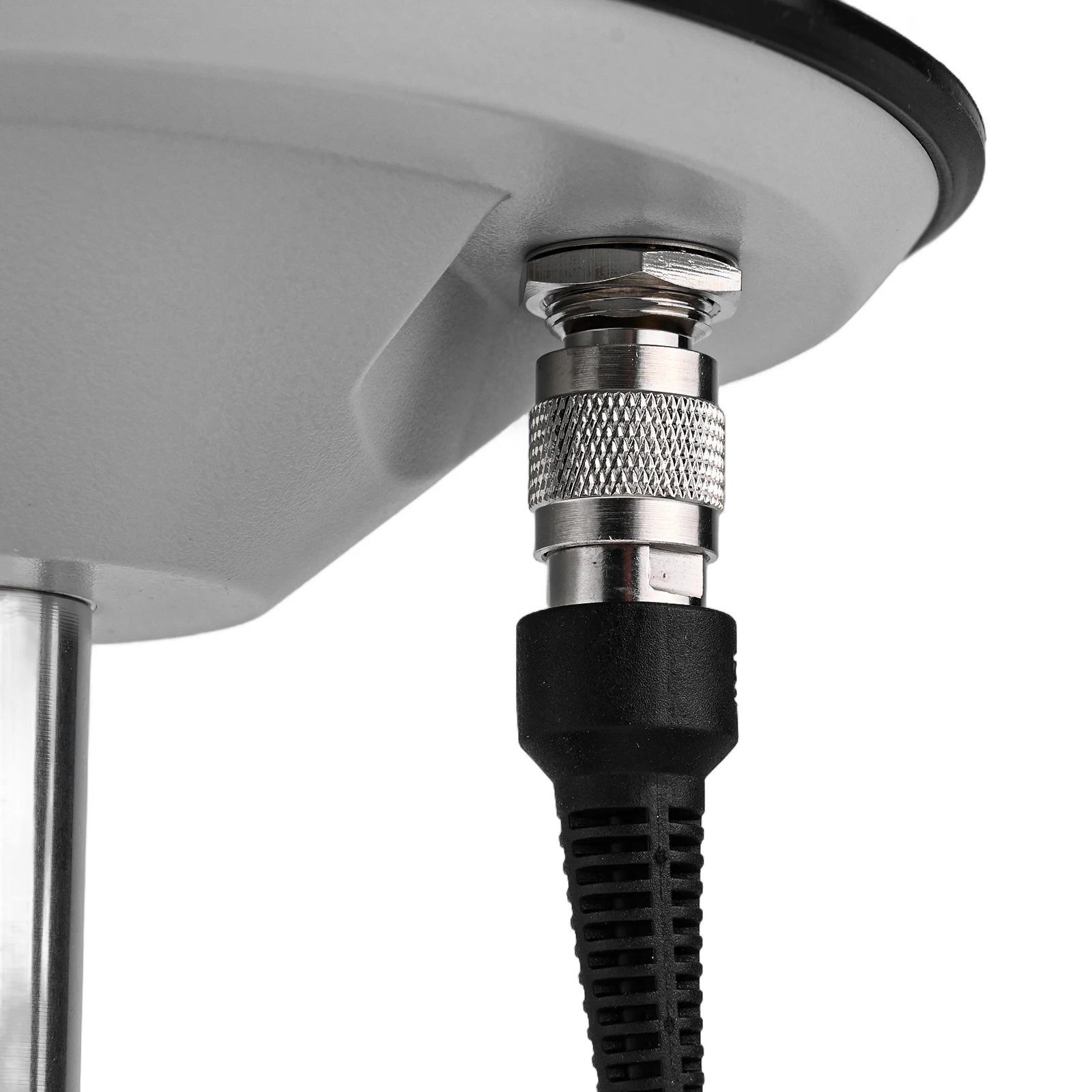

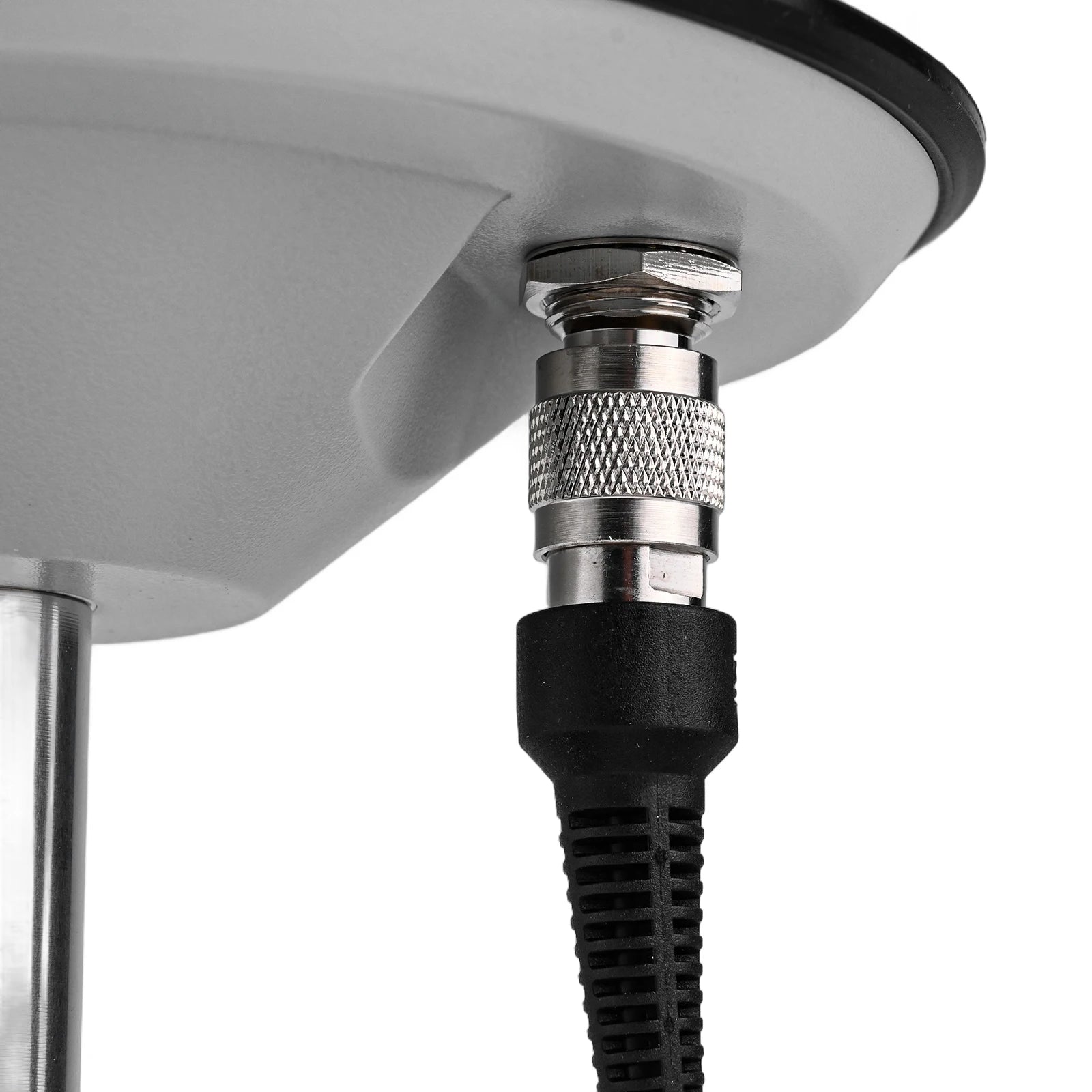

Connector: TNC-K(female), supports customization

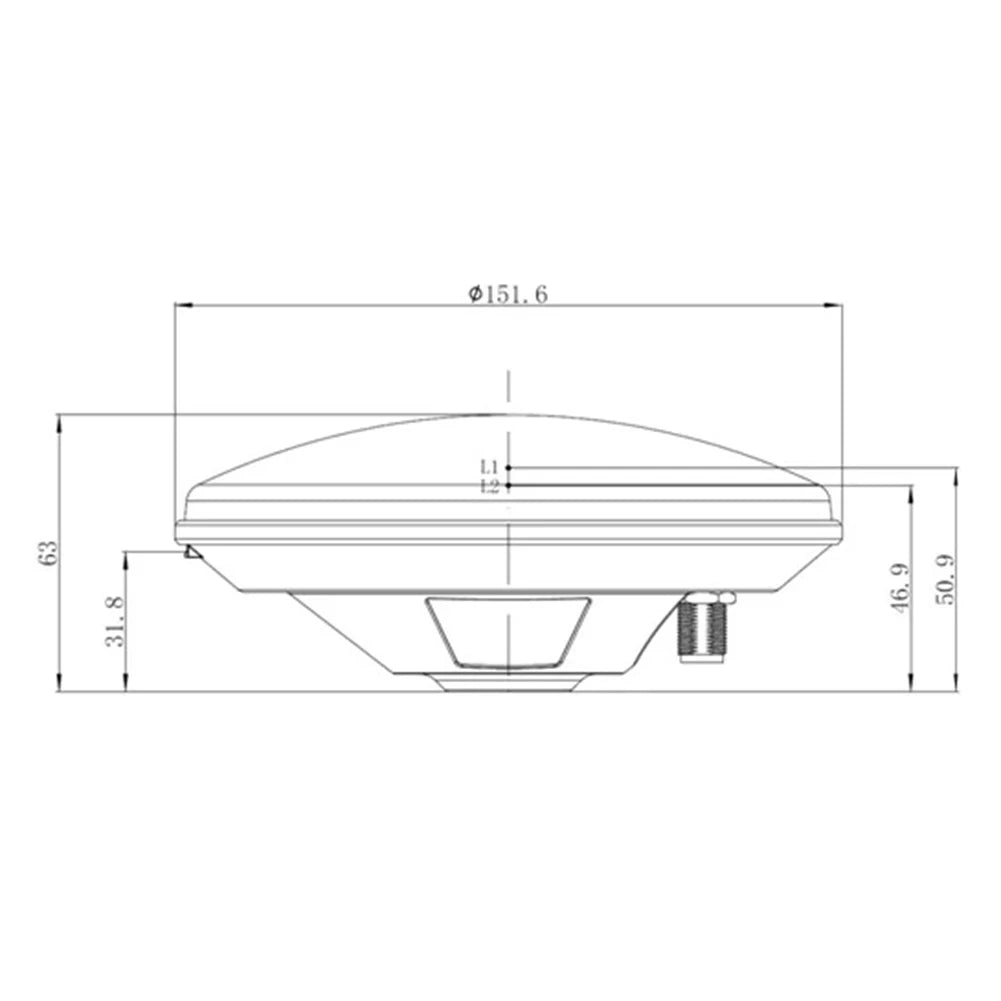

Antenna size(mm):Ф151.6mm×63mm
Working temperature(℃)-40℃:~+70℃
Storage temperature(℃)-55℃:~+85℃
Waterproof grade: IP67
Size: as shown in the picture

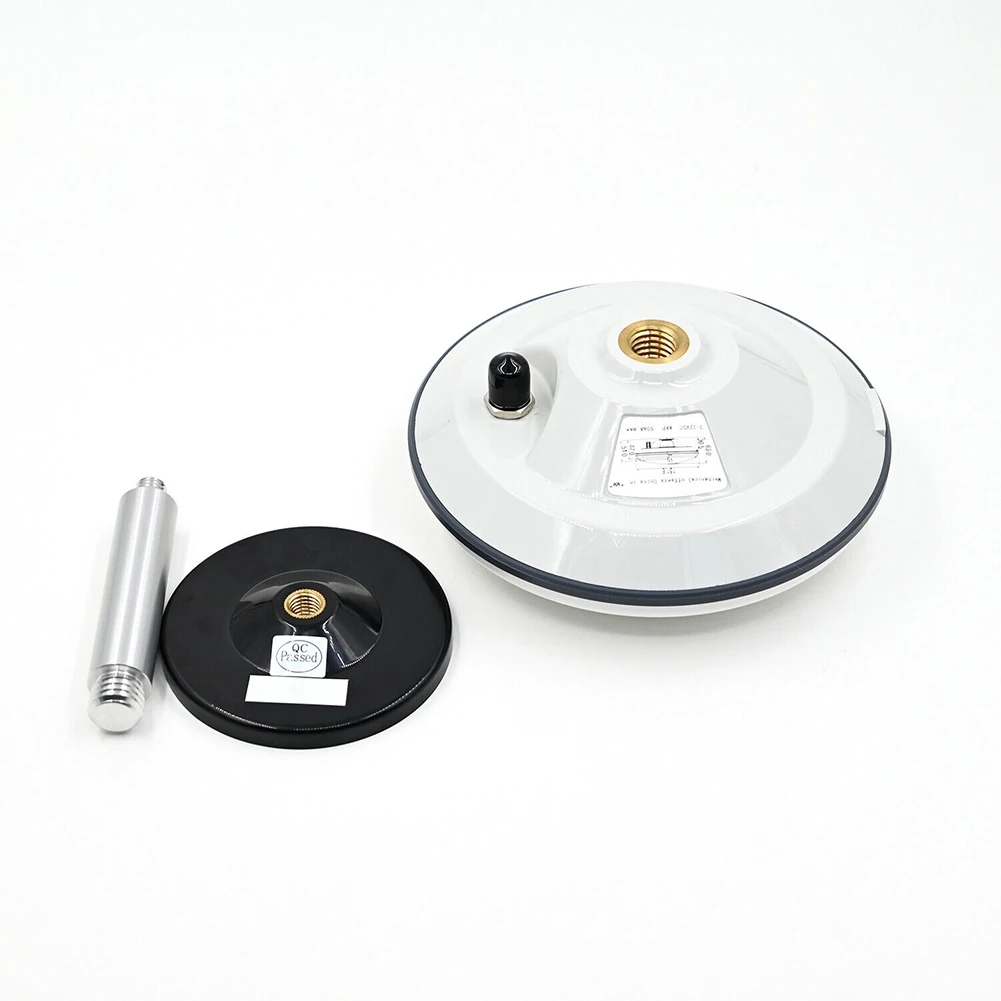

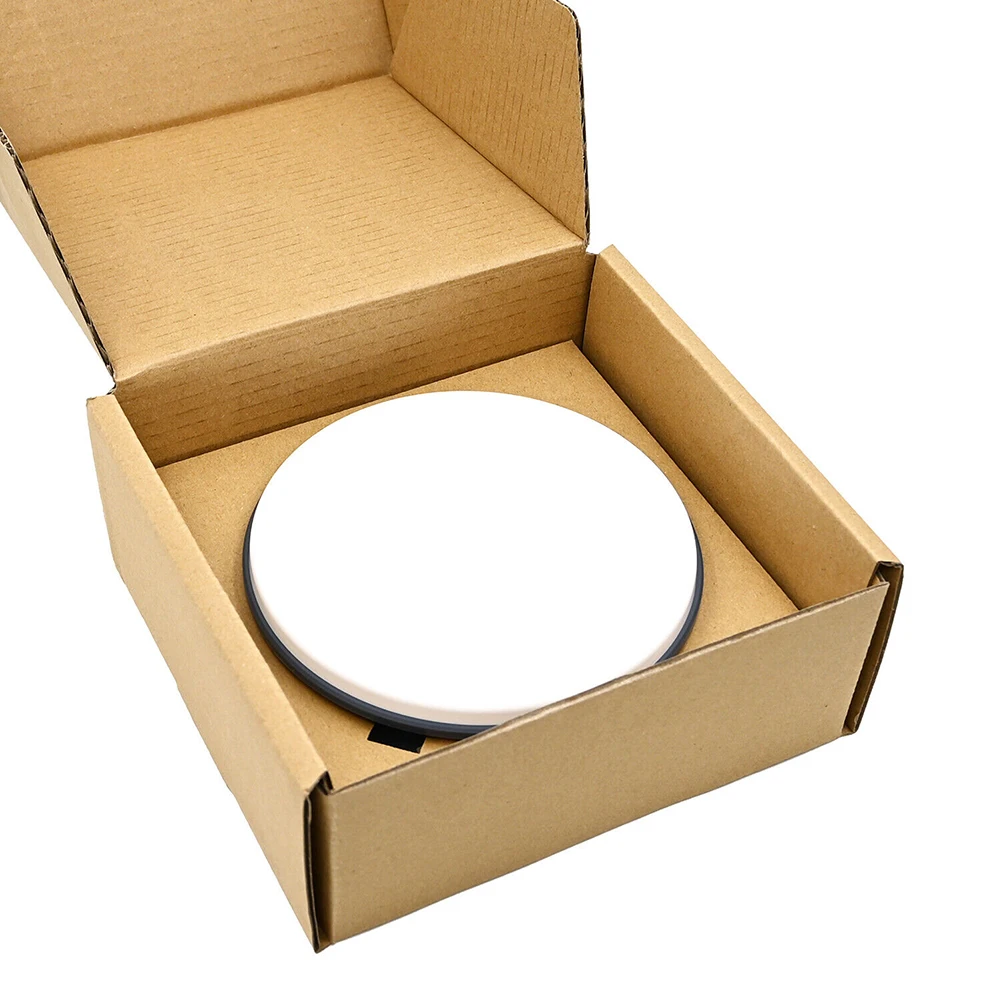

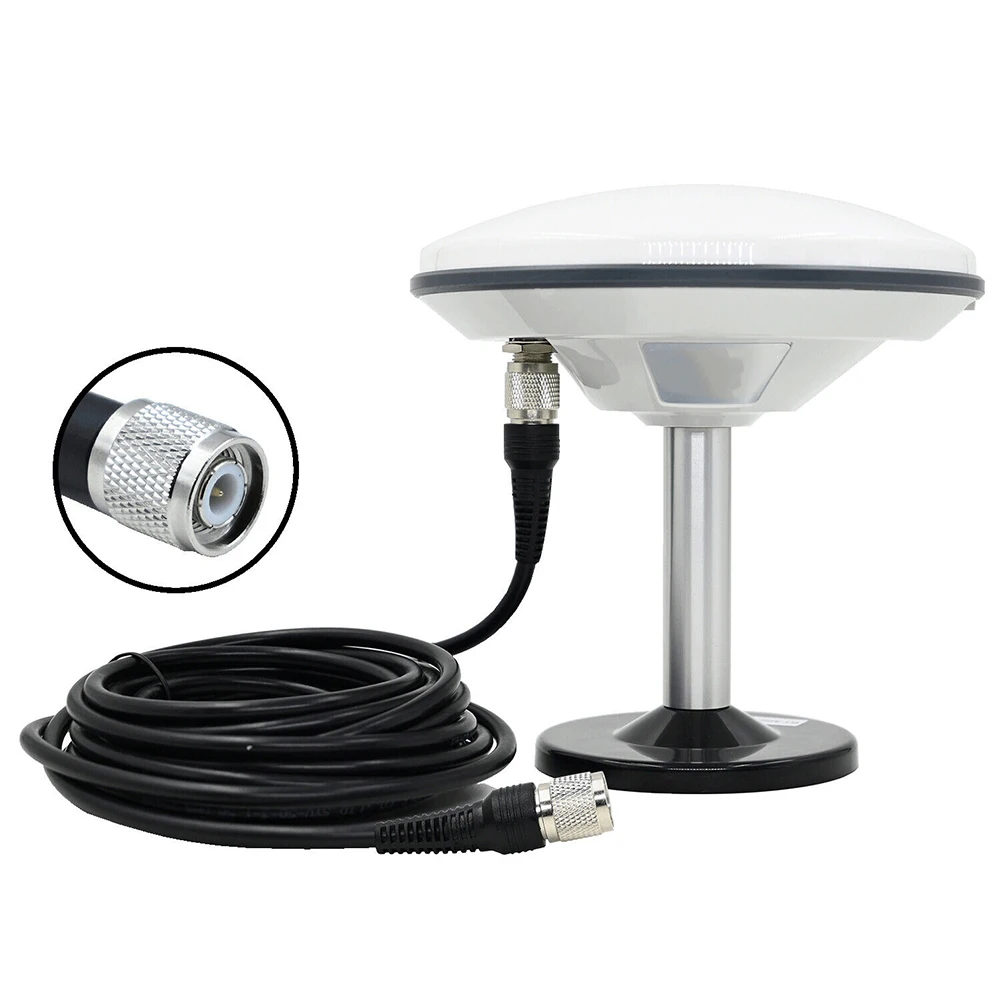

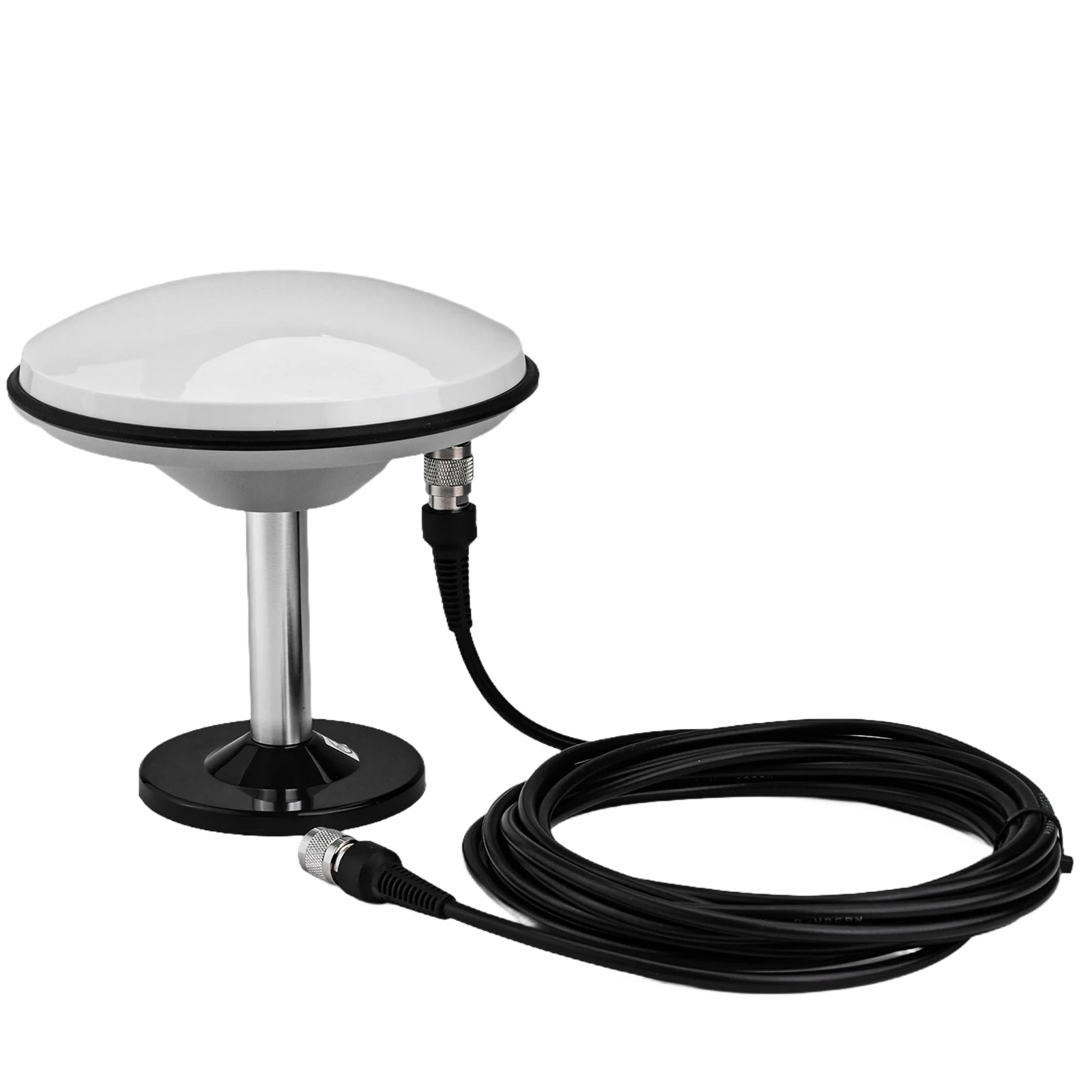

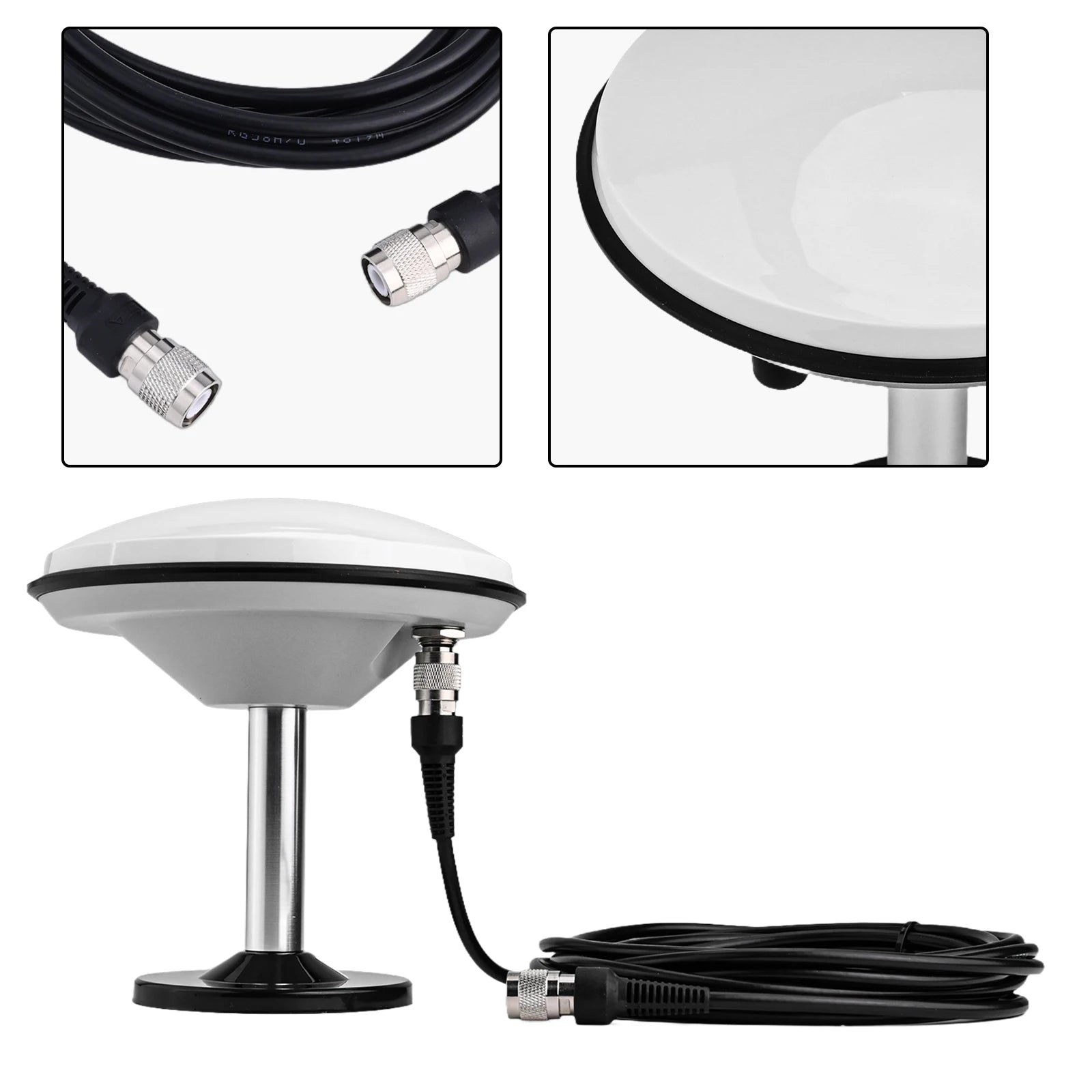

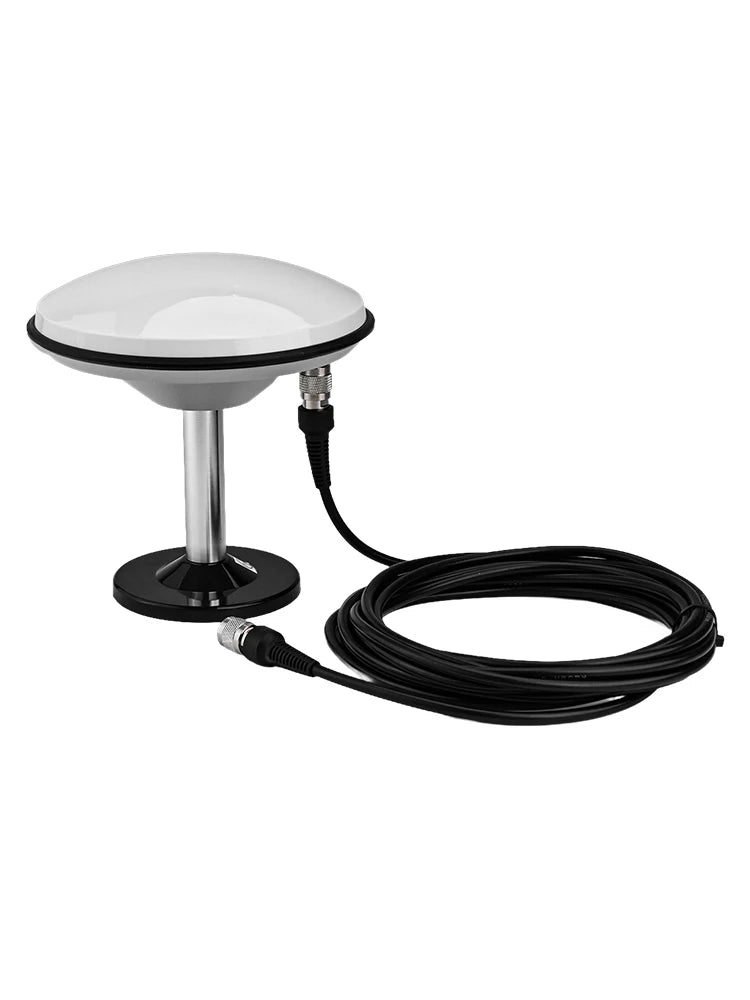

Package Contents:

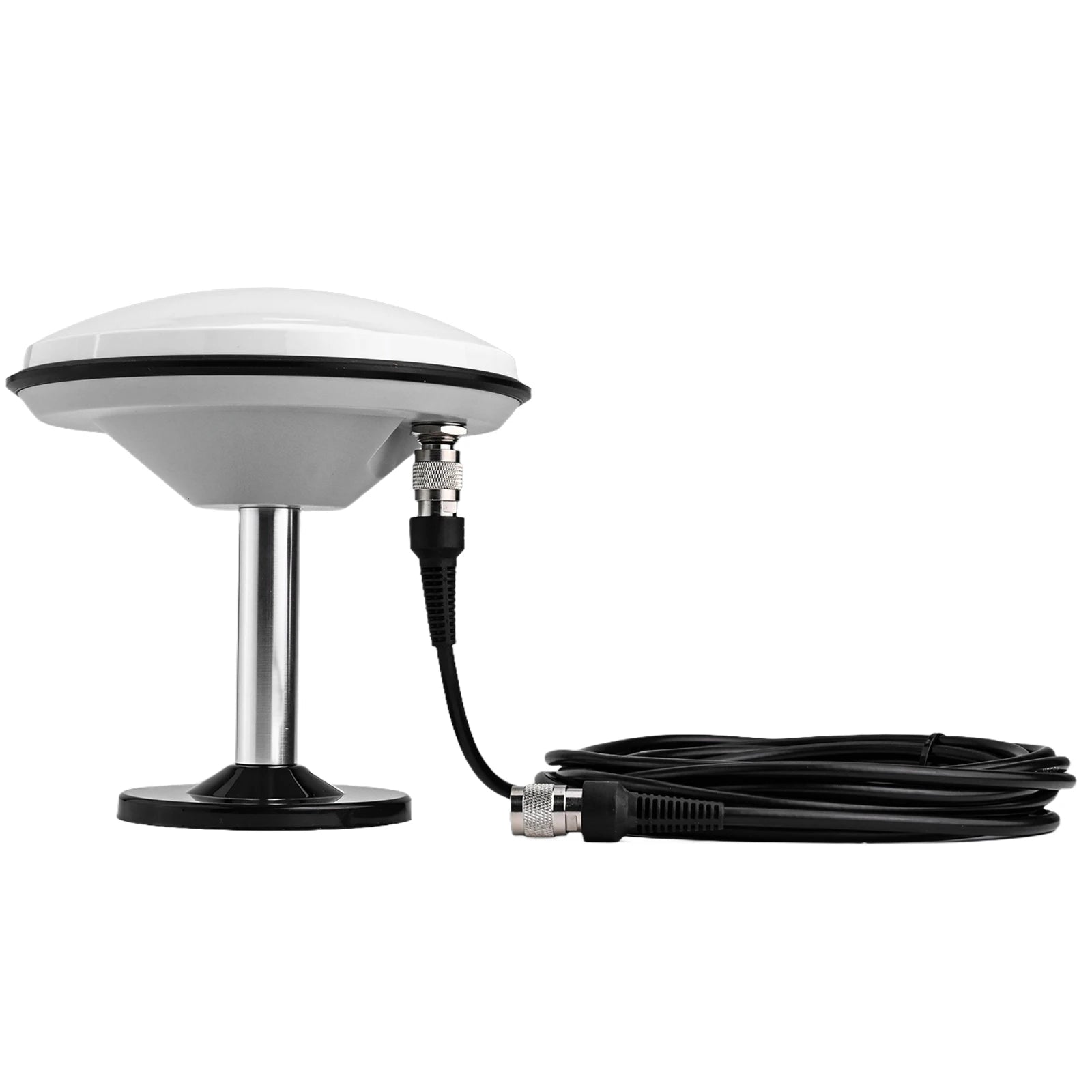

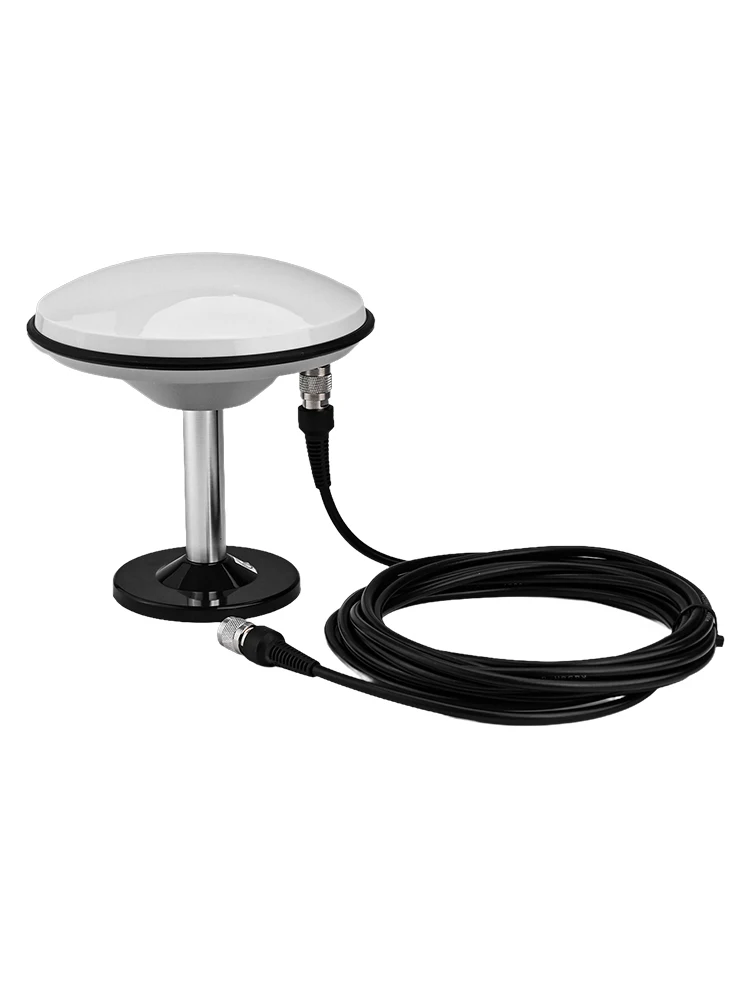

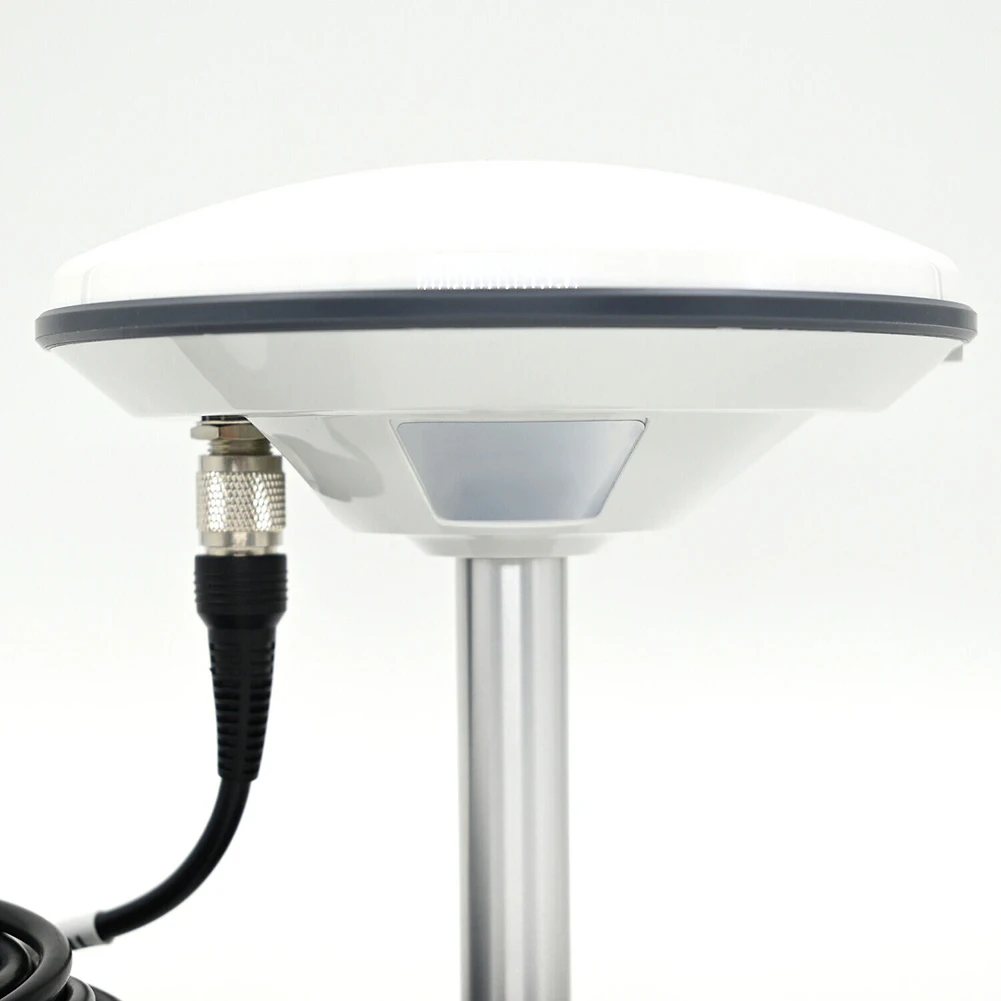

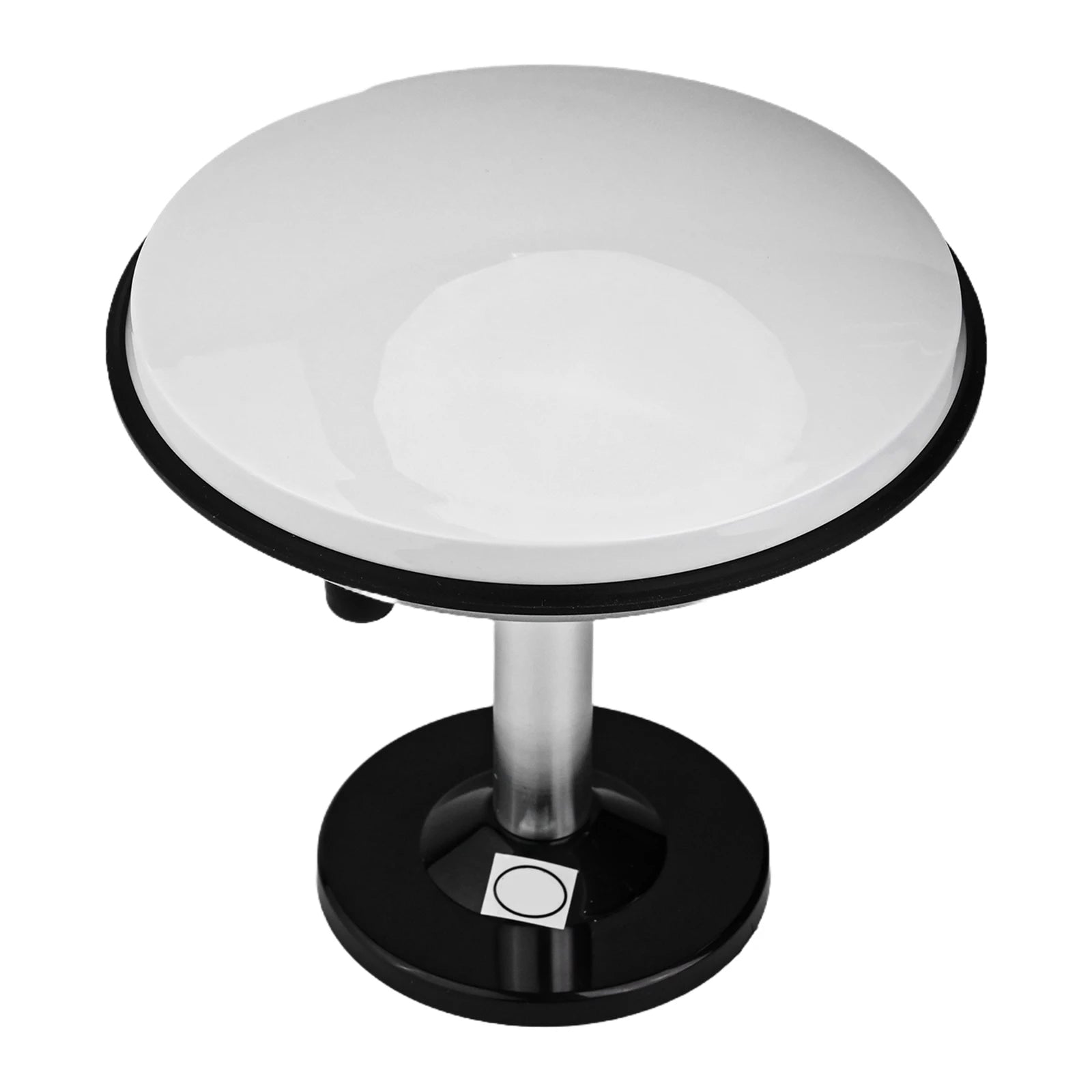

1 x STARF-107 antenna

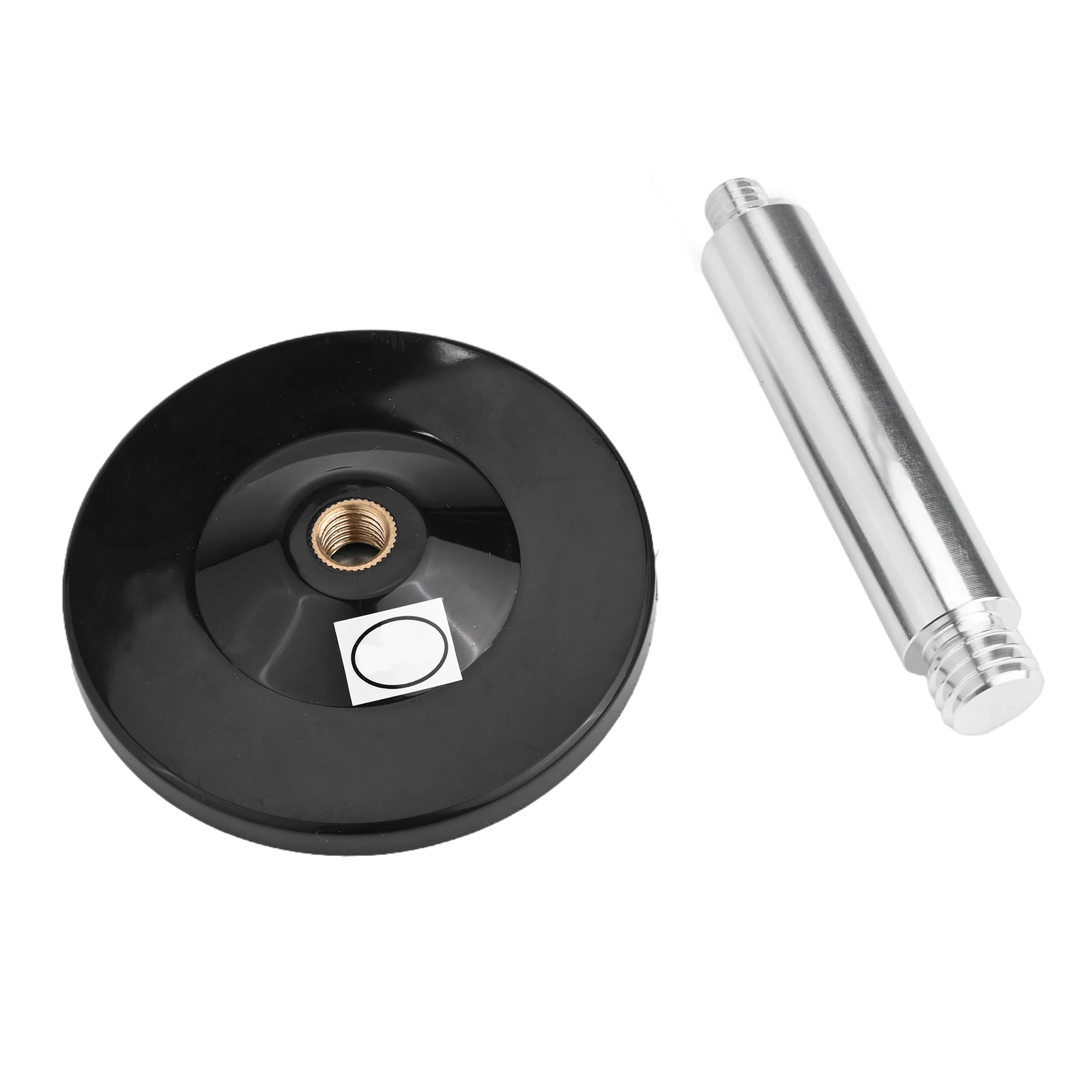

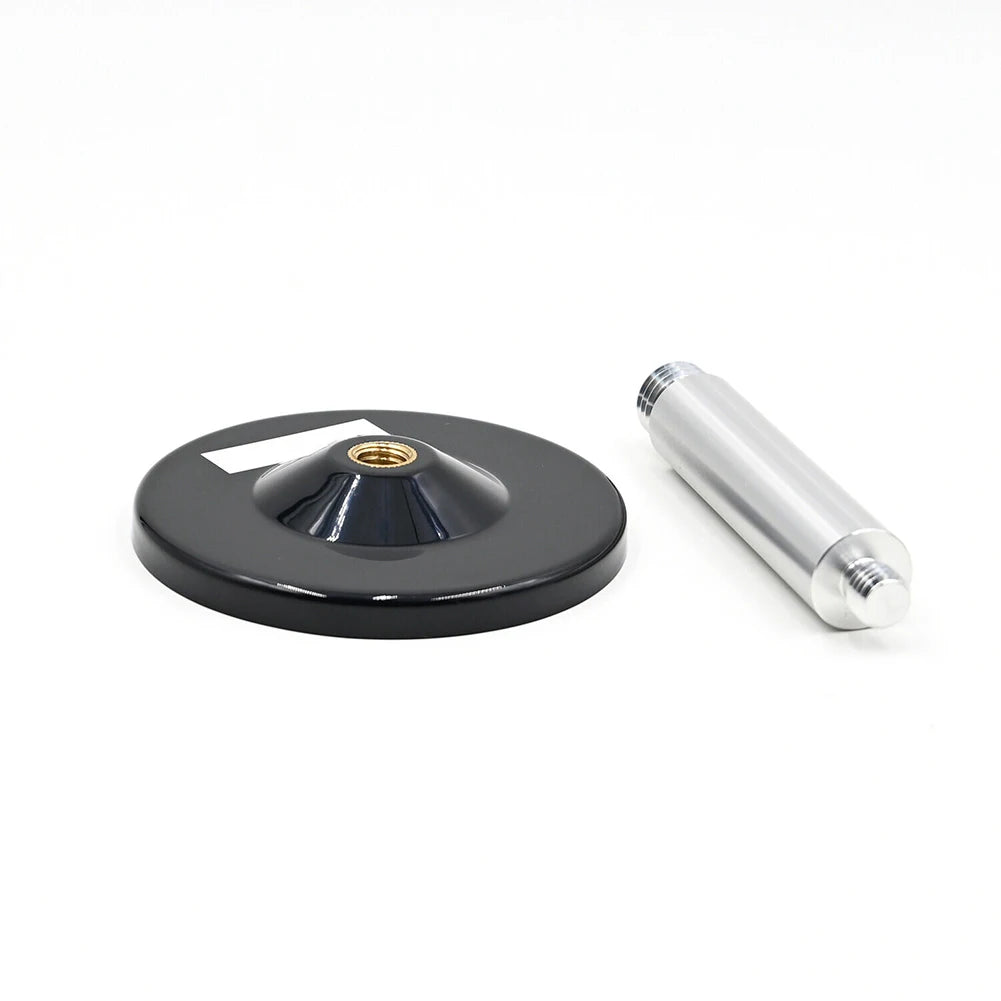

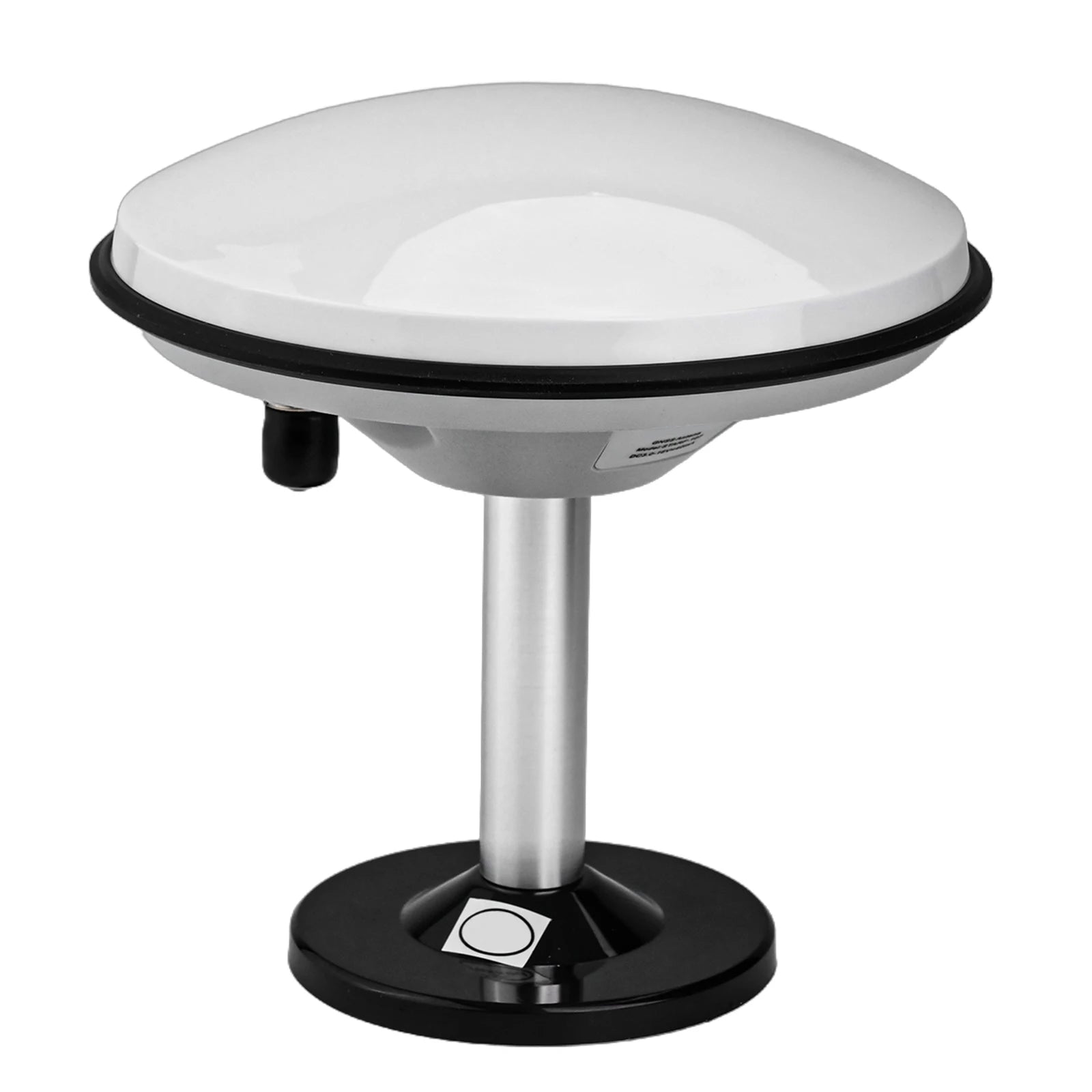

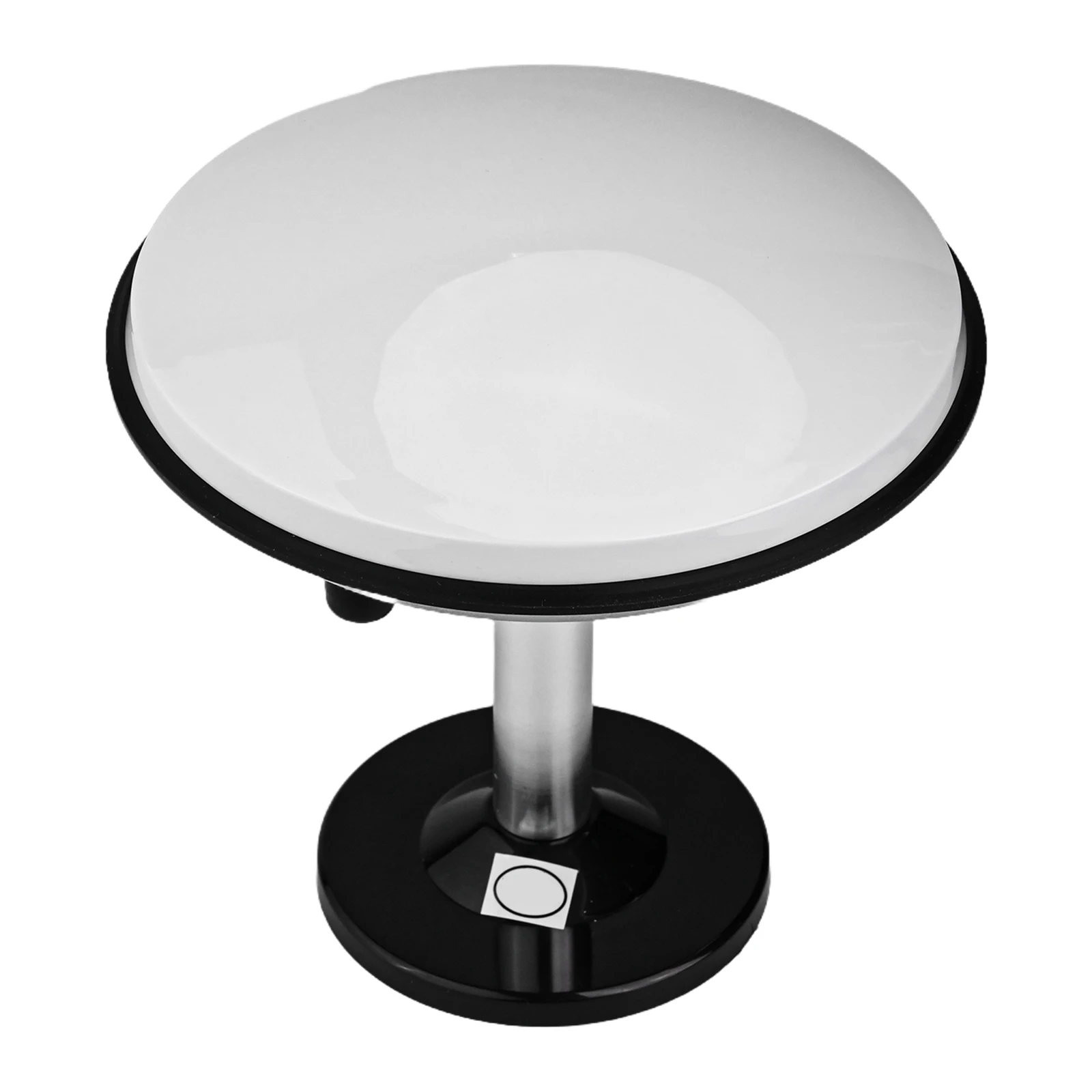

1 x M90SD magnetic base

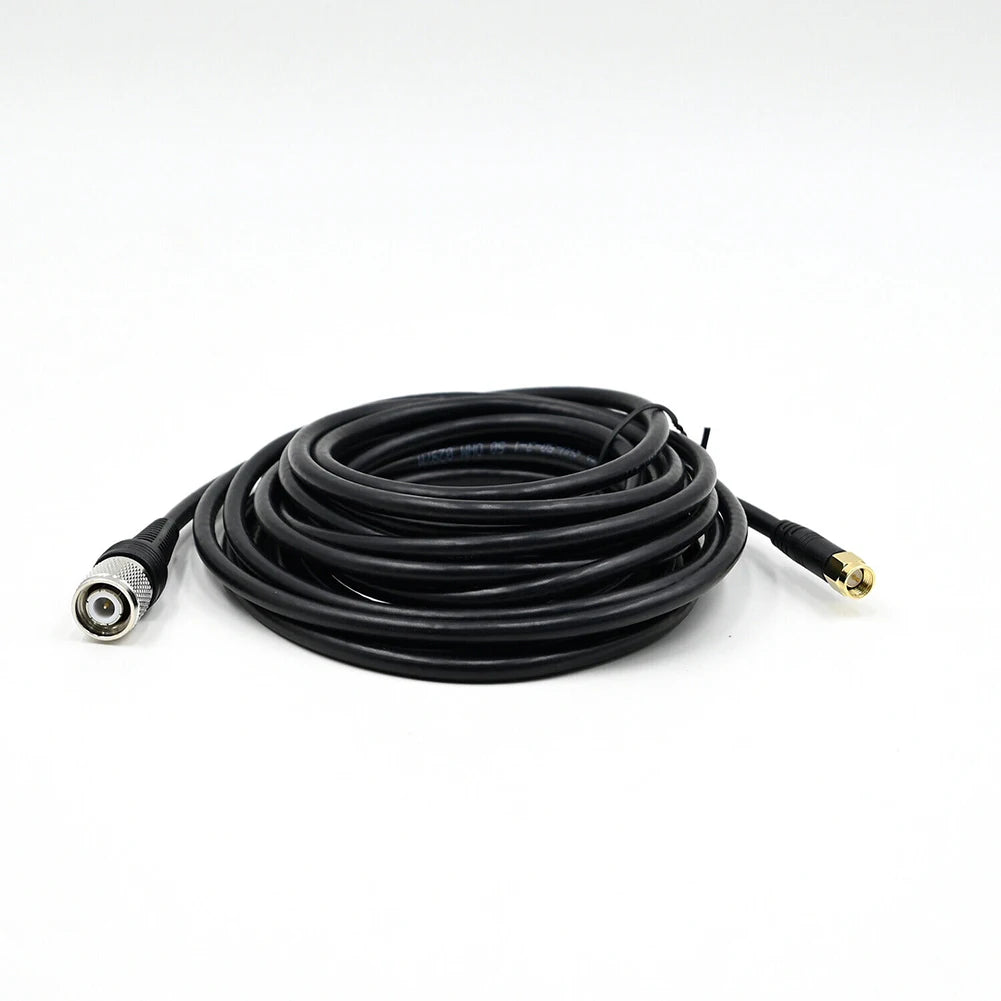

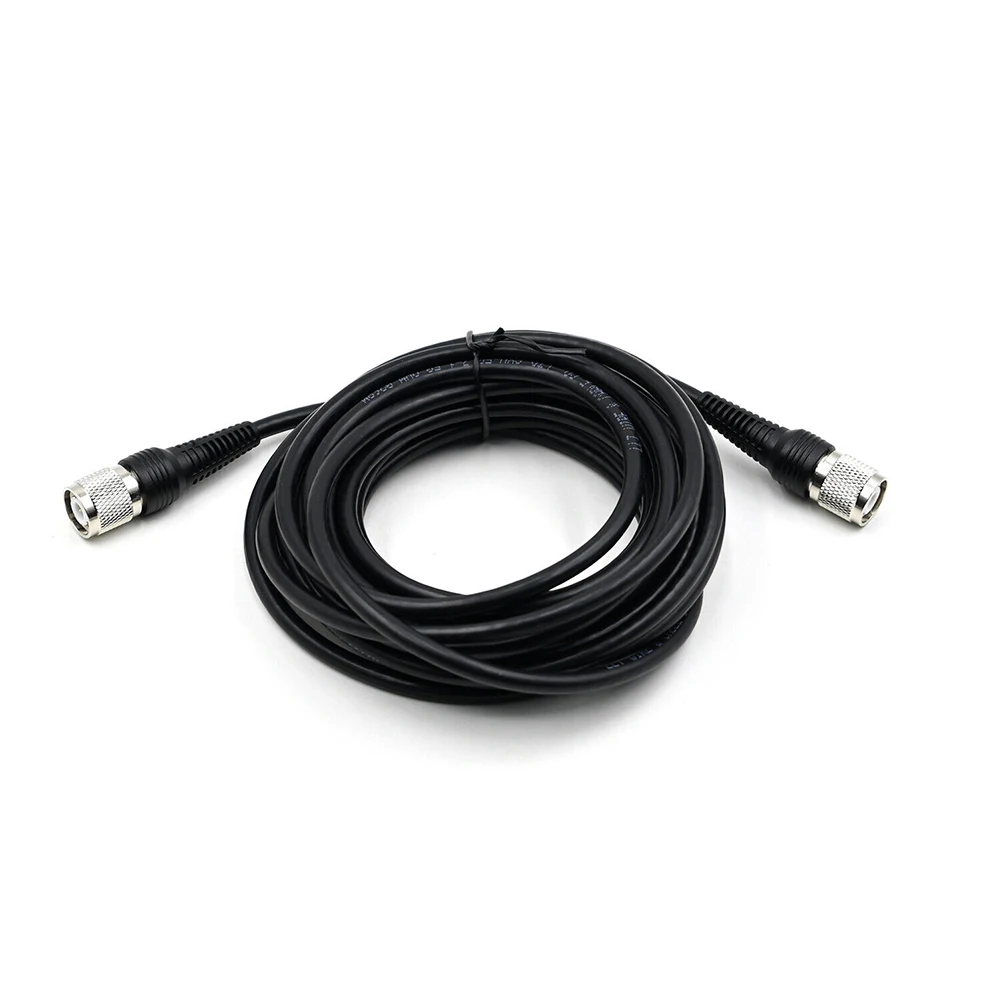

1 x 5m signal cable

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
