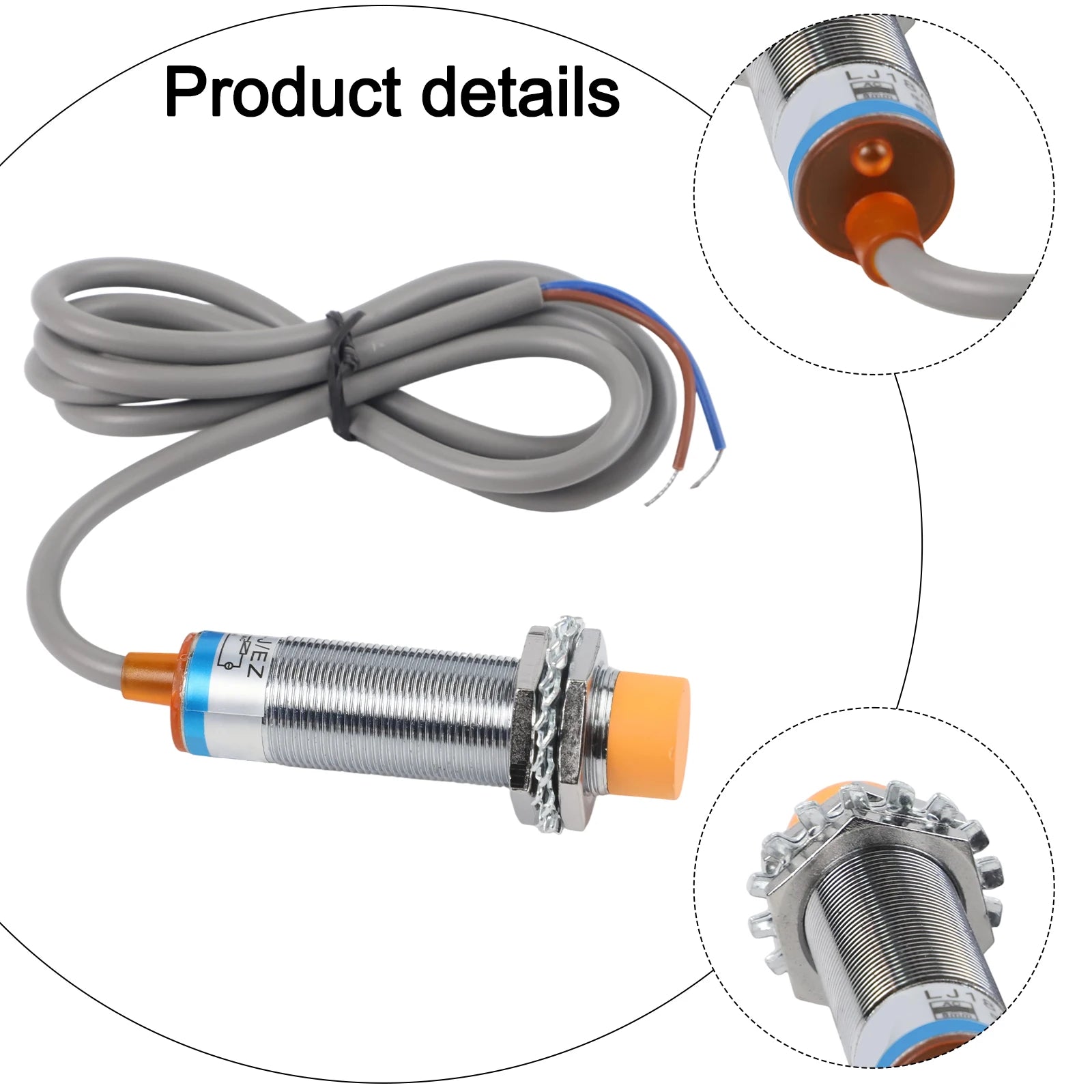

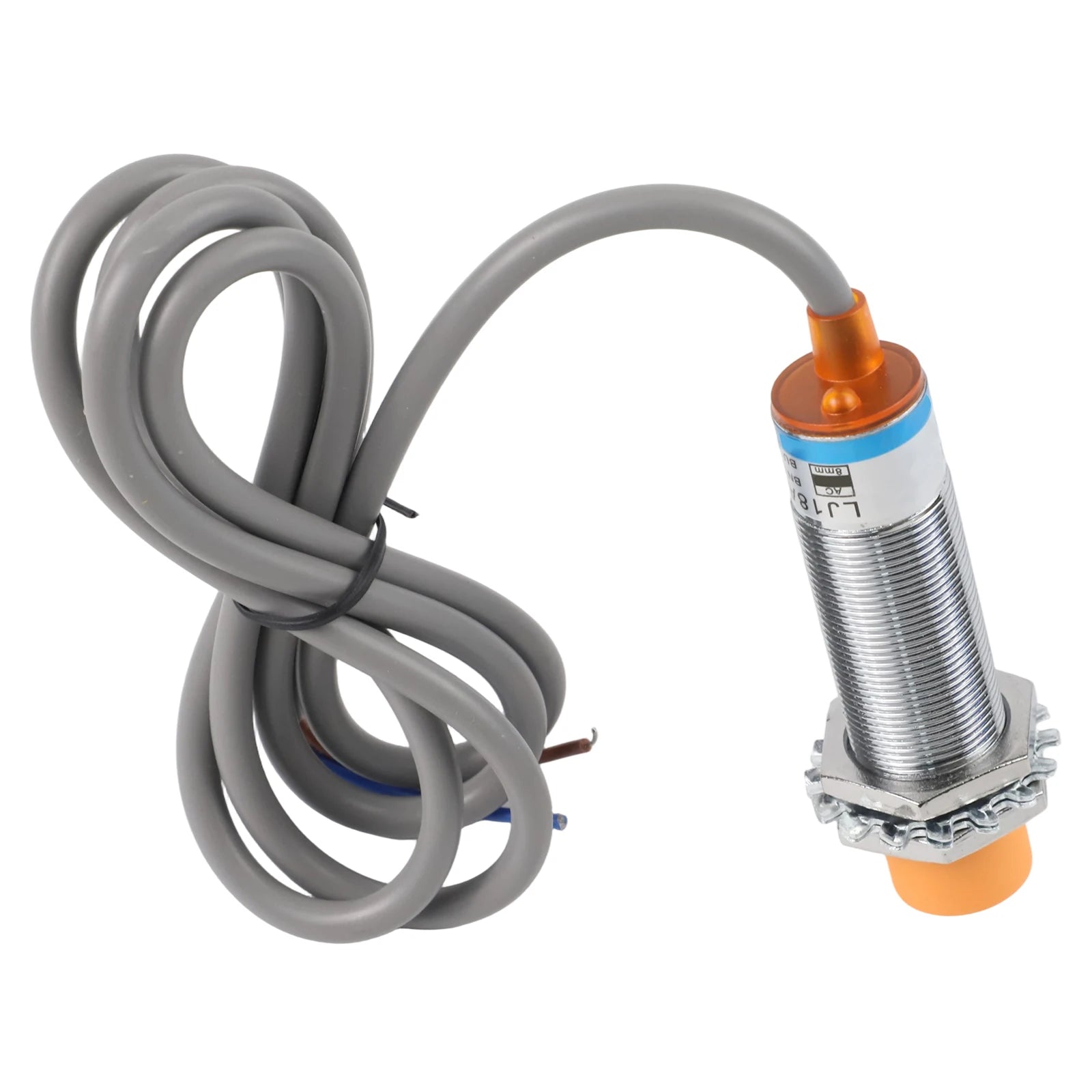

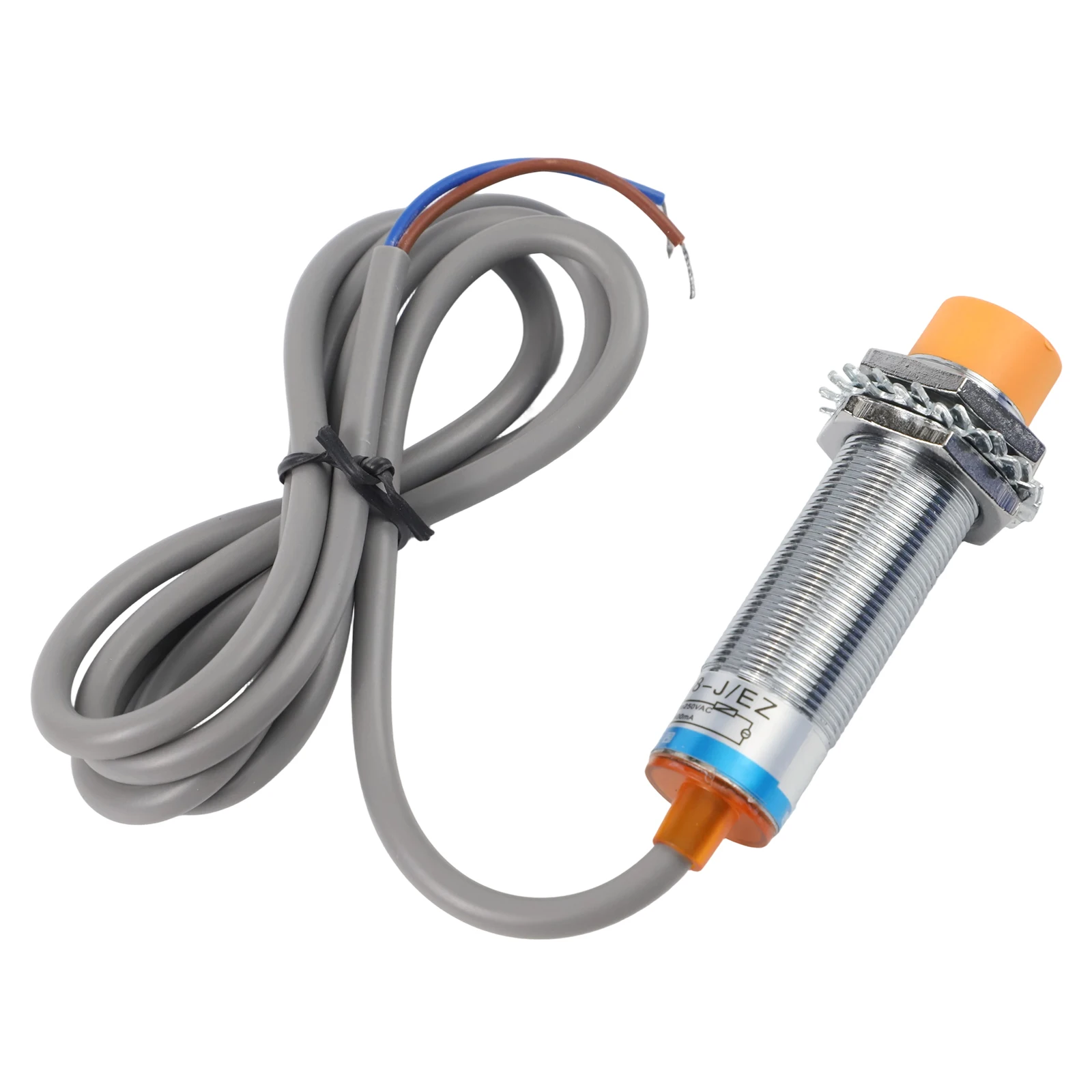

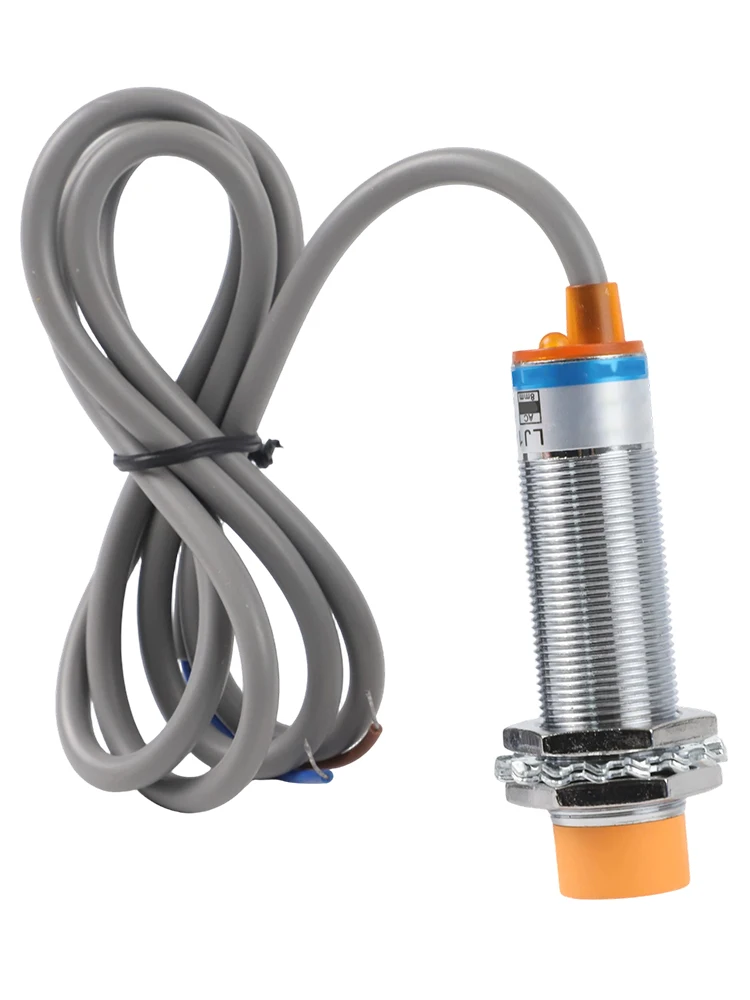

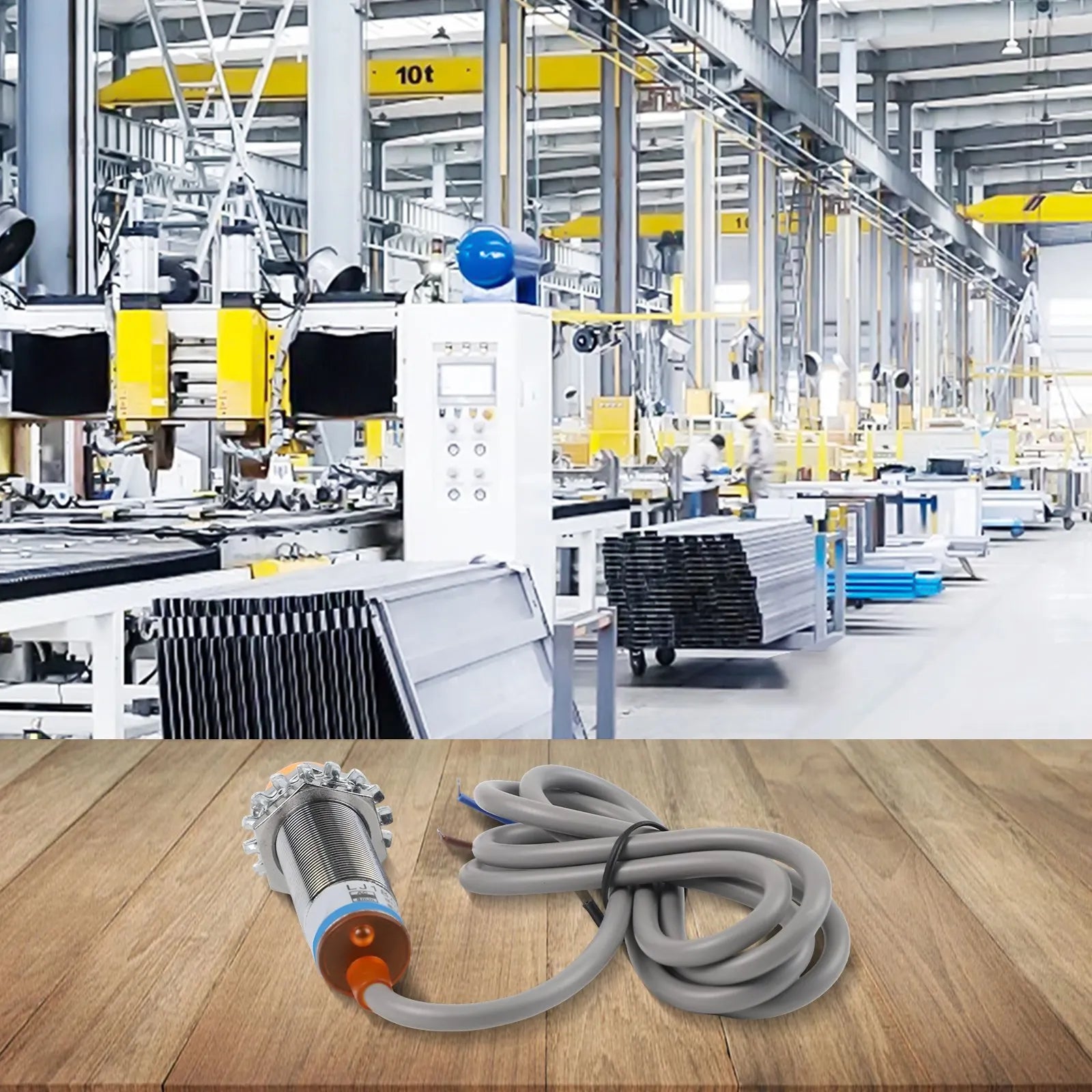

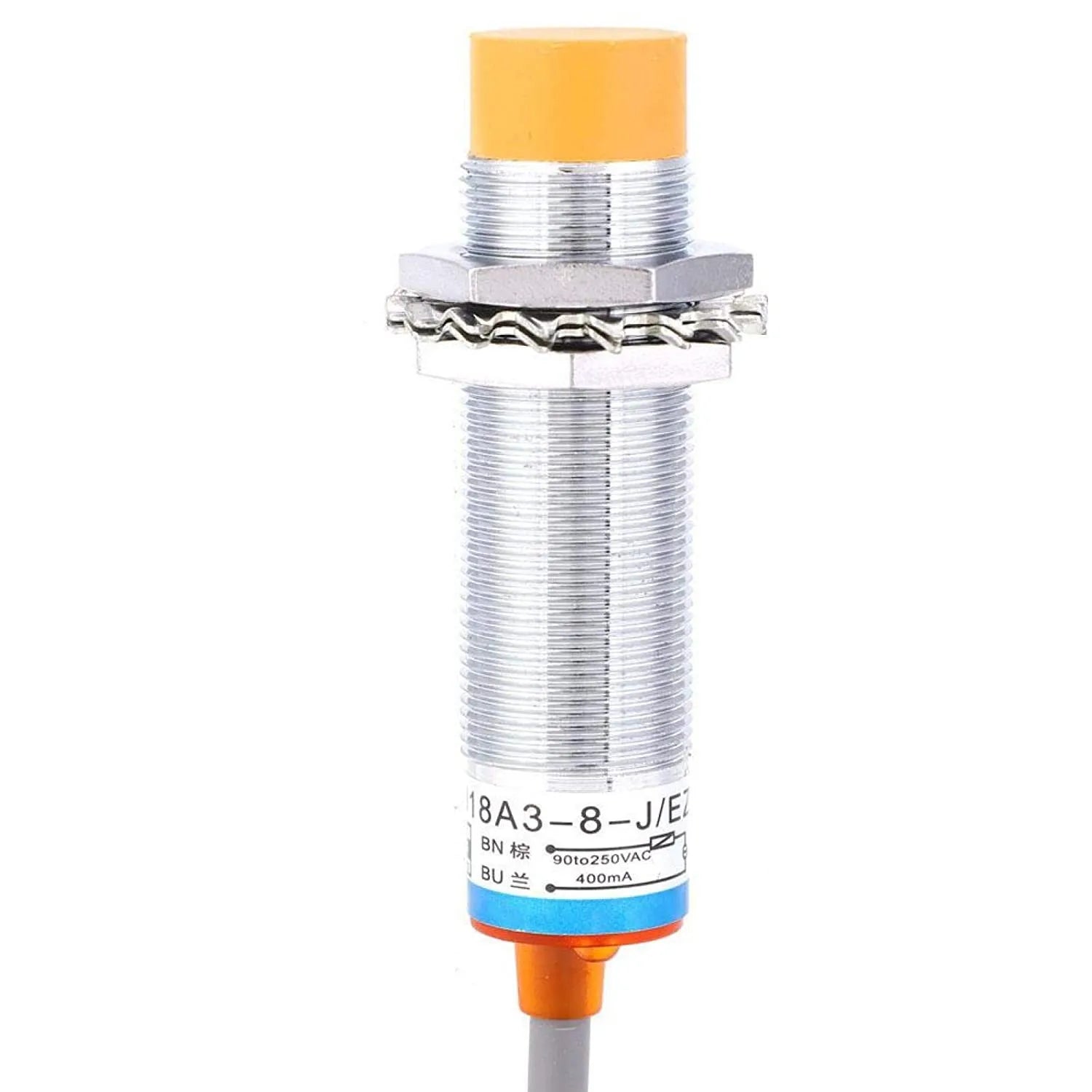

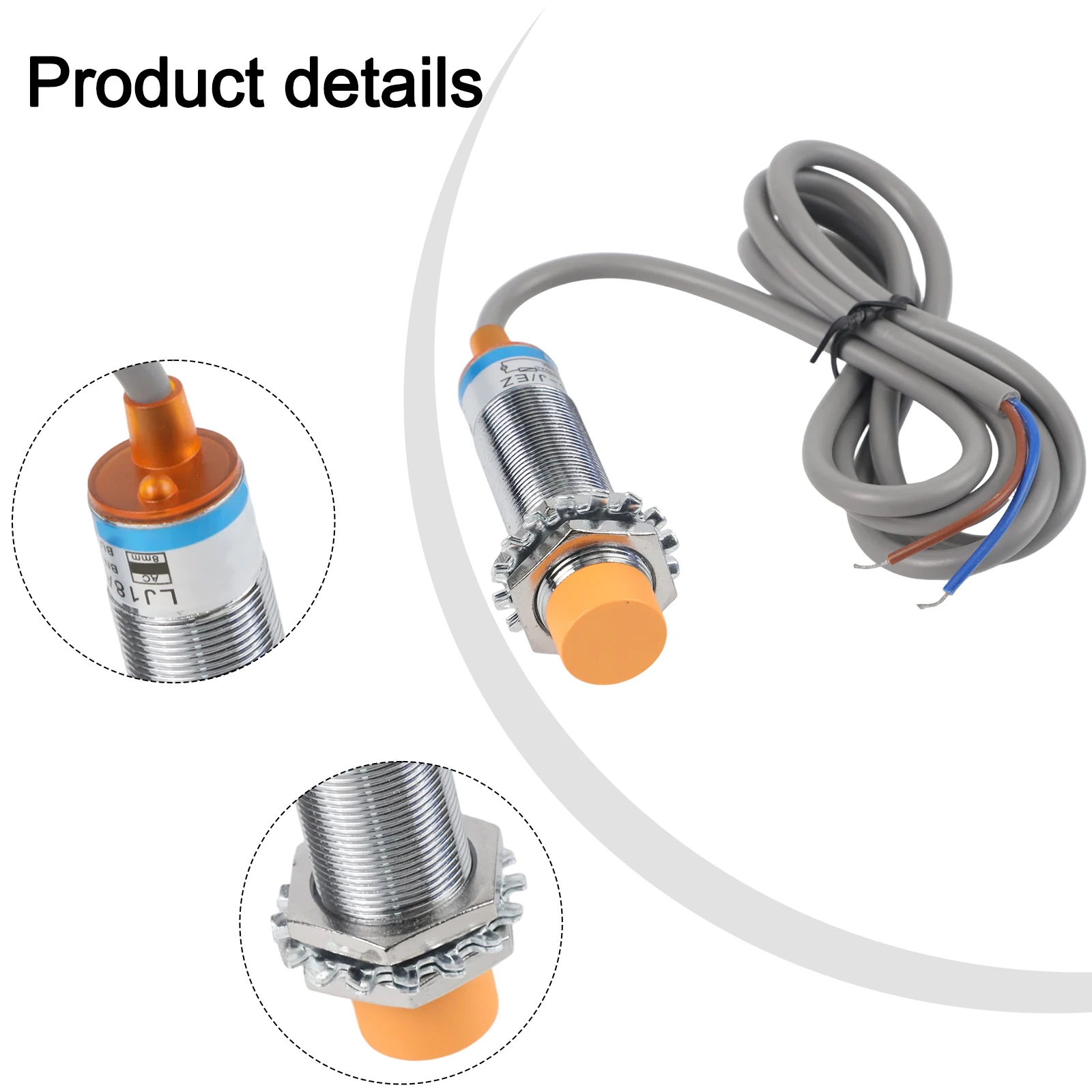

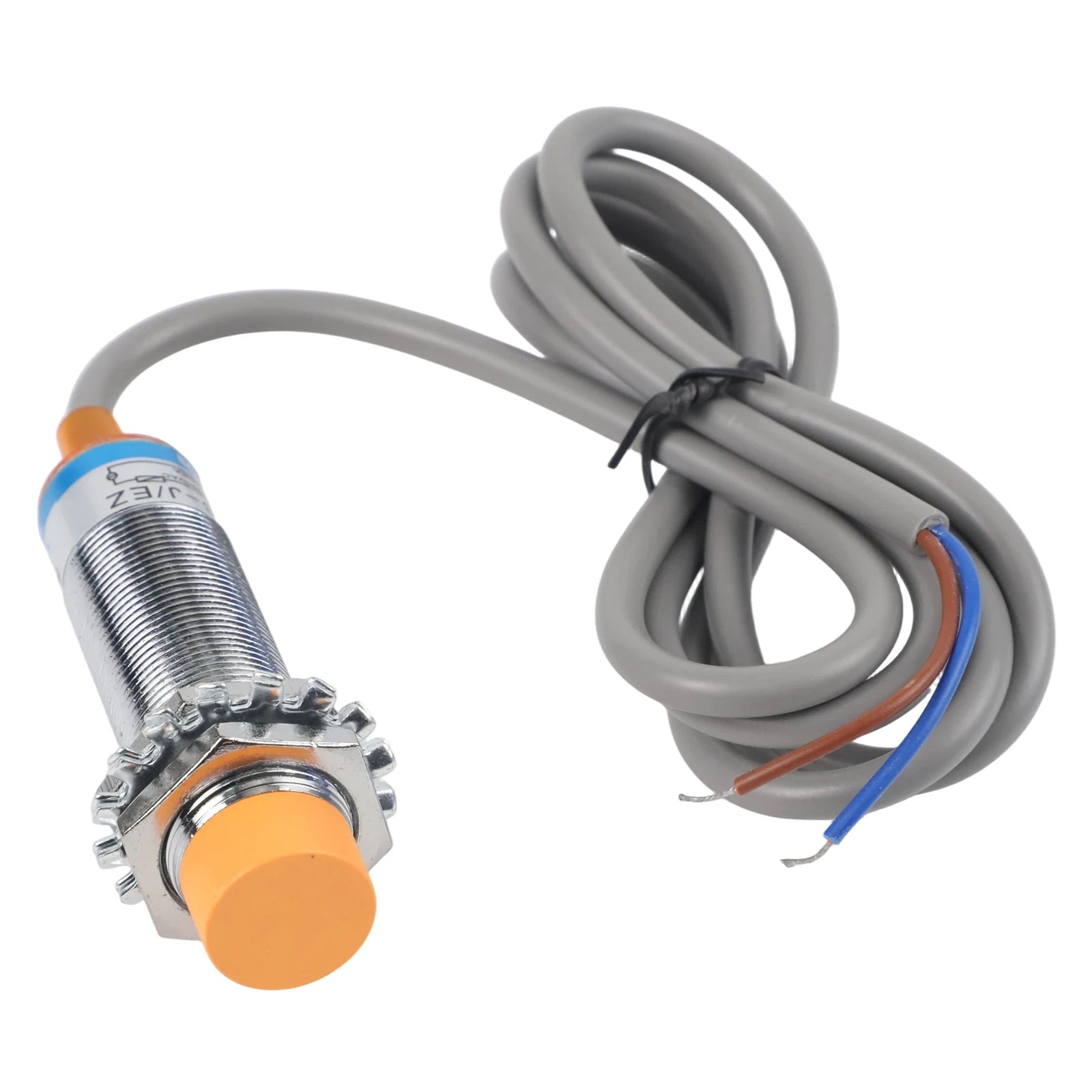

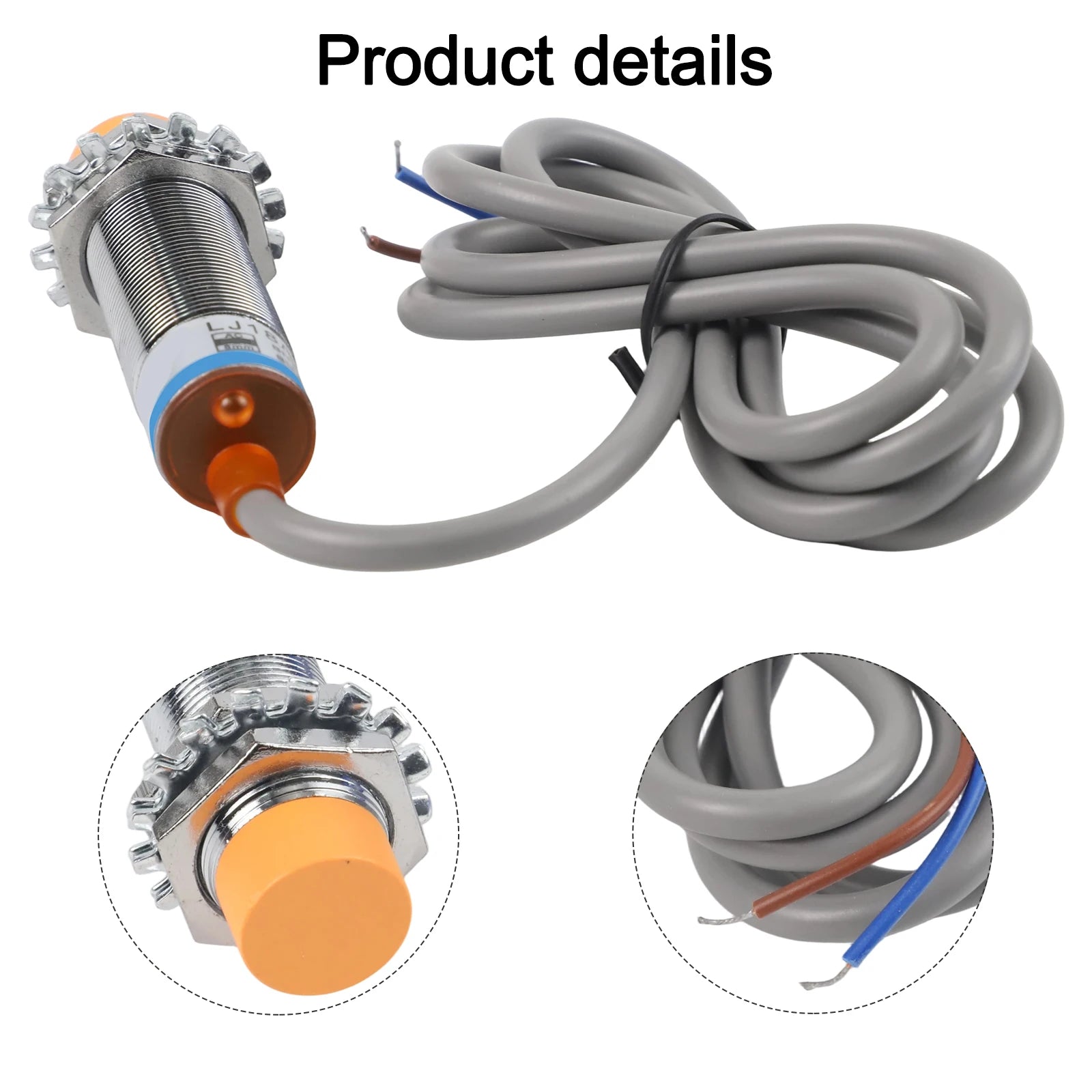

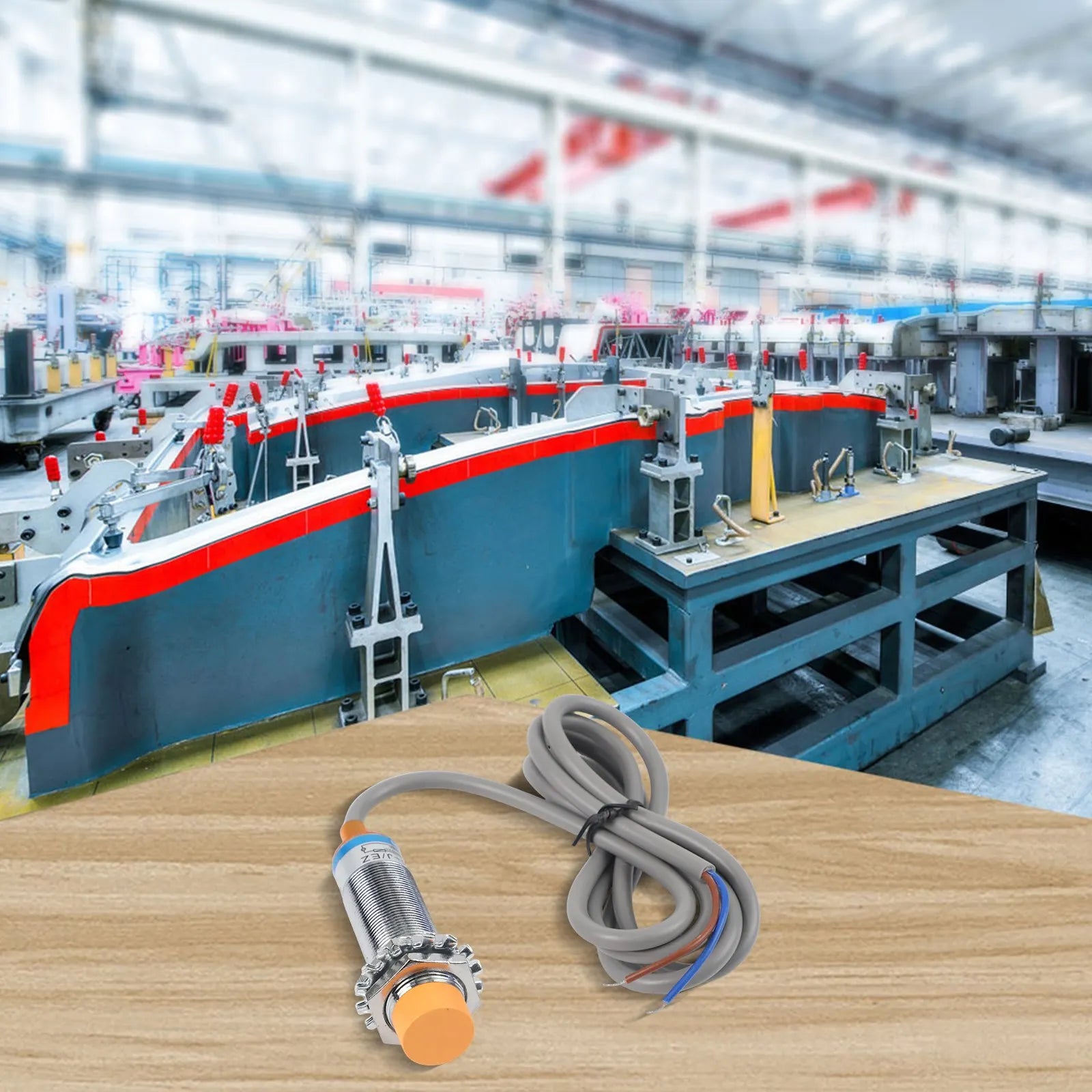

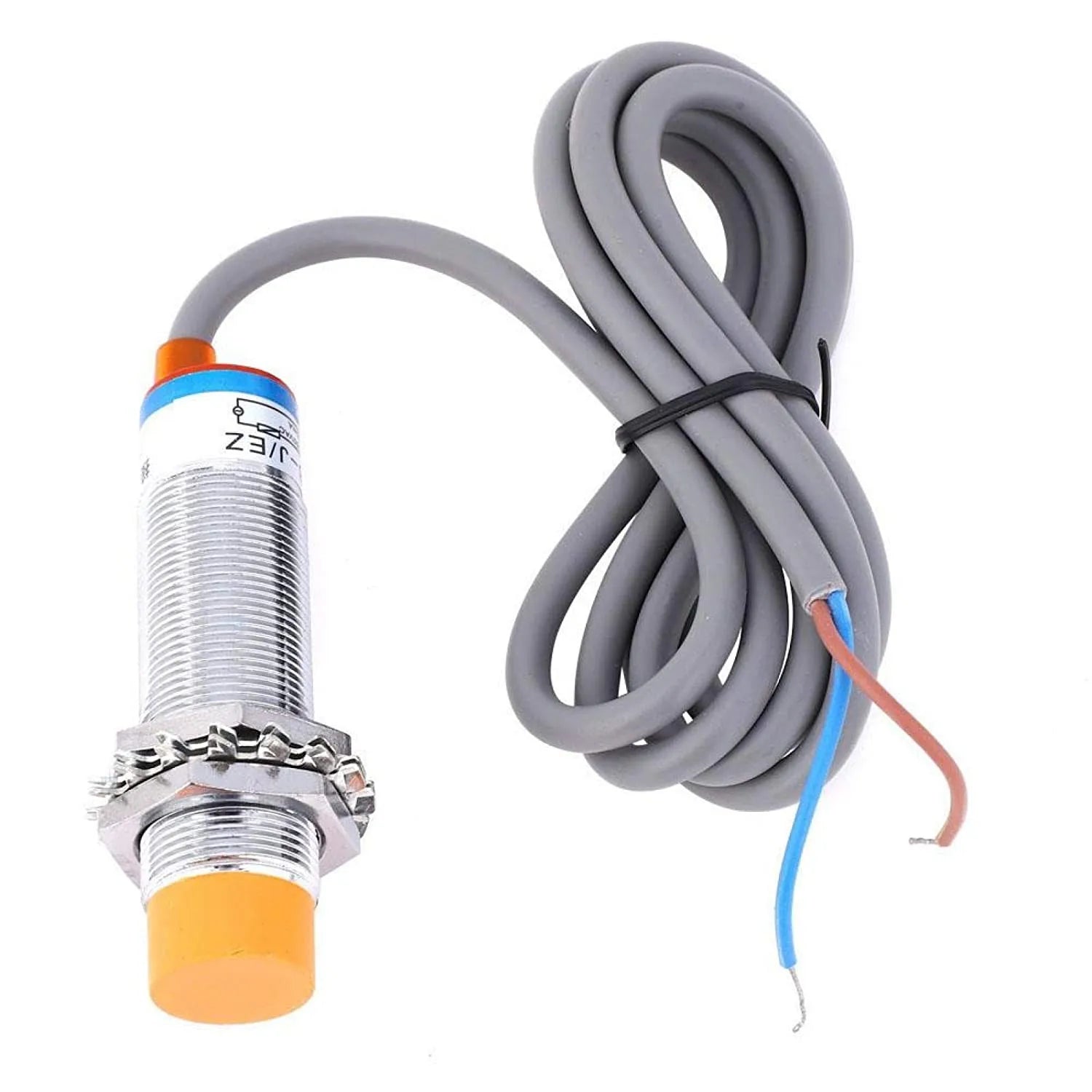

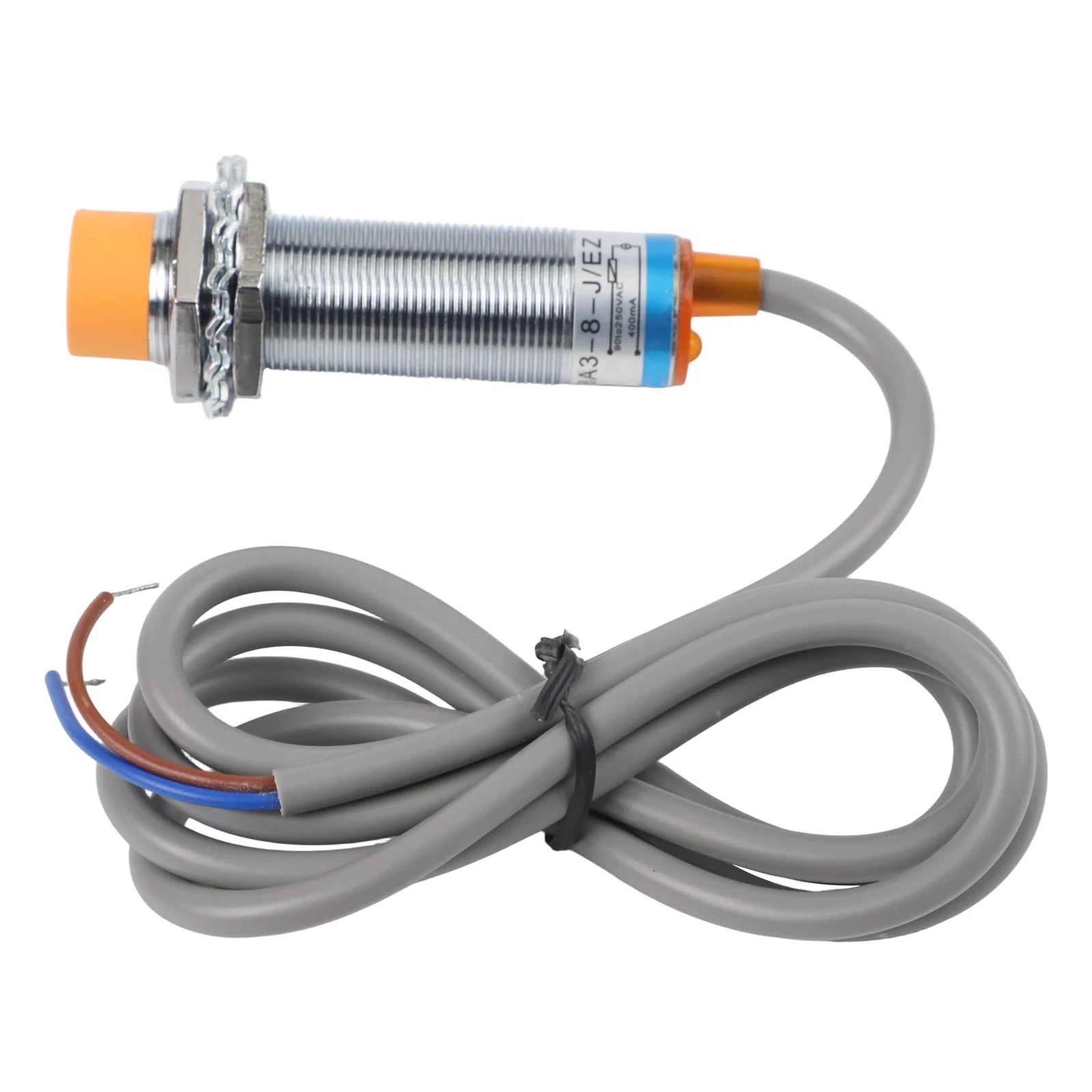

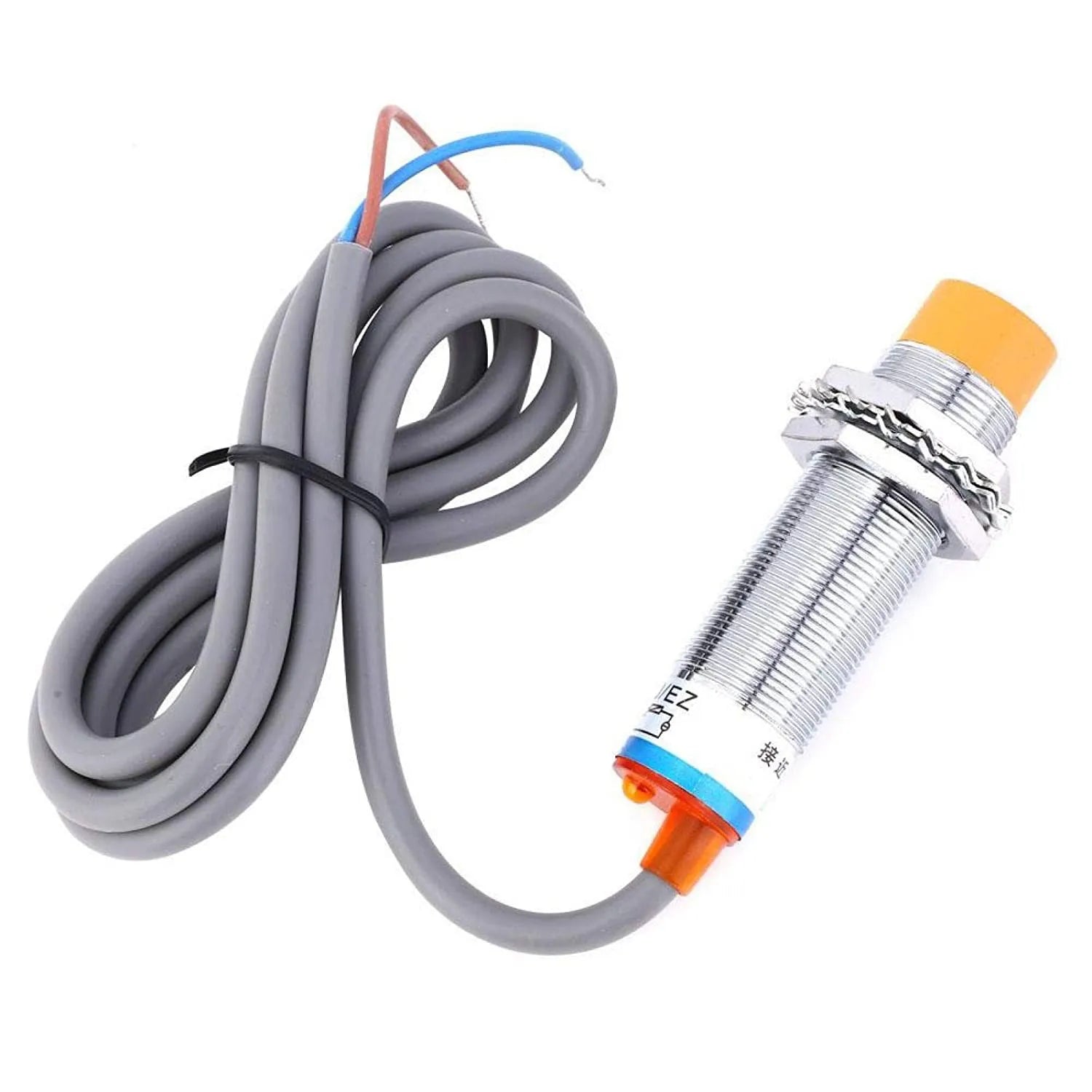

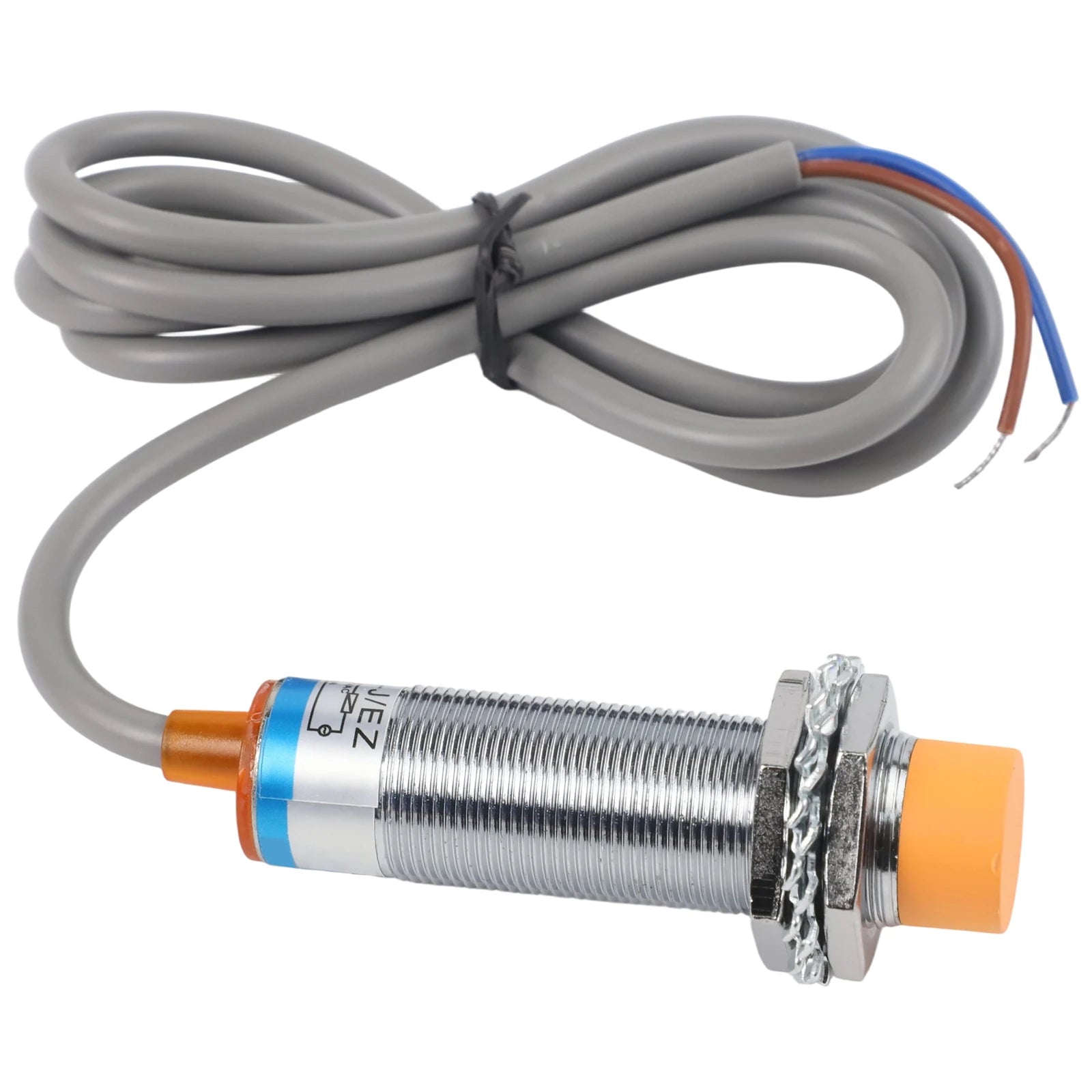

Product Description:

1. It is a component widely used for detection, control and non-contact switch in the automatic control industry.

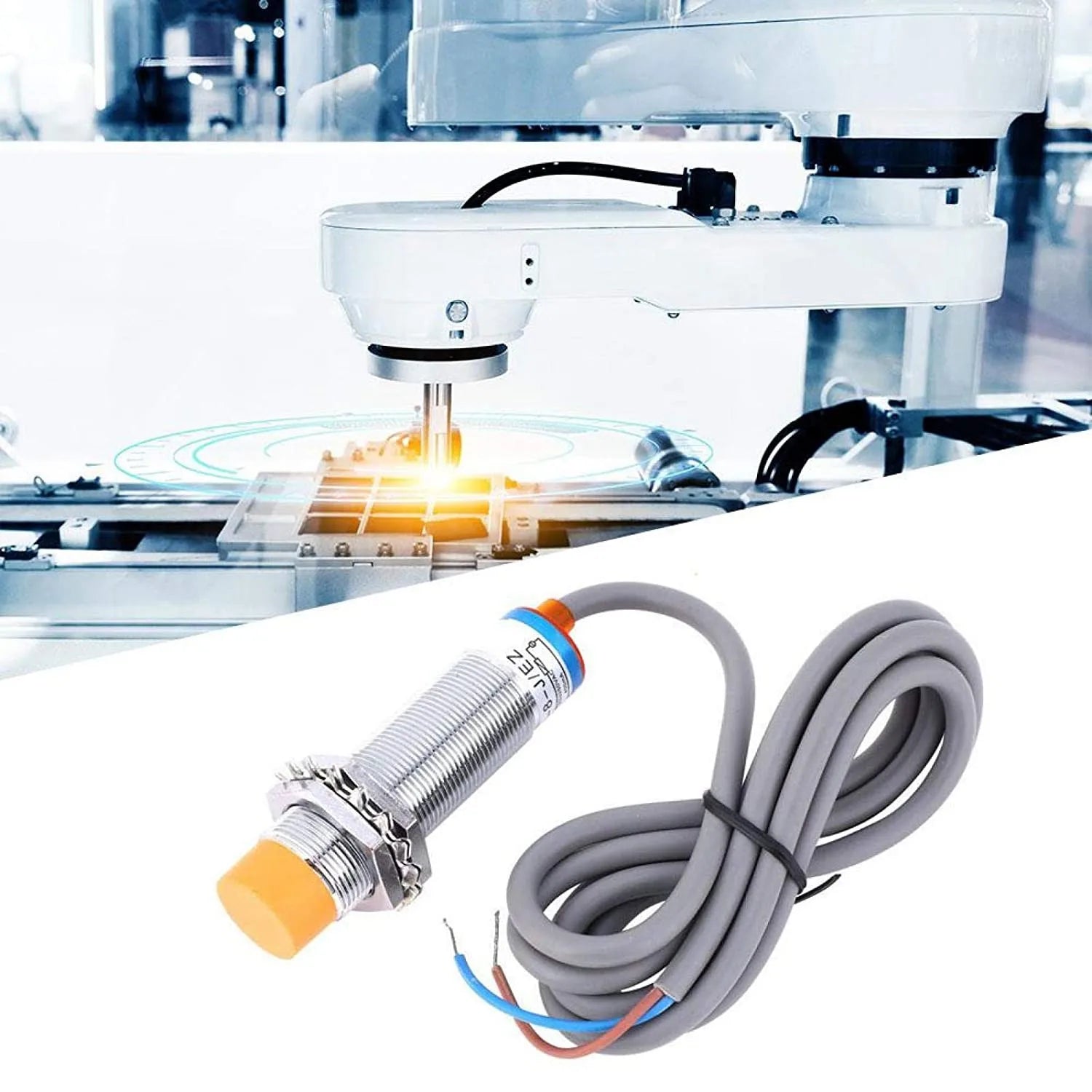

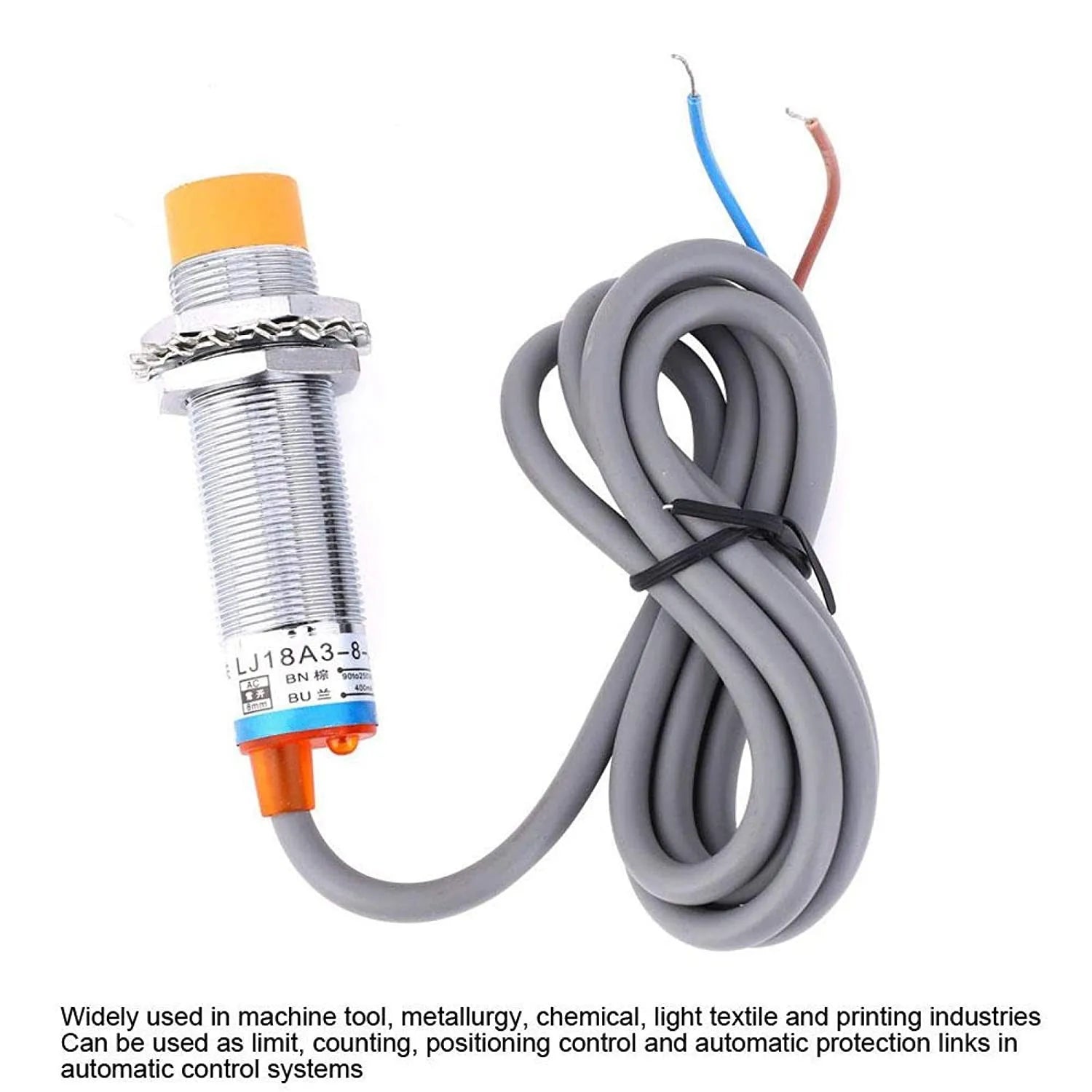

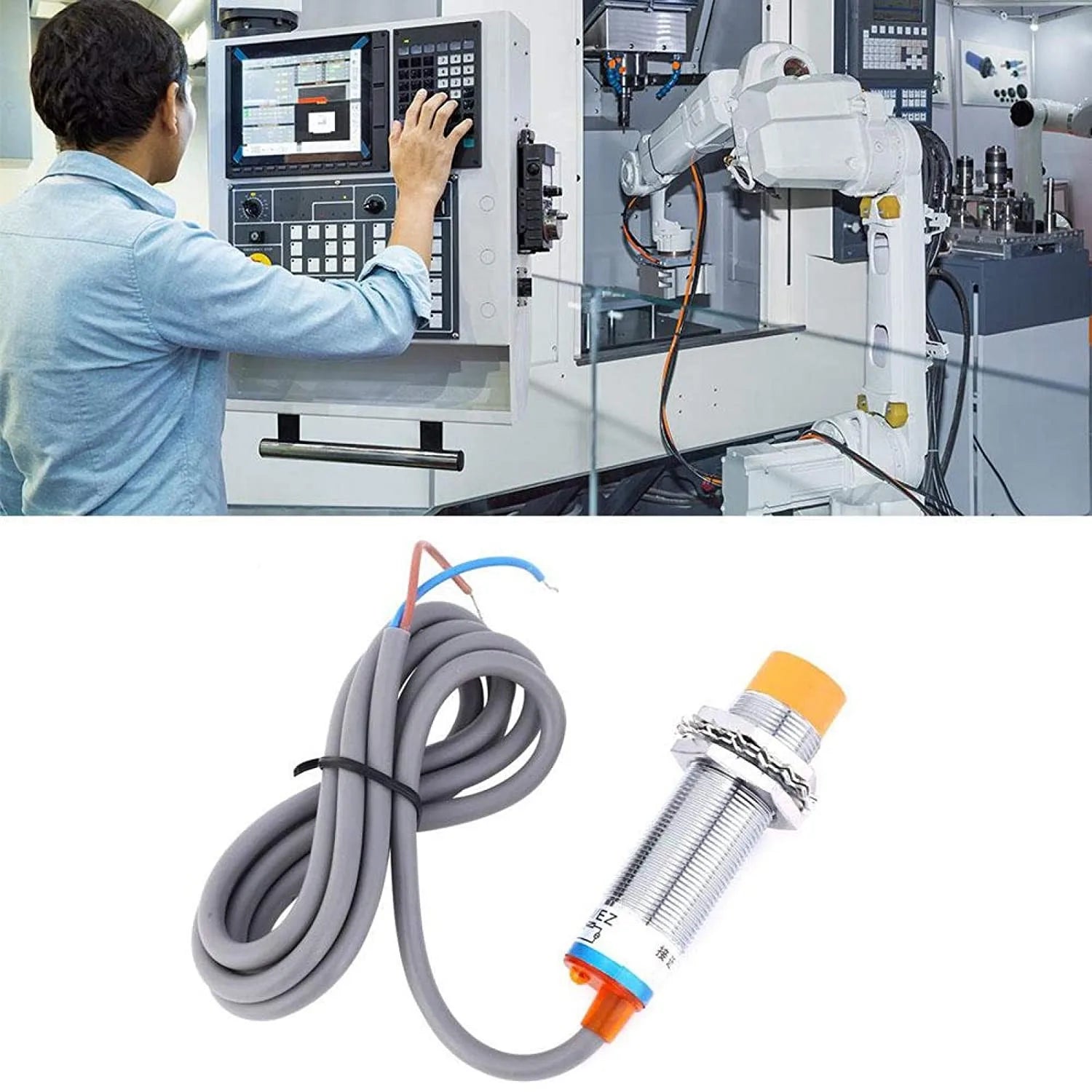

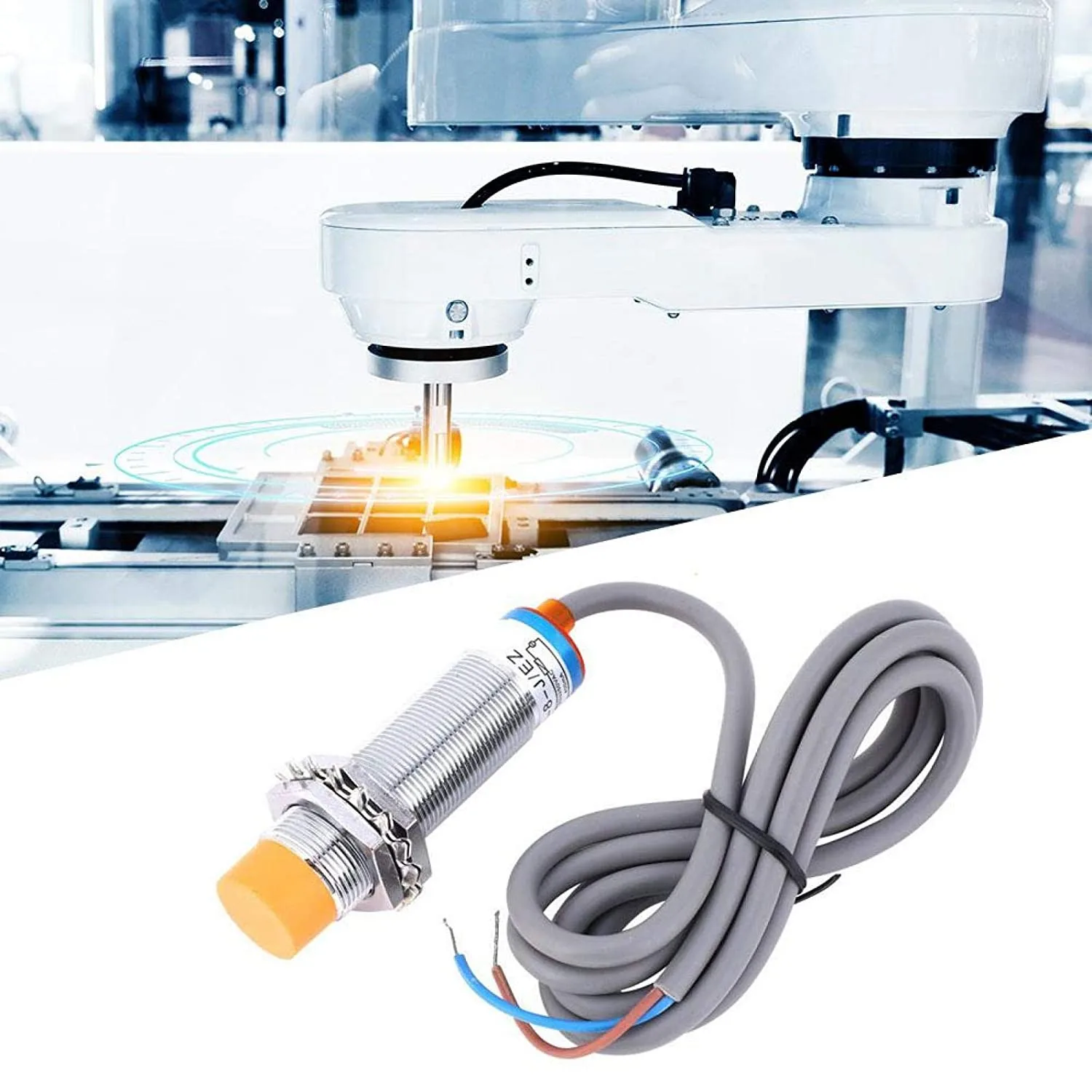

2. It is widely used in mechanical automation, for 3D printer probe bed leveling, papermaking, restricted stations in light industry, direction fetching, overspeed testing, .
3. ABS material detection , the intelligent sensor chip built into the proximity switch can sensitively detect objects, when the proximity switch is close to a single target object, it will send a control signal.

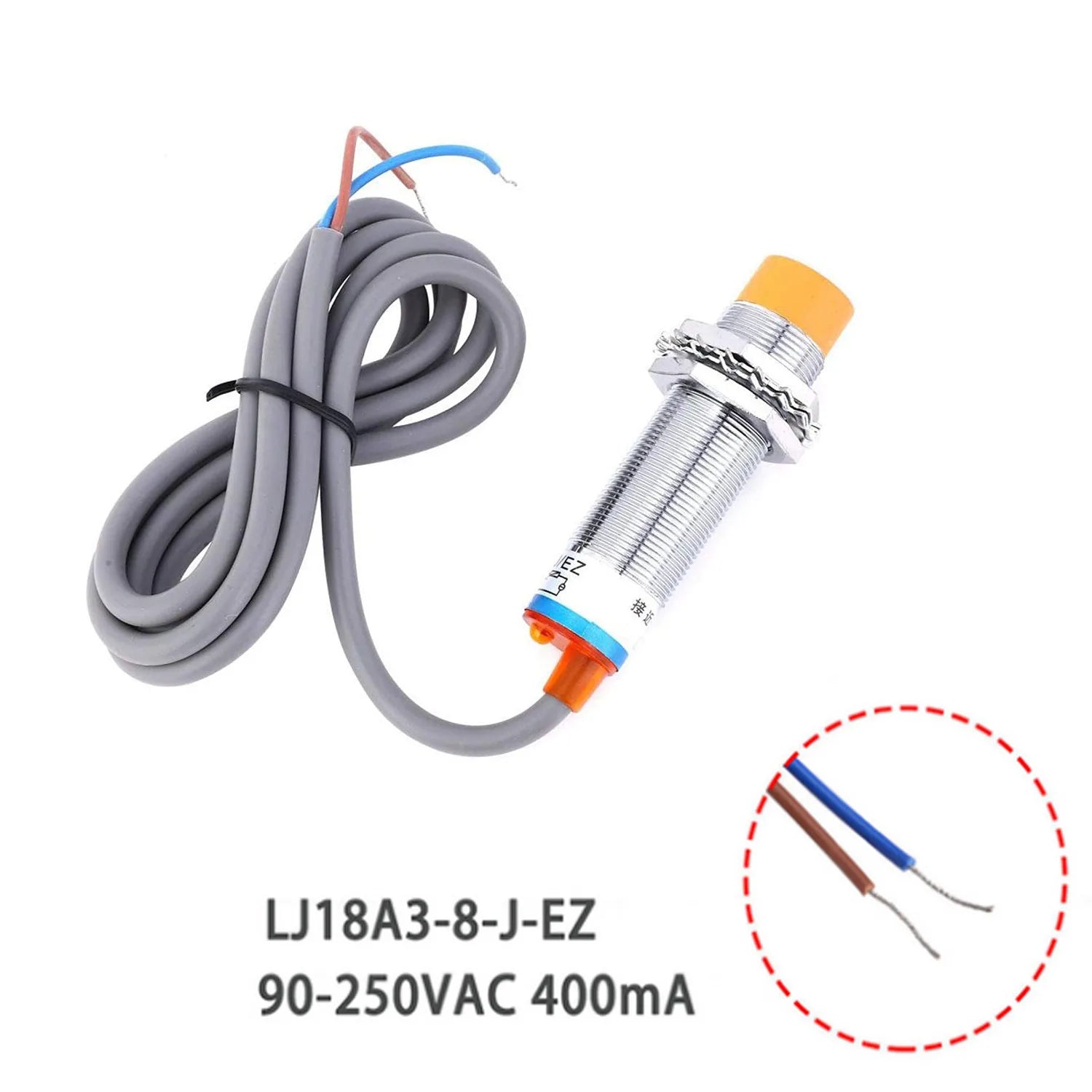

Product parameters:

Mounting hole diameter: 18mm
Detection distance: 8mm±10%
Setting distance: 0-7mm
Output type: NO
Current output: 400mA

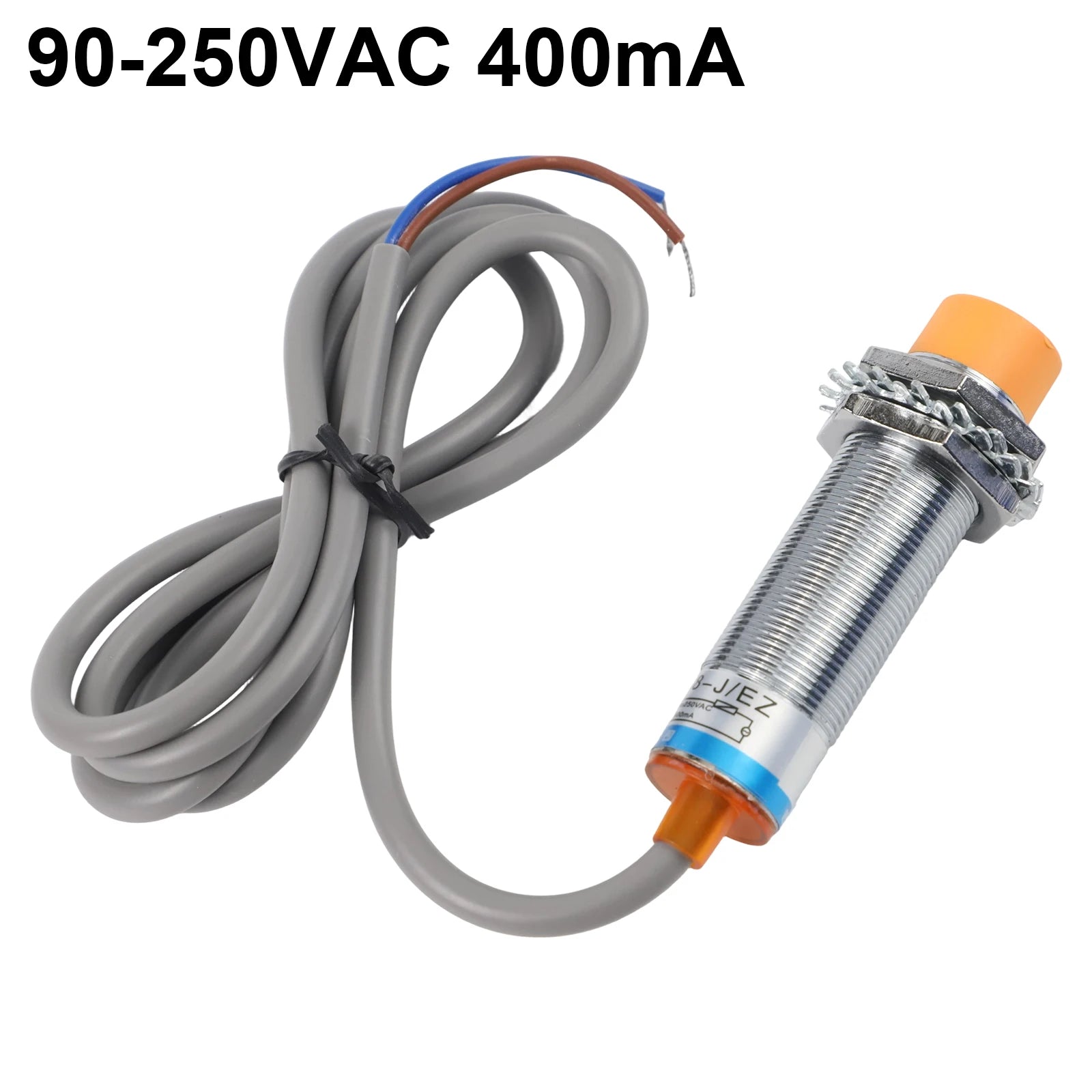

Working voltage: 90-250 for VAC
Detection object: metal
Delay distance: less than 10% of the detection distance.
Power supply voltage: AC90-250V 50 / 60Hz
Current consumption: 1.7mA or less.
Control output: below 400mA.
Circuit for protection: surge absorption.
Ambient temperature and humidity: during , storage: -30~+65℃ alone (no freezing, no air extraction), during , storage: 35-95% RH alone.
Insulation resistance: 50MΩ or more between the charging part and the case (DC500M).
Withstand voltage: AC1000V 50 / 60Hz for 1 minute between the charging part and the case.
Temperature influence: temperature range: -30～＋65℃, at +23℃, ±15% of the detection distance; temperature range -25～＋60℃, at +23℃, ±10% of the detection distance.
Voltage influence: within ±15% of the rated power supply voltage, within the range of the rated power supply voltage, within ±10% of the detection distance.


Package list:

1 *Inductive proximity switch


Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
