Description

Mini Ultra Tiny 4MM Stepper Motor Micro 2-Phase 4-Wire Precision Step Stepping Motor DIY Digital Camera Lens

Specifications

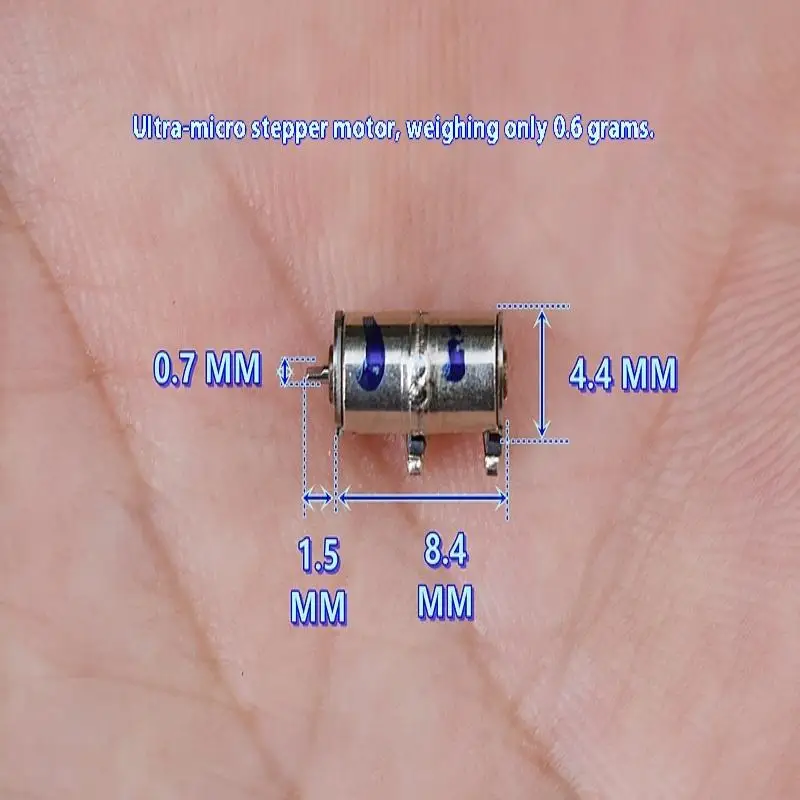

Motor outer diameter: 4.4 MM

Motor height: 8.4 MM

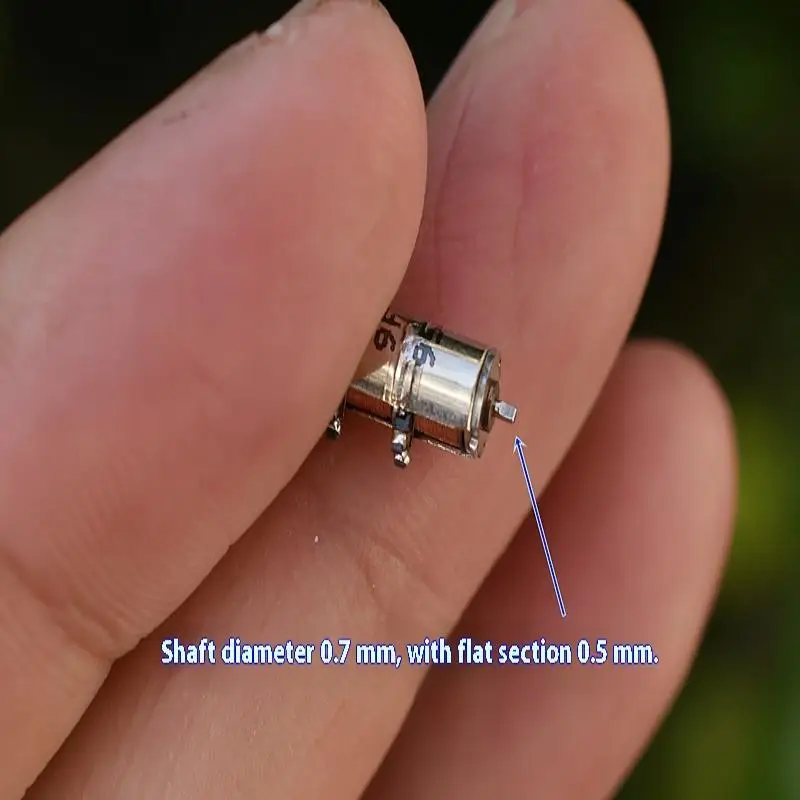

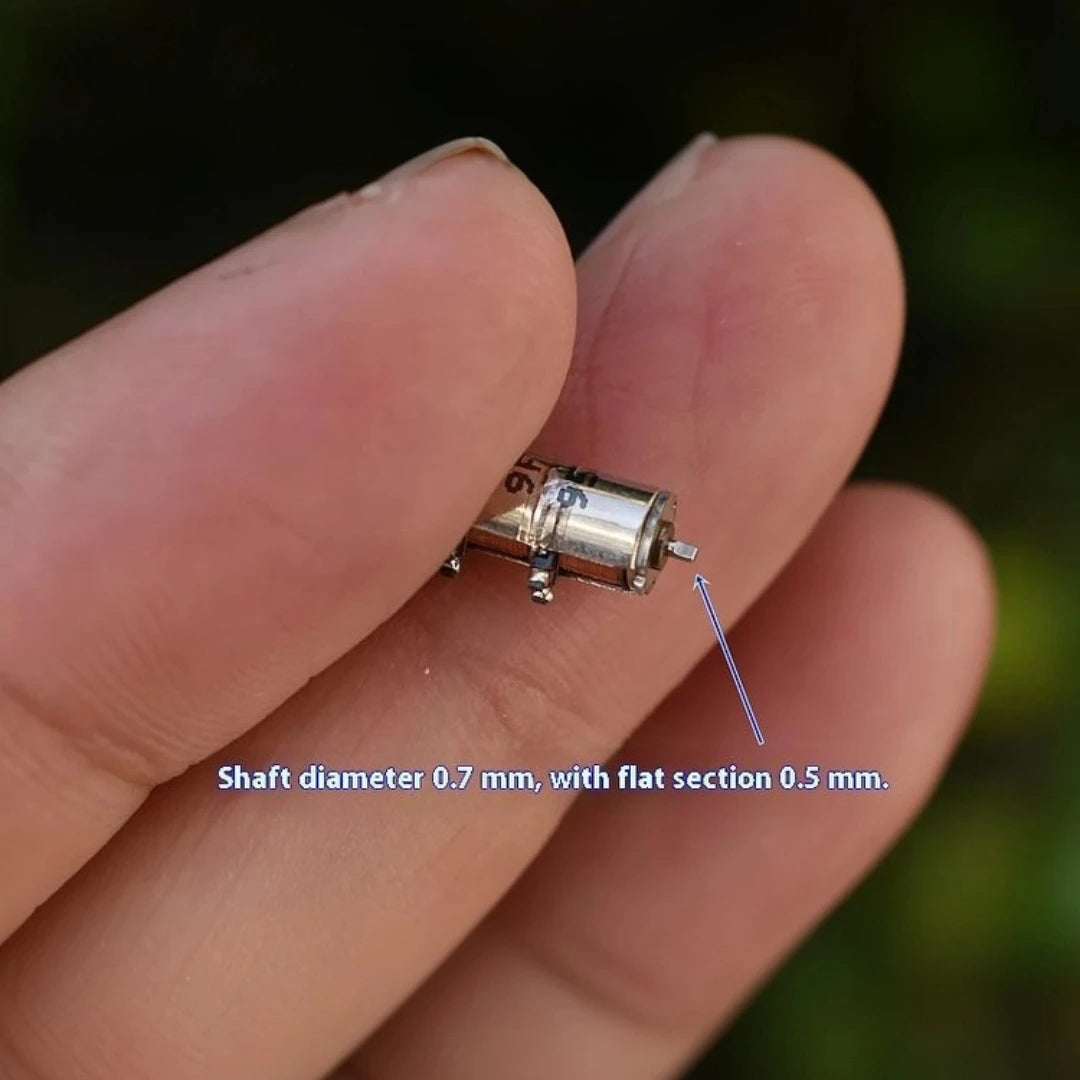

Motor shaft diameter: 0.7 MM (flat position 0.5 MM) Output shaft length: 1.5 MM

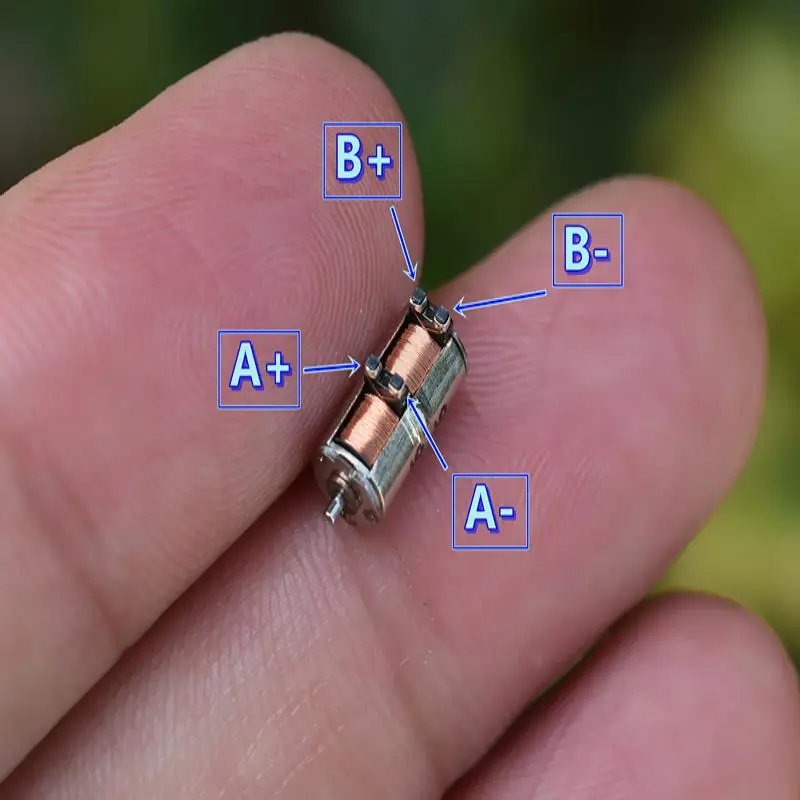

Model: Two-phase four-wire

Drive voltage: DC5V (estimated)

Internal resistance: Approximately 14 ohms 5V short-circuit current: 0.3 A

Material: Metal

Packing: 1/5/10pcs

Note:

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.
