IP44 32A 5-Pin Industrial Wall Mount Connector — 380–415V | IEC60309 | CEE Plug
A heavy-duty IP44-rated 32A 5-pin industrial wall mount connector compliant with IEC60309-1/2 (CEE standard) — the international standard for industrial power connectors used in manufacturing, construction, events, and commercial facilities worldwide. The 5-pin configuration (3 phase + neutral + earth) supports three-phase power distribution at 380–415VAC, covering the full range of industrial equipment power requirements. The 5mm brass column contacts provide low-resistance, high-current connections, while the high-strength flame-retardant engineering plastic shell withstands the mechanical and thermal demands of industrial environments. IP44 protection guards against solid objects >1mm and water splashing from any direction.
Specifications
| Current Rating | 32A |
| Voltage Rating | 380–415V AC (3-phase) |
| Pin Count | 5 (3L + N + PE) |
| Contact Material | 5.00mm brass column |
| Shell Material | High-strength flame-retardant engineering plastic |
| Colour | Red + White (IEC60309 colour coding) |
| IP Rating | IP44 |
| Standard | IEC60309-1/2 (CEE) |
| Mount Type | Wall mount (panel mount) |
| Origin | Mainland China |

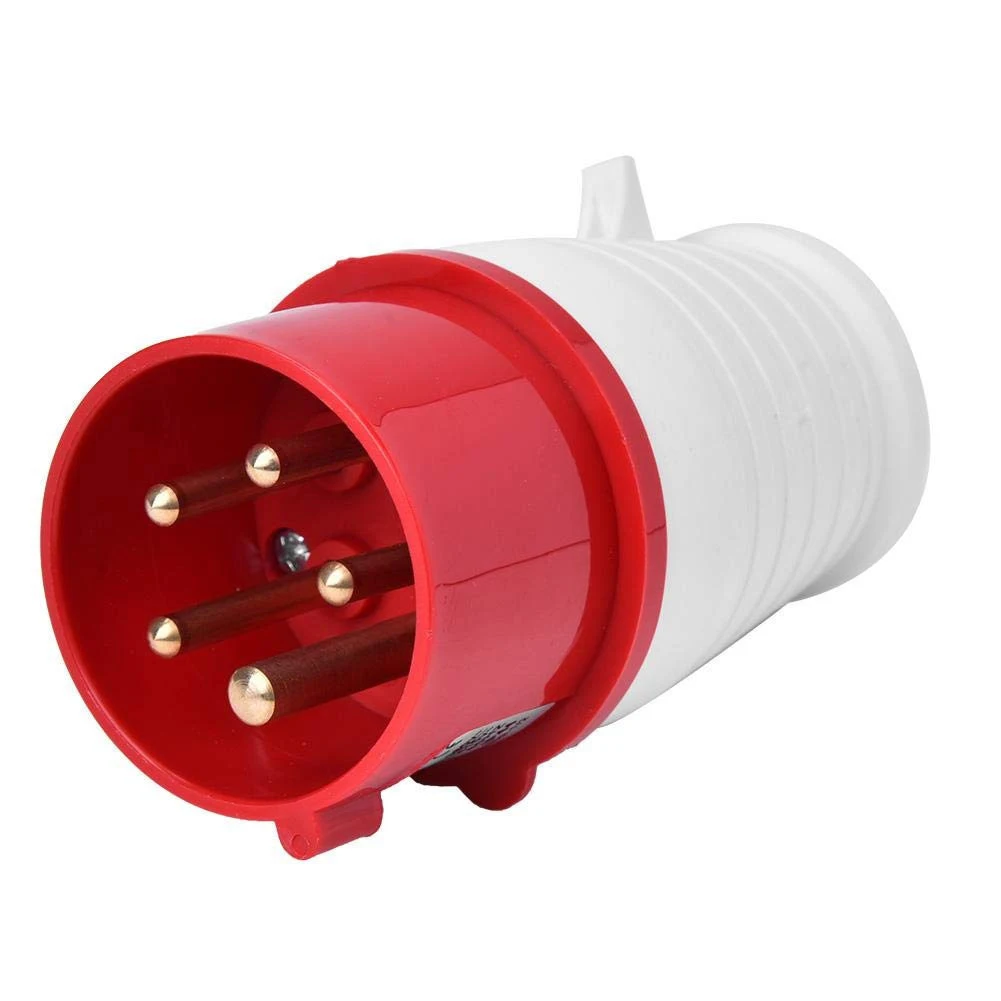

IEC60309 5-Pin Configuration — Pin Assignment
| Pin | Function | Colour (IEC) |
|---|---|---|
| L1 | Phase 1 | Brown |
| L2 | Phase 2 | Black |
| L3 | Phase 3 | Grey |
| N | Neutral | Blue |
| PE | Protective Earth | Green/Yellow |
IP44 Protection — What It Means
| IP Code | Solid Protection | Liquid Protection |
|---|---|---|
| IP44 | Protected against solid objects >1mm | Protected against water splashing from any direction |
| IP55 | Dust protected | Protected against water jets |
| IP67 | Dust tight | Immersion up to 1m |
IP44 is the minimum rating for outdoor and industrial environments where water splash is possible. Suitable for construction sites, outdoor events, workshops, and light industrial applications.
Key Features
- ✅ IEC60309-1/2 (CEE) compliant — international standard for industrial power connectors, compatible with IEC60309 equipment worldwide
- ✅ 32A / 380–415V rating — handles three-phase industrial equipment up to ~22kW (32A × 400V × √3)
- ✅ 5-pin (3L+N+PE) — full three-phase with neutral and earth for balanced three-phase loads
- ✅ 5mm brass contacts — low contact resistance, high current capacity, corrosion resistant
- ✅ IP44 rated — splash-proof for outdoor and industrial environments
- ✅ Flame-retardant shell — self-extinguishing engineering plastic prevents fire propagation
- ✅ IEC colour coding — red body (3-phase, 380–415V) for immediate voltage identification

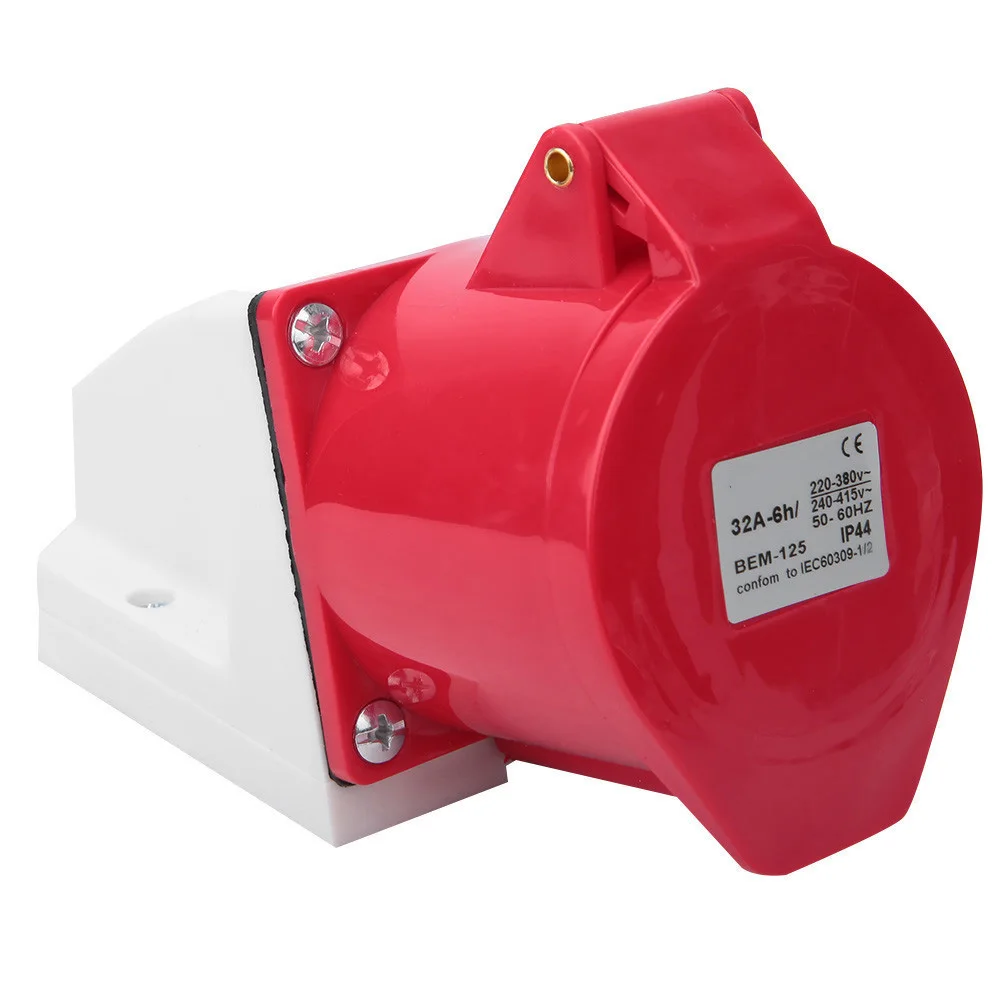

- ✅ Wall mount design — panel-mount socket for fixed installation in distribution boards and equipment rooms
Common Applications
- Industrial machinery power distribution (CNC machines, lathes, presses)
- Construction site temporary power distribution
- Event and stage power distribution (generators, lighting rigs)
- Workshop and factory three-phase power outlets
- Commercial kitchen equipment power connections
- EV charging station power distribution
- Data centre and server room power distribution
- Agricultural equipment three-phase power connections
Frequently Asked Questions
Q: Is this compatible with standard CEE 32A plugs?
A: Yes. This connector is manufactured to IEC60309-1/2 dimensions and is compatible with standard CEE 32A 5-pin plugs used throughout Europe and internationally.
Q: What cable size should I use with a 32A connector?
A: For 32A three-phase applications, use 5-core cable with conductors rated for at least 32A. Typically 6mm² per conductor for fixed installation, or 4mm² for flexible cable (verify with local electrical codes).
Q: Can this be used outdoors permanently?
A: IP44 provides splash protection but is not rated for continuous outdoor exposure to rain. For permanent outdoor installation, use an IP55 or IP67 rated enclosure or connector.
Package Contents

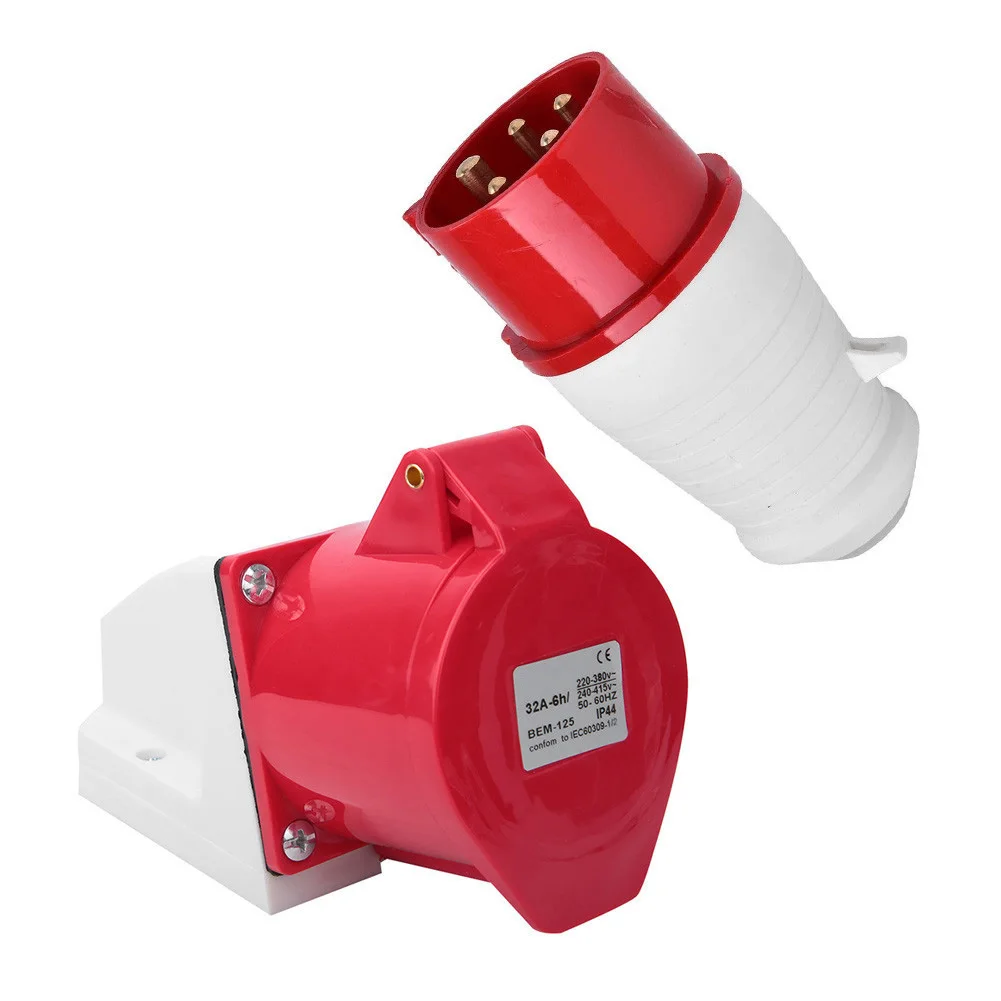

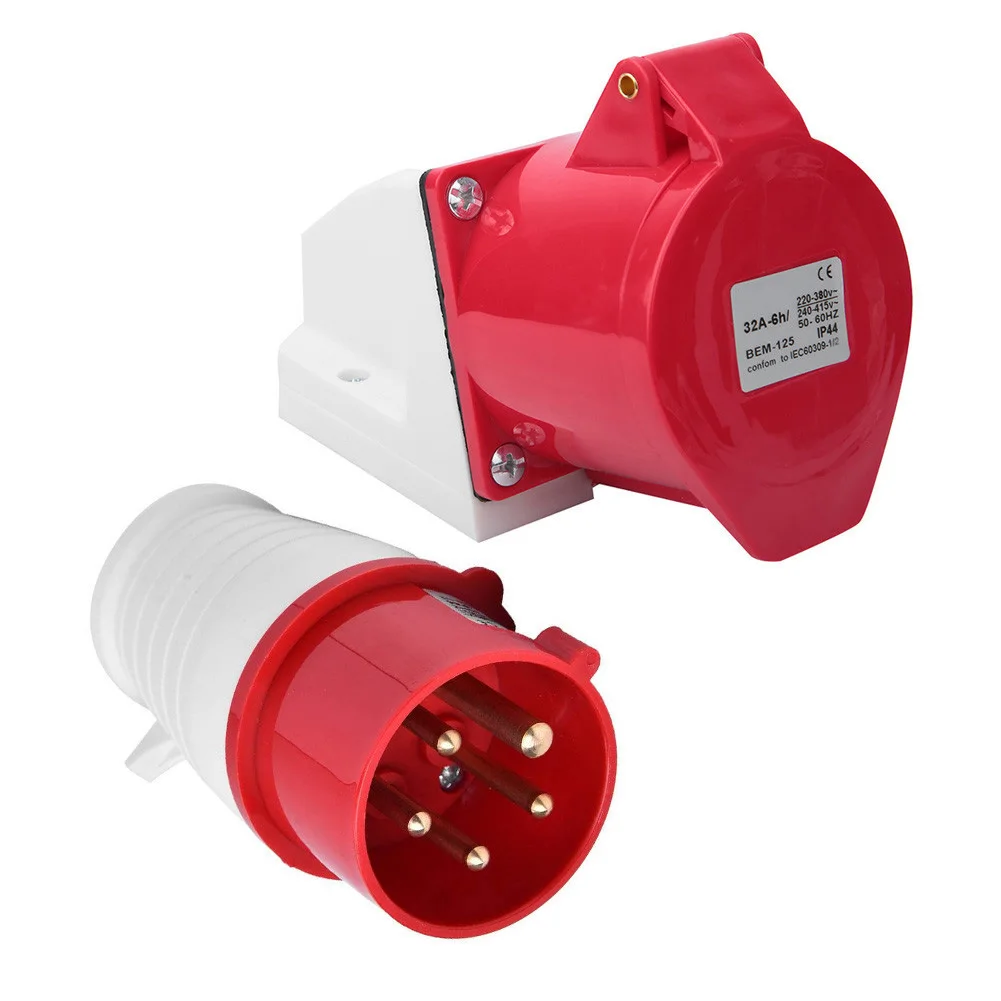

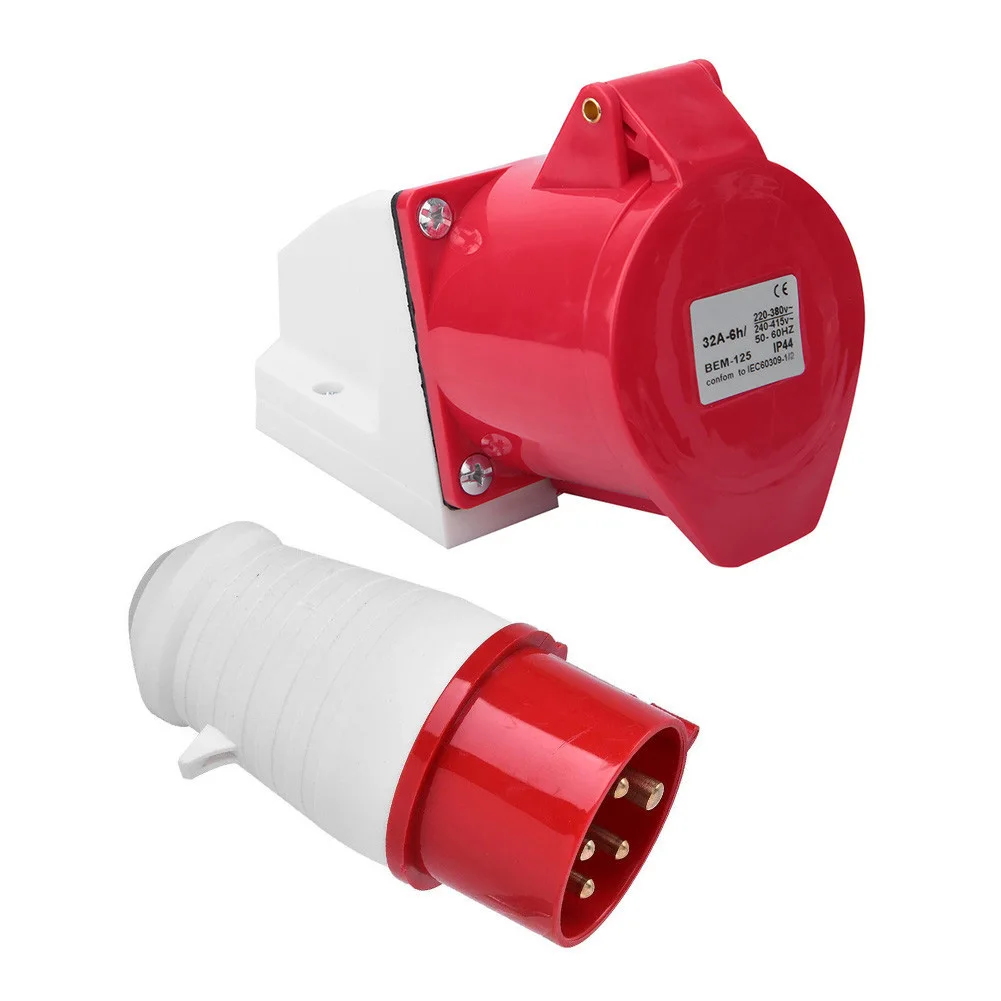

- 1× IP44 32A 5-Pin Industrial Wall Mount Connector (male + female as supplied)
