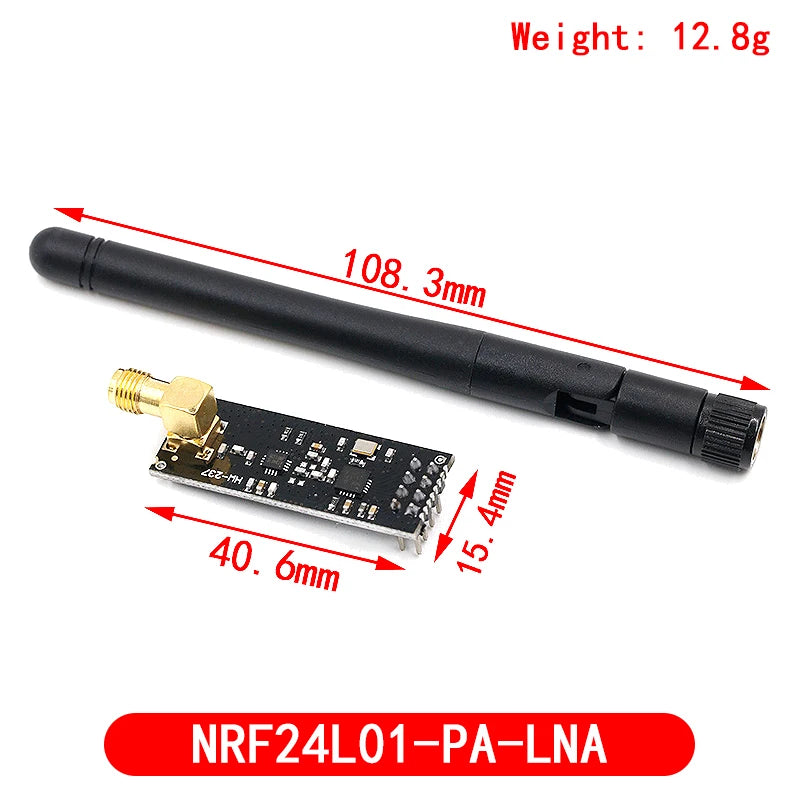

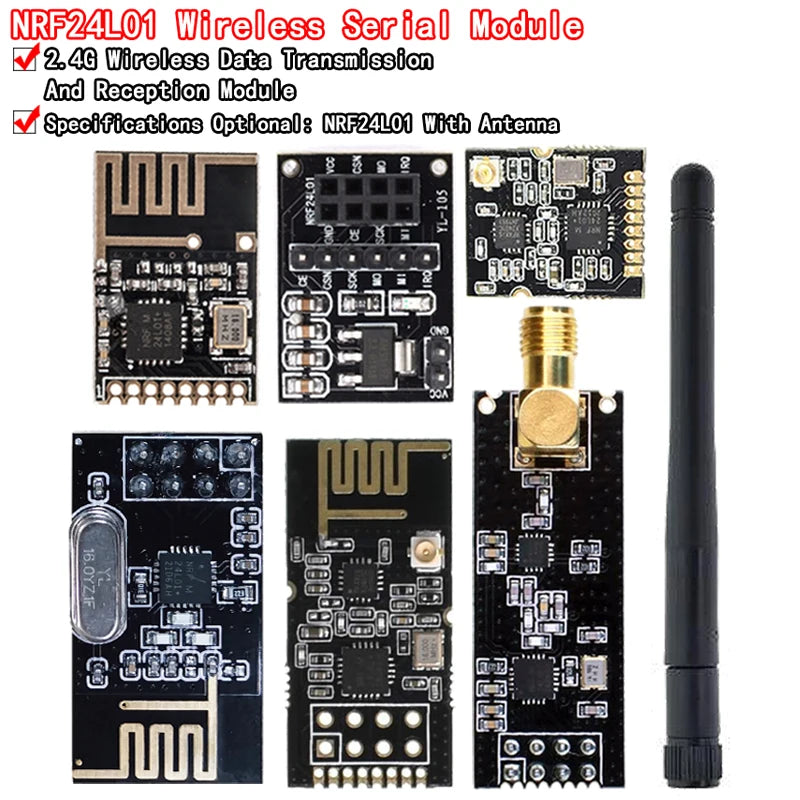

NRF24L01+ 2.4GHz Wireless Transceiver Module — PA+LNA, Up to 1000m Range, SPI
The NRF24L01+ with PA+LNA is a long-range 2.4GHz wireless transceiver module based on Nordic Semiconductor's nRF24L01+ IC, enhanced with an external power amplifier (PA) and low-noise amplifier (LNA) for dramatically extended range compared to the standard NRF24L01 module. With up to 1000m line-of-sight range, 2Mbps data rate, and 125 selectable channels, it is the preferred choice for Arduino long-range wireless sensor networks, remote control systems, and multi-node IoT applications.

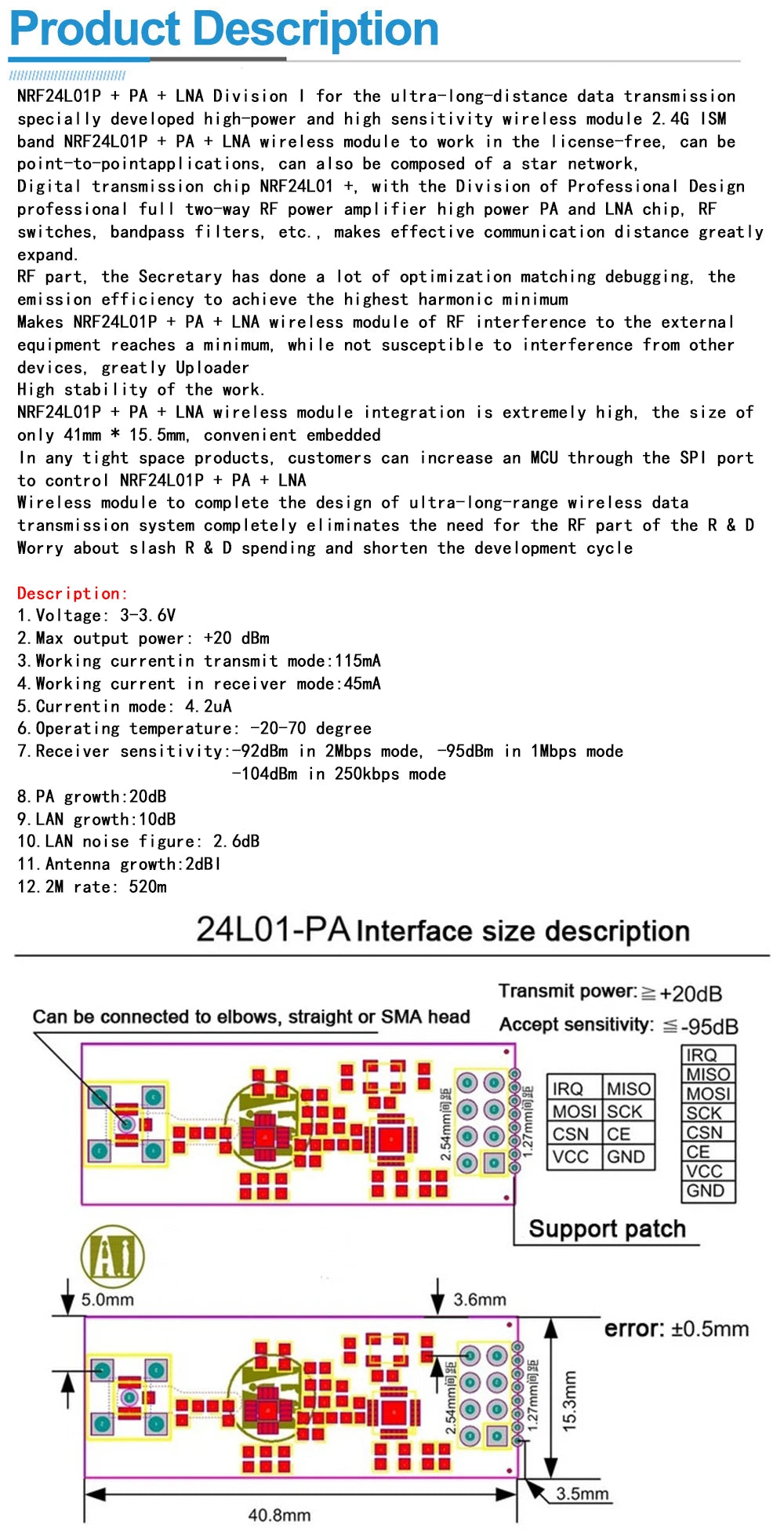

Key Specifications
| Parameter | Value |
|---|---|
| IC | Nordic Semiconductor nRF24L01+ |
| Frequency | 2.400–2.525GHz (ISM band) |
| Channels | 125 (1MHz spacing) |
| Data Rate | 250kbps / 1Mbps / 2Mbps |
| Max Range (LOS) | Up to 1000m (with PA+LNA) |
| TX Power | +20dBm (100mW, with PA) |
| RX Sensitivity | -95dBm (with LNA) |
| Interface | SPI (MOSI, MISO, SCK, CSN, CE, IRQ) |
| Supply Voltage | 3.3V (logic 5V tolerant on most pins) |
| Operating Temperature | -40°C to +85°C |
| Antenna | External SMA antenna (included) |
NRF24L01+ PA+LNA vs Standard NRF24L01 — Range Comparison
| Feature | NRF24L01+ PA+LNA (This Module) | Standard NRF24L01 |
|---|---|---|
| TX Power | +20dBm (100mW) | 0dBm (1mW) |
| RX Sensitivity | -95dBm (LNA) | -82dBm |
| Max Range (LOS) | Up to 1000m | ~100m |

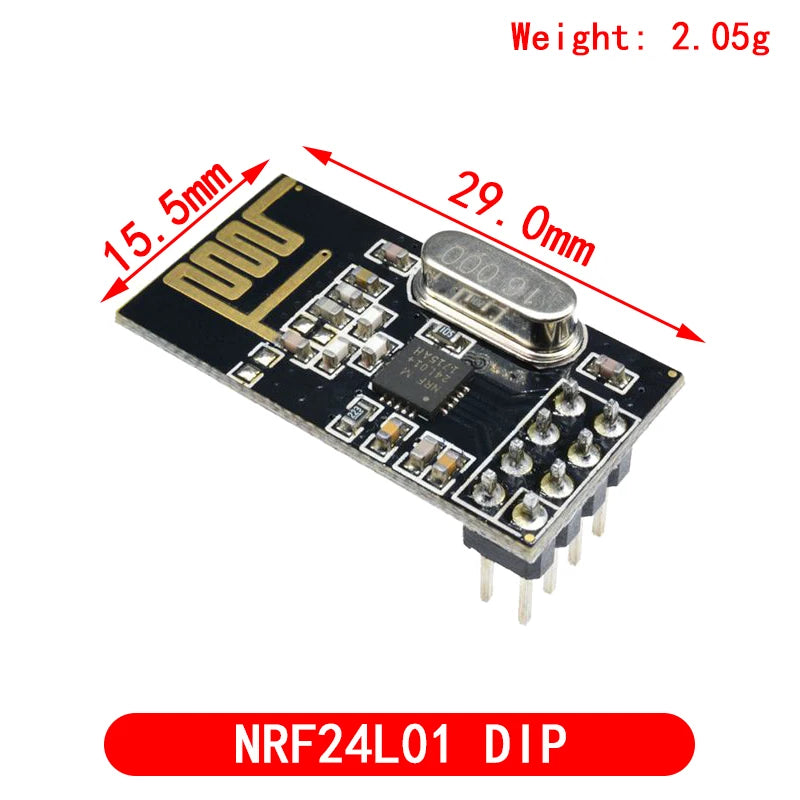

| Antenna | External SMA | PCB trace |
| Current (TX) | ~115mA | ~11.3mA |
| Best For | Long-range outdoor wireless | Short-range indoor |
Arduino Wiring Guide
| Module Pin | Arduino Uno | Function |
|---|---|---|
| VCC | 3.3V | Power (3.3V only!) |
| GND | GND | Ground |
| CE | Pin 9 | Chip Enable |
| CSN | Pin 10 | SPI Chip Select |
| SCK | Pin 13 | SPI Clock |
| MOSI | Pin 11 | SPI Data In |
| MISO | Pin 12 | SPI Data Out |
| IRQ | Pin 2 (optional) | Interrupt |
Why Choose NRF24L01+ PA+LNA?
- ✅ Up to 1000m range — 10× longer than standard NRF24L01 module
- ✅ 125 selectable channels — avoid interference in crowded 2.4GHz environments
- ✅ 2Mbps data rate — fast enough for sensor data, telemetry, and control signals
- ✅ SPI interface — compatible with Arduino RF24 library (plug-and-play)
- ✅ -40°C to +85°C — reliable in outdoor and industrial environments
- ✅ External SMA antenna — replaceable for directional antenna upgrades
Typical Applications
- Arduino long-range wireless sensor network
- Remote weather station and environmental monitoring
- RC vehicle and drone long-range control link
- Agricultural field sensor telemetry
- Smart home multi-room wireless communication
- Industrial wireless data acquisition
Package Contents
- 1 × NRF24L01+ 2.4GHz Wireless Transceiver Module (PA+LNA)
- 1 × External SMA antenna
