211CC2S1120 / 211CC2S1160P Automotive 1.5mm Crimp Terminal Splice Pins — FCI / Tyco / Delphi Compatible

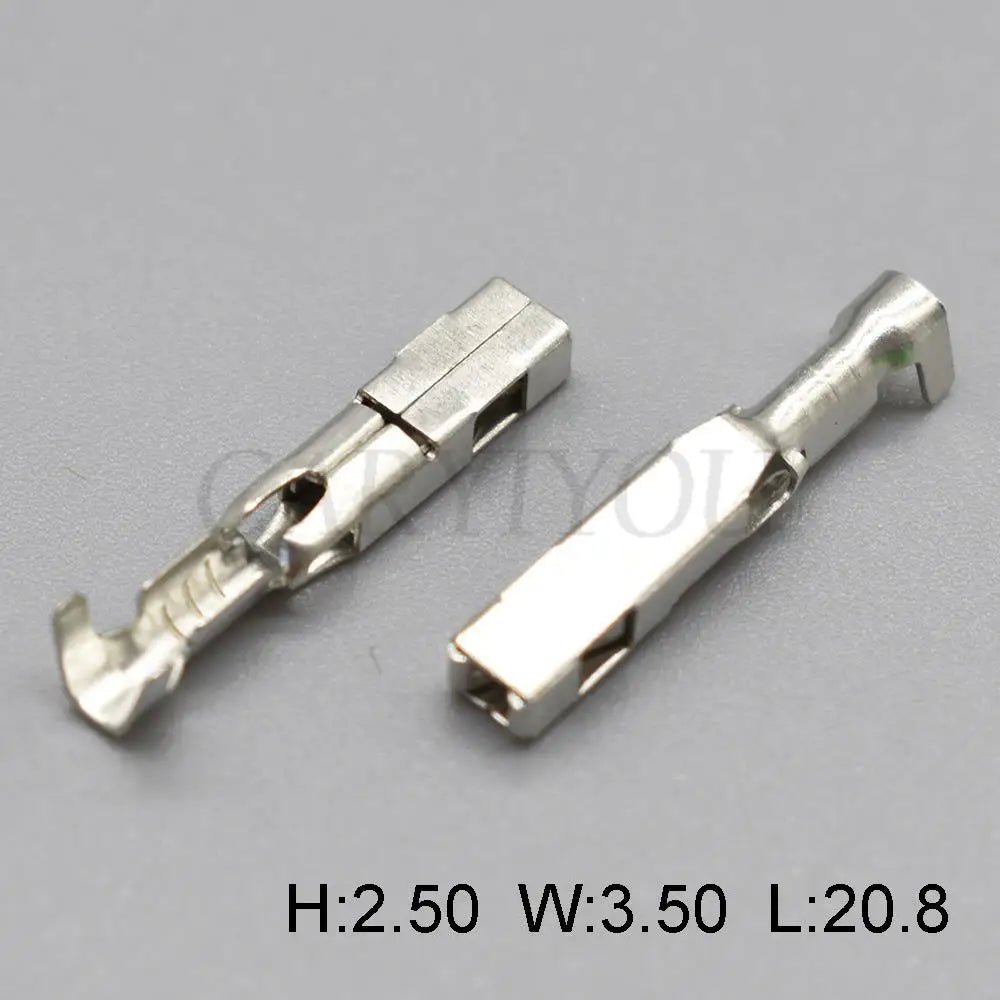

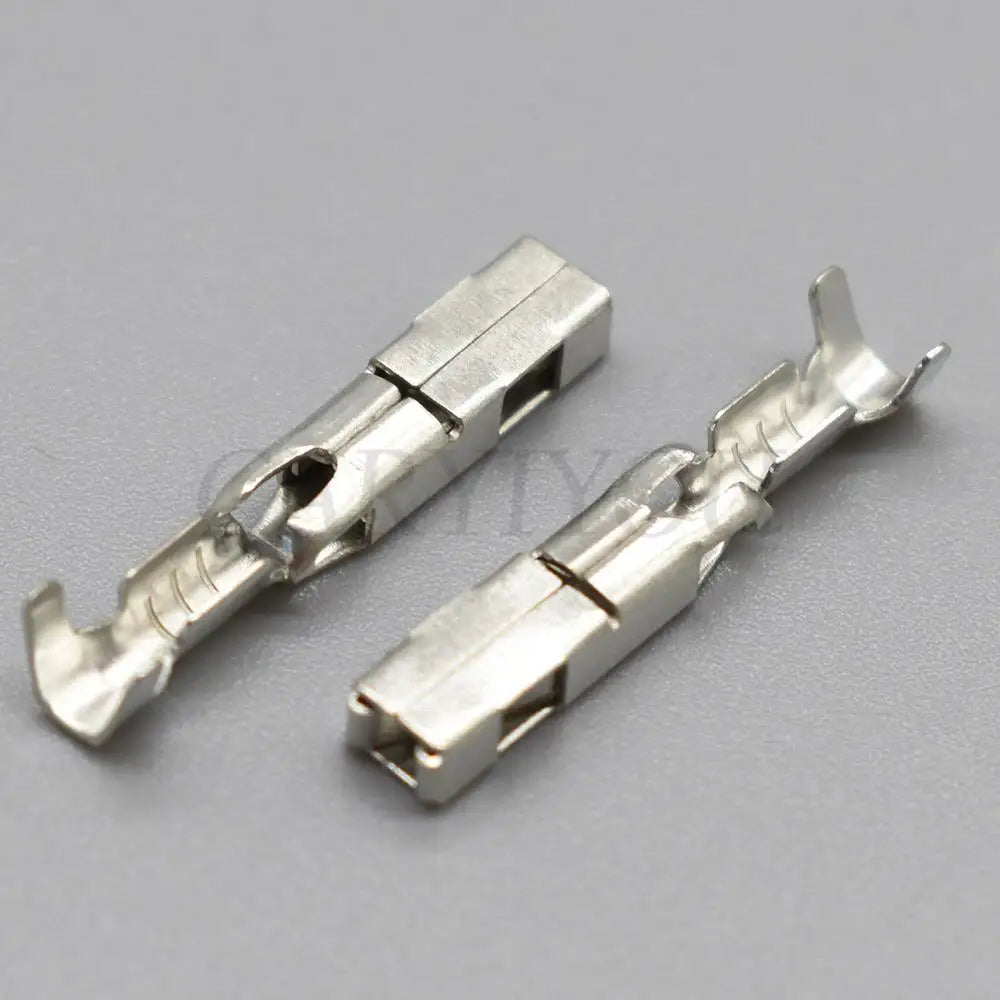

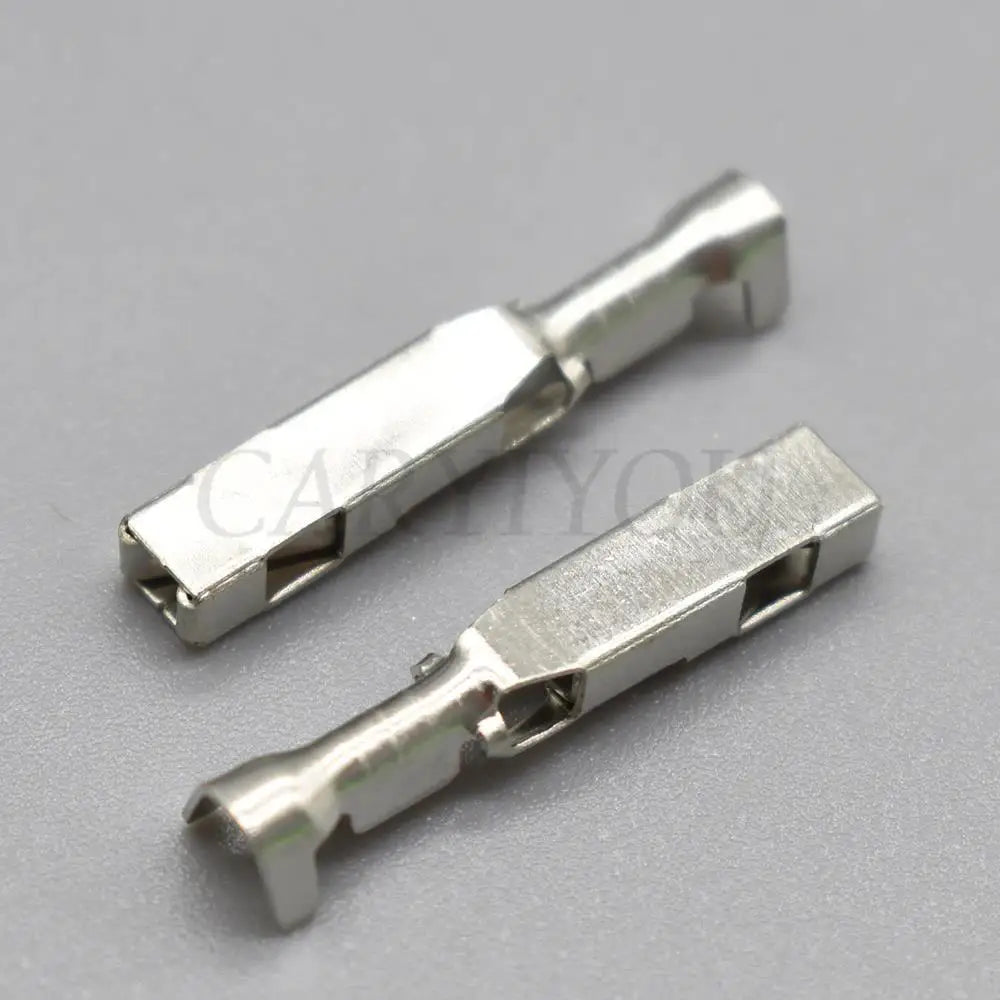

The 211CC2S1120 and 211CC2S1160P are 1.5mm Cooper Electric crimp terminal splice pins designed for use with FCI, Tyco, and Delphi 1.5mm series automotive connector housings. These open-barrel crimp terminals are the standard consumable for wiring harness repair and fabrication across a wide range of passenger vehicle, light truck, and commercial vehicle platforms. Manufactured from tin-plated copper alloy for corrosion resistance and reliable electrical contact in underhood and chassis environments.
Key Specifications
| Parameter | Value |
|---|---|
| Part Numbers | 211CC2S1120 / 211CC2S1160P |
| Manufacturer | Cooper Electric (Eaton) |
| Terminal Pitch | 1.5mm |
| Terminal Type | Female crimp splice pin (open-barrel) |
| Compatible Connectors | FCI, Tyco/TE, Delphi 1.5mm series |
| Material | Tin-plated copper alloy |
| Wire Range | 0.3–1.0mm² (22–18 AWG) |
| Current Rating | Up to 7A |
| Operating Temperature | -40°C to +125°C |
| Compliance | RoHS |
| Origin | Mainland China |
FCI / Tyco / Delphi 1.5mm Connector Compatibility
- Multi-brand compatibility — the 1.5mm terminal pitch is shared across FCI, Tyco (TE Connectivity), and Delphi (Aptiv) connector housings; these terminals are compatible with all three brands’ 1.5mm series housings
- Splice pin design — the splice pin configuration allows wire-to-wire splicing within a connector housing, enabling harness repair without cutting and re-routing the entire harness
- Cooper Electric (Eaton) specification — manufactured to Cooper Electric dimensional specifications for consistent fit and electrical performance
- Tin-plated copper — corrosion-resistant plating maintains low contact resistance in humid and salt-spray environments
Typical Applications
- FCI / Tyco / Delphi 1.5mm connector terminal replacement
- Automotive wiring harness splice repair
- Sensor and ECU connector terminal replacement
- OEM wiring harness repair on European and American vehicles
- Workshop terminal stock for 1.5mm connector systems
Frequently Asked Questions
Q: What is the difference between 211CC2S1120 and 211CC2S1160P?
The two part numbers represent minor dimensional variants (wire barrel length or insulation barrel diameter) within the same 1.5mm terminal family. Both are compatible with the same 1.5mm connector housings. Check the wire gauge you are using — the “20” suffix typically indicates a shorter wire barrel for finer wire gauges, while “60P” indicates a longer barrel for heavier gauges. Select based on your wire size.
Q: How do I know if my connector uses 1.5mm terminals?
Measure the terminal pitch (center-to-center distance between adjacent terminals) in the connector housing. A 1.5mm pitch is noticeably smaller than the common 2.8mm and 6.3mm series. Alternatively, look up the connector part number on the housing — FCI, Tyco, and Delphi 1.5mm series housings are clearly identified in their respective product catalogs.
