DJ622-F1.5A Automotive Crimp Terminal Pins — 1.5mm AMP/Deutsch Compatible

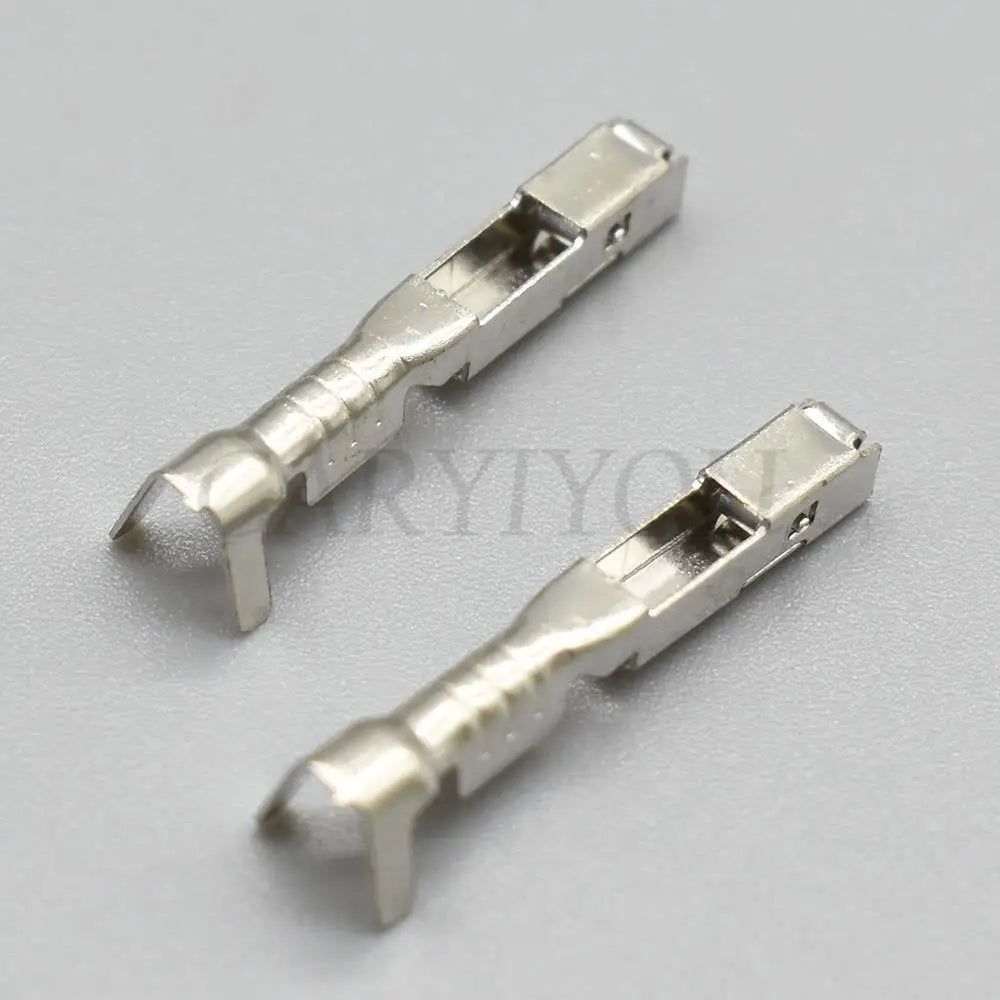

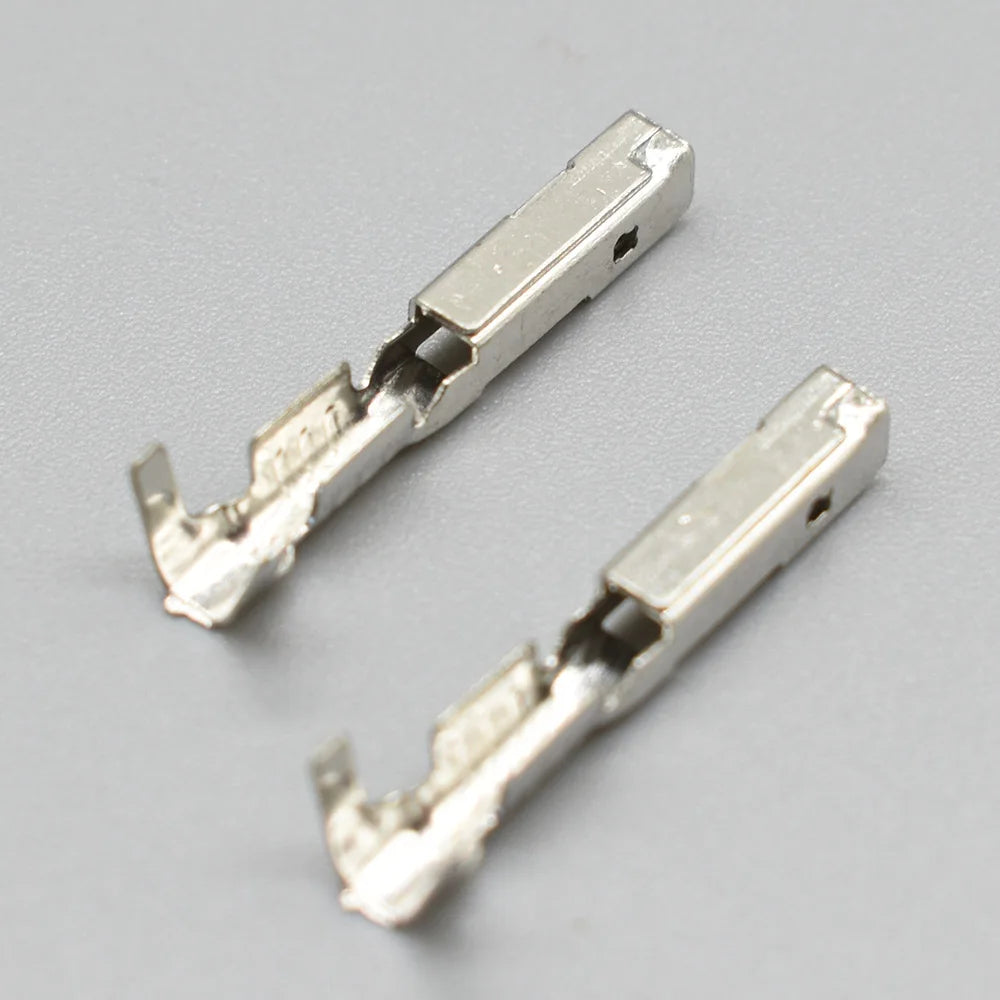

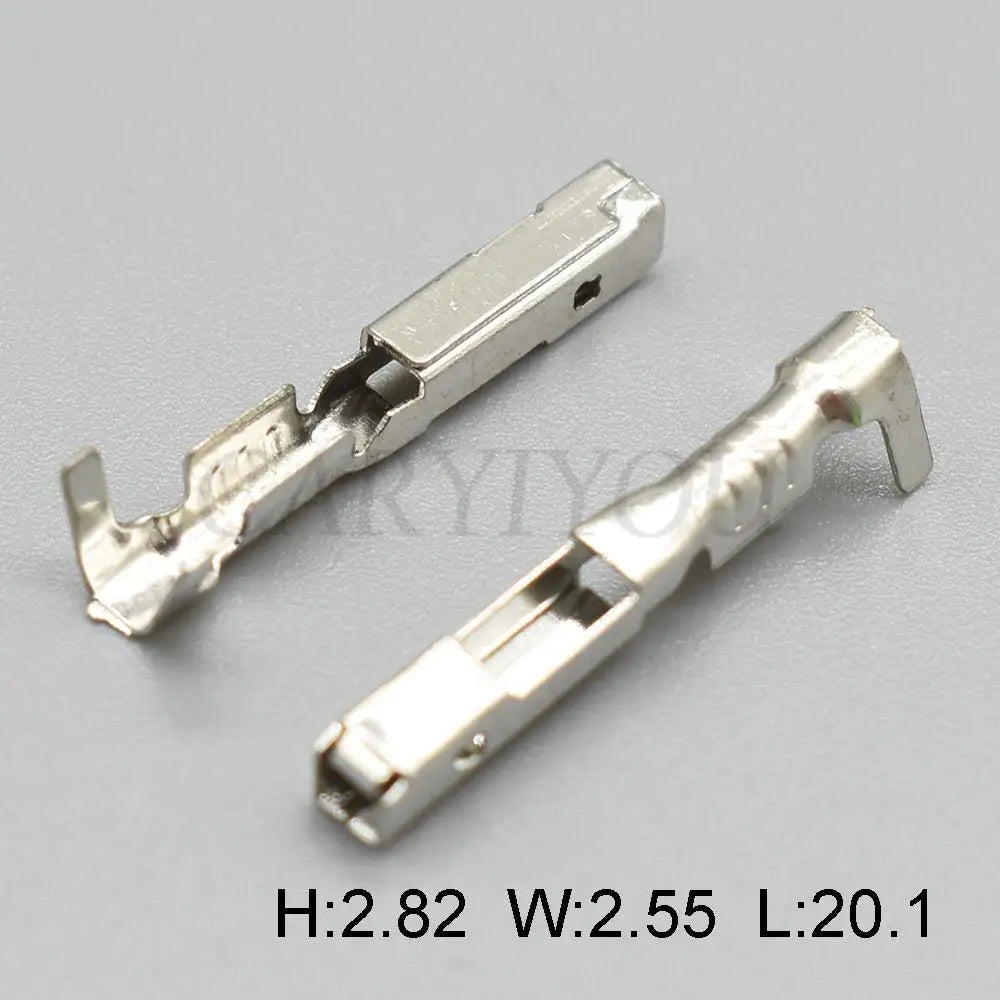

The DJ622-F1.5A is a 1.5mm pitch automotive crimp terminal pin compatible with AMP and Deutsch connector housings, cross-referenced as G334 and 7116-4103-02. These open-barrel crimp terminals are the consumable component of automotive wiring harness connectors — the metal contact that is crimped onto the wire and inserted into the plastic housing. Manufactured from tin-plated copper alloy for corrosion resistance and reliable low-resistance electrical contact across the full automotive temperature range.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | DJ622-F1.5A |
| Cross References | G334, 7116-4103-02 |
| Terminal Pitch | 1.5mm |
| Terminal Type | Female crimp pin (open-barrel) |
| Compatible Connectors | AMP / Deutsch 1.5mm series housings |
| Material | Tin-plated copper alloy |
| Wire Range | 0.3–1.0mm² (22–18 AWG) |
| Current Rating | Up to 7A |
| Operating Temperature | -40°C to +125°C |
| Compliance | RoHS |
| Origin | Mainland China |
Why Terminal Quality Matters
- Tin plating prevents oxidation — bare copper terminals oxidize rapidly in underhood environments; tin plating maintains low contact resistance over the connector’s service life
- Open-barrel design for reliable crimps — the open-barrel construction allows visual inspection of the wire insertion before crimping, ensuring all strands are captured
- Correct terminal pitch is critical — a 1.5mm terminal in a 2.8mm housing creates a loose, unreliable connection; always match terminal pitch to housing specification
- Bulk pack for workshop use — terminals are consumable; having a stock of the correct terminal eliminates delays during wiring harness repair
Typical Applications
- AMP / Deutsch 1.5mm connector housing terminal replacement
- Automotive wiring harness repair and fabrication
- Sensor and actuator connector terminal replacement
- Workshop and fleet maintenance terminal stock
Frequently Asked Questions
Q: What crimping tool do I need for 1.5mm terminals?
Use a ratchet-type automotive crimping tool with a jaw sized for 1.5mm open-barrel terminals. The PA-09 or equivalent ratchet crimper with interchangeable dies is the standard tool for 1.5mm and 2.8mm automotive terminals. Avoid using pliers — an improper crimp is the leading cause of terminal failure in automotive wiring repairs.
Q: How do I insert the terminal into the connector housing?
After crimping, insert the terminal into the housing cavity from the wire entry side until you hear/feel a click — this indicates the terminal locking tab has engaged. Use a terminal removal pick to depress the locking tab if you need to remove a terminal. Never force a terminal — if it doesn’t click in easily, check that the terminal is oriented correctly and the housing cavity is the right size for the terminal.
