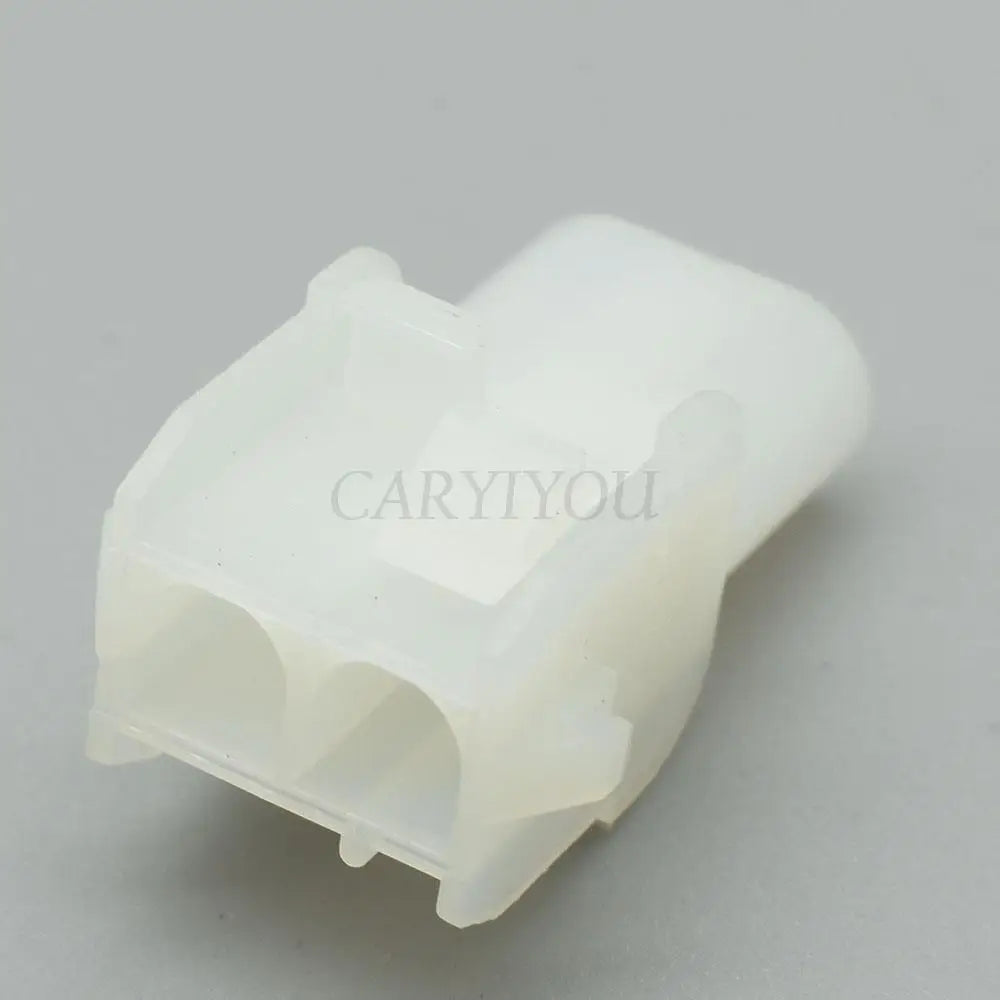

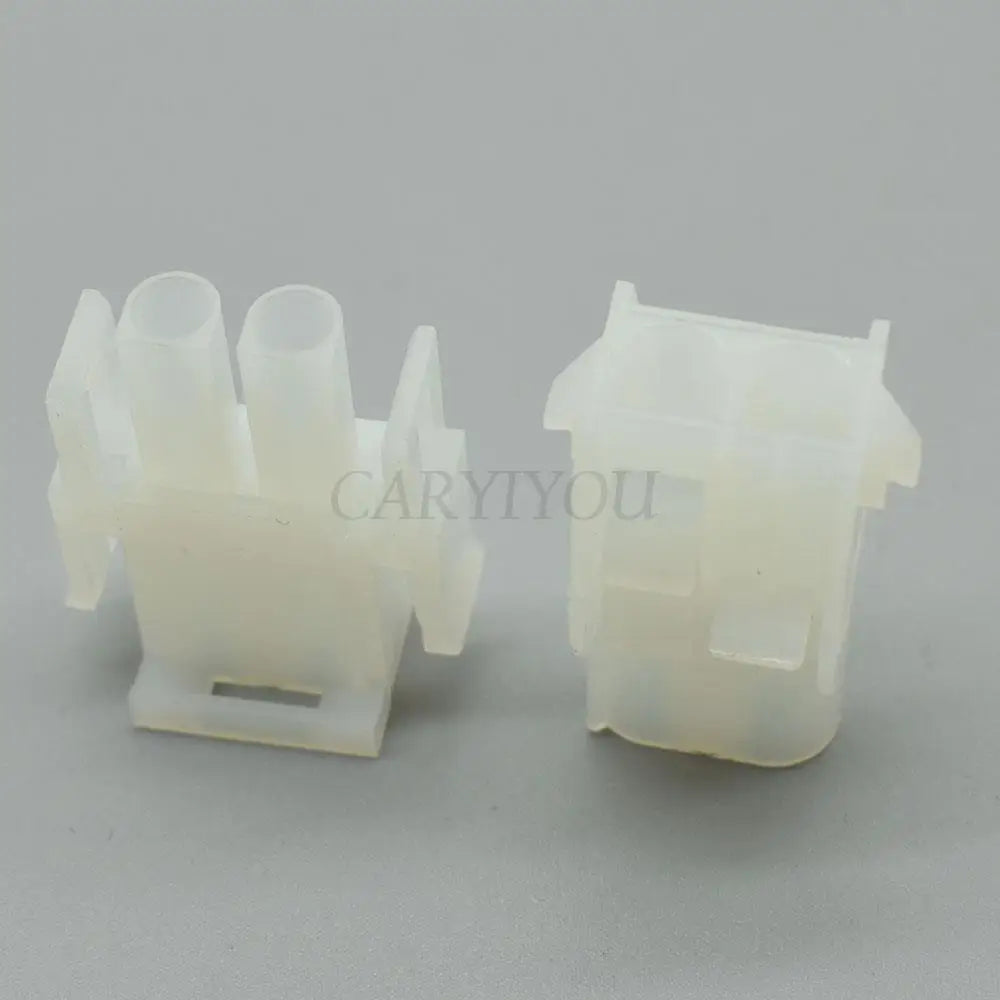

2-Pin 6.3mm Female Connector 63080 Automotive Wire Harness High-Current Plug Socket

$6.84 USD

Save Liquid error (snippets/price line 138): divided by 0% Sold out

Taxes included. Shipping calculated at checkout.

Color

Quantity

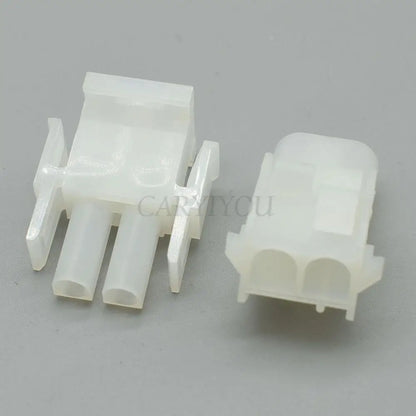

2-Pin 6.3mm Female Connector — 63080 | Automotive High-Current Wire Harness

Heavy-duty 2-pin 6.3mm pitch female connector for automotive high-current wiring harnesses. The 6.3mm terminal pitch supports up to 25A per pin, making this connector ideal for motor power feeds, relay outputs, solenoid circuits, and other high-current 2-wire automotive applications where standard sensor connectors are insufficient.

Specifications

Parameter	Value
Pin Count	2
Pitch	6.3 mm (high-current)
Part Number	63080
Housing Material	PA66 (Nylon 66)
Sealing	Non-sealed (protected routing)
Current Rating	Up to 25A per pin
Wire Gauge	0.5–6.0mm² (AWG 20–10)
Operating Temperature	-40°C to +105°C
Application	Motor power feed, relay output, solenoid, high-current 2-wire circuit
Certification	CE

Compatible Applications

Relay output wiring — horn relay, fuel pump relay, fan relay 2-wire power feeds
Motor power connectors — window motor, wiper motor, actuator 2-wire feeds
Solenoid wiring — transmission solenoid, HVAC actuator high-current circuits
Fuse box sub-harness — high-current 2-wire distribution connections
Aftermarket accessory wiring — winch, compressor, light bar 2-pin power connectors

Why Choose This Connector?

✅ 6.3mm pitch — supports up to 25A per pin for high-current 2-wire circuits
✅ Accepts up to 6.0mm² wire — suitable for motor and relay power feeds
✅ PA66 housing — heat-resistant for underhood high-current applications
✅ Compact 2-pin design — minimal footprint for tight mounting locations
✅ CE certified — meets EU automotive electrical standards

Comparison: 2-Pin High-Current Connector Pitches

Pitch	Max Current/Pin	Wire Gauge	Typical Use
3.5mm	~10A	0.5–1.5mm²	Actuators, sensors
6.3mm (this)	~25A	0.5–6.0mm²	Motors, relays, solenoids
7.8mm	~30A	1.0–6.0mm²	High-current power distribution

Application Scenarios

Horn relay output 2-pin connector in custom engine bay wiring
Fuel pump relay power feed connector in aftermarket EFI system
Window motor 2-pin power connector replacement during door panel repair
Winch or compressor 2-pin power connector on off-road vehicle custom wiring

FAQ

Q: What is the maximum current rating for this connector?
A: The 6.3mm terminal series supports up to approximately 25A per pin, making it suitable for motor power feeds, relay outputs, and solenoid circuits.

Q: Is this connector waterproof?
A: No. The 63080 is a non-sealed connector designed for protected routing (engine bay brackets, fuse box areas). For exposed underbody or exterior use, a sealed high-current connector is recommended.

Q: Are terminals included?

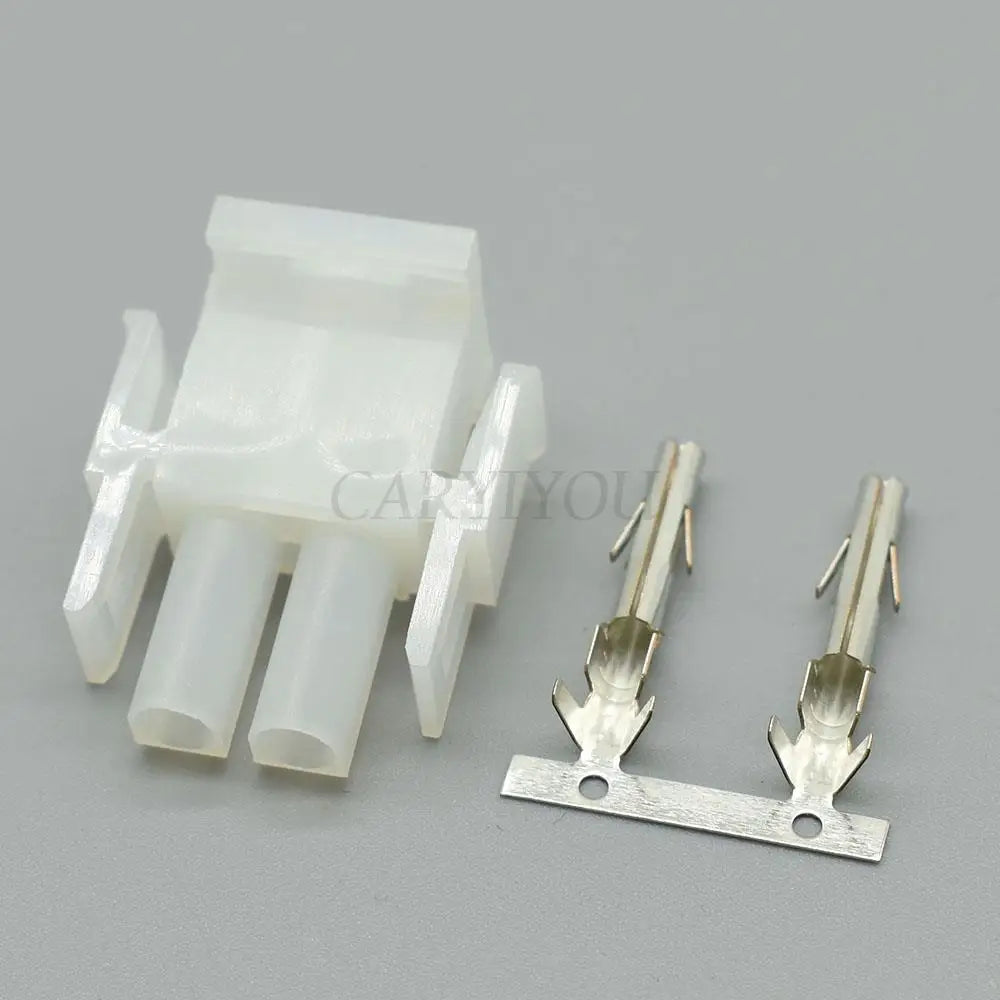

A: No. This listing is for the connector housing only. 6.3mm female crimp terminals are sold separately.
