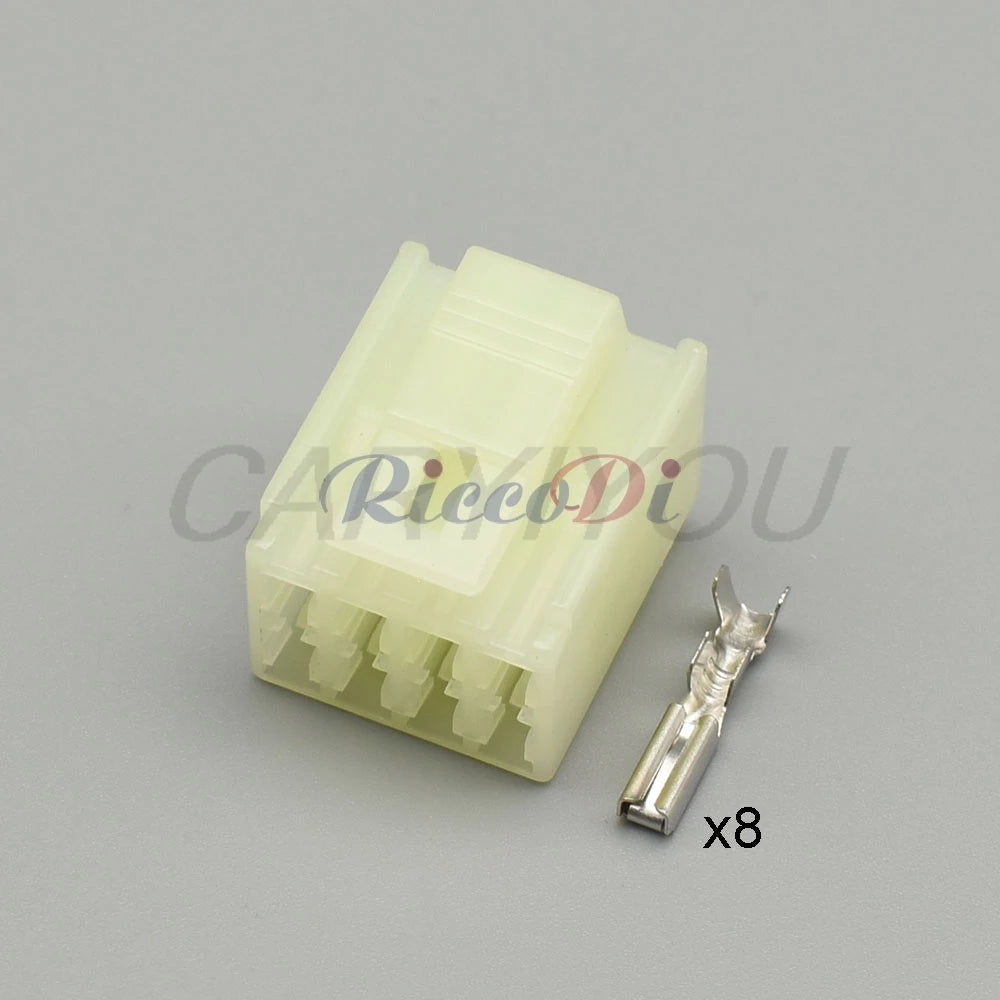

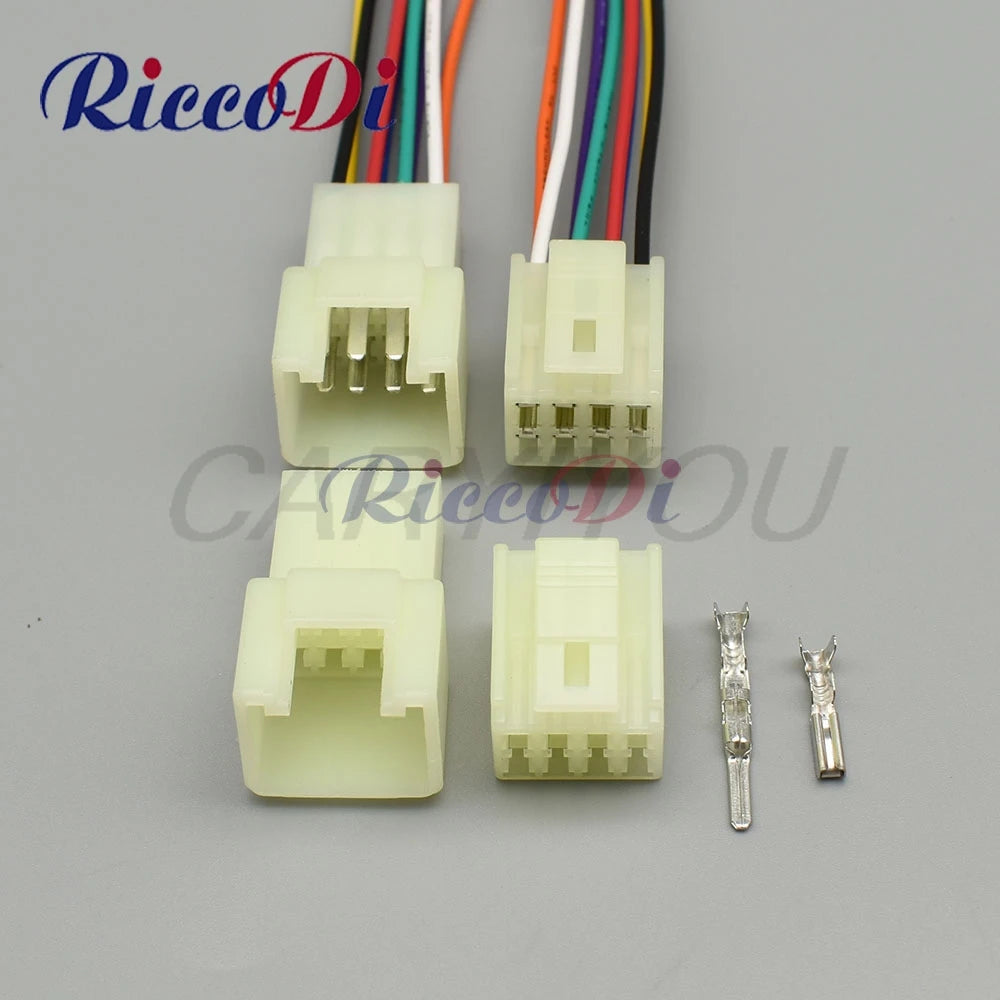

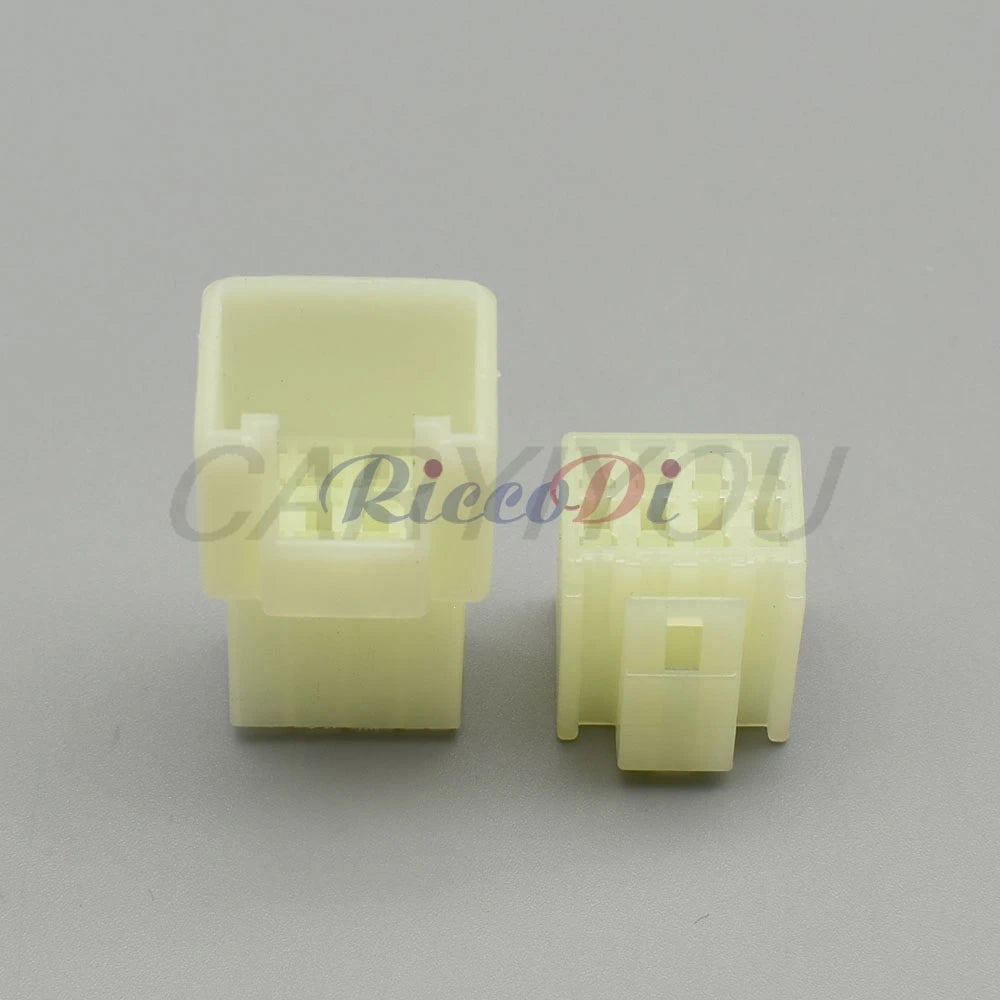

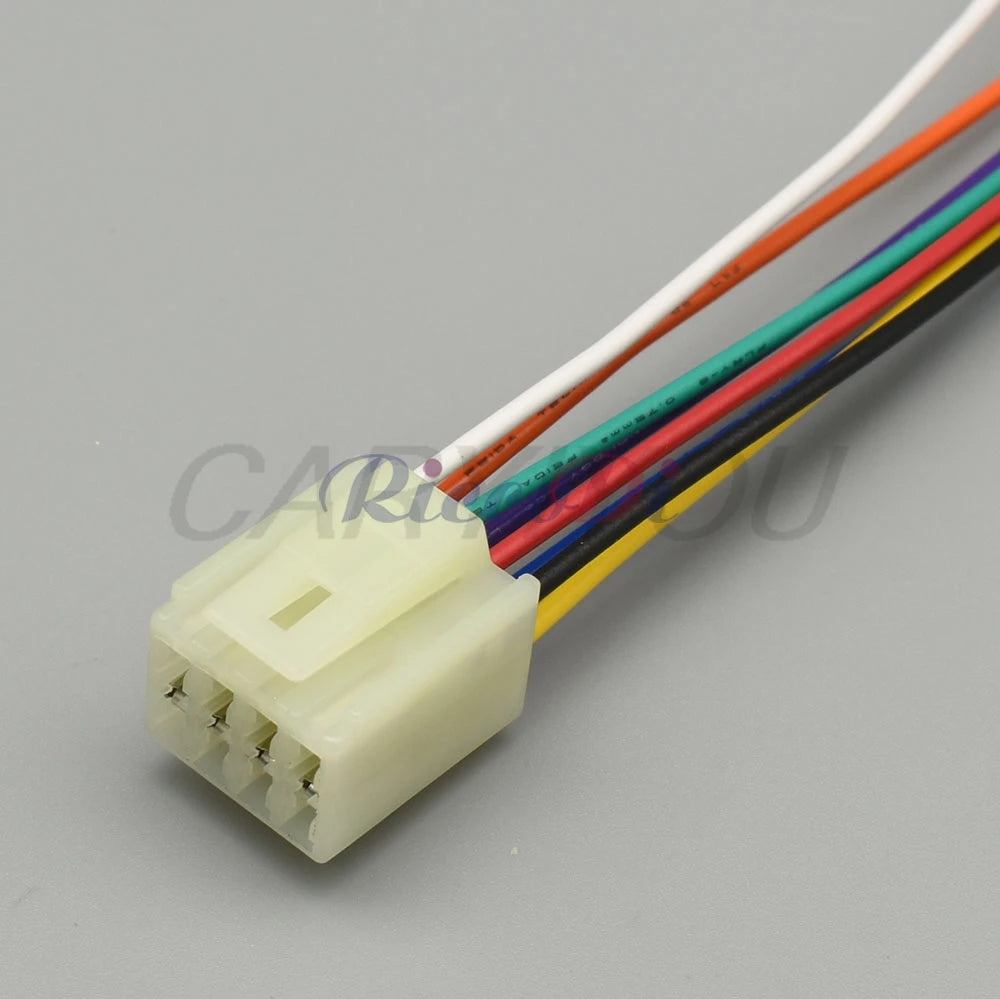

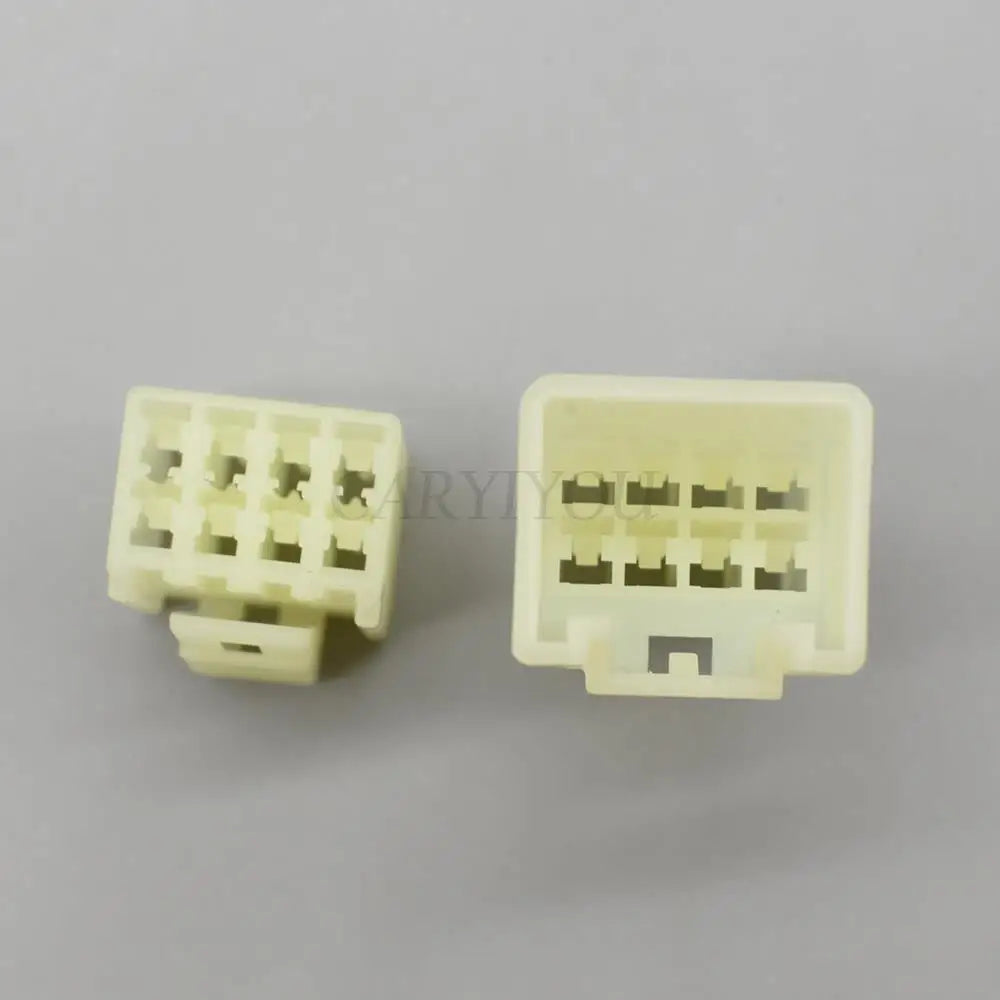

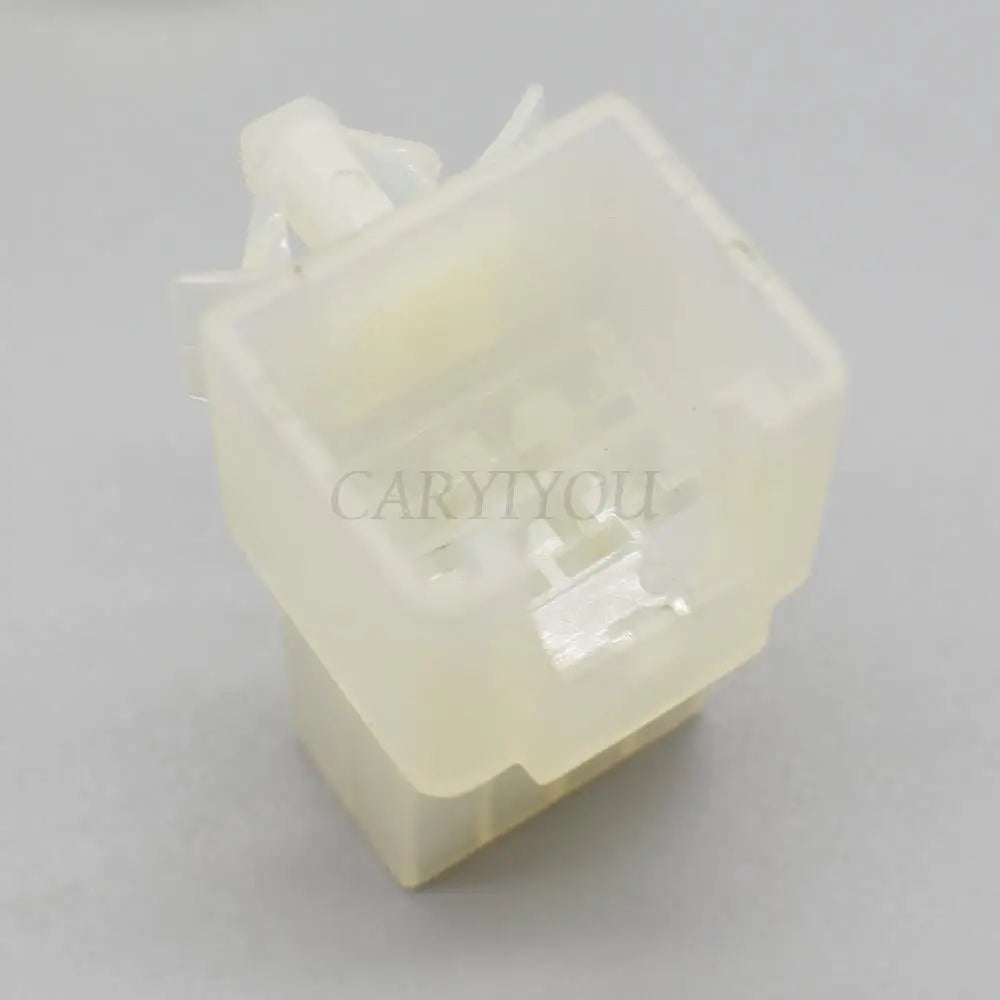

DJ7085-2.3-11 / 6090-1021 / 6090-1051 Sumitomo HM Series 8-Pin 2.3mm Automotive Connector — Female Male Wire Plug
DJ7085-2.3-11 / 6090-1021 / 6090-1051 Sumitomo HM Series 8-Pin 2.3mm Automotive Connector Female Male Wire Plug
Couldn't load pickup availability
DJ7085-2.3-11 / 6090-1021 / 6090-1051 Sumitomo HM Series 8-Pin 2.3mm Automotive Connector — Female Male Wire Plug
The Sumitomo HM (High-density Miniature) Series is a purpose-designed automotive connector system for high-density wiring harness applications where compact form factor and reliable contact retention are critical. The DJ7085-2.3-11 / 6090-1021 / 6090-1051 8-pin 2.3mm Sumitomo HM Series connector is an OEM-specification wiring harness plug used across a wide range of automotive sensor, actuator, and body electronics circuit applications on Japanese and Asian vehicle platforms.
Built from PA66 glass-filled nylon with tin-plated copper alloy contacts, this Sumitomo HM Series connector delivers the dimensional accuracy, contact retention force, and thermal stability required for reliable long-term performance in automotive wiring harness applications. The -11 (male plug) suffix and 6090-1021 / 6090-1051 (female socket) part numbers allow precise selection of the correct mating half for your harness repair or fabrication project.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Numbers | DJ7085-2.3-11 (male) / 6090-1021 / 6090-1051 (female) |
| Series | Sumitomo HM (High-density Miniature) |
| Pin Count | 8 pins |
| Pitch | 2.3mm |
| Housing Material | PA66 glass-filled nylon |
| Contact Material | Tin-plated copper alloy |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ Sumitomo HM Series 2.3mm pitch 8-pin connector — OEM-grade dimensional match for Sumitomo HM harness positions on Japanese and Asian vehicle platforms

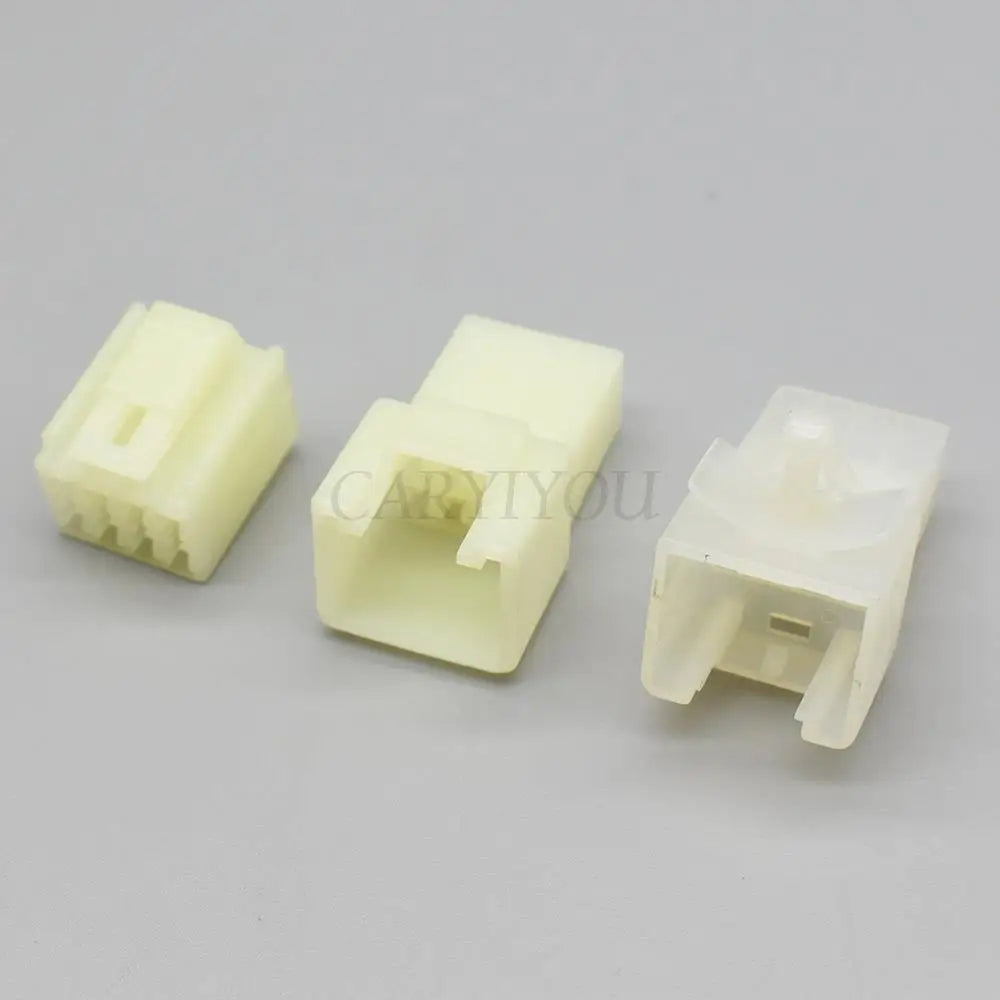

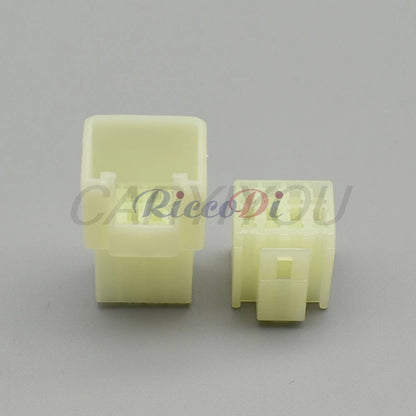

- ✅ Multi-part number coverage — DJ7085-2.3-11 / 6090-1021 / 6090-1051 cover male plug and female socket positions for complete connector assembly
- ✅ PA66 glass-filled nylon housing — high-temperature rated, resistant to engine oil, coolant, and automotive cleaning solvents
- ✅ Tin-plated copper alloy contacts — low contact resistance for reliable sensor and actuator signal transmission; resists oxidation in engine bay environments

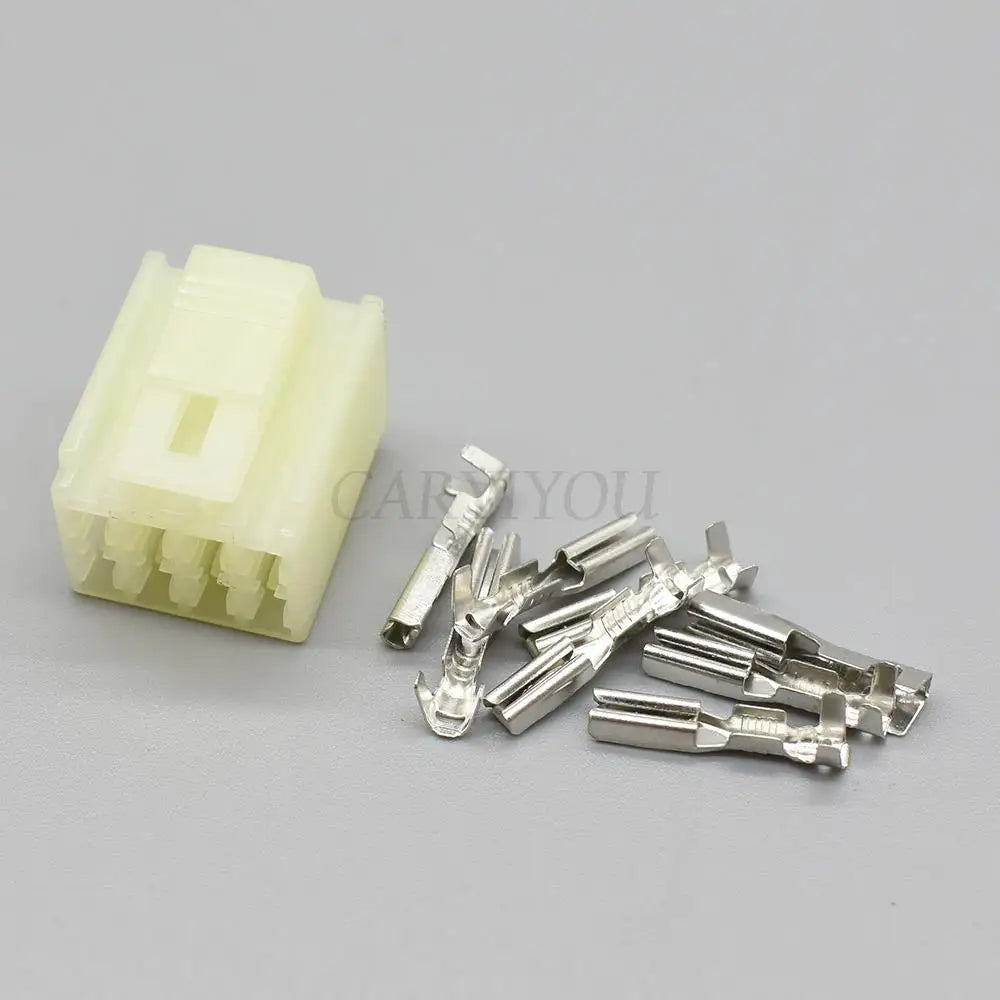

- ✅ Positive locking latch — audible click confirms full engagement; prevents accidental disconnection from vibration
- ✅ CE certified — meets European automotive electrical component standards
Common Applications
- Sumitomo HM Series wiring harness connector repair on Japanese vehicle platforms
- Automotive sensor and actuator wiring harness connector replacement
- Body control module and powertrain sensor harness repair for Toyota, Honda, Nissan, Mazda, and Mitsubishi

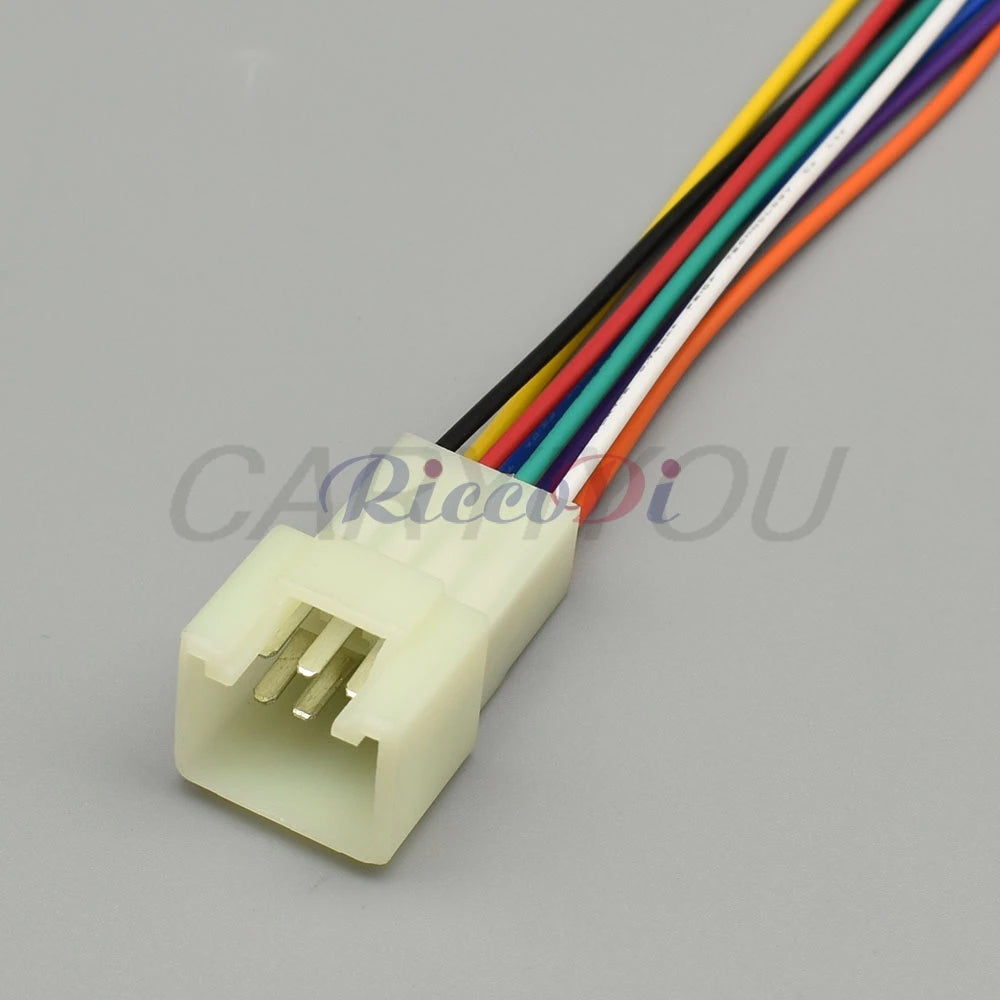

- Custom wiring harness fabrication using Sumitomo HM 2.3mm pitch connectors
FAQ
Q: Are terminals included?
A: Terminal availability depends on the variant selected. Complete kits including Sumitomo HM-series crimp terminals are available — check the product options before ordering.
Q: What wire gauge is compatible?
A: Compatible with 0.5–1.25mm² (AWG 20–18) automotive wire, consistent with Sumitomo HM 2.3mm pitch sensor and signal circuit wire gauges.
Package Contents

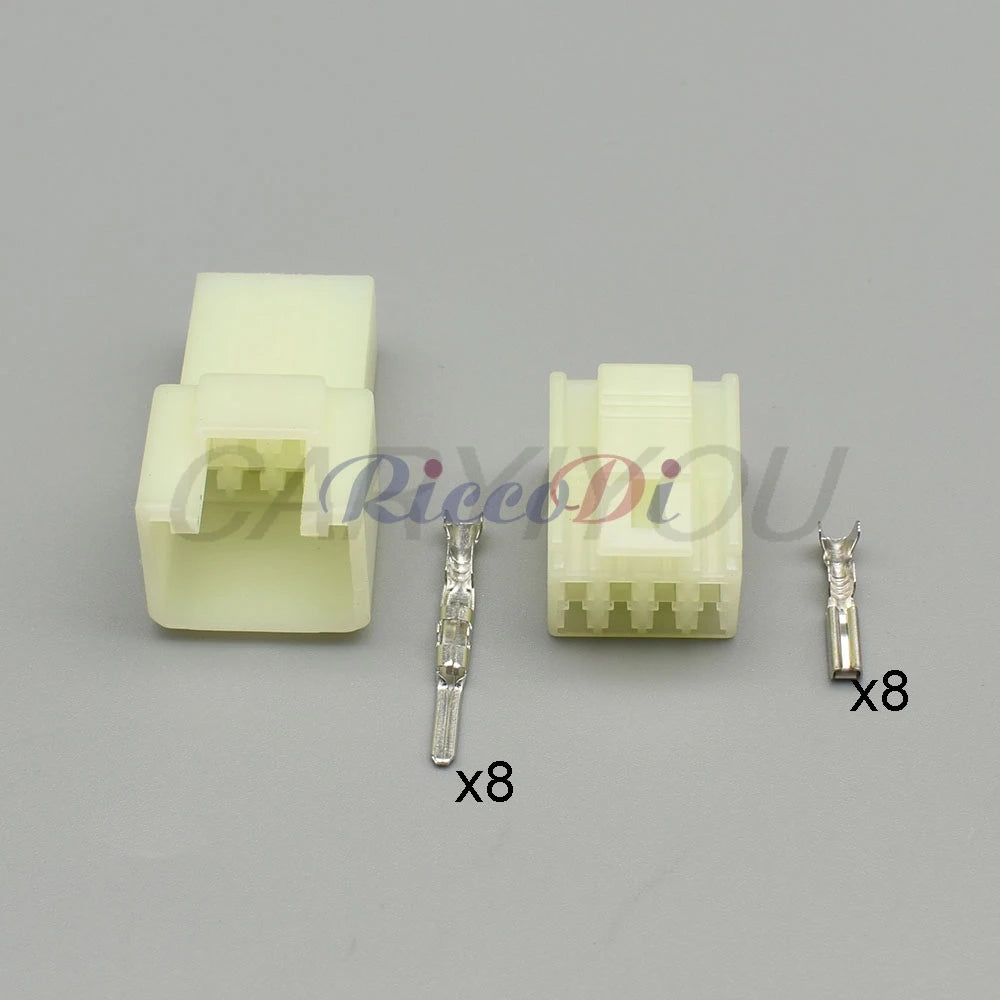

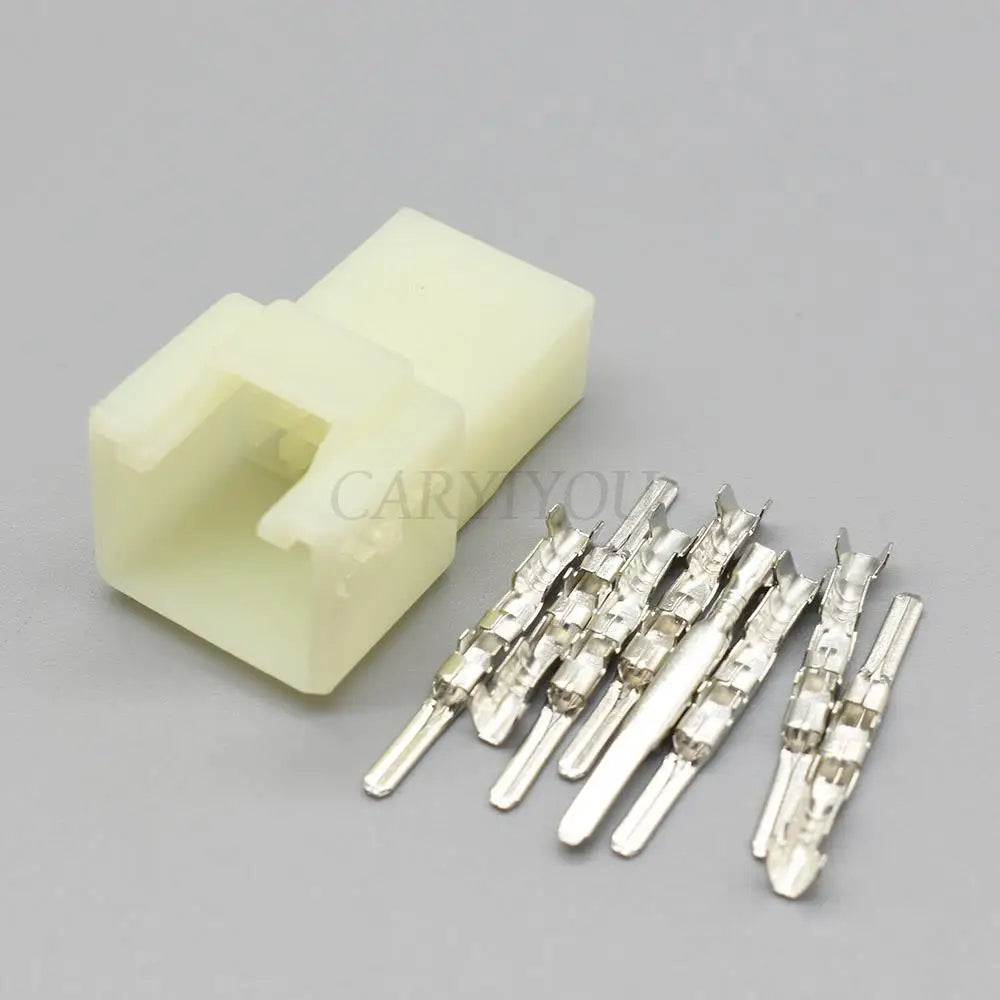

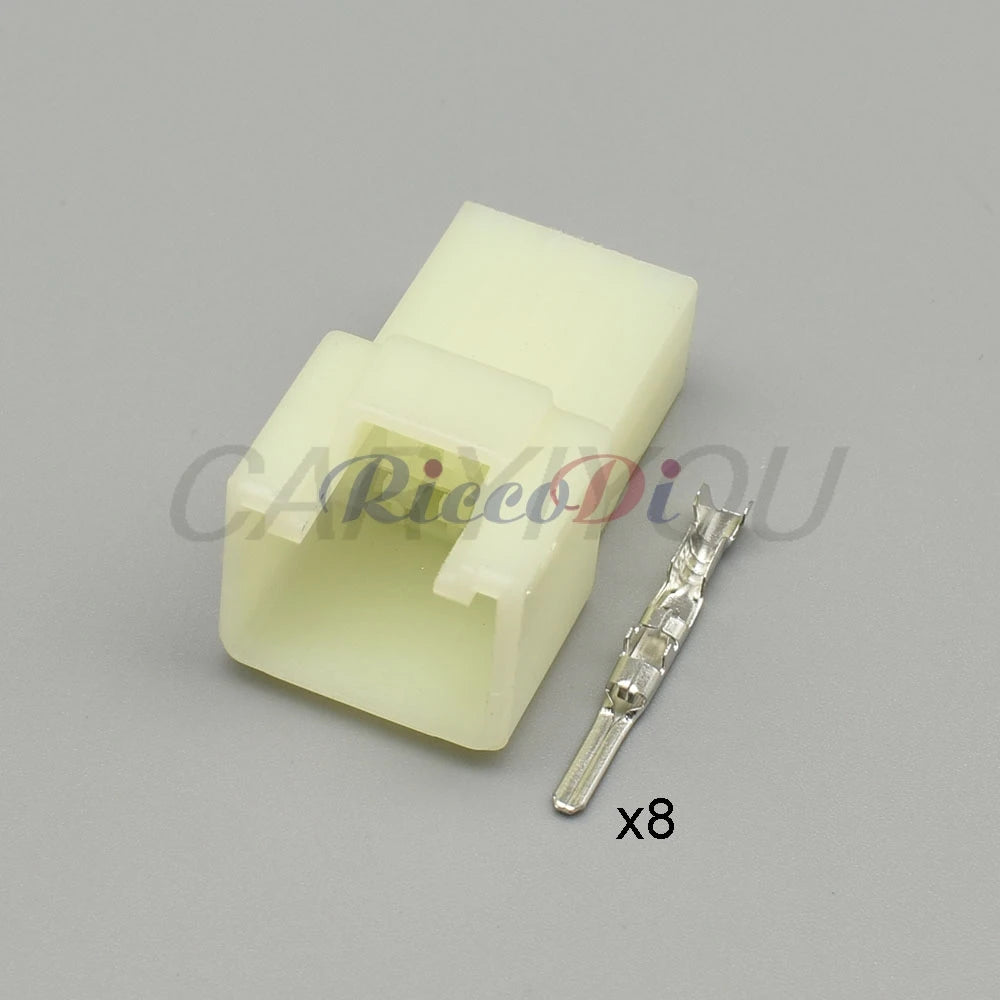

- 1× DJ7085-2.3-11 / 6090-1021 / 6090-1051 Sumitomo HM 8-Pin 2.3mm Automotive Connector (male or female as selected)

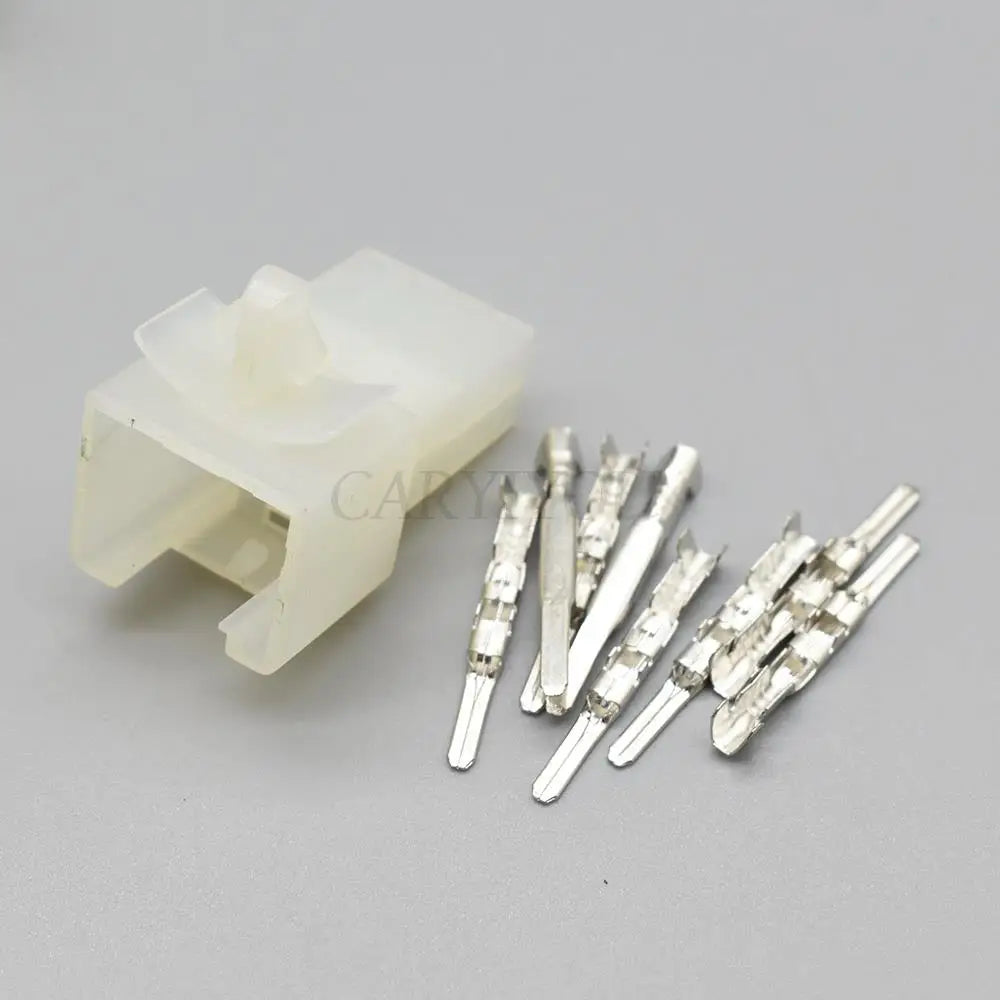

- Crimp terminals included in complete kit variants
