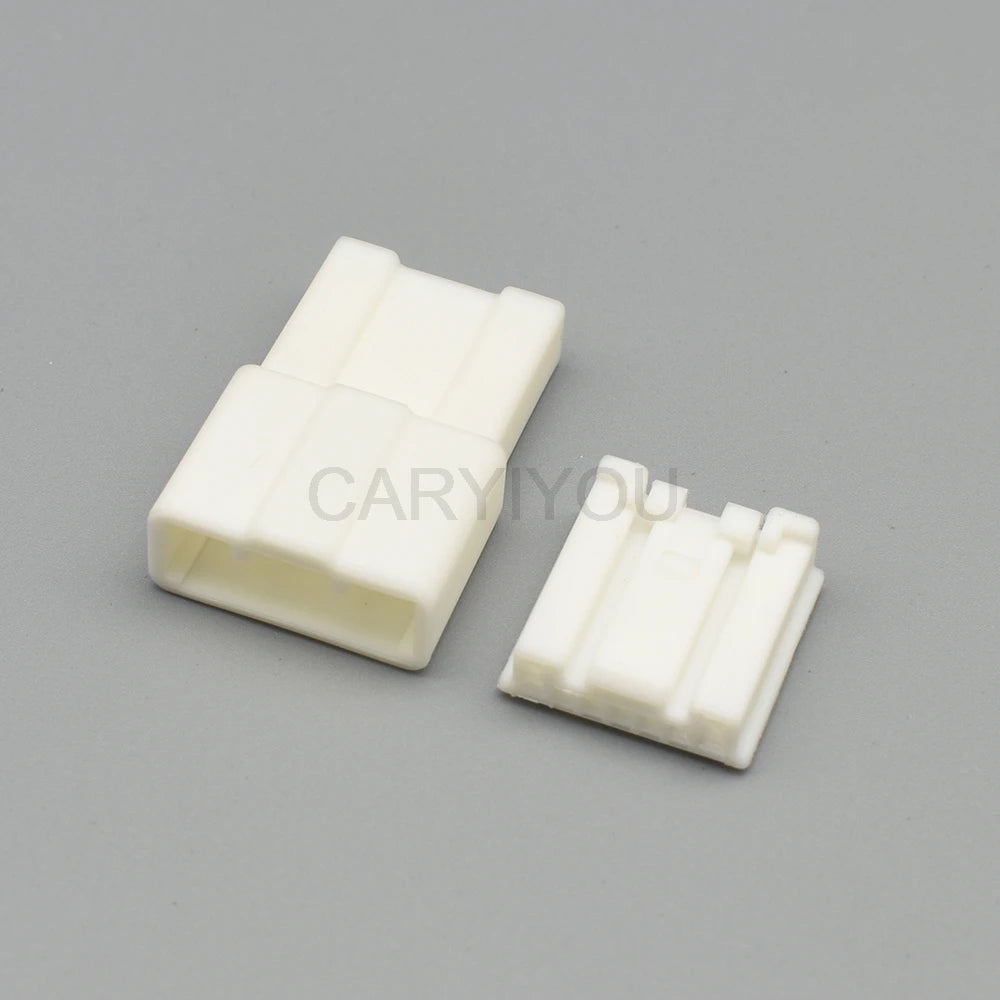

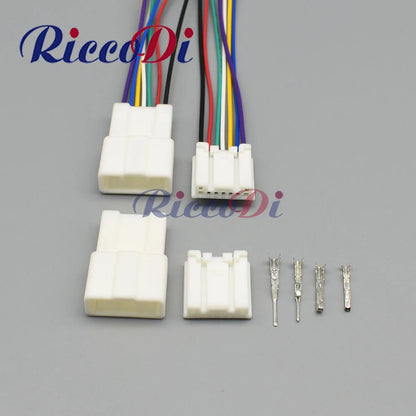

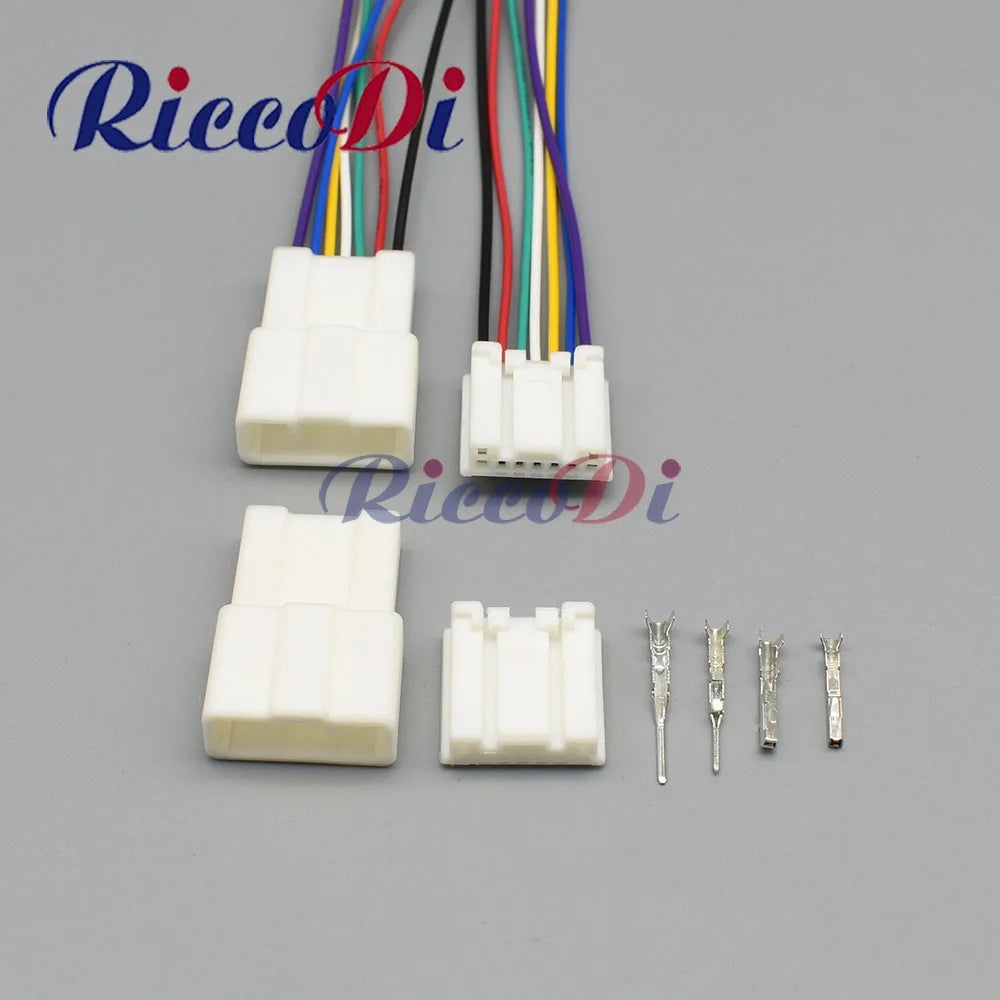

Automotive 7-Pin 0.6/1.2 Series Composite Connector — Toyota Central Control Latch Plug Male Female Docking Socket
Toyota's composite connector series combines multiple pitch contacts in a single housing — a design approach used in central control unit and body electronics wiring harness applications where both fine-pitch signal circuits and larger-pitch power circuits must be consolidated into one compact connector body. This 7-pin 0.6/1.2 series composite automotive connector is the OEM-specification docking socket for Toyota central control latch and body electronics wiring harness applications, providing a direct-fit replacement for the factory composite connector used in Toyota central control module circuits.
Built from PA66 glass-filled nylon with tin-plated copper alloy contacts in both 0.6mm and 1.2mm pitch positions, this connector delivers reliable electrical continuity for mixed signal and power circuits in Toyota central control and body electronics wiring harness applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Pin Count | 7 pins |
| Pitch | 0.6mm / 1.2mm composite |
| Connector Type | Composite automotive docking connector |
| Primary Application | Toyota central control latch, body electronics wiring harness |
| Housing Material | PA66 glass-filled nylon |
| Contact Material | Tin-plated copper alloy |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ 0.6/1.2mm composite pitch design — combines fine-pitch signal contacts and standard-pitch power contacts in a single 7-pin housing for Toyota central control wiring harness applications
- ✅ OEM-specification dimensional match — direct-fit replacement for Toyota central control latch and body electronics composite connector positions

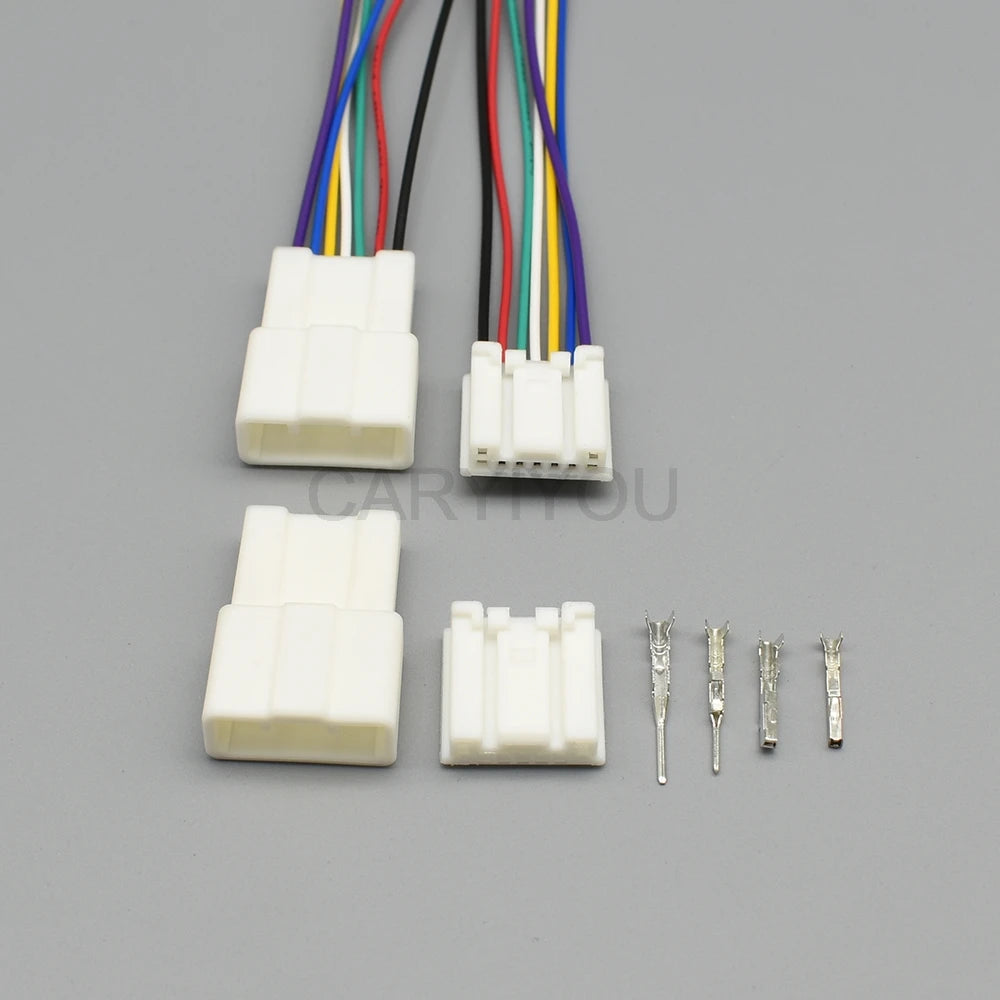

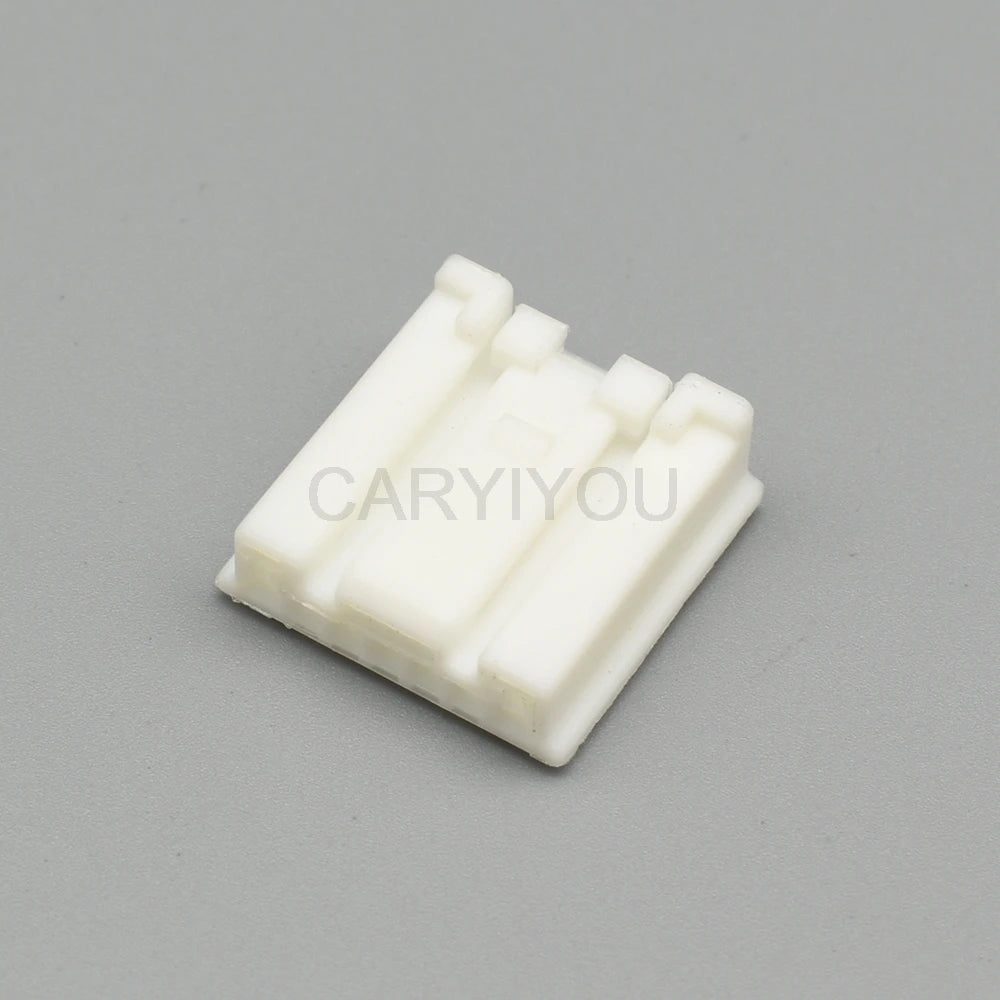

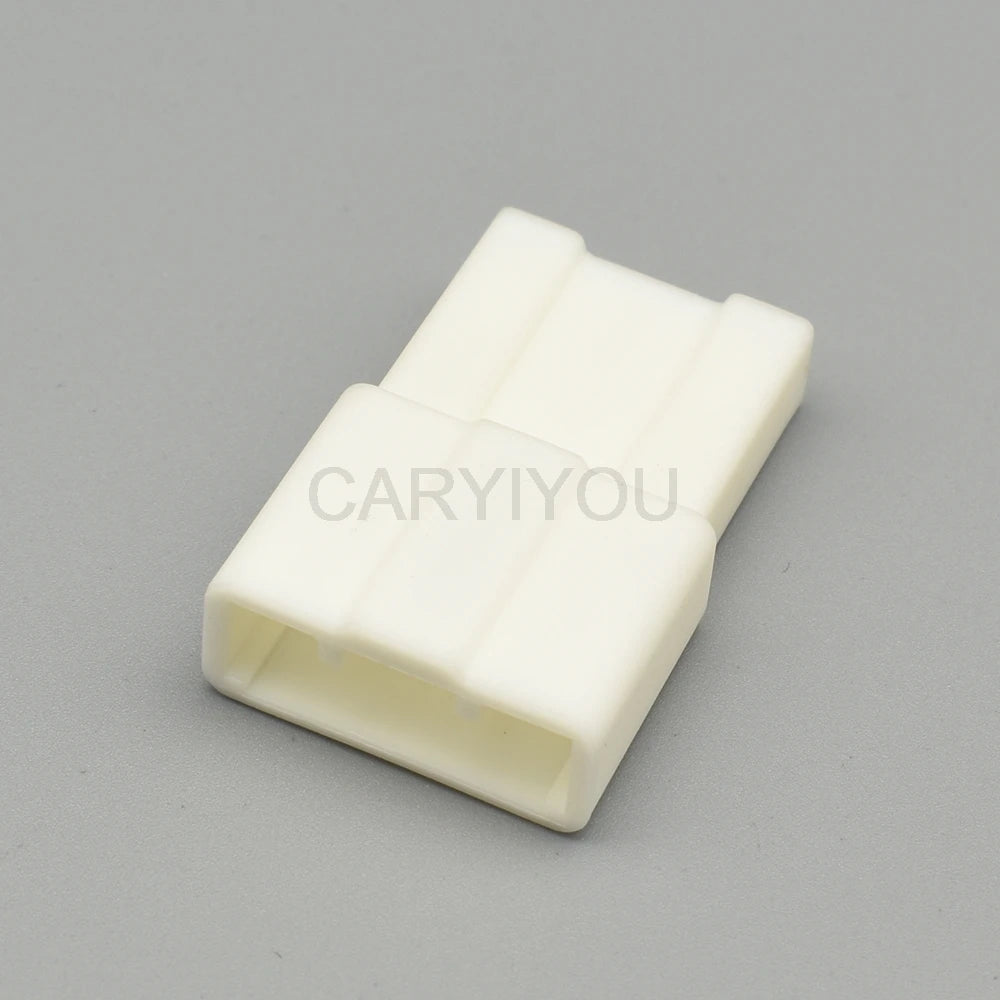

- ✅ Male and female docking halves available — select the correct gender for your harness repair or fabrication project
- ✅ PA66 glass-filled nylon housing — dimensionally stable under thermal cycling; resistant to automotive fluids and cleaning chemicals
- ✅ Tin-plated copper alloy contacts — low contact resistance for reliable mixed signal and power circuit transmission
- ✅ CE certified — meets European automotive electrical component standards
Common Applications

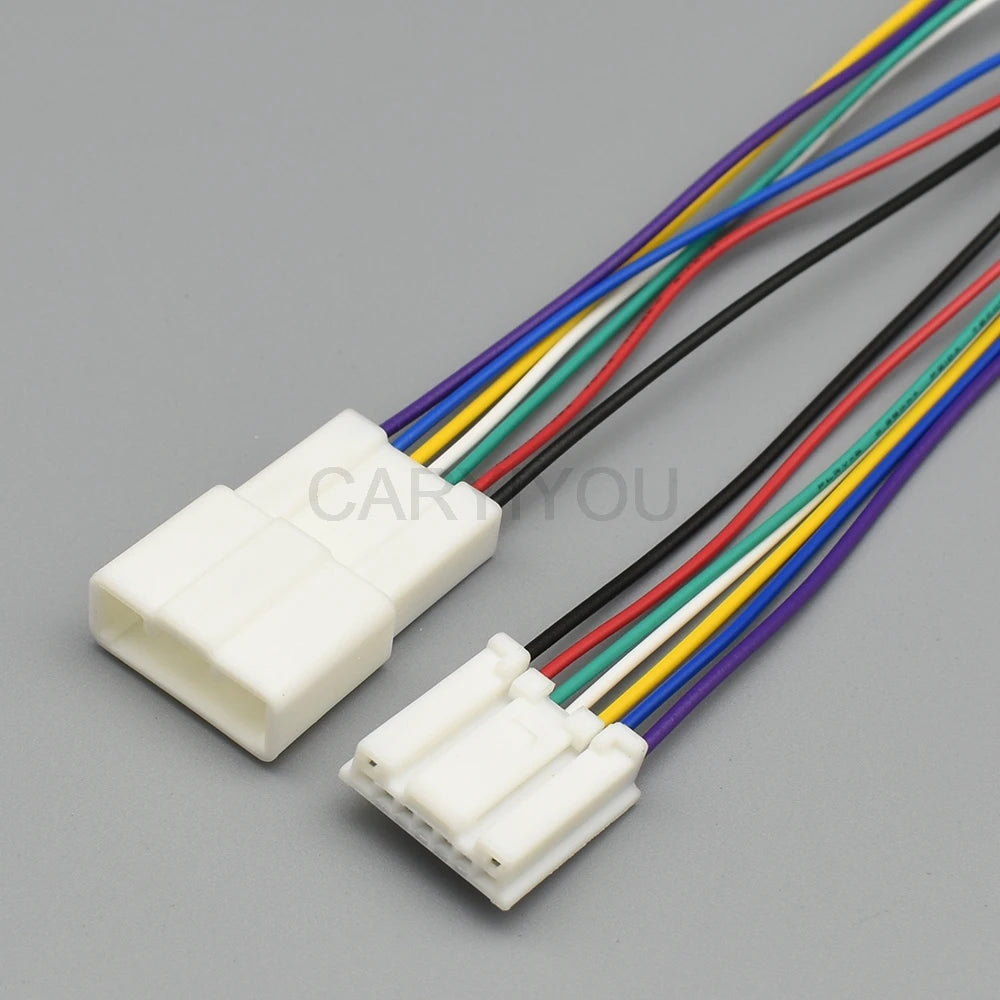

- Toyota central control unit and body electronics wiring harness composite connector repair
- Toyota central control latch plug replacement across Camry, Corolla, RAV4, and related platforms
- Custom Toyota body electronics wiring harness fabrication using composite pitch connectors
FAQ
Q: Are terminals included?
A: Terminal availability depends on the variant selected. Complete kits including OEM-specification 0.6mm and 1.2mm crimp terminals are available — check the product options before ordering.
Package Contents

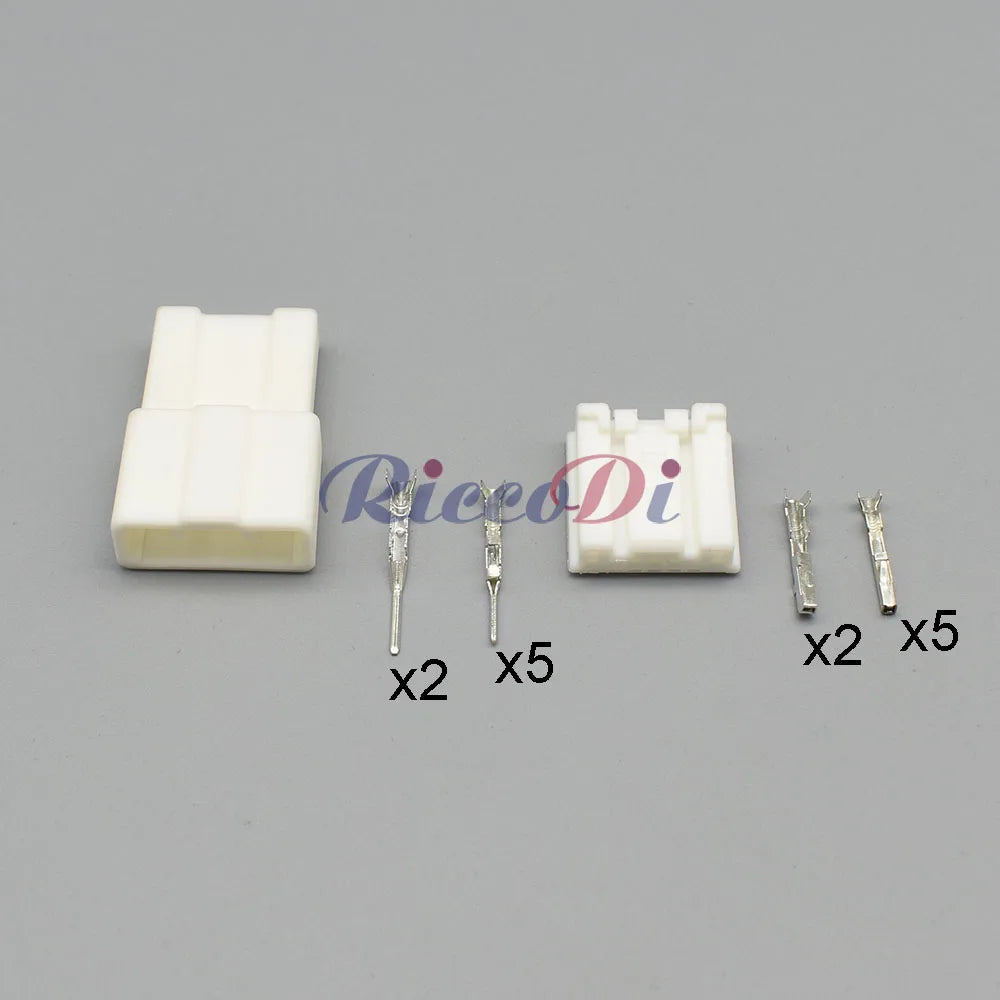

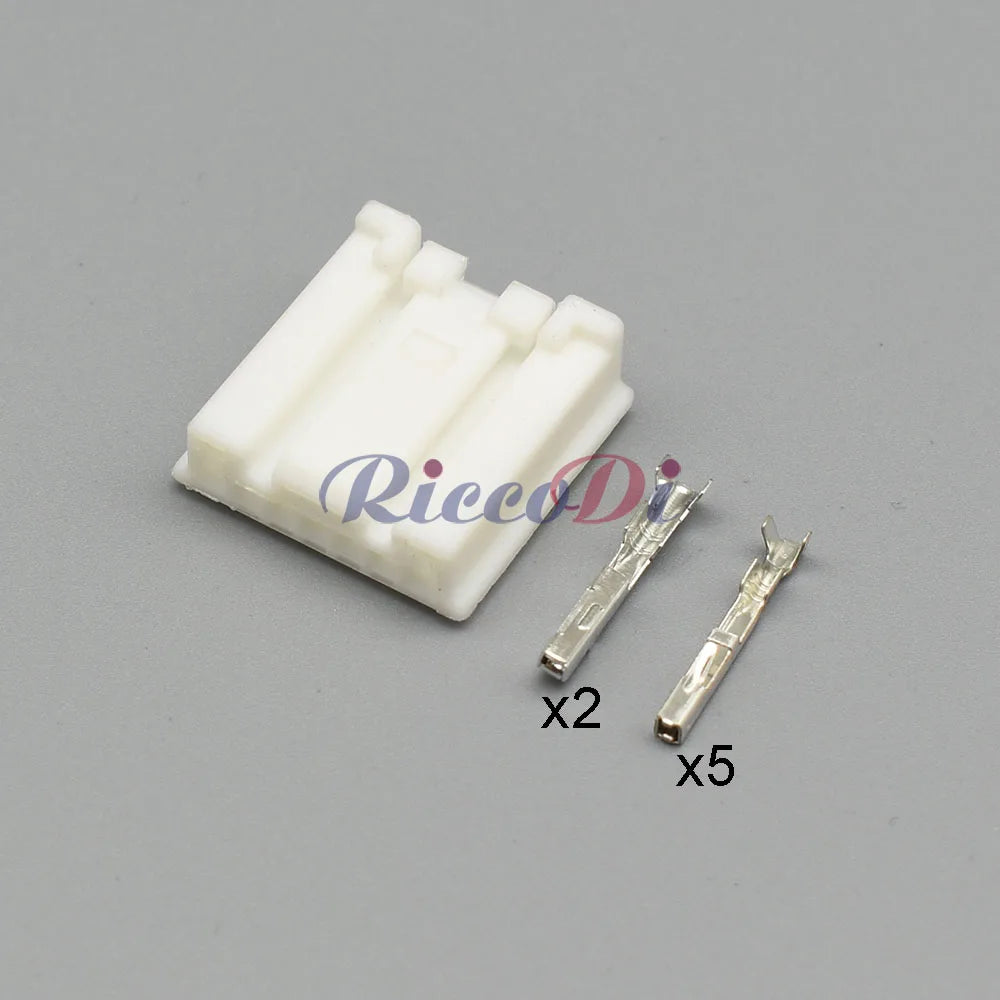

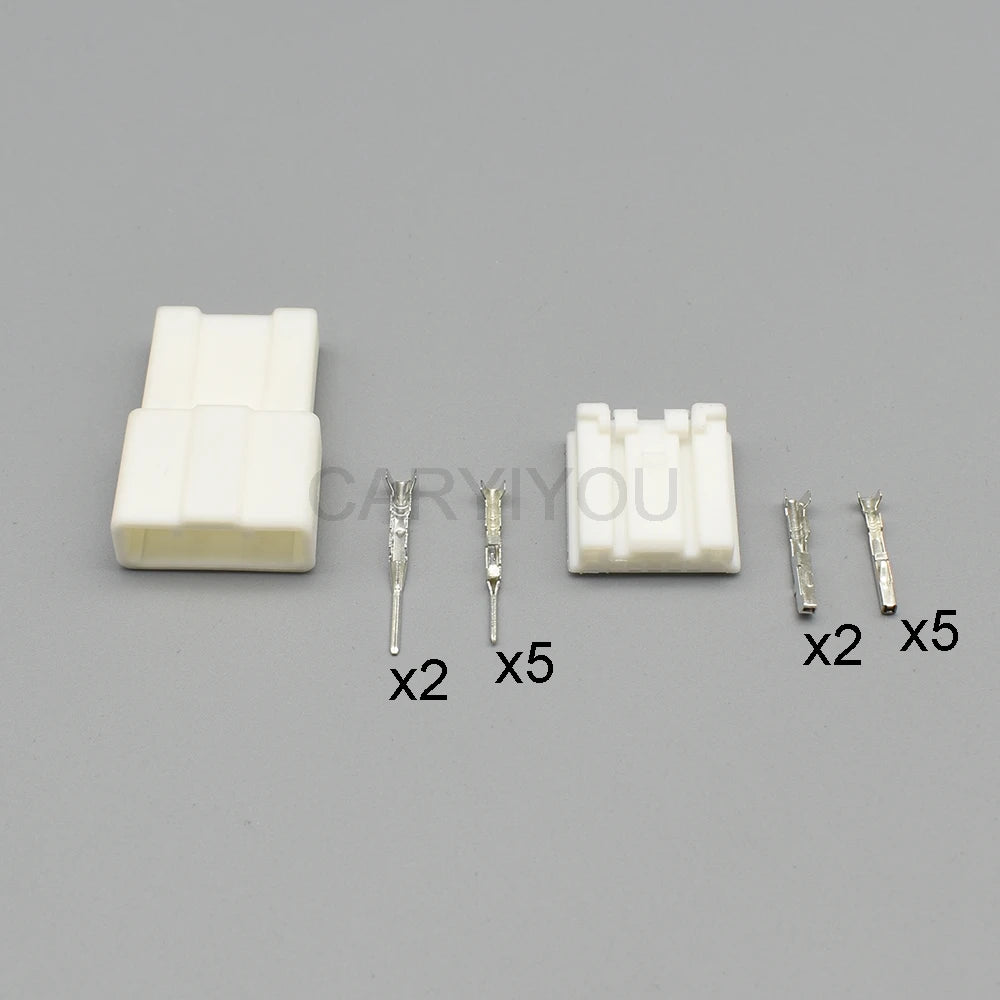

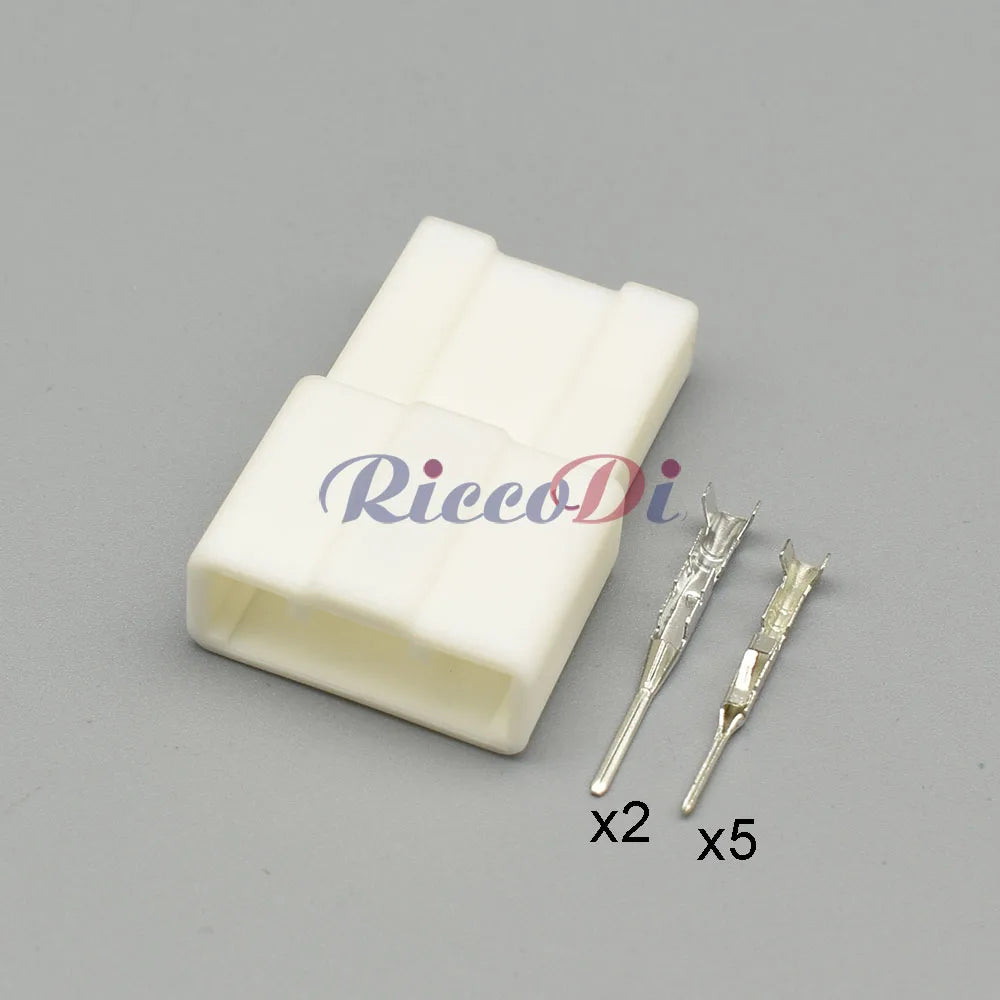

- 1× 7-Pin 0.6/1.2 Series Composite Automotive Connector for Toyota Central Control (male plug or female socket as selected)
- Crimp terminals included in complete kit variants
