M23S05K351 Automotive 1.0mm Splice Terminal for MX23A34SF1 / MX23A ECU Connector — 50PCS

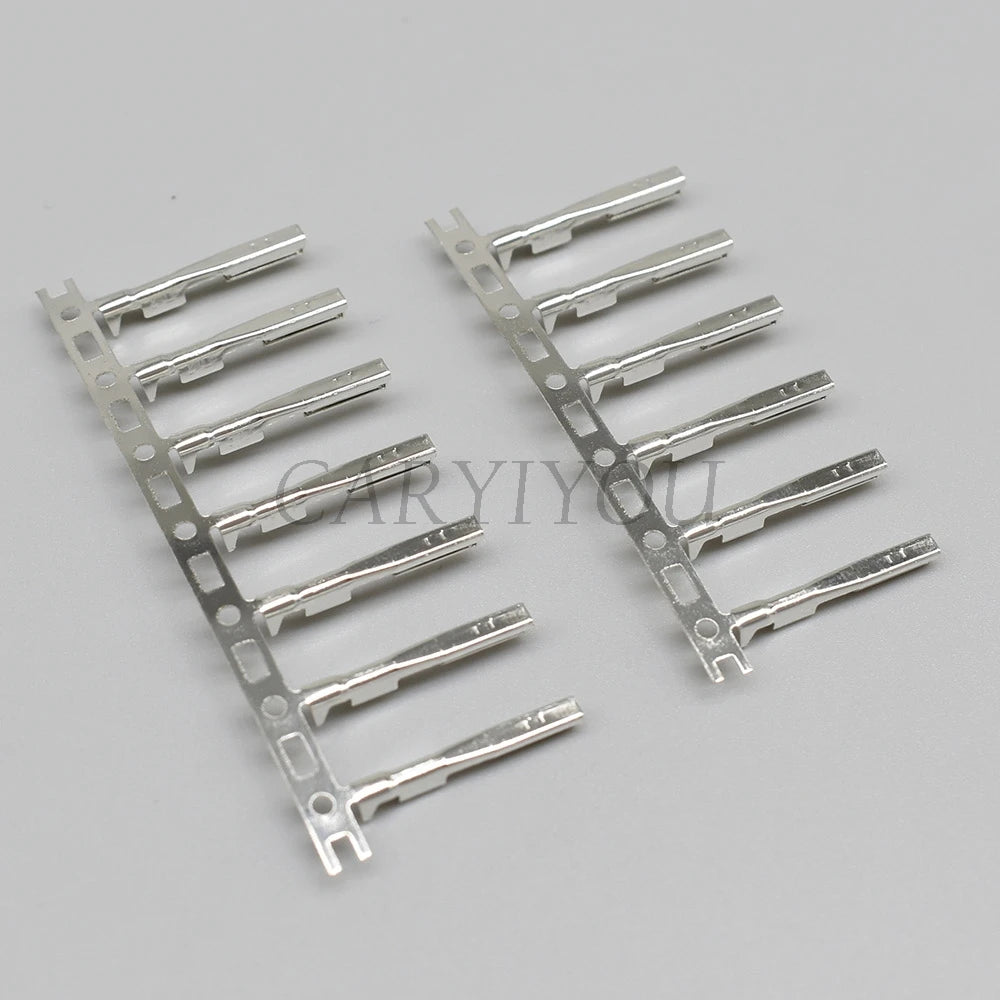

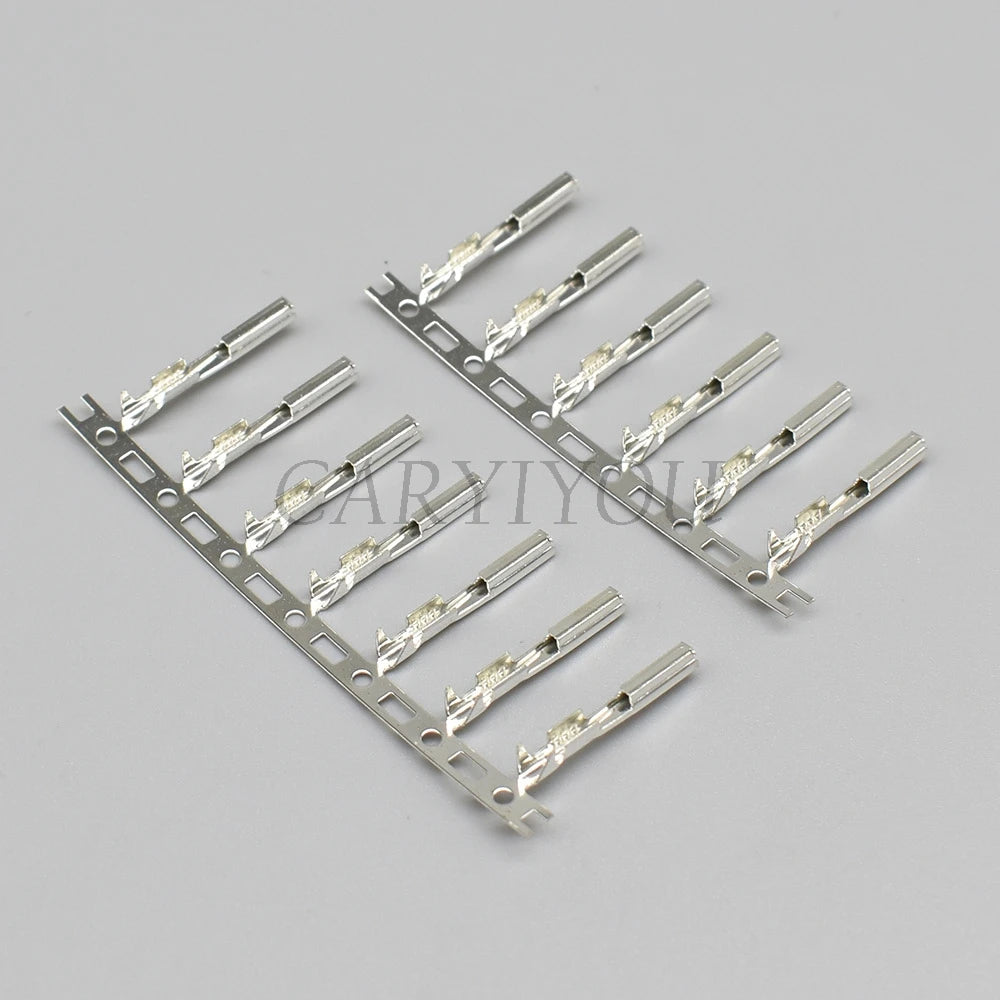

M23S05K351 Automotive 1.0mm Splice Terminal for MX23A34SF1 / MX23A ECU Connector 50PCS
Couldn't load pickup availability
M23S05K351 Automotive 1.0mm Splice Terminal for MX23A34SF1 / MX23A Series ECU Connector
OEM-specification 1.0mm series splice crimp terminal (M23S05K351) designed as a direct replacement contact for JAE MX23A series ECU connector housings, including MX23A34SF1, MX23A26SF1, MX23A40SF1, and related variants. These precision-stamped terminals deliver reliable electrical contact with low insertion force, consistent crimp retention, and corrosion resistance for high-density ECU and automotive control module wiring harness applications. Supplied in a 50PCS pack for ECU connector re-termination, harness repair, and custom fabrication.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | M23S05K351 |
| Compatible Connectors | JAE MX23A series (MX23A34SF1, MX23A26SF1, MX23A40SF1, etc.) |
| Terminal Pitch | 1.0mm series |
| Type | Splice crimp terminal (loose contact) |
| Material | Copper alloy, tin-plated |
| Wire Range | 0.13–0.35mm² (AWG 26–22) |
| Pack Quantity | 50PCS |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ JAE MX23A series compatible — direct replacement terminal for MX23A34SF1, MX23A26SF1, MX23A40SF1 and related ECU connector housings
- ✅ 1.0mm pitch — ultra-fine pitch terminal for high-density ECU and automotive control module connectors
- ✅ Tin-plated copper alloy — low contact resistance, corrosion-resistant, reliable long-term performance
- ✅ CE certified — meets European automotive electrical component standards
- ✅ 50PCS pack — sufficient for multiple ECU connector re-termination and harness repair jobs
Common Applications
- JAE MX23A series ECU connector terminal replacement and re-termination
- Automotive ECU wiring harness repair (engine management, BCM, TCM)
- New Energy Vehicle (NEV/EV) control module connector repair
- Custom high-density automotive wiring harness fabrication
- OEM and aftermarket ECU connector assembly
Crimping Guide
- Strip 3–4mm of insulation from the wire end.
- Insert the wire into the terminal crimp barrel under a microscope or magnification if needed (1.0mm pitch terminals are very fine).
- Crimp using a precision ratchet crimping tool with the appropriate 1.0mm MX23A series die.
- Inspect the crimp under magnification to verify correct wire barrel and insulation barrel engagement.
- Insert the crimped terminal into the MX23A connector housing until it clicks into the retention position.
FAQ
Q: What wire gauge is compatible?
A: M23S05K351 terminals are designed for 0.13–0.35mm² (AWG 26–22) wire, typical for automotive ECU signal circuits.
Q: Which MX23A housings are compatible?
A: Compatible with JAE MX23A series housings including MX23A34SF1 (34-pin), MX23A26SF1 (26-pin), MX23A40SF1 (40-pin), MX23A18SF1 (18-pin), and related variants.
Package Contents
- 50× M23S05K351 1.0mm Splice Crimp Terminal for JAE MX23A Series ECU Connector
